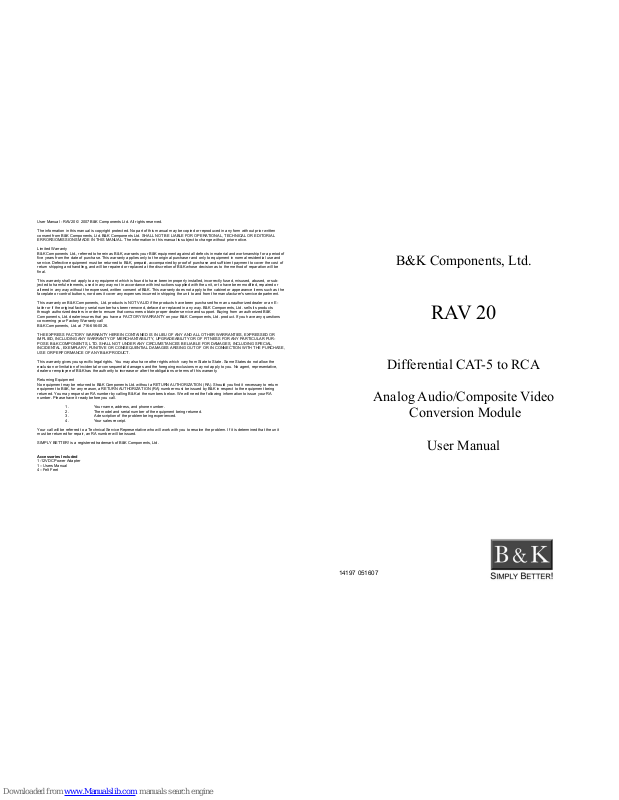

B&K Components, Ltd.
RAV 20
Differential CAT-5 to RCA
Analog Audio/Composite Video
Conversion Module
User Manual
14197 051607
User Manual - RAV20 © 2007 B&K Components Ltd. All rights reserved.
The information in this manual is copyright protected. No part of t his manual may be copied or reproduced in any form without prior written
consent from B&K Components, Ltd. B&K Components Ltd. SHALL NOT BE LIABLE FOR OPERATIONAL, TECHNICAL OR EDITORIAL
ERRORS/OMISSIONS MADE IN THIS MANUAL. The information in this m anual is subject to change without prior notice.
Limited Warranty
B&K Components Ltd., referred to herein as B&K, warrants your B&K eq uipment against all defects in material and workmanship for a period of
five years from the date of purchase. This warranty applies only to the o riginal purchaser and only to equipment in normal residential use and
service. Defective equipment must be returned to B&K, prep aid, accompanied by proof of purchase and sufficient payment to cover the cost of
return shipping and handling, and will be repaired or replac ed at the discretion of B&K whose decision as to the method of reparation will be
final.
This warranty shall not apply to any equipment which is found to have been impro perly installed, incorrectly fused, misused, abused, or subjected to harmful elements, used in any way not in accordance with inst ructions supplied with the unit, or to have been modified, repaired or
altered in any way without the expressed, written consent of B&K. This warranty does not apply to the cabinet or appearance items such as the
faceplate or control buttons, nor does it cover any expenses incurred in shipping the unit to and from the manufacturer's service department.
This warranty on B&K Components, Ltd. products is NOT VALID if the product s have been purchased from an unauthorized dealer or an Etailer or if the original factory serial number has been removed, defac ed or replaced in any way. B&K Components, Ltd. sells its products
through authorized dealers in order to ensure that consum ers obtain proper dealer service and support. Buying from an authorized B&K
Components, Ltd. dealer insures that you have a FACTORY WARRANTY on your B&K Comp onents, Ltd. product. If you have any questions
concerning your Factory Warranty call
B&K Components, Ltd. at 716-656-0026.
THE EXPRESS FACTO RY WARRANTY HEREIN CONTAI NED IS IN LIEU OF ANY AND ALL OTHE R WARRANTIES, EXPRESSED OR
IMPLIED, INCLUDI NG ANY WARRANTY OF MERCHANTA BILITY, UPGRADEABILITY OR O F FITNESS FOR ANY PARTICULAR PU RPOSE. B&K COMPON ENTS, LTD. SHALL NOT UNDER ANY CIRCUMSTANCES BE LIABLE FO R DAMAGES, INCLUDING SPECIA L,
INCIDENTAL, EXE MPLARY, PUNITIVE OR CONSE QUENTIAL DAMAGES ARISING OUT OF OR IN CONNECTION WITH TH E PURCHASE,
USE OR PERFORMANCE OF ANY B&K PRODUCT.
This warranty gives you specific legal rights. You may also have ot her rights which vary from State to State. Some States do not allow the
exclusion or limitation of incidental or consequen tial damages and the foregoing exclusions may not apply to you. No agent, representative,
dealer or employee of B&K has the authority to increase or alter the obli gations or terms of this warranty.
Returning Equipment
No equipment may be returned to B&K Components Ltd. without a RETURN AUTHORIZATIO N (RA). Should you find it necessary to return
equipment to B&K, for any reason, a RETURN AUTHORIZATION (RA) number must b e issued by B&K in respect to the equipment being
returned. You may request an RA number by calling B&K at the nu mbers below. We will need the following information to issue your RA
number. Please have it ready before you call.
1. Your name, address, and phone number.
2. The model and serial number of the equipment being returne d.
3. A description of the problem being experienced.
4. Your sales receipt.
Your call will be referred to a Technical Service Representat ive who will work with you to resolve the problem. If it is determined that the unit
must be returned for repair, an RA number will be issued.
SIMPLY BETTER! is a registered trademark of B&K Component s, Ltd.
Accessories Included
1-12VDC Power Adapter
1– Users Manual
4– Felt Feet
The RAV20 is a device that will receive a standard composite video and analog audio signal over a long distance using
CAT-5 cable. A TAV21 module is required to convert the standard RCA-type audio and video signal to a differential
drive audio/video signal, suitable to transmi t over CAT-5 cable. When in use with a TAV21, power can be transmitted to
the RAV20 for up to 500 feet total. When in use with over 500 feet a 12VDC power source is needed (supplied).
1. Dual Box and Decora Chassis Configuration - The RAV20 is shipped default as a floor box design (F) for use on a
shelf, mounting behind a rack or even next to the source. The RAV20 may be configured for use in a decora wall plate
by removing the screws of the chassis and extracting the decora module assembly.
2. Master Input - RJ45 CAT-5 audio/video input. The conversion module uses this input as th e source of audio and
video that is to be converted back to RCA. The master input is used to source the buffered Slave Video Output.
3. Slave Output - RJ45 CAT-5 audi o/video output. The con version module uses this output as a slave output from the
first device must connect to the next conversion modules’ Master Input. When using this configuration, ALL RAV20
modules require external power.
4. 12V DC Input— Connect to an external DC power source (adapter included) for use with greater than 500 ft of CAT5 or when using the S lave Output feature.
5. Equalization Control - Adjustable Audio/Video EQ control. This control is used to adjust / match the total installed
length of Category 5e cable, 0 - 1000 feet, connected to the Master Input.
6. Gold Plated RCA Conn ectors - Simple minimum signal loss and degradation.
Master Video Input
The conversi on module uses this RJ45 as the audio/video inpu t for conversion back to RCA .
In addition, the master input is used to source the buffered slave output (external power is
needed).
Slave Video Output
The RAV20 module provides a RJ45 slave output to connect additional modules having
identical audio and video. Simply connect the slave output of one module to th e master input
of the next. Any number of modules may be connected in this manner, so long as the total
cable run from the TAV21 to the RAV20 does not exceed 1000 feet. ALL modules must be powered when
using more than 500 feet or when using the SLAVE
OUTPUT feature on the RAV20.
Front Panel Decora and Box Summary
RCA Output
Connect the red (right audio), white (left audio) and yellow (composite video) to the other
audio/video equipment input.
12 VDC IN
Connect to an external DC power source (adapter included) for use with greater than 500 ft of
CAT-5 or when using the Slave Output feature.
Video EQ
This control is used to adjust / match the total installed length of CAT-5 cable. The control
allows adjustment from 0 to 1000 feet.
Rear Panel Decora and Box Configuration Summary
CAT5 Audio/Video Drive Pinout
CAT-5 RJ45 pinouts use the T568B
standard. See the figure at left. Each
color twisted pair carries the differential
audio / video s ignal with pin 7 a nd 8
receiving power for up to 500 feet. Use
of other CAT5 conne ction stand ards
may result in increased crosstalk between signals with associated audio and
video degrad ation.
The RAV20 modules will be powered from the TAV21 up to 500 feet total. When using a distance over
500 feet total, all modules including the TAV21 and all RAV20 must be individually powered. When
using the SLAVE output feature ALL RAV20 and TAV21 modules must be externally powered.
CAT-5 T568B Standard
The RAV20 module is meant to be paired with the TAV21 for use when transmitting audio and video over CAT5 for up to 1000 feet. The TAV21 is used for transmitting the audio and video signal from RCA to CAT-5 and
the RAV20 is used for transmitting the audio and video signal from CAT-5 back to RCA. Below is an example
when using a TAV21 and RAV20 for transmitting an audio and video signal from a dedicated source to a CT
product.
Connection to a TAV21
Dedicated Source Outputs
CT Receiver Dedicated Inputs
Front Pan el of
TAV 21
Back Panel of
RAV20
1.
2. 3.
4.
5.
6.
To External Power
