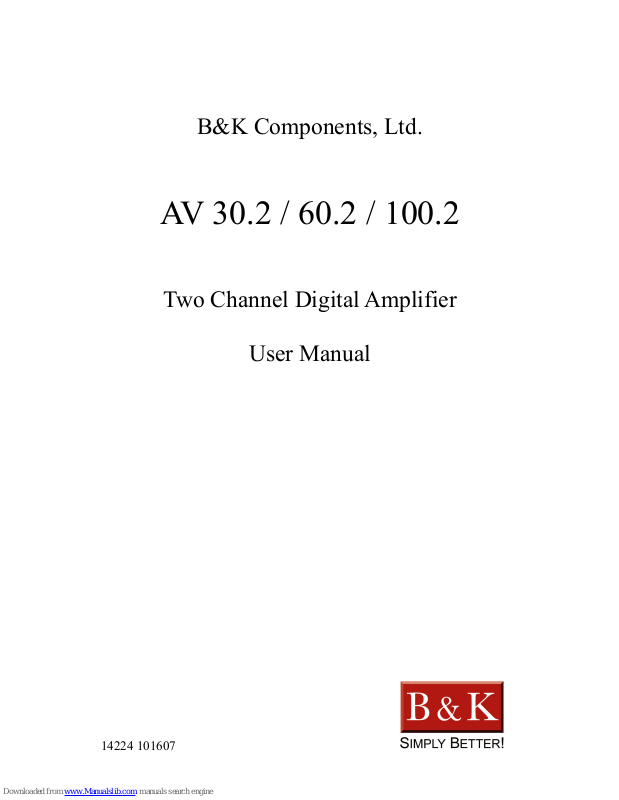

B&K Components, Ltd.
AV 30.2 / 60.2 / 100.2
Two Channel Digital Amplifier
User Manual
14224 101607
2
USER MANUAL - AV 30.2 / 60.2 / 100.2
© 2007 B&K Components, Ltd. All rights reserved.
The information in this manual is copyright protected. No part of this manual may be copied or reproduced in any form without
prior written consent from B&K Components, Ltd.
B&K Components, Ltd. SHALL NOT BE LIABLE FOR OPERATIONAL, TECHNICAL OR EDITORIAL ERRORS/
OMISSIONS MADE IN THIS MANUAL. The information in this manual may be subject to change without prior notice.
Accessories Included
• 1 - AV Amplifier
• 1 - User Manual
• 1 - Power Cord
SIMPLY BETTER! is a registered trademark of B&K Components, Ltd. All other brand or product names are trademarks or
registered trademarks of their respective companies or organizations.
Limited Warranty
B&K Components, Ltd., referred to herein as B&K, warrants your B&K equipment against all defects in material and workmanship
for a period of one year from the date of purchase. This warranty applies only to the original purchaser and only to equipment in
normal residential use and service. Defective equipment must be returned to B&K, prepaid, accompanied by proof of purchase and
sufficient payment to cover the cost of return shipping and handling, and will be repaired or replaced at the discretion of B&K
whose decision as to the method of reparation will be final.
This warranty shall not apply to any equipment which is found to have been improperly installed, incorrectly fused, misused,
abused, or subjected to harmful elements, used in any way not in accordance with instructions supplied with the unit, or to have
been modified, repaired or altered in any way without the expressed, written consent of B&K. This warranty does not apply to the
cabinet or appearance items such as the faceplate or control buttons, nor does it cover any expenses incurred in shipping the unit to
and from the manufacturer's service department.
This warranty on B&K Components, Ltd. products is NOT VALID if the products have been purchased from an unauthorized
dealer or an E-tailer or if the original factory serial number has been removed, defaced or replaced in any way. B&K Components,
Ltd. sells its products through authorized dealers in order to insure that consumers obtain proper dealer service and support. Buying
from an authorized B&K Components, Ltd. dealer insures that you have a FACTORY WARRANTY on your B&K Components,
Ltd. product. If you have any questions concerning your Factory Warranty call B&K Components, Ltd. At 716-656-0026.
Upgradability: B&K is one the first manufacturers in the audio/video industry to consistently offer software and hardware upgrades
to its processing of audio signals. Through upgrades B&K delivers exceptional value to its customers. But what is "Upgradability"?
Upgradability is not a guarantee; we define it as a philosophy of designing and manufacturing products so that as audio technology
evolves, B&K can provide enhancements and improvements to its products that are economically viable.
THE EXPRESS FACTORY WARRANTY HEREIN CONTAINED IS IN LIEU OF ANY AND ALL OTHER WARRANTIES,
EXPRESSED OR IMPLIED, INCLUDING ANY WARRANTY OF MERCHANTABILITY, UPGRADABILITY OR OF FITNESS FOR ANY PARTICULAR PURPOSE. B&K COMPONENTS, LTD. SHALL NOT UNDER ANY CIRCUMSTANCES BE
LIABLE FOR DAMAGES, INCLUDING SPECIAL, INCIDENTAL, EXEMPLARY, PUNITIVE OR CONSEQUENTIAL
DAMAGES ARISING OUT OF OR IN CONNECTION WITH THE PURCHASE, USE OR PERFORMANCE OF ANY B&K
PRODUCT.
This warranty gives you specific legal rights. Your may also have other rights which vary from State to State. Some States do not
allow the exclusion or limitation of incidental or consequential damages and the foregoing exclusions may not apply to you.
No agent, representative, dealer or employee of B&K has the authority to increase or alter the obligations or terms of this warranty.
Returning Equipment
No equipment may be returned to B&K Components, Ltd. without a RETURN AUTHORIZATION (RA). Should you find it
necessary to return equipment to B&K, for any reason, a RETURN AUTHORIZATION (RA) number must be issued by B&K in
respect of the equipment being returned. You may request an RA number by calling B&K at the numbers below. We will need the
following information to issue your RA number. Please have it ready before you call.
1.Your name, address, and phone number.
2.The model and serial number of the equipment being returned.
3.A description of the problem being experienced.
4.Your sales receipt.
Your call will be referred to a Technical Service Representative who will work with you to resolve the problem. If it is determined
that the unit must be returned for repair, an RA number will be issued.
2100 Old Union Road Buffalo, NY 14227 1-800-543-5252 In NY: 716-656-0026 fax: 716-656-1291
e-mail: info@bkcomp.com Web Site: www.bkcomp.com
3
The AV 30.2, 60.2 and 100.2 two channel amplifiers utilize high quality electronic circuitry to
achieve an environment wherein a detailed, transparent, and highly musical sound can be realized.
With limited spatial requirements and minimal heat, the AV amplifiers produce great audio with
minimal constraints. With the options of either 30 watts per channel, 60 watts per channel or 100
watts per channel, any one of the amplifiers will suit a multitude of audio needs. All B&K products
are designed and manufactured in Buffalo, NY, U.S.A.
Class D Output Stage - Highly efficient with the ability to produce quality audio with low power
draw and minimal heat. Class D also allows for less noise with no input signal, since the internal
circuitry is off when the unit has no signal.
Gold Plated Connectors - Improved sound with minimal signal loss and degradation.
Control Input - One 3.5mm (1/8”) jack that allows standby on/off with a 5-24 VDC control signal.
Control Output - One 3.5mm (1/8”) 5 VDC @ 50 mA output for controlling other amplifiers or
controlling external systems that use a voltage trigger.
One Year Factory Warranty - All B&K products sold through authorized dealers are covered by a
one year parts and labor factory Warranty.
Available
(Please call B&K for more information)
2U Brick Amplifier Mounting Plate (3.5” by 19” Faceplate to mount up to 3 Digital Amplifiers)
4U Brick Amplifier Mounting Plate (7” by 19” Faceplate to mount up to 6 Digital Amplifiers)
Wall Mounting Bracket to mount a Digital Amplifier from either the left or right side
Features and Benefits
4
AV 30.2 / 60.2 / 100.2 Front and Back Panel
4
3
2
5
6
7
8 9
10
1
5
Front and Back Panel Explanation
1. Model—Label of the model of amplifier. Lists the watts per channel of
the amplifier.
2. AC Input Receptacle - For attaching the supplied AC power cord to the
amplifier.
3. Power Switch - Power switch for hard powering the amplifier.
4. Speaker Outputs - For connecting the speakers to the amplifier. Ex-
plained further under Output Connections.
5. Status LED - Two LED’s that show power and amplifier state. Explained further under Status LED.
6. Amplifier Control Input/Output - Provides remote switching of the
amplifier's standby on/off feature. Explained further under Control Triggers.
7. Dip Switch Setup - The amplifier uses DIP switches to configure the
RJ-45 Input / Output, mono and muting control. Further explained under
DIP Switches.
8. Volume/Level Control - The volume control is located on the back
panel as a dual potentiometer. The outer (larger) level control adjusts signal
for the right channel. The inner (smaller) level control adjusts the signal for
the left channel.
9. RJ-45 Input / Output - Input and output for connecting multiple AV
Brick amplifiers. Further explained under Input and Output Connections
Through RJ-45.
10. RCA Input - For connecting RCA interconnects from the preamplifier
to the amplifier. Explained further under Input Connections Through RCA.
6
Input Connections through RCA
The AV Brick Amplifiers have inputs that are designed to accept line level
audio from preamplifier or receiver RCA output connections. There are two
RCA inputs from the preamplifier’s line level outputs, one left (white) and one
right (red) which correspond to the left and right outputs on the preamplifier.
There are many uses for the brick amplifiers. Two are shown.
CT 600.1 Zone Line Outputs AV Amplifier
Level Control
The AV 30.2, 60.2 and 100.2 have back panel level controls. Two volume
controls are provided on the back of the AV amplifiers allowing for separate
control of the left and right signals. The outer level control adjusts the volume of the right channel. The inner level control adjusts the volume of the
left channel.
One option is using the output from Zone E on a CT 600.1 going into the Audio
Input on the AV Amplifier.
Another option would be to use the Zone B outputs from a Ref 50 S2 to the
Audio Input on the AV Amplifier.
AV Amplifier
Ref 50 S2 Zone B Outputs (set to fixed)
The level control on the back panel
of the AV Amplifiers
The level control showing functional-
ity of changing the volume of the left
and right channels.
7
Output Connections
The AV brick amplifiers connect to speakers using a 4-position Phoenix connector. Speaker connections are run from the amplifier to the speakers. Unplug
the connector from the rear of the receiver, strip the speaker wire approximately 1/4” and insert the bare end into the gate on the connector. Use a small,
flat blade screwdriver to tighten the connection to each conductor. Connectors
accommodate up to 12 gauge wire.
Make sure to observe polarity as you hold the connector upside down to
connect Left and Right as shown. Two guide tabs also insure proper orientation.
• As a precaution, insure that the power switch on the amplifier’s back panel is
in the ‘off’ position and AC power is disconnected before making any connections.
• Connect the audio cables from the preamplifier’s audio outputs to the ampli-
fier input channels using RCA interconnects.
• Connect all common controls if using a trigger from the preamplifier to the
amplifier.
• Connect all RJ-45 connections if connecting more than one brick amplifier.
• Connect the wires from your speakers to the appropriate output channels on
the amplifier. It is essential that correct polarity is observed in all connections.
• Double-check all connections.
• Locate the AC power cord provided with the amplifier and plug it into the
power input receptacle in the rear panel. Make sure the back panel power
switch is off.
Do not connect to the AC power until speaker connections are complete!
• Turn on the preamplifier and then turn on the amplifier using the power
switch on the back panel (in this order). Set the source on the preamplifier to
the source input that is connected. Turn the volume up slowly on the amplifier
and listen for music from all channels.
8
Control Triggers
A control (trigger) system is provided on the AV brick amplifiers to allow remote switching of the amplifier’s standby on/off feature. The control input is
designed to operate with a source (trigger) of at least 4VDC (less than 1mA).
The signal sent from the control output is +5VDC (up to 50 mA) to trigger
other devices.
The control trigger is also sent through the RJ-45 connection when connecting
multiple AV amplifiers. When using any control trigger to send the unit into
standby state (from minijack or RJ-45 connection) the CTRL I/O dip switch
has to be enabled. The status light on the back of the AV brick amplifiers will
turn off when the amplifier is in standby state. All B&K A/V receivers and
preamplifiers utilize control output triggers to easily integrate an amplifier into
an audio system.
Shown below is an AV amplifier receiving signal and control output from
Zone B on a Reference 50. It also shows the control output on the AV amplifier being used to trigger another device. Please see Input and Output Connections through RJ-45 for more information on the RJ-45 connectivity.
Note: The control input voltage is intended for standby on/off control only. For
amplifier operation, each amplifier must have its own source of AC power.
To trigger
another
device
When using the control in either from 1/8” minijack or RJ-45 connections, the DIP switch labeled CTRL IN MUST be enabled. Otherwise
the amplifier WILL NOT be looking for a 12V trigger.
Ref 50 S2 Zone B Outputs and Trigger
AV Amplifier
9
Power and Amp Status LED
The “Power” LED on the back of the AV amplifier shows whether or not the
unit has power. If the LED is not lit, please check AC power connections, the
Main AC fuse and the Power Switch.
The “Amp” LED on the back of the AV amplifier shows the state of the unit.
The status LED shows the following:
Normal - When the unit is in normal use, the blue Power LED would be on
and the Amp Status LED would be green.
Standby - When the unit is in standby the Amp Status LED is off. The unit
would still have hard power, so the blue Power LED would still be on.
Limit - When the unit is under conditions of having too much of a signal, the
Amp Status LED will turn red. The audio from the amplifier may also clip,
distort, etc.
Temp - When the unit is being overheated the Amp Status LED would be yellow. Please check ventilation of the amplifier.
Mono Usage
The AV amplifiers have the ability to output a signal from both amplifier channels with only one input. Either the left or right input can be used and the signal would be sent simultaneously from the left and right amplifier channels.
Set the MONO DIP switch to the ON position. Shown below is the AV Amplifier connected using the right input but either input can be used.
From preamplifier
To Speakers
10
Input and Output Connections through RJ-45
The AV Brick Amplifiers have RJ-45 inputs that are designed to connect multiple AV amplifiers. A straight through CAT-5 cable is needed to send signal
and a optional control output from one AV amplifier to another. When using
the RJ-45 input from one to another, signal is always sent. If a trigger is to be
sent from one brick amplifier to another when using the RJ-45 connection, set
the RJ-45 I/O switch AND the CTRL IN to the ON position on BOTH amplifiers as shown. Shown below is a total of three Brick Amplifiers connected with
the RJ-45 connection. The source comes into the first amplifier and the same
signal is sent to the other amplifiers from the output of the first amplifier to the
input of the second and so forth.
From Preamplifier
AV Amplifier
AV Amplifier
AV Amplifier
Note: Up to eight separate AV Brick Amplifiers can be connected by the RJ-45 Input and Output
connections. The max length of total CAT-5 cable can be up to 300 feet from the RJ-45 output of
the first AV amplifier to the RJ-45 input on the last AV amplifier.
RJ-45 Input/Output Drive Pinout
It is suggested to ONLY use the RJ45 Inputs and Outputs to connect
multiple AV Brick Amplifiers.
CAT-5 RJ-45 pinouts use the T568B
standard.
11
DIP Switches
Each amplifier has a set of DIP Switches used for configuration purposes. The
function of each is described below:
RJ-45 I/O - When using the RJ-45 Inputs and Outputs, the DIP
switch would be enabled as shown to send a trigger signal. Also,
when using the control trigger through RJ-45, the CTRL I/O DIP
switch would have to be enabled as shown.
MONO—Amplifiers with the MONO DIP switch set to ON will have
the sum of the selected audio inputs processed into a single mono
source for both inputs. When mono is not desired, or independent
channel amplification is necessary, the MONO switch must be set to
OFF.
SENSE - The amplifier will sense an audio signal from the RCA Audio inputs or from the RJ-45 inputs. The Amp Status LED will turn
off when no audio signal is detected and turn green when detecting an
audio signal from either input.
CTRL IN - When a trigger is needed to take the amplifier in and out
of standby state, the CTRL IN DIP switch would be enabled. This
applies to both the 1/8” minijack control input and RJ-45 control input. The brick amplifiers require at least 4VDC and require less than
1mA of current of trigger signal.
Note: The ON (enabled) position would be in the DOWN position on
the AV Brick Amplifiers. To disable the function, the DIP switch would be in
the UP position.
Faceplate Options
There are a few faceplate options for connecting multiple AV brick amplifiers
to fit in a rack space.
2U Brick Amplifier Mounting Plate - 3.5” by 19” Faceplate to mount up to 3
AV brick amplifiers
4U Brick Amplifier Mounting Plate - 7” by 19” Faceplate to mount up to 6
AV brick amplifiers
Wall Mounting Bracket - mount an AV brick amplifier from either the left or
right side
To change the faceplate on the AV brick amplifiers, use a 1/8” hex screwdriver.
12
Unit AV 30.2 AV 60.2 AV 100.2
Power Rating: 8 ohms
Power Rating: 4 ohms
30 Watts
60 Watts
60 Watts
120 Watts
100 Watts
200 Watts
Number of Channels
2 2 2
Current (Peak to Peak) 10 Amps 15 Amps 20 Amps
Dynamic Headroom .5dB .5dB .5dB
Total Harmonic Distortion (THD)
0.016% 0.016% 0.016%
Signal to Noise Ratio (S/N) 100dB 100dB 100dB
Input Impedance
10 k
Ω 10 kΩ 10 kΩ
Damping Factor (50hz)
1000 1000 1000
Frequency Response
5 Hz - 45 kHz 5 Hz - 45 kHz 5 Hz - 45 kHz
Slew Rate 14 V / µ sec 14 V / µ sec 14 V / µ sec
Audio Input Sensitivity .1 V / 1 W .1 V / 1 W .1 V / 1 W
Gain
28AV or 28 dB 28AV or 28 dB 28AV or 28 dB
AC Line Voltage
120 / 220 / 240** 120 / 220 / 240** 120 / 220 / 240**
Level Controls
Dual Back Dual Back Dual Back
Maximum Output Wire Gauge 12 AWG 12 AWG 12 AWG
Control Input
Yes Yes Yes
Control Output
Yes Yes Yes
Dimensions in Inches
Width
Height
Depth
5.44”
2.5”
9.25”
5.44”
2.5”
11.25”
5.44”
2.5”
12.76”
Shipping Weight 3 lbs. 5.5 lbs. 7.5 lbs.
Power Consumptions
Watts Max
Amps Max Current Draw
Watts @ No Input
150 watts
75mA
9 watts
150 watts
75mA
9 watts
150 watts
75mA
9 watts
Standby Power Consumption
Current in Standby
Watts in Standby
35mA
4 watts
35mA
4 watts
35mA
4 watts
*AV = Amplified Voltage
** 220 / 240 is optional
Specifications
Loading...
