BLSPC Series
LED Surface/Suspended Ambient Luminaire
Important Safeguards:
When using electrical equipment, basic safety
precautions should always be followed including the
following:
Read and follow all safety instructions
1. Danger - Risk of shock - Disconnect power
before installation
2. Product must be installed in accordance with
CEC or your local electrical code. If you are
not familiar with these codes and requirements,
consult a qualified electrician.
SAVE THESE INSTRUCTIONS FOR FUTURE
REFERENCE
Notes:
• Available luminaire lengths are 2’, and 4’.
Installation Instructions:

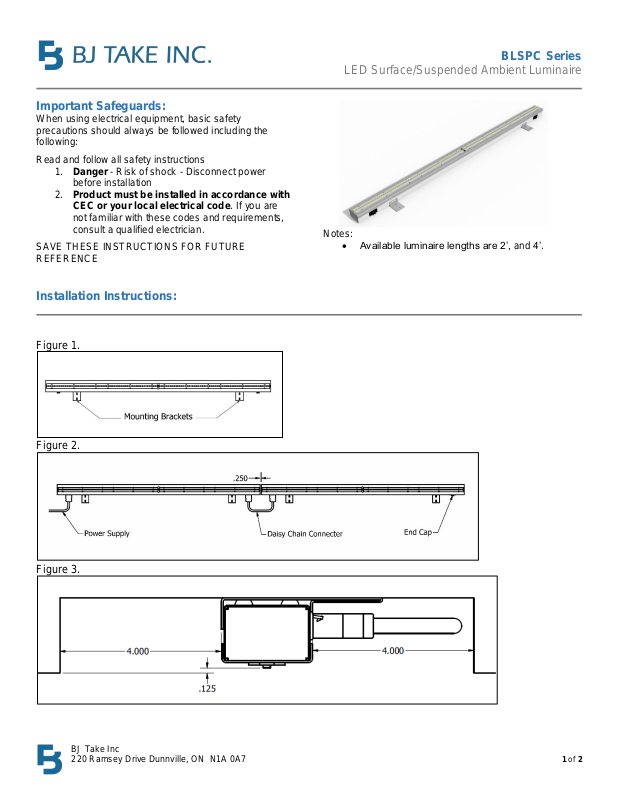

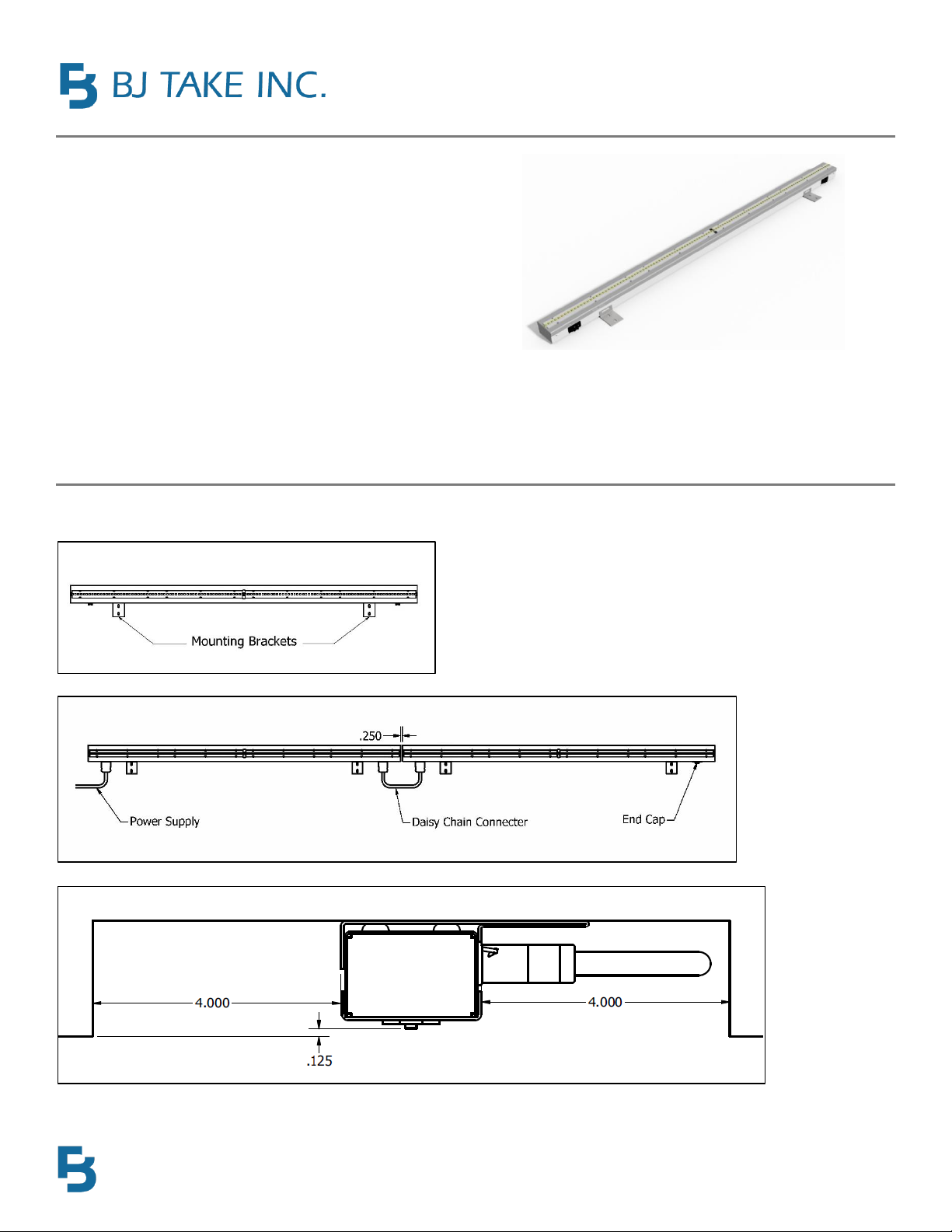

Figure 1.
Figure 2.
Figure 3.
Page 2
BJ Take Inc
220 Ramsey Drive Dunnville, ON N1A 0A7 2 of 2
Luminaire Installation:
BLSPC-W27
Step 1:
Attach the Mounting brackets to the BLSPC body. (See Figure 1)
Step 2:
Place the fixture against the celling and screw fixture into place using the mounting bracket that are attached to the fixture.
The minimum gap between fixtures is 0.25” and the minimum space between the fixture and the cove is 4.00”. (See
Figures 1-3)
Step 3:
See Electrical Connections for wiring information and See Figure 2.
Electrical Connections:
Step 1:
On the last fixture insert the male end cap into the open socket.
Step 2:
Connect the fixtures together by using the W27 black power jumpers. (See table below)
Step 3:
Power the fixtures by connecting the W27 black power cord to the fixture and plugging it into a standard outlet.
W27 option can only be used with the following cords.

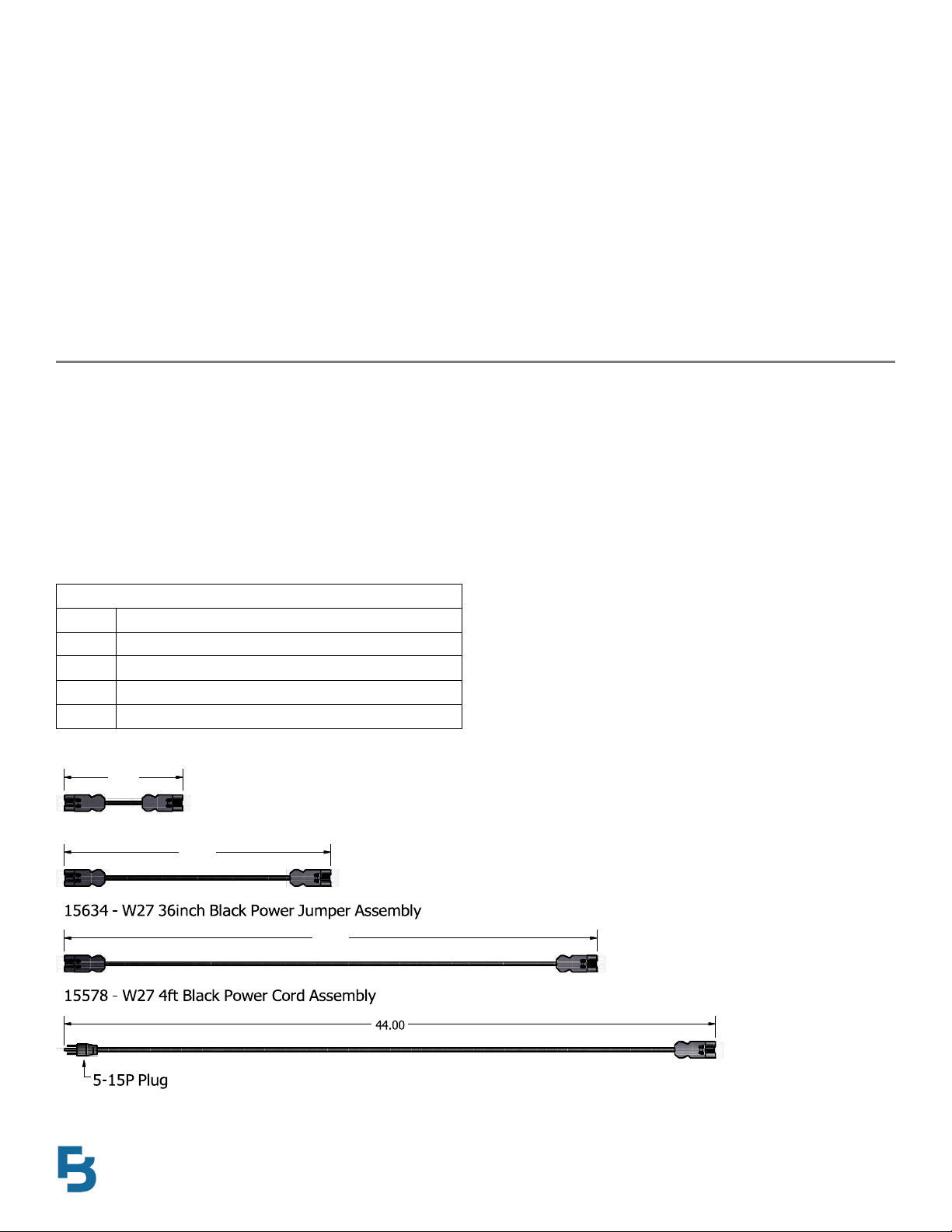

Order Guide for Jumpers and Power Cord
Part #
Description
15578
W27 4ft Black Power Cord Assembly
15579
W27 18inch Black Power Jumper Assembly
15599
W27 8inch Black Power Jumper Assembly
15634
W27 36inch Black Power Jumper Assembly
15599 - W27 8inch Black Power Jumper Assembly
8.00
15579 - W27 18inch Black Power Jumper Assembly
18.00
36.00
