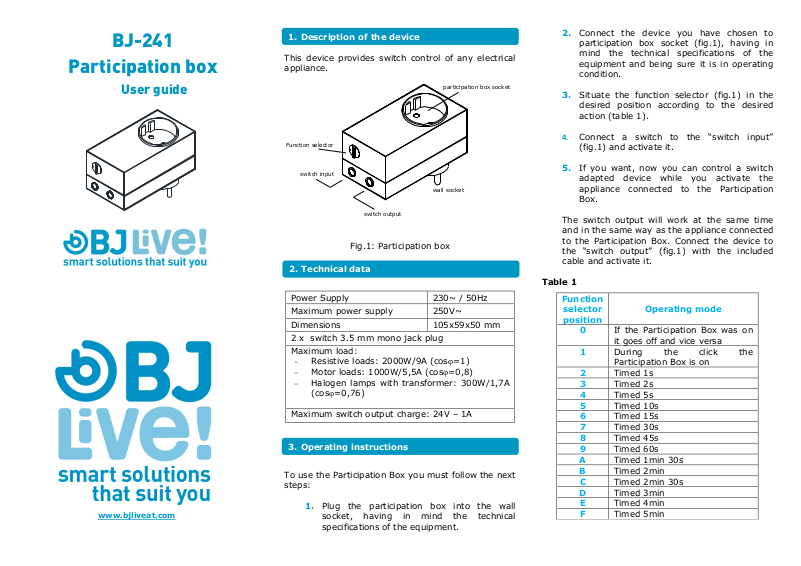

Page 1
BJ-241
Function
selector
position
Operating mode
0
If the Participation Box was on
it goes off and vice versa
1
During the click the
Participation Box is on
2
Timed 1s
3
Timed 2s
4
Timed 5s
5
Timed 10s
6
Timed 15s
7
Timed 30s
8
Timed 45s
9
Timed 60s
A
Timed 1min 30s
B
Timed 2min
C
Timed 2min 30s
D
Timed 3min
E
Timed 4min
F
Timed 5min
Function selector
wall socket
participation box socket
switch input
switch output
Power Supply
230~ / 50Hz
Maximum power supply
250V~
Dimensions
105x59x50 mm
2 x switch 3.5 mm mono jack plug
Maximum load:
Resistive loads: 2000W/9A (cos=1)
Motor loads: 1000W/5,5A (cos=0,8)
Halogen lamps with transformer: 300W/1,7A
(cos=0,76)
Maximum switch output charge: 24V – 1A
1. Description of the device
2. Technical data
3. Operating instructions
Participation box
User guide
www.bjliveat.com
This device provides switch control of any electrical
appliance.

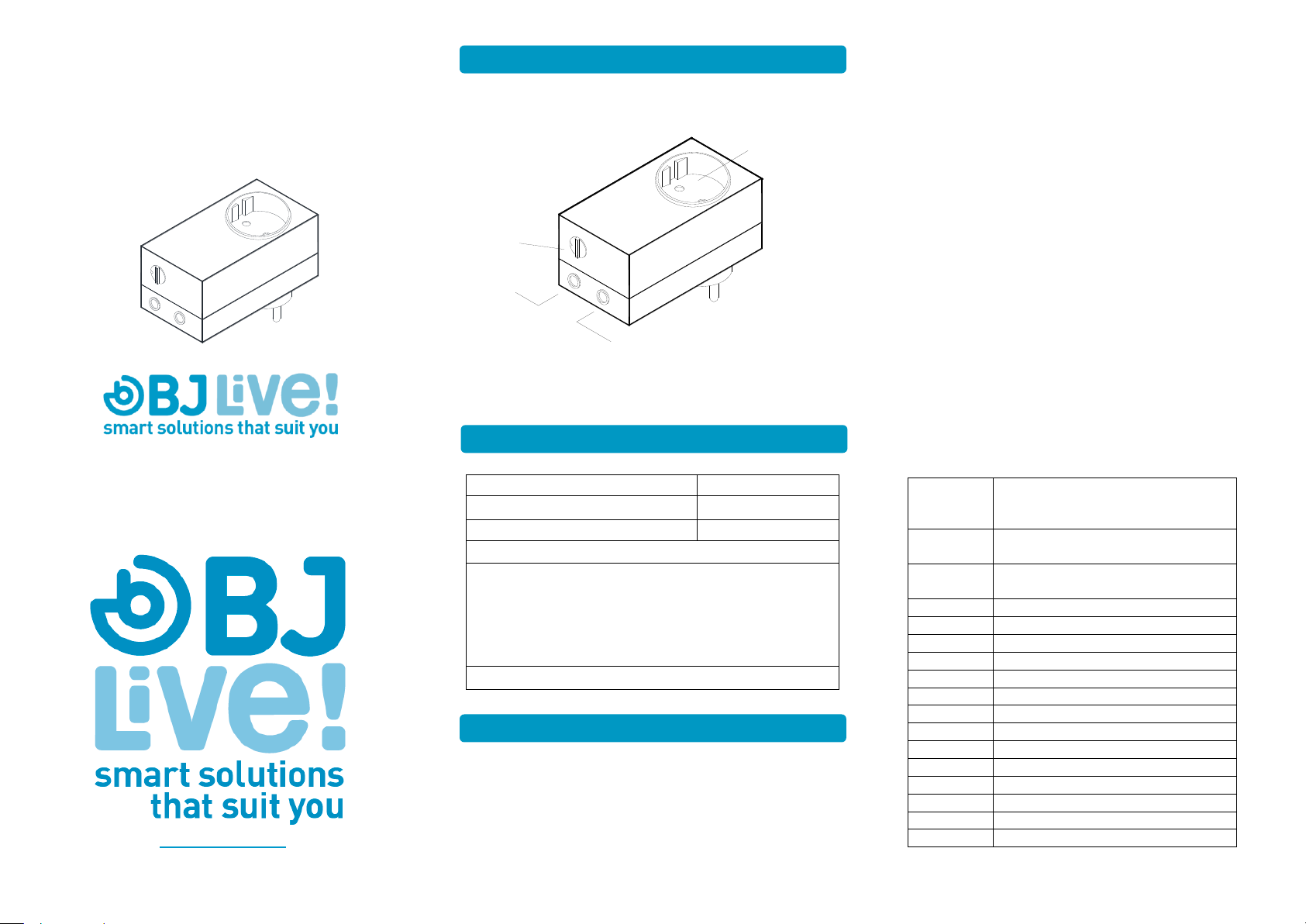

Fig.1: Participation box
2. Connect the device you have chosen to
participation box socket (fig.1), having in
mind the technical specifications of the
equipment and being sure it is in operating
condition.
3. Situate the function selector (fig.1) in the
desired position according to the desired
action (table 1).
4. Connect a switch to the “switch input”
(fig.1) and activate it.
5. If you want, now you can control a switch
adapted device while you activate the
appliance connected to the Participation
Box.
The switch output will work at the same time
and in the same way as the appliance connected
to the Participation Box. Connect the device to
the “switch output” (fig.1) with the included
cable and activate it.
Table 1
To use the Participation Box you must follow the next
steps:
1. Plug the participation box into the wall
socket, having in mind the technical
specifications of the equipment.
Page 2
Waste electrical products should not be disposed
of with household waste!
Dispose of the waste product via a collection
point for electronic scrap or via your
specialist dealer. Any unauthorized
tampering with, or modifications to the
product will annul this warranty.
4. General information
Dealer information
Maintenance
Disposal
Warranty
Customer Service
Conformity
The Enabler can be cleaned using a damp soft cloth.
Always carry out this operation with the Enabler
disconnected.
In the event of a fault in the Enabler, do not handle
it and contact your distributor.
Within the statutory warranty period we undertake to
rectify free of charge by repair or replacement any
product defects arising from material or production
faults.
Any unauthorized tampering with, or modifications to
the product will annul this warranty.
If, despite of correct handling, faults or malfunctions
occur or if the product was damaged, please contact
us at the address below:
BJ Adaptaciones
C/ Mare de Déu del Coll, 70, Bajos
08023 Barcelona
España
Phone:+34 93 285 04 37
Fax: + 34 93 553 56 34
e-Mail: [email protected]
www.bjliveat.com
This product complies with the essential
requirements of the Directives 2004/108/EC and
2006/95/CEE.
The Declaration of Conformity can be downloaded
from the product’s webpage at www.bjliveat.com.
