Linux SDK Reference Guide
Label Printer
Rev. 1.00
SLP-TX400/SLP-TX403
SLP-TX420/SLP-TX423
SLP-TX220/SLP-TX223
SLP-DX420/SLP-DX423
SLP-DX220/SLP-DX223
SLP-DL410/SLP-DL413
SRP-770II
http://www.bixolon.com
Page 2
Label Printer
Rev. 1.00
- 2 -
■ Table of Contents
1. About This Manual ......................................................................................................... 3
1-1 Supported Kernel & Platforms .................................................................................... 3
1-2 Supported Interfaces .................................................................................................. 3
2. Property .......................................................................................................................... 4
2-1 CharacterSet & International CharacterSet(LONG R/W) ............................................ 4
2-2 State (LONG R) .......................................................................................................... 6
3. Method ............................................................................................................................ 7
3-1 ConnectToPrinter ........................................................................................................ 7
3-2 DisconnectPrinter ....................................................................................................... 8
3-3 InitializePrinter ............................................................................................................ 8
3-4 FeedOneLabel ............................................................................................................ 9
3-5 SetSpeed .................................................................................................................. 10
3-6 SetDensity ................................................................................................................ 11
3-7 SetOrientation ........................................................................................................... 12
3-8 SetCutter .................................................................................................................. 13
3-9 SetBackFeed ............................................................................................................ 14
3-10 SetPaper ................................................................................................................. 15
3-11 SetMargin ................................................................................................................ 16
3-12 SetOffset ................................................................................................................. 17
3-13 PrintDeviceFont ................................ ................................ ................................ ...... 18
3-14 PrintDeviceFontW ................................................................................................... 20
3-15 PrintVectorFont ....................................................................................................... 22
3-16 PrintVectorFontW .................................................................................................... 24
3-17 Prints ...................................................................................................................... 27
3-18 Print1DBarcode ...................................................................................................... 28
3-19 PrintMaxiCode ................................................................................................ ........ 30
3-20 PrintPDF417 ........................................................................................................... 31
3-21 PrintQRCode .......................................................................................................... 33
3-22 PrintDataMatrix ....................................................................................................... 35
3-23 PrintAztec ............................................................................................................... 36
3-24 PrintCode49 ............................................................................................................ 38
3-25 PrintCODABLOCK .................................................................................................. 40
3-26 PrintMicroPDF ........................................................................................................ 42
3-27 PrintGS1DataBar .................................................................................................... 44
3-28 PrintBlock ............................................................................................................... 46
3-29 PrintCircle ............................................................................................................... 48
3-30 PrintImage .............................................................................................................. 49
3-31 DirectIO .................................................................................................................. 50
3-32 CalibrateMedia........................................................................................................ 51
3-33 ResetPrinter ............................................................................................................ 52
3-34 ClearBuffer .............................................................................................................. 53
Page 3
Label Printer
Rev. 1.00
- 3 -
1. About This Manual
This SDK manual describes the contents of the library required to develop Linux OS
application programs.
At BIXOLON, we are constantly making improvements to the functions and quality of our
products. The specifications and contents of this manual are subject to change without
prior notice for this reason.
1-1 Supported Kernel & Platforms
* Supported Kernel Versions
- Kernel 2.6.32 or higher
* Supported Platforms
- Linux 32bit
- Linux 64bit
- Raspberry PI
1-2 Supported Interfaces
- USB, Serial, Parallel, Bluetooth, Ethernet, WLAN
Page 4
Label Printer
Rev. 1.00
- 4 -
2. Property
The constants used by the library are declared in BxlLabelConst.h. The development
environment is based on C.
2-1 CharacterSet & International CharacterSet(LONG R/W)
This is the property for defining the printer's code page and International character Set and
set to CS_CP437 and ICS_USA by default. The values can be set using SetCharacterSet().
The following code pages can be used:
Constant
Value
Description
CS_CP437
0
U.S.A
CS_CP850
1
Latin 1
CS_CP852
2
Latin 2
CS_CP860
3
Portuguese
CS_CP863 4 Canadian French
CS_CP865
5
Nordic
CS_WPC1252
6
Latin I
CS_CP865_WCP1252
7
European Combined
CS_CP857
8
Turkish
CS_CP737
9
Greek
CS_WCP1250
10
Latin 2
CS_WCP1253
11
Greek
CS_WCP1254
12
Turkish
CS_CP855
13
Cyrillic
CS_CP862
14
Hebrew
CS_CP866
15
Cyrillic
CS_WCP1251
16
Cyrillic
CS_WCP1255
17
Hebrew
CS_CP928
18
Greek
CS_CP864
19
Arabic
CS_CP775
20
Baltic
CS_WCP1257
21
Baltic
CS_CP858
22
Latin 1 + Euro
Page 5
Label Printer
Rev. 1.00
- 5 -
The following International character Set can be used:
Constant
Value
Description
ICS_USA
0
USA code
ICS_FRANCE 1 FRANCE code
ICS_GERMANY 2 GERMANY code
ICS_UK
3
UK code
ICS_DENMARK_I 4 DENMARK1 code
ICS_SWEDEN 5 SWEDEN code
ICS_ITALY
6
ITALY code
ICS_SPAIN_I
7
SPAIN code
ICS_NORWAY 8 NORWAY code
ICS_DENMARK_II 9 DENMARK 2 code
ICS_JAPAN
10
JAPAN code
ICS_SPAIN_II
11
SPAIN 2 code
ICS_LATIN
12
LATIN code
ICS_KOREA
13
KOREA code
ICS_SLOVENIA
14
SLOVENIA code
ICS_CHINA
15
CHINA code
* Example
int ret;
ret = ConnectPrinter (“portinfo…”);
……
SetCharacterSet(CS_PC850, ICS_UK);
…...
Page 6
Label Printer
Rev. 1.00
- 6 -
2-2 State (LONG R)
This is the property that sets the printer status and calls the CheckPrinterStatus function to
check the printer status and receive the data. The status value can be set in duplicate and
each value can be checked using bitwise operation.
These are the printer status values:
Constant
Value
Description
STS_NORMAL 0 Printer ready
STS_RIBONEND 4 Ribbon end error
STS_GAPERROR
8
Unable to recognize gap(auto sensing failure)
STS_TPHOVERHEAT
16
TPH overheat
STS_CUTTERJAM
32
Cutter jammed
STS_COVEROPEN
64
Cover open
STS_PAPEREMPTY
128
No paper
* Example
int ret;
ret = ConnectToPrinter (“portinfo…”);
……
int state;
state = CheckPrinterStatus();
if ((state & STS_RIBONEND) == STS_RIBONEND)
……
if ((state & STS_GAPERROR) == STS_GAPERROR)
……
…….
Page 7
Label Printer
Rev. 1.00
- 7 -
3. Method
The functions provided by Linux SDK are declared in BxlLabelAPI.h.
The development environment is based on C.
3-1 ConnectToPrinter
Set the connection for communication with the printer.
int ConnectToPrinter(const char *port)
[Parameters]
* const char *port
[in] Interface to be connected to the printer
Interface
Input Data
Example
USB
USB:
ConnectToPrinter(“USB:”)
Serial
serial:(baudrate)
/dev/ttyX:(baudrate)
ConnectToPrinter(“serial:115200”)
ConnectToPrinter(“/dev/tty0:115200”)
Parallel
parallel
/dev/lpX
ConnectToPrinter(“parallel”)
ConnectToPrinter(“/dev/lp0”)
Bluetooth
Device MAC address
ConnectToPrinter(“7d:f0:7d:e4:e0:78”)
Ethernet, Wifi
IP address, port no.
ConnectToPrinter(“192.168.0.10:9100”)
[Return Values]
Constant
Value
Description
SUCCESS 0 The operation is successful.
PORT_OPEN_ERROR
-99
The communication port cannot be opened.
NO_CONNECTED_PRINTER
-100
The printer is not connected.
NO_BIXOLON_PRINTER
-101
It is not a BIXOLON printer.
* Example
int ret;
// USB
ret = ConnectToPrinter(“USB:”);
// Serial
ret = ConnectToPrinter(“serial:115200”);
// Parallel
ret = ConnectToPrinter(“parallel”);
// bluetooth
ret = ConnectToPrinter(“7d:f0:7d:e4:e0:78”);
// Ethernet or WiFi
ret = ConnectToPrinter(“192.168.0.10:9100”);
……
Page 8
Label Printer
Rev. 1.00
- 8 -
3-2 DisconnectPrinter
Disconnect the printer.
int DisconnectPrinter()
[Parameters]
None
[Return Values]
None
* Example
ConnectToPrinter(“portinfo…”);
……
DisconnectPrinter();
3-3 InitializePrinter
Initialize the printer.
int InitializePrinter();
[Parameters]
None
[Return Values]
Constant
Value
Description
SUCCESS 0 The function is successful.
WRITE_ERROR
-105
Data transmission failed.
* Example
int ret;
ret = ConnectToPrinter(“portinfo…”);
……
InitializePrinter();
……
Page 9
Label Printer
Rev. 1.00
- 9 -
3-4 FeedOneLabel
Feed a label.
int FeedOneLabel ()
[Parameters]
None
[Return Values]
Constant
Value
Description
SUCCESS 0 The function is successful.
WRITE_ERROR
-105
Data transmission failed.
* Example
int ret;
ret = ConnectToPrinter(“portinfo…”);
……
ret = FeedOneLabel();
……
Page 10
Label Printer
Rev. 1.00
- 10 -

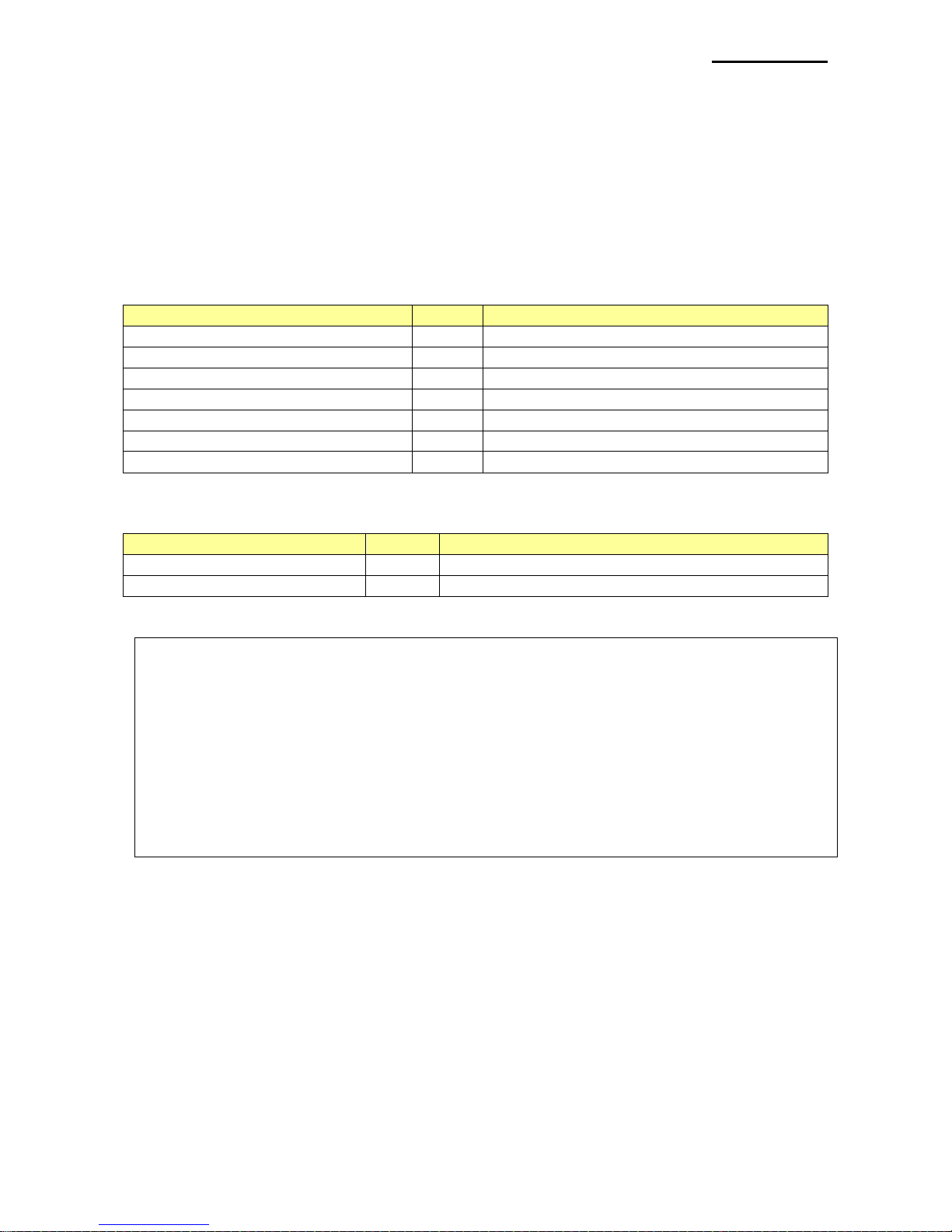

3-5 SetSpeed
Set the speed.
int SetSpeed(int speed)
[Parameters]
* int speed
[in] Printing speed
Constant
Value
Description
SPEED_25
0
2.5 ips
SPEED_30
1
3.0 ips
SPEED_40
2
4.0 ips
SPEED_50
3
5.0 ips
SPEED_60
4
6.0 ips
SPEED_70
5
7.0 ips
SPEED_80
6
8.0 ips
[Return Values]
Constant
Value
Description
SUCCESS 0 The function is successful.
WRITE_ERROR
-105
Data transmission failed.
* Example
int ret;
ret = ConnectToPrinter(“portinfo…”);
……
SetSpeed(SPEED_60);
……
Page 11
Label Printer
Rev. 1.00
- 11 -
3-6 SetDensity
Set the density.
int SetDensity(int density)
[Parameters]
* int density
[in] Printing density (0 ~ 20)
[Return Values]
Constant
Value
Description
SUCCESS 0 The function is successful.
WRITE_ERROR
-105
Data transmission failed.
* Example
int ret;
ret = ConnectToPrinter(“portinfo…”);
……
SetDensity(20);
……
Page 12
Label Printer
Rev. 1.00
- 12 -

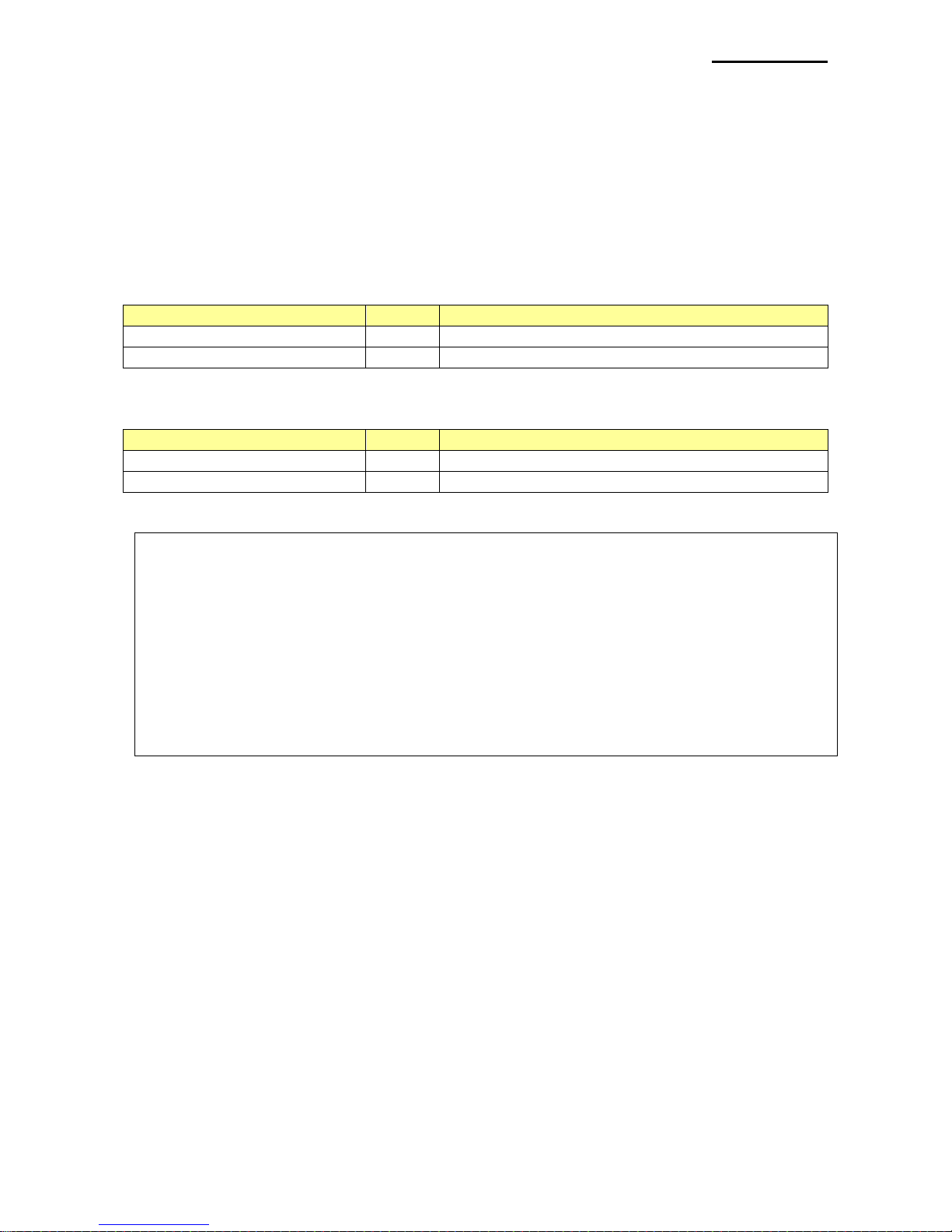

3-7 SetOrientation
Set the orientation.
int SetOrientation(int orientation)
[Parameters]
* int orientation
[in] Printing orientation
Constant
Value
Description
TOP_TO_BOTTOM
84
Print from top to bottom.
BOTTOM_TO_TOP
66
Print from bottom to top.
[Return Values]
Constant
Value
Description
SUCCESS 0 The function is successful.
WRITE_ERROR
-105
Data transmission failed.
* Example
int ret;
ret = ConnectToPrinter(“portinfo…”);
……
SetOrientation(TOP_TO_BOTTOM);
……
Page 13
Label Printer
Rev. 1.00
- 13 -
3-8 SetCutter
Set the cutting options.
int SetCutter(bool autoCut, int cutPeriod)
[Parameters]
* bool autoCut
[in] Enable/disable auto cutting. false: disable auto cutting, true: enable auto cutting
* int cuttingPeriod
[in] Cut interval
[Return Values]
Constant
Value
Description
SUCCESS 0 The function is successful.
WRITE_ERROR
-105
Data transmission failed.
* Example
int ret;
ret = ConnectToPrinter(“portinfo…”);
……
SetCutter(false, 0);
……
Page 14
Label Printer
Rev. 1.00
- 14 -
3-9 SetBackFeed
Set the back-feeding options.
int SetBackFeed(bool backFeed)
[Parameters]
* bool backFeed
[in] Enable/disable back-feed. false: disable back-feed, true: enable back-feed
[Return Values]
Constant
Value
Description
SUCCESS 0 The function is successful.
WRITE_ERROR
-300
Data transmission failed.
* Example
int ret;
ret = ConnectToPrinter(“portinfo…”);
……
SetBackFeed(false);
……
Page 15
Label Printer
Rev. 1.00
- 15 -
3-10 SetPaper
Set the paper options.
int SetPaper(int width, int height, int mediaType, int offset, int gapLength);
[Parameters]
* int width
[in] Paper width. max. 832(4.1 inch) [dot]
* int height
[in] Paper height. max. 2432(12 inch) [dot]
* int mediaType
[in] Paper type
Constant
Value
Description
MEDIA_GAP
0
Gap
MEDIA_CONTINUOUS
1
Continuous
MEDIA_BLACKMARK
2
Black Mark
* int offset
[in] Gap or Blackmark offset
* int gapLength
[in] Gap length or Blackmark depth [dot]
[Return Values]
Constant
Value
Description
SUCCESS 0 The function is successful.
WRITE_ERROR
-105
Data transmission failed.
* Example
int ret;
ret = ConnectToPrinter(“portinfo…”);
……
SetPaper(832, 1261, MEDIA_GAP, 0, 20);
……
Page 16
Label Printer
Rev. 1.00
- 16 -
3-11 SetMargin
Set the paper margins.
int SetMargin(int horizontalMargin, int verticalMargin)
[Parameters]
* int horizontalMargin
[in] Horizontal margin [dot]
* int verticalMargin
[in] Vertical margin [dot]
[Return Values]
Constant
Value
Description
SUCCESS 0 The function is successful.
WRITE_ERROR
-105
Data transmission failed.
* Example
int ret;
ret = ConnectToPrinter(“portinfo…”);
……
SetMargin(10, 10);
……
Page 17
Label Printer
Rev. 1.00
- 17 -
3-12 SetOffset
Set the offset between Black Mark/Gap and cutting line.
int SetOffset(int offset)
[Parameters]
* int offset
[in] Offset length [dot] (-100 ~ 100)
[Return Values]
Constant
Value
Description
SUCCESS 0 The function is successful.
WRITE_ERROR
-105
Data transmission failed.
* Example
int ret;
ret = ConnectToPrinter(“portinfo…”);
……
SetOffset(10);
……
Page 18
Label Printer
Rev. 1.00
- 18 -
3-13 PrintDeviceFont
Print the device font.
int PrintDeviceFont(const char *text, const int xPos, const int yPos, const int fontName,
const int xMulti, const int yMulti, const int rotation, const bool bold);
[Parameters]
* const char *text
[in] Character strings to print
* const int xPos
[in] Horizontal position (X) [dot]
* const int yPos
[in] Vertical position (Y) [dot]
* const int fontName
[in] Font name
Barcode
Value
Description
DEVICE_ENG_9X15
0
Size 6 (9 X 15)
DEVICE_ENG_12X20
1
Size 8 (12 X 20)
DEVICE_ENG_16X25
2
Size 10 (16 X 25)
DEVICE_ENG_19X30
3
Size 12 (19 X 30)
DEVICE_ENG_24X38
4
Size 15 (24 X 38)
DEVICE_ENG_32X50
5
Size 20 (32 X 50)
DEVICE_ENG_48X76
6
Size 30 (48 X 76)
DEVICE_ENG_22X34
7
Size 14 (22 X 34)
DEVICE_ENG_28X44
8
Size 18 (28 X 44)
DEVICE_ENG_37X58
9
Size 24 (37 X 58)
DEVICE_KOR_16X16
0x61
Size 1 (16 X 16)
DEVICE_KOR_24X24
0x62
Size 2 (24 X 24)
DEVICE_KOR_20X20
0x63
Size 3 (20 X 20)
DEVICE_KOR_26X26
0x64
Size 4 (26 X 26)
DEVICE_KOR_20X26
0x65
Size 5 (20 X 26)
DEVICE_KOR_38X38
0x66
Size 6 (38 X 38)
DEVICE_CHN_GB2312
0x6D
GB2312 (24 X 24)
DEVICE_CHN_BIG5
0x6E
BIG5 (24 X 24)
* const int xMulti
[in] Horizontal zoom in (1 ~ 4)
* const int yMulti
[in] Vertical zoom in (1 ~ 4)
Page 19
Label Printer
Rev. 1.00
- 19 -
* const int rotation
[in] Rotation value
Constant
Value
Description
ROTATE_0 0 Rotate by 0 degree
ROTATE_90 1 Rotate by 90 degrees
ROTATE_180
2
Rotate by 180 degrees
ROTATE_270
3
Rotate by 270 degrees
* bool bold
[in] Bold. false: disable, true: enable
[Return Values]
Constant
Value
Description
BXL_SUCCESS
0
The function is successful.
BXL_NOT_OPENED
-101
ConnectPrinter must be executed.
BXL_WRITE_ERROR
-105
Data transmission failed.
* Example
int ret;
ret = ConnectToPrinter(“portinfo…”);
……
PrintDeviceFont(“BIXOLON LABEL SDK TEST.”, 20, 10, DEVICE_ENG_24X38,
1, 1, ROTATE_0, false);
Prints(1, 1);
……
Page 20
Label Printer
Rev. 1.00
- 20 -
3-14 PrintDeviceFontW
Print the device font.
int PrintDeviceFontW(const char *text, const int xPos, const int yPos, const int fontName,
const int xMulti, const int yMulti, const int rotation, const bool bold,
const unsigned codePage);
[Parameters]
* const char *text
[in] Character strings to print
* const int xPos
[in] Horizontal position (X) [dot]
* const int yPos
[in] Vertical position (Y) [dot]
* const int fontName
[in] Font name
Barcode
Value
Description
DEVICE_ENG_9X15
0
Size 6 (9 X 15)
DEVICE_ENG_12X20
1
Size 8 (12 X 20)
DEVICE_ENG_16X25
2
Size 10 (16 X 25)
DEVICE_ENG_19X30
3
Size 12 (19 X 30)
DEVICE_ENG_24X38
4
Size 15 (24 X 38)
DEVICE_ENG_32X50
5
Size 20 (32 X 50)
DEVICE_ENG_48X76
6
Size 30 (48 X 76)
DEVICE_ENG_22X34
7
Size 14 (22 X 34)
DEVICE_ENG_28X44
8
Size 18 (28 X 44)
DEVICE_ENG_37X58
9
Size 24 (37 X 58)
DEVICE_KOR_16X16
0x61
Size 1 (16 X 16)
DEVICE_KOR_24X24
0x62
Size 2 (24 X 24)
DEVICE_KOR_20X20
0x63
Size 3 (20 X 20)
DEVICE_KOR_26X26
0x64
Size 4 (26 X 26)
DEVICE_KOR_20X26
0x65
Size 5 (20 X 26)
DEVICE_KOR_38X38
0x66
Size 6 (38 X 38)
DEVICE_CHN_GB2312
0x6D
GB2312 (24 X 24)
DEVICE_CHN_BIG5
0x6E
BIG5 (24 X 24)
* const int xMulti
[in] Horizontal zoom in (1 ~ 4)
* const int yMulti
[in] Vertical zoom in (1 ~ 4)
Page 21
Label Printer
Rev. 1.00
- 21 -
* const int rotation
[in] Rotation value
Constant
Value
Description
ROTATE_0 0 Rotate by 0 degree
ROTATE_90 1 Rotate by 90 degrees
ROTATE_180
2
Rotate by 180 degrees
ROTATE_270
3
Rotate by 270 degrees
* bool bold
[in] Bold. false: disable, true: enable
* const unsigned int codePage
[in] Set the encoding type for character strings.
Constant
Value
Description
CP_EUCKR
0
Korean. Encode character strings in EUC-KR.
CP_CP949
1
Korean. Encode character strings in CP949.
CP_EUCCN
2
Chinese. Encode character strings in EUC-CN.
CP_GB18030
3
Chinese. Encode character strings in GB18030.
CP_BIG5
4
Chinese. Encode character strings in BIG5.
CP_CP950
5
Chinese. Encode character strings in CP950.
CP_EUCJP
6
Japanese. Encode character strings in EUC-JP.
CP_CP932
7
Japanese. Encode character strings in CP932.
CP_CP874
8
Thai. Encode character strings in CP874.
[Return Values]
Constant
Value
Description
BXL_SUCCESS
0
The function is successful.
BXL_NOT_OPENED
-101
ConnectPrinter must be executed.
BXL_WRITE_ERROR
-105
Data transmission failed.
* Example
int ret;
ret = ConnectToPrinter(“portinfo…”);
……
PrintDeviceFont(“BIXOLON Label Printer SDK Test.”, 20, 10, DEVICE_ENG_24X38,
1, 1, ROTATE_0, false, CP_CP949);
Prints(1, 1);
……
Page 22
Label Printer
Rev. 1.00
- 22 -
3-15 PrintVectorFont
Print the vector font.
Long PrintVectorFont(const char *text, const int xPos, const int yPos, const int font,
const int fontWidth, const int fontHeight, const int rightSpace,
const bool bold, const bool reverse, const bool italic,
const int rotation, const int alignment, const int printDirection)
[Parameters]
* const char *text
[in] Character strings to print
* const int xPos
[in] Horizontal position (X) [dot]
* const int yPos
[in] Vertical position (Y) [dot]
* const int font
[in] Font option
Barcode
Value
Description
VECTOR_ASCII 0 ASCII (1Byte Code)
VECTOR_KS5601
1
KS5601(2Byte Code)
VECTOR_BIG5 2 BIG5(2Byte Code)
VECTOR_GB2312
3
GB2312(2Byte Code)
VECTOR_JIS 4 Shift-JIS(2Byte Code)
VECTOR_OCRA 5 OCR-A(1Byte Code)
VECTOR_OCRB 6 OCR-B(1Byte Code)
* const int fontWidth
[in] Font width [dot]
* const int fontHeight
[in] Font height [dot]
* const int rightSpace
[in] Right space [dot]. + / - option can be used.
* const bool bold
[in] Bold. false: disable, true: enable
* const bool reverse
[in] Reverse. false: disable, true: enable
* const bool italic
[in] Italic. false: disable, true: enable
Page 23
Label Printer
Rev. 1.00
- 23 -
* const int rotation
[in] Rotation value
Constant
Value
Description
ROTATE_0 0 Rotate by 0 degree
ROTATE_90 1 Rotate by 90 degrees
ROTATE_180
2
Rotate by 180 degrees
ROTATE_270
3
Rotate by 270 degrees
* const int alignment
[in] text alignment
Constant
Value
Description
ALIGNMENT_LEFT
0
Align to the left
ALIGNMENT_CENTER
1
Align to the center
ALIGNMENT_RIGHT
2
Align to the right
* int printDirection
[in] print direction for character strings
Constant
Value
Description
LEFT_TO_RIGHT
0
Print from left to right (ex. BIXOLON)
RIGHT_TO_LEFT
1
Print from right to left (ex. NOLOXIB)
[Return Values]
Constant
Value
Description
SUCCESS 0 The function is successful.
WRITE_ERROR
-105
Data transmission failed.
* Example
int ret;
ret = ConnectToPrinter(“portinfo…”);
……
PrintVectorFont(“VECTOR FONT.”, 20, 150, VECTOR_ASCII, 10, 10, 3, false, false,
false, ROTATE_0, ALIGNMENT_LEFT, LEFT_TO_RIGHT);
Prints(1, 1);
……
Page 24
Label Printer
Rev. 1.00
- 24 -
3-16 PrintVectorFontW
Print the vector font.
Long PrintVectorFontW(const char *text, const int xPos, const int yPos, const int font,
const int fontWidth, const int fontHeight, const int rightSpace,
const bool bold, const bool reverse, const bool italic,
const int rotation, const int alignment, const int printDirection,
const unsigned int codePage)
[Parameters]
* const char *text
[in] Character strings to print
* const int xPos
[in] Horizontal position (X) [dot]
* const int yPos
[in] Vertical position (Y) [dot]
* const int font
[in] Font option
Barcode
Value
Description
VECTOR_ASCII 0 ASCII (1Byte Code)
VECTOR_KS5601
1
KS5601(2Byte Code)
VECTOR_BIG5 2 BIG5(2Byte Code)
VECTOR_GB2312
3
GB2312(2Byte Code)
VECTOR_JIS 4 Shift-JIS(2Byte Code)
VECTOR_OCRA 5 OCR-A(1Byte Code)
VECTOR_OCRB 6 OCR-B(1Byte Code)
* const int fontWidth
[in] Font width [dot]
* const int fontHeight
[in] Font height [dot]
* const int rightSpace
[in] Right space [dot]. + / - option can be used.
* const bool bold
[in] Bold. false: disable, true: enable
* const bool reverse
[in] Reverse. false: disable, true: enable
* const bool italic
[in] Italic. false: disable, true: enable
Page 25
Label Printer
Rev. 1.00
- 25 -
* const int rotation
[in] Rotation value
Constant
Value
Description
ROTATE_0 0 Rotate by 0 degree
ROTATE_90 1 Rotate by 90 degrees
ROTATE_180
2
Rotate by 180 degrees
ROTATE_270
3
Rotate by 270 degrees
* const int alignment
[in] Text alignment
Constant
Value
Description
ALIGNMENT_LEFT
0
Align to the left
ALIGNMENT_CENTER
1
Align to the center
ALIGNMENT_RIGHT
2
Align to the right
* int printDirection
[in] print direction for character strings
Constant
Value
Description
LEFT_TO_RIGHT
0
Print from left to right (ex. BIXOLON)
RIGHT_TO_LEFT
1
Print from right to left (ex. NOLOXIB)
* const unsigned int codePage
[in] Set the encoding type for character strings.
Constant
Value
Description
CP_EUCKR
0
Korean. Encode character strings in EUC-KR.
CP_CP949
1
Korean. Encode character strings in CP949.
CP_EUCCN
2
Chinese. Encode character strings in EUC-CN.
CP_GB18030
3
Chinese. Encode character strings in GB18030.
CP_BIG5
4
Chinese. Encode character strings in BIG5.
CP_CP950
5
Chinese. Encode character strings in CP950.
CP_EUCJP
6
Japanese. Encode character strings in EUC-JP.
CP_CP932
7
Japanese. Encode character strings in CP932.
CP_CP874
8
Thai. Encode character strings in CP874.
[Return Values]
Constant
Value
Description
SUCCESS 0 The function is successful.
WRITE_ERROR
-105
Data transmission failed.
Page 26
Label Printer
Rev. 1.00
- 26 -
* Example
int ret;
ret = ConnectToPrinter(“portinfo…”);
……
PrintVectorFontW(“BIXOLON Label Printer SDK Test.”, 20, 150, VECTOR_ASCII, 10,
10, 3, false, false, false, ROTATE_0, ALIGNMENT_LEFT,
LEFT_TO_RIGHT, CP_CP949);
Prints(1, 1);
……
Page 27
Label Printer
Rev. 1.00
- 27 -
3-17 Prints
Print the buffer.
int Prints(const int nLabelSet, const int nCopies);
[Parameters]
* const int nLabelSet
[in] Number of label sets (1 ~ 65535)
* const int nCopies
[in] Number of label copies (1 ~ 65535)
[Return Values]
Constant
Value
Description
SUCCESS 0 The function is successful.
WRITE_ERROR
-105
Data transmission failed.
* Example
int ret;
ret = ConnectToPrinter(“portinfo…”);
……
Prints(1, 1);
……
Page 28
Label Printer
Rev. 1.00
- 28 -
3-18 Print1DBarcode
Print 1-dimensional barcode.
int Print1DBarcode(const char *barcodeData, const int xPos, const int yPos,
const int barcodeType, const int narrowBarWidth,
const int wideBarWidth, const int barcodeHeight, const int rotation,
const int HRI);
[Parameters]
* const char *barcodeData
[in] Barcode printing data
* const int xPos
[in] Horizontal position (X) [dot]
* const int yPos
[in] Vertical position (Y) [dot]
* const int barcodeType
[in] Define barcode type. Defined in bxlConst.h.
Barcode
Value
Description
BAR_CODE39
0
Code39
BAR_CODE128 1 Code128
BAR_I2OF5
2
Interleaved 2of5
BAR_CODABAR 3 Codabar
BAR_CODE93
4
Code93
BAR_UPCA
5
UPC-A
BAR_UPCE
6
UPC-E
BAR_EAN13
7
EAN13
BAR_EAN8
8
EAN8
BAR_EAN128 9 UCC/EAN128
BAR_CODE11
10
Code11
BAR_PLANET
11
Planet
BAR_INDUSTRIAL2OF5
12
Industrial 2of5
BAR_STANDARD2OF5
13
Standard 2of5
BAR_LOGMARS
14
logmars
BAR_EXTENSION
15
UPC/EAN Extensions
BAR_POSTNET
16
Postnet
* int narrowBarWidth
[in] Set the narrow bar width in the unit of Dot.
* int wideBarWidth
[in] Set the wide bar width in the unit of Dot.
* int barcodeHeight
[in] Set the barcode height in the unit of Dot.
Page 29
Label Printer
Rev. 1.00
- 29 -
* int rotation
[in] Set the rotation value.
Constant
Value
Description
ROTATE_0 0 Rotate by 0 degree
ROTATE_90 1 Rotate by 90 degrees
ROTATE_180
2
Rotate by 180 degrees
ROTATE_270
3
Rotate by 270 degrees
* int HRI
[in] Set the HRI printing position and size in the range between 0 and 8.
[Return Values]
Constant
Value
Description
SUCCESS 0 The function is successful.
WRITE_ERROR
-105
Data transmission failed.
* Example
int ret;
ret = ConnectToPrinter(“portinfo…”);
……
Print1DBarcode(“123456789012”, 220, 60, BXL_1DBAR_CODE39, 2, 5, 100, BXL_ROTATE_90, 1);
Prints(1, 1);
Print1DBarcode(“123456789012”, 220, 60, BXL_1DBAR_CODE128, 2, 5, 100, BXL_ROTATE_90, 1);
Prints(1, 1);
Print1DBarcode(“123456789012”, 220, 60, BXL_1DBAR_I2OF5, 2, 5, 100, BXL_ROTATE_90, 1);
Prints(1, 1);
Print1DBarcode(“123456789012”, 220, 60, BXL_1DBAR_CODABAR, 2, 5, 100, BXL_ROTATE_90, 1);
Prints(1, 1);
Print1DBarcode(“123456789012”, 220, 60, BXL_1DBAR_CODE93, 2, 5, 100, BXL_ROTATE_90, 1);
Prints(1, 1);
Print1DBarcode(“123456789012”, 220, 60, BXL_1DBAR_UPCA, 2, 5, 100, BXL_ROTATE_90, 1);
Prints(1, 1);
Print1DBarcode(“123456789012”, 220, 60, BXL_1DBAR_UPCE, 2, 5, 100, BXL_ROTATE_90, 1);
Prints(1, 1);
Print1DBarcode(“123456789012”, 220, 60, BXL_1DBAR_EAN13, 2, 5, 100, BXL_ROTATE_90, 1);
Prints(1, 1);
Print1DBarcode(“123456789012”, 220, 60, BXL_1DBAR_EAN8, 2, 5, 100, BXL_ROTATE_90, 1);
Prints(1, 1);
Print1DBarcode(“123456789012”, 220, 60, BXL_1DBAR_EAN128, 2, 5, 100, BXL_ROTATE_90, 1);
Prints(1, 1);
……
Page 30
Label Printer
Rev. 1.00
- 30 -
3-19 PrintMaxiCode
Print 2-dimensional barcode (Maxicode).
int PrintMaxiCode(const char *barcodeData, const int xPos, const int yPos,
const int mode);
[Parameters]
* const char *barcodeData
[in] Barcode printing data
* const int xPos
[in] Horizontal position (X) [dot]
* const int yPos
[in] Vertical position (Y) [dot]
* const int mode
[in] Maxicode mode
Constant
Value
Description
MAXICODE_MODE0
0
Mode 0
MAXICODE_MODE90
2
Mode 2
MAXICODE_MODE180
3
Mode 3
MAXICODE_MODE270
4
Mode 4
[Return Values]
Constant
Value
Description
SUCCESS 0 The function is successful.
WRITE_ERROR
-105
Data transmission failed.
* Example
int ret;
ret = ConnectToPrinter(“portinfo…”);
……
PrintMaxiCode(“990,840,06840,THIS IS A TEST OF MODE 0 BIXOLON LABEL
PRINTER”, 30, 100, MAXICODE_MODE0);
Prints(1, 1);
……
Page 31
Label Printer
Rev. 1.00
- 31 -
3-20 PrintPDF417
Print 2-dimensional barcode (PDF417).
int PrintBarcode(const char *barcodeData, const int xPos, const int yPos,
const int verticalCount, const int horizontalCount, int errorLevel,
int dataComp, bool HRI, int startPosition, int moduleWidth,
int barHeight, int rotation);
[Parameters]
* const char *barcodeData
[in] Barcode printing data
* const int xPos
[in] Horizontal position (X) [dot]
* const int yPos
[in] Vertical position (Y) [dot]
* int verticalCount
[in] Max. vertical count: 3 ~ 90
* int horizontalCount
[in] Max. vertical count: 1 ~ 30
* int errorLevel
[in] Error correction level. Defined in bxlConst.h.
Barcode
Value
Description
PDF417_ECL0
0
EC Level: 0. EC Codeword: 2
PDF417_ECL1
1
EC Level: 1. EC Codeword: 4
PDF417_ECL2
2
EC Level: 2. EC Codeword: 8
PDF417_ECL3
3
EC Level: 3. EC Codeword: 16
PDF417_ECL4
4
EC Level: 4. EC Codeword: 32
PDF417_ECL5
5
EC Level: 5. EC Codeword: 64
PDF417_ECL6
6
EC Level: 6. EC Codeword: 128
PDF417_ECL7
7
EC Level: 7. EC Codeword: 256
PDF417_ECL8
8
EC Level: 8. EC Codeword: 512
* int dataComp
[in] Data compression method. Defined in bxlConst.h.
Constant
Value
Description
PDF417_COMP_TEXT
0
2 Characters per codeword.
PDF417_COMP_NUM
1
2.93 Characters per codeword.
PDF417_COMP_BINARY
2
1.2 Bytes per codeword.
* bool HRI
[in] Set the HRI printing option
Page 32
Label Printer
Rev. 1.00
- 32 -
* int startPosition
[in] 0: starts from the center of the barcode, 1: starts from the top left corner of the
barcode
* int moduleWidth
[in] Set the module width (2 ~ 9).
* int barHeight
[in] Set the bar height (4 ~ 99).
* int rotation
[in] Set the rotation value.
Constant
Value
Description
ROTATE_0 0 Rotate by 0 degree
ROTATE_90 1 Rotate by 90 degrees
ROTATE_180
2
Rotate by 180 degrees
ROTATE_270
3
Rotate by 270 degrees
[Return Values]
Constant
Value
Description
SUCCESS 0 The function is successful.
WRITE_ERROR
-105
Data transmission failed.
* Example
int ret;
ret = ConnectToPrinter(“portinfo…”);
……
PrintPDF417(“BIXOLON Label Printer, This is Test Printing.”, 30, 100, 30, 5,
PDF417_ECL0, PDF417_COMP_TEXT, true, 1, 3, 10, ROTATE_0);
Prints(1, 1);
……
Page 33
Label Printer
Rev. 1.00
- 33 -
3-21 PrintQRCode
Print 2-dimensional barcode (QR Code).
int PrintQRCode(const char *barcodeData, const int xPos, const int yPos, int model,
const int eccLevel, int barSize, int rotation);
[Parameters]
* const char *barcodeData
[in] Barcode printing data
* const int xPos
[in] Horizontal position (X) [dot]
* const int yPos
[in] Vertical position (Y) [dot]
* int model
[in] Model option. 1: Model 1, 2: Model 2
* int eccLevel
[in] ECC level
Constant
Value
Description
QRCODE_ECC7
0
Recovery rate 7%
QRCODE_ECC15
1
Recovery rate 15%
QRCODE_ECC25
2
Recovery rate 25%
QRCODE_ECC30
3
Recovery rate 30%
* int barSize
[in] Barcode size setting (1 ~ 4).
* int rotation
[in] Rotation value
Constant
Value
Description
ROTATE_0 0 Rotate by 0 degree
ROTATE_90 1 Rotate by 90 degrees
ROTATE_180
2
Rotate by 180 degrees
ROTATE_270
3
Rotate by 270 degrees
[Return Values]
Constant
Value
Description
SUCCESS 0 The function is successful.
WRITE_ERROR
-105
Data transmission failed.
Page 34
Label Printer
Rev. 1.00
- 34 -
* Example
int ret;
ret = ConnectToPrinter(“portinfo…”);
……
PrintQRCode(“ABCDEFGHIJKLMN1234567890”, 30, 100, 1, QRCODE_ECC7,
4, ROTATE_0);
Prints(1, 1);
……
Page 35
Label Printer
Rev. 1.00
- 35 -
3-22 PrintDataMatrix
Print 2-dimensional barcode (Data Matrix).
int PrintDataMatrix(const char *barcodeData, const int xPos, const int yPos,
int barSize, bool reverse, int rotation);
[Parameters]
* const char *barcodeData
[in] Barcode printing data
* const int xPos
[in] Horizontal position (X) [dot]
* const int yPos
[in] Vertical position (Y) [dot]
* int barSize
[in] Barcode size setting (1 ~ 4)
* bool reverse
[in] Barcode reverse. false: disable, true: enable
* int rotation
[in] Rotation value
Constant
Value
Description
ROTATE_0 0 Rotate by 0 degree
ROTATE_90 1 Rotate by 90 degrees
ROTATE_180
2
Rotate by 180 degrees
ROTATE_270
3
Rotate by 270 degrees
[Return Values]
Constant
Value
Description
SUCCESS 0 The function is successful.
WRITE_ERROR
-105
Data transmission failed.
* Example
int ret;
ret = ConnectToPrinter(“portinfo…”);
……
PrintDataMatrix(“BIXOLON Label Printer”, 30, 100, 4, false, ROTATE_0);
Prints(1, 1);
……
Page 36
Label Printer
Rev. 1.00
- 36 -
3-23 PrintAztec
Print 2-dimensional barcode (Aztec).
int PrintAztec(const char *barcodeData, const int xPos, const int yPos, int barSize,
int interpretation, int errCodeNSymbolSize, bool menuSymbol,
int numOfSymbol, int optID, int rotation);
[Parameters]
* const char *barcodeData
[in] Barcode printing data
* const int xPos
[in] Horizontal position (X) [dot]
* const int yPos
[in] Vertical position (Y) [dot]
* int barSize
[in] Barcode size setting (1 ~ 10).
* int interpretation
[in] ECI (Extended Channel Interpretation) code setting. 0: disable, 1: enable.
* int errCodeNSymbolSize
[in] Error code and symbol size/type
Value
Description
0
Default error collection level
1 ~ 99
Error collection percent
101 ~ 104
1 ~ 4 layer compact symbol
201 ~ 232
1 ~ 32 layer full range symbol
300
Simple Aztec “Rune”
* bool menuSymbol
[in] Menu symbol
* bool numOfSymbol
[in] Number of symbols for structured append (1 ~ 26)
* int optID
[in] Optional ID filed for structured append : ID field string (max. 24 characters)
* int rotation
[in] Rotation value
Constant
Value
Description
ROTATE_0 0 Rotate by 0 degree
ROTATE_90 1 Rotate by 90 degrees
ROTATE_180
2
Rotate by 180 degrees
ROTATE_270
3
Rotate by 270 degrees
Page 37
Label Printer
Rev. 1.00
- 37 -
[Return Values]
Constant
Value
Description
SUCCESS 0 The function is successful.
WRITE_ERROR
-105
Data transmission failed.
* Example
int ret;
ret = ConnectToPrinter(“portinfo…”);
……
PrintAztec(“THIS IS AZTEC BARCODE TESTTHIS IS AZTEC BARCODE TEST”,
30, 100, 5, 0, 0, true, 1, 1, ROTATE_0);
Prints(1, 1);
……
Page 38
Label Printer
Rev. 1.00
- 38 -
3-24 PrintCode49
Print 2-dimensional barcode (Code49).
int PrintCode49(const char *barcodeData, const int xPos, const int yPos,
const int narrowWidth, const int wideWidth, const int barHeight,
int HRI, int startingMode, int rotation);
[Parameters]
* const char *barcodeData
[in] Barcode printing data
* const int xPos
[in] Horizontal position (X) [dot]
* const int yPos
[in] Vertical position (Y) [dot]
* const int narrowWidth
[in] Narrow bar width [dot]
* const int wideWidth
[in] Wide bar width [dot]
* const int barHeight
[in] Barcode height [dot]
* int HRI
[in] HRI printing. 0: No printing, 1: Below the barcode, 2: Above the barcode
* int startingMode
[in] starting mode
Value
Description
0
Regular Alphanumeric Mode
1
Multiple Read Alphanumeric
2
Regular Numeric Mode
3
Group Alphanumeric Mode
4
Regular Alphanumeric Shift 1
5
Regular Alphanumeric Shift 2
7
Automatic Mode
* int rotation
[in] Rotation value
Constant
Value
Description
ROTATE_0 0 Rotate by 0 degree
ROTATE_90 1 Rotate by 90 degrees
ROTATE_180
2
Rotate by 180 degrees
ROTATE_270
3
Rotate by 270 degrees
Page 39
Label Printer
Rev. 1.00
- 39 -
[Return Values]
Constant
Value
Description
SUCCESS 0 The function is successful.
WRITE_ERROR
-105
Data transmission failed.
* Example
int ret;
ret = ConnectToPrinter(“portinfo…”);
……
PrintCode49(“12345ABC”, 30, 100, 2, 7, 22, 2, 7, ROTATE_0);
Prints(1, 1);
……
Page 40
Label Printer
Rev. 1.00
- 40 -
3-25 PrintCODABLOCK
Print 2-dimensional barcode (CODABLOCK).
int PrintCODABLOCK(const char *barcodeData, const int xPos, const int yPos,
const int narrowWidth, const int wideWidth, const int barHeight,
const bool security, int dataColumns, int mode, int encodeRow);
[Parameters]
* const char *barcodeData
[in] Barcode printing data
* const int xPos
[in] Horizontal position (X) [dot]
* const int yPos
[in] Vertical position (Y) [dot]
* const int narrowWidth
[in] Narrow bar width [dot]
* const int wideWidth
[in] Wide bar width [dot]
* const int barHeight
[in] Barcode height [dot]
* const bool security
[in] Security function
* int dataColumns
[in] Number of characters per line (2 ~ 62)
* int mode
[in] Mode
Constant
Value
Description
CODABLOCK_A
0
Use Code 39 character set
CODABLOCK_E
1
Use Code 128 character set
CODABLOCK_F
2
Add Code 128 character set and Function 1
(FNC1) automatically
* int encodeRow
[in] Number of lines to encode
Value
Description
A
1 ~ 18
E
2 ~ 4
F
2 ~ 4
Page 41
Label Printer
Rev. 1.00
- 41 -
[Return Values]
Constant
Value
Description
SUCCESS 0 The function is successful.
WRITE_ERROR
-105
Data transmission failed.
* Example
int ret;
ret = ConnectToPrinter(“portinfo…”);
……
PrintCODABLOCK(“BIXOLON BARCODE TEST 123BIXOLON BARCODE TEST 123”,
30, 100, 2, 5, 30, false, 30, CODABLOCK_E, 4);
Prints(1, 1);
……
Page 42
Label Printer
Rev. 1.00
- 42 -
3-26 PrintMicroPDF
Print 2-dimensional barcode (Micro-PDF417).
int PrintMicroPDF(const char *barcodeData, const int xPos, const int yPos,
int moduleWidth, int barHeight, int mode, int rotation);
[Parameters]
* const char *barcodeData
[in] Barcode printing data
* const int xPos
[in] Horizontal position (X) [dot]
* const int yPos
[in] Vertical position (Y) [dot]
* int moduleWidth
[in] Module width (2 ~ 8)
* int barHeight
[in] Barcode height (1 ~ 99) [dot]
* int mode
[in] Mode (0 ~ 33), refer to the command manual for details.
* int rotation
[in] Rotation value
Constant
Value
Description
ROTATE_0 0 Rotate by 0 degree
ROTATE_90 1 Rotate by 90 degrees
ROTATE_180
2
Rotate by 180 degrees
ROTATE_270
3
Rotate by 270 degrees
[Return Values]
Constant
Value
Description
SUCCESS 0 The function is successful.
WRITE_ERROR
-105
Data transmission failed.
Page 43
Label Printer
Rev. 1.00
- 43 -
* Example
int ret;
ret = ConnectToPrinter(“portinfo…”);
……
PrintMicroPDF(“ABCDEFGHIJKLMN1234567890”, 30, 100, 2, 6, 8, ROTATE_0);
Prints(1, 1);
……
Page 44
Label Printer
Rev. 1.00
- 44 -
3-27 PrintGS1DataBar
Print GS1 DataBar barcode.
Long PrintGS1DataBar(const char *barcodeData, const int xPos, const int yPos,
int barcodeType, int expand, int separatorHeight,
int barHeight, int segmentWidth, int rotation);
[Parameters]
* const char *barcodeData
[in] Barcode printing data
* const int xPos
[in] Horizontal position (X) [dot]
* const int yPos
[in] Vertical position (Y) [dot]
* int barcodeType
[in] Barcode type
Constant
Value
Description
GS1DATABAR
0
GS1 DataBar
GS1DATABAR_TRUNCATED
1
GS1 DataBar Truncated
GS1DATABAR_STACKED
2
GS1 DataBar Stacked
GS1DATABAR_STACKED_OMNIDIRECTIONAL
3
GS1 DataBar Stacked
Omnidirectional
GS1DATABAR_LIMITED
4
GS1 Limited
GS1DATABAR_EXPANDED
5
GS1 Expanded
* int expand
[in] Zoom in (1 ~ 10)
* int separatorHeight
[in] Separator height (1 ~ 2)
* int barHeight
[in] Barcode height
* int segmentWidth
[in] Segment width (0 ~ 22. even numbers only)
Page 45
Label Printer
Rev. 1.00
- 45 -
* int rotation
[in] Rotation value
Constant
Value
Description
ROTATE_0 0 Rotate by 0 degree
ROTATE_90 1 Rotate by 90 degrees
ROTATE_180
2
Rotate by 180 degrees
ROTATE_270
3
Rotate by 270 degrees
[Return Values]
Constant
Value
Description
SUCCESS 0 The function is successful.
WRITE_ERROR
-105
Data transmission failed.
* Example
int ret;
ret = ConnectToPrinter(“portinfo…”);
……
PrintGS1DataBar(“0102005190000570031512291036310300050091320000050304”,
30, 100, GS1DATABAR_EXPANDED, 2, 2, 17, 10, ROTATE_0);
Prints(1, 1);
……
Page 46
Label Printer
Rev. 1.00
- 46 -
3-28 PrintBlock
Print lines, blocks, boxes and slopes.
int PrintBlock(const int xStart, const int yStart, const int xEnd, const int yEnd,
const int option, const int thickness);
[Parameters]
* const int xStart
[in] X-axis starting coordinate [dot]
* const int yStart
[in] Y-axis starting coordinate [dot]
* const int xEnd
[in] X-axis end coordinate [dot]
* const int yEnd
[in] Y-axis end coordinate [dot]
* const int option
[in] Mode (0 ~ 33), refer to the command manual for details.
Constant
Value
Description
BLOCK_OVERWRITE
0
Line Overwriting
BLOCK_EXCLUSIVEOR
1
Line Exclusive OR
BLOCK_DELETE 2 Delete line
BLOCK_SLOPE 3 Slope
BLOCK_BOX
4
Box
* int thickness
[in] Applicable to line thickness, slope and box only.
[Return Values]
Constant
Value
Description
SUCCESS 0 The function is successful.
WRITE_ERROR
-105
Data transmission failed.
Page 47
Label Printer
Rev. 1.00
- 47 -
* Example
int ret;
ret = ConnectToPrinter(“portinfo…”);
……
PrintBlock(20, 20, 300, 300, BLOCK_BOX, 10);
PrintBlock(400, 20, 20, 500, BLOCK_SLOPE, 10);
Prints(1, 1);
……
Page 48
Label Printer
Rev. 1.00
- 48 -
3-29 PrintCircle
Print circles.
int PrintCircle(const int xPos, const int yPos, int size, int multi);
[Parameters]
* const int xPos
[in] Horizontal position (X) [dot]
* const int yPos
[in] Vertical position (Y) [dot]
* int size
[in] Circle size (1 ~ 6)
* int multi
[in] Zoom in (1 ~ 4)
[Return Values]
Constant
Value
Description
SUCCESS 0 The function is successful.
WRITE_ERROR
-105
Data transmission failed.
* Example
int ret;
ret = ConnectToPrinter(“portinfo…”);
……
PrintCircle(150, 150, 4, 1);
Prints(1, 1);
……
Page 49
Label Printer
Rev. 1.00
- 49 -
3-30 PrintImage
Select and print image files (bmp, jpg, gif).
int PrintImage(const char *imagePath, const int xPos, const int yPos,
const bool compress);
[Parameters]
* const char *imagePath
[in] Image file path
* const int xPos
[in] Horizontal position (X) [dot]
* const int yPos
[in] Vertical position (Y) [dot]
* const bool compress
[in] Compression
[Return Values]
Constant
Value
Description
SUCCESS 0 The function is successful.
IMAGE_OPEN_ERROR
-118
The image file cannot be opened.
MEM_ALLOC_ERROR
-120
The allocation of internal memory failed.
* Example
int ret;
ret = ConnectToPrinter(“portinfo…”);
……
char *imgPath = “….”;
PrintImage(imgPath, 150, 150, false);
Prints(1, 1);
……
Page 50
Label Printer
Rev. 1.00
- 50 -
3-31 DirectIO
Send SLCS commands directly and retrieve calls.
int DirectIO(const char *writeData, const wirteLen, char *readData, int *readLen);
[Parameters]
* const char *writeData
[in] Data to send
* const int writeLen
[in] Length of the data to send
* char *readData
[in] Data buffer to be read
* int *readLen
[in] Send the length of the data to be read and receive the length of the data that has
been read.
[Return Values]
Constant
Value
Description
SUCCESS 0 The function is successful.
WRITE_ERROR
-105
Data transmission failed.
READ_ERROR
-106
Data reception failed.
* Example
int ret;
char cmd = “T20,20,3,1,1,0,0,N,N,\'BIXOLON Label Printer\'”;
ret = ConnectToPrinter(“portinfo…”);
……
DirectIO(cmd, strlen(cmd), NULL, 0);
……
Page 51
Label Printer
Rev. 1.00
- 51 -
3-32 CalibrateMedia
Support auto calibration.
int CalibrateMedia();
[Parameters]
None
[Return Values]
Constant
Value
Description
SUCCESS 0 The function is successful.
WRITE_ERROR
-105
Data transmission failed.
* Example
int ret;
ret = ConnectToPrinter(“portinfo…”);
……
CalibrateMedia();
……
Page 52
Label Printer
Rev. 1.00
- 52 -
3-33 ResetPrinter
Reboot the printer.
int ResetPrinter();
[Parameters]
None
[Return Values]
Constant
Value
Description
SUCCESS 0 The function is successful.
WRITE_ERROR
-105
Data transmission failed.
* Example
int ret;
ret = ConnectToPrinter(“portinfo…”);
……
ResetPrinter();
……
Page 53
Label Printer
Rev. 1.00
- 53 -
3-34 ClearBuffer
Delete the image buffer data of the printer.
int ClearBuffer();
[Parameters]
None
[Return Values]
Constant
Value
Description
SUCCESS 0 The function is successful.
WRITE_ERROR
-105
Data transmission failed.
* Example
int ret;
ret = ConnectToPrinter(“portinfo…”);
……
ClearBuffer();
……
Loading...
