Bivocom TW810-B5, TW810-B8, TW810-B20 User Manual

Addr.: Unit 704, No. A3 Building, Tel: [phone]
3rd Software Park, Xiamen, China 361000 Fax: [phone]

www.bivocom.com [e-mail]

1

Industrial NB-IoT Cellular Modem

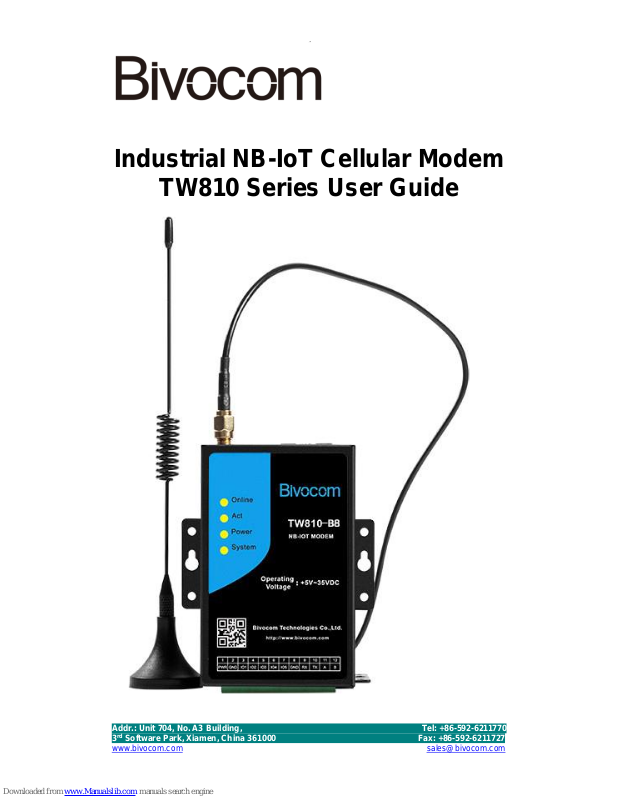

TW810 Series User Guide

Addr.: Unit 704, No. A3 Building, Tel: [phone]
3rd Software Park, Xiamen, China 361000 Fax: [phone]

www.bivocom.com [e-mail]

2

Copyright

Copyright © XIAMEN BIVOCOM TECHNOLOGIES CO., LTD. All rights reserved.

Trademark

BIVOCOM logo is a registered trademark of Xiamen Bivocom Technologies Co., Ltd. All
other trademarks belong to their respective vendors or manufactures.

Disclaimer

Product specifications and information in this document are subject to change without any
notice, and BIVOCOM reserves the right to improve and change this user guide at any
time. Users should take full responsibility for their application of products, and Xiamen
Bivocom Technologies Co., Ltd. disclaims all warranties and liability for the accurateness,
completeness of the information published.

Global Technical &Sales Support

Xiamen Bivocom Technologies Co., Ltd.

Addr.: Unit 704, No. A3 Building, 3rd Software Park,
Xiamen, China 361000
Tel.: +86-592‐6211770
Fax: +86-592‐6211727
Email: [e-mail]

[e-mail]
www.bivocom.com

Addr.: Unit 704, No. A3 Building, Tel: [phone]
3rd Software Park, Xiamen, China 361000 Fax: [phone]

www.bivocom.com [e-mail]

3

About This Guide

Thank you for choosing BIVOCOM Industrial Cellular NB-IoT Modem TW810 Series.
Please thoroughly read this user guide before you configure and install the device.

This manual is compatible with below models

Model

Description

TW810-B5

Industrial NB-IoT Modem(850MHz)

TW810-B8

Industrial NB-IoT Modem(900MHz)

TW810-B20

Industrial NB-IoT Modem(800MHz)

Summary of Changes

Date

Version

Notes

Editor

10-01-2017

V1.0

Initial new version

Wei Liu

Addr.: Unit 704, No. A3 Building, Tel: [phone]
3rd Software Park, Xiamen, China 361000 Fax: [phone]

www.bivocom.com [e-mail]

4

Table of Contents

Copyright ............................................................................................................ 2

Trademark .......................................................................................................... 2

Disclaimer .......................................................................................................... 2

Global Technical &Sales Support ........................................................................ 2

About This Guide ................................................................................................ 3

Summary of Changes ......................................................................................... 3

Table of Contents ................................................................................................ 4

1. Definitions .................................................................................................... 6

2. Introduction .................................................................................................. 6

2.1 Overview ................................................................................................ 6

2.2 Applications............................................................................................ 6

3. Getting Started ............................................................................................. 7

3.1 Package Checklist ................................................................................. 7

3.2 Dimensions ............................................................................................ 8

3.3 Installation.............................................................................................. 8

3.3.1 SIM/UIM Card .............................................................................. 9

3.2.2 Cellular Antenna ........................................................................... 9

3.2.3 Terminal Block, Power Cable and Console Cable ......................... 9

3.3 Power Supply ....................................................................................... 10

3.4 LED Indicators ...................................................................................... 11

4. Serial Port Configuration ............................................................................. 11

4.1 Operations ........................................................................................... 12

4.1.1 Save ........................................................................................... 12

4.1.2 Load ........................................................................................... 12

4.1.3 Clear Output ............................................................................... 12

4.1.4 Version Info ................................................................................ 12

4.1.5 Signal Value ............................................................................... 12

4.1.6 Factory Setting ........................................................................... 12

4.1.7 Restart ....................................................................................... 13

4.1.8 Save Config ............................................................................... 13

4.1.9 Configure via Saved Config File ................................................. 13

4.2 Basic Setting ........................................................................................ 13

4.2.1 Device ID ................................................................................... 14

4.2.2 SIM Card No. ............................................................................. 14

4.2.3 Work Mode ................................................................................. 14

4.2.4 Debug Level ............................................................................... 14

4.2.5 Communication Baud Rate......................................................... 15

4.2.6 Databit, Parity and Stopbit .......................................................... 15

4.2.7 Frame Interval (Unit: Millisecond) ............................................... 15

4.2.8 Trigger Settings .......................................................................... 16

Addr.: Unit 704, No. A3 Building, Tel: [phone]
3rd Software Park, Xiamen, China 361000 Fax: [phone]

www.bivocom.com [e-mail]

5

4.3 Networking Setting ....................................................................... 17

4.3.1 Network Work Mode ................................................................... 17

4.3.2 Data Center Number .................................................................. 18

4.3.3 Dialing Settings .......................................................................... 19

4.3.4 Heartbeat Interval ....................................................................... 19

4.3.5 Auto Back to Main Server ........................................................... 19

4.3.6 Custom Register String .............................................................. 20

4.3.7 Custom Heartbeat String ............................................................ 20

4.3.8 Transfer Meaning ....................................................................... 20

4.3.9 TCP MTU ................................................................................... 20

4.3.10 Multi Center Reconnect Interval ............................................... 20

4.3.11 Reconnect ................................................................................ 21

4.3.12 ECHO Heartbeat Interval ......................................................... 21

4.3.13 TTL Heartbeat .......................................................................... 21

4.5 MODBUS Setting ................................................................................. 21

5. Firmware Upgrade ..................................................................................... 21

Appendix 1: AT Command ................................................................................ 24

Appendix 2: FAQ .............................................................................................. 26

Addr.: Unit 704, No. A3 Building, Tel: [phone]
3rd Software Park, Xiamen, China 361000 Fax: [phone]

www.bivocom.com [e-mail]

6

1. Definitions

1.1 NB-IoT Modem

NB-IoT modem, a wireless Data Transfer Unit(DTU) used for converting the data from
serial port data packet to IP data packet, or from IP data packet to serial port data packet,
then transfer the data packet through NB-IoT cellular network.

1.2 Center/Server

A computer for receiving data sent from NB-IoT Modem through NB-IoT network, and
sending data to NB-IoT Modem through NB-IoT network.

1.3 TW810

An industrial NB-IoT Modem series manufactured by Bivocom.

2. Introduction

2.1 Overview

TW810 Series NB-IoT Modem is a type of industrial wireless NB-IoT Modem (Also called
DTU, Data Transfer Unit, or IP modem), designed to fully meet the needs of industrial
standards and industrial users. It adopts high-powered industrial 32-bits CPU, multi-layer
software detection and hardware protection mechanism to ensure reliability and stability of
the device. It supports NB-IoT network B5(800MHz), B8(900MHz), or B20(800MHz). With
rich and flexible interfaces, such as RS232, RS485 and RS422, and TTL GPIOs is also
customizable.

TW810 Series NB-IoT Modem can help users to quickly access the Internet, to ensure
secure and reliable data transmission. It’s ideal for IOT (Internet of Things) and M2M
(Machine to Machine) applications, and has been widely used in many applications, such
as Intelligent Transportation, Smart Grid, Vending Machine, Agricultural Irrigation,
Environmental Protection, Industrial Automation, Energy Saving, Smart Home, etc.

2.2 Applications

TW810 Series NB-IoT Modem utilizes NB-IoT cellular network for remote data acquisition
and transmission, and has been used for industrial remote monitor and control.
Typical application as below.

Addr.: Unit 704, No. A3 Building, Tel: [phone]
3rd Software Park, Xiamen, China 361000 Fax: [phone]

www.bivocom.com [e-mail]

7

3. Getting Started

WARNING: Please make sure the device is powered off before you install and
configure it.

3.1 Package Checklist

Check the package before you configure and install the device.

 TW810 NB-IoT Modem Host
 Cellular antenna(SMA Male)
 Power Adapter(12VDC/0.5A)
 3- Pin RS232 cable
 12-Pin Terminal Block

Addr.: Unit 704, No. A3 Building, Tel: [phone]
3rd Software Park, Xiamen, China 361000 Fax: [phone]

www.bivocom.com [e-mail]

8

3.2 Dimensions

There are 3 holes for installation at each side of TW810 (Unit: mm)

3.3 Installation

Addr.: Unit 704, No. A3 Building, Tel: [phone]
3rd Software Park, Xiamen, China 361000 Fax: [phone]

www.bivocom.com [e-mail]

9

3.3.1 SIM/UIM Card

Insert the SIM/UIM card.

TW810 supports normal SIM/UIM only, so if you’re using a Micro SIM or Nano SIM card,
you may need to use a Micro SIM or Nano SIM to Normal SIM card adapter.
Make sure your NB-IoT Modem is powered off, then use a needle object(such as a pen) to
push the button near the SIM/UIM card holder, it will flick out immediately. Put the
SIM/UIM card to card holder with chipset upside, insert it to NB-IoT Modem and make
sure it’s tightly matched.

Warning: Never install SIM/UIM card when NB-IoT Modem is powered on.

3.2.2 Cellular Antenna

Fasten the cellular antenna.

Screw the SMA male cellular antenna to TW810 (SMA female interface), make sure it is
screwed tightly to ensure the strength of signal.

3.2.3 Terminal Block, Power Cable and Console Cable

Insert the terminal block to modem correctly.

1) Definition of Terminal Block Interface

PIN No.

Signal

Name

Default Function

Extended Function

1

PWR

Power input anode

NA 2 GND

Power Ground

NA

3

IO1

GPIO, able to check dry contact
signal and 3.3 V switch signal,
output 3.3V switch signal

Reserved RS232 RTS
and
TTL RX

4

IO2

GPIO, able to check dry contact
signal and 3.3 V switch signal,
output 3.3V switch signal

Reserved RS232 CTS
and
TTL TX

5

IO3

GPIO, able to check dry contact
signal and 3.3 V switch signal,
output 3.3V switch signal

Reserved RS232 DCD

Addr.: Unit 704, No. A3 Building, Tel: [phone]
3rd Software Park, Xiamen, China 361000 Fax: [phone]

www.bivocom.com [e-mail]

10

6

IO4

GPIO, able to check dry contact
signal and 3.3 V switch signal,
output 3.3V switch signal

Customized pulse
output, pulse counter,
analog quantity input,
Reserved RS232 RI

7

IO5

GPIO, able to check dry contact
signal and 3.3 V switch signal,
output 3.3V switch signal

Customized pulse
output, pulse counter,
analog quantity input

8

GND

Power Ground

NA 9 RX

RS232 Receive Data

NA

10

TX

RS232 Transfer Data

NA

11

A

RS485 anode

Reserved RS232 DTR

12

B

RS485 cathode

Reserved RS232 DSR

2) Connect Power Cable and Console Cable

Connect the power supply cable and console cable to terminal block.

The interface of TW810 is industrial terminal block, we suggest you use 28-16AWG power
cable and console cable.
Definition of power cable and console cable in this package are as below

Power Cable (Output 12VDC/0.5A)

Color of cable

Power Output Polarity

Black & White Alternate

Anode

Black

Cathode

RS232 Cable (with DB9 female interface)

Color of Cable

Corresponding DB9-M

Pin Number

Blue

3

Brown

2

Black

5

WARNING: make sure you connect the terminal block to TW810 NB-IoT modem
correctly before power on, or it may cause the damage of device.

3.3 Power Supply

After all the accessories and cables mentioned above are installed very well and correctly,
then plug the power supply to power outlet.
TW810 adopts advanced power technology to improve the stability and adapt to complex
external environment. You can use Bivocom standard power adapter(12VDC/500mA), or
use DC power ranging at 5-35VDC, please make sure the power supply is stable
enough(Ripple shall be less than 300mA, and Instantaneous voltage shall not larger than

Addr.: Unit 704, No. A3 Building, Tel: [phone]
3rd Software Park, Xiamen, China 361000 Fax: [phone]

www.bivocom.com [e-mail]

11

35V), meanwhile, power shall over 4W.

Note: We suggest you use Bivocom standard power adapter (500mA/12VDC).

3.4 LED Indicators

TW810 has 4 LED indicators, ‘Online’, ‘ACT’, ’Power’, ‘System’, as follows.

4. Serial Port Configuration

Connect TW810 to your laptop or computer through RS232, then open Bivocom

configuration tool (TW810.exe), Click on the left side, choose the right serial
port as below,

LED Indicators

Status

Content

Online

Off

TW810 isn’t connected to server

On

TW810 is connected to server

ACT

Off

No data transfer

Blink

Sending or receiving data

Power

Off

Power Off

On

Power On

System

Off

System works

Blink

System doesn’t works

Addr.: Unit 704, No. A3 Building, Tel: [phone]
3rd Software Park, Xiamen, China 361000 Fax: [phone]

www.bivocom.com [e-mail]

12

Click , and repower TW810, waiting for entering into configuration status.

4.1 Operations

4.1.1 Save

Click to save the parameters you’ve configured.

4.1.2 Load

Load the parameters of TW810 to config tool and display.

4.1.3 Clear Output

Clear log of config tool.

4.1.4 Version Info

Check the version info of TW810.

4.1.5 Signal Value

Check the signal strength of TW810.

4.1.6 Factory Setting

TW810 returns to factory setting.

Addr.: Unit 704, No. A3 Building, Tel: [phone]
3rd Software Park, Xiamen, China 361000 Fax: [phone]

www.bivocom.com [e-mail]

13

4.1.7 Restart

Restart TW810

4.1.8 Save Config

Save configuration of TW810 in file format, which you can use it recover the config.

4.1.9 Configure via Saved Config File

Click , and choose the

saved config file, then click to configure TW810.

4.2 Basic Setting

Addr.: Unit 704, No. A3 Building, Tel: [phone]
3rd Software Park, Xiamen, China 361000 Fax: [phone]

www.bivocom.com [e-mail]

14

4.2.1 Device ID

To identify the TW810 and for device management, if you have many TW810 connected
to server, please make sure all the ID are different.

4.2.2 SIM Card No.

The Number of SIM inserted in this modem.

4.2.3 Work Mode

Keep the default settings-DTU, as work mode MODEM and IMODEM are not supported
on TW810.

DTU (Transfer the data to server through NB-IoT Modem)

Note: the MODEM and IMODEM work mode are only available on TD210 series IP
Modem.

4.2.4 Debug Level

There are 3 levels to choose from the drop-down menu, as below

2: All logs output through RS232/RS485
1: Part of important logs output through RS232/RS485
0: No logs output

Addr.: Unit 704, No. A3 Building, Tel: [phone]
3rd Software Park, Xiamen, China 361000 Fax: [phone]

www.bivocom.com [e-mail]

15

4.2.5 Communication Baud Rate

Supported baud rate: 300, 600, 1200, 2400, 4800, 9600, 14400, 19200, 38400, 56000,
57600 and 115200.

4.2.6 Databit, Parity and Stopbit

You can choose below from drop-down menu.

8N1 (8 Databit, No Parity, 1 Stopbit)
8E1 (8 Databit, Even Parity, 1 Stopbit)
8O1 (8 Databit, Odd Parity, 1 Stopbit)
7O1 (7 Databit, Odd Parity, 1 Stopbit)
7E1 (8 Databit, Even Parity, 1 Stopbit)
7N1 (7 Databit, No Parity, 1 Stopbit)

4.2.7 Frame Interval (Unit: Millisecond)

When NB-IoT Modem receives packet slicing, increase the value, while for packet
merging, lower the value, 20ms for 115200 baud rate, 50ms for 9600 baud rate and
200ms for 1200 baud rate.

Addr.: Unit 704, No. A3 Building, Tel: [phone]
3rd Software Park, Xiamen, China 361000 Fax: [phone]

www.bivocom.com [e-mail]

16

4.2.8 Trigger Settings

1) Trigger Type

There are 2 trigger types for TW810 only, AUTO and DATA.
AUTO: Always online
DATA:Sending specific data to trigger TW810 online or offline.

Note: SMSD, CTRL, MIXED are not applicable to TW810, only available on TD210
Cellular modem.

http://www.bivocom.com/index.php?m=content&c=index&a=show&catid=12&id=22

2) Data Trigger On Password

You can set up trigger data in the blank, once the trigger mode is DATA and MIXD, and
TW810 receives the trigger data through RS232/RS485 serial port, it will get online.

3) Data Trigger Off Password

You can set up trigger data in the blank, once the trigger mode is DATA, and TW810
receives the trigger data through RS232/RS485 port, it will get offline.

4) RTC Setting

You can set up the system time for your TW810.

Addr.: Unit 704, No. A3 Building, Tel: [phone]
3rd Software Park, Xiamen, China 361000 Fax: [phone]

www.bivocom.com [e-mail]

17

4.3 Networking Setting

4.3.1 Network Work Mode

There is one network work mode supported on TW810 right now-NUDP(Pure UDP).
CUDP(Custom UDP) and HUDP(DCUDP) are unavailable now.
 TW810 will act as a UDP client when choose NUDP.

Note: To save the power consumption, NB-IoT Modem TW810 only supports UDP.

Addr.: Unit 704, No. A3 Building, Tel: [phone]
3rd Software Park, Xiamen, China 361000 Fax: [phone]

www.bivocom.com [e-mail]

18

4.3.2 Data Center Number

1) You can configure up to 5 data centers.

 0 means TW810 will not connect to NB-IoT network.
 1 means TW810 only supports 1 data center, TW810 will connect to main center,

once it couldn’t connect to backup center, it will continue to connect to main center till
it’s connected.

 2-5 means TW810 supports multi centers, and all the other centers will get sync data.
Note: if there is not backup center, please set up the same address and port for main
center and backup center

2) Center Addr.+Port

It can be configured as DNS or IP address.

3) Center DNS Server

When you use DNS for center, a DNS server is required to analytic the corresponding IP
address.

Addr.: Unit 704, No. A3 Building, Tel: [phone]
3rd Software Park, Xiamen, China 361000 Fax: [phone]

www.bivocom.com [e-mail]

19

4.3.3 Dialing Settings

 APN: cellular network access code
 Username: authentication username of NB-IoT network
 Password: authentication password of NB-IoT network
 Call center: dial number of call center for NB-IoT network

Note: Different carriers may have different APN, Username, Password and Call
Center, please ask your mobile carriers for those info if you have any questions.

4.3.4 Heartbeat Interval

Heartbeat time, we suggest you keep it as default settings.

4.3.5 Auto Back to Main Server

 Y
Auto back to main server.
 N
Don’t auto back to main server.
This setting will only work when both main and backup center are enabled, under this
work mode, if main center fails, TW810 will auto connect to backup center. If you choose

‘Y’, TW810 will check whether main center is recovery or not, if yes, it will switch to main
center, and disconnect with backup center. While if choose ‘N’, TW810 will not check

whether main center is recovery or not.

Addr.: Unit 704, No. A3 Building, Tel: [phone]
3rd Software Park, Xiamen, China 361000 Fax: [phone]

www.bivocom.com [e-mail]

20

4.3.6 Custom Register String

You can configure it when network work mode is configure as CUDP, but you can also
choose not to configure it, which means register string won’t be sent.
Note: the length of register string is up to 70 bytes.

4.3.7 Custom Heartbeat String

You can configure it when network word mode is configure as CUDP, but you can also
choose not to configure it, which means register string won’t be sent.
Note: the length of register string is up to 70 bytes.

4.3.8 Transfer Meaning

 Y means Yes
 N means No

We suggest you keep it as default settings-Y

4.3.9 TCP MTU

We suggest you keep it as default settings, as it is not supported by TW810.

4.3.10 Multi Center Reconnect Interval

Only available when data center number is 2-5.

Addr.: Unit 704, No. A3 Building, Tel: [phone]
3rd Software Park, Xiamen, China 361000 Fax: [phone]

www.bivocom.com [e-mail]

21

4.3.11 Reconnect

In real application, the data center may be shut down or have issue, and that will cause
TW810 disconnects from data center, while in order to keep TW810 always online, it will
try to reconnect the data center, and that will cause unnecessary data flow. So you can
configure those 2 functions to save the data flow, when Reconnect Time Interval enabled,
TW810 will try to reconnect data center, and if Connect Retry Times exceed the value you
set, while TW810 is still unable to reconnect to data center, TW810 will do exception
handling.

4.3.12 ECHO Heartbeat Interval

We suggest you keep it as default settings, as it is not supported by TW810 now.

4.3.13 TTL Heartbeat

It’s a reserved feature, we suggest you keep it as default settings, as it is not supported by
TW810 now.

4.5 MODBUS Setting

Modbus is a reserved feature, and not supported by TW810 now.

5. Firmware Upgrade

5.1 Please open the Bivocom Config Tool, as below,

1) Configure Serial Port parameters

 Baud Rate: 115200
 Data Bit: 8
 Stop Bit: 1
 Parity Bit: None

2) Click ‘Download Tool’

3) Click ‘Load’, choose the firmware you want to upgrade

4) The click ‘Download’

Addr.: Unit 704, No. A3 Building, Tel: [phone]
3rd Software Park, Xiamen, China 361000 Fax: [phone]

www.bivocom.com [e-mail]

22

5.2 Power on the TW810, then device will start to upgrade the firmware, as below

5.3 After firmware upgrading successfully, it shows ‘download success ok’, as below

Addr.: Unit 704, No. A3 Building, Tel: [phone]
3rd Software Park, Xiamen, China 361000 Fax: [phone]

www.bivocom.com [e-mail]

23

5.4 Then use the Config Tool to enter into the configuration status, set up the device to
factory setting, and restart to configure the parameters.

Addr.: Unit 704, No. A3 Building, Tel: [phone]
3rd Software Park, Xiamen, China 361000 Fax: [phone]

www.bivocom.com [e-mail]

24

Appendix 1: AT Command

Note: XX means parameter you’d like to set only, not command.

There are some AT Commands not supported by TW810

Description

AT Command

Parameter

Debug Level

AT+DEBUG=XX

XX: 0 (No logs)

1 (Simple logs)

2 ( Detailed logs)

Baud Rate

AT+IPR=XX

XX: from 300 to 115200

Data bit, stop bit and
Parity

AT+SERMODE=XX

XX: 8N1,8E1,8O1,7N1,7E1,
7O1

Frame Interval (ms)

AT+BYTEINT=XX

XX: unit(millisecond)

Trigger Type

AT+ACTI=XX

XX: AUTO (Always Online)
SMSD (SMS Trigger)
CTRL (Call Trigger)
DATA (Data Trigger)
MIXD (Mixed Trigger)

Call Trigger Phone No.

AT+CTRLNO=XX

XX: Preset call trigger phone
No.

SMS Trigger Password

AT+SMSDPSWD=XX

XX: Preset SMS trigger
password

Data Trigger On
Password

AT+DONPSWD=XX

XX: Trigger on data

Data Trigger Off
Password

AT+DOFFPSWD=XX

XX: Trigger off data

Network Word Mode

AT+MODE=XX

XX: FTCP,HTCP,CTCP,
NUDP,CUDP,HUDP

Data Center Number

AT+SVRCNT=XX

XX: number of data center

Main Center Addr.

AT+IPAD=XX

XX: Main center IP address or

DNS

Main Center Port

AT+PORT=XX

XX: Main center port

Backup Center Addr.

AT+IPSEC=XX

XX: Backup center IP address
or DNS

Backup Center Port

AT+PTSEC=XX

XX: Backup center port

2nd Center Addr.

AT+IPAD1=XX

XX: 2nd center IP address or

DNS

2nd Center Port

AT+PORT1=XX

XX: 2nd Center Port

3rd Center Addr.

AT+IPAD2=XX

XX: 3rd center IP address or
DNS

3rd Center Port

AT+PORT2=XX

XX: 3rd Center Port

Addr.: Unit 704, No. A3 Building, Tel: [phone]
3rd Software Park, Xiamen, China 361000 Fax: [phone]

www.bivocom.com [e-mail]

25

4th Center Addr.

AT+IPAD3=XX

XX: 4th center IP address or
DNS

4th Center Port

AT+PORT3=XX

XX: 4th Center Port

5th Center Addr.

AT+IPAD4=XX

XX: 5th center IP address or
DNS

5th Center Port

AT+PORT4=XX

XX: 5th Center Port

Main Center DNS Server

AT+DNSSVR=XX

XX: Main Center DNS Server

Backup Center DNS
Server

AT+DNSSV2=XX

XX: Backup Center DNS
Server

2nd Center DNS Server

AT+DNSSVR1=XX

XX: 2nd Center DNS Server

3rd Center DNS Server

AT+DNSSVR2=XX

XX: 3rd Center DNS Server

4th Center DNS Server

AT+DNSSVR3=XX

XX: 4th Center DNS Server

5th Center DNS Server

AT+DNSSVR4=XX

XX: 5th Center DNS Server

APN

AT+APN=XX

XX: APN

APN Username

AT+USERNAME=XX

XX: APN Username

APN Password

AT+PASSWORD=XX

XX: APN Password

APN Call Center

AT+CENT=XX

XX: APN Call Center

Heartbeat Interval

AT+POLLTIME=XX

XX: Heartbeat Interval

Auto Back to Main Server

AT+RETMAIN=XX

XX: 1, Yes
0, No

Custom Register String

AT+CONNRGST=XX

XX: Custom Register String

Custom Heartbeat String

AT+LINKRGST=XX

XX: Custom Heartbeat String

Transfer Meaning

AT+STRAIGHT=XX

XX：0, Transfer meaning
1, No transfer meaning

TCP MTU

AT+TCPMTU=XX

XX: TCP Data Maximum
Transmission Unit

Multi Center Reconnect
Interval

AT+MCONTIME=XX

XX: Second(Unit)
Connect Retry Times

AT+RETR=XX

XX: Connect Retry Times

Reconnect Time Interval

AT+RDLWT=XX

XX: Reconnect Time Interval

TTL Heartbeat

AT+EXFUN=XX

XX: 0, Disable
1, Enable, 1 time per 60
seconds

ECHO Heartbeat Interval

AT+ECHOINT=XX

XX: 0, Disable

Other value means

seconds you set

1st SMS Send Phone No.

AT+PHONE1=XX

XX: Use comma for multi
phone number

2nd SMS Send Phone No.

AT+PHONE2=XX

XX: Use comma for multi
phone number

3rd SMS Send Phone No.

AT+PHONE3=XX

XX: Use comma for multi

Addr.: Unit 704, No. A3 Building, Tel: [phone]
3rd Software Park, Xiamen, China 361000 Fax: [phone]

www.bivocom.com [e-mail]

26

phone number

4th SMS Send Phone No.

AT+PHONE4=XX

XX: Use comma for multi
phone number

SMS Send Type

AT+HEXSMS=XX

XX: 0, Normal SMS
1, HEX SMS

SMS Send Backup

AT+OPENSMSBCKP=XX

XX: 0, NO Backup
1, YES, to Backup

Display SMS Receiving

AT+SMSDIS=XX

XX: 0, No, SMS is not
displayed at serial port
1, Yes, SMS display at

serial port

MODBUS Work Mode

AT+MBMODE=XX

XX: 0, Disable
1, Network MODBUS
2, Serial Port MODBUS

MODBUS Device Address

AT+MBADDRESS=XX

XX: Address ranging from
1-247

1st Analog Work Mode

AT+ADCMODE1=XX

XX: 0, Disable

1, Collect Once

2nd Analog Work Mode

AT+ADCMODE2=XX

XX: 0, Disable

1, Collect Once

1st Digital Work Mode

AT+DIOWORKMODE1=XX

XX: 0, Disable

1, Input
2, Output

2nd Digital Work Mode

AT+DIOWORKMODE2=XX

XX: 0, Disable

1, Input
2, Output

3rd Digital Work Mode

AT+DIOWORKMODE3=XX

XX: 0, Disable

1, Input
2, Output

Appendix 2: FAQ

1. Power light is off

Check if the power supply range is 5~35V, and make sure the polarity is correct.

2. Online light is off

1) Make sure SIM card is the card holder and locked correctly, and antenna is fasten.

2) Check the IP address and port of server in the configuration tool is correct.

3) Check whether the server is working.

4) Check if the SIM is out of service (charges owed) and function of data is on.

3. The device couldn’t enter into configuration mode.

1) Check the connection of RS232/RS485 is correct.

Addr.: Unit 704, No. A3 Building, Tel: [phone]
3rd Software Park, Xiamen, China 361000 Fax: [phone]

www.bivocom.com [e-mail]

27

2) Is the RS232/RS485 connected to your computer or laptop and serial port of

computer or laptop is working.

3) Check whether the baud rate of computer or laptop is the same as NB-IoT Modem.
