Bivocom TD210-LF, TD210-G, TD210, TD210-W User Manual

Addr.: Unit 704, No. A3 Building, Tel: [phone]
3rd Software Park, Xiamen, China 361000 Fax: [phone]

www.bivocom.com [e-mail]

1

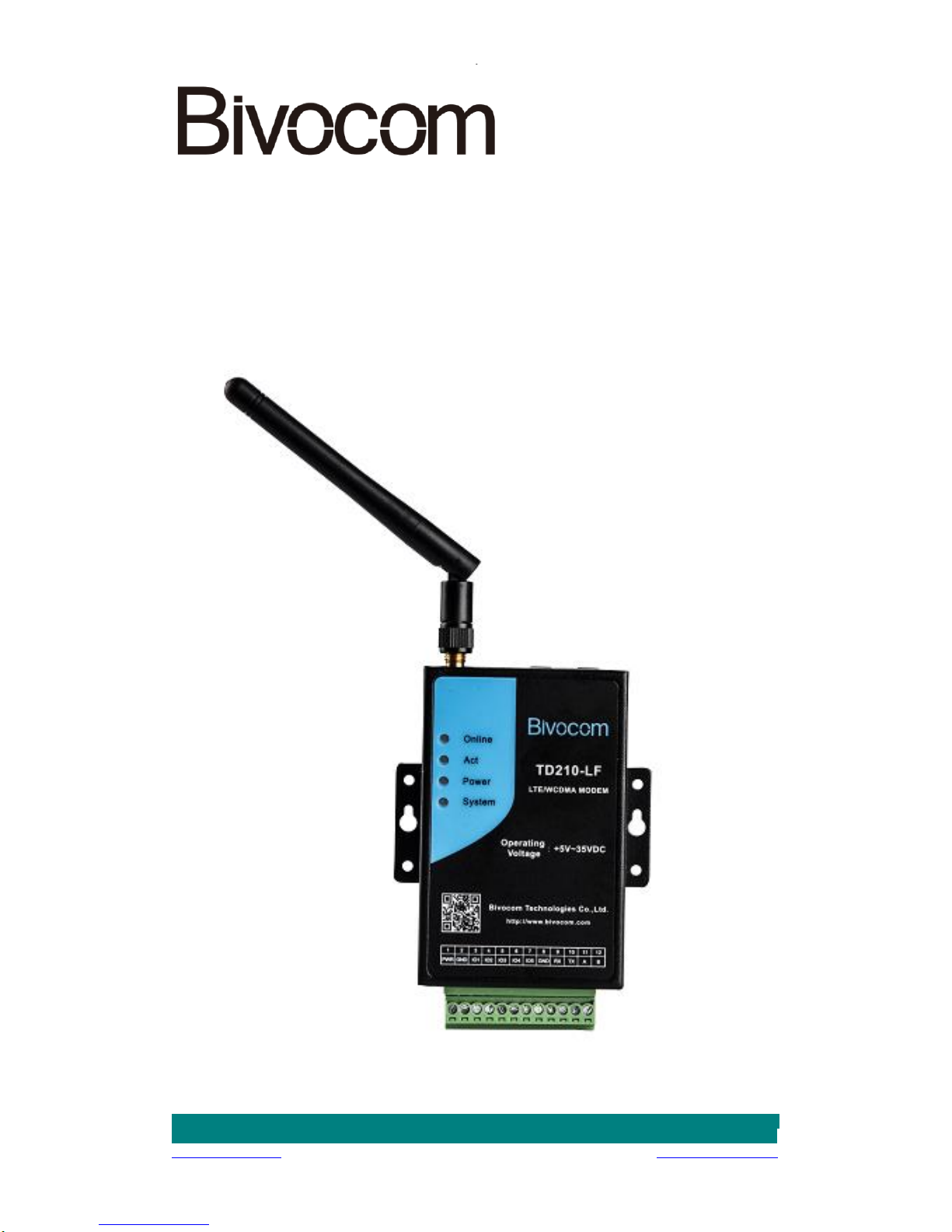

Industrial Cellular IP Modem

TD210 Series User Guide

Addr.: Unit 704, No. A3 Building, Tel: [phone]
3rd Software Park, Xiamen, China 361000 Fax: [phone]

www.bivocom.com [e-mail]

2

Copyright

Copyright © XIAMEN BIVOCOM TECHNOLOGIES CO., LTD. All rights reserved.

Trademark

BIVOCOM logo is a registered trademark of Xiamen Bivocom Technologies Co., Ltd. All
other trademarks belong to their respective vendors or manufactures.

Disclaimer

Product specifications and information in this document are subject to change without any
notice, and BIVOCOM reserves the right to improve and change this user guide at any
time. Users should take full responsibility for their application of products, and Xiamen
Bivocom Technologies Co., Ltd. disclaims all warranties and liability for the accurateness,
completeness of the information published.

Global Technical &Sales Support

Xiamen Bivocom Technologies Co., Ltd.

Addr.: Unit 704, No. A3 Building, 3rd Software Park,
Xiamen, China 361000
Tel.: +86-592‐6211770
Fax: +86-592‐6211727
Email: [e-mail]

[e-mail]
www.bivocom.com

Addr.: Unit 704, No. A3 Building, Tel: [phone]
3rd Software Park, Xiamen, China 361000 Fax: [phone]

www.bivocom.com [e-mail]

3

About This Guide

Thank you for choosing BIVOCOM Industrial Cellular IP Modem TD210 Series.
Please thoroughly read this user guide before you configure and install the device.

This manual is compatible with below models

Model

Description

TD210-G

Industrial GPRS IP Modem

TD210-W

Industrial WCDMA IP Modem

TD210-LF

Industrial LTE/WCDMA IP Modem

Summary of Changes

Date

Version

Notes

Editor

06-23-2014

V1.0

Initial new version

Wei Liu

07-11-2014

V1.1

Add configuration parameters and
AT Command

Wenhao Lin

10-07-2014

V1.2

Add PPP underlying heartbeat and
TTL heartbeat configuration

Wenhao Lin
04-02-2015

V1.3

Revise technical parameters

Wei Liu

09-26-2018

V2.3.1

Revise some parameters
configuration guide

Wei Liu

Addr.: Unit 704, No. A3 Building, Tel: [phone]
3rd Software Park, Xiamen, China 361000 Fax: [phone]

www.bivocom.com [e-mail]

4

Table of Contents

Copyright ............................................................................................................ 2

Trademark .......................................................................................................... 2

Disclaimer .......................................................................................................... 2

Global Technical &Sales Support ........................................................................ 2

About This Guide ................................................................................................ 3

Summary of Changes ......................................................................................... 3

Table of Contents ................................................................................................ 4

1. Definitions .................................................................................................... 6

2. Introduction .................................................................................................. 6

2.1 Overview ................................................................................................ 6

2.2 Applications............................................................................................ 7

3. Getting Started ............................................................................................. 7

3.1 Package Checklist ................................................................................. 7

3.2 Dimensions ............................................................................................ 8

3.3 Installation.............................................................................................. 9

3.3.1 SIM/UIM Card .............................................................................. 9

3.2.2 Cellular Antenna ........................................................................... 9

3.2.3 Terminal Block, Power Cable and Console Cable ....................... 10

3.3 Power Supply ........................................................................................ 11

3.4 LED Indicators ...................................................................................... 11

4. Configuration ............................................................................................. 12

4.1 Getting started ..................................................................................... 12

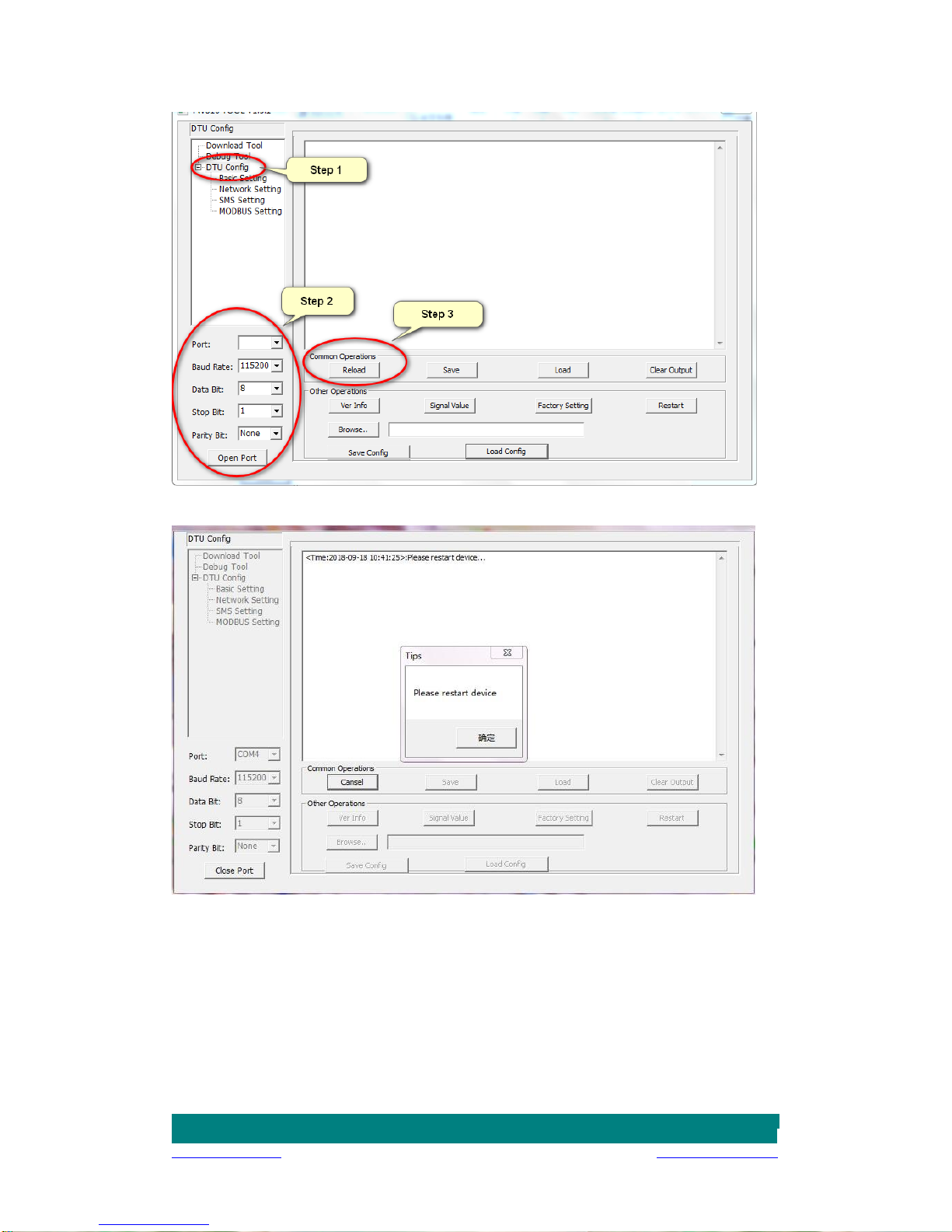

4.2 Serial port configuration ....................................................................... 12

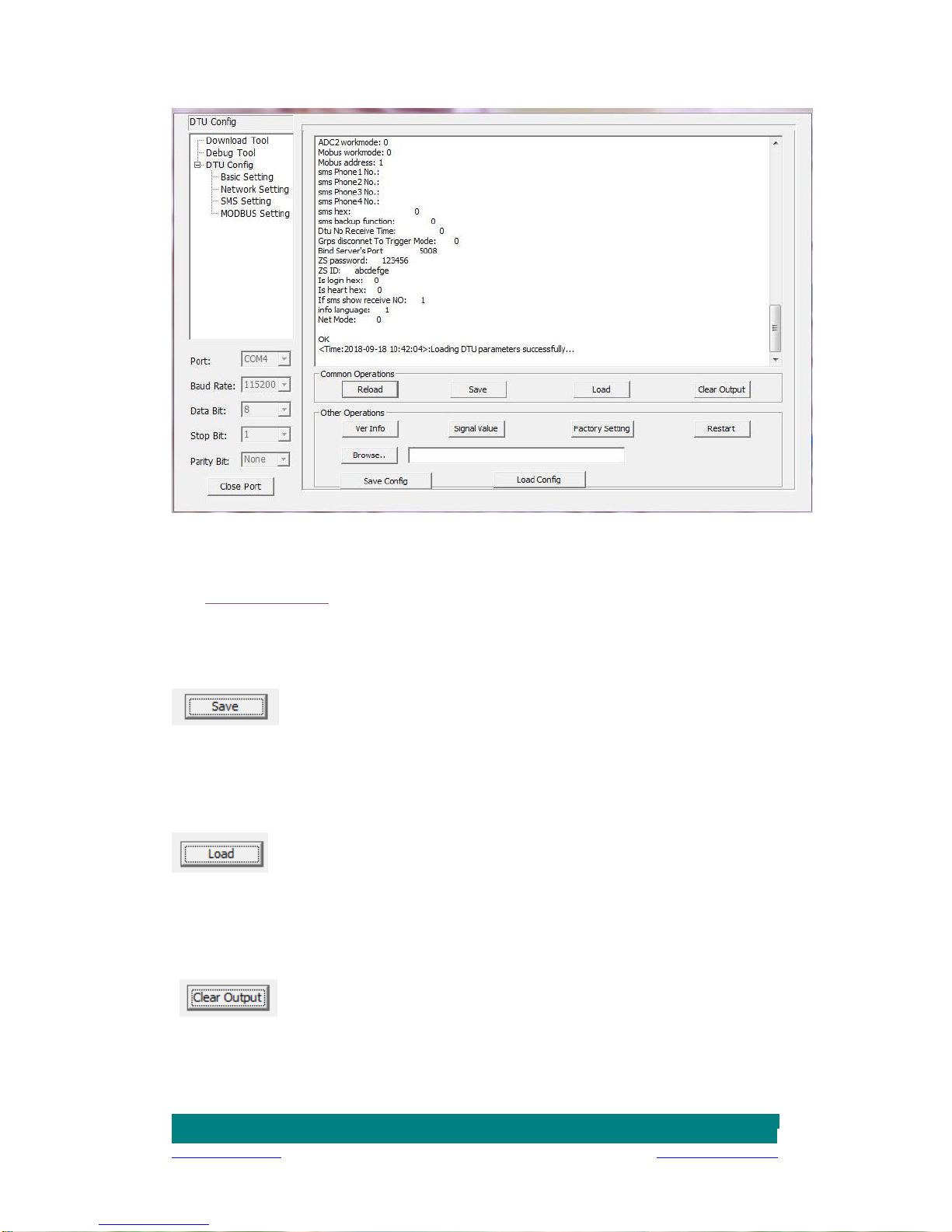

4.2.1 Save ........................................................................................... 14

4.2.2 Load ........................................................................................... 14

4.2.3 Clear Output ............................................................................... 14

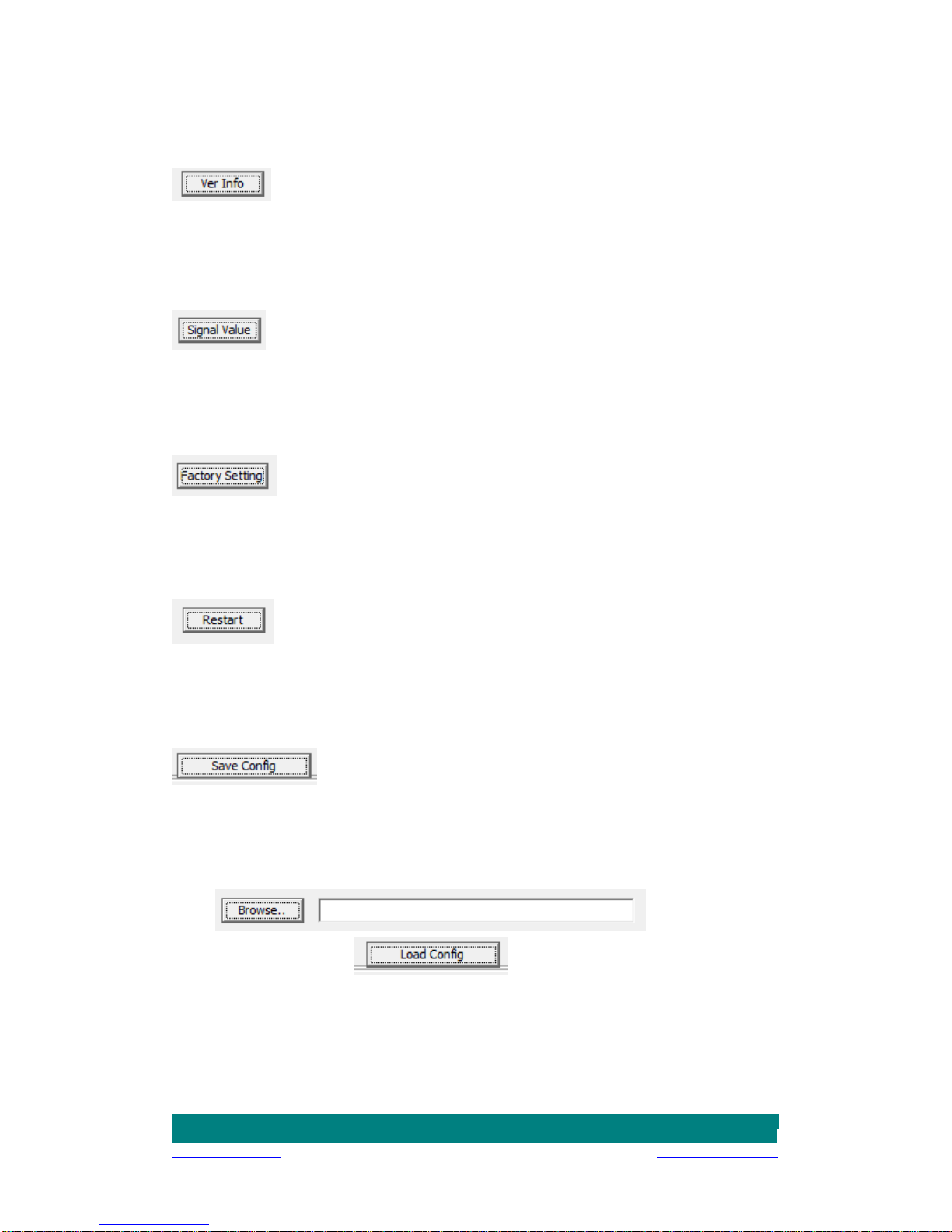

4.2.4 Version Info ................................................................................ 15

4.2.5 Signal Value ................................................................ ............... 15

4.2.6 Factory Setting ........................................................................... 15

4.2.7 Restart ....................................................................................... 15

4.2.8 Save Config ............................................................................... 15

4.2.9 Configure via Saved Config File ................................................. 15

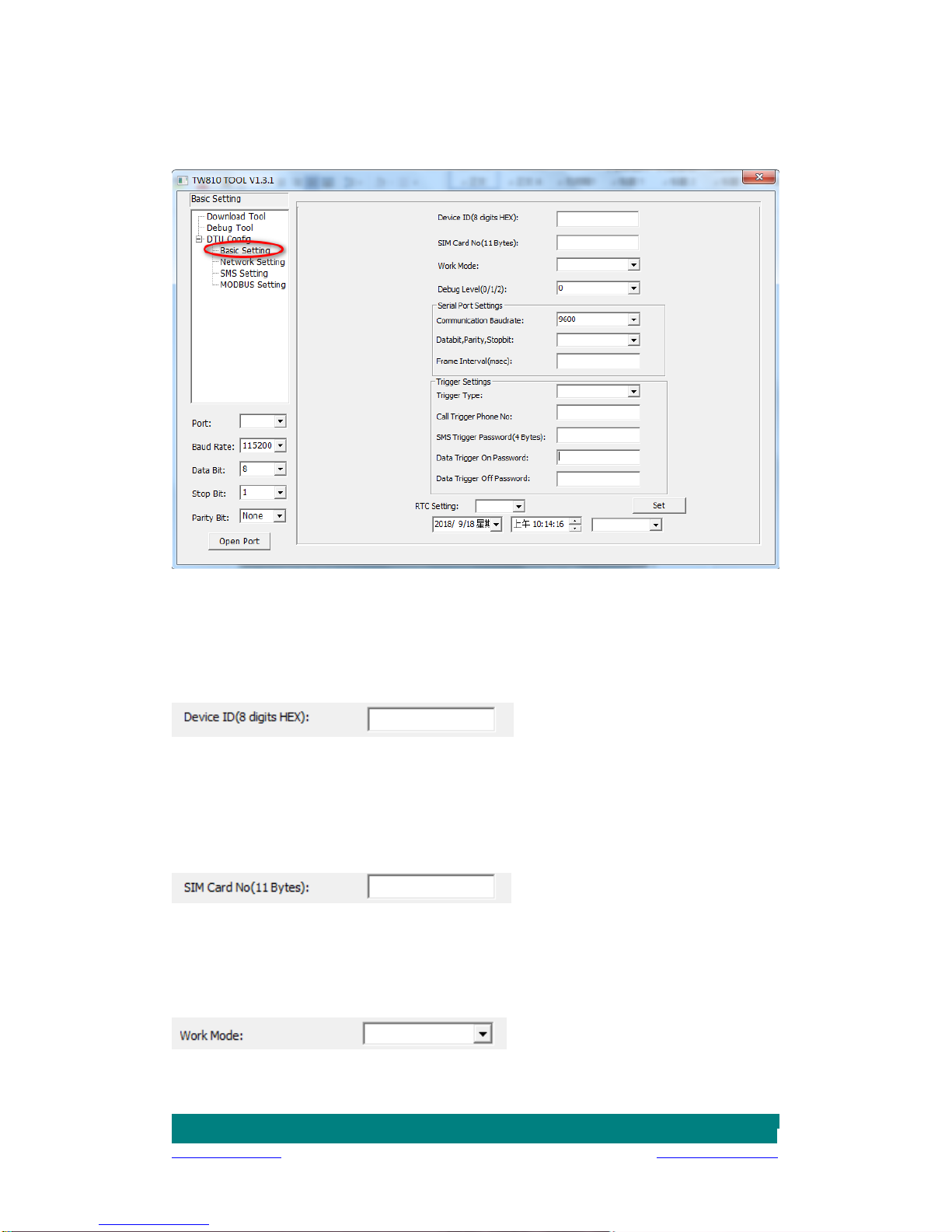

4.3 Basic Setting ........................................................................................ 16

4.3.1 Device ID ................................................................................... 16

4.3.2 SIM Card No. ............................................................................. 16

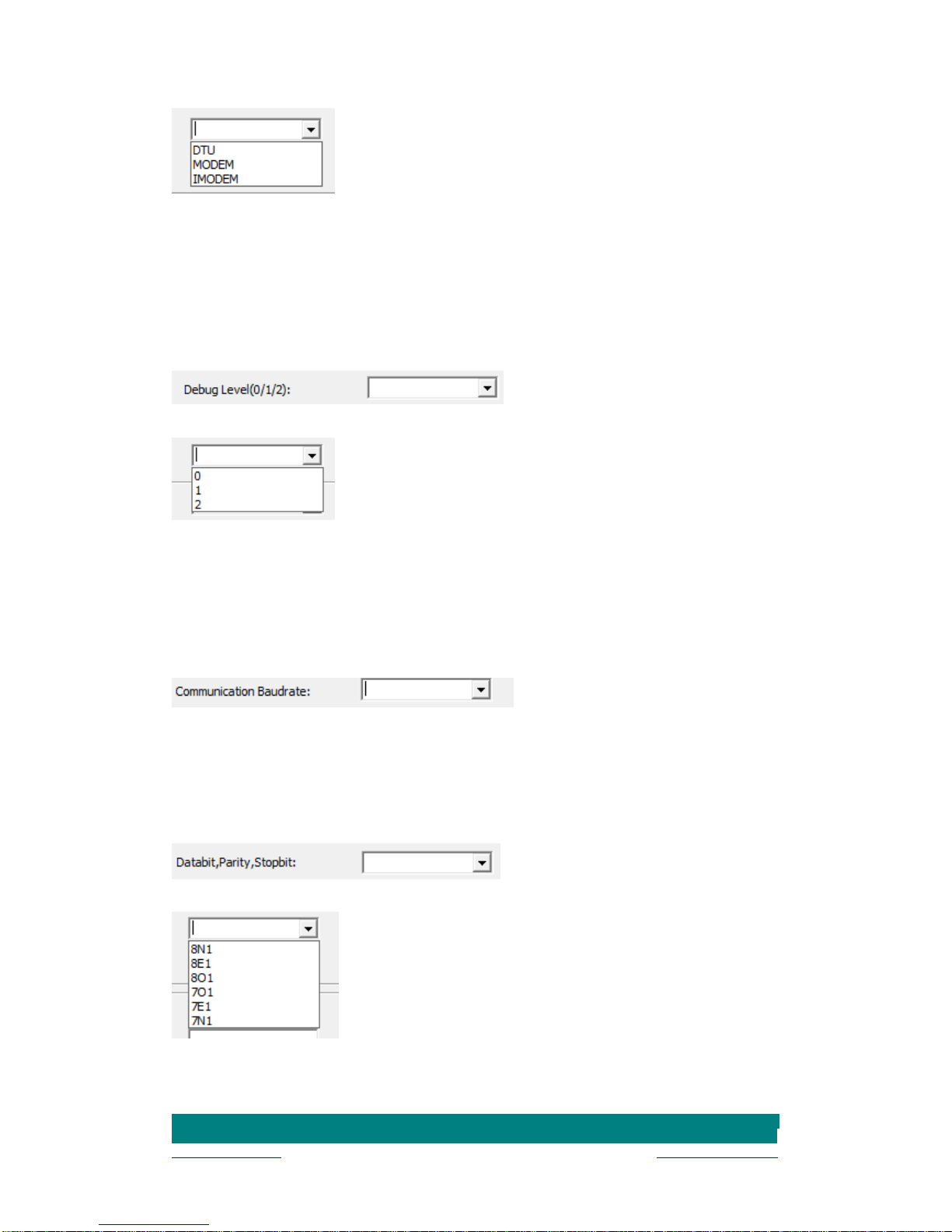

4.3.3 Work Mode ................................................................................. 16

4.3.4 Debug Level ............................................................................... 17

4.3.5 Communication Baud Rate......................................................... 17

4.3.6 Databit, Parity and Stopbit .......................................................... 17

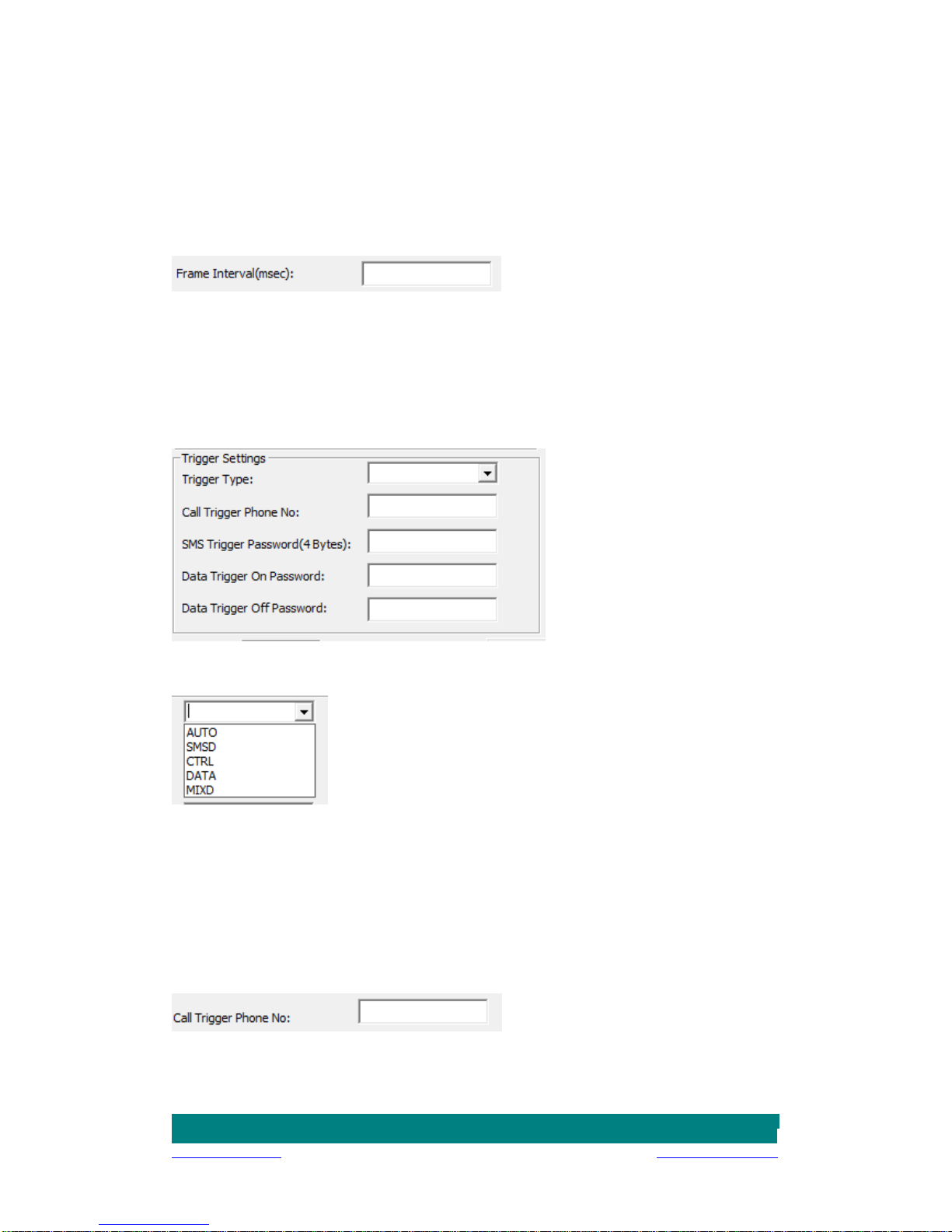

4.3.7 Frame Interval (Unit: Millisecond) ............................................... 18

Addr.: Unit 704, No. A3 Building, Tel: [phone]
3rd Software Park, Xiamen, China 361000 Fax: [phone]

www.bivocom.com [e-mail]

5

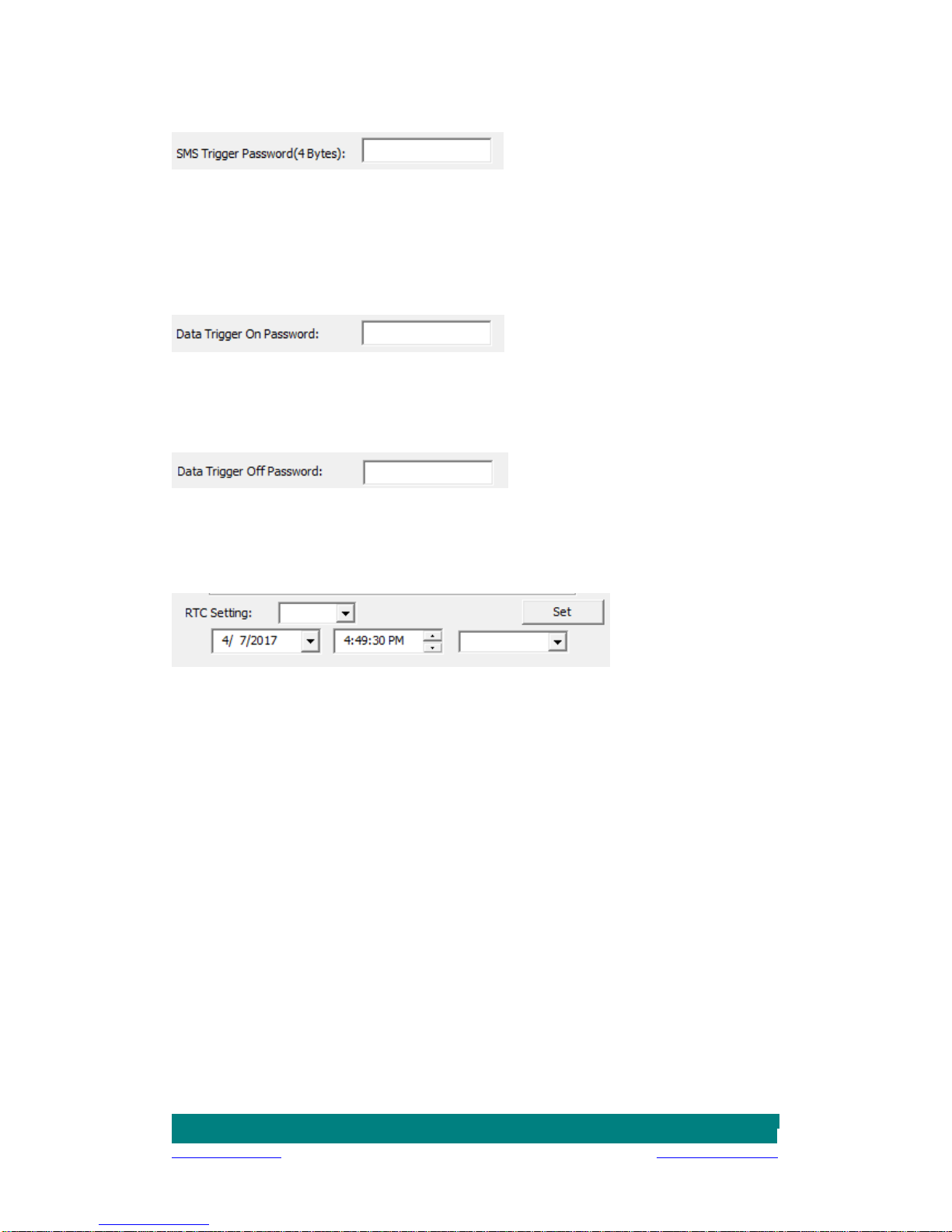

4.3.8 Trigger Settings .......................................................................... 18

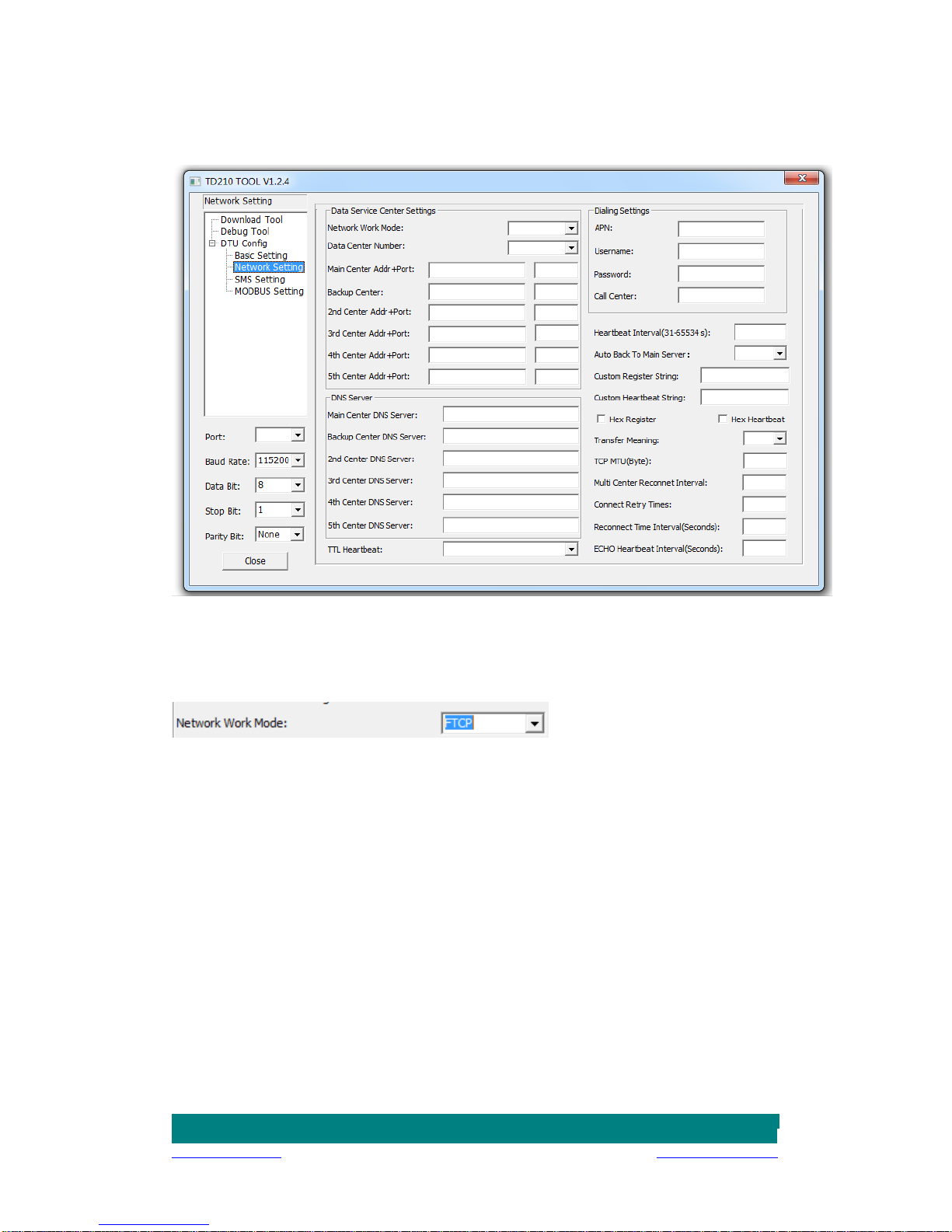

4.4 Networking Setting ............................................................................... 20

4.4.1 Network Work Mode ................................................................... 20

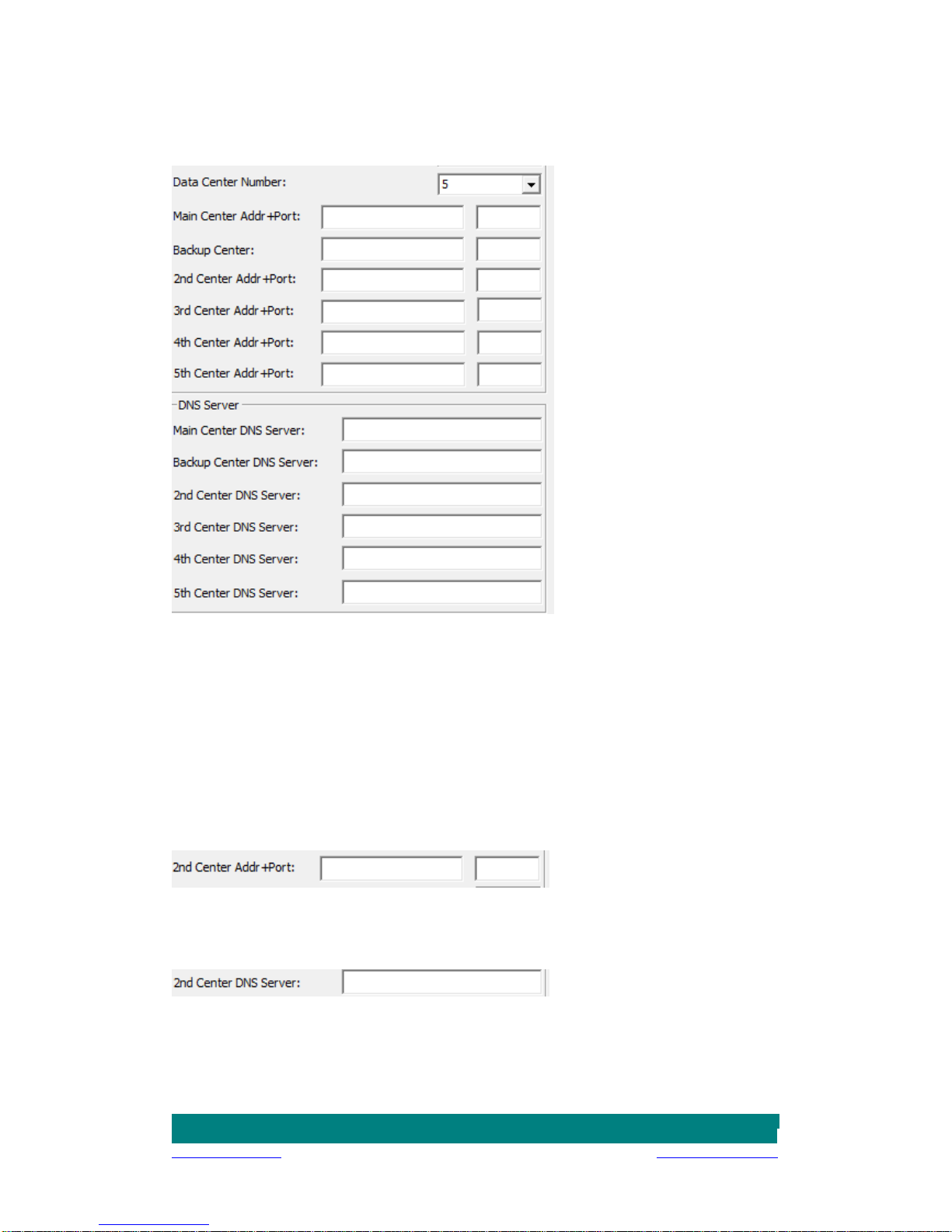

4.4.2 Data Center Number .................................................................. 21

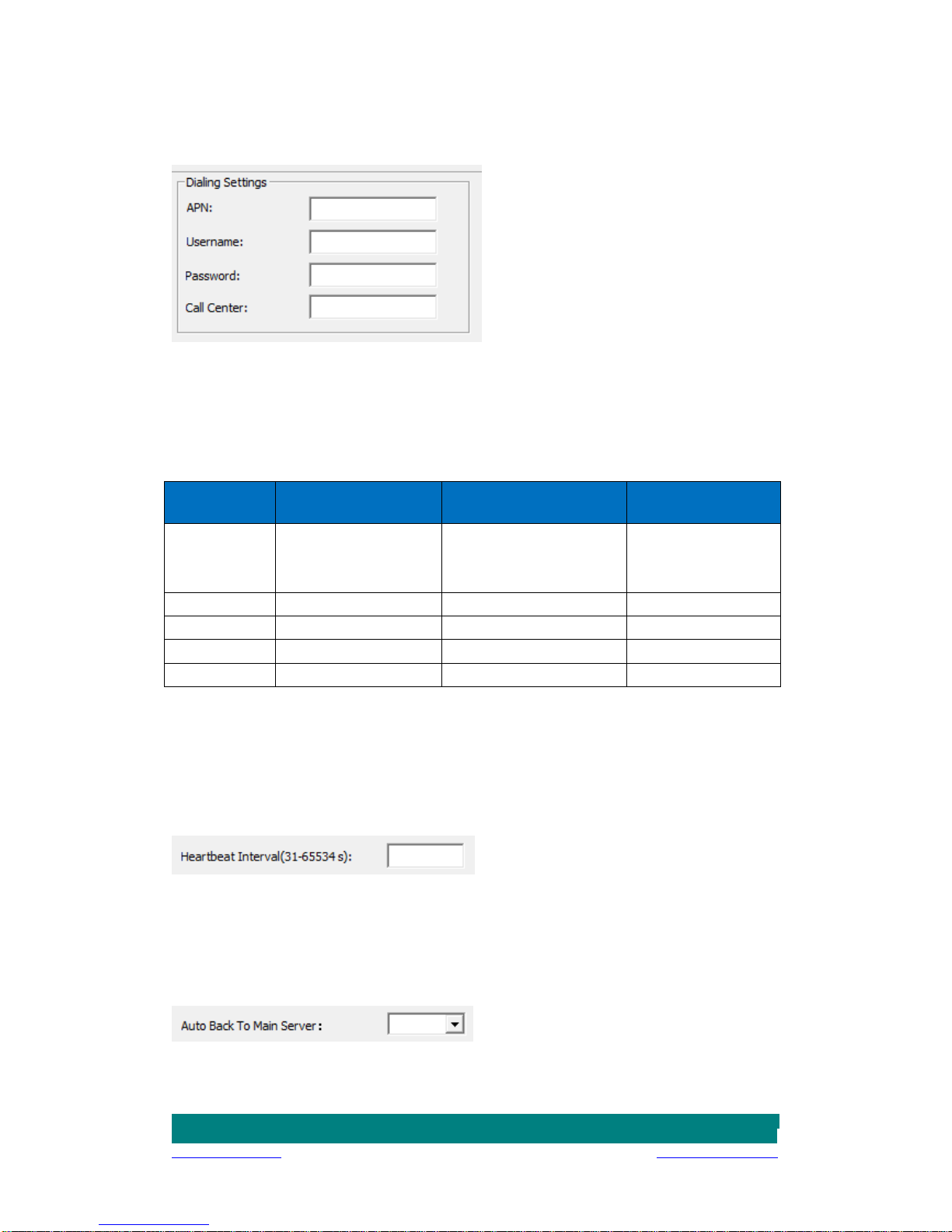

4.4.3 Dialing Settings .......................................................................... 22

4.4.4 Heartbeat Interval ....................................................................... 22

4.4.5 Auto Back to Main Server ........................................................... 22

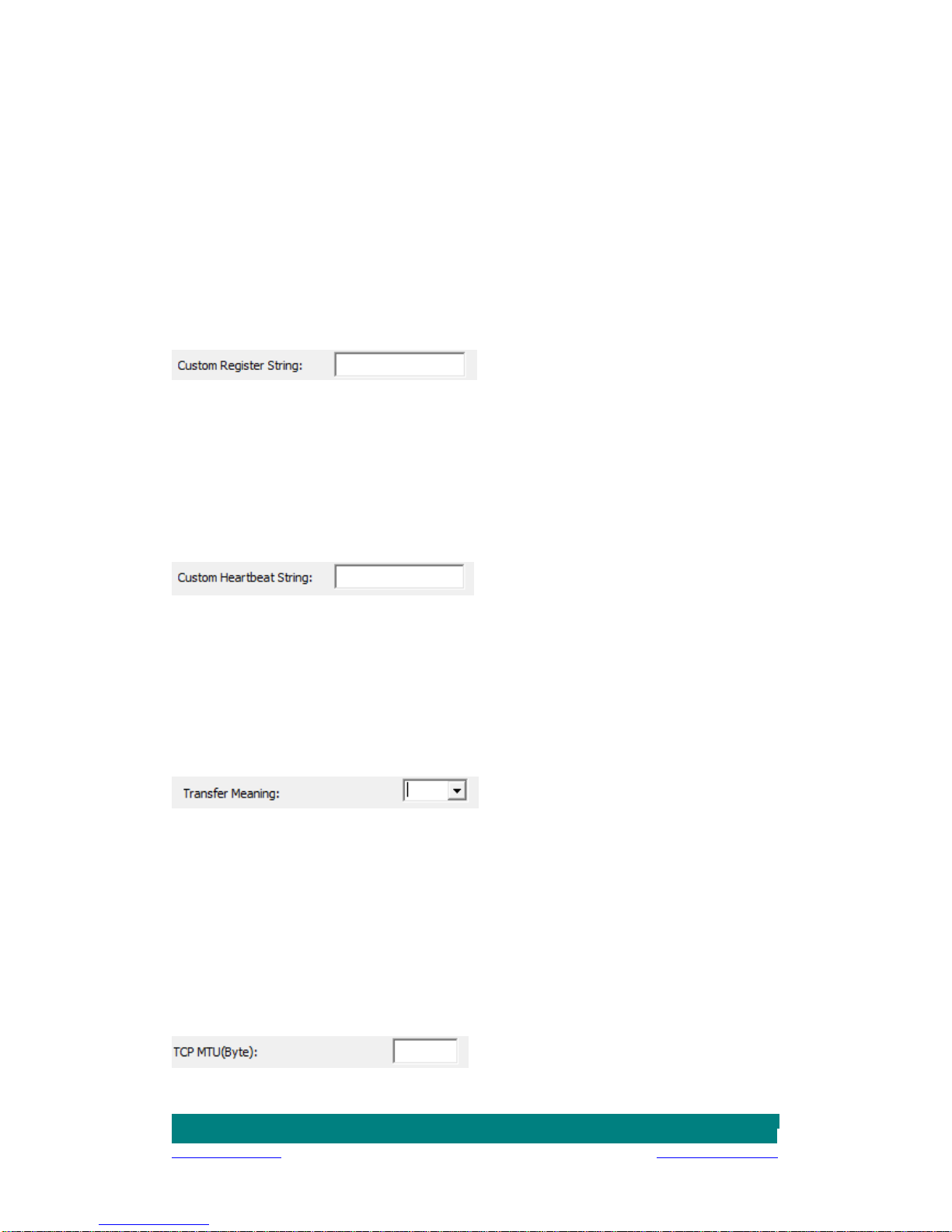

4.4.6 Custom Register String .............................................................. 23

4.4.7 Custom Heartbeat String ............................................................ 23

4.4.8 Transfer Meaning ....................................................................... 23

4.4.9 TCP MTU ................................................................................... 23

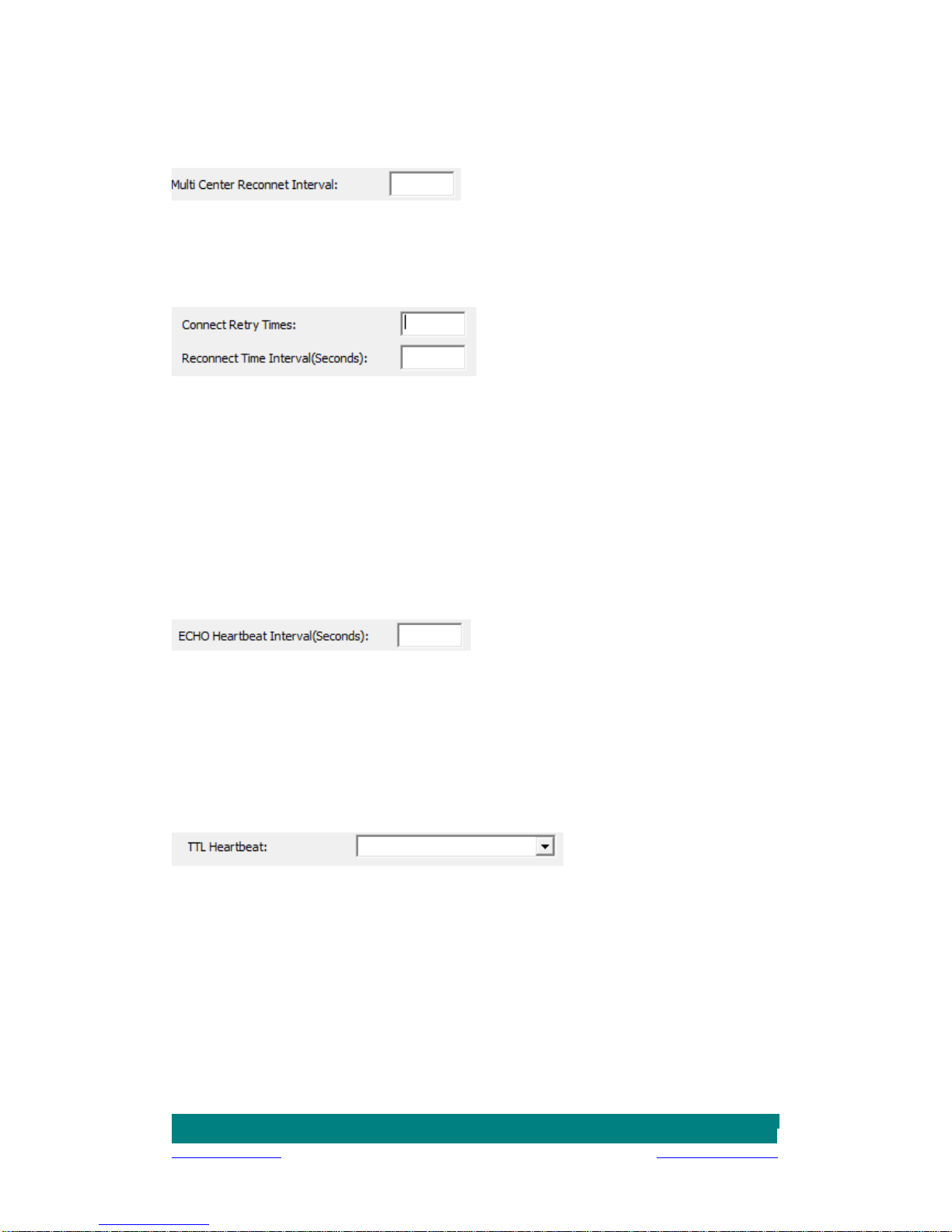

4.4.10 Multi Center Reconnect Interval ............................................... 24

4.4.11 Reconnect ................................................................................ 24

4.4.12 ECHO Heartbeat Interval ......................................................... 24

4.4.13 TTL Heartbeat .......................................................................... 24

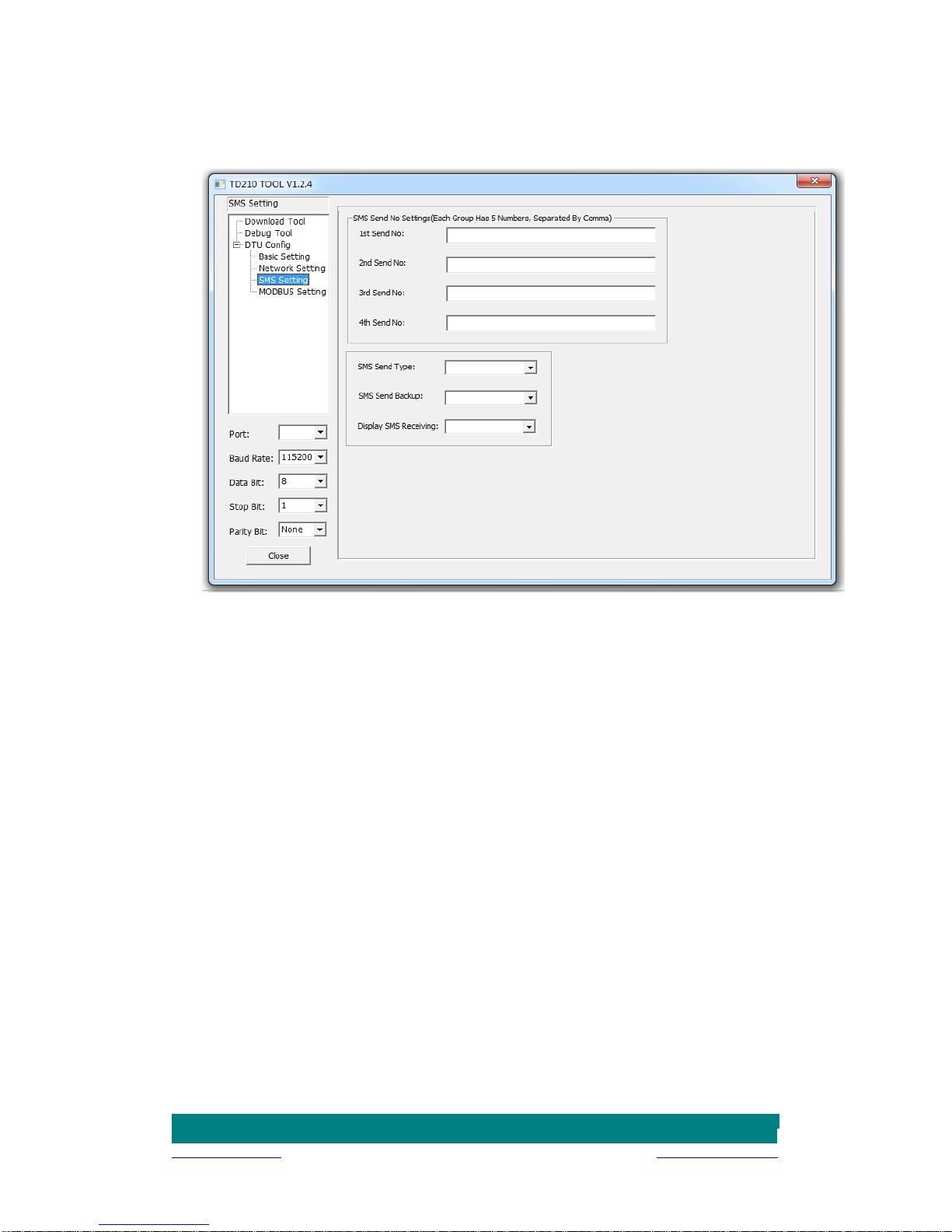

4.5 SMS Setting ......................................................................................... 25

4.5.1 SMS Send No. Settings .............................................................. 25

4.5.2 SMS Send Type ......................................................................... 25

4.5.3 SMS Send Backup ..................................................................... 25

4.5.4 Display SMS Receiving .............................................................. 26

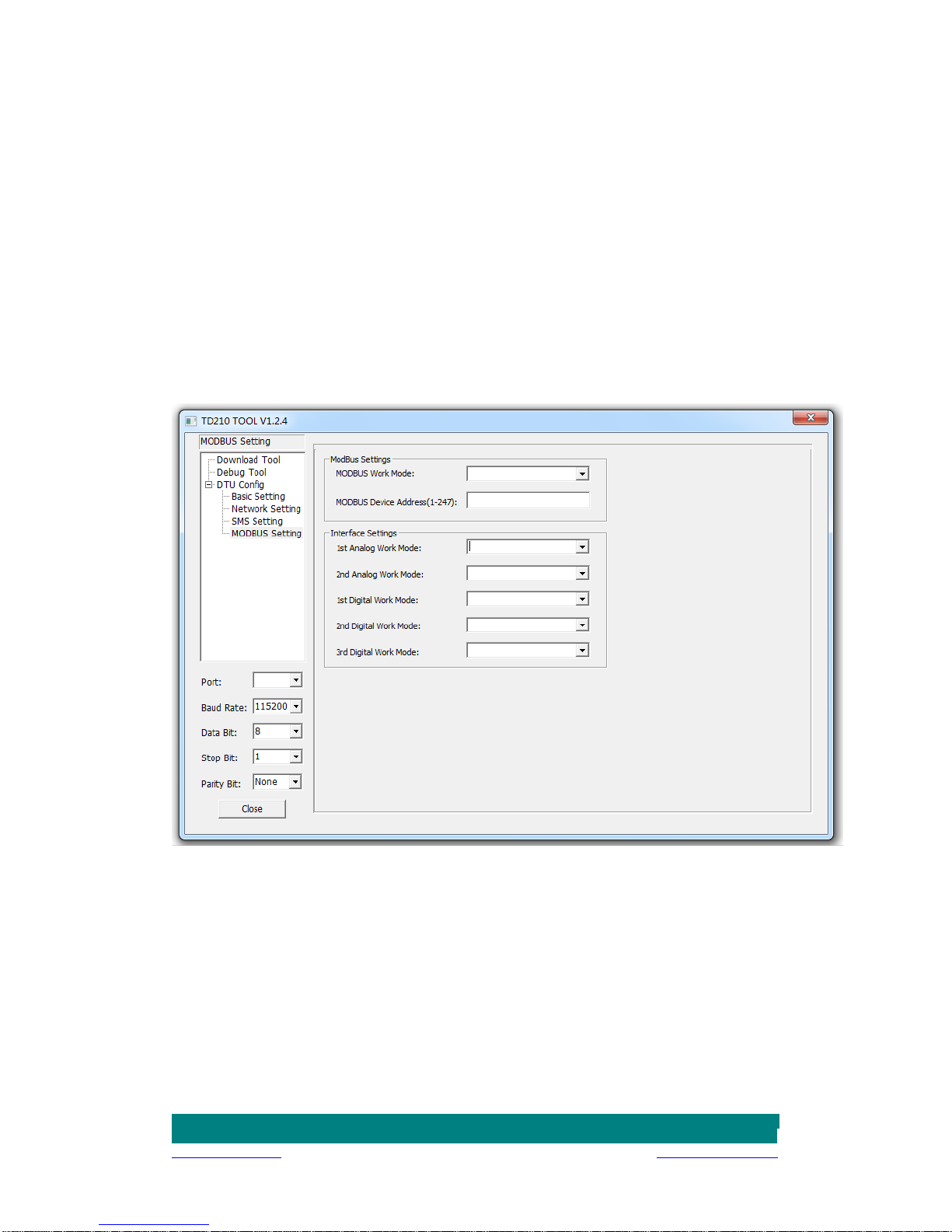

4.6 MODBUS Setting ................................................................................. 26

4.6.1 MODBUS Work Mode ................................................................ 26

4.6.2 MODBUS Device Address .......................................................... 27

4.6.3 Interface Settings ....................................................................... 27

4 Firmware Upgrade ..................................................................................... 27

5 Configure TD210 via SMS ......................................................................... 30

Appendix 1: AT Command ................................................................................ 30

Appendix 2: FAQ .............................................................................................. 33

Addr.: Unit 704, No. A3 Building, Tel: [phone]
3rd Software Park, Xiamen, China 361000 Fax: [phone]

www.bivocom.com [e-mail]

6

1. Definitions

1.1 IP Modem

Data Transfer Unit, a wireless terminal used convert the data from serial port data packet
to IP data packet, or from IP data packet to serial port data packet, then transfer the data
packet through cellular network.

1.2 SMS

Short Messaging Service

1.3 2G

GPRS and CMDA 1X.

1.4 3G

TD-SCDMA, WCDMA, EVDO.

1.5 Center/Server

A computer for receiving data sent from IP Modem through SMS/2G/3G, and sending data
to IP Modem through SMS/2G/3G.

1.6 TD210

An industrial IP Modem series manufactured by Bivocom.

2. Introduction

2.1 Overview

TR210 Series IP Modem is a type of industrial wireless IP Modem (Also called DTU, Data
Transfer Unit), designed to fully meet the needs of industrial standards and industrial
users. It adopts high-powered industrial 32-bits CPU, multi-layer software detection and
hardware protection mechanism to ensure reliability and stability of the device. It supports
worldwide carrier 4G/3G cellular network FDD-LTE, TD-LTE, and WCDMA, EVDO,
TD-SCDMA, EDGE, CDMA 1X and GPRS. With rich and flexible interfaces, such as
RS232, RS485 and RS422, and TTL GPIOs is also customizable.

TR210 Series IP Modem can help users to quickly access the Internet, to ensure secure
and reliable data transmission. It’s ideal for IOT (Internet of Things) and M2M (Machine to
Machine) applications, and has been widely used in many applications, such as Intelligent
Transportation, Smart Grid, Vending Machine, Agricultural Irrigation, Environmental
Protection, Industrial Automation, Energy Saving, Smart Home, etc.

Addr.: Unit 704, No. A3 Building, Tel: [phone]
3rd Software Park, Xiamen, China 361000 Fax: [phone]

www.bivocom.com [e-mail]

7

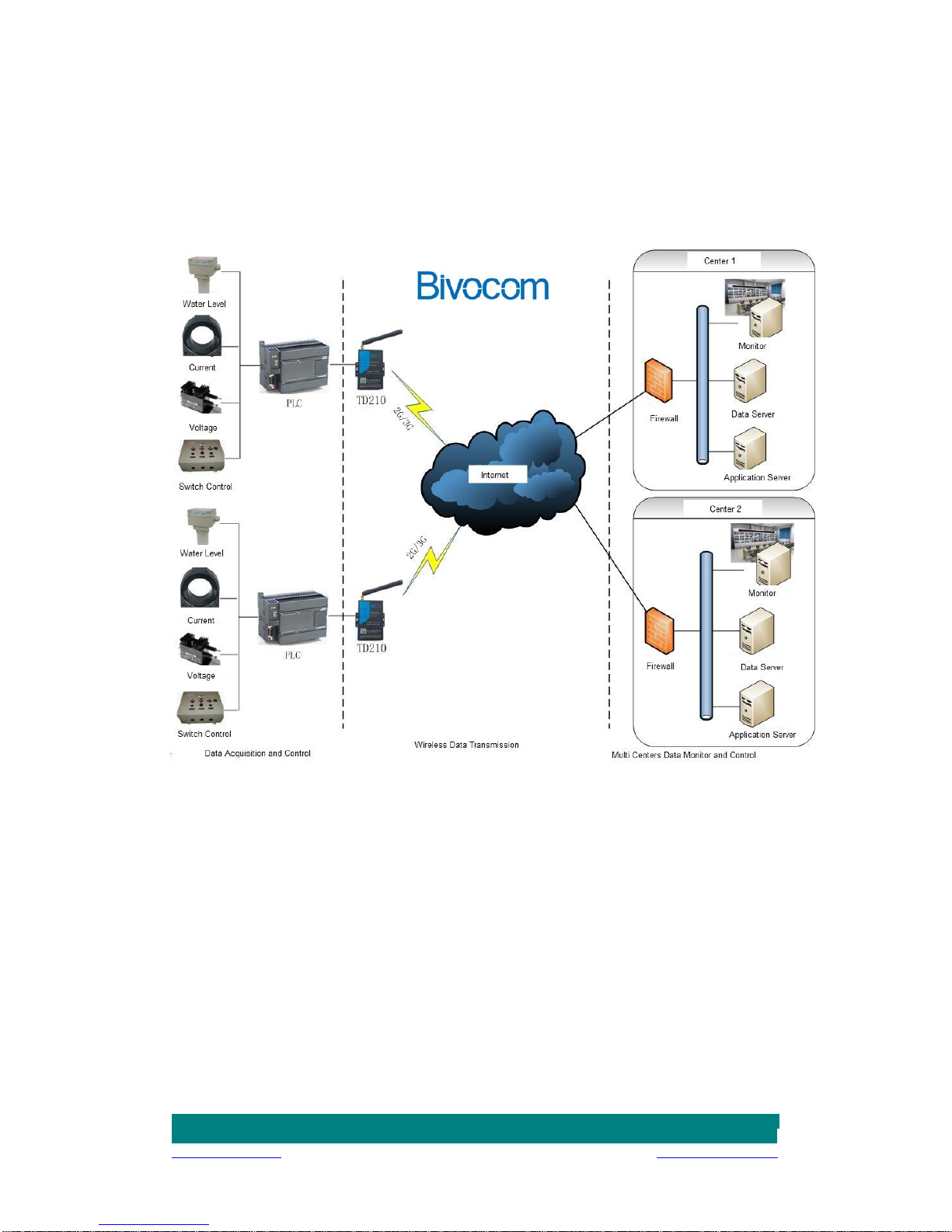

2.2 Applications

TD210 Series IP Modem utilizes cellular network for remote data acquisition and
transmission, and has been used for industrial remote monitor and control.
Typical application as below.

3. Getting Started

WARNING: Please make sure the device is powered off before you install and
configure it.

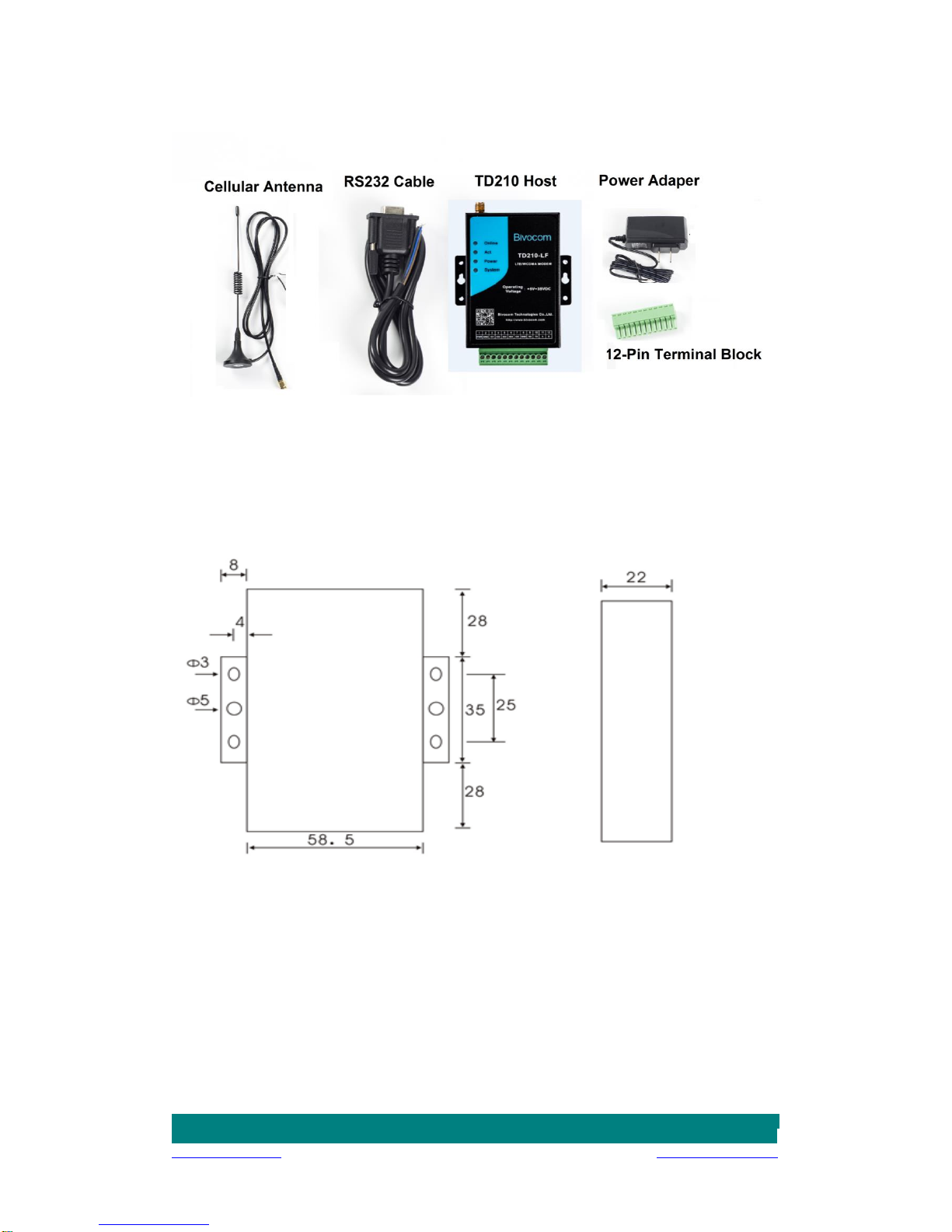

3.1 Package Checklist

Check the package before you configure and install the device.

 TD210 IP Modem Host
 Cellular antenna(SMA Male)
 Power Adapter(12VDC/0.5A)
 3- Pin RS232 cable with DB9 connector(female)
 12-Pin Terminal Block

Addr.: Unit 704, No. A3 Building, Tel: [phone]
3rd Software Park, Xiamen, China 361000 Fax: [phone]

www.bivocom.com [e-mail]

8

3.2 Dimensions

There are 3 holes for installation at each side of TD210 (Unit: mm)

Addr.: Unit 704, No. A3 Building, Tel: [phone]
3rd Software Park, Xiamen, China 361000 Fax: [phone]

www.bivocom.com [e-mail]

9

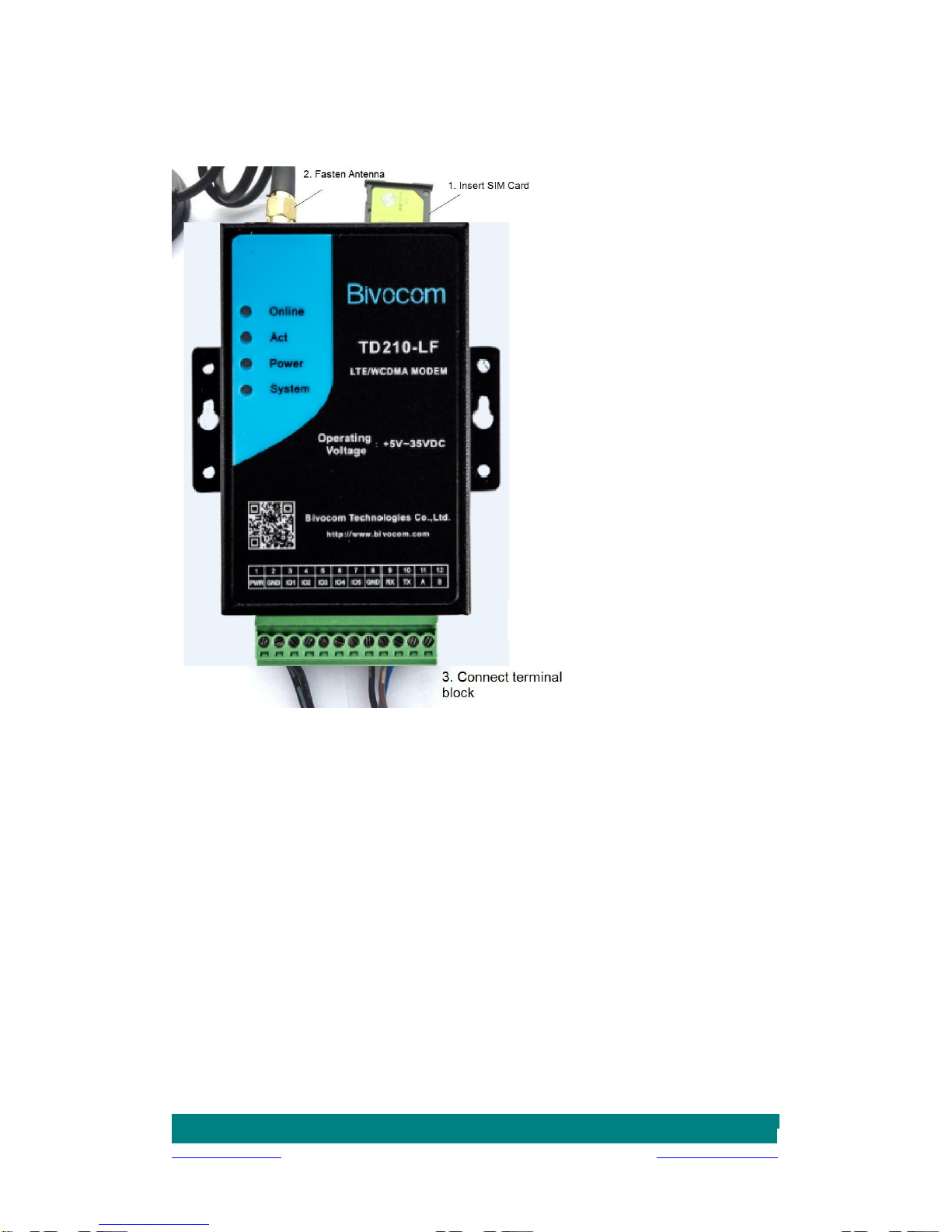

3.3 Installation

3.3.1 SIM/UIM Card

TD210 supports normal SIM/UIM only, so if you’re using a Micro SIM or Nano SIM card,

you may need to use a Micro SIM or Nano SIM to Normal SIM adapter.
Make sure your IP Modem is powered off, then use a needle object(such as a pen) to
push the button near the SIM/UIM card holder, it will flick out immediately. Put the
SIM/UIM card to card holder with chipset upside, insert it to IP Modem and make sure it’s
tightly matched.

Warning: Never install SIM/UIM card when Modem is powered on.

3.2.2 Cellular Antenna

Fasten the cellular antenna.

Screw the SMA male cellular antenna to TD210 (SMA female interface), make sure it is
screwed tightly to ensure the strength of signal.

Addr.: Unit 704, No. A3 Building, Tel: [phone]
3rd Software Park, Xiamen, China 361000 Fax: [phone]

www.bivocom.com [e-mail]

10

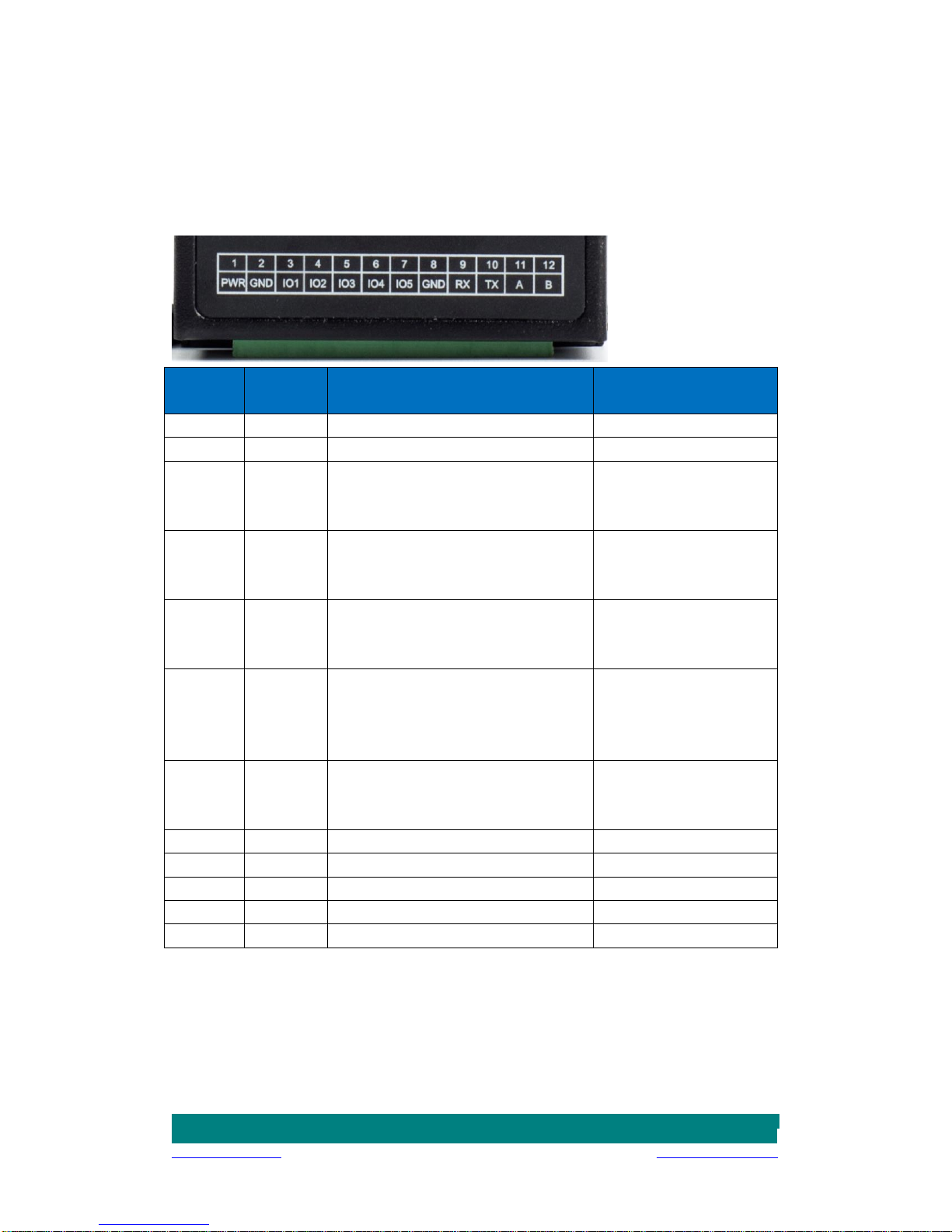

3.2.3 Terminal Block, Power Cable and Console Cable

Insert the terminal block to modem correctly.

1) Definition of Terminal Block Interface

PIN No.

Signal

Name

Default Function

Extended Function

1

PWR

Power input anode

NA

2

GND

Power Ground

NA

3

IO1

GPIO, able to check dry contact
signal and 3.3 V switch signal,
output 3.3V switch signal

Reserved RS232 RTS
and
TTL RX

4

IO2

GPIO, able to check dry contact
signal and 3.3 V switch signal,
output 3.3V switch signal

Reserved RS232 CTS
and
TTL TX

5

IO3

GPIO, able to check dry contact
signal and 3.3 V switch signal,
output 3.3V switch signal

Reserved RS232 DCD

6

IO4

GPIO, able to check dry contact
signal and 3.3 V switch signal,
output 3.3V switch signal

Customized pulse
output, pulse counter,
analog quantity input,
Reserved RS232 RI

7

IO5

GPIO, able to check dry contact
signal and 3.3 V switch signal,
output 3.3V switch signal

Customized pulse
output, pulse counter,
analog quantity input

8

GND

Power Ground

NA 9 RX

RS232 Receive Data

NA

10

TX

RS232 Transfer Data

NA

11

A

RS485 anode

Reserved RS232 DTR

12

B

RS485 cathode

Reserved RS232 DSR

2) Connect Power Cable and Console Cable

The interface of TD210 is industrial terminal block, we suggest you use 28-16AWG power
cable and console cable.
Definition of power cable and console cable in this package are as below

Addr.: Unit 704, No. A3 Building, Tel: [phone]
3rd Software Park, Xiamen, China 361000 Fax: [phone]

www.bivocom.com [e-mail]

11

Power Cable (Output 12VDC/0.5A)

Color of cable

Power Output Polarity

Black & White Alternate

Anode

Black

Cathode

RS232 Cable (with DB9 female interface)

Color of Cable

Corresponding DB9-M

Pin Number

Blue

3

Brown

2

Black

5

WARNING: make sure you connect the terminal block to TD210 modem correctly
before power on, or it may cause the damage of device.

3.3 Power Supply

After all the accessories and cables mentioned above are installed very well and correctly,
then plug the power supply to power outlet.
TD210 adopts advanced power technology to improve the stability and adapt to complex
external environment. You can use Bivocom standard power adapter(12VDC/500mA), or
use DC power ranging at 5-35VDC, please make sure the power supply is stable
enough(Ripple shall be less than 300Ma, and Instantaneous voltage shall not larger than
35V), meanwhile, power shall over 4W.

Note: We suggest you use Bivocom standard power adapter (500mA/12VDC).

3.4 LED Indicators

TD210 has 4 LED indicators, ‘Online’, ‘ACT’, ’Power’, ‘System’, as follows.

LED Indicators

Status

Content

Online

Off

TD210 isn’t connected to server

On

TD210 is connected to server

ACT

Off

No data transfer

Blink

Sending or receiving data

Power

Off

Power Off

On

Power On

System

Off

System error

Blink

System works

Addr.: Unit 704, No. A3 Building, Tel: [phone]
3rd Software Park, Xiamen, China 361000 Fax: [phone]

www.bivocom.com [e-mail]

12

4. Configuration

4.1 Getting started

To start to configure the modem, you’ll need below materials

1) A laptop or computer that has DB9 serial port(male)

Note: if your laptop or computer doesn’t have a serial port, an USB to Serial port(male)
adapter would be required.

2) BIVOCOM TD210 config tool.

The TD210 config tool integrated with configuration, debug and firmware upgrade
functions.
You can go to BIVOCOM website to download the config tool, like below.

http://www.bivocom.com/index.php?m=content&c=index&a=show&catid=12&id=22

Note: The config tool only support Windows OS, IOS is not supported yet.

4.2 Serial port configuration

Connect TD210 to your laptop or computer through RS232, then open Bivocom

configuration tool (TD210.exe), Click on the left side, and click

to open the serial port, and choose your COM port of laptop or computer.

Then Click , and a window will be open tell you to restart the device(Figure

2), unplug the power adapter, and power on TD210 again, then waiting for entering into
configuration status, when it shows loading DTU parameters successfully(Figure 3), then
you can go to next step to configure the modem, including Basic Setting(4.3), Network
Setting(4.4).

Addr.: Unit 704, No. A3 Building, Tel: [phone]
3rd Software Park, Xiamen, China 361000 Fax: [phone]

www.bivocom.com [e-mail]

13

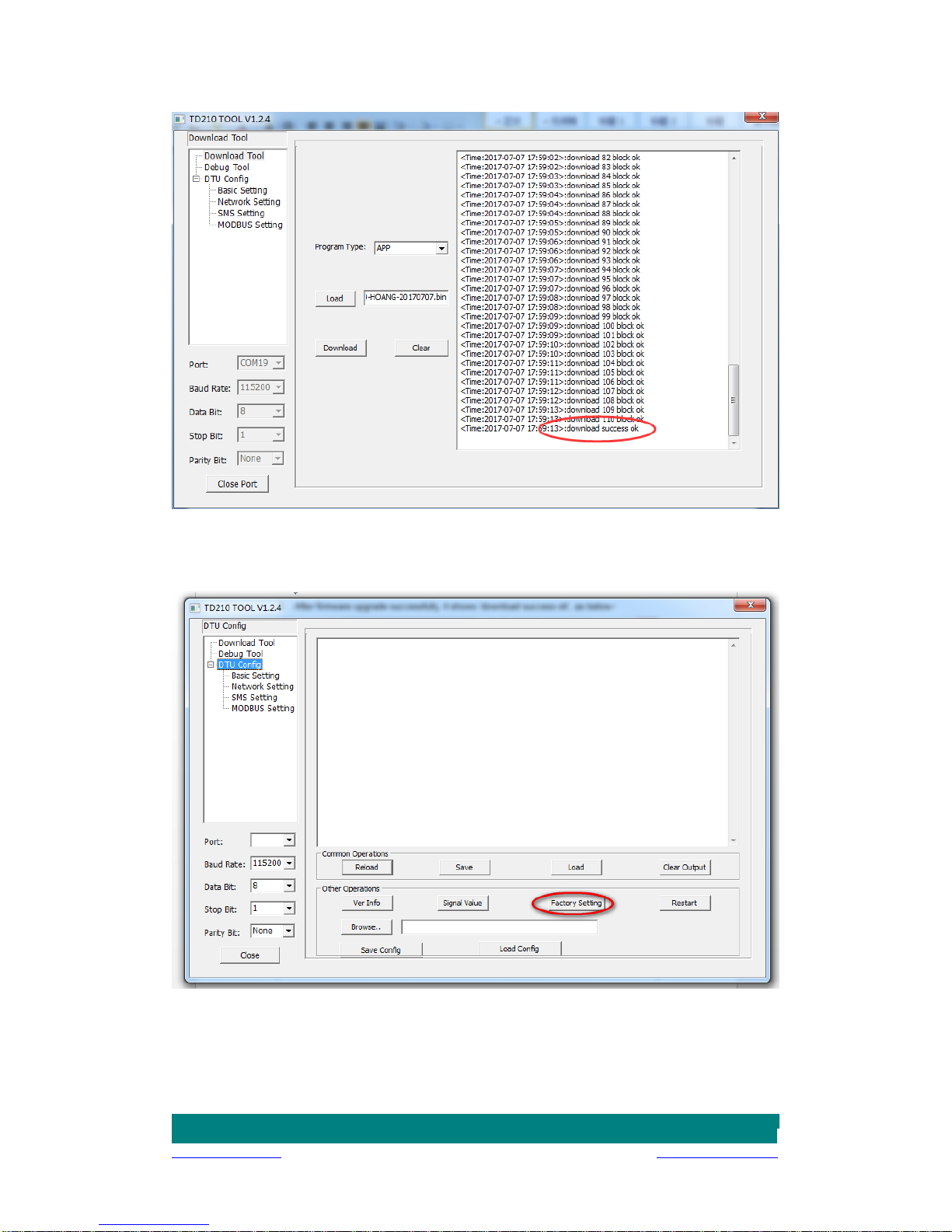

Figure 1

Figure 2

Addr.: Unit 704, No. A3 Building, Tel: [phone]
3rd Software Park, Xiamen, China 361000 Fax: [phone]

www.bivocom.com [e-mail]

14

Figure 3

Below are quick instructions of Operations on the config tool, but you can go to next
step.(4.3 Basic setting), if you’re familiar with those parameters.

4.2.1 Save

Click to save the parameters you’ve configured.

4.2.2 Load

Load the parameters of TD210 to config tool and display.

4.2.3 Clear Output

Clear log of config tool.

Addr.: Unit 704, No. A3 Building, Tel: [phone]
3rd Software Park, Xiamen, China 361000 Fax: [phone]

www.bivocom.com [e-mail]

15

4.2.4 Version Info

Check the version info of TD210.

4.2.5 Signal Value

Check the signal strength of TD210.

4.2.6 Factory Setting

TD210 returns to factory setting.

4.2.7 Restart

Restart TD210

4.2.8 Save Config

Save configuration of TD210 in file format, which you can use it recover the config.

4.2.9 Configure via Saved Config File

Click , and choose the

saved config file, then click to configure TD210.

Addr.: Unit 704, No. A3 Building, Tel: [phone]
3rd Software Park, Xiamen, China 361000 Fax: [phone]

www.bivocom.com [e-mail]

16

4.3 Basic Setting

Figure 4

4.3.1 Device ID

To identify the TD210 and for device management, if you have many TD210 connected to
server, please make sure all the ID are different.

4.3.2 SIM Card No.

The No. of SIM inserted in this device.

4.3.3 Work Mode

There are 3 work modes to choose from the drop-down menu, as below

Addr.: Unit 704, No. A3 Building, Tel: [phone]
3rd Software Park, Xiamen, China 361000 Fax: [phone]

www.bivocom.com [e-mail]

17

IP Modem (Transfer the data to server through GPRS/SMS)
MODEM (Normal Modem, dial up or sending SMS through AT Command)
IMODEM (Intelligent Modem, except the functions supported by normal modem
mentioned above, it is always online for SMS function)

4.3.4 Debug Level

There are 3 levels to choose from the drop-down menu, as below

2: All logs output through RS232/RS485
1: Part of important logs output through RS232/RS485
0: No logs output

4.3.5 Communication Baud Rate

Supported baud rate: 300, 600, 1200, 2400, 4800, 9600, 14400, 19200, 38400, 56000,
57600 and 115200.

4.3.6 Databit, Parity and Stopbit

You can choose below from drop-down menu.

8N1 (8 Databit, No Parity, 1 Stopbit)
8E1 (8 Databit, Even Parity, 1 Stopbit)
8O1 (8 Databit, Odd Parity, 1 Stopbit)

Addr.: Unit 704, No. A3 Building, Tel: [phone]
3rd Software Park, Xiamen, China 361000 Fax: [phone]

www.bivocom.com [e-mail]

18

7O1 (7 Databit, Odd Parity, 1 Stopbit)
7E1 (8 Databit, Even Parity, 1 Stopbit)
7N1 (7 Databit, No Parity, 1 Stopbit)

4.3.7 Frame Interval (Unit: Millisecond)

When IP Modem receives packet slicing, increase the value, while for packet merging,
lower the value, 20ms for 115200 baud rate, 50ms for 9600 baud rate and 200ms for 1200
baud rate.

4.3.8 Trigger Settings

1) Trigger Type

AUTO: Always online
SMSD: SMS trigger mode, sending specific SMS to trigger TD210 online.
CTRL: Make call to trigger TD210 online.
DATA：Sending specific data to trigger TD210 online or offline.
MIXD: Support SMSD, CTRL and DATA trigger mode, you can use any of them to trigger
TD210.

2) Call Trigger Phone NO.

You can add a phone number in the blank, once the trigger mode is CTRL or MIXD, and

TD210 receives the call from this number, it will get online.

Addr.: Unit 704, No. A3 Building, Tel: [phone]
3rd Software Park, Xiamen, China 361000 Fax: [phone]

www.bivocom.com [e-mail]

19

3) SMS Trigger Password

You can set up a code in the blank, once the trigger mode is SMSD and MIXD, and TD210
receives a SMS text with ‘DAIL+code’, it will get online.
For example, your code is 123456, you can trigger TD210 by sending SMS text
‘DAIL123456’.

4) Data Trigger On Password

You can set up trigger data in the blank, once the trigger mode is DATA and MIXD, and
TD210 receives the trigger data through RS232/RS485 serial port, it will get online.

5) Data Trigger Off Password

You can set up trigger data in the blank, once the trigger mode is DATA and MIXD, and
TD210 receives the trigger data through RS232/RS485 port, it will get offline.

6) RTC Setting

You can set up the system time for your TD210.

Addr.: Unit 704, No. A3 Building, Tel: [phone]
3rd Software Park, Xiamen, China 361000 Fax: [phone]

www.bivocom.com [e-mail]

20

4.4 Networking Setting

Figure 5

4.4.1 Network Work Mode

There are 8 network work modes, including FTCP, HTCP, CTCP, NUDP, CUDP, HUDP,
TCPSVR and UDPSVR.
 Custom register string and heartbeat packet is required when work mode is CTCP

and CUDP.

 TD210 will act as a TCP client when choose FTCP, HTCP and CTCP, but the register

string and heartbeat string will be different.

 TD210 will act as a UDP client when choose NUDP , CUDP and HUDP, but the

register string and heartbeat string will be different.

 When choose TCPSVR, TD210 acts as a TCP Server.
 When choose UDPSVR, TD210 acts as a UDP server.

Addr.: Unit 704, No. A3 Building, Tel: [phone]
3rd Software Park, Xiamen, China 361000 Fax: [phone]

www.bivocom.com [e-mail]

21

4.4.2 Data Center Number

1) You can configure up to 5 data centers.

 0 means TD210 will not connect to cellular network, such as 4G/3G/2G networks.
 1 means TD210 only supports 1 data center, TD210 will connect to main center, once

it couldn’t connect to backup center, it will continue to connect to main center till it’s
connected.

 2-5 means TD210 supports multi centers, and all the other centers will get sync data.
Note: if there is not backup center, please set up the same address and port for main
center and backup center

2) Center Addr.+Port

It can be configured as DNS or IP address.

3) Center DNS Server

When you use DNS for center, a DNS server is required to analytic the corresponding IP
address.

Addr.: Unit 704, No. A3 Building, Tel: [phone]
3rd Software Park, Xiamen, China 361000 Fax: [phone]

www.bivocom.com [e-mail]

22

4.4.3 Dialing Settings

 APN: cellular network access code
 Username: authentication username of cellular network
 Password: authentication password of cellular network
 Call center: dial number of call center for cellular network

Below are some examples of APN, Username, Password and call center of Chinese
mobile carriers.

Model

APN

Username & Password

Call Center

TD210-G

Cmnet(China Mobile)
Uninet(China
Unicom)

Null

*99***1#

TD210-C

Null

card

#777

TD210-W

3gnet

Null

*99#

TD210-T

cmnet

Null

*98*1#

TD210-E

Null

card

#777

Note: Different carriers may have different APN, Username, Password and Call
Center, please ask your mobile carriers for those info if you have any questions.

4.4.4 Heartbeat Interval

Heartbeat time, we suggest you set up 60 seconds for TCP, and 31 seconds for UDP.

4.4.5 Auto Back to Main Server

 Y
Auto back to main server.
 N

Addr.: Unit 704, No. A3 Building, Tel: [phone]
3rd Software Park, Xiamen, China 361000 Fax: [phone]

www.bivocom.com [e-mail]

23

Don’t auto back to main server.
This setting will only work when both main and backup center are enabled, under this
work mode, if main center fails, TD210 will auto connect to backup center. If you choose

‘Y’, TD210 will check whether main center is recovery or not, if yes, it will switch to main
center, and disconnect with backup center. While if choose ‘N’, TD210 will not check

whether main center is recovery or not.

4.4.6 Custom Register String

You can configure it when network word mode is configure as CTCP and CUDP, but you
can also choose not to configure it, which means register string won’t be sent.
Note: the length of register string is up to 70 bytes.

4.4.7 Custom Heartbeat String

You can configure it when network word mode is configure as CTCP and CUDP, but you
can also choose not to configure it, which means register string won’t be sent.
Note: the length of register string is up to 70 bytes.

4.4.8 Transfer Meaning

 Y means Yes
 N means No

When network work mode configured as FTCP, if choose Y, then TD210 will transfer

meaning ‘0xfd’ to ‘0xfd’ and ‘0xfe’, and ‘0xfe’ to ‘0xfd’ and ‘0xee’. If choose N, it is

transparent transfer.

4.4.9 TCP MTU

Set up the maximum number of data transmission for each TCP data packet.

Addr.: Unit 704, No. A3 Building, Tel: [phone]
3rd Software Park, Xiamen, China 361000 Fax: [phone]

www.bivocom.com [e-mail]

24

4.4.10 Multi Center Reconnect Interval

Only available when data center number is 2-5.

4.4.11 Reconnect

In real application, the data center may be shut down or have issue, and that will cause
TD210 disconnects from data center, while in order to keep TD210 always online, it will try
to reconnect the data center, and that will cause unnecessary data flow. So you can
configure those 2 functions to save the data flow, when Reconnect Time Interval enabled,
TD210 will try to reconnect data center, and if Connect Retry Times exceed the value you
set, while TD210 is still unable to reconnect to data center, TD210 will do exception
handling.

4.4.12 ECHO Heartbeat Interval

 0 means disables ECHO Heartbeat.
 1-65535 means heartbeat interval, 60 seconds is suggested.

This helps to maintain connection of PPP layer and mobile carrier’s network, to avoid
being forced to sleep, and helps to check the stability of connection.

4.4.13 TTL Heartbeat

 Disable, to disable TTL heartbeat
 Enable, to enable TTL heartbeat

This helps to maintain connection of Application layer and mobile carrier’s network, to

avoid being forced to sleep, and helps to check the stability of connection.

Addr.: Unit 704, No. A3 Building, Tel: [phone]
3rd Software Park, Xiamen, China 361000 Fax: [phone]

www.bivocom.com [e-mail]

25

4.5 SMS Setting

4.5.1 SMS Send No. Settings

Each group supports up to 5 cell phone No., divided by comma, and each cell phone
length shall not exceed 15 numbers.
When TD210 receives data from serial port, while if the network disconnects, and data will
be sent to preset cell phone through SMS.(SMS data backup)

4.5.2 SMS Send Type

 Char Format
 HEX Format

Normally, SMS will be sent in format of character or Chinese, while when you choose HEX
Format, it will be sent under hexadecimal number 0x00-0xff, which is ideal for industrial
automation.

4.5.3 SMS Send Backup

 Enable
 Disable

Addr.: Unit 704, No. A3 Building, Tel: [phone]
3rd Software Park, Xiamen, China 361000 Fax: [phone]

www.bivocom.com [e-mail]

26

When TD210 receives data from serial port, while if the network disconnects, and data will
be sent to preset cell phone through SMS (SMS data backup).

4.5.4 Display SMS Receiving

 Enable
 Disable

When TD210 receives SMS, you can choose whether to transfer the cell phone number
and SMS to serial port or not.

4.6 MODBUS Setting

4.6.1 MODBUS Work Mode

 MODBUS Disable
 Network RTU
 Serial Port RTU

When enables MODBUS RTU mode, once TD210 gets online, it can identify the
MODBUS protocol command data from center, and collect data or set up terminal port
based on the sent command data, then transfer the collected data and terminal port to
center, that means TD210 act as a MODBUS device.

Addr.: Unit 704, No. A3 Building, Tel: [phone]
3rd Software Park, Xiamen, China 361000 Fax: [phone]

www.bivocom.com [e-mail]

27

4.6.2 MODBUS Device Address

Modbus device address means the MODBUS device address of TD210, center will
identify MODBUS device according to this address. The address works when TD210 is
enabled RTU mode.

4.6.3 Interface Settings

1) 1st Analog Work Mode and 2nd Analog Work Mode

 Disable
 Collect Once

There are 2 analog quantity ports, IO4 and IO5, with corresponding port are 6 and 7.
When MODBUS is set as RTU mode, analog work mode is normally set as Collect Once,
TD210 will collect the data through corresponding terminal port after receiving MODBUS
command.

2) 1st Digital Work Mode, 2nd Digital Work Mode and 3rd Digital Work Mode

 Disable
 Input
 Output

There are 3 digital quantity ports, IO1, IO2 and IO3, with corresponding port 3, 4 and 5.
When MODBUS is set as RTU mode, digital work mode is set as input or output, TD210
will operate the corresponding terminal port after receiving MODBUS command.

4 Firmware Upgrade

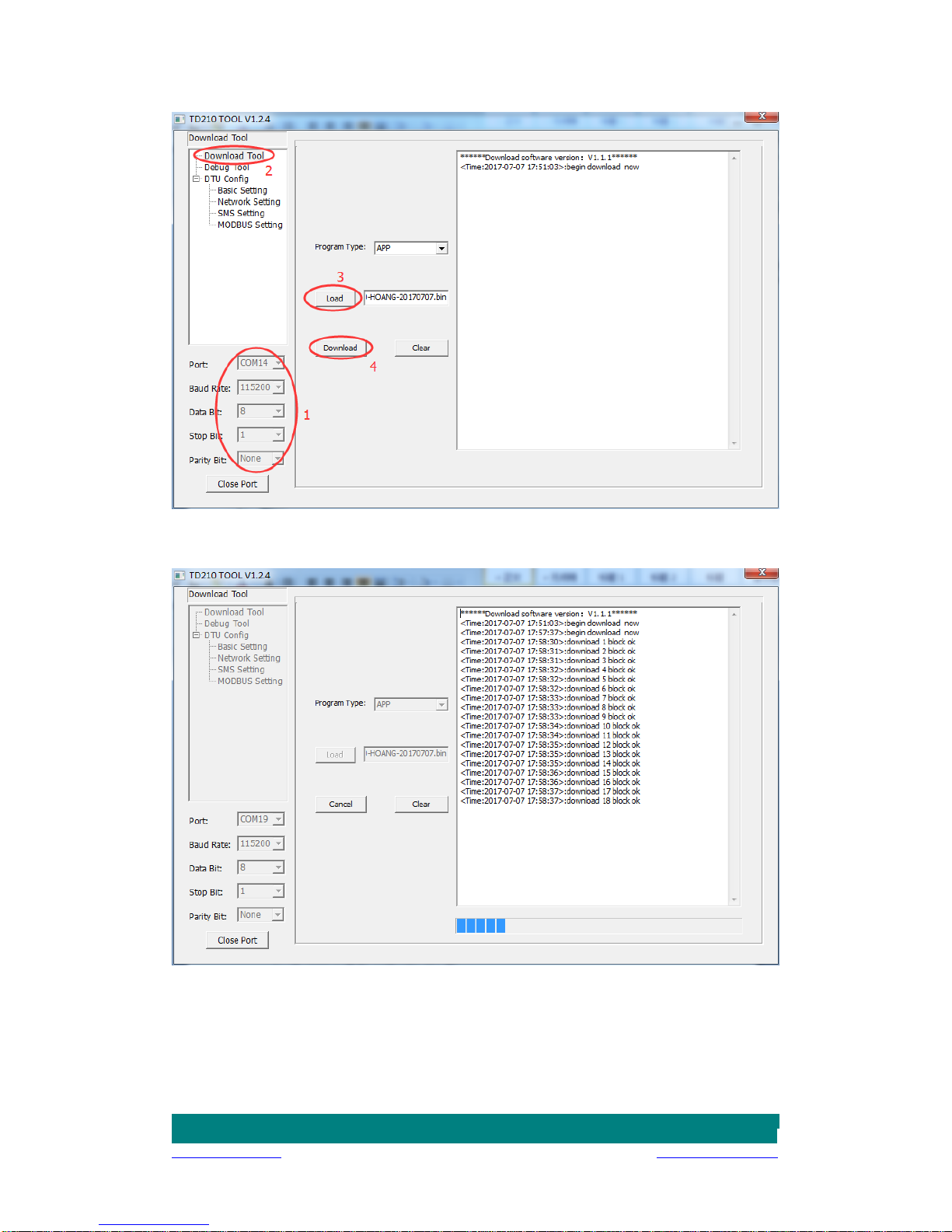

4.4 Please open the Bivocom Config Tool, as below,

1) Configure Serial Port parameters

 Baud Rate: 115200
 Data Bit: 8
 Stop Bit: 1
 Parity Bit: None

2) Click ‘Download Tool’

3) Click ‘Load’, choose the firmware you want to upgrade

4) The click ‘Download’

Addr.: Unit 704, No. A3 Building, Tel: [phone]
3rd Software Park, Xiamen, China 361000 Fax: [phone]

www.bivocom.com [e-mail]

28

4.5 Power on the TD210, then device will start to upgrade the firmware, as below

4.6 After firmware upgrading successfully, it shows ‘download success ok’, as below

Addr.: Unit 704, No. A3 Building, Tel: [phone]
3rd Software Park, Xiamen, China 361000 Fax: [phone]

www.bivocom.com [e-mail]

29

4.7 Then use the Config Tool to enter into the configuration status, set up the device to
factory setting, and restart to configure the parameters.

Addr.: Unit 704, No. A3 Building, Tel: [phone]
3rd Software Park, Xiamen, China 361000 Fax: [phone]

www.bivocom.com [e-mail]

30

5 Configure TD210 via SMS

If config command exceeds 140 bytes, please send the command through multi SMS
Note: Long SMS is not supported.
SMS Config format:
<password; command 1; command 2>
Password: 123456(default)
Command: Please refer to command after ‘AT+’ of Appendix 1, AT Command
Example: <123456;IPAD=121.204.221.34;PORT=9999>
Explanation: password: 1234546, IP address: 121.204.221.34, Port: 9999

Appendix 1: AT Command

Note: XX means parameter you’d like to set only, not command.

Description

AT Command

Parameter

Debug Level

AT+DEBUG=XX

XX: 0 (No logs)

1 (Simple logs)

2 ( Detailed logs)

Baud Rate

AT+IPR=XX

XX: from 300 to 115200

Data bit, stop bit and
Parity

AT+SERMODE=XX

XX: 8N1,8E1,8O1,7N1,7E1,
7O1

Frame Interval (ms)

AT+BYTEINT=XX

XX: unit(millisecond)

Trigger Type

AT+ACTI=XX

XX: AUTO (Always Online)
SMSD (SMS Trigger)
CTRL (Call Trigger)
DATA (Data Trigger)
MIXD (Mixed Trigger)

Call Trigger Phone No.

AT+CTRLNO=XX

XX: Preset call trigger phone
No.

SMS Trigger Password

AT+SMSDPSWD=XX

XX: Preset SMS trigger
password

Data Trigger On
Password

AT+DONPSWD=XX

XX: Trigger on data

Data Trigger Off
Password

AT+DOFFPSWD=XX

XX: Trigger off data

Network Word Mode

AT+MODE=XX

XX: FTCP,HTCP,CTCP,
NUDP,CUDP,HUDP

Data Center Number

AT+SVRCNT=XX

XX: number of data center

Addr.: Unit 704, No. A3 Building, Tel: [phone]
3rd Software Park, Xiamen, China 361000 Fax: [phone]

www.bivocom.com [e-mail]

31

Main Center Addr.

AT+IPAD=XX

XX: Main center IP address or

DNS

Main Center Port

AT+PORT=XX

XX: Main center port

Backup Center Addr.

AT+IPSEC=XX

XX: Backup center IP address
or DNS

Backup Center Port

AT+PTSEC=XX

XX: Backup center port

2nd Center Addr.

AT+IPAD1=XX

XX: 2nd center IP address or

DNS

2nd Center Port

AT+PORT1=XX

XX: 2nd Center Port

3rd Center Addr.

AT+IPAD2=XX

XX: 3rd center IP address or
DNS

3rd Center Port

AT+PORT2=XX

XX: 3rd Center Port

4th Center Addr.

AT+IPAD3=XX

XX: 4th center IP address or
DNS

4th Center Port

AT+PORT3=XX

XX: 4th Center Port

5th Center Addr.

AT+IPAD4=XX

XX: 5th center IP address or
DNS

5th Center Port

AT+PORT4=XX

XX: 5th Center Port

Main Center DNS Server

AT+DNSSVR=XX

XX: Main Center DNS Server

Backup Center DNS
Server

AT+DNSSV2=XX

XX: Backup Center DNS
Server

2nd Center DNS Server

AT+DNSSVR1=XX

XX: 2nd Center DNS Server

3rd Center DNS Server

AT+DNSSVR2=XX

XX: 3rd Center DNS Server

4th Center DNS Server

AT+DNSSVR3=XX

XX: 4th Center DNS Server

5th Center DNS Server

AT+DNSSVR4=XX

XX: 5th Center DNS Server

APN

AT+APN=XX

XX: APN

APN Username

AT+USERNAME=XX

XX: APN Username

APN Password

AT+PASSWORD=XX

XX: APN Password

APN Call Center

AT+CENT=XX

XX: APN Call Center

Heartbeat Interval

AT+POLLTIME=XX

XX: Heartbeat Interval

Auto Back to Main Server

AT+RETMAIN=XX

XX: 1, Yes
0, No

Custom Register String

AT+CONNRGST=XX

XX: Custom Register String

Custom Heartbeat String

AT+LINKRGST=XX

XX: Custom Heartbeat String

Transfer Meaning

AT+STRAIGHT=XX

XX：0, Transfer meaning
1, No transfer meaning

TCP MTU

AT+TCPMTU=XX

XX: TCP Data Maximum
Transmission Unit

Multi Center Reconnect
Interval

AT+MCONTIME=XX

XX: Second(Unit)
Connect Retry Times

AT+RETR=XX

XX: Connect Retry Times

Addr.: Unit 704, No. A3 Building, Tel: [phone]
3rd Software Park, Xiamen, China 361000 Fax: [phone]

www.bivocom.com [e-mail]

32

Reconnect Time Interval

AT+RDLWT=XX

XX: Reconnect Time Interval

TTL Heartbeat

AT+EXFUN=XX

XX: 0, Disable
1, Enable, 1 time per 60
seconds

ECHO Heartbeat Interval

AT+ECHOINT=XX

XX: 0, Disable

Other value means

seconds you set

1st SMS Send Phone No.

AT+PHONE1=XX

XX: Use comma for multi
phone number

2nd SMS Send Phone No.

AT+PHONE2=XX

XX: Use comma for multi
phone number

3rd SMS Send Phone No.

AT+PHONE3=XX

XX: Use comma for multi
phone number

4th SMS Send Phone No.

AT+PHONE4=XX

XX: Use comma for multi
phone number

SMS Send Type

AT+HEXSMS=XX

XX: 0, Normal SMS
1, HEX SMS

SMS Send Backup

AT+OPENSMSBCKP=XX

XX: 0, NO Backup
1, YES, to Backup

Display SMS Receiving

AT+SMSDIS=XX

XX: 0, No, SMS is not
displayed at serial port
1, Yes, SMS display at

serial port

MODBUS Work Mode

AT+MBMODE=XX

XX: 0, Disable
1, Network MODBUS
2, Serial Port MODBUS

MODBUS Device Address

AT+MBADDRESS=XX

XX: Address ranging from
1-247

1st Analog Work Mode

AT+ADCMODE1=XX

XX: 0, Disable

1, Collect Once

2nd Analog Work Mode

AT+ADCMODE2=XX

XX: 0, Disable

1, Collect Once

1st Digital Work Mode

AT+DIOWORKMODE1=XX

XX: 0, Disable

1, Input
2, Output

2nd Digital Work Mode

AT+DIOWORKMODE2=XX

XX: 0, Disable

1, Input
2, Output

3rd Digital Work Mode

AT+DIOWORKMODE3=XX

XX: 0, Disable

1, Input
2, Output

Addr.: Unit 704, No. A3 Building, Tel: [phone]
3rd Software Park, Xiamen, China 361000 Fax: [phone]

www.bivocom.com [e-mail]

33

Appendix 2: FAQ

1. Power light is off

Check if the power supply range is 5~35V, and make sure the polarity is correct.

2. Online light is off

1) Make sure SIM card is the card holder and locked correctly, and antenna is fasten.

2) Check the IP address and port of server in the configuration tool is correct.

3) Check whether the server is working.

4) Check if the SIM is out of service (charges owed) and function of data is on.

3. The device couldn’t enter into configuration mode.

1) Check the connection of RS232/RS485 is correct.

2) Is the RS232/RS485 connected to your computer or laptop and serial port of

computer or laptop is working.

3) Check whether the baud rate of computer or laptop is the same as IP Modem.
