MOUNTING (PERMANENT MOUNT)
1) |
Locate and clean a position on the |
TOP |
|
left side of helmet close to lower |
|
|
edge of the helmet. |
|
2) |
Peel off the 3M double sided tape |
|
|
protective film and place the mount |
|
|
with logo on bottom and place Mount |
|
|
to the position in step 1. |
|
3) Apply pressure to the metal bracket to ensure that the bracket is firmly secured. Note: It takes 24hours for adhesive to set.
MOUNTING (TEMPORARY MOUNT)
1)Position and fasten the clip bracket onto the helmet.
2)Remove the metal handles
after clip bracket has been installed.
3) Use additional anti-slip rubber patch provided if required.
INSTALL CONTROL UNIT |
|
REMOVE CONTROL UNIT |
|
|
1) From the top, slide AMP unit onto the |
1) |
Remove USB speaker connector. |
||
bracket. You should hear a ‘click’ sound |
|
|
|
|
when fully inserted. |
2) |
Slide AMP upward to release from |
||
2) Fully insert the speaker USB connector.
PULSE PRO & BOOST PRO PLACEMENT
FIG.A
5.5”
SPEAKER
TOWARDS EAR
3/16”
MIC PORT
FACE FORWARD
MIC MINIMUM PLACEMENT
FIG.A
OR
BOOST PLUS PLACEMENT
SPEAKER
TOWARDS EAR
MICROPHONE
FACE FORWARD
Both mics should be placed parallel to each other
SPEAKER USB PLUG
Insert the speaker USB
wire into the control
unit until you can no
longer see the 3 ribs on
the USB speaker wire plug.
TECHNICAL DATA
Bluetooth: V4.2 (BR/EDR/BLE), Class 1 |
Battery: 3.7V, 500mAh Lithium-ion |
Profiles: HSP, HFP, A2DP |
Talk Time: Up to 10 Hours |
Intercom: AVRCP |
Stand by Time: 400 Hours |
Carrier Frequency: 2.402 - 2.480 GHz |
Operating Temp: -30C(-4F) to 60C(140F) |
Range: Up to 700m (0.43mi) |
Required Charging Temp: 0°C(32F) to 45°C(+113 F°) |
AMP Pro Multi-Hop Intercom: 2 Users and Up |
Controller Unit Size: 60 x 40 x 18mm(2.9 x 1.75 x 1") |
AMP Plus Multi-Hop Intercom: 2-6 Users |
ClearLink: Android 4.4 or Later. Apple iOS 8 or Later |
AMP Multi-Hop Intercom: 2 Users |
|
|
|
BUTTON CONFIGURATION REFERENCE
BASIC COMMANDS
Power On |
Hold Press “Power” once for 2 seconds |
Power Off |
Hold “Power” for 5 seconds |
Activate Bluetooth Pairing |
Hold “Up” and “Down” for 2 seconds |
|
|
Volume Up |
Press “Up” once per volume level |
|
|
Volume Down |
Press “Down” once per volume level |
Reset |
Press “Power”, “Up” and “Down” once simultaneously |
|
|
PHONE CALLS
Pick up Incoming Call |
Press “Power” Once |
End Call In Progress |
Hold “Power” for 2 Seconds |
|
|
Reject Incoming Call |
Hold “Power” for 2 Seconds |
Voice Dial |
Hold “Power” and Down for 2 Seconds |
Last Number Redial |
Hold “Power” and Up for 2 Seconds |
|
|
MUSIC
Play |
Press “Power” 2 |
Times |
|
|
|
Stop |
Press “Power” 1 |
Time |
|
|
|
Fast Forward Track |
Press “Up” Button 2 Times |
|
|
|
|
Backtrack |
Press “Down” Button 2 Times |
|
|
|
|
GROUP INTERCOM
Pairing as Unit 1 |
Unit is off, “Power” and “Down” for 3 seconds |
Pairing as Unit 2 |
Unit is off, “Power” and “Up” for 3 seconds |
Connect intercom |
Hold “Up” for 2 Seconds |
|
|
Disconnect intercom |
Hold “Down” for 2 Seconds |
OPEN INTERCOM
Activate Open Pairing |
Unit is off, hold “Power” for 10 seconds |
Activate [other brand] Pairing |
Refer to the Respective Manufacturer User Manual |
Connect intercom |
Hold “Up’ for 2 Seconds |
Disconnect intercom |
Hold ”Down” for 2 Seconds |
|
|
PRIVATE INTERCOM
Set Up |
While all units are connected, hold “Power” and “Up” |
Switch To Group Intercom |
Press “Power” 1 Time |
|
|
Switch To Private Intercom |
Press “Power” 1 Time |
|
|

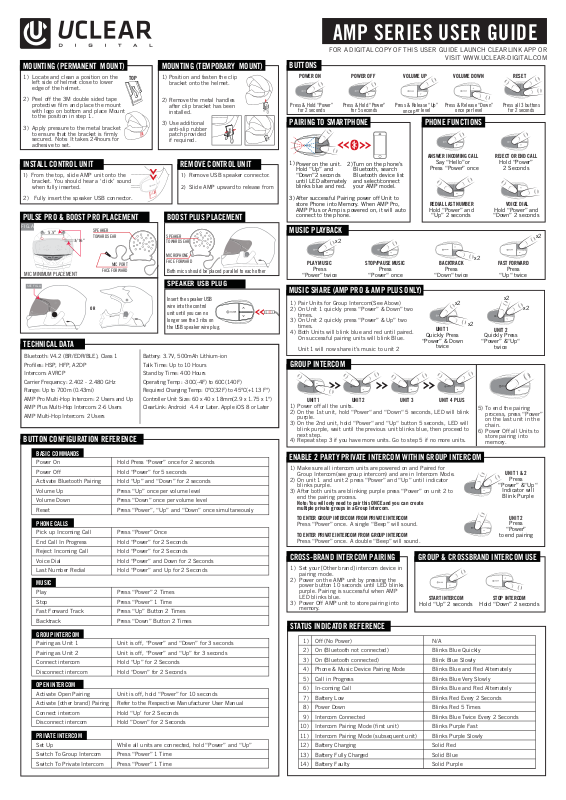

AMP SERIES USER GUIDE
FOR A DIGITAL COPY OF THIS USER GUIDE LAUNCH CLEARLINK APP OR VISIT WWW.UCLEAR-DIGITAL.COM
BUTTONS
POWER ON |
POWER OFF |
VOLUME |
VOLUME DOWN |
|
|||
Press & Hold “Power” |
Press & Hold “Power” |
Press & Release “Up” |
Press & Release “Down” |
Press all 3 buttons |
|||
for 2 seconds |
for 5 seconds |
once per level |
once per level |
for 2 seconds |
|||
|
|
|
|
|
|||
PAIRING TO SMARTPHONE |
|
|
PHONE FUNCTIONS |
|
|
||
1) Power on the unit. 2) Turn on the phone’s
Hold “Up” and |
Bluetooth, search |
“Down”2 seconds |
Bluetooth device list |
until LED alternately |
and select/connect |
blinks blue and red. |
your AMP model. |
3)After successful Pairing power off Unit to store Phone into Memory. When AMP Pro, AMP Plus or Amp is powered on, it will auto connect to the phone.
MUSIC PLAYBACK
x2 |
|
PLAY MUSIC |
STOP/PAUSE MUSIC |
Press |
Press |
“Power” twice |
“Power“ once |
ANSWER INCOMING CALL |
REJECT OR END CALL |
Say “Hello”or |
Hold “Power” |
Press “Power” once |
2 Seconds |
REDIAL LAST NUMBER |
VOICE DIAL |
Hold “Power” and |
Hold “Power” and |
“Up” 2 seconds |
“Down” 2 seconds |
|
x2 |
x2 |
FAST FORWARD |
BACKTRACK |
|
Press |
Press |
“Down“ twice |
“Up“ twice |
MUSIC SHARE (AMP PRO & AMP PLUS ONLY)
1) |
Pair Units for Group Intercom(See Above) |
x2 |
x2 |
|
x2 |
||||
2) |
On Unit 1 quickly press “Power” & Down” two |
|
||
3) |
times. |
|
|
|
On Unit 2 quickly press “Power” & Up” two |
|
x2 |
||
|
times. |
UNIT 1 |
||
4) |
UNIT 2 |
|||
Both Units will blink blue and red until paired. |
||||
Quickly Press |
Quickly Press |
|||
|
On successful pairing units will blink Blue. |
|||
|
“Power” & Down |
“Power” &“Up“ |
||
|
|
|||
|
Unit 1 will now share it’s music to unit 2 |
twice |
twice |
|
|
|
|
GROUP INTERCOM
UNIT 1 |
UNIT 2 |
UNIT 3 |
UNIT 4 PLUS |
1)Power off all the units.
2)On the 1st unit, hold “Power“ and “Down“ 5 seconds, LED will blink purple.
3)On the 2nd unit, hold “Power“ and “Up“ button 5 seconds, LED will blink purple, wait until the previous unit blinks blue, then proceed to next step.
4)Repeat step 3 if you have more units. Go to step 5 if no more units.
5)To end the pairing process, press “Power” on the last unit in the chain.
6)Power Off all Units to store pairing into memory.
ENABLE 2 PARTY PRIVATE INTERCOM WITHIN GROUP INTERCOM
1) Make sure all intercom units are powered on and Paired for Group Intercom(see group intercom) and are in Intercom Mode.
2) On unit 1 and unit 2 press “Power” and “Up” until indicator blinks purple.
3) After both units are blinking purple press “Power” on unit 2 to end the pairing process.
Note: You will only need to pair this ONCE and you can create multiple private groups in a Group Intercom.
TO ENTER GROUP INTERCOM FROM PRIVATE INTERCOM
Press “Power” once. A single “Beep” will sound.
TO ENTER PRIVATE INTERCOM FROM GROUP INTERCOM
Press “Power” once. A double “Beep” will sound.
UNIT 1 & 2
Press “Power” &“Up“
Indicator will Blink Purple
UNIT 2
Press “Power”
to end pairing
CROSS-BRAND INTERCOM PAIRING |
|
GROUP & CROSSBRAND INTERCOM USE |
||
1) |
Set your [Other brand] intercom device in |
|
|
|
|
pairing mode. |
|
|
|
2) |
Power on the AMP unit by pressing the |
|
|
|
|
power button 10 seconds until LED blinks |
|
|
|
|
purple. Pairing is successful when AMP |
|
|
|
|
LED blinks blue. |
START INTERCOM |
STOP INTERCOM |
|
3) |
Power Off AMP unit to store pairing into |
Hold “Up” 2 seconds |
Hold “Down” 2 seconds |
|
|
memory. |
|
|
|
STATUS INDICATOR REFERENCE
1) |
Off (No Power) |
N/A |
2) |
On (Bluetooth not connected) |
Blinks Blue Quickly |
|
|
|
3) |
On (Bluetooth connected) |
Blink Blue Slowly |
|
|
|
4) |
Phone & Music Device Pairing Mode |
Blinks Blue and Red Alternately |
5) |
Call in Progress |
Blinks Blue Very Slowly |
|
|
|
6) |
In-coming Call |
Blinks Blue and Red Alternately |
|
|
|
7) |
Battery Low |
Blinks Red Every 2 Seconds |
8) |
Power Down |
Blinks Red 5 Times |
|
|
|
9) |
Intercom Connected |
Blinks Blue Twice Every 2 Seconds |
|
|
|
10) |
Intercom Pairing Mode (first unit) |
Blinks Purple Fast |
11) |
Intercom Pairing Mode (subsequent unit) |
Blinks Purple Slowly |
12) |
Battery Charging |
Solid Red |
13) |
Battery Fully Charged |
Solid Blue |
14) |
Battery Faulty |
Solid Purple |
