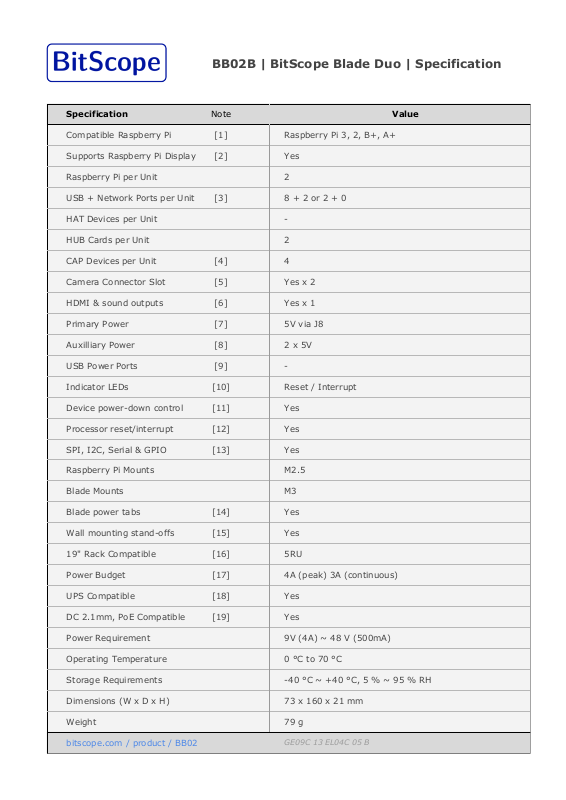

BB02B | BitScope Blade Duo | Specification
Specification Note Value
Compatible Raspberry Pi [1] Raspberry Pi 3, 2, B+, A+
Supports Raspberry Pi Display [2] Yes
Raspberry Pi per Unit 2
USB + Network Ports per Unit [3] 8 + 2 or 2 + 0
HAT Devices per Unit -
HUB Cards per Unit 2
CAP Devices per Unit [4] 4
Camera Connector Slot [5] Yes x 2
HDMI & sound outputs [6] Yes x 1
Primary Power [7] 5V via J8
Auxilliary Power [8] 2 x 5V
USB Power Ports [9] -
Indicator LEDs [10] Reset / Interrupt
Device power-down control [11] Yes
Processor reset/interrupt [12] Yes
SPI, I2C, Serial & GPIO [13] Yes
Raspberry Pi Mounts M2.5
Blade Mounts M3
Blade power tabs [14] Yes
Wall mounting stand-offs [15] Yes
19" Rack Compatible [16] 5RU
Power Budget [17] 4A (peak) 3A (continuous)
UPS Compatible [18] Yes
DC 2.1mm, PoE Compatible [19] Yes
Power Requirement 9V (4A) ~ 48 V (500mA)
Operating Temperature 0 °C to 70 °C
Storage Requirements -40 °C ~ +40 °C, 5 % ~ 95 % RH
Dimensions (W x D x H) 73 x 160 x 21 mm
Weight 79 g
bitscope.com / product / BB02
GE09C 13 EL04C 05 B
Page 2
BB02B | BitScope Blade Duo | Notes
[1] Any Raspberry Pi that conforms to the HAT specification is compatible.
[2] Provides power and optional wall mounting capability.
[3] Refers to the number of USB and Network ports (provided by connected Raspberry Pi)
[4] Number of BitScope CAP (USB connected) per Blade (depending on power requirements)
[5] Camera slots to enable the connection of visible or IR cameras.
[6] HDMI and Audio ports on the Raspberry Pi in Slot 1 are accessible for connection.
[7] Primary power for connected Raspberry Pi and HAT devices.
[8] Auxilliary power for devices connected via 3-pin power headers (e.g. Raspberry Pi Display)
[9] Additional USB (power only) ports for connected peripherals (e.g. Raspberry Pi Display)
[10] LEDs to indicate BAY reset and interrupt inputs.
[11] Each slot may be individually powered up/down via this header (normally powered up).
[12] The device in each slot may be individually reset or interrupted via this header.
[13] Access to each Raspberry Pi GPIO, SPI, I2C and Serial signals.
[14] The blade may be powered via the mounting tabs, eliminates power wiring when rack mounted.
[15] Blades supplied with wall mounting stand-offs with adhesive feet.
[16] Blades can be rack mounted to create cluster computing solutions with optional metalwork.
[17] Peak and continous current available at 5V across all slots and connected peripheral devices.
[18] Blocking diode enables use with UPS and battery backup power solutions.
[19] DC 2.1mm power socket compatible with low cost passive PoE solutions.
