FLEX 5000 / IC 5000 Manual

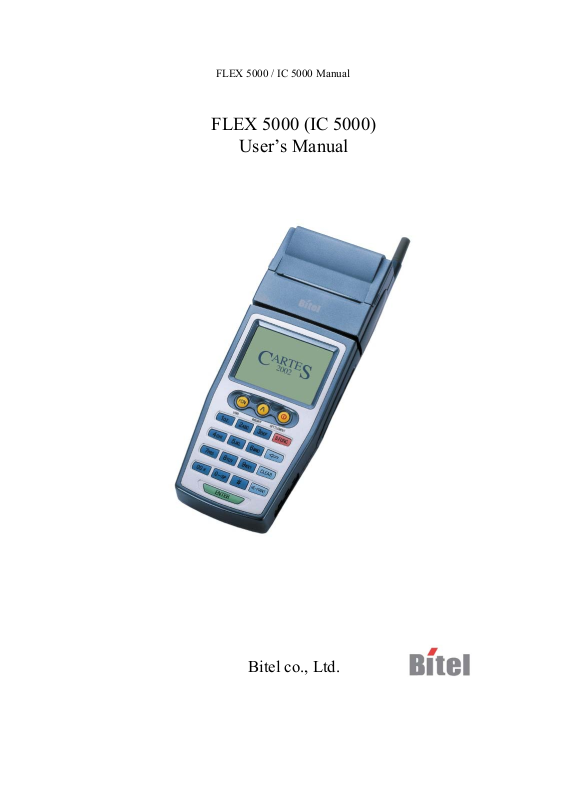

FLEX 5000 (IC 5000)
User’s Manual
Bitel co., Ltd.
User’s Warning
FLEX 5000 / IC 5000 Manual
Product component
FLEX 5000 / IC 5000 Manual
FLEX 5000 / IC 5000 Manual
IDLE PROMPT / MAIN MENU
# Terminal Screen Descriptions for Key Operation and Summary
FL E X 5 0 0 0
1
SWIPE CARD
MAY 01, 03 23:51
2
<- -> Setup
Reports
Batch Functions
3
<- ->
Enter or Swipe Card.
*, # keys are scroll menu.(1 line)
Displays next page of menu items.
*, # keys are scroll menu.(1 line)
New Transaction MENU
# Terminal Screen Descriptions for Key Operation and Summary
1
2
Setup
Batch Functions
<- -> Off-line Sale
Reports
Refund
Void
3
Mail / Phone Order
<- ->
Press any key (0-9, *, #) to
activate Main Menu.
Press Enter Key to select
new transaction function.
New Transaction Menu.
*, # keys are scroll menu.(1 line)
FLEX 5000 / IC 5000 Manual
Key, ICON component of FLEX5000(IC5000)
FLEX 5000 / IC 5000 Manual
SAM, SIM, RUIM SOCKET
FLEX 5000 / IC 5000 Manual
Troubleshooting
Problem Cause Follow-up measures
When Power On,
LCD screen do
not operation
LCD show too
Dark or too
Bright
Paper is not clear Printer head error
When Printer pa
per hanging on
Printer device
Character is not
normal at LCD
screen
When card don’t
Read
When pinpad do
not operate
When time is not
correct
Power supply error
LCD contrast error
Terminal error
LCD adjustment error
LCD device error
Terminal error
Printer device error
Bad paper
Terminal error
Bad paper use
Paper Insert error
Terminal error
LCD error
LCD device error
Terminal error
Card Insert error
Bad card use
Terminal error
Pinpad error Confirm connection between terminal and
TimeSetting is wrong
Timer error
Confirm a wall socket.
Confirm connection Between a wall socket
and power plug.
Confirm power plug.
Adjust LCD contrast.
Request A/S.
Adjust LCD contrast.
Request A/S.
Open the printer cover and Confirm printer
device.
Request A/S.
* Paper keep in dry place.
Use Up key. And eliminate the paper.
Clean paper Insert.
Request A/S.
Request A/S.
Confirm insert direction.
Confirm card.
Confirm magnetic line.
Request A/S.
pinpad.
Request A/S.
Time Setting. (Date & Time)
Request A/S.
Safety Information
1 . SAFETY INFORMATION FOR FIXED WIRELESS TERMINALS
.POTE NTIALLY EXPLOSIVE ATMOSPHERES
Turn your phone OFF when in any area with a potentially explosive atmosphere
and obey all signs and instructions. Sparks in such areas could cauls e an
explosion or fire resulting in bodily injury or even death.
.
INTERFERENCE TO MEDICAL DIVICES
Certain electronic equipment may be shielded against RF signal from you wireless
phone. (pacemakers, Hearing Aids, and so on) Turn your phone OFF in health care
facilities when any regulations posted in these areas instruct you to do so.
RF signals may affect improperly installed or inadequately shielded electronic
system in motor vehicles.
.EXPOSURE TO RF ENERGY
Use only the supplied or an approved replacement antenna.
Do not touch the antenna unnecessarily when the phone is in use.
Do not move the antenna close to, or touching any exposed part of the body when
making a call.
SAR INFORMATION
THIS MODEL PHONE MEETS THE GOVERNMENT’S
REQUIREMENTS FOR EXPOSURE TO RADIO WAVES.
Your wireless phone is a radio transmitter and receiver. It is designed and manufactured not to
exceed the emission limits for exposure to radiofrequency (RF) energy set by the Federal
Communications Commission of the U.S. Government. These limits are part of comprehensive
guidelines and establish permitted levels of RF energy for the general population. The
guidelines are based on standards that were developed by independent scientific organizations
through periodic and thorough evaluation of scientific studies. The standards include a
substantial safety margin designed to assure the safety of all persons, regardless of age and
health. The exposure standard for wireless mobile phones employs a unit of measurement
known as the Specific Absorption Rate, or SAR. The SAR limit set by the FCC is 1.6 W/kg. *
Tests for SAR are conducted with the phone transmitting at its highest certified power level in all
tested frequency bands. Although the SAR is determined at the highest certified power level,
the actual SAR level of the phone while operating can be well below the maximum value. This is
because the phone is designed to operate at multiple power levels so as to use only the power
required to reach the network. In general, the closer you are to a wireless base station antenna,
the lower the power output. Before a phone model is available for sale to the public, it must be
tested and certified to the FCC that it does not exceed the limit established by the government
adopted requirement for safe exposure. The tests are performed in positions and locations (e.g.,
at the ear and worn on the body) as required by the FCC for each model. The highest SAR
value for this model when tested for use at the when worn on the body, as described in this user
guide, is 0.134 W/Kg
available accessories and FCC requirements). While there may be differences between the
SAR levels of various and at various positions, they all meet the government requirement for
safe exposure. The FCC has granted an Equipment Authorization for this model with all
reported SAR levels evaluated as in compliance with the FCC RF exposure guidelines. SAR
information on this model is on file with the FCC and can be found under the Display Grant
section of http://www.fcc.gov/ oet/fccid after searching on FCC ID: STSFLEX5000
Additional information on Specific Absorption Rates (SAR) can be found on the Cellular
Telecommunications Industry Association (CTIA) web-site at http://www.wow-com.com.
* In the United States and Canada, the SAR limit for mobile phones used by the public is 1.6
watts/kg (W/kg) averaged over one gram of tissue. The standard incorporates a sub-stantial
margin of safety to give additional protection for the public and to account for any variations in
measurements.
. (Body-worn measurements differ among models, depending upon
.
SAFETY INFORMATION FOR RF EXPOSURE
Body worn operation
This device was tested for typical body-worn operations with the back of the phone
kept 15 mm. from the body. To maintain compliance with FCC RF exposure
requirements, use only belt-clips, holsters or similar accessories that maintain a 15 mm.
separation distance between the user’s body and the back of the phone, including the
antenna. The use of belt-clips, holsters and similar accessories should not contain
metallic components in its assembly. The use of accessories that do not satisfy these
requirements may not comply with FCC RF exposure requirements, and should be
avoided.
FCC Compliance Information
This device complies with Part 15 of FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received.
Including interference that may cause undesired operation.
U.S.A.
U.S.FEDERAL COMMUNICATIONS COMMISSION
RADIO FREQUENCY INTERFERENCE STATEMENT
INFORMATION TO THE USER
NOTE : This equipment has been tested and found to comply with the limits for a Class B
digital device pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful Interference in
a residential installation This equipment generates, uses, and can radiate radio frequency
energy and, if Not installed and used in accordance with the instructions, may cause
harmful Interference to radio communications. However, there is no guarantee that
interference will not occur in a particular Installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
z Reorient or relocate the receiving antenna.
z Increase the separation between the equipment and receiver.
z Connect the equipment into an outlet of a circuit different from that to which
the receiver is connected.
z Consult the dealer or an experienced radio/TV technician for assistance.
Changes or modification not expressly approved by the party responsible for Compliance
could void the user’s authority to operate the equipment. Connecting of peripherals requires
the use of grounded shielded signal cables.
