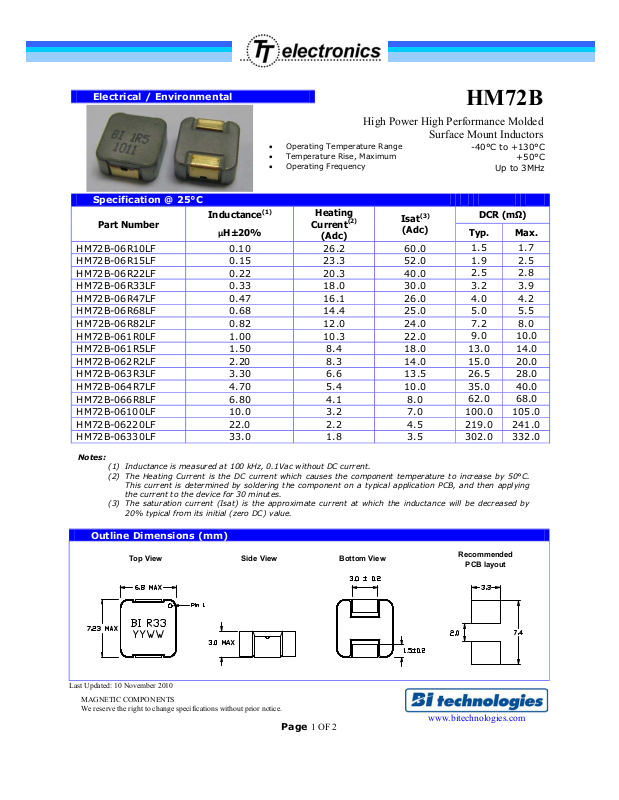

Electrical / Environmental
HM72B
High Power High Performance Molded
Surface Mount Inductors
Specification @ 25°C
Inductance
Part Number
µH±20%
HM72B-06R10LF 0.10 26.2 60.0
HM72B-06R15LF 0.15 23.3 52.0
HM72B-06R22LF 0.22 20.3 40.0
HM72B-06R33LF 0.33 18.0 30.0
HM72B-06R47LF 0.47 16.1 26.0
HM72B-06R68LF 0.68 14.4 25.0
HM72B-06R82LF 0.82 12.0 24.0
HM72B-061R0LF 1.00 10.3 22.0
HM72B-061R5LF 1.50 8.4 18.0
HM72B-062R2LF
2.20 8.3 14.0
HM72B-063R3LF 3.30 6.6 13.5
HM72B-064R7LF 4.70 5.4 10.0
HM72B-066R8LF 6.80 4.1 8.0
HM72B-06100LF 10.0 3.2 7.0
HM72B-06220LF
22.0 2.2 4.5
HM72B-06330LF 33.0 1.8 3.5
Notes:
(1) Inductance is measured at 100 kHz, 0.1Vac without DC current.
(2) The Heating Current is the DC current which causes the component temperature to increase by 50°C.
This current is determined by soldering the component on a typical application PCB, and then applying
the current to the device for 30 minutes.
(3) The saturation current (Isat) is the approximate current at which the inductance will be decreased by
20% typical from its initial (zero DC) value.
Outline Dimensions (mm)
Operating Temperature Range
Temperature Rise, Maximum
Operating Frequency
(1)
Heating
Current
(2)
(Adc)
(3)
Isat
(Adc)
-40°C to +130°C
Up to 3MHz
DCR (mΩ)
Typ. Max.
1.5 1.7
1.9 2.5
2.5 2.8
3.2 3.9
4.0 4.2
5.0 5.5
7.2 8.0
9.0 10.0
13.0 14.0
15.0 20.0
26.5 28.0
35.0 40.0
62.0 68.0
100.0 105.0
219.0 241.0
302.0 332.0
Top View Side View Bottom View
PCB layout
Last Updated: 10 November 2010
MAGNETIC COMPONENTS
We reserve the right to change specifications without prior notice.
www.bitechnologies.com
Page 1 OF 2
+50°C
Electrical Characteristic @ 20°C (Cont’d)
Packaging / Ordering Information
One reel (13”) 2000 pcs
One shipping carton (6 reels) 12000 pcs
HM72B - 06 R33 LF TR13
Model Series
Case Size
Lead Free
Inductance Code:
First 2 digits are significant. Last digit
denotes number of trailing zeros. For values
below 10µH, “R” denotes the decimal point.
13” tape & reel
packing
MAGNETIC COMPONENTS
We reserve the right to change specifications without prior notice.
Page 2 OF 2
www.bitechnologies.com
