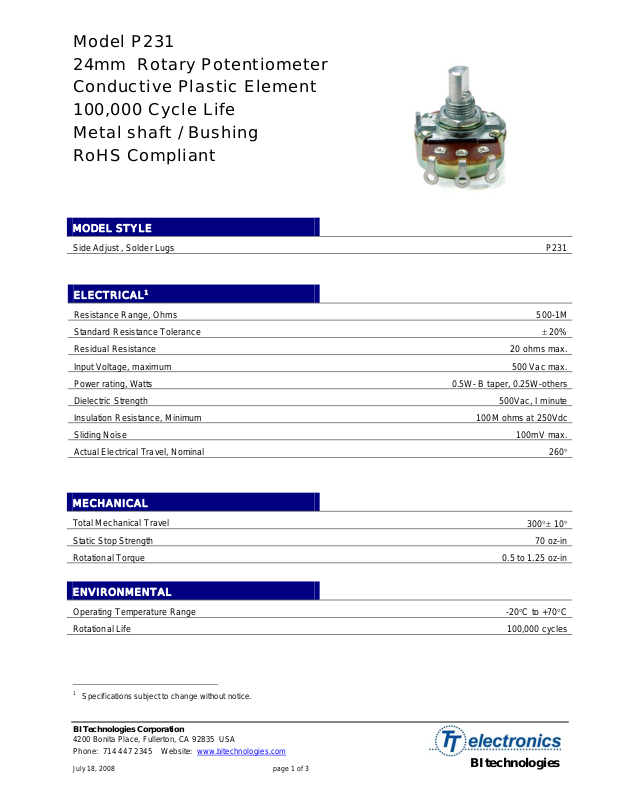

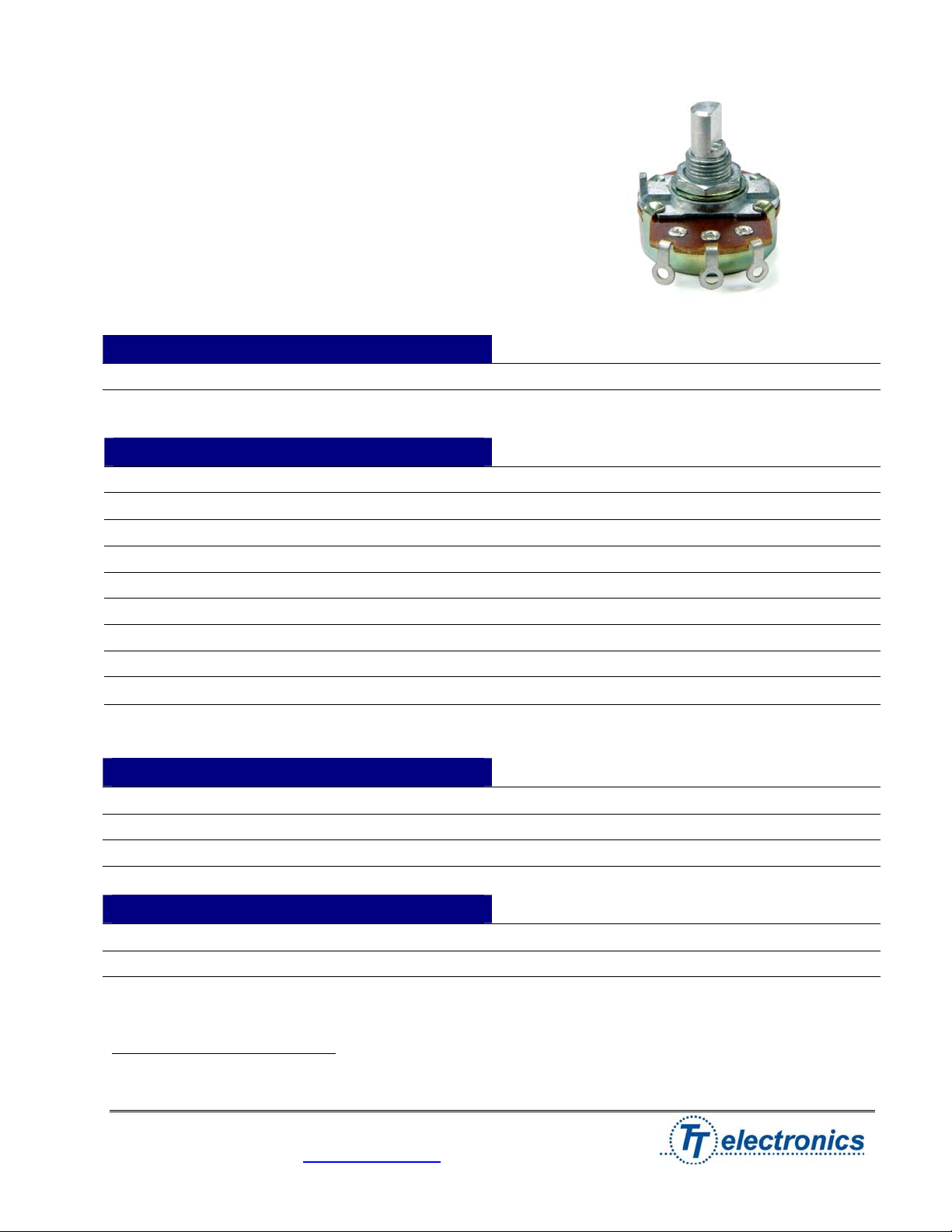

Page 1
Model P231
s
24mm Rotary Potentiometer
Conductive Plastic Element
100,000 Cycle Life
Metal shaft / Bushing
RoHS Compliant
MODEL STYLE
Side Adjust , Solder Lugs P231
ELECTRICAL1
Resistance Range, Ohms 500-1M
Standard Resistance Tolerance
Residual Resistance 20 ohms max.
Input Voltage, maximum 500 Vac max.
Power rating, Watts 0.5W- B taper, 0.25W-others
Dielectric Strength 500Vac, I minute
Insulation Resistance, Minimum 100M ohms at 250Vdc
Sliding Noise 100mV max.
Actual Electrical Travel, Nominal
MECHANICAL
± 20%
260°
Total Mechanical Travel
Static Stop Strength 70 oz-in
Rotational Torque 0.5 to 1.25 oz-in
ENVIRONMENTAL
Operating Temperature Range
Rotational Life 100,000 cycles
1
Specifications subject to change without notice.
BI Technologies Corporation
4200 Bonita Place, Fullerton, CA 92835 USA
Phone: 714 447 2345 Website: www.bitechnologies.com
July 18, 2008 page 1 of 3
BI technologie
300°± 10°
-20°C to +70°C
Page 2
Model P231
s

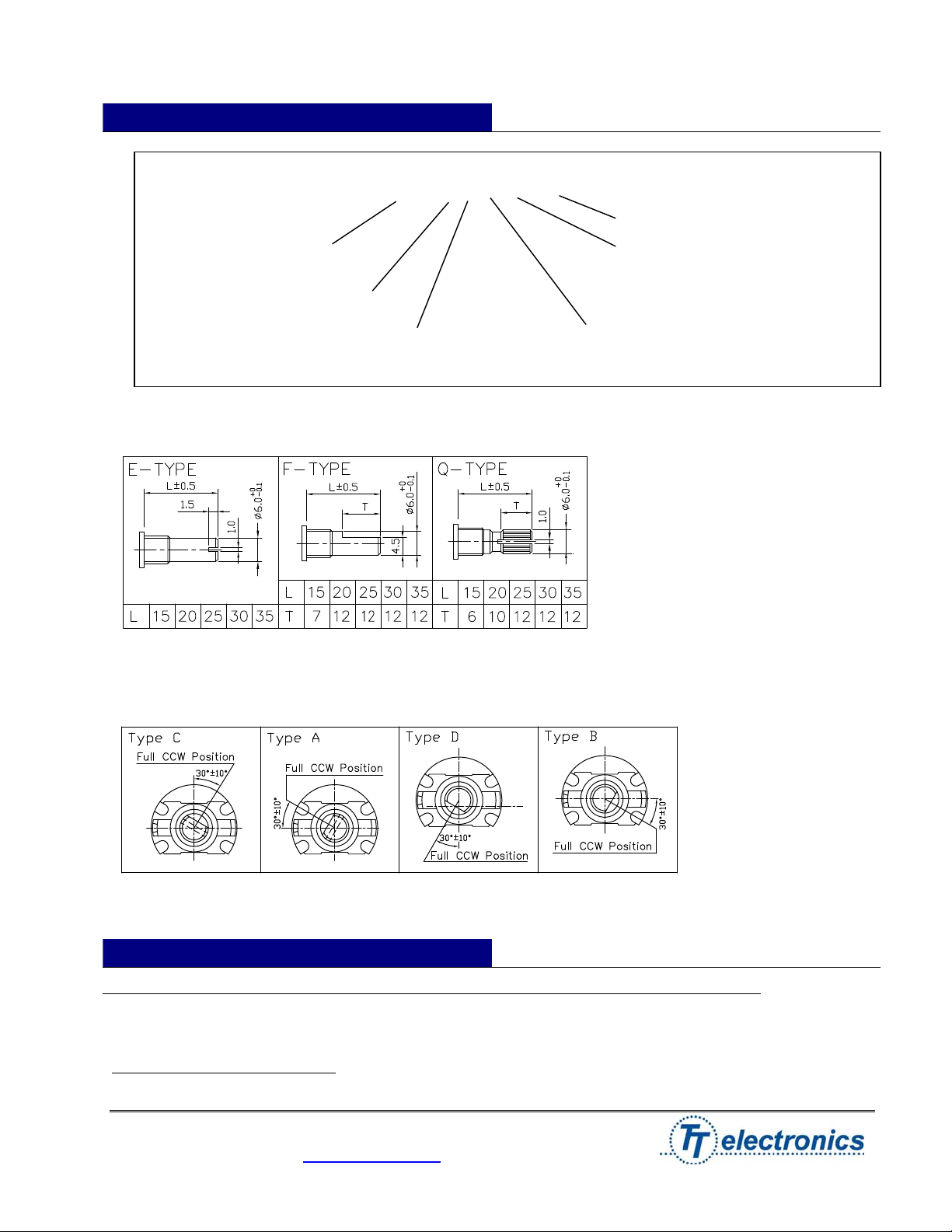

ORDERING INFORMATION2
Shaft Types
Full CCW Shaft Position: see below
Model Series
Shaft Type
P231 - F C 20 B R100K
Total Resistance
Tapers
A = Audio
B = Linear
=
Shaft Length “L” see below
Shaft Position (F-Type Shaft)
Dashed lines on Type “C” and Type “A” shows position of adjustment slot for E-Type and Q-Type shafts
STANDARD RESISTANCE VALUES, OHMS
500 1K 2K 5K 10K 20K 50K 100K 200K 500K 1MEG
2
Contact our customer service for custom designs and features.
BI Technologies Corporation
4200 Bonita Place, Fullerton, CA 92835 USA
Phone: 714 447 2345 Website: www.bitechnologies.com
July 18, 2008 page 2 of 3
BI technologie
Page 3
Model P231
s

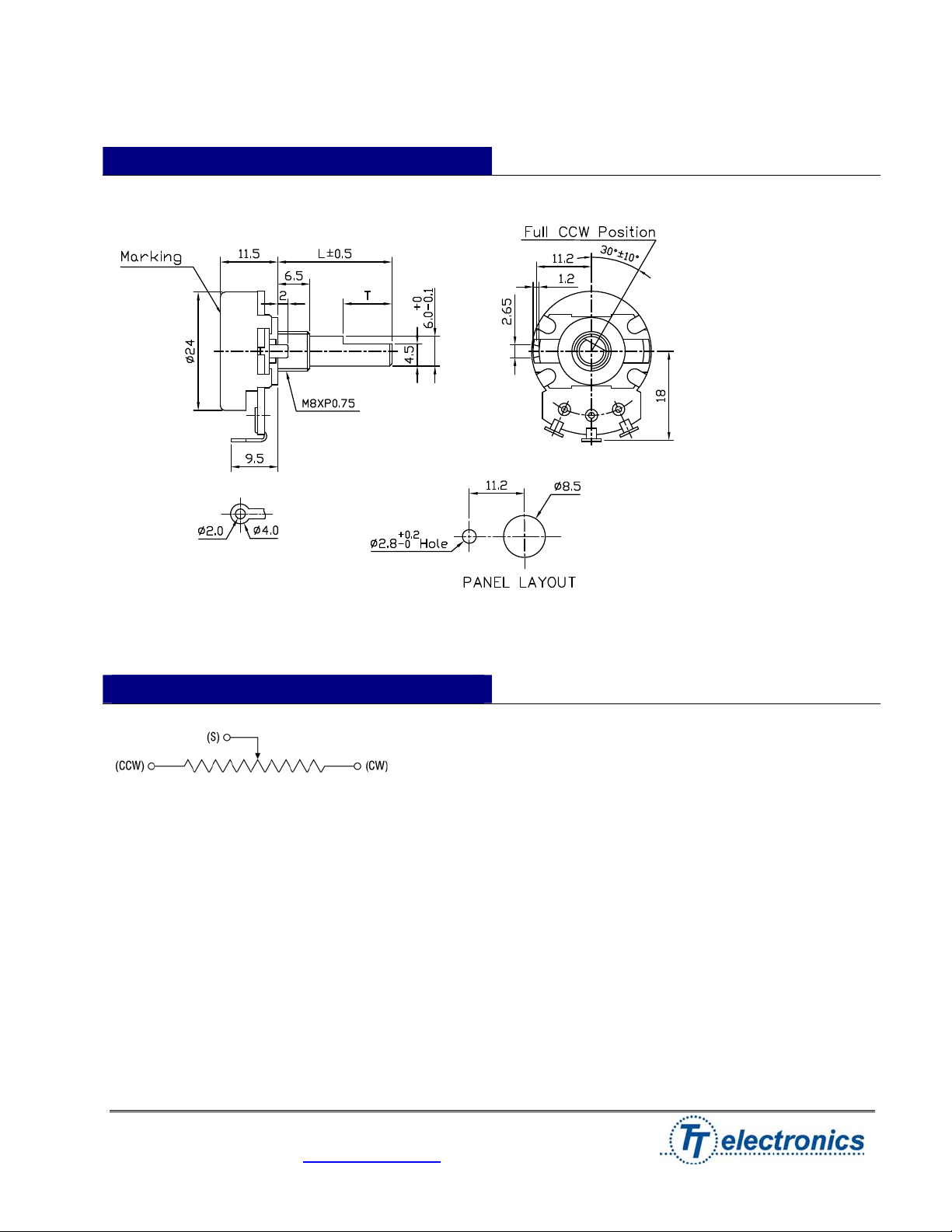

OUTLINE DRAWING
CIRCUIT DIAGRAM
BI Technologies Corporation
4200 Bonita Place, Fullerton, CA 92835 USA
Phone: 714 447 2345 Website: www.bitechnologies.com
July 18, 2008 page 3 of 3
BI technologie
