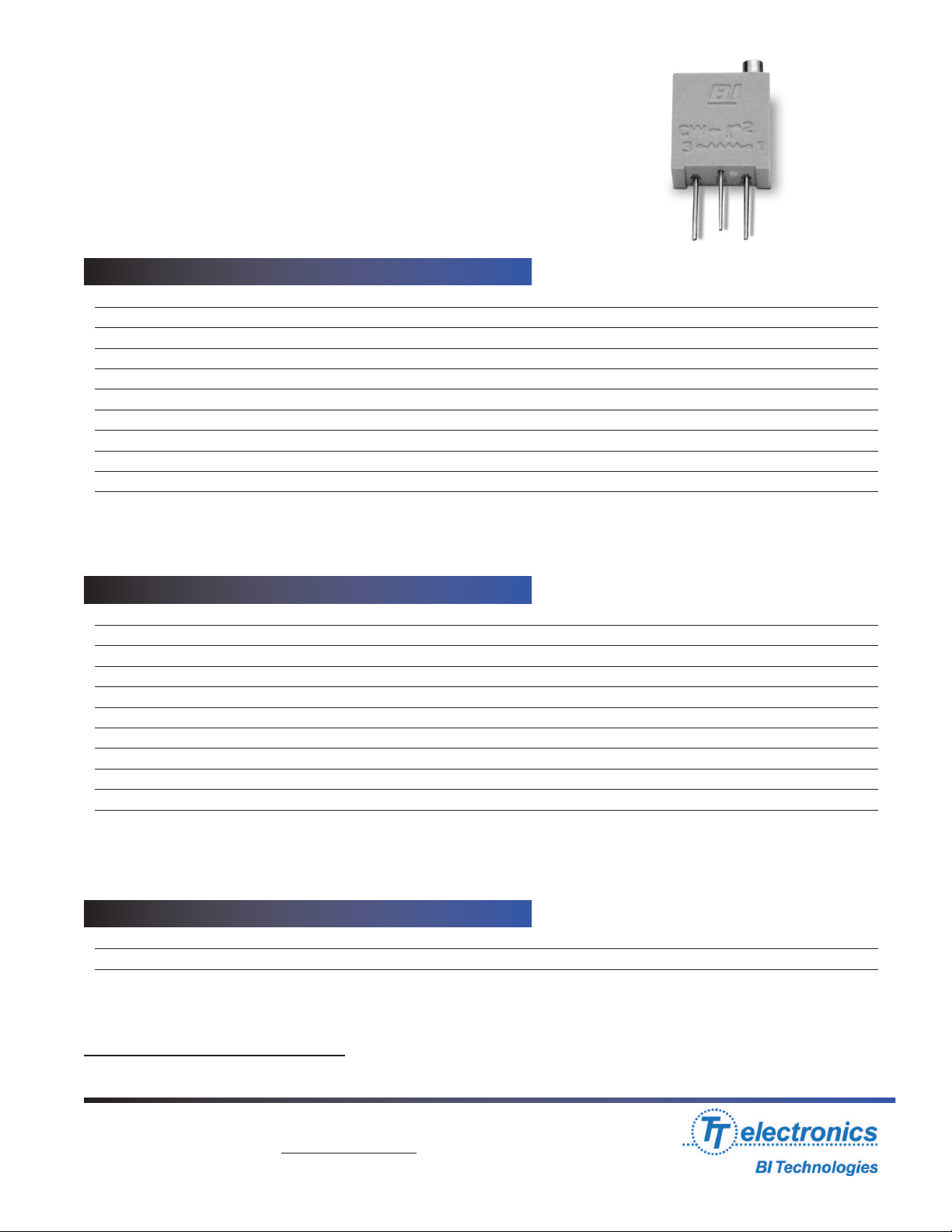

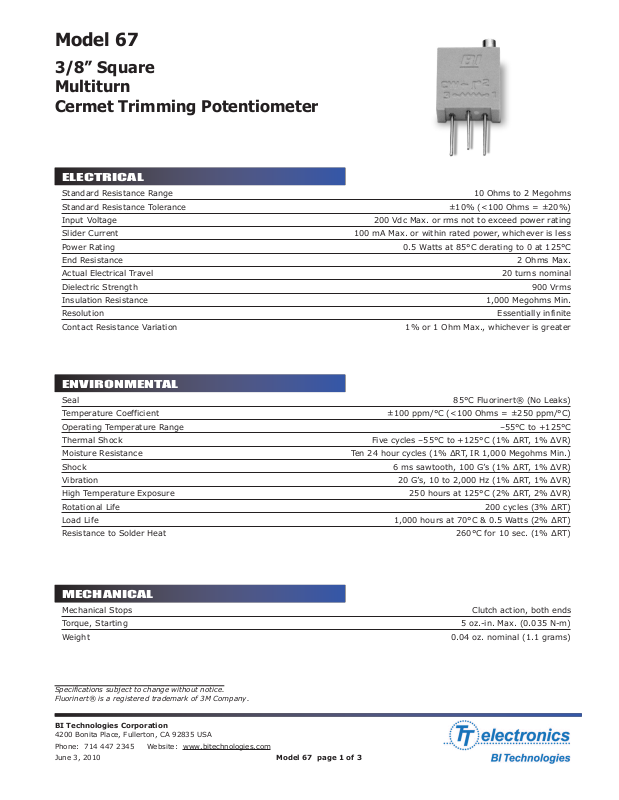

Model 67
3/8” Square
Multiturn
Cermet Trimming Potentiometer
ELECTRICAL
Standard Resistance Range 10 Ohms to 2 Megohms
Standard Resistance Tolerance ±10% (<100 Ohms = ±20%)
Input Voltage 200 Vdc Max. or rms not to exceed power rating
Slider Current 100 mA Max. or within rated power, whichever is less
Power Rating 0.5 Watts at 85°C derating to 0 at 125°C
End Resistance 2 Ohms Max.
Actual Electrical Travel 20 turns nominal
Dielectric Strength 900 Vrms
Insulation Resistance 1,000 Megohms Min.
Resolution Essentially infinite
Contact Resistance Variation 1% or 1 Ohm Max., whichever is greater
ENVIRONMENTAL
Seal 85°C Fluorinert® (No Leaks)
Temperature Coefficient ±100 ppm/°C (<100 Ohms = ±250 ppm/°C)
Operating Temperature Range –55°C to +125°C
Thermal Shock Five cycles –55°C to +125°C (1% ∆RT, 1% ∆VR)
Moisture Resistance Ten 24 hour cycles (1% ∆RT, IR 1,000 Megohms Min.)
Shock 6 ms sawtooth, 100 G’s (1% ∆RT, 1% ∆VR)
Vibration 20 G’s, 10 to 2,000 Hz (1% ∆RT, 1% ∆VR)
High Temperature Exposure 250 hours at 125°C (2% ∆RT, 2% ∆VR)
Rotational Life 200 cycles (3% ∆RT)
Load Life 1,000 hours at 70°C & 0.5 Watts (2% ∆RT)
Resistance to Solder Heat 260°C for 10 sec. (1% ∆RT)
MECHANICAL
Mechanical Stops Clutch action, both ends
Torque, Starting 5 oz.-in. Max. (0.035 N-m)
Weight 0.04 oz. nominal (1.1 grams)
Specifications subject to change without notice.
Fluorinert® is a registered trademark of 3M Company.
BI Technologies Corporation
4200 Bonita Place, Fullerton, CA 92835 USA
Phone: 714 447 2345 Website: www.bitechnologies.com
June 3, 2010 Model 67 page 1 of 3
Page 2
(1)
(2)
(3)
CW

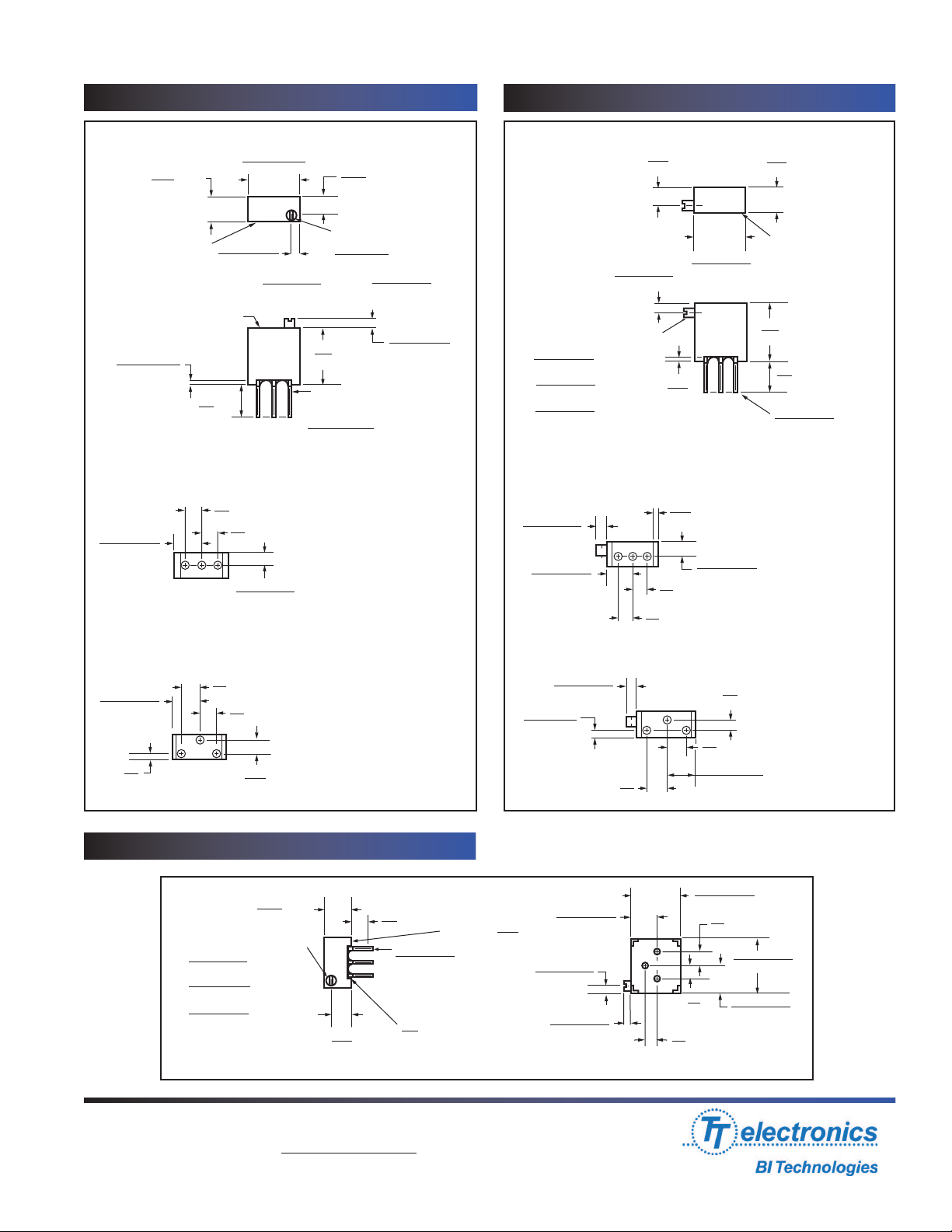

Model 67
PACKAGING
Standard (no code): Boxes. Capacity = 100 units for 67W. 50 units for all other pin styles.
Option (TR code, available for 67W & 67X only): Tape & Reel. All units oriented with #1 pin to the right of the direction of feed.
Tape Width = 18 mm
Sprocket = Single hole, 0.050” spacing
Capacity = 1,000 units
Seat plane to centerline of sprocket hole = 0.71” (18 mm)
Reel Diameter = 14” (363 mm)
Option (AP code, available for 67W & 67X only): Ammo Pack. All units oriented with #1 pin to the right of the direction of feed.
Ammo Tape Fold = 12” (305 mm)
Box = 1.8” x 13” x 10”
(46 mm x 330 mm x 254 mm)
Option (TB code): Tubes. All units oriented with #1 pin to same side. Tube capacity = 50 units.
Pin Style P W, Y X, Z
Dimensions Width = 0.57” 0.28” 0.28”
Height = 0.66” 0.93” 0.93”
Length = 20.9” 20.6” 24.4”
ORDERING INFORMATION

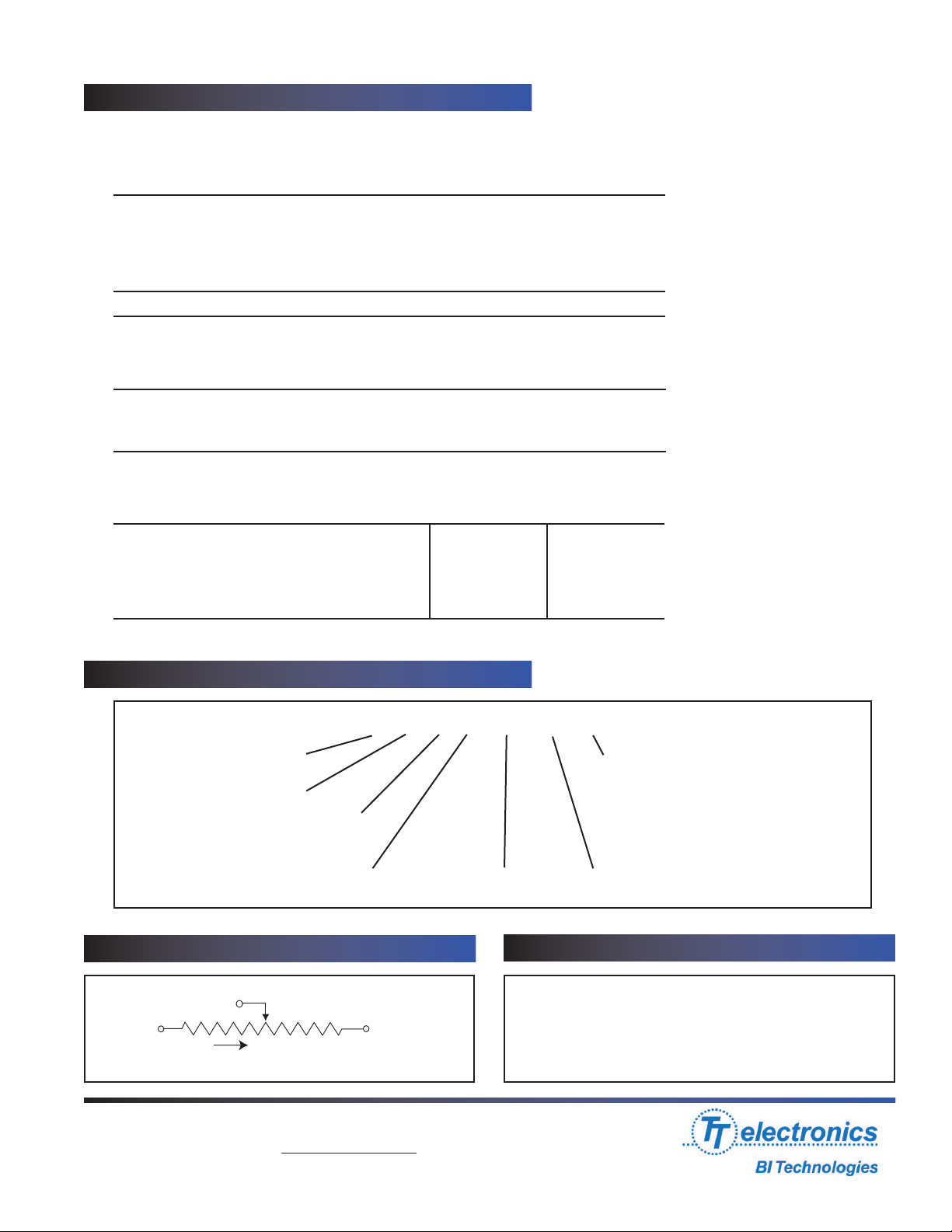

67 P F R 10K LF XX
Model Series
Pin Style
Optional 0.70” lead length for AP &
TR packaging, pin style W & X only
Resistance Prefix
CIRCUIT DIAGRAM
Resistance Value
STANDARD RESISTANCE VALUES
10 200 5K 50K 500K
Packaging Option:
no code = Box (standard)
TR = Tape & Reel (Pin Styles W, X only)
AP = Ammo Pack
TB = Tubes (Pin Styles P, W, X only)
Optional RoHS compliant product code
20 500 10K 100K 1Meg
50 1K 20K 200K 2Meg
100 2K 25K 250K
