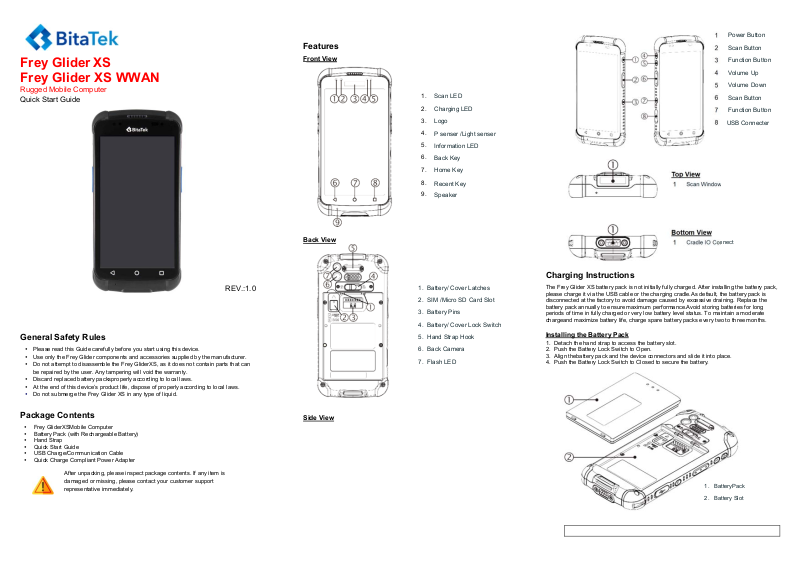

Bitatek GLIDERXS Users Manual

Frey Glider XS
Frey Glider XS WWAN

Rugged Mobile Computer

Quick Start Guide

Features

Front View

Back View

1. Scan LED

2.

Charging LED

3.

Logo

4.

P senser /Light senser

5.

Information LED

6.

Back Key

7.

Home Key

8.

Recent Key

9.

Speaker

Scan Window

1

Top View

Bottom View

Cradle IO Connect

1

1 Power Button

2 Scan Button

3 Function Button

4 Volume Up

5 Volume Down

6 Scan Button

7 Function Button

8 USB Connecter

REV.:1.0

General Safety Rules

y Please read this Guide carefully before you start using this device.
y Use only the Frey Glider components and accessories supplied by the manufacturer.
y Do not attempt to disassemble the Frey GliderXS, as it does not contain parts that can

be repaired by the user. Any tampering will void the warranty.

y Discard replaced battery packsproperly according to local laws.
y At the end of this device’s product life, dispose of properly according to local laws.

y Do not submerge the Frey Glider XS in any type of liquid.

Package Contents

y Frey GliderXSMobile Computer
y Battery Pack (with Rechargeable Battery)
y Hand Strap
y Quick Start Guide
y USB Charge/Communication Cable
y Quick Charge Compliant Power Adapter

After unpacking, please inspect package contents. If any item is
damaged or missing, please contact your customer support
representative immediately.

Side View

1. Battery/ Cover Latches

2. SIM /Micro SD Card Slot

3. Battery Pins

4. Battery/ Cover Lock Switch

5. Hand Strap Hook

6. Back Camera

7. Flash LED

Charging Instructions

The Frey Glider XS battery pack is not initially fully charged. After installing the battery pack,
please charge it via the USB cable or the charging cradle.As default, the battery pack is
disconnected at the factory to avoid damage caused by excessive draining. Replace the
battery pack annually to ensure maximum performance.Avoid storing batteries for long
periods of time in fully charged or very low battery level status. To maintain a moderate
chargeand maximize battery life, charge spare battery packs every two to three months.

Installing the Battery Pack

1. Detach the hand strap to access the battery slot.

2. Push the Battery Lock Switch to Open.

3. Align thebattery pack and the device connectors and slide it into place.

4. Push the Battery Lock Switch to Closed to secure the battery.

1. BatteryPack

2. Battery Slot

RISK OF EXPLOSION IF BATTERY IS REPLACEDBY AN INCORRECT TYPE.
DISPOSE OF USED BATTERIES PROPERLY ACCORDINGTO LOCAL LAWS.

CAUTION

Charging via USB Cable

Use the provided USB charge / communication cable together with the Quick Charge
compliant power adapter to charge the Frey Glider XS rom a power outlet.

Charging via Charging Cradle

Place the Frey Glider XS in the charging cradle. Attach the power adapter to the cradle,
thenplug the power adapter into a power outlet.

Charging Time

Charging time required will vary depending on the actual application of the Frey Glider XS
and the condition of the battery pack. This device is shipped with alithium-ion battery that is
not fully charged. Please charge this device fully before first time use.Use under environment
temperatures of 5°C~45°C.

SD / SIM Card Installation

1. Turn off the Frey Glider XS or put it in Battery Swap Mode

2. Detach the hand strap

3. Push the Battery Lock Switch to Open and remove the battery pack

4. Insert the micro SD / SIM card into the card slot

5. Insert the battery pack into the battery slot.

6. Push the Battery Lock Switch to Closed

Scanning a Barcode Label

1. Point the scan window at the barcode you wish to scan.

2. Tap Scan on the screen or press the scan button on the Frey Glider XS.

3. The imager projects a laser aiming pattern to position the barcode in the imager’sfield of
view. Center the laser red dot and cross-hair aiming pattern on the bar code.

4. Release the scan button or press stop on the trigger button to capture and decode the
image.

Laser Safety

Do not stare into the beam of the laser light from this device. The Frey Glider uses an imager
Aiming System with a laser light that is visible to the human eye and is emitted from the scan
window at the top of the device.

Important Notices and Precautions

The manufacturer has made safety the first priority during the design stage. To avoid
potential mishaps, please observe the following notices and precautions:

Laser Light - Do not stare into this Beam Class 2 Laser Pr oduct.
The maximum output radiation is 1 mW compliant with EN
60825-1 (2007)

y Do not stock this device under high temperature conditions that may

cause the battery to overheat..

y Do not charge longer than required. When the charging light is red, stop

charging immediately.

y Charge this device in place without any water-spray or moisture.
y Use a dry cloth to wipe any dust off of the AC adapter plug to avoid

potential fire.

y Do not drop this device on hard surfaces.
y Do not place heavy objects on this device to avoid cracking the

enclosure.

y Do not unplug the AC adapter with wet hands to avoid electric shock..
y Do not use the AC adapter of the Frey Glider XS with any other devices.

¾ Do not place the device in liquids to prevent short-circuits or fire.
¾ Do not place this device near an open fire.
¾ If the power or USB cable is seriously twisted or broken, stop using

immediately to prevent electric shock, short-circuit, or fire.

¾ Stop using immediately if there is any unusual smell or overheating

during charging or operation.

¾ Stop using immediately when there is liquid or dew on the device.

 Do not use the AC adapter outdoors
 Please do not wrap the AC adapter with cloth or other objects that could

block heat dissipation and cause electric shock or fire.

 When not charging, remove the AC adapter plug from the wall AC outlet

socket to avoid a fire hazard.

Important Notices When Using

y Before replacing the battery pack due to failure, shortened life, or unusual behavior, please

confirm that the device has been used correctly, with no user operation issues involved.

y The manufacturer is not responsible for possible missing data or interference encountered

during wireless transmissions.

y Do not use alcohol, benzene, organic solvents, cleaning liquid, or steelwool on the surface

of this device.

y Do not scratch or mar the surface of the Scan Window in any way to avoidbarcode

scanning problems.

Bluetooth

y This device is designed based on Bluetooth standard specifications.However, compatibility

problemsmaystill occur with other Bluetooth devices.

y Before using this device, please make sure there is no other wireless device

operatingwithin a short distance of the same application area that may cause wireless
signal interference.

Signal Interference from TV or Radio

y Sometimes transmitting or receiving data may fail due to signal interference from nearby

TV or radio devices.

Audio Safety

PROTECT YOUR HEARING

To prevent possible hearing damage, do not listen at high
volume levels for long periods. Exercise caution when
holding your devi near your ear while the loudspeaker is in
use.

Spec
For Frey Glider XS WWAN model

Radio Type Description

Bluetooth

WLAN

GSM

WCDMA

LTE

other

Bluetooth BR+EDR

Bluetooth 5.0-LE

2.4GHz

5GHz

GSM 900

GSM 1800

WCDMA Band I

WCDMA Band V

WCDMA Band VIII

LTE Band 1

LTE Band 3

LTE Band 5

LTE Band 7

LTE Band 8

LTE Band 20

NFC

GPS

For Frey Glider XS model

Radio Type Description

Bluetooth

WLAN

other NFC

Bluetooth BR+EDR

Bluetooth 5.0-LE

2.4GHz

5GHz
