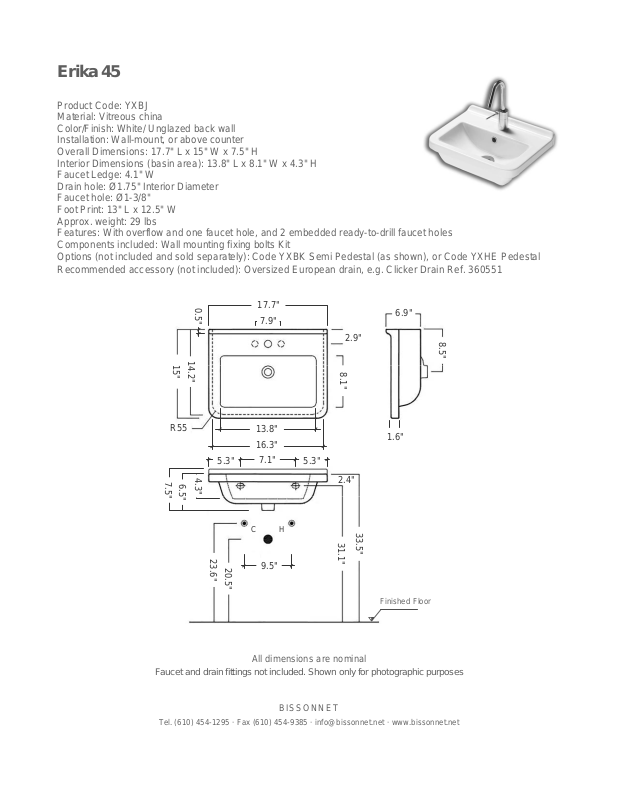

Erika 45
Product Code: YXBJ
Material: Vitreous china
Color/Finish: White/ Unglazed back wall
Installation: Wall-mount, or above counter
Overall Dimensions: 17.7" L x 15" W x 7.5" H
Interior Dimensions (basin area): 13.8" L x 8.1" W x 4.3" H
Faucet Ledge: 4.1" W
Drain hole: Ø1.75" Interior Diameter
Faucet hole: Ø1-3/8"
Foot Print: 13" L x 12.5" W
Approx. weight: 29 lbs
Features: With overflow and one faucet hole, and 2 embedded ready-to-drill faucet holes
Components included: Wall mounting fixing bolts Kit
Options (not included and sold separately): Code YXBK Semi Pedestal (as shown), or Code YXHE Pedestal
Recommended accessory (not included): Oversized European d ra in, e.g. Clicker Drain Ref. 360551
15"
R55
7.5"
14.2"
6.5"
0.5"
5.3" 5.3"
4.3"
23.6"
20.5"
17.7"
7.9"
13.8"
16.3"
7.1"
C H
9.5"
2.9"
8.1"
2.4"
31.1"
6.9"
8.5"
1.6"
33.5"
Finished Floor
All dimensions are nominal
Faucet and drain fittings not included. Shown only for photographic purpos es
BISSONNET
Tel. (610) 454-1295 · Fax (610) 454-9385 · [email protected] · www.bissonnet.net
