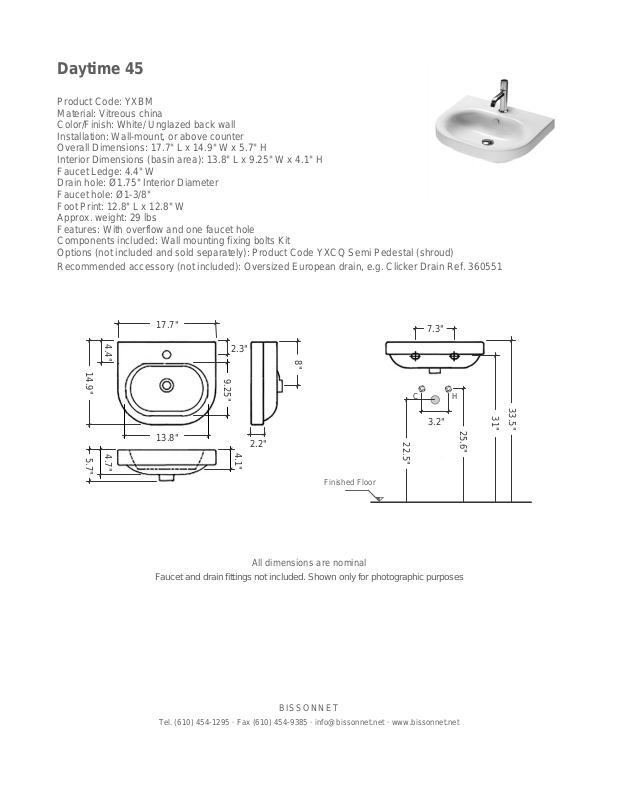

Daytime 45
Product Code: YXBM
Material: Vitreous china
Color/Finish: White/ Unglazed back wall
Installation: Wall-mount, or above counter
Overall Dimensions: 17.7" L x 14.9" W x 5.7" H
Interior Dimensions (basin area): 13.8" L x 9.25" W x 4.1" H
Faucet Ledge: 4.4" W
Drain hole: Ø1.75" Interior Diameter
Faucet hole: Ø1-3/8"
Foot Print: 12.8" L x 12.8" W
Approx. weight: 29 lbs
Features: With overflow and one faucet hole
Components included: Wall mounting fixing bolts Kit
Options (not included and sold separately): Product Code YXCQ Semi Pedestal (shroud)
Recommended accessory (not included): Oversized European d ra in, e.g. Clicker Drain Ref. 360551
14.9"
5.7"
4.4"
4.7"
17.7"
2.3"
9.25"
13.8"
Faucet and drain fittings not included. Shown only for photographic purpos es
2.2"
4.1"
All dimensions are nominal
8"
Finished Floor
7.3"
C H
3.2"
22.5"
33.5"
31"
25.6"
