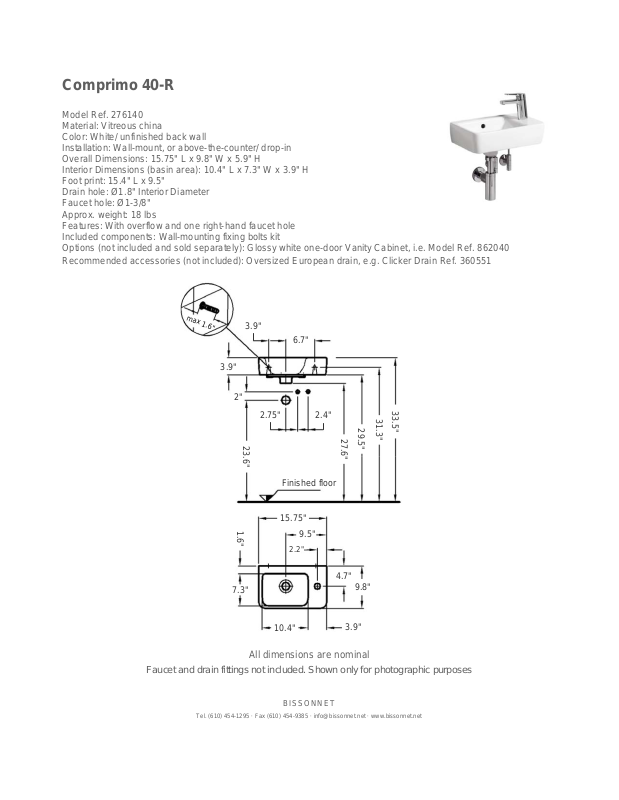

Comprimo 40-R
Model Ref. 276140
Material: Vitreous china
Color: White/ unfinished back wall
Installation: Wall-mount, or above-the-counter/ drop-in
Overall Dimensions: 15.75" L x 9.8" W x 5.9" H
Interior Dimensions (basin area): 10.4" L x 7.3" W x 3.9" H
Foot print: 15.4" L x 9.5"
Drain hole: Ø1.8" Interior Diameter
Faucet hole: Ø1-3/8"
Approx. weight: 18 lbs
Features: With overflow and one right-hand faucet hole
Included components: Wall-mounting fixing bolts kit
Options (not included and sold separately): Glossy white one-door Vanity Cabinet, i.e. Model Ref. 862040
Recommended accessories (not included): Oversized European drain, e.g. Clicker Drain Ref. 360551
ma
x
1
.
6
"
3.9"
6.7"
3.9"
2"
33.5"
31.3"
1.6"
7.3"
2.75"
23.6"
Finished floor
15.75"
10.4"
2.4"
29.5"
27.6"
9.5"
2.2"
4.7"
9.8"
3.9"
All dimensions are nominal
Faucet and drain fittings not included. Shown only for photographic purposes
