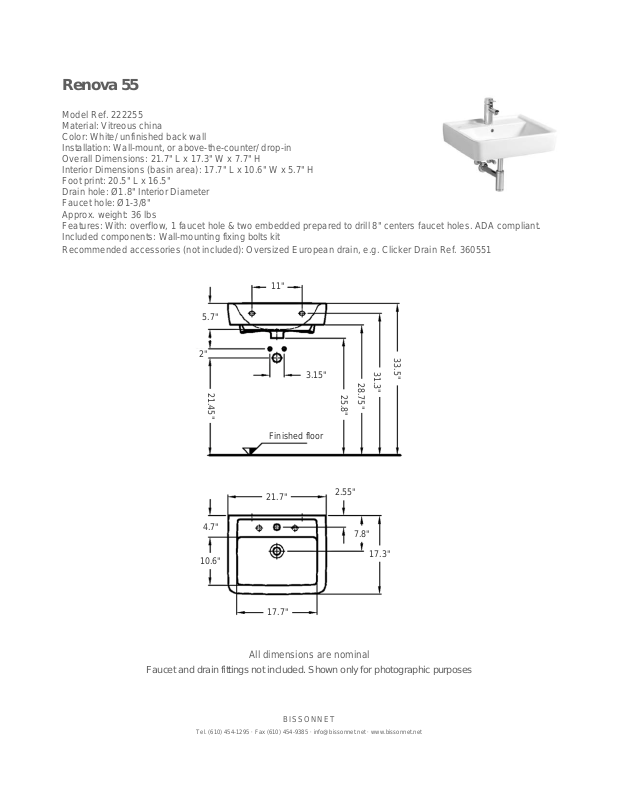

Renova 55
Model Ref. 222255
Material: Vitreous china
Color: White/ unfinished back wall
Installation: Wall-mount, or above-the-counter/ drop-in
Overall Dimensions: 21.7" L x 17.3" W x 7.7" H
Interior Dimensions (basin area): 17.7" L x 10.6" W x 5.7" H
Foot print: 20.5" L x 16.5"
Drain hole: Ø1.8" Interior Diameter
Faucet hole: Ø1-3/8"
Approx. weight: 36 lbs
Features: With: overflow, 1 faucet hole & two embedded prepared to drill 8" centers faucet holes. ADA compliant.
Included components: Wall-mounting fixing bolts kit
Recommended accessories (not included): Oversized European drain, e.g. Clicker Drain Ref. 360551
11"
5.7"
2"
21.45"
4.7"
10.6"
3.15"
Finished floor
21.7"
17.7"
33.5"
31.3"
28.75"
25.8"
2.55"
7.8"
17.3"
All dimensions are nominal
Faucet and drain fittings not included. Shown only for photographic purposes
BISSONNET
Tel. (610) 454-1295 · Fax (610) 454-9385 · info@bissonnet.net · www.bissonnet.net
