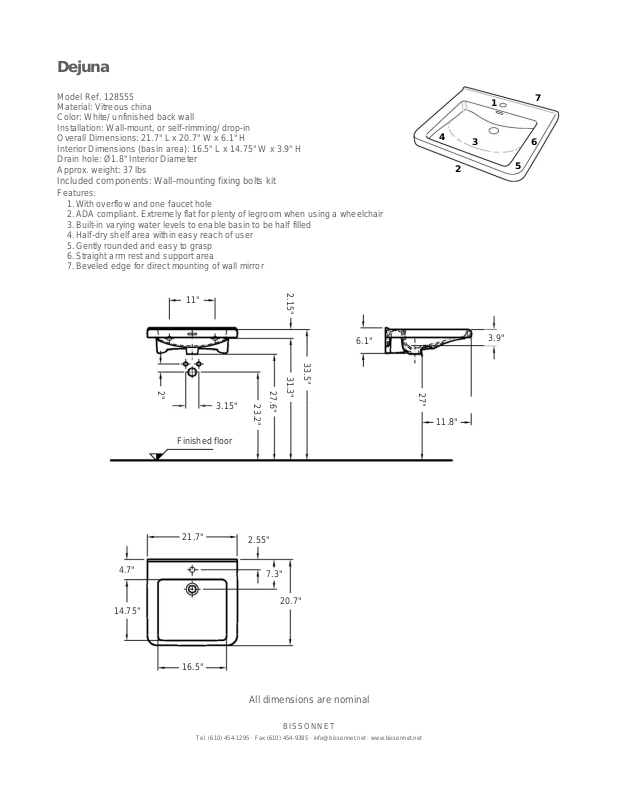

Dejuna
Model Ref. 128555
Material: Vitreous china
Color: White/ unfinished back wall
Installation: Wall-mount, or self-rimming/ drop-in
Overall Dimensions: 21.7" L x 20.7" W x 6.1" H
Interior Dimensions (basin area): 16.5" L x 14.75" W x 3.9" H
Drain hole: Ø1.8" Interior Diameter
Approx. weight: 37 lbs
Included components: Wall-mounting fixing bolts kit
Features:
1. With overflow and one faucet hole
2. ADA compliant. Extremely flat for plenty of legroom when using a wheelchair
3. Built-in varying water levels to enable basin to be half filled
4. Half-dry shelf area within easy reach of user
5. Gently rounded and easy to grasp
6. Straight arm rest and support area
7. Beveled edge for direct mounting of wall mirror
1
4
3
2
7
6
5
4.7"
11"
2"
Finished floor
21.7"
3.15"
23.2"
2.55"
27.6"
7.3"
2.15"
6.1"
33.5"
31.3"
27"
11.8"
3.9"
14.75"
20.7"
16.5"
All dimensions are nominal
