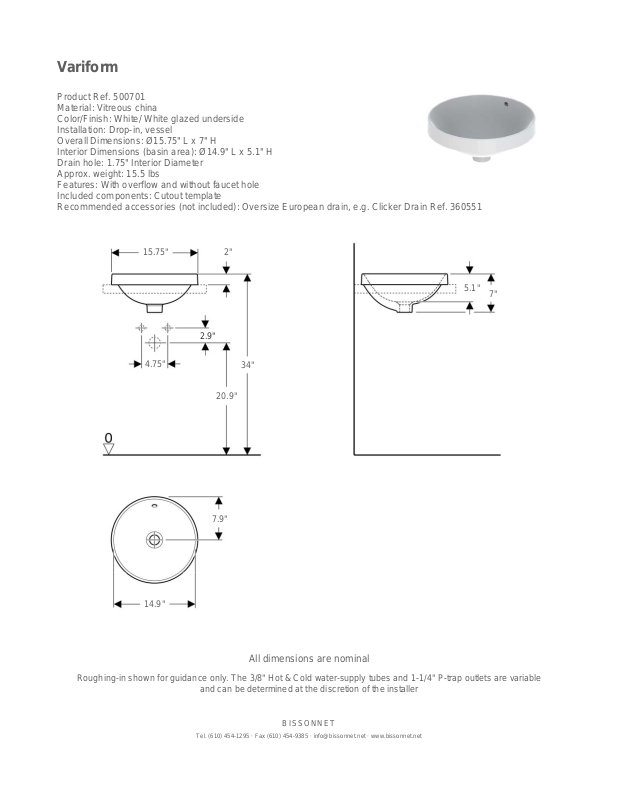

Bissonnet AAPS1023 Dimensions

Variform

Product Ref. 500701
Material: Vitreous china
Color/Finish: White/ White glazed underside
Installation: Drop-in, vessel
Overall Dimensions: Ø15.75" L x 7" H
Interior Dimensions (basin area): Ø14.9" L x 5.1" H
Drain hole: 1.75" Interior Diameter
Approx. weight: 15.5 lbs
Features: With overflow and without faucet hole
Included components: Cutout template
Recommended accessories (not included): Oversize European drain, e.g. Clicker Drain Ref. 360551

15.75"

4.75"

2.9"

20.9"

7.9"

2"

34"

5.1"
7"

14.9"

All dimensions are nominal

Roughing-in shown for guidance only. The 3/8" Hot & Cold water-supply tubes and 1-1/4" P-trap outlets are variable

and can be determined at the discretion of the installer
