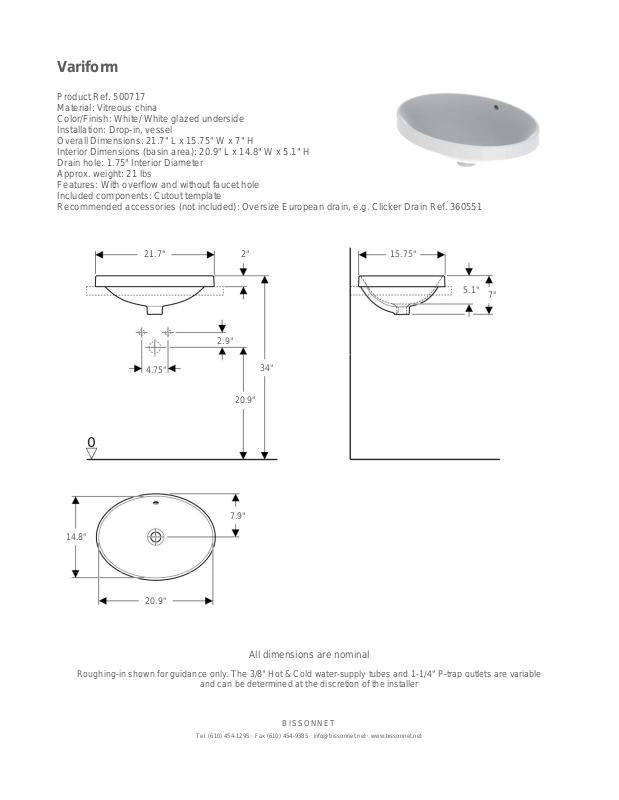

Variform
Product Ref. 500717
Material: Vitreous china
Color/Finish: White/ White glazed underside
Installation: Drop-in, vessel
Overall Dimensions: 21.7" L x 15.75" W x 7" H
Interior Dimensions (basin area): 20.9" L x 14.8" W x 5.1" H
Drain hole: 1.75" Interior Diameter
Approx. weight: 21 lbs
Features: With overflow and without faucet hole
Included components: Cutout template
Recommended accessories (not included): Oversize European drain, e.g. Clicker Drain Ref. 360551
14.8"
21.7"
4.75"
2.9"
20.9"
7.9"
2"
34"
15.75"
5.1"
7"
20.9"
All dimensions are nominal
Roughing-in shown for guidance only. The 3/8" Hot & Cold water-supply tubes and 1-1/4" P-trap outlets are variable
and can be determined at the discretion of the installer
BISSONNET
Tel. (610) 454-1295 · Fax (610) 454-9385 · info@bissonnet.net · www.bissonnet.net
