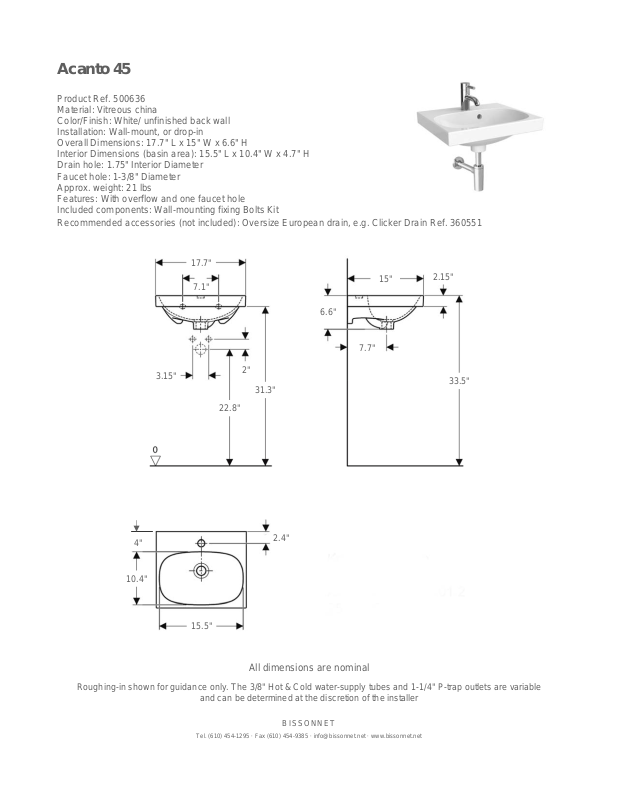

Acanto 45
Product Ref. 500636
Material: Vitreous china
Color/Finish: White/ unfinished back wall
Installation: Wall-mount, or drop-in
Overall Dimensions: 17.7" L x 15" W x 6.6" H
Interior Dimensions (basin area): 15.5" L x 10.4" W x 4.7" H
Drain hole: 1.75" Interior Diameter
Faucet hole: 1-3/8" Diameter
Approx. weight: 21 lbs
Features: With overflow and one faucet hole
Included components: Wall-mounting fixing Bolts Kit
Recommended accessories (not included): Oversize European drain, e.g. Clicker Drain Ref. 360551
17.7"
7.1"
15"
6.6"
7.7"
2.15"
4"
10.4"
3.15"
2"
33.5"
31.3"
22.8"
2.4"
15.5"
All dimensions are nominal
Roughing-in shown for guidance only. The 3/8" Hot & Cold water-supply tubes and 1-1/4" P-trap outlets are variable
and can be determined at the discretion of the installer
BISSONNET
Tel. (610) 454-1295 · Fax (610) 454-9385 · info@bissonnet.net · www.bissonnet.net
