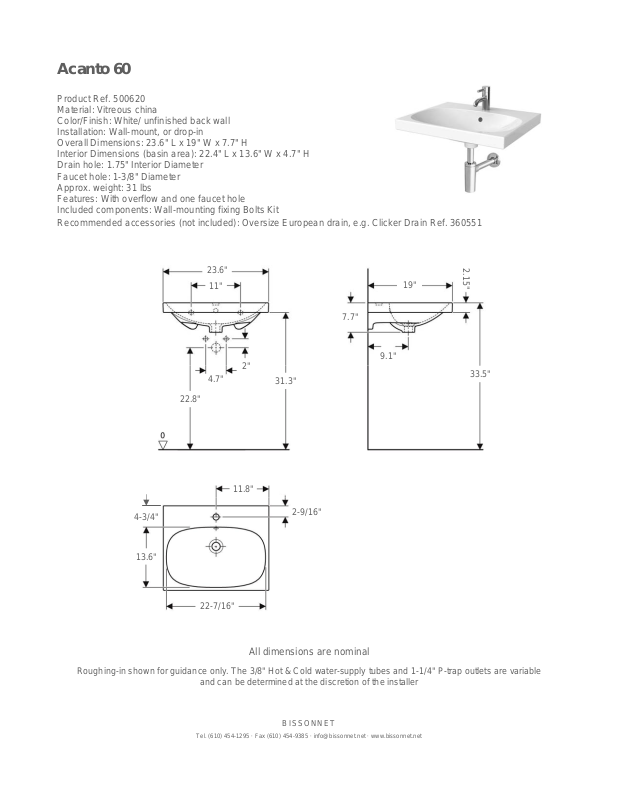

Acanto 60
Product Ref. 500620
Material: Vitreous china
Color/Finish: White/ unfinished back wall
Installation: Wall-mount, or drop-in
Overall Dimensions: 23.6" L x 19" W x 7.7" H
Interior Dimensions (basin area): 22.4" L x 13.6" W x 4.7" H
Drain hole: 1.75" Interior Diameter
Faucet hole: 1-3/8" Diameter
Approx. weight: 31 lbs
Features: With overflow and one faucet hole
Included components: Wall-mounting fixing Bolts Kit
Recommended accessories (not included): Oversize European drain, e.g. Clicker Drain Ref. 360551
4-3/4"
13.6"
22.8"
23.6"
11"
4.7"
2"
11.8"
31.3"
2.15"
19"
7.7"
9.1"
33.5"
2-9/16"
22-7/16"
All dimensions are nominal
Roughing-in shown for guidance only. The 3/8" Hot & Cold water-supply tubes and 1-1/4" P-trap outlets are variable
and can be determined at the discretion of the installer
BISSONNET
Tel. (610) 454-1295 · Fax (610) 454-9385 · [email protected] · www.bissonnet.net
