Thanks for buying a BISSELL Flip-It
™
2
We’re glad you purchased a BISSELL Flip-It™. Everything we know about floor
care went into the design and construction of this complete, high-tech home
cleaning system.
Your Flip-It is well made, and we back it with a limited two-year warranty.
We also stand behind it with a knowledgeable, dedicated Consumer Services
Department, so, should you ever have a problem, you’ll receive fast,
considerate assistance.
My great-grandfather invented the floor sweeper in 1876. Today, BISSELL is a
global leader in the design, manufacture, and service of high quality homecare
products like your Flip-It.
Thanks again, from all of us at BISSELL.
Mark J. Bissell
President and Chief Executive Officer
ug603_6719_5200E_305.indd 2ug603_6719_5200E_305.indd 2 1/16/08 2:07:38 PM1/16/08 2:07:38 PM
Page 3
3
For information about repairs or replacement parts, or questions about
your warranty, call or write us as indicated below or contact your local
in country distributor:
For UK inquiries:
Monday - Thursday 9 am — 5 pm
Friday 9 am — 4 pm
BISSELL Homecare (Overseas) Inc.
The Boat Yard
105 Straight Road
Old Windsor
Berkshire, SL4 2SE
United Kingdom
Telephone: 0870-225-0109
For Australian inquiries:
24 hours a day, 7 days a week
E.D. Oates Pty Ltd
76 - 82 Newlands Road
Reservoir VIC 3073
Australia
Telephone: 1-800-811-183
For all other inquiries:
Monday - Friday 8 am — 4 pm
BISSELL Homecare, Inc.
PO Box 1888
Grand Rapids Michigan 49501 USA
Telephone: 01-616-453-4451
Fax: 01-616-453-1383
Or visit the BISSELL website - www.bissell.com
When contacting BISSELL, have model number of unit available.
Please record your Model Number: ___________________
Please record your Purchase Date: ___________________
NOTE: Please keep your original sales receipt. It provides proof of date of purchase
in the event of a warranty claim. See "About Your Warranty" on page 12 for details.
Thanks for buying a BISSELL Flip-It
™
ug603_6719_5200E_305.indd 3ug603_6719_5200E_305.indd 3 1/16/08 2:07:38 PM1/16/08 2:07:38 PM
Page 4
4
IMPORTANT SAFETY INSTRUCTIONS
When using an electrical appliance, basic
precautions should be observed, including the
following:
Read all instructions before using your
Flip-It
™
Always connect to a properly Earthed Outlet. Unplug
from outlet when not in use and before conducting
maintenance or troubleshooting.
WARNING: To reduce the risk
of fire, electric shock or injury:
■
Use indoors only .
■
Do not leave FLIP-IT
™
when it is plugged in.
■
Do not service FLIP-IT
™
when it is
plugged in.
■
Do not use with damaged cord or plug.
■
Do not use FLIP-IT
™
if it has been
dropped, damaged, left outdoors or dropped
into water, have it repaired at an Authorized
Service Center.
■
Do not pull or carry by cord, use cord as
a handle, close door on cord, pull cord around
sharp corners or edges, run appliance over
cord, or expose cord to heated surfaces.
■
Do not carry the appliance while in use.
■
Do not handle FLIP-IT
™
plug or
appliance with wet hands.
■
Do not put any object into appliance openings,
use with blocked opening, or restrict air flow.
■
Do not expose hair, loose clothing, fingers
or body parts to openings or moving parts.
■
Do not pick up hot or burning objects.
■
Do not pick up flammable or combustible
materials (lighter fluid, petrol, kerosene, etc.) or use
in the presence of explosive liquids or vapour.
■
Do not use appliance in an enclosed space
filled with vapours given off by oil base paint, paint
thinner, some moth proofing substances, flammable dust, or other explosive or toxic vapours.
■
Do not pick up toxic material (chlorine
bleach, ammonia, drain cleaner, petrol, etc.).
■
Do not allow to be used as a toy.
■
Do not use for any purpose other than
described in this User’s Guide.
■
Remove plug from electrical outlet before
cleaning or maintaining the appliance.
■
Do not unplug by pulling on cord. Unplug
by grasping plug.
■
Use only manufacturer’s recommended
attachments.
■
Use only cleaning products formulated by
BISSELL for use in this appliance to prevent
internal component damage. See Cleaning
Formula Section of the User's Guide.
■
Keep openings free of dust, lint, hair, etc.
■
Keep appliance on a level surface.
■
Turn off all controls before unplugging.
■
Do not unplug by pulling on cord. Unplug by
grasping the plug, not the cord.
■
Be extra careful when cleaning stairs.
■
Do not use without Filter in place.
■
Close attention is necessary when used
by or near children
■
Not intended for use by young children or
infirm persons without supervision.
■
Young children should be supervised to
ensure that they do not play with the appliance.
■
If the supply cord is damaged, it must be
replaced by the manufacturer or its service
agent in order to avoid a hazard.
■
Do not expose to rain, store indoors.
SAVE THESE
INSTRUCTIONS.
THIS MODEL IS FOR HOUSEHOLD USE ONLY.
WARNING:
This appliance must be Earthed
.
IMPORTANT
FOR OPERATION ON A 220-240 VOLT A.C. 50/60 Hz
POWER SUPPLY ONLY.
FOR RESIDENTS OF THE
UNITED KINGDOM ONLY
If your appliance is fitted with a nonrewireable
BS 1363 plug it must not be used unless a 13
amp (ASTA approved to BS 1362) fuse is fitted in
the carrier contained in the plug. (Spares may be
obtained from your BISSELL supplier). If for any
reason the plug is cut off, it must be disposed
of, as it is an electric shock hazard should it be
inserted into a 13 amp socket.
ug603_6719_5200E_305.indd 4ug603_6719_5200E_305.indd 4 1/16/08 2:07:38 PM1/16/08 2:07:38 PM
Page 5
5
CAUTION: Do not over wet the floor. Apply Formula by
depressing the Spray Trigger on the forward stroke only and release the
Spray Trigger on the rearward stroke. Over wetting the floor surface may
cause delamination of certain laminated flooring materials.
On/Off
Switch
Carry
Handle
Spray
Trigger
Cord
Clip
Power
Cord
Quick Release
Cord Wrap
Clean
Tank
Pleated
Filter
Dirty
Tank
Removable
Gentle Clean™
Brush & Pad
Removable
Wet Cleaning
Nozzle
Dry Vacuum
Suction Path
Wet Vacuum
Suction Path

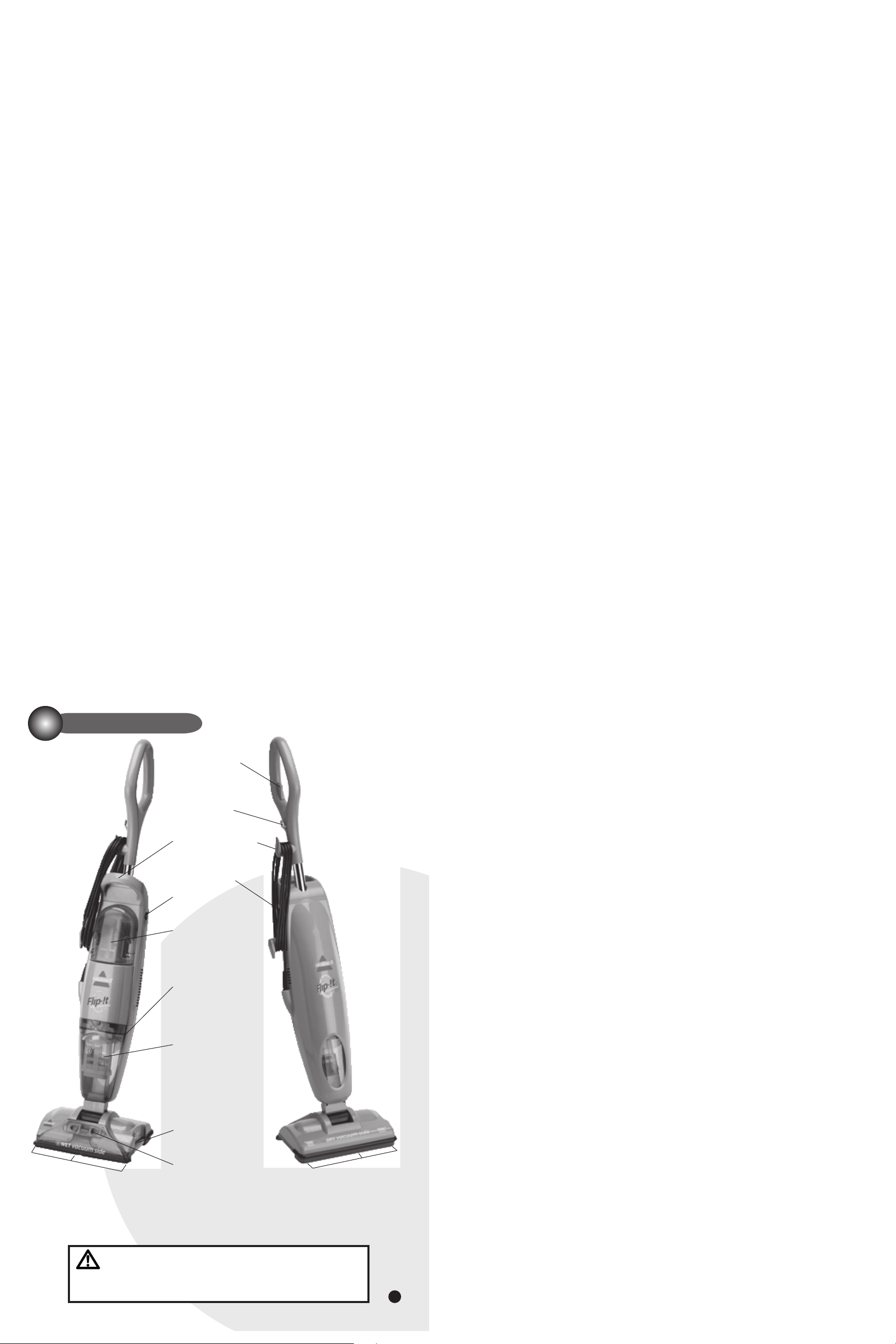

Product View
ug603_6719_5200E_305.indd 5ug603_6719_5200E_305.indd 5 1/16/08 2:07:38 PM1/16/08 2:07:38 PM
Page 6
6
Specialized Cleaning Features
Included with the purchase of your Flip-It are the
following Specialized Cleaning Accessories…
The Flip-It was designed to give the user the
ability to easily change between the Gentle
Clean™ Brushes and Pads.
The Gentle Clean™ Brush is recommended for
use on Hard Floor surfaces such as tile, vinyl,
slate or surfaces that have grout or crevices
where dirt and grime collect.
The Gentle Clean™ Pad is intended for use
on more delicate surfaces such as sealed
hardwood, laminates or vinyl.
The Pleated Filter, located in the lid of the Dirty
Tank should be cleaned periodically.
Assembling your new BISSELL Flip-It is a simple
2 Step Process:
NOTE: Remove Clean Tank from unit first.
Insert the Handle into the top of the unit, making
sure the Spray Trigger is on the Wet Vacuum side.
Make sure the screw opening in the Handle is
aligned with the hole in the housing of the unit.
Insert screw; gently screw in until tight with the
body of the unit.
1.
2.
Putting It Together
3.
1.
2.
1.
2.
WARNING:
Do not plug in your
cleaner until you have
completely assembled
it per the following
instructions and
operating procedures.
WARNING:
To reduce the risk of fire,
use only BISSELL Hard
and Wood Floor Cleaning
Solutions in your Flip-It.
Use of cleaning formulas
that contain lemon or
pine oil may damage
this appliance and void
the warranty. Chemical
spot cleaners or solvent
based soil removers
should not be used.
These products may
react with the plastic
materials used in your
Flip-It causing cracking
or pitting.
ug603_6719_5200E_305.indd 6ug603_6719_5200E_305.indd 6 1/16/08 2:07:38 PM1/16/08 2:07:38 PM
Page 7
7
Remove the Clean Tank from the machine.
Unscrew the black Cap on the bottom of the
Clean Tank and remove the Insert.
Filling the Clean Tank:
Fill with BISSELL Formula to the Formula fill
line and fill with water to the Water line. Replace
the Insert and Cap Assembly. Place the full Tank
back into the unit.
The first time you use your unit, the Gentle Clean™
Pad will be in the unit. Based on your flooring
type and personal preference, you may want to
change to the Gentle Clean™ Brush.
Keep plenty of genuine BISSELL Hard and Wood
Floor Cleaning Solutions on hand so you can clean
when it fits your schedule. Always use genuine
BISSELL cleaning formulas.
Inserting The Gentle Clean™ Brush or Pad
Tip:
When using a
Dry Gentle Clean™
Pad, you may
want to get it
slightly damp by
squeezing the
trigger to saturate
the pad. This will aid
in the flow of water
and Formula
to clean sticky
grime and spots.
Tip:
When plugging
the unit in, make
sure to hook the
power cord into
the Cord Clip. This
will help guide the
power cord when
you flip from Dry
to Wet Cleaning.
2.
1.
How To Use Your Flip-It Hard Floor Cleaner
Getting Ready
Tip:
Use only specially
formulated
BISSELL Hard
and Wood
Floor Cleaning
Solutions.
Non-BISSELL
cleaning formulas
may harm the
machine and void
the warranty.
Cleaning Formula Section
32 oz.
0482
32 oz.
0484
3.
WARNING:
To Reduce the Risk of Fire and Electric Shock
due to internal componet damage, use only
BISSELL cleaning formula intended for use
with the hard floor cleaner.
ug603_6719_5200E_305.indd 7ug603_6719_5200E_305.indd 7 1/16/08 2:07:39 PM1/16/08 2:07:39 PM
Page 8
8
With the Dry Vacuum Side of the unit facing
forward, turn the unit on and begin cleaning.
You will see dry dirt, crumbs and debris being
collected in the Dirty Tank. You do not have to
empty the dry debris before Wet Cleaning.
To change from Dry Vacuuming, to Wet Cleaning
simply flip the unit around to the Wet Vacuum side!
The Gentle Clean™ Brush or Pad and Squeegee
will automatically be lowered to effectively clean
and dry all your Hard Floor Surfaces.
To begin Wet Cleaning, simply pull the Spray
Trigger. Water and Formula will be dispensed
through the Gentle Clean™ Brush or Pad.
To maximize the area to be cleaned, it is
recommended that the Spray Trigger is
squeezed on the forward stroke and released on
the rearward stroke.
This will dispense water and Formula going
forward and on the pull back, the Squeegee will
leave the floor essentially dry and ready to walk on.
Tip:
To extend the life of your
Filter and to maintain
maximum dry suction,
check the Filter for lint and
debris frequently.
Wet Cleaning/Vacuuming
Flipping from Dry to Wet Cleaning
Tip:
To make sure water and
Formula are flowing,
squeeze the Spray Trigger
without the Gentle Clean™
Brush or Pad inserted. You
should see a light stream
of water and Formula
dispensed onto the floor.
Dry Vacuuming
CAUTION:
Do not over wet the floor. Apply
Formula by depressing the Spray
Trigger on the forward stroke only
and release the Spray Trigger on
the rearward stroke. Over wetting
the floor surface may cause
delamination of certain laminated
flooring materials.
ug603_6719_5200E_305.indd 8ug603_6719_5200E_305.indd 8 1/16/08 2:07:40 PM1/16/08 2:07:40 PM
Page 9
9
WARNING:
To reduce the risk of
fire, electric shock or
injury unplug from outlet
before servicing.
While Wet Cleaning, you will see dirty water collected in
the Dirty Tank. When the Tank is full, the white Float in
the Dirty Tank will rise to the top, making a noticeable
sound to let you know it is time to empty the Dirty Tank.
Remove the Dirty Tank Lid. Dump the dirty water and
debris into the sink, toilet, laundry tub or outside. Rinse the
Tank out with warm water and replace it in the unit.
While the Dirty Tank is out of the unit, remove the
Pleated Filter from the top of the Tank. Remove dirt and
debris from the pleats by gently tapping the Filter over
the wastebasket or outside.
The Pleated Filter can also be rinsed under
water to clean.
NOTE: If the Pleated Filter is rinsed with warm
water to clean, it is recommended to leave it out of
the unit to air dry before placing it back in the unit.
Gentle Clean™ Brush
Remove the Gentle Clean Brush from the unit and rinse
under warm water.
Gentle Clean™ Pad
Remove the Gentle Clean Pad Card from the unit. Peel the
Pad from the Pad Card and toss in the wash!
Remove the Wet Cleaning Nozzle by pulling tab on right
side of Nozzle. Rinse any dirt and grime off the Nozzle
under warm tap water.
To replace the Wet Cleaning Nozzle, insert the 4 tabs
along the bottom of the Nozzle Window first and gently
snap the Wet Cleaning Nozzle back into place.
Checking The Filter
Tip:
If there are large pieces of
debris in the water, you may
not want to empty the Tank
into your sink.
When You're Finished
Emptying the Dirty Tank
Cleaning The Gentle Clean™ Brush or Pad
Removing Wet Cleaning Nozzle
Tip:
While using the Flip-It in the
Wet Cleaning mode, make
sure to listen for the change
in the sound to alert you
when the Dirty Tank is full.
Dirty Tank Is Full
ug603_6719_5200E_305.indd 9ug603_6719_5200E_305.indd 9 1/16/08 2:07:40 PM1/16/08 2:07:40 PM
Page 10
10
Troubleshooting
Water & Formula are draining out from the Clean Tank
Possible Causes Remedies
Clean Tank black Cap & Insert are not on tight Remove black Cap & Insert
and attach tightly
Clean Tank black Cap & Insert are cross threaded Remove black Cap & Insert
and make sure it is
screwed on straight
and tightly
No suction
Possible Causes Remedies
Filter may be dirty or clogged Remove Filter from the Dirty
Tank and clean
Wet Cleaning Nozzle may not be on properly Make sure Wet Cleaning
Nozzle is on tight and
snapped into place
Dirty Tank is full Empty Dirty Tank
Filter is wet Make sure Filter is
completely dry before
placing back into the unit
Water is not flowing
Possible Causes Remedies
Something is caught and clogging the air path Unplug unit. Remove Wet
Cleaning Nozzle and insert
a blunt object into the
air path to remove any
potential clog
Clean Tank is not inserted properly Remove Clean Tank and
reinsert into the unit
1
1
2
2
1
1
2
2
3
3
1
1
2
2
WARNING:
To reduce the risk of
fire, electric shock or
injury unplug from outlet
before servicing.
Your Flip-It can be stored Ready-to-Use, by leaving water
and Formula in the unit. Be sure to remove wet Gentle
Clean™ Pad before storing.
Storing The Flip-It
Tip:
If the Pleated Filter is rinsed
with warm water to clean,
it is recommended to leave
it out of the unit to air dry
before placing it back in
the unit.
4
4
ug603_6719_5200E_305.indd 10ug603_6719_5200E_305.indd 10 1/16/08 2:07:41 PM1/16/08 2:07:41 PM
Page 11
11
1 2 4
6 7
8
9 10
11
12
13
5
3
14
(2 pack)
Replacement Parts
Item Part No. Part Name
1 203-6705 Pleated Filter
2 203-6706 Dirty Tank Lid Assembly
3 203-6707 Dirty Tank
4 203-6708 Wet Cleaning Nozzle
5 203-6725 Clean Tank with Cap and Insert
6 203-6711 Handle with Screw -Acier
7 203-6713 Cap and Insert Assembly
8 203-6714 Cord Wrap - Acier
9 203-6700 Gentle Clean™ Brush
10 203-6701 Gentle Clean™ Pad Card
11 203-6702 Gentle Clean™ Pad (2 pack)
12 3270 Pad/Filter Replacement Pack
(2 Gentle Clean™ Pads & 1 Pleated Filter)
13 0482 Wood Floor Solutions
14 0484 Hard Floor Solutions
ug603_6719_5200E_305.indd 11ug603_6719_5200E_305.indd 11 1/16/08 2:07:41 PM1/16/08 2:07:41 PM
Page 12
12
About Your Warranty
This warranty gives you specific legal rights, and you may also have other rights which may vary from country
to country. If you need additional instruction regarding this warranty or have questions regarding what it may
cover, please contact BISSELL Consumer Services by telephone, or regular post as described below, or contact
your local in country distributor.
Limited Two Year Warranty
Subject to the *EXCEPTIONS AND EXCLUSIONS identified below, BISSELL Homecare, Inc., will replace (with
new or remanufactured components), at BISSELL’s option, free of charge from the date of purchase by the
original purchaser, for two years any defective or malfunctioning part do to manufactures defect.
This warranty applies to product used for personal, and not commercial or rental service. This warranty does
not apply to fans or routine maintenance components such as filters, belts, or brushes. Damage or malfunction
caused by negligence, abuse, or use not in accordance with the User's Guide is not covered
.
For UK inquiries:
Monday - Thursday 9 am — 5 pm
Friday 9 am — 4 pm
BISSELL Homecare (Overseas) Inc.
The Boat Yard
105 Straight Road
Old Windsor
Berkshire, SL4 2SE
United Kingdom
Telephone: 0870-225-0109
For Australian inquiries:
24 hours a day, 7 days a week
E.D. Oates Pty Ltd
76 - 82 Newlands Road
Reservoir VIC 3073
Australia
Telephone: 1-800-811-183
For all other inquiries:
Monday - Friday 8 am — 4 pm
BISSELL Homecare, Inc.
PO Box 1888
Grand Rapids Michigan 49501 USA
Telephone: 01-616-453-4451
Fax: 01-616-453-1383
BISSELL HOMECARE, INC. IS NOT LIABLE FOR INCIDENTAL OR
CONSEQUENTIAL DAMAGES OF ANY NATURE ASSOCIATED WITH THE
USE OF THIS PRODUCT. BISSELL’S LIABILITY WILL NOT EXCEED
THE PURCHASE PRICE OF THE PRODUCT.
*EXCEPTIONS AND EXCLUSIONS FROM THE TERMS OF THE LIMITED
THIS WARRANTY IS EXCLUSIVE AND IN LIEU OF ANY OTHER
WARRANTIES EITHER ORAL OR WRITTEN. ANY IMPLIED WARRANTIES
WHICH MAY ARISE BY OPERATION OF LAW, INCLUDING THE IMPLIED
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE, ARE LIMITED TO THE ONE YEAR DURATION FROM THE DATE OF
PURCHASE AS DESCRIBED ABOVE.
©2005 BISSELL Homecare, Inc
Grand Rapids, Michigan
All rights reserved. Printed in China
Part Number 603-6719
Rev 03/05
Visit our website at:
www.bissell.com
ug603_6719_5200E_305.indd 12ug603_6719_5200E_305.indd 12 1/16/08 2:07:46 PM1/16/08 2:07:46 PM
Loading...
