Bissell 2931N User guide

I
N
N
G
A
E
E
L
C
E
M
O
H
X
P
E
R
T
S

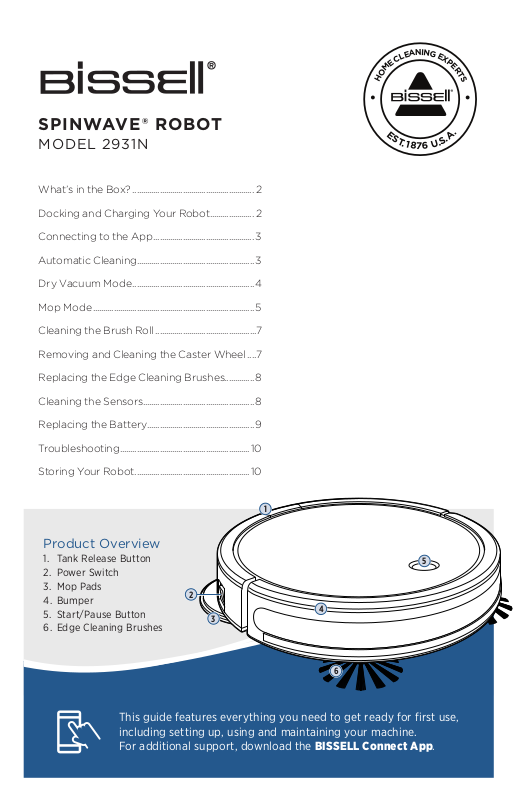

SPINWAVE® ROBOT
MODEL 2931N
What’s in the Box? .......................................................... 2
Docking and Charging Your Robot ..................... 2
Connecting to the App ................................................ 3
Automatic Cleaning ........................................................3
Dry Vacuum Mode .......................................................... 4
Mop Mode ............................................................................. 5
Cleaning the Brush Roll ................................................7
Removing and Cleaning the Caster Wheel ....7
Replacing the Edge Cleaning Brushes.............. 8
Cleaning the Sensors ..................................................... 8
Replacing the Battery ................................................... 9
Troubleshooting .............................................................. 10
Storing Your Robot ....................................................... 10
E
S
T
.
1
8
7
.
A
.
S
.
U
6
Product Overview
1. Tank Release Button
2. Power Switch
3. Mop Pads
4. Bumper
5. Start/Pause Button
6. Edge Cleaning Brushes
This guide features everything you need to get ready for first use, including setting up, using and maintaining your machine. For additional support, download the BISSELL Connect App.
1
5
2
3
4
6
What’s in the Box?
Water
Formula
Formula
Water
BISSELL®
SpinWave® Robot
with Dirt Bin
Cleaning Tool (2) Trial-Size
Mop Tank with
Mop Pads
Formulas
Docking Station Docking Tray Power Adapter
Replacement Edge
Cleaning Brushes
(2) Extra Mop
Pads
Extra Filters
Docking and Charging Your Robot
Note: The Docking Station & Docking Tray must be installed on a hard surface. The robot’s soft surface sensors prevent it from cleaning carpets and area rugs in Mop Mode.
Be sure the device is near your WiFi router and the robot is fully charged or in the dock during the pairing process.
Wi-Fi
40 inches
40 inches
(1m)
(1m)
40 inches
40 inches
(1m)
80 inches
40 inches
(2m)
(1m)
1. Place the back of Docking
Tray firmly against a wall. Ensure there are at least 40 inches to one side, 40 inches to the opposing side and no obstructions in the front. Tip the Docking Station into the Docking Tray.
(1m)
2. Insert the Docking Station
Power Adapter plug into the port on the side of the Docking Station. Plug the other end into the wall outlet.
3. Turn the robot ON and put
it on the Docking Station. The first charge will take 4-5 hours.
Status Button Light State Light Ring Sound
Power ON Pulse Once > Blink > On Pulse Once Activation Sound
Cleaning Blink > Fade In > On Pulse Once > Fade In > 30 seconds > Fade Out Activation Sound
Charging Breathing Pulse Once > Breathing for 30 seconds > Off 1 Beep
Pairing Mode Blink Off 1 Beep
Paired On Solid for 5 Seconds > Fade Out 3 beeps
Docking Slow Pulsing, White Off None
2 global.BISSELL.com
Connecting to the App
Downloading the BISSELL Connect App means you can change your robot’s cleaning mode, start, pause, or stop your robot, schedule cleanings, view notifications, track your cleaning history, and troubleshoot all from the palm of your hand.
1. In the App or Google
Play Store search “BISSELL Connect” and download.
Once downloaded, open the app and sign in or create a new login.
4. From the app, select “Have
a BISSELL Connected Product? Connect it now.” Then choose your product from the menu.
2. Make sure you’re near your
WiFi router before turning the robot ON (I).
5. Remove the Dirt Bin and
turn the robot over to access the setup QR code.
3. To put the robot in pairing
mode, press and hold the Start/Pause Button for 5 seconds until you hear a single beep.
6. Scan the QR code, follow
the instructions in the app to pair.
Automatic Cleaning
Download the BISSELL Connect App to set up automatic features.
You can designate a day and time for your robot to run automatically using the BISSELL Connect App. Once the robot is connected to the app, go to the Schedule tab and follow the on-screen prompts.
global.BISSELL.com 3
