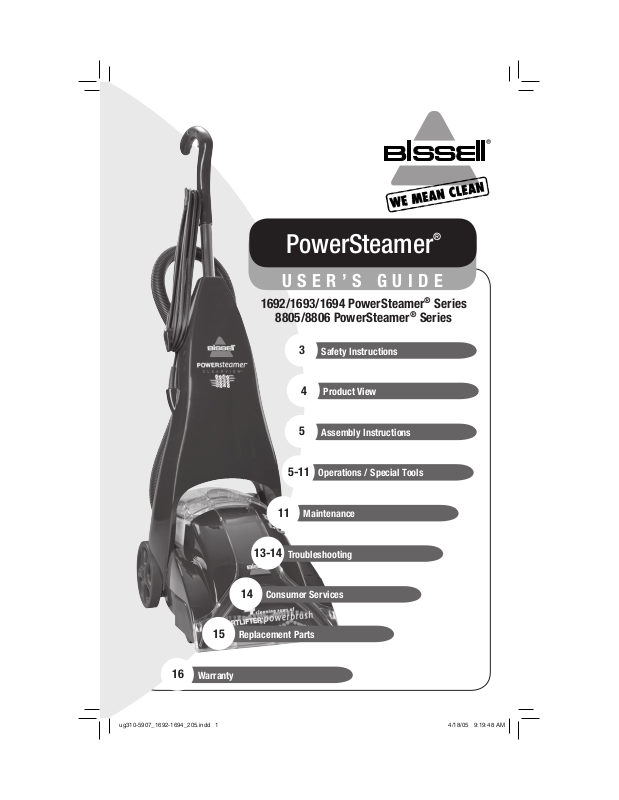

Bissell 1693, 8806 User Manual

®

PowerSteamer

USER’S GUIDE

1692/1693/1694 PowerSteamer® Series

®

8805/8806 PowerSteamer

11

13-14

14

Consumer Services

3

Safety Instructions

4

Product View

5

Assembly Instructions

5-11

Troubleshooting

Operations / Special Tools

Maintenance

Series

15

Replacement Parts

16

Warranty

ug310-5907_1692-1694_205.indd 1ug310-5907_1692-1694_205.indd 1 4/18/05 9:19:48 AM4/18/05 9:19:48 AM

Thanks For Buying A BISSELL PowerSteamer Deep Cleaner

We’re glad you purchased a BISSELL PowerSteamer Deep Cleaner. Everything
we know about floor care went into the design and construction of this
complete, high-tech home cleaning system.

Your PowerSteamer is well made, and we back it with a limited one-year
warranty. We also stand behind it with a knowledgeable, dedicated Consumer
Services department, so, should you ever have a problem, you’ll receive fast,
considerate assistance.

My great-grandfather invented the floor sweeper in 1876. Today, BISSELL is a
global leader in the design, manufacture, and service of high quality homecare
products like your PowerSteamer.

Mark J. Bissell
President and Chief Executive Officer

2

ug310-5907_1692-1694_205.indd 2ug310-5907_1692-1694_205.indd 2 4/18/05 9:19:51 AM4/18/05 9:19:51 AM

IMPORTANT SAFETY INSTRUCTIONS

■

When using an electrical
precautions should be observed, including
the following:

Read all instructions before using your

POWERSTEAMER®.

appliance, basic

WARNING:

To reduce the risk of fire, electric shock, or injury.

■

Do not immerse

■

Use only on surfaces moistened by
cleaning process

■

Always connect to a properly grounded outlet. See
Grounding Instructions

■

Unplug from outlet when not in use and before
conducting maintenance or troubleshooting

■

Do not leave machine when it is plugged in

■

Do not service machine when it is plugged in

■

Do not use with damaged cord or plug

■

If appliance is not working as it should, has
been dropped, damaged, left outdoors or
dropped into water, have it repaired at an
authorized Service Center

■

Use indoors only

■

Do not pull or carry by cord, use cord as a
handle, close door on cord, pull cord around
sharp corners or edges, run appliance over
cord, or expose cord to heated surfaces

■

Do not carry the appliance while in use

■

Do not unplug by pulling on cord-unplug by
grasping plug not the cord

■

Do not handle plug or appliance with wet hands

■

Do not put any object into appliance openings,
use with blocked opening, or restrict air flow

■

Do not expose hair, loose clothing, fingers or
body parts to openings or moving parts

■

Do not pick up hot or burning objects

■

Do not pick up flammable or combustible materials
(lighter fluid, gasoline, kerosene, etc.) or use in the
presence of explosive liquids or vapor

■

Do not use appliance in an enclosed space filled
with vapors given off by oil base paint, paint
thinner, some moth proofing substances,
flammable dust, or other explosive or toxic vapors

■

Do not pick up toxic material (chlorine bleach,
ammonia, drain cleaner, gasoline, etc.)

■

Do not modify the 3-prong grounded plug

■

Do not allow to be used as a toy

■

Do not use for any purpose other than
described in this User’s Guide

■

Do not operate the appliance unless the belt door
is securely assembled in the location provided

■

Use only manufacturer’s recommended attachments

■

Use only cleaning products formulated by
BISSELL for use in this appliance to prevent
internal component damage. See the Cleaning
fluid Section of this manual

■

Keep openings free of dust, lint, hair, etc.

■

Keep appliance on a level surface

■

Turn off all controls before unplugging

Be extra careful when cleaning stairs

■

Close attention is necessary when used

by or near children

WARNING: The Power Cord on this product
contains lead, a chemical known to the State
of California to cause birth defects or other
reproductive harm.

WASH HANDS AFTER HANDLING.

SAVE THESE
INSTRUCTIONS.

THIS MODEL IS FOR HOUSEHOLD USE ONLY.

Commercial use of this unit voids the
manufacturer’s warranty.

GROUNDING
INSTRUCTIONS

This appliance must be connected to a grounded
wiring system. If it should malfunction or break
down, grounding provides a safe path of least
resistance for electrical current, reducing the risk
of electrical shock. The cord for this appliance
has an equipment-grounding conductor and a
grounding plug. It must only be plugged into an
outlet that is properly installed and grounded in
accordance with all

local codes and ordinances.

Grounded

Outlets

Grounding Pin

WARNING: Improper

connection of the equipment-grounding
conductor can result in a risk of
electrical shock. Check with a qualified
electrician or service person if you aren’t
sure if the outlet is properly grounded.
DO NOT MODIFY THE PLUG. If it will not
fit the outlet, have a proper outlet installed
by a qualified electrician. This appliance is
designed for use on a nominal 120-volt
circuit, and has a grounding attachment
plug that looks like the plug in the drawing
above. Make certain that the appliance is
connected to an outlet having the same
configuration as the plug. No plug adapter
should be used with this appliance.

3

ug310-5907_1692-1694_205.indd 3ug310-5907_1692-1694_205.indd 3 4/18/05 9:19:51 AM4/18/05 9:19:51 AM

Product View

WARNING:

To reduce the risk of fire, use
only BISSELL Advanced Deep
Cleaning Formulas in your
PowerSteamer. Use of cleaning
formulas that contain lemon
or pine oil may damage this
appliance and void warranty.
Chemical spot cleaners
or solvent-based soil removers
should not be used. These
products may react with the
plastic materials used in your
PowerSteamer causing cracking
or pitting.

Power
Switch

Quick Release
Cord Wrap

Power Cord

Lower Cord
Wrap

Spray
Trigger

™

Floor Nozzle
Window

Strain Reliever

™

Handle

Handle
Assembly

Lower Body

ReadyTools™
Dial

Belt Access
Door

DirtLifter® PowerBrush*
*(select models only)

Measuring

Flex Hose

Cup

Tank-in-Tank

™

Easy Rolling
Wheels

Handle
Release

4

ug310-5907_1692-1694_205.indd 4ug310-5907_1692-1694_205.indd 4 4/18/05 9:19:52 AM4/18/05 9:19:52 AM

How To Use This Guide

PUSH

This User’s Guide is designed to help you get maximum
satisfaction from your PowerSteamer Deep Cleaner.
Enclosed you’ll find assembly instructions for cleaning
tasks, safety precautions, cleaning tips, maintenance
and troubleshooting information. Please read this guide
thoroughly before assembling and using your cleaner. Pay
particular attention to the assembly diagram, assembly
instructions, and part names. Locate and organize all parts
before assembly. Familiarize yourself with all parts and
features and how they operate. Following the Guide will
enhance your ability to get top performance from your
cleaner for many years.

If you have any questions, or comments please call
BISSELL Consumer Services at 1-800-237-7691.

How To Assemble

Your PowerSteamer assembles in two quick steps. The
only tool you will need to assemble your cleaner is a
Phillips head screwdriver.

Your PowerSteamer is packaged as two primary
components… the Lower Body and the Handle Assembly.
To assemble:

Slide the Handle Assembly (with attached Quick Release Cord

1.

™

) down into the Lower Body until it will go no further.

Wrap

Secure the handle by placing one (1) Phillips head screw

2.

(supplied) through the screw opening in the Lower Body
and into the rear of the Handle Assembly. Tighten with
screwdriver until secure.

Assembly is now complete.

What Comes With Your PowerSteamer

Phillips
Head
Screw

Tough Stain Brush Tough Stain

16oz. Fiber Cleansing
Formula with
Scotchgard

™

protector

PreCleaner

™

Keep plenty of BISSELL Advanced Deep Cleaning Formulas on
hand so you can clean whenever it fits your schedule. Always
use BISSELL deep cleaning formulas. Non-BISSELL cleaning
solutions may harm your cleaner and void the warranty.

5

ug310-5907_1692-1694_205.indd 5ug310-5907_1692-1694_205.indd 5 4/18/05 9:19:52 AM4/18/05 9:19:52 AM

The Basics: How Your PowerSteamer Works

OFF

ON

ON

OFF

Power

The Power Switch controls power to the machine.

DirtLifter® PowerBrush (on select models)

The powered brush roll at the Floor Nozzle is designed
to enhance cleaning performance. The bristle pattern
lifts out the deep down dirt while gently grooming
carpet fibers. The floating suspension self-adjusts to
all carpet heights and protects your carpet if you leave
the Power Switch ON. When the machine handle is in
the fully upright position, CarpetSaver
raises the brush off the carpet.

Measuring Cup

™

automatically

Power
Switch

Tip:

Deep cleaning carpeting
and upholstery regularly
can reduce dust and
allergens in your home.

Your PowerSteamer is equipped with a Measuring Cup
for adding the proper amount of cleaning formula to
the Tank-in-Tank
fill the Measuring Cup to the fill line with BISSELL
Advanced Deep Cleaning Formula. Pour the formula
into the Tank-in-Tank as shown on page 7. For
convenience, the Measuring Cup stores on the back
of the unit.

™

. Before using the machine, simply

To Fill The Tank-in-Tank™

This easy-to-use system is designed with a bladder
inside to hold clean water. As you clean, the bladder
will empty. Dirty water collects in the tank outside
the bladder.

NOTE: Make sure to add formula to the tank before
filling it with water.

Depress the Handle Release pedal to tilt back

1.

the handle.

Lift the Tank-in-Tank handle. The handle locks the lid in

2.

place. Carry the Tank-in-Tank like a bucket to fill at the sink.

Set the Tank down and rotate the handle forward to

3.

unlatch the Lid. Lift off and set the Lid aside.

6

1

Rotate Handle

3

WARNING:

To reduce the risk of
fire, electric shock
or injury unplug
from outlet before
servicing.

Tilt Handle

Back

Handle

Release

Lift and

Carry

2

to Unlatch

ug310-5907_1692-1694_205.indd 6ug310-5907_1692-1694_205.indd 6 4/18/05 9:19:55 AM4/18/05 9:19:55 AM

To Fill The Tank-in-Tank (Continued)

Using the Measuring Cup, pour BISSELL Deep Cleaning

4.

Formula into the mouth of the bladder.

Fill to the bottom of the neck with hot tap water. Do not

5.

boil or microwave water.

NOTE: Fill slowly to reduce sudsing.

Replace the Tank Lid, matching the Lid and Tank edges.

6.

Rotate the handle to carrying position. Replace Tank
in machine base, seating firmly in place. Rotate
handle back down to latched position.

When It's Time To Empty The Tank-in-Tank

4

5

6

NOTE: Remove the Tank-in-Tank, following
steps 1 through 3 on page 6 .

Pour out dirty water.

1.

After each use, remove and rinse the Lint Screen located

2.

on the Tank Lid.

Remove Tank Lid, follow step 3 on page 6.

A.

Remove Lint Screen. Rinse under faucet to

B.

remove any debris.

Insert Lint Screen back in Tank Lid. The

C.

screen will click into place.

Replace Tank Lid.

D.

Refill with cleaning solution and clean tap water, follow

3.

steps 4-5 above.

NOTE: When a cleaning job is complete, rinse out the
Tank-in-Tank by running clean water between the
bladder and the tank.

Return the Tank-in-Tank to the machine, follow

4.

step 6 above.

Refer to the Maintenance/Storage section on the

5.

next page for final cleanup.

1

2B

Lint Screen

2C

Lint Screen

5

Latched

Tip:

A special red float device in the tank
will cause the cleaner to stop remov­ing solution from the carpet. The motor
sound will rise in pitch to let you know
the dirty water tank is full.

7

ug310-5907_1692-1694_205.indd 7ug310-5907_1692-1694_205.indd 7 4/18/05 9:19:56 AM4/18/05 9:19:56 AM

ReadyTools™ Dial

TOOLS

PRETREA

T

FLOOR

CLEANING

2

4'

3'

1

3

4

5

6

7

9

10

11

12

EXIT

START

HERE

This provides floor or upholstery cleaning with the turn of
a dial. For carpet/floor cleaning make sure the dial is set to
FLOOR CLEANING. For upholstery or fabric cleaning, select
your cleaning tool, attach it to the Flex Hose, switch to Tools
Settings and the PowerSteamer is ready to clean upholstery,
fabrics and more*

* Set the switch to FLOOR CLEANING when cleaning carpets, or set

it to TOOLS/PRETREAT when using the Flex Hose attachments.

How To Clean Carpet

Plan activities to give carpet time to dry.

1.

Remove easily moved furniture from the room (chairs, lamps,

2.

coffee tables, etc).
Vacuum thoroughly to pick up loose debris and pet hair before

3.

using the PowerSteamer
Plan your cleaning route to leave an exit path. It is best to

4.

begin cleaning in the corner farthest from your exit.

NOTE: You may notice hair and debris deposits on carpet
that were loosened by brushing action (especially with
newer carpets that have never been deep cleaned before).
This debris should be picked up by hand and thrown away.
Debris that deposits in the brush belt area should be cleaned
out to keep Belts running free.

Pretreating

Improves cleaning effectiveness for heavily soiled carpet in
high traffic areas such as entryways and hallways:

Set the ReadyTools™ dial to TOOLS/PRETREAT.

1.

Plug the PowerSteamer into a proper outlet and turn ON the

2.

Power switch.

While pressing the trigger, slowly make several passes over the

3.

area to be cleaned. Caution: Do not overwet.

Turn the machine Power switch OFF and let BISSELL Advanced
Deep Cleaning Formula dissolve the tough soil for 1-2 minutes.

4.

Reset the ReadyTools Dial to FLOOR CLEANING before continuing.

.

Normal Cleaning

Plug the PowerSteamer into a proper outlet and turn ON the

1.

Power switch.

While pressing the Spray Release Trigger, make one slow

2.

forward and back wet pass. Let the BISSELL Advanced Deep
Cleaning Formula and DirtLifter PowerBrush* do the work for
you. Caution: Do not overwet.

Release the trigger and make one slow forward and back pass

3.

over the same area to remove any residual dirty water.

Repeat cleaning passes without pressing the trigger until you can't see

4.

any more water being suctioned up.

When cleaning job is complete, refer to the Maintenance/

5.

8

ug310-5907_1692-1694_205.indd 8ug310-5907_1692-1694_205.indd 8 4/18/05 9:19:56 AM4/18/05 9:19:56 AM

Storage section on page 11.

Tip:

Thorough
vacuuming before
deep cleaning
will prevent early
clogging of the
lint trap.

Cleaning Fluid Section

Keep plenty of genuine BISSELL Fiber Cleansing Formula™
on hand so you can clean and protect whenever it fits your
schedule. Always use genuine BISSELL deep cleaning formulas.

WARNING:

To Reduce the Risk of Fire and Electric Shock
due to internal componet damage, use only
BISSELL cleaning fluids intended for use
with the deep cleaner.

48 oz. BISSELL
Fiber Cleansing
Formula

™

with
Scotchgard
Protector

item # 0710

™

48 oz. BISSELL
Multi-Allergen
Removal
Formula
Scotchgard

™

with

™

Protector

item # 0720

48 oz. BISSELL
Pet Odor and
Soil Removal
Formula

with
Scotchgard
Protector

item # 0730

Cleaning Bare Floors

The Bare Floor Tool (available with select models only)
provides effective cleaning for linoleum, vinyl, and tile
floors. Caution: Do not use on hardwood floors.

Use only BISSELL Hard Floor Solutions™.

1.

Vacuum or sweep thoroughly to pick up loose debris and pet hair.

2.

Remove easily moved furniture from the room, (chairs, tables, etc).

3.

Plan your cleaning route to leave an exit path.

4.

Plan activities to allow about 30 minutes for the floor to

5.

dry completely.

Attach The Bare Floor Tool

Step on the handle release to lay the machine handle down.

1.

™

Remove the Tank-in-Tank

2.

Lift the machine base to expose the underside of the nozzle.

3.

Attach Bare Floor Tool to nozzle with long tab to the right side

4.

(ReadyTools

First attach left side (short tab) catching tab over nozzle edge.

5.

Gently bend long tab (right side) outward to easily snap over

6.

edge of clear nozzle on right.

™

side) of the nozzle.

from the machine base.

™

™

Bare Floor
Cleaning Tool

48 oz. BISSELL
Natural Orange
Extract Formula
with Scotchgard
Protector

item # 0740

Handle Release

Carrying

Snap Together

™

Tilt
Handle
Back

9

ug310-5907_1692-1694_205.indd 9ug310-5907_1692-1694_205.indd 9 4/18/05 9:19:57 AM4/18/05 9:19:57 AM

Machine Preparation

Adsdfdd ghg bvh

cvbbj jkn hnbj jkvh

gcghhjj jhffhl kllgh

Set up machine following the instructions in The Basics on pages

1.

6-9. Be sure to thoroughly rinse out any remaining Fiber Cleansing
Formula from the Tank-in-Tank bottle to prevent slippery linoleum,
vinyl, and tile floors. Use BISSELL Hard Floor Solutions in the
Tank-in Tank.

Check ReadyTools dial - it should be set on Floor Cleaning.

2.

Plug into a proper outlet and turn Power Switch ON.

3.

Bare Floor Cleaning Technique

Slowly move the machine nozzle with Bare Floor Tool

1.

forward and back over soiled surface one time while
pressing the trigger. Caution: Do not over wet.

Repeat the motion without pressing the trigger using the

2.

Bare Floor Tool to squeegee and suction up the dirty water.

Repeat steps 1 and 2 backing along the exit path.

3.

Allow about 30 minutes for the floor to dry completely.

4.

When the cleaning job is complete refer to the Maintenance/

5.

Storage section on page 11.

To remove Bare Floor Tool gently bend long tab (right

6.

side) outward and pull tool down away from nozzle.
Rinse thoroughly, dry and store.

How To Clean Upholstery and Small Areas

WARNING:

To reduce the risk
of fire, electric
shock or injury
unplug from outlet
before servicing.

Important - Check Upholstery Tags

Check manufacturer’s tag before cleaning. “W” or “WS” on the tag
means you can use your PowerSteamer If the tag is coded with “X”
or “S” (with a diagonal strike through), or says “Dry Clean Only,” do
not proceed. Do not use on velvet or silk. If manufacturer’s tag is
missing or not coded, check with your furniture dealer.

Check for colorfastness in an inconspicuous place.

If possible, check upholstery stuffing. Colored stuffing may
bleed through fabric when wet.

Plan activities to give upholstery time to dry.

Vacuum thoroughly to pick up loose debris and pet hair. Use a
vacuum with a brush attachment and a crevice tool to clean in
fabric folds and tufts.

Manufacturer’s Tag

Machine Preparation

Set up the machine following instructions in The Basics sec-

1.

tion, on pages 6-9.

Using the Measuring Cup provided, pour BISSELL Advanced

2.

Deep Cleaning Formula into the Tank-in-Tank.

™

Set the ReadyTools

10

ug310-5907_1692-1694_205.indd 10ug310-5907_1692-1694_205.indd 10 4/18/05 9:20:04 AM4/18/05 9:20:04 AM

3.

dial to Tools or PreTreat.

Maintenance/Storage

Turn Power switch OFF.

1.

Unplug power cord from the outlet and coil around

2.

Power Cord Quick Release.

Remove and rinse tools in clean, running water, let

3.

dry and replace in tool caddy.

Coil flex hose through storage brackets.

4.

Remove Tank-in-Tank,

5.

The Basics section, on page 6.

Rinse out the Tank-in-Tank

6.

machine.

Wipe all exterior surfaces with a soft cloth.

7.

Store cleaner upright in a protected, dry area.

8.

When carpet is dry, vacuum again to remove hair and fuzz that

9.

the POWERSTEAMER may have loosened.

Pump Belt and Brush Belt Replacement

Turn the machine off and unplug from wall outlet.

1.

Step on the release pedal and recline the handle down onto

2.

floor.

Remove the Tank-in-Tank. Set them aside.

3.

Remove Belt Access Door located near the ReadyTools Dial. Insert a

4.

flat head screwdriver into the slot nearest to the handle and gently
prying the access door off.

Turn the machine onto its side so the belt access area is

5.

facing upward.

On the bottom of the machine, near the belt access area, is a

6.

Red Retainer Plate that holds the black brush arm and brush
in place. Using a Phillips head screwdriver remove the screw
that holds the Red Retainer Plate in place. Set Red Retainer
Plate and Phillips head screw aside.

NOTE: For 1693 Model series, remove stationary brush
(skip step 6 and 7)

Remove the black brush arm that holds the brush in place.

7.

Set the black brush arm aside.

Remove the “toothed” Brush Belt from the Brush then from the

8.

Red Pump Pulley. Set the “toothed” Brush Belt and Brush aside.

Locate and remove the broken Pump Belt.

9.

™

dispose of dirty water. See

™

and reseat the tank unto the

Flex Hose
Storage Bracket

2

4

6

8

Power Cord
Quick Release

CAUTION:

PowerSteamer
uses water and
must not be stored
where there is a
danger of freezing.
Freezing will
damage internal
components and
void the warranty.

3

5

7

9

WARNING:

To reduce the risk
of fire, electric
shock or injury
unplug from outlet
before servicing.

ug310-5907_1692-1694_205.indd 11ug310-5907_1692-1694_205.indd 11 4/18/05 9:20:04 AM4/18/05 9:20:04 AM

11

To Install The Replacement Pump Belt

With the unit still on its side, loop one end of the

1.

replacement Pump Belt around the Red Pump Pulley
and then the other end around the silver motor shaft. Do not
twist the replacement pump belt.

Re-install the "toothed" Brush Belt first onto the Red Pump

2.

Pulley and then onto the toothed end of the Brush.

Re-install the brush into the base of the unit.

3.

Place the black brush arm onto the Brush and slide black

4.

brush arm into original position.

Re-install the Red Retainer Plate and Phillips head screw.

5.

Using your finger, gently spin the replacement pump belt on

6.

the silver motor shaft. If assembled correctly, the replacement
Pump Belt should rotate freely around the silver motor shaft
and drive pulley without obstruction. The brush should also
rotate freely when the silver motor shaft is turned.

Turn the machine right side up and replace the Tank-in-Tank

7.

and belt access door.

Assembly is now complete.

8.

If you have any questions, or are having trouble installing
your replacement pump belt, please call BISSELL Consumer
Services at 1-800-237-7691.

1.

2.

4.

6.

3.

5.

7.

12

ug310-5907_1692-1694_205.indd 12ug310-5907_1692-1694_205.indd 12 4/18/05 9:20:05 AM4/18/05 9:20:05 AM

Troubleshooting

WARNING:

To reduce the risk of fire,
electric shock or injury,
unplug appliance from outlet
before servicing.

Reduced Spray Or No Spray.

Possible Causes Remedies

Bladder may be empty. Turn power OFF; refill tank with

1

hot tap water.
The Lint Screen may be clogged. Clean out Lint screen page 7.

2

Tank-in-Tank may not be seated properly. Turn power OFF; remove tank and

3

reseat tank.
Pump may have lost prime. Turn power OFF; after 1 minute, turn

4

ON and depress Spray trigger.

1

2

3

4

The Pump Belt may be broken.

5

Turn power OFF and unplug

5

from the outlet. To check if a Pump
Belt has broken, you will need a flat
head screwdriver. Insert the blade
end into the lower slot of the Belt
Access door to release the lower
snap. If necessary, insert the blade
end into the upper slot to release the
upper snap. Examine the belt for
breakage. You should be able to see
the Pump Belt looped around the
motor shaft. If it is broken or missing,

Lift Here

please refer to the part numbers and
descriptions on page 15 before

Insert Screwdriver Blade Here

calling Consumer Services. Complete
installation instructions will
accompany the replacement belt.

DirtLifter PowerBrush Does Not Turn.

Possible Causes Remedies

1 1

The Brush Belt or Pump Belt may be broken. Turn power OFF and unplug

from the outlet. To check if a Brush
Belt has broken, you will need a flat
head screwdriver. Insert the blade
end into the lower slot of the Belt
Access door to release the lower
snap. If necessary, insert the blade
end into the upper slot to release the
upper snap. Examine the belt for
breakage. If broken, refer to
pages 11-12.

13

ug310-5907_1692-1694_205.indd 13ug310-5907_1692-1694_205.indd 13 4/18/05 9:20:06 AM4/18/05 9:20:06 AM

Troubleshooting (Continued)

PowerSteamer is not picking up solution and water.

Possible Causes Remedies

ReadyTools Dial may be at the Set ReadyTools Dial to either FLOOR

1

wrong setting for cleaning job. CLEANING or TOOLS/PRETREAT.
Nozzle Window may not be properly attached. Make sure the two tabs on the back

2

of the Floor Nozzle Window are
inserted through the mating slots in
the main housing. Reinstall
if necessary.

Tank-in-Tank Lid is not properly installed. Reinstall lid; refer to The Basics

3

section, page 6.

Tank-in-Tank is not properly seated. Tank-in-Tank must be firmly seated to

4

function. Remove and reseat Tank-in- Tank.
Poor tool position. Readjust angle; apply more

5

(Handheld attachments only) downward pressure.
Tank-in-Tank has picked up the maximum Empty tank and refill; refer to

6

dirty water. The Basics section, page 6.

1

2

3

4

5

6

If you should happen to need assistance during assembly or operations, call 1-800-237-7691.

Please do not return this product to the store

BISSELL Consumer Services

For information about repairs or replacement parts, or questions about
your warranty, call:

BISSELL Consumer Services

1-800-237-7691

Monday - Friday 8 a.m. — 10 p.m. ET
Saturday 9 a.m. — 8 p.m. ET

Or write:

BISSELL HOMECARE, INC
PO Box 3606
Grand Rapids MI 49501
ATTN: Consumer Services

Or visit the BISSELL website - www.bissell.com

When contacting BISSELL, have model number of unit available.
Please record your Model Number: ___________________
Please record your Purchase Date: ___________________

Thank you for selecting a BISSELL product.

14

ug310-5907_1692-1694_205.indd 14ug310-5907_1692-1694_205.indd 14 4/18/05 9:20:06 AM4/18/05 9:20:06 AM

NOTE: Please keep your original sales receipt. It provides proof of date of purchase in the
event of a warranty claim. See "About Your Warranty" on page 16 for details.

Replacement Parts

PUSH

*Not all parts included with every model

Item Part No. Part Name

1 214-4025 Handle Assembly with Screw
2 215-9155 Tough Stain Brush
3 015-9043 Tank Assembly Complete
4 015-4439 Tank Lid Assembly
5 015-9041 Tank Bottom
6 213-0213 Baffle with Red Float
7 210-4052 Window Gasket
8 215-0628 Replacement Pump Belt (with instructions)
9 015-0621 Replacement Brush Belt (with instructions)
10 015-3500 Lint Screen
11 213-3010 Measuring Cup
12 214-9131 Bare Floor Tool
13 0710 48 oz. BISSELL Fiber Cleansing Formula with Scotchgard™ Protector
14 0400 22 oz. BISSELL Tough Stain PreCleaner
15 0484 32 oz. BISSELL Hard Floor Solutions™

1

5 6 7

9

13 14

2 3

10 11

4

8

12

15

15

ug310-5907_1692-1694_205.indd 15ug310-5907_1692-1694_205.indd 15 4/18/05 9:20:07 AM4/18/05 9:20:07 AM

About Your Warranty

This warranty gives you specific legal rights, and you may also have other rights which may vary from state to
state. If you need additional instruction regarding this warranty or have questions regarding what it may cover,
please contact BISSELL Consumer Services by E-mail, telephone, or regular mail as described below.

Limited One Year Warranty

Subject to the *EXCEPTIONS AND EXCLUSIONS identified below, upon receipt of the product BISSELL Homecare,
Inc. will repair or replace (with new or remanufactured components or products), at BISSELL’s option, free of
charge from the date of purchase by the original purchaser, for one year any defective or malfunctioning part.

See information below on "If your BISSELL product should require service".

This warranty applies to product used for personal, and not commercial or rental service. This warranty
does not apply to fans or routine maintenance components such as filters, belts, or brushes. Damage or
malfunction caused by negligence, abuse, neglect, unauthorized repair, or any other use not in accordance with
the User's Guide is not covered

.

If your BISSELL product should require service:

Contact BISSELL Consumer Services to locate a BISSELL Authorized Service Center in your area.
If you need information about repairs or replacement parts, or if you have questions about your

warranty, contact BISSELL Consumer Services.

Website or E-mail:

www.bissell.com
Use the “Customer Services” tab

Or Call:

BISSELL Consumer Services
1-800-237-7691
Monday - Friday 8 am. - 10 pm. ET
Saturday 9 am. - 8 pm. ET

Or write:

BISSELL Homecare, Inc.
PO Box 3606
Grand Rapids, MI 49501
ATTN: Consumer Services

BISSELL HOMECARE, INC. IS NOT LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES OF ANY NATURE
ASSOCIATED WITH THE USE OF THIS PRODUCT. BISSELL’S LIABILITY WILL NOT EXCEED THE PURCHASE PRICE
OF THE PRODUCT.

Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above
limitation or exclusion may not apply to you.

*EXCEPTIONS AND EXCLUSIONS FROM THE TERMS OF THE LIMITED WARRANTY

THIS WARRANTY IS EXCLUSIVE AND IN LIEU OF ANY OTHER WARRANTIES EITHER
ORAL OR WRITTEN. ANY IMPLIED WARRANTIES WHICH MAY ARISE BY OPERATION
OF LAW, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY AND
FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO THE ONE YEAR DURATION
FROM THE DATE OF PURCHASE AS DESCRIBED ABOVE.

Some states do not allow limitations on how long an implied warranty lasts,
so the above limitation may not apply to you.

NOTE: Please keep your original sales receipt. It provides proof of
date of purchase in the event of a warranty claim.

16

.

©2005 BISSELL Homecare, Inc
Grand Rapids, Michigan
All rights reserved.
Part Number 310-5907
Rev 3/05
Visit our website at:
www.bissell.com
Scotchgard is a trademark of 3M.

ug310-5907_1692-1694_205.indd 16ug310-5907_1692-1694_205.indd 16 4/18/05 9:20:10 AM4/18/05 9:20:10 AM
