Bissell 1685 Product Data
Upright Deep Cleaner
Model 1685
16
10
17
18
11
13
17
16
42
14
15
40
1
3
19
20
8
22
21
24
BISSELL Service Center Dept.
1-800-457-1509
Fax: 1-800-517-9535
partner.bissell.com
25
35
36
34
29
28
26
27
32
35
23
30
31
39
33
26
38
37
Issued: February 2004
2004 BISSELL Homecare, Inc.
©
41
44
48
43
49
45
46
47
50
51

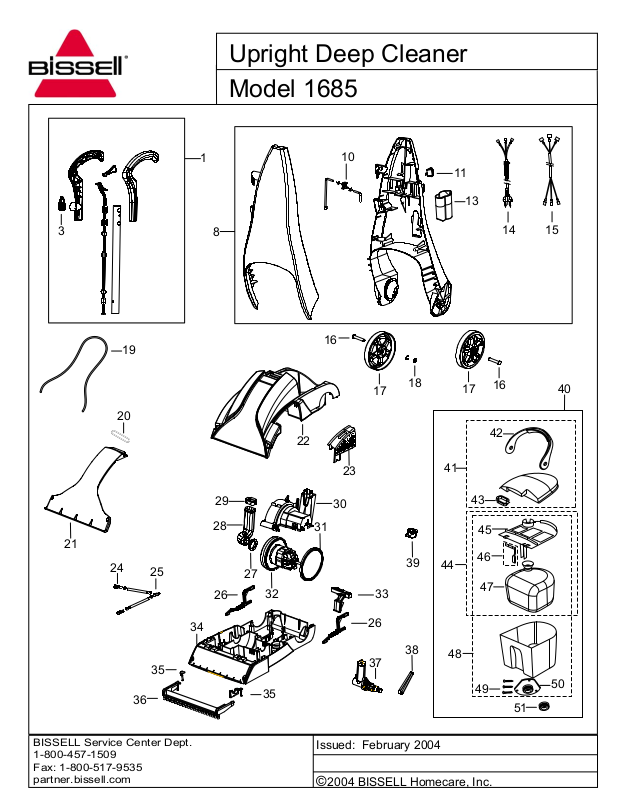

UPRIGHT DEEP CLEANER UPRIGHT DEEP CLEANER
POWERSTEAMER MODEL 1685
KEY PART NO DESCRIPTION KEY PART NO DESCRIPTION
1 B-555-6203 HANDLE & GRIP ASSY JAVA BEAN 40 ASSY W/ LINT SCN
3 B-210-6379 CORD
8 B-555-6202 LOWER HANDLE COMP, JAVA BEAN
10 B-210-9592 VALVE ASSY W/ VINYL TUBE 43
11 B-555-9125 SWIT
13 B-213-3010
14 B-210-2836 CORDSET 1685 46
15 B-210-4446 HARNESS W/ INS TERMINALS
16 B-210-0170
17 B-213-9754 WHEEL 49
18 B-210-6215
19 B-210-3418 GASKET EXTRUDED .136" x 32"
20 B-210-4052 TANK
21 B-214-9872 WINDOW NOZZLE xx
22 B-213-4942 MAIN
23 B-213-2901 BELT COVER, JAVA BEAN xx
24 B-210-6107 SPRAY TIP xx 2139438 TUBE VINYL 20"
25 B-210-2602 T - CONNECTOR xx 2139449 TUBE VINYL 7.5"
26 B-200-0010 LEVER ELEVATOR
27 B-210-4051 MOTOR INTAKE
28 B-210-3161
29 B-210-4050
30 B-213-2984 MOTOR COVER
31 B-210-4056 MOTOR GASKET
32 B-017-5972 MOTOR
33 B-555-9102 PEDAL - HANDLE RELEASE
34 B-213-0448 BASE W/ STATIONARY BRUSH
35 B-555-6206 ARM RETAINER RT & LT
36 B-215-1190 STATIONARY BRUSH
37 B-210-7181 PUMP
38 B-215-0628 PUMP BELT
39 B-214-0710 AUTOLOAD RECEIVER
WRAP, GREEN 41 LID W/ SCN, GASKET, & HANDLE
CH ROCKER, RED 44 & BLADDER ASSY
MEASURING CUP 45 B-213-021
AXLE 48 B-214-9045
AXLE E-RING 50 B-210-7041 AUTO LOAD ASSY
INTERFACE SEAL
HOUSING, JAVA BEAN xx B-210-2490 CLAMP SMALL
LEFT & RIGHT xx 2158001 T ASSY ODD BARB
GASKET xx 2806301 HANDLE SCREW
MOTOR DUCT xx 5557030 SCREW #8 x 3/4 6-PACK
DUCT GASKET xx 2102515 USER'S GUIDE
B-015-9043 TANK
B-015-4439 TANK
42 B-203-4435 TANK HANDLE
B-213-3501 LINT SCREEN, RED
B-214-0213 BAFFLE
3 BAFFLE & FLOAT ASSY
B-214-0325 FLOAT ASSY
47 B-210-0315 BLADDER
TANK BOTTOM W/ AUTOLOAD
B-280-7075 SCREW #6 x 1/2
51 B-210-6241 OVERSEAL FOR AUTOLOAD
B-210-2485 CLAMP LARGE
B-210-2602 CONNECTOR T
JAVA BEAN = 1685
