Bissel PROHEAT 2X, 8960, 8920, 8930, 9400 User Manual

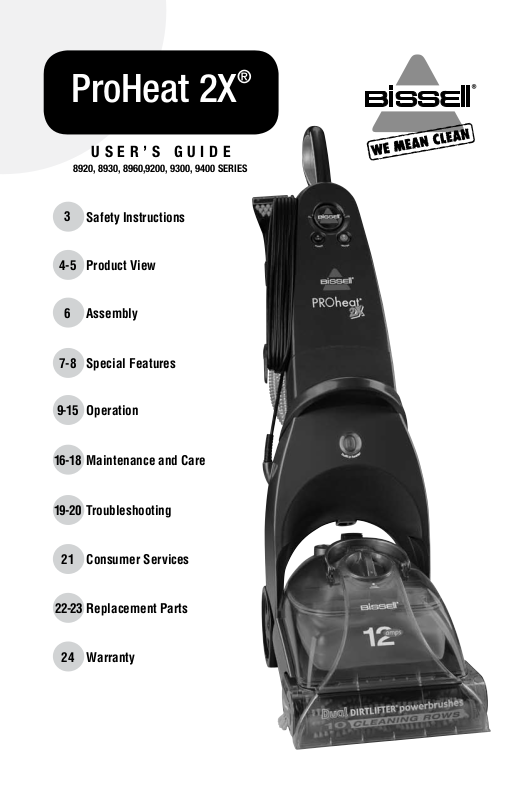

ProHeat
USER’S GUIDE
8920, 8930, 8960,9200, 9300, 9400 SERIES
3
Safety Instructions
Product View
4-5
Assembly
6
Special Features
7-8
Operation
9-15
2X
®
Maintenance and Care
16-18
Troubleshooting
19-20
Consumer Services
21
Replacement Parts
22-23
Warranty
24
Thanks for buying a BISSELL ProHeat 2X
We’re glad you purchased a BISSELL ProHeat 2X heated formula deep
cleaner. Everything we know about floor care went into the design and
construction of this complete, high-tech home cleaning system.
Your ProHeat 2X is well made, and we back it with a limited one-year
warranty. We also stand behind it with a knowledgeable, dedicated
Consumer Services department, so, should you ever have a problem, you’ll
receive fast, considerate assistance.
My great-grandfather invented the floor sweeper in 1876. Today, BISSELL is
a global leader in the design, manufacture, and service of high quality
homecare products like your ProHeat 2X.
Thanks again, from all of us at BISSELL.
Mark J. Bissell
President and Chief Executive Officer
2
www.bissell.com 800.237.7691
2
IMPORTANT SAFETY INSTRUCTIONS
When using an electrical
should be observed, including the following:
Read all instructions before using your ProHeat 2X
appliance, basic precautions
®
WARNING:
of fire, electric shock, or injury:
■
Do not immerse.
■
Use only on surfaces moistened by cleaning process.
■
Always connect to a properly grounded outlet.
■
See Grounding Instructions.
■
Unplug from outlet when not in use and before
conducting maintenance or troubleshooting.
■
Do not leave machine when it is plugged in.
■
Do not service machine when it is plugged in.
■
Do not use with damaged cord or plug.
■
If appliance is not working as it should, has been
dropped, damaged, left outdoors, or dropped into
water, have it repaired at an authorized Service Center.
■
Use indoors only.
■
Do not pull or carry by cord, use cord as a handle, close
door on cord, pull cord around sharp corners or edges, run
appliance over cord, or expose cord to heated surfaces.
■
Unplug by grasping the plug, not the cord.
■
Do not handle plug or appliance with wet hands.
■
Do not put any object into appliance openings, use with
blocked opening, or restrict air flow.
■
Do not expose hair, loose clothing, fingers or body
parts to openings or moving parts.
■
Do not pick up hot or burning objects.
■
Do not pick up flammable or combustible materials
(lighter fluid, gasoline, kerosene, etc.) or use in the
presence of explosive liquids or vapor.
■
Do not use appliance in an enclosed space filled with vapors
given off by oil base paint, paint thinner, some moth proofing
substances, flammable dust, or other explosive or toxic vapors.
■
Do not pick up toxic material (chlorine bleach,
ammonia, drain cleaner, gasoline, etc.).
■
Do not modify the 3-prong grounded plug.
■
Do not allow to be used as a toy.
■
Do not use for any purpose other than described in
this User’s Guide.
■
Do not operate the appliance unless the belt door is
securely assembled in the location provided.
■
Do not unplug by pulling on the cord.
■
Use only manufacturer’s recommended attachments.
■
Always install float before any wet pick up operation.
■
Use only cleaning products formulated by BISSELL for
use in this appliance to prevent internal component
damage. See the cleaning fluid section of this guide.
■
Keep openings free of dust, lint, hair, etc.
■
Do not point attachment nozzle at people or animals
■
Keep appliance on a level surface.
www.bissell.com 800.237.7691
To reduce the risk
■
Turn off all controls before unplugging.
■
Unplug before attaching the TurboBrush.
■
Be extra careful when cleaning stairs.
■
Close attention is necessary when used by or
near children.
■
WARNING: The power cord on this product contains
lead, a chemical known to the State of California to
cause birth defects or other reproductive harm.
WASH HANDS AFTER HANDLING.
SAVE THESE
INSTRUCTIONS.
THIS MODEL IS FOR HOUSEHOLD USE ONLY.
Commercial use of this unit voids the
manufacturer’s warranty.
GROUNDING INSTRUCTIONS
This appliance must be connected to a grounded
wiring system. If it should malfunction or break
down, grounding provides a safe path of least
resistance for electrical current, reducing the risk of
electrical shock. The cord for this appliance has an
equipment-grounding conductor and a grounding
plug. It must only be plugged into an outlet that is
properly installed and grounded in accordance with
all local codes and ordinances.
Grounded
Outlets
Grounding Pin
WARNING:
connection of the equipment-grounding
conductor can result in a risk of electrical
shock. Check with a qualified electrician
or service person if you aren’t sure if the
outlet is properly grounded. DO NOT MODIFY
THE PLUG. If it will not fit the outlet, have a
proper outlet installed by a qualified electrician. This appliance is designed for use on a
nominal 120-volt circuit, and has a grounding attachment plug that looks like the plug
in the drawing above. Make certain that the
appliance is connected to an outlet having
the same configuration as the plug. No plug
adapter should be used with this appliance.
Improper
®
3
Product view
Spray Trigger
Power Switch
Extra Long
Power Cord
Heat
Indicator Light
Tank Carry
Handle
ReadyTools
Dial
Heater Switch
Flex Hose
Upper Handle
Easy Carry Handle
™
Detent Pedal
2-in-1
Water Tank
Lower Base
®
Easy To Remove
Edge Sweep
Brushes
Nozzle

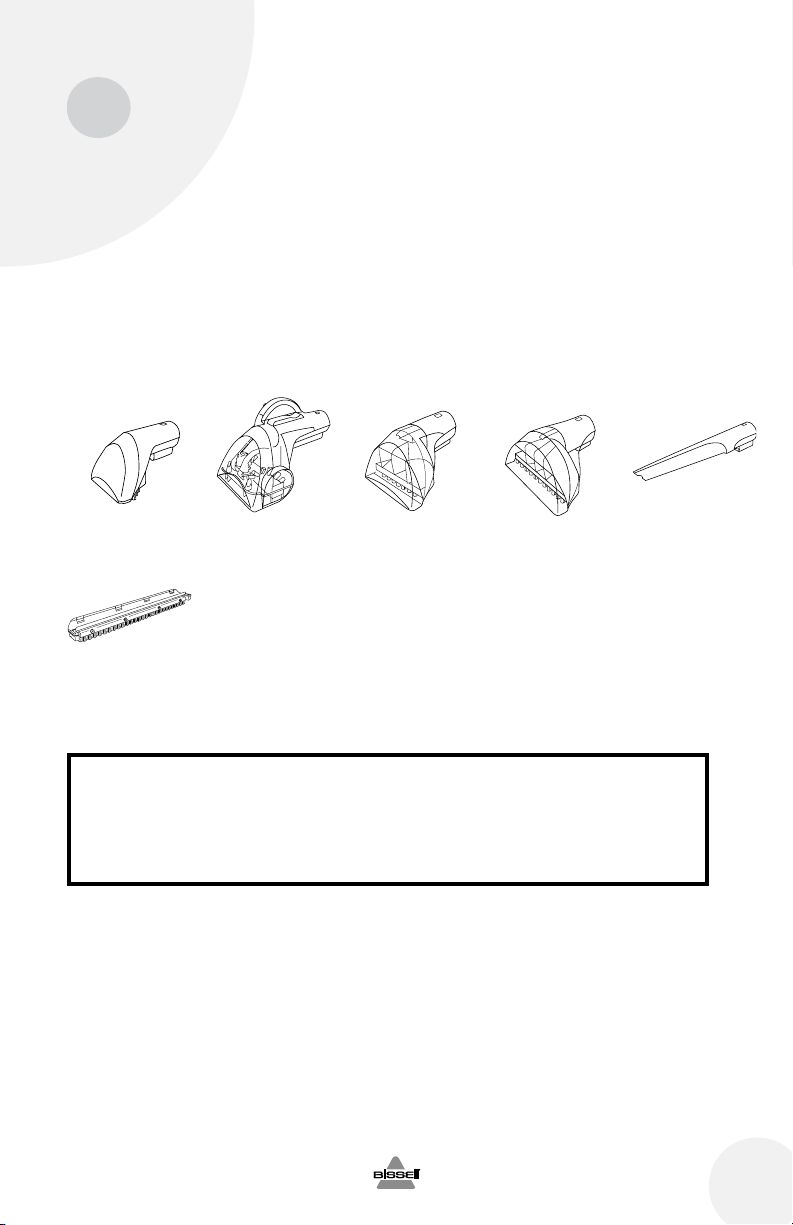

Optional Accessories:
These items are available for purchase. To order replacement parts, additional tools or formulas, please refer to page 22-23.
3” Tough Stain Brush
Spraying Crevice Tool
www.bissell.com 800.237.7691
4
4” Upholstery Tool 6” Stair Tool
TurboBrush
®
Mesh Tool Bag
(bag only)
Hard Floor Attachment

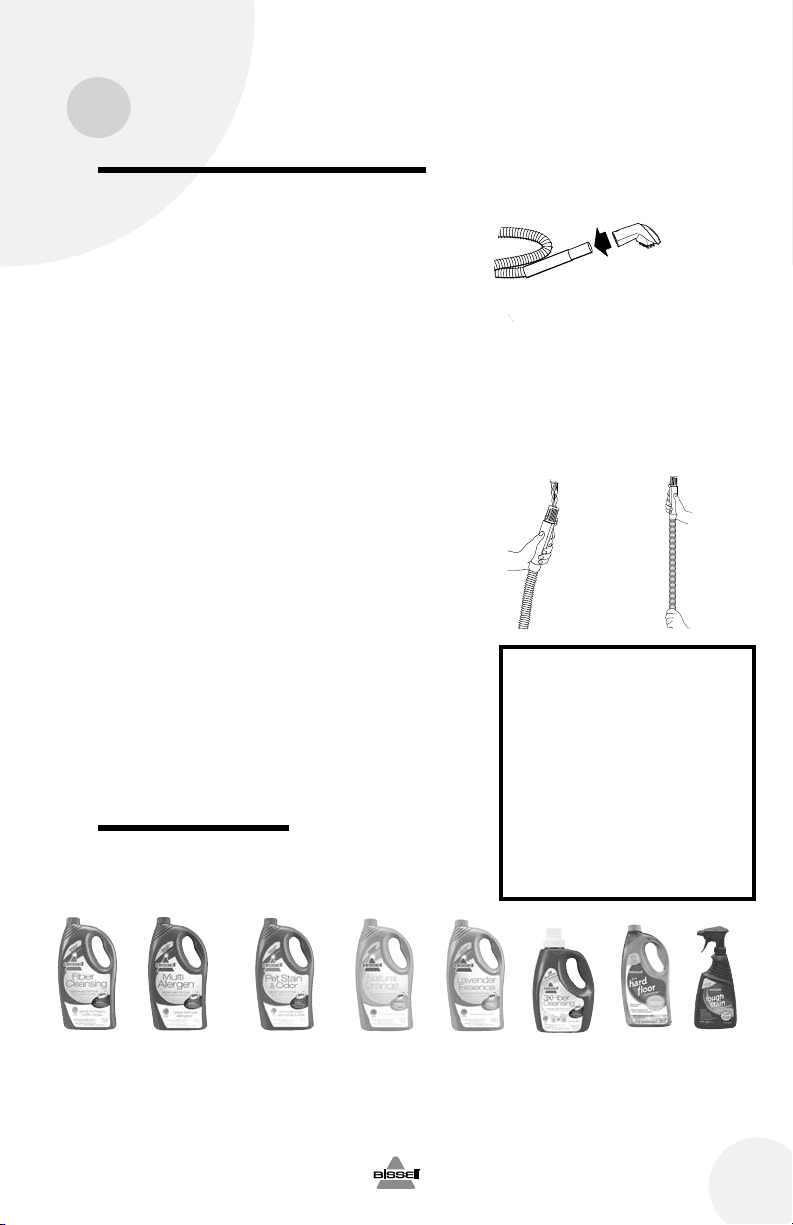

Product view
Upper Handle
Lower Base
Spray Trigger
TurboBrush
®
Storage
(select models)
Upper Hose Rack
Hose Secure
Latch
Crevice Tool Holder
(select models)
Lower Hose Rack
Detent Pedal
Keep plenty of genuine BISSELL
Advanced Cleaning Formulas on
hand so you can clean whenever
it fits your schedule. Always use
Formula Tank
genuine BISSELL deep cleaning
formulas. Non-BISSELL cleaning
solutions may harm the machine
and void the warranty.
BISSELL Formulas:
These items are available for purchase. To order replacement parts, additional tools or formulas, please refer to page 22-23.
48 oz. BISSELL
Fiber Cleansing
Formula™ with
Scotchgard
Protector
#0710
www.bissell.com 800.237.7691
™
48 oz. BISSELL
Multi- Allergen
™
Removal
Formula™ with
Scotchgard
Protector
#0720
™
48 oz. BISSELL
Pet Odor and Soil
Removal™ Formula
with Scotchgard
Protector
#0730
48 oz. BISSELL
Natural Orange
Extract Formula
™
with Scotchgard
Protector
#0740
48 oz. BISSELL
Lavender Essence
Formula with
™
Scotchgard
Protector
#0750
™
43 oz. BISSELL
3X Concentrated
Fiber Cleansing
Formula with
Scotchgard™
Protector
#0716
32 oz.
BISSELL
Hard Floor
Solutions
Formula
#0484
™
22 oz.
BISSELL
Tough Stain
PreCleaner
#0400
5
™
How to use this guide
This user’s guide has been designed to help you
get the utmost satisfaction from your BISSELL
ProHeat 2X. You’ll find assembly and operating
instructions, safety precautions, as well as
maintenance and troubleshooting instructions.
Please read this guide thoroughly before
assembling your deep cleaner.
Pay particular attention to the product diagram,
assembly instructions, and part names. Locate
and organize all parts before assembly. Familiarize
yourself with the parts and where they go.
Following this user’s guide will greatly enhance
your ability to get the most performance from your
BISSELL ProHeat 2X for many years.
Assembly
ProHeat 2X comes in three, easy to
Your
assemble components:
Upper Handle
Lower Handle
Tool Caddy
The only thing you will need to assemble your
cleaner is a Phillips head screwdriver.
Slide upper handle onto lower handle.
1.
. Screw 3 screws into the marked holes.
2
Place upper hose rack onto back of upper
3.
handle, and secure with tapered screw.
Place lower hose rack onto back of upper
4.
handle by pushing in and sliding down until
it snaps into place.
Snap tools into the tool caddy as shown in
5.
figure 5.
Wrap power cord and flex hose as shown in
6.
figure 5.
WARNING:
Do not plug in your
cleaner until you have
completely assembled it per
the following instructions
and are familiar with all
instructions and operating
procedures.
1. 2.
3. 4.
5.
Crevice Tool
Holder
(select models)
Tough
Stain Brush
TurboBrush
(select models)
Spraying
Crevice Tool
(select models)
Keep flex hose snugly in place by using
7.
the hose secure latch.
ProHeat 2X assembly is now complete.
www.bissell.com 800.237.7691
6
6.
Hose Secure
Latch
Special features of your BISSELL ProHeat 2X
R
I
N
S
E
W
A
T
E
R
WATER
Your BISSELL ProHeat 2X deep cleaner is a home
cleaning system that uses the power of heat,
brushes and cleaning formula to get the deep
down dirt for a maximum clean. Not only does it
come with a lot of unique features, it has been
designed with you, the customer, in mind.
Built-in-Heater feature
BISSELL ProHeat 2X models all feature a patented
built-in heater which will heat the hot tap water
you put in up to 25 degrees hotter to safely
optimize cleaning effectiveness. The heater
will never allow the temperature to exceed 190
degrees. The heater switch on the front of the
machine controls the heater so you have the
option to turn off the heat if you are cleaning
delicate wool or oriental rugs.
Dual DirtLifter® PowerBrushes
The two DirtLifter PowerBrush rolls are
designed to enhance cleaning performance.
The bristle pattern safely lifts out the deep
down dirt while gently grooming carpet fibers.
The floating suspension self-adjusts to all
carpet heights and protects your carpet if
you leave the power switch ON ( I ). Once the
product is in the upright position, the brushes
automatically stop spinning. The detent pedal
will activate the brushes when floor cleaning.
Custom Clean
The Custom Clean feature automatically mixes
hot tap water with the BISSELL formula. Simply
choose one of the 4 settings (heavy traffic,
normal clean, light clean, or water rinse) and the
ProHeat 2X will adjust the right amount of
cleaning solution to mix with the heated water to
fit your cleaning need.
This feature is available on all ProHeat 2X
models, either behind the 2-in-1 water tank or on
the upper handle.
Having a separate solution tank from the water
tank also allows no waste of formula. Because the
water and solution are stored separately, they are
not mixed until you are ready to clean. When your
cleaning job is finished, the formula can be stored
ready to use in your machine for the next time!
®
(located behind water tank)
OR
(located on upper handle)
www.bissell.com 800.237.7691
7
Special features of your BISSELL ProHeat 2X
F
L
O
O
R
T
O
O
L
S
C
L
E
A
N
I
N
G
Scotchgard™ Protector
Carpet protection applied at the mill typically
wears down over time from heavy foot traffic
and everyday cleaning, including deep cleaning.
To help restore this important protection, only
BISSELL offers deep cleaning formulas with
Scotchgard protector. This offers extra protection
against dirt and tough stains to keep your carpets
looking good longer.
To maintain your Scotchgard 5-year limited stain
warranty, you no longer are required to hire a
professional. By using your BISSELL ProHeat
machine with BISSELL formulas containing
Scotchgard protector every 12 months, your carpet
warranty from 3M remains in effect. No other home
deep cleaning system can do this for you.
2-in-1 water tank
Our 2-in-1 water tank full capacity system is
designed with a heavy duty bladder inside for clean
water. As you clean, the clean water in the bladder
will empty and mix with the cleaning formula. Dirty
water pulled out of your carpets will collect around
the outside of the bladder so that clean and dirty
water are always kept separate. This allows the
user to maximize tank space, yet only carry one
tank to and from the sink for emptying and filling.

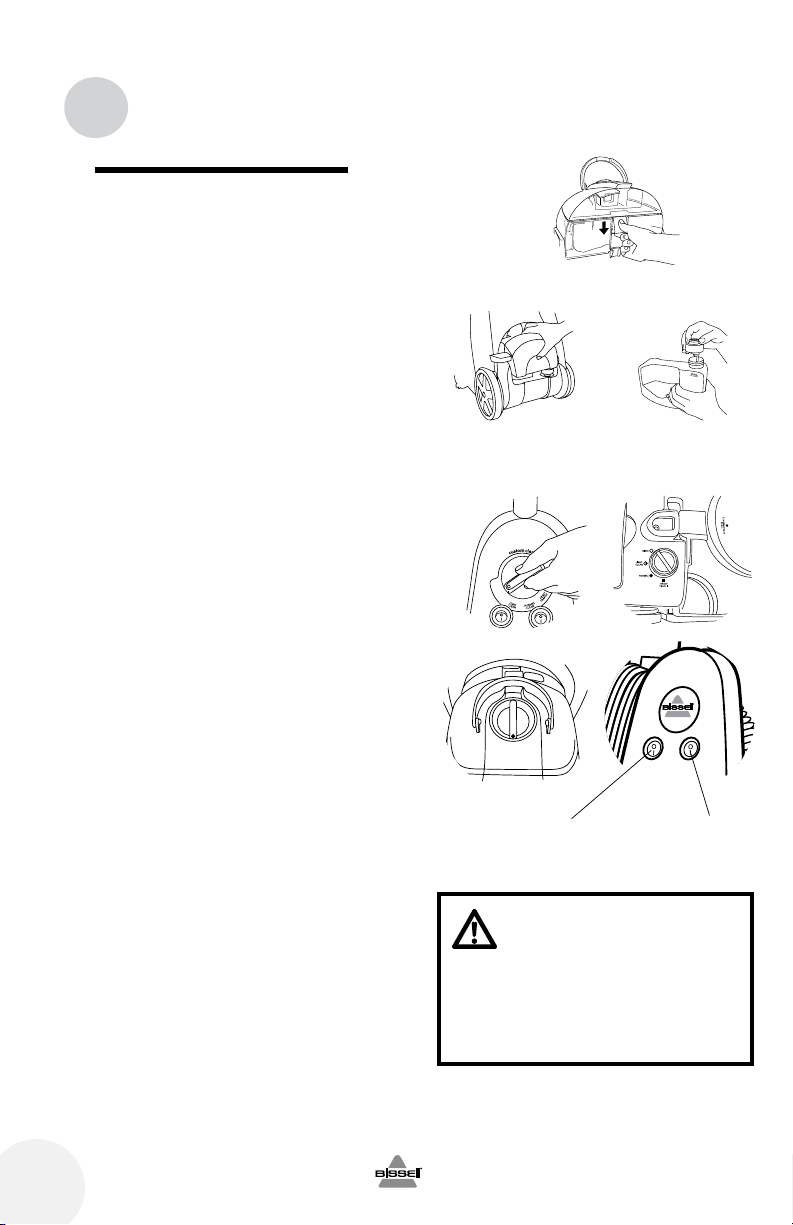

Easy to remove and clean nozzle
Now, cleaning up your machine after the
cleaning process is easier than ever! Simply
remove the 2-in-1 Tank and remove the screw
to pop out the nozzle for rinsing in the sink. Dirt,
loose carpet fibers and remaining pet hair or
fuzz get washed away in a snap.
ReadyTools™ dial
This provides either floor cleaning or above floor
cleaning with the turn of a knob. If choosing
above floor cleaning for upholstery, stairs, or for
those creases close to the baseboards, turn knob
to "TOOLS" and choose the attachment
appropriate for the job. Attach tool to the flex hose
and you are ready to go. Be sure to turn knob
back to "FLOOR CLEANING" when done.
www.bissell.com 800.237.7691
8
Loading...
