0.75 DIA.
REF.
9.12
1.44
1.50
1.50
0.63
0.88
3.92
ø 0.31 WITH 0.26 FLAT
#605 WOODRUFF KEY

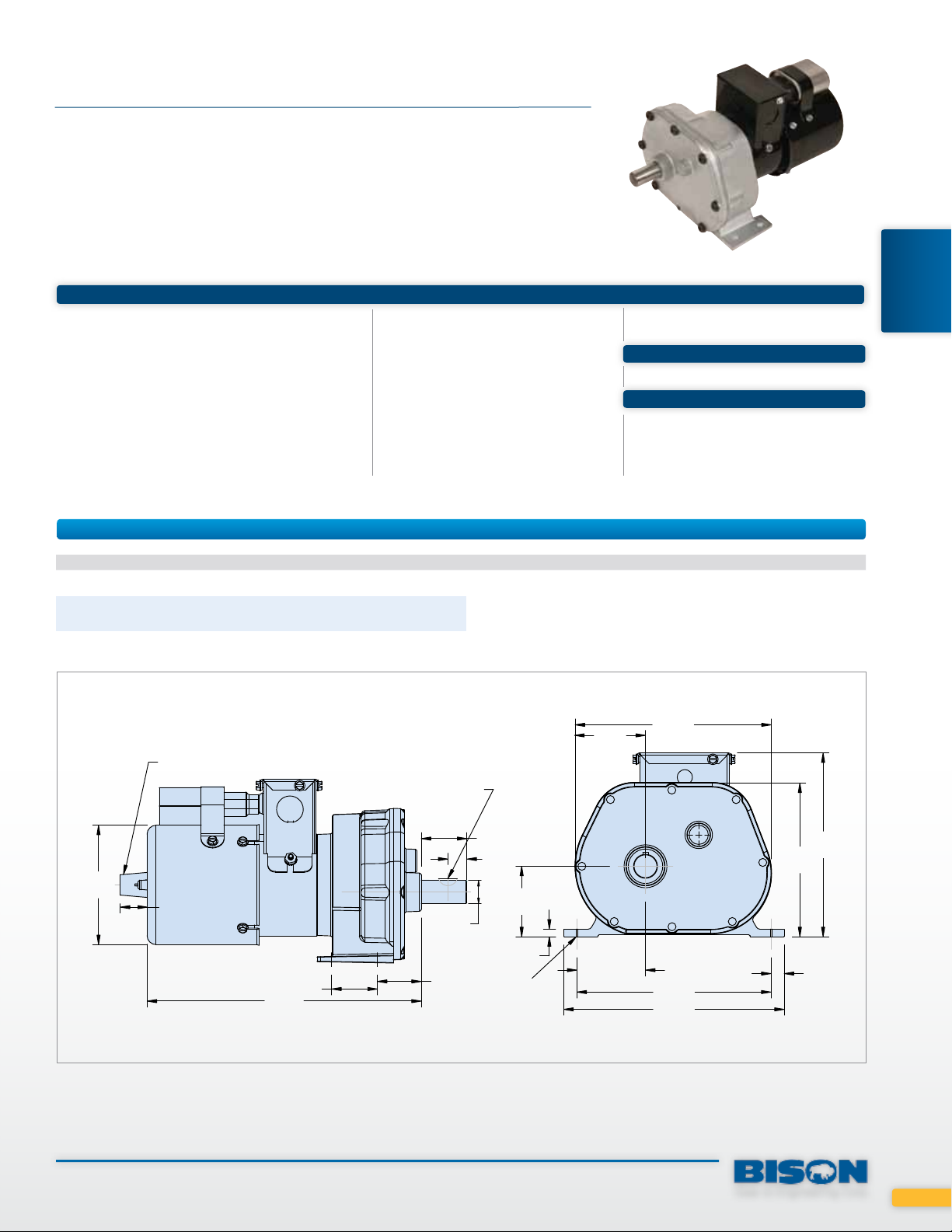

vWDir84 aC
115/230V PSC TEFC AC DESIGN
Our VWDIR84 offers up to 600 in-lbs of torque.
Specifications
Gearhead
Gearing: Phenolic high speed and
hardened steel
Housing: Precision machined die cast zinc
Lubrication: Grease
Bearings: Porous bronze sleeve
Motor
Motor Type: Permanent split capacitor
Rotation: Reversible
Bearings: Ball
Insulation: Class B minimum
Enclosure: TEFC
Shafts: Hardened steel
Mounting: All positions
Finish: Unpainted
Capacitor included
vWDir84 PsC 115v/230v
Model # Speed (RPM) Torque (in-lbs) Input HP Gear Ratio Stages OHL Amps Hz Shipping Wt.
016Q107-0081 20 250 1/12 81 3 250 1.2/.63 60/50 17
016Q107-0134 12 400 1/12 135 3 250 1.2/.63 60/50 17
016Q107-0267 6 600 1/12 267 3 250 1.2/.63 60/50 17.5
Features
Units comply with applicable UL
& CSA standards
Optional Features
Power off brake see pages 86-87
Additional Information
aC Parallel
shaft
GearMotors
All ratings are shown at 60Hz operation. Also operable at 50Hz at 5/6
of the rated speed.
vWDir84 aC
#605 WOODRUFF KEY
3.92
ø 0.31 WITH 0.26 FLAT
0.88
REF.
9.12
1.50
0.75 DIA.
1.44
1.50
0.63
2.25
0.25
9/32 DIA.
(4) HOLES
2.31
2.25
6.44
6.02
5.00
0.43
6.38
7.24
Gear & Engineering Corp.
41
