Installation and Operating
Instructions
•
•
™
This installation manual will help you
obtain a safe, efficient, dependable
installation for your fireplace and
chimney system. Please read and
understand these installation instructions
before beginning your installation.
CAUTION: Do not attempt to modify or
alter the construction of the fireplace or
its components. Any modification or
alteration of construction may void the
warranty, listings and approvals of this
system. In that case, Security Chimneys
International Ltd will not be responsible
for damages. Install the fireplace only as
described in these instructions.
SAVE THESE INSTRUCTIONS
FOR FUTURE REFERENCE
Hot! Do not touch! The glass
and surfaces of this appliance
will be hot during operation and
will retain heat for a while after
shutting off the appliance.
Severe burn may result.
• Carefully supervise children in
the same room as appliance.
If small children are present in the home, it
is recommended that this appliance be used
with a Firescreen kit.
WARNING: The fireplace cannot be
operated without a door. Consult your
dealer to select the correct door model of
your choice.
This fireplace is also certified for use in
mobile or manufactured homes
Listed to standards:
ULC-S610 UL-127
Report # 3011202
Printed in Canada Rev. 12 December 2009 PIBISULTIMA
2125 Monterey St., Laval, Quebec, Canada, H7L 3T6
TABLE OF CONTENTS
Page
1. SAFETY RULES
and Specifications for Mobile or Manufactured Home Installation
... 1
2. CERTIFICATION LABEL ................................................................................ 2
3. THE FIREPLACE ............................................................................................... 3
3.1 INTRODUCTION .................................................................................................................. 3
3.1.1 Parts Required
3.1.2 Additional Equipment (optional)
3.2 OPERATING THE BIS ULTIMA™ .................................................................................... 4
3.2.1 Fuel
3.2.2 First Fires
3.2.3 Building a Fire
3.2.4 Primary Air and Air Boost Controls
3.2.5 Accelerated Combustion
3.2.6 Medium Combustion
3.2.7 Slow Combustion
3.2.8 Refuelling For Best Performance
3.2.9 Smoking – Causes And Troubleshooting
3.3 MAINTAINING YOUR BIS ULTIMA ................................................................................. 8
3.3.1 Creosote
3.3.2 Chimney Maintenance
3.3.3 Top Baffle Removal Prior to Cleaning The Chimney
3.3.4 Dealing With a Chimney Fire
3.3.5 Finish Door Casing Care
3.3.6 Ashes
3.3.7 Refractory Installation
3.3.8 Door Installation
3.3.9 Door Adjustment
3.3.10 Glass Care – Replacement
3.3.11 Glass Care – Cleaning
3.3.12 Gasket Replacement
3.4 FIREPLACE INSTALLATION ............................................................................................ 12
3.4.1 Locating The BIS ULTIMA
3.4.2 Hearth Extension Requirements
3.4.3 Framing, Facing And Mantel
3.5 HOT AIR DUCTING INSTALLATION .............................................................................. 17

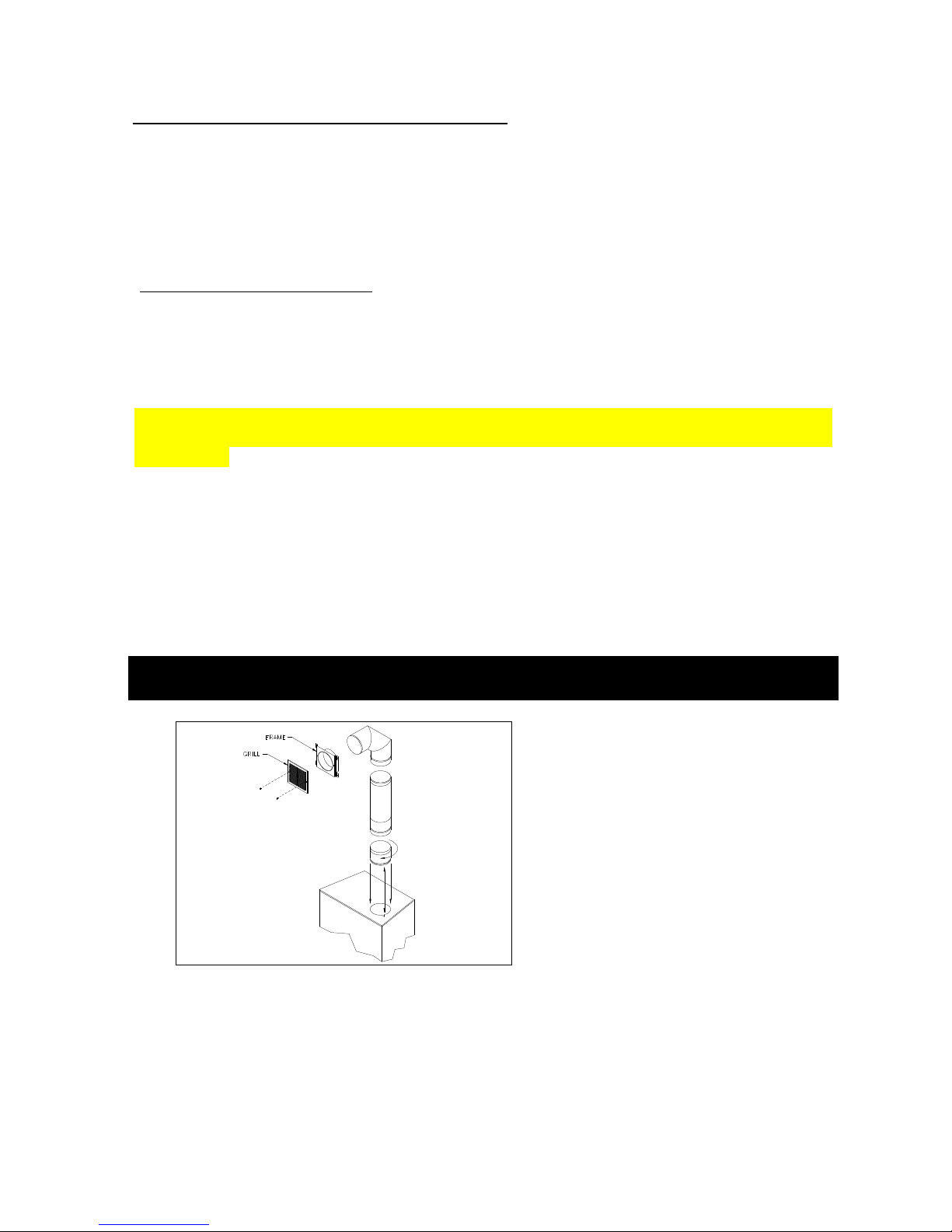

3.5.1 Gravity Kit
3.5.2 Central Forced Air Kit
3.6 OUTSIDE AIR KIT ............................................................................................................... 21
3.6.1 Outside Air Kit Installation
4. THE CHIMNEY .................................................................................................... 22
4.1 CHIMNEY INSTALLATION NOTES ................................................................................. 22
4.2 CHIMNEY INSTALLATION INSTRUCTIONS ................................................................. 23
4.3 OFFSET CHIMNEY INSTALLATION .............................................................................. 26

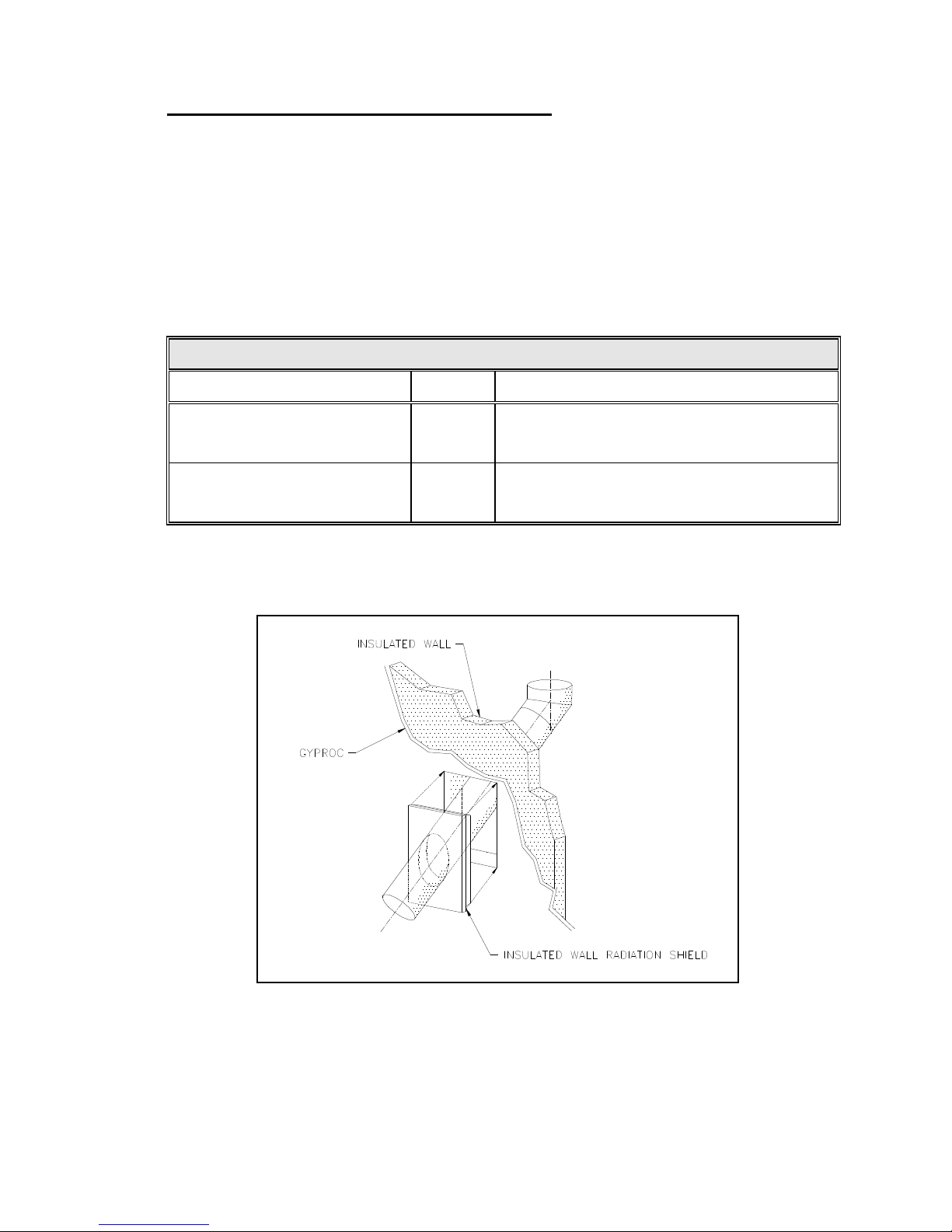

4.4 ANGLED WALL RADIATION SHIELD ............................................................................ 29
4.5 CHIMNEY SUPPORTS INSTALLATION .......................................................................... 30
4.6 MULTIPLE TERMINATIONS ............................................................................................ 30
4.7 CHIMNEY ADAPTOR (S-2100+ / HT6000+) ...................................................................... 31
4.8 INSTALLATION INSTRUCTIONS FOR MASONRY APPLICATION ............................ 32
5. PARTS AND COMPONENTS LIST ................................................................. 33
6. OPTIONS ............................................................................................................. 34
7. APPENDIX (Specifications, Clearances, Replacement Parts) ......................... 34
ii
1. SAFETY RULES FOR OPERATING YOUR
FIREPLACE MODEL BIS ULTIMA
• Use only a Security Fireplace glass door, specifically designed for the model BIS
ULTIMA™ fireplace.
• When cleaning the fireplace, the ashes should be placed in a metal container with a tight
fitting lid. The closed container of ashes should be placed on a non-combustible floor or
on the ground outside the house, pending final disposal. If the ashes are disposed of by
burial in soil or otherwise locally dispersed, they should be retained in the closed
container until all cinders have thoroughly cooled.
• When installed in a mobile or manufactured home:
• Mobile or manufactured home installations must be installed in accordance with
the requirements of the Department of Housing and Urban Development (HUD)
“Mobile Home Construction and Safety standards” for US or Canada Mortgage
and Housing Corporation (CMHC) for Canada.
• The fireplace must be fastened to the floor by unfolding and screwing the small
tabs on both sides at the bottom of the fireplace.
• It is necessary to have access openings, for inspection purpose only, into built-in
enclosures surrounding the fireplace installation. Such openings to require a
household tool for access.
• The vapor barrier of the mobile home shall be as close as possible of the location
where the chimney assembly penetrates the ceiling and roof structure with no
interference to the required clearance to combustible material.
• When the mobile or manufactured home has a flat roof, the Attic Radiation Shield
must be installed from below going through the roof (See figures 26a & 27a).
• Warning: Do not install in a sleeping room.
Warning: The fireplace must be operated with the doors fully opened or fully closed. If the
doors are left partly opened, smoke may be drawn into the room. If the unit is
operated with the doors fully opened, the optional firescreen must be used.
Caution
Caution: Keep combustible materials at least 48 inches away from the front of the
Caution: Never leave children unattended when there is a fire burning in the fireplace.
WARNING
: Never use gasoline, kerosene, charcoal lighter fluid or similar liquids to start
or rekindle a fire in this fireplace. Keep all such liquids well away from the
fireplace at all times.
fireplace opening.
: THIS FIREPLACE HAS NOT BEEN TESTED WITH AN UNVENTED OR
VENTED GAS LOG SET. TO REDUCE RISK OF FIRE OR INJURY, DO
NOT INSTALL AN UNVENTED GAS LOG SET INTO THIS FIREPLACE.
1
2. CERTIFICATION LABEL
2
3. THE FIREPLACE
3.1 INTRODUCTION
The BIS ULTIMA™ fireplace is an energy efficient, heat circulating, close combustion
fireplace. You will receive a lifetime of comfort and enjoyment from your fireplace
provided it is installed, maintained and operated properly.
• Please read these instructions and retain this manual for future reference.
• Before beginning the fireplace installation, consult the local authorities to obtain your
building permit and check your local building codes. Install the fireplace only as
described in these instructions and using only Security Chimneys International
components.
• The BIS ULTIMA is not intended for use with a gas log. Failure to follow these
instructions will void the certification and the warranty of the fireplace and may result in
an unsafe installation.
3.1.1 Parts Required
• Fireplace model BIS ULTIMA
• Door
• Outside air kit (included with fireplace)
• 6" diameter chimney model ASHT+, S-2100+, HT6000+, HT6103+ or AC
manufactured by Security Chimneys International only, including:
- Chimney lengths
- Elbows (where necessary)
- Associated components as per these installation instructions
3.1.2 Additional Equipment (optional)
• 5" flexible venting system (central forced air kit- Not EPA certified)
• Gravity venting system
• Panel for clean face option (only with gravity venting system)
• Rigid firescreen
• Fireplace fan kit
• Fireplace blower kit
• Blower speed control
3
3.2 OPERATING THE BIS ULTIMA™
3.2.1 Fuel
The BIS ULTIMA fireplace is designed to work best when fuelled with seasoned cordwood.
Hardwoods are preferred to softwoods since the energy content of wood is relative to its
density. Hardwoods will result in a longer burning fire and less frequent refuelling. A
moisture content of 15% to 20% (seasoned) is recommended. Wood that has been cut and
split and let to dry under a cover for a period of one year will usually meet that criteria.
Excessively wet wood will be difficult to burn and will result in lower efficiency, increased
creosoting and deposits on the glass and in the chimney. Excessively dry wood will burn
well but will also have higher emissions and shorter burning time.
Do not burn scrap or garbage, treated wood or wood such as driftwood from the ocean which
has been exposed to salt or other chemicals. Salt or chemicals can corrode the firebox and
chimney. Do not burn large amounts of paper, cardboard, Christmas tree branches or
building construction materials. Intense firing with these materials may overheat the
fireplace, causing damage to the unit, a fire or even possibly igniting a chimney fire if the
chimney is creosoted.
Processed firelogs can be used. Refer to warnings and cautions markings on the packaging
prior to use.
3.2.2 First Fires
Before using the fireplace make sure to remove the plastic wrapping on the door. Remove all
remaining glue with mild soap.
The first 5 or 6 fires should be small fires of short duration (about 30 to 60 minutes).
This will help cure the refractory bricks. The first fires may produce slight smoking due to
drying of the paint and steel and any dust accumulated on the fireplace will burn off at this
time. It may set off a smoke alarm located in the same room. For this reason the room
should be well ventilated for the first few fires.
3.2.3 Building a Fire
To start a fire, place several crumpled up balls of newspaper in the firebox. Place small dry
pieces of kindling on top of the paper, criss-crossing the kindling so that there are air spaces
in between. Keep the fuel far back enough so that air can get underneath. Open the air
controls fully and light the newspaper. Once the newspaper and the kindling is well ignited,
close the door. Once the kindling fire is well established, cordwood can be added. (see
Primary Air Combustion Control section for proper operation of the air controls)
The unit will burn best with 2-3 pieces of cordwood spaced 1 to 2 inches apart and allowing
air to get under the fuel. Criss-crossing or arranging the fuel so that air can get underneath,
will help the fire to get started easily. The unit should be operated with the air control fully
open long enough to get the cordwood well ignited.
4
3.2.4 Primary Air and Air Boost Controls
There is no flue damper in the BIS ULTIMA™ fireplace. As is common with air tight
stoves, the combustion air control sets the flow of air entering the firebox. This allows for a
more precise control of the fire. The combustion air control is located below the door on the
left side. The main source of air (primary air) entering the firebox can be diminished by
moving the air combustion control from left to right. The primary air is fully opened when
the air control is completely moved to the left. The air control device can also be used to add
an extra boost of air especially during fire start up and reloading of the unit. Pulling the air
combustion control will induce an air boost at the base of the fire allowing an easier fire start
up. When the fire is well established, the control can be pushed forward to shut down the air
boost allowing for a longer burn time. The combustion air control should be in the closed
position (primary air and air boost) when the fireplace is not in use. This will minimize air
leakage up the chimney. The combustion air control should be opened before opening the
door to minimize the possibility of back draft coming into the room.
ACCÉLÉRÉE
Figure 1
3.2.5 Accelerated Combustion
The maximum heat output for the BIS ULTIMA fireplace is achieved by burning with the
door closed and the combustion air opened and pulled back. By this method, the BIS
ULTIMA fireplace can produce up to 55,000 BTU of heat per hour. However, it will be
necessary to reload with wood every one or two hours. This is the least efficient method of
burning the BIS ULTIMA fireplace.
Use caution when firing with the combustion air control wide open. Only burn cordwood in
this manner. Small dry pieces of softwood and construction scraps will burn very intensely
using this method and may damage the firebox.
5
3.2.6 Medium Combustion
This is the recommended mode of operating the BIS ULTIMA™ fireplace and should be the
one normally used since it will deposit the least amount of creosote on the glass and in the
chimney. The combustion air control must be 3/4 closed and pushed forward to close the air
boost. The precise setting will depend on many factors, including chimney length and the
moisture content of the wood.
For instance, a long chimney will necessitate closing the damper more. To obtain the proper
combustion, close the damper completely, then open it about 1/4" to 1/2". Three medium
size pieces of wood should be burning on a bed of hot coals. The heat output will be
approximately 30,000 BTU per hour and the loading time will be about every 3-4 hours.
Softwoods may be burned using this method but the time will be substantially reduced.
3.2.7 Slow Combustion
When the air combustion control is completely closed, the fireplace is in a slow combustion
phase. If the hearth is hot enough, slow combustion will not stop the fire, but there will be a
noticeable change in the flame pattern. The flames will be slow and may appear dirty if the
wood is too wet (moisture content of 20% and more). Do not allow the wood to burn without
flame, since this will produce excessive creosote in the unit.
Creosote may accumulate on the glass door. This method of burning should be used only
after operating the BIS ULTIMA fireplace with the air control opened to produce a hot fire
for about an hour or at medium pace for at least 3 hours. Slow combustion can be used at
night in order to reduce the heat output and to prolong the burn. The loading time will be
between 6-8 hours.
3.2.8 Refuelling For Best Performance
The BIS fireplace will operate best if attention is given to operating the unit with the damper
fully opened after refuelling in order to bring the firebox and the chimney system up to their
optimum operating temperature. Combustion efficiency is relative to firebox temperature. A
temperature of 500º C and up, with a visible flame, in the upper part of the firebox indicates
a maximum efficiency. To obtain this temperature, the fireplace must be operated with the
primary air and air boost controls fully opened during 10 to 20 minutes after reloading,
depending on the heat and on the moisture content of the wood. Once you have reached the
desired temperature, the air boost can be closed and the primary air set to a medium setting.
You know you have reached the desired temperature when, closing the primary air control,
you can see a flame at the top of the firebox. The benefit of this technique will be cleaner
glass, less creosoting, greater efficiency and the most pleasing fire for your enjoyment. If
your fireplace is equipped with a central forced air system, make sure the central blower is
turned off during reloading to avoid smoking problems.
6
3.2.9 Smoking – Causes and Troubleshooting
To reduce the likelihood of smoking when opening the door, set the combustion air controls
to the left before opening the door. Your fireplace has been designed and tested to provide
smoke free operation. Occasionally, there may be a small amount of smoking upon lighting
the fire, until the chimney heats up but this should not continue. If the fireplace continues to
smoke it is probably for one of the following reasons:
A. Negative pressure in the house
As the fire burns, air goes up the chimney. This air must be replaced through leakage
into the house or through the outside air duct. When operating the BIS ULTIMA™
fireplace, open a nearby window temporarily to check if there is adequate air supply
replacement.
B. Fans operating (e.g.: range hood)
These fans draw air out of the house and may actually cause a negative pressure in the
house. Turn off all fans and open a nearby window to determine if this is the cause of the
problem.
C. Wet wood
Wet or tarred wood will smoulder and smoke instead of burn properly.
D. Dirty or blocked chimney
Check to make sure the chimney is clear and clean.
E. Chimney not long enough
The minimum chimney height is 12 ft. not including the fireplace height. The chimney
must extend at least 3 feet (915 mm) above its point of contact with the roof and at least 2
feet (610 mm) higher than any roof or wall within 10 feet (3 m) of it. When installed
with offsets, the minimum chimney height is 15 ft. Additional height will increase
draught and will decrease the tendency to smoke.
F. Poor chimney draft
With no fire, there should be sufficient draught to exhaust cigarette smoke introduced
under the baffle. Chimneys installed against an outside wall without protection may
generate back draught problems which will cause start-up problems. To prevent this,
open a nearby window, roll up a piece of paper and light it. Then, hold it in the upper
part of the firebox to warm up the chimney. Wait until the draught is sufficient, then start
the fire.
G. Blower for central forced air kit operating
Make sure that the blower is at the "off" position when you open the fireplace door for
reloading.
7
IMPORTANT NOTES
A. Do not block the hot air vents to the fireplace as this will cause the fireplace to overheat.
B. Never start a fire using gasoline, kerosene, charcoal lighter fluid or any other combustible
liquid.
C. Do not burn coal. The sulphur in coal will corrode the firebox.
D. Do not burn driftwood which has been in the ocean or salt water. The salt will corrode
the firebox and chimney.
E. Do not burn wood in the area in front of the grate.
F. Do not abuse the unit by burning paper, or cardboard or construction material such as
pressed wood, plywood or lumber.
G. Do not allow the wood to smoulder or burn without flame, since this will produce
excessive creosote in the unit.
3.3 MAINTAINING YOUR BIS ULTIMA™
3.3.1 Creosote
When wood is burned slowly without a flame, it produces tar and other organic vapors which
combine with expelled moisture to form a black deposit called creosote which accumulates
on the flue lining. When ignited, this creosote makes an extremely hot fire. If the creosote
accumulation is large, a creosote fire in the chimney can damage the chimney and overheat
the surrounding wood framing. Creosote formation in a chimney can be minimized by
making sure there is always visible flame burning, avoid smouldering fires and by proper
refuelling techniques.
3.3.2 Chimney Maintenance
Regular chimney inspection and maintenance combined with proper operation will prevent
chimney fires. Keep your chimney clean. Do not allow more than 1/16" creosote build up in
your chimney. The amount of creosote will depend on variables such as frequency of use
and type of fire. We recommend that you:
A. Initially inspect the chimney system weekly. From this, you will learn how often it will
be necessary to clean your chimney.
B. Have your chimney cleaned by a qualified chimney sweep. If you wish to clean it
yourself, we recommend using a stiff plastic or non-metallic brush. If a metal brush is
used, its size should be slightly smaller than the flue to avoid damaging the chimney. Do
not use a brush that will scratch the stainless steel interior of the chimney.
C. Do not expect chemical cleaners to keep your chimney clean. The rain cap can be
removed for inspection and/or cleaning of the chimney.
8
3.3.3 Top Baffle Removal Prior to Cleaning the Chimney
Before starting to clean your chimney, we recommend that you remove the top baffle to
avoid creosote dust collection at the top of the baffle. Follow these steps to set the top baffle
out of the way:
1. Remove the side refractory holder. They are located at the top of the refractory.
2. Lift the front baffle.
3. Slide the back baffle under the front baffle. You now have access to the chimney.
3.3.4 Dealing with a Chimney Fire
Regular chimney maintenance and inspection can prevent chimney fires. If you have a
chimney fire, follow these steps:
1. Close the fireplace door and the combustion air controls.
2. Alert your family of the possible danger.
3. If you require assistance, alert your fire department.
4. If possible, use a dry chemical fire extinguisher, baking soda or sand to control the fire.
Do not use water as it may cause a dangerous steam explosion.
5. Check outside to ensure that sparks and hot embers coming out of the chimney are not
igniting the roof.
6. Do not use the fireplace again until your chimney and fireplace have been inspected by a
qualified chimney sweep or a Fire Department Inspector.
3.3.5 Finish Door Casing Care
Use a glass cleaner and a soft cloth to polish the casing. Do not use abrasives such as steel
wool, steel pads or an abrasive polish for they may scratch the casing’s finish.
3.3.6 Ashes
Remove ashes only when the fire is out and the ashes are cold (24 to 48 hours after the fire is
out).
9
3.3.7 Refractory Replacement
The intense heat of the fire will normally cause hairline cracks in the refractory. These
cracks can be minimized by proper curing as described in "First fires". They will not
normally diminish the effectiveness of the refractory. If large cracks develop, then the
refractory should be replaced. To replace the refractory bricks, follow these steps:
1. Remove the front refractories
2. Remove the bottom refractory
3. Remove the left side refractory
4. Remove the right side refractory
5. Remove the back refractory
6. Remove the front ceramic baffle
7. Remove the rear ceramic baffle
To install the new refractories, follow
the above steps in reverse.
3.3.8 Door Installation
The door must be installed only when
the installation of the BIS ULTIMA™
fireplace is completed. All you have
to do is fit the male part of the hinge,
already on the door, to the female
part, which is on the fireplace.
To remove the door, simply pull the
door up from the hinges.
The door adjustment has been set at
the factory. If the fit is still not
perfect, you can adjust the door using
the hinge screws.
Figure 2
Figure 3
10
3.3.9 Door Adjustment
The door may need to be adjusted to
be completely airtight. The gaskets’
air-tightness can be adjusted using the
adjustment screw located on the right
side of the fireplace façade. (An Allen
key #1/8 – not supplied - will be
necessary for this adjustment)
3.3.10 Glass Care - Replacement
The glass used for the BIS ULTIMA™ fireplace is a high temperature ceramic glass (1400°
F). If the glass breaks, it must be replaced with an identical ceramic glass. Tempered glass
or ordinary glass will not withstand the high temperatures of the BIS ULTIMA fireplace.
Replacement glass should be purchased from a Security Chimneys International dealer (see
“Replacement Parts”, page 34). Do not operate the unit with cracked or broken glass.
3.3.11 Glass Care - Cleaning
The BIS ULTIMA fireplace is designed to keep the glass clean under normal operating
conditions. If the BIS ULTIMA fireplace is operated continuously with the combustion air
controls closed, the glass will tend to get dirty unless the fuel, firebox and glass are
maintained at hot temperatures (see "Refuelling for best performance”). To clean the glass,
there are a number of specially designed cleaners. Your authorized Security dealer can
recommend a suitable cleaner which is available in your area. Regular household glass
cleaners will not clean creosote. Do not use abrasives such as steel pads, steel wool or oven
cleaner as they will scratch the glass.
DO NOT USE CHEMICAL GLASS CLEANERS ON PAINTED SURFACES AS IT MAY
CAUSE THE PAINT TO PEEL.
CAUTION:
facade. Once closed, contact of glass cleaner with the fireplace facade can provoke paint
peeling off.
Do not allow window cleaner to get in contact with door gasket or paint on the
Figure 4
3.3.12 Gasket Replacement
Remove the door from the unit (see page 10) and lay them on a clean unabrasive surface. To
replace the gasket, first remove all of the old gasket and gasket cement. Make sure that the
surface is totally clean before applying new cement (a high temperature silicone caulking
rated at 500°F, 260°C, is suitable) or adhesion problems may result. Apply gasket cement to
the gasket channel and install the new gasket. This replacement part is available from your
Security dealer in the following dimensions:
Gasket
Around glass 69" 5/16" dia.
On door frame 73" 5/8" dia.
Length
11
Dimensions
3.4 FIREPLACE INSTALLATION
3.4.1 Locating the BIS ULTIMA™
A. The best location to install your fireplace is determined by considering the location of
windows, doors, and the traffic flow in the room where the fireplace is located, allowing
space in front of the unit for the hearth extension and the mantel, and taking into
consideration the location of the hot air ducts (optional), outside air kit and chimney. If
possible, you should choose a location where the chimney will pass through the house
without cutting floor or roof joists (see fireplace dimensions page 13).
B. Usually, no additional floor support is needed for the fireplace. The adequacy of the
floor can be checked by first estimating the weight of the fireplace system. Weights are
given in the appendix. Next, measure the area occupied by the fireplace which is
normally 36" X 24 ½". Note the floor construction and consult your local building code
to determine if additional support is needed.
C. The BIS ULTIMA fireplace may be installed directly on the floor or on a raised base (for
proper guidelines, refer to "Hearth Extension Requirements") and a minimum of 6'8"
measured from the base of the appliance to the ceiling is required.
D. When selecting the location, the chimney outlet position and the direction of the wind are
important factor affecting the chimney performance. To allow a maximum draft and to
reduce wind turbulence, the chimney must:
• Penetrate the highest part of the roof.
• Be installed as far as possible of roof offsets, trees or any other obstructions that
may cause wind turbulence and back drafts in the chimney.
• The least amount of offsets (elbows) possible.
Note : a maximum of 2 offsets is allowed.
12
3.4.2 Hearth Extension Requirements
Non
fireplace and the hearth
The BIS ULTIMA™ fireplace may be installed directly on a combustible floor; however, the
combustible floor in front of the fireplace must be covered with a non-combustible material
(tile, marble, stone, etc.). The supplied safety metal strip must be positioned as follows : One
half under the front of the fireplace and the other half must extend on the floor over which
the hearth extension will be built (figure 5b).
* The safety metal strip must cover the entire width of the fireplace.
The crack between the
extension must be
sealed with a noncombustible material
such as sand-cement
grout
Safety metal strip
Hearth extension
-combustible
material
Figure 5a
Figure 5b
Elevated fireplaces
(Figure 6)
Elevated fireplace installations require a special
‘Z’ metal safety strip (field provided), in place of
the safety metal strip shown on Figure 5b. The
safety strip should extend the full width of the
fireplace. When more than one safety strip is used
they must overlap by a minimum of 1″.
Hearth extension of an elevated fireplace must respect
the same minimal dimensions as a fireplace installed
directly on the floor (figure5a).
3.4.3 Framing, Facing and Mantel
The construction of the framing, facing, and mantel must be in accordance with the standards
and the following illustrations (figures 7 to 11):
Floor
Fireplace
‘Z’ safety strip
Figure 6
A. Frame the fireplace using 2" x 3" or heavier lumber.
B. WARNING: Combustible materials cannot be used in the space directly above the
fireplace, except for the studs above the facade that support the facing and mantel. This
area must remain empty for a height of 6'8" (2032 mm)
appliance.
measured from the base of the
13
C. Frame the fireplace with vertical studs at the sides of the fireplace running from floor to
ceiling (see figure 8). If combustible facing is to be used, position the studs back, from
the front edge of the fireplace, a space the thickness of the facing material so that the
facing can be installed flush with the fireplace facing. Frame headers between the
vertical studs only as follows:
- Place 2" x 3" or 2" x 4" headers, only along the upper part of the front, side and back
faces. Do not put wood or any combustible material within the area above the
fireplace except on the front facing.
- Place headers only as required to support the facing and mantel.
D. WARNING: The fireplace must not be in contact with any insulation or loose filling
material. Cover the insulation with drywall panels around the fireplace.
Figure 7
Figure 8
Figure 9
Figure 10
14
INSULATED CHASE CONSTRUCTION
Nailing flange
Figure 11
Nailing Flanges
Four nailing flanges are provided to secure the
fireplace on the floor (see figure beside).
Bend the nailing flanges down so each flange
is flush with the floor, then using nails or
screws, secure the fireplace to the floor (2
places each side). The heads of the screws
must be large enough to cover the holes on the
nailing flanges.
15
Unbend to floor
and nail/screw
Facing
1. Combustible material must be installed flush with the fireplace. It may not project in
front of and on the fireplace (i.e. the steel façade of the fireplace) (figure 12).
2. Non-combustible materials such as brick, stone or ceramic tile may project in front of
and onto the fireplace facing (figure 13).
Mantel
The mantel must be installed at least 45" (1143 mm) above the base of the fireplace (figure
12).
Figure 12
Figure 13
16
3.5 HOT AIR DUCTING INSTALLATION
Different hot air ducting systems can be installed with the BIS ULTIMA™ :
- Gravity kit
- Forced air kit
3.5.1 Gravity Kit
Double hot air outlet including: (See Fig.15)
- 2 telescopic lengths 8" I.D.
- 2 90º elbows 8" I.D.
- 2 hot air outlet kits (grill and frames)
- 2 adaptors
NOTE : If the fireplace is vented using the AC chimney and the single hot air outlet is
installed, the chimney must be offset towards the back using 2 – 30 deg. elbows back to back on
the fireplace.
See components list page 33.
The only fan that can be used with the gravity kit is the UZY5.
The gravity kit allows you to block the upper louver of the fireplace. To do so, follow the
steps below:
a) Remove the upper louver from the fireplace.
b) Install the black panel (BUCF) making sure that the insulation strip is installed inside.
c) The fireplace façade can be covered with non-combustible material (fig. 18).
WARNING: both pipes of the double hot air outlet must be installed. Any other
installation may cause fire and void warranty.
Figure 15
The safety rules for hot air ducting gravity kit installations are the following:
Minimum height* 68" (1727 mm)
Maximum length See figure 16
The height of the louver must be measured from the base of the BIS to the middle point of
the louver.
17
When installing the double outlet system, the hot air outlets can be installed in the same room
as the fireplace, or one or both of the outlets can be installed in adjacent or upper rooms.
Installing the ducts at different elevations will tend to exhaust more heat out of the higher
outlet (figure 16).
Figure 16
Figure 18
18
The duct system must be installed respecting the following:
1. Remove the plates closing up the 8" dia. holes on top of the fireplace. Then, cut the
insulation in order to obtain two 8" dia. openings. Fix the adaptors on the fireplace
openings by turning clockwise (figure 15).
2. Maintain at least a 2" (50 mm) clearance between the ducts and any combustible
material; the required hole size is 13" x 13" (330 mm x 330 mm).
Exception #1: For the grills, the framing can be 10 ¾" x 10 ¾" (275 mm x 275 mm) to
provide the clearance as required by the integral spacers on the double outlet duct system.
3. The maximum number of elbows in a run of duct is two.
4. Maintain at least 6 ½" (160 mm) clearance from the outlet grill framing to a combustible
ceiling, side wall or mantel.
5. When traversing a combustible wall or floor, a firestop must be installed at the wall or
floor penetration. The hole size must be 13" X 13". (330 mm x 330 mm)
6. Do not connect the hot air ducts to a central heating system. Malfunction of the heating
system’s fan will cause the fireplace to overheat. A furnace duct is only single wall and
not double wall as is required for the BIS ULTIMA™ fireplace hot air exhaust.
7. Use only Security Chimneys International grills and components as described in this
manual. Other grills or registers, for example, may be too restrictive and may overheat
the fireplace or ceiling.
8. Do not use insulated flexible ducts as they will overheat.
9. Do not use tees or any other components than the ones specifically listed here.
10. All ducts must extend upwards or horizontally. Never route the ducting downwards.
11. The hot air outlet grills must be installed with the louvers pointing downwards in order to
prevent overheating adjacent ceilings.
12. Always install the two outlet grills when using the double hot air outlet kit and blocking
the upper louver of the fireplace.
19
3.5.2 Central Forced Air Kit (Not tested under EPA certification)
The knock-outs provided on the back and on the sides of the BIS ULTIMA™ fireplace allow
the connection of insulated flexible pipe which enables you to heat adjacent rooms up to 50
feet from the fireplace.
The ducting system must be installed as described below :
A) Fix the adaptor at the back and/or the side of the fireplace by twist-locking the adaptor to
the fireplace. You can use more than one outlet on the fireplace (figure 19).
B) Attach the 5" flexible pipe, using the collars provided. Important: Make sure that the
plastic wrapping around the flexible pipe will not be in contact with the fireplace.
C) Route the flexible pipe to the chosen location. The ducting system can be installed either
in an upper room or in a lower room.
D) Attach the flexible pipe to the fan, using the collars (figure 20).
E) Fix the backdraft damper to the fan outlet.
F) Attach a flexible pipe to the fan / flexible pipe adapter (square to round) and stretch it up
to the location where the heat is required.
G) At that point, the flexible pipe can be attached to any air distribution grill. It is possible to
connect a flexible pipe to a central heating system. Make sure the pipe will be connected
to the warm air supply duct, not to the return air duct (figure 21).
H) Install the blower heating and cooling thermostat (HCTW) in that part of the house to be
heated by the hot air duct. The thermostat can be switched to a cooling thermostat and
installed in the same room as the unit. This thermostat will turn on the blower when the
room where the fireplace is located becomes too hot.
This option requires electricity. Make sure that the connections to the fan have been made
according to the local codes and comply with their requirements (see instruction provided
with the thermostat).
Figure 19
Figure 20
20
3.6 OUTSIDE AIR KIT (Optional)
During operation, the fireplace requires fresh air for combustion and draws air out of the
house. It may starve other fuel burning appliances such as gas or oil furnaces. As well,
exhaust fans may compete for air, causing negative pressure in the house, resulting in smoke
entering the house from the fireplace. This situation is aggravated in modern airtight houses.
To overcome this problem, we strongly recommend that you install an outside air assembly.
Check with local authorities having jurisdiction in your area, it may be mandatory.
NOTE: Should you decide not to install the outside air assembly, proceed as follows
- Remove the bottom grill. The air box is located on front left and is on a slant.
Unscrew the four screws holding the inside air box covering plate and remove it.
3.6.1 Outside Air Installation
The outside air assembly may be installed according to the following requirements :
A) Duct length should be kept to a minimum. The maximum length of a 4" I.D. (100mm)
insulated flexible duct is 20 ft. (6.1 m). The duct can be extended to a maximum of 40 ft.
(12 m) using a 6" I.D. (150mm) insulated flexible duct (See note below).
B) The air intake register must not be installed more than 10 ft. (3050 mm) above the base of
the fireplace.
C) The fresh air must come from outside the house. The air intake must not draw air from
the attic, from the basement or garage.
D) The air intake should be installed where it is not likely to be blocked by snow or exposed
to extreme wind and away from automobile exhaust fumes, gas meters and other vents.
E) The duct and register may be installed above or below floor level.
The following components are required : - Outside air kit (UZI)
- 4" adapter for fireplace connection (supplied
Make a 4 ¼" (110 mm) hole in the outside wall of the house at the chosen location. From
outside, place the outside air register in the hole (open side down) and fasten the register to
the wall, with screws as shown (see figure 22). Slip the pipe into the insulated sleeve. Place
the insulated pipe over the register tube and over the fireplace’s outside air connector (see
figure 23). At each end, carefully pull back the insulation and plastic cover exposing the
flexible pipe. Using the aluminium tape provided, wrap the tape around the joint between
the flexible pipe and the air inlets. Carefully push the insulation and plastic cover back over
the pipe. Using aluminium tape, fasten the plastic cover in place.
NOTE: We recommend not to exceed 20 feet of 4” flexible pipe. If you require a longer
length we recommend that you use a 5” diameter flexible pipe for the complete run up to 30
feet and a 6” diameter pipe for a run of up to 40 feet.
with the unit)
Figure 22 Figure 23
21
4. THE CHIMNEY
4.1 CHIMNEY INSTALLATION NOTES
1. If possible, install an interior chimney as it will provide better performance. In areas with
continuous temperatures below -18° C (0° F), the use of an exterior chimney increases the
likelihood of operating problems such as low draught, high rate of creosoting, and poor
start-up characteristics. Exterior chimneys are also prone to down-drafting and flow
reversal. Installations, which are located on lower floors in the house, such as in a
basement, in combination with outside chimney, are especially prone to flow reversal.
NOTE : In areas where winter temperatures are normally below freezing, the air cooled chimney
may produce condensation. This condensation may corrode the top of the fireplace and is not
covered under warranty. For optimum performance of your fireplace, Security Chimneys
International recommends the use of an ASHT+/HT6103+ or S2100+/HT6000+ chimneys.
2. The Security fireplace model BIS ULTIMA™ fireplace is listed only with Security
Chimneys International Ltd 6" diameter chimney systems.
3. A chimney venting a fireplace shall not vent any other appliance.
4. The minimum chimney height is 12 ft. (3.7 m).
5. All chimney installations must include at least one support. Reducing the amount of
chimney weight on the fireplace will help avoid the noise created when the fireplace
expands. This can be achieved by having the chimney supported by the supports. The
maximum chimney length that can be supported by the fireplace is 9 ft. (2.75 m) for
S-2100+/HT6000+, 12 ft. (3.7 m) for ASHT+ / HT6103+ and 26 ft. (8 m) for AC
chimney. In altitude, add 18" (450 mm) to the chimney for every 2000 feet (600 m) above
sea level.
6. The chimney must extend at least 3 ft. (915 mm) above its point of contact with the roof
and at least 2 ft. (610 mm) higher than any wall, roof or building within 10 ft. (3m) of it
(Figure 24).
7. If the chimney extends higher than 5 ft.
(1500 mm) above its point of contact with
the roof, it must be secured using a roof
brace.
8. A rain cap must be installed on top of the
chimney. Failure to install a rain cap may
cause corrosion problems.
9. Cut and frame square holes in all floors,
ceilings, and roof that the chimney will go
through to provide a 2" (50 mm)
clearance between the chimney and any
combustible materials. Do not fill this 2"
space with insulation or any other
combustible material.
10.
Portions of the chimney which may
extend through accessible spaces must be
enclosed to avoid contact with
combustible materials or damage the
chimney.
Figure 24
22
4.2 CHIMNEY INSTALLATION INSTRUCTIONS
1. Cut and frame the holes in the ceiling, floor and roof where the chimney will pass (see figure 25).
Use a plumb bob to line up the center of the holes. The sizes are indicated in table 1 for the floor
and ceiling holes and table 2 (page 24) for the roof holes.
CHIMNEY
MODEL
ASHT+ / HT6103+ 12 3/8" (314 mm)
S-2100+ / HT6000+ 14 1/8" (359 mm)
AC 15 " (380 mm)
Table 1 Figure 25
SQUARE HOLE SIZE
OPENING
2. From below, install a firestop in each ceiling/floor separation through which the chimney will
pass. At the attic level, install an attic radiation shield from above (figures 26 & 27).
3. For ASHT+ / HT6103+ and S-2100+ / HT6000+ chimneys, place the first chimney length on the
fireplace. To lock it in place, turn ¼ of a turn clockwise. With the AC chimney, you must use a
starter section before installing the first chimney length (figure 28). Continue installing chimney
lengths making sure to lock each length in place.
4. Every time the chimney passes through a ceiling or a wall, install the appropriate firestop. When
you reach the desired height, install the roof support. (Refer to instructions included with the
support).
5. Then, put the roof flashing in place and seal the joint between the roof and the flashing with
roofing pitch (see figures 29 & 30). For sloping roofs, place the flashing under the upper shingles
and on top of the lower shingles. Nail the flashing to the roof, using roofing nails.
6. Place the storm collar over the flashing, and tighten it with the bolt supplied. Finally, seal the
joint between the storm collar and the chimney, using silicone caulking.
7. Install the chimney cap.
Figure 26 Figure 26a
23
Figure 27
Figure 27a
AC CHIMNEY INSTALLATION
(AIR COOLED GALVALUME CHIMNEY)
Mandatory chimney
outside air intake
Outside air kit
Figure 28
24
NOTE : outside air kits are mandatory
for AC chimney and recommended for
the fireplace.
25
Figure 29
Figure 30
Table 2
ROOF DOWN SLOPE HOLE SIZE
SLOPE ASHT+ / HT6103+ S-2100+ / HT6000+ AC
Roof Pitch
6" 6" 6"
0 *
12 3/8" (314 mm) 14 1/8" (359 mm) 15" (380 mm)
2/12 12 9/16" (319 mm) 14 3/8" (365 mm) 15 3/8" (390 mm)
4/12 13" (330 mm) 14 7/8" (378 mm) 16 1/8" (410 mm)
6/12 13 7/8" (352 mm) 15 ¾" (400 mm) 16 7/8" (430 mm)
8/12 14 7/8" (378 mm) 17" (432 mm) 18 1/4" (465 mm)
10/12 16 1/8" (410 mm) 18 3/8" (467 mm) 19 5/8" (500 mm)
12/12 17 1/2" (445 mm) 20" (508 mm) 21 3/8" (545 mm)
*
CROSS SLOPE HOLE SIZE
AC CHIMNEY
4.3 OFFSET CHIMNEY INSTALLATON
The minimum chimney height when using elbows is:
Fireplace model BIS ULTIMA
Chimney model ASHT+ / HT6103+ / S-2100+ / HT6000+ / AC
Vertical installation 12 ft. (3.66 m)
Two (2) elbows 15 ft. (4.57 m)
Four (4) elbows 17 ft. (5.18 m)
Table 3
NOTE : A maximum of 2 offsets is allowed.
After reaching the location requiring the elbow, proceed as follows:
ASHT+ / HT6103+ / S-2100+ / HT6000+ Chimneys
1. Install the first elbow; turn it in the required direction. Fasten it to the chimney with the three
(3) ½" (12 mm) metal screws provided with the elbow.
2. Install the necessary chimney lengths to achieve the required offset. Lock the chimney lengths
together: it is recommended to use three (3) ½" (12 mm) screws. If the offset length is made
of two (2) chimney lengths or more, use an offset or roof support halfway up the offset. If
penetrating a wall, install a wall radiation shield (see figures 32 & 33).
3. Use another elbow to turn the chimney vertically. Secure the elbow, using three (3) ½" (12
mm) screws (provided with the elbow).
4. Use a plumb bob to line up the centre of the hole. Cut a hole for the chimney in the
ceiling/floor. Frame this hole as described previously (refer to page 22).
5. From below, install a firestop (See figure 26).
6. A support (ST+ or SO+) must be used on the first 15’ section (5 m.).
7. Continue with the regular installation.
AC Chimney
1. Install the first elbow. Turn it in the required direction. To lock it in place, turn 1/8 of a turn.
Fasten the straps attached to the elbow to the surrounding frame, using nails or drywall screws
(figure 31).
2. Install the necessary chimney lengths to achieve the required offset. Lock the chimney
lengths together. If penetrating a wall, use a wall radiation shield.
3. Use another elbow to turn the chimney vertically. Lock it to the chimney. Fasten the straps
attached to the elbow to the surrounding framing using nails or drywall screws.
4. Use a plumb bob to line up the centre of the hole. Cut a hole for the chimney in the ceiling.
Frame this hole as described previously.
5. From below, install a firestop. (see figure 27).
6. Continue with the regular installation.
N.B. : An AC-SB starter section must be used before installing an elbow. When an offset is
needed immediately off the top of the fireplace, a starter section allowing a 4" offset (AC-SBO) is
available.
26
27
CHIMNEY
6”
ELBOW
DEVIATION
& HEIGHT
ONE LENGTH BETWEEN ELBOWS TWO LENGTHS BETWEEN ELBOWS
8” 12” 18” 24” 36” 48” 8” & 48” 12” & 48” 18” & 48” 24” & 48” 36” & 48” 48” & 48”
Secure
Temp
ASHT+
Nova
Temp
HT6103+
15º
DEVIATION
3 5/16"
(84mm)
4 5/16"
(110mm)
5 7/8"
(149mm)
7 7/16"
(189mm)
10 1/2"
(267mm)
13 5/8"
(346mm)
15 3/8"
(391mm)
16 7/16"
(418mm)
18"
(457mm)
19 1/2"
(495mm)
22 5/8"
(575mm)
25 3/4"
(654mm)
HEIGHT
15 11/16"
(398mm)
19 9/16"
(497mm)
25 3/8"
(645mm)
31 3/16"
(792mm)
42 3/4"
(1086mm)
54 3/8"
(1381mm)
60 15/16"
(1548mm)
64 13/16"
(1646mm)
70 9/16"
(1792mm)
76 3/8"
(1940mm)
87"
(2210mm)
99 9/16"
(2529mm)
30º
DEVIATION
7 7/16"
(189mm)
9 7/16"
(240mm)
12 7/16"
(316mm)
15 7/16"
(392mm)
21 7/16"
(545mm)
27 7/16"
(697mm)
30 13/16"
(783mm)
32 13/16"
(833mm)
35 13/16"
(910mm)
38 13/16"
(986mm)
44 13/16"
(1138mm)
50 13/16"
(1291mm)
HEIGHT
20"
(508mm)
23 ½"
(597mm)
28 11/16"
(729mm)
33 7/8"
(860mm)
44 1/4"
(1124mm)
54 11/16"
(1389mm)
60 9/16"
(1538mm)
64 "
(1627mm)
69 1/4"
(1759mm)
74 7/16"
(1891mm)
84 13/16"
(2154mm)
95 1/4"
(2419mm)
45º
DEVIATION
10 5/16"
(262mm)
13 3/16"
(335mm)
17 3/8"
(441mm)
21 5/8"
(549mm)
30 1/8"
(765mm)
38 5/8"
(981mm)
43 7/16"
(113mm)
46 1/4"
(1175mm)
50 1/2"
(1283mm)
54 3/4"
(1391mm)
63 1/4"
(1607mm)
71 11/16"
(1818mm)
HEIGHT
17 13/16"
(452mm)
20 5/8"
(524mm)
24 7/8"
(632mm)
29 1/8"
(740mm)
37 5/8"
(956mm)
46 1/8"
(1172mm)
50 15/16"
(1294mm)
53 3/4"
(1365mm)
58"
(1473mm)
62 1/4"
(1581mm)
70 3/4"
(1797mm)
79 3/16"
(2011mm)
CHIMNEY
6”
ELBOW
DEVIATION
& HEIGHT
ONE LENGTH BETWEEN ELBOWS TWO LENGTHS BETWEEN ELBOWS
8” 12” 18” 24” 36” 48” 8” & 48” 12 & 48” 18 & 48” 24” & 48” 36” & 48” 48” & 48”
Secure
Temp
S2100+
Nova
Temp
HT6000+
15º
DEVIATION
3 5/16"
(84mm)
4 5/16"
(110mm)
5 7/8"
(149mm)
7 7/16"
(189mm)
10 1/2"
(267mm)
13 5/8"
(346mm)
15 1/2"
(394mm)
16 1/2"
(419mm)
18 1/16"
(459mm)
19 5/8"
(498mm)
22 3/4"
(578mm)
25 13/16"
(656mm)
HEIGHT
16"
(406mm)
19 7/8"
(505mm)
25 11/16"
(652mm)
31 1/2"
(800mm)
43 1/16"
(1094mm)
54 5/8"
(1387mm)
61 7/16"
(1561mm)
65 1/4"
(1657mm)
71 1/16"
(1805mm)
76 7/8"
(1953mm)
88 1/2"
(2248mm)
100 1/16"
(2542mm)
30º
DEVIATION
7 3/8"
(187mm)
9 3/8"
(238mm)
12 3/8"
(314mm)
15 3/8"
(391mm)
21 3/8"
(543mm)
27 3/8"
(695mm)
30 7/8"
(784mm)
32 7/8"
(835mm)
35 7/8"
(911mm)
38 7/8"
(987mm)
44 7/8"
(1140mm)
50 7/8"
(1292mm)
HEIGHT
20 11/16"
(525mm)
24 3/16"
(614mm)
29 3/8"
(746mm)
34 9/16"
(878mm)
44 15/16"
(1141mm)
55 5/16"
(1405mm)
61 3/8"
(1559mm)
64 7/8"
(1648mm)
70 1/16"
(1780mm)
75 1/4"
(1911mm)
35 5/8"
(2175mm)
96"
(2438mm)
CHIMNEY
6”
ELBOW
DEVIATION
& HEIGHT
ONE LENGTH BETWEEN ELBOWS TWO LENGTHS BETWEEN ELBOWS
--- 12” 18” --- 36” 48” --- 12" & 48" 18" & 48" --- 36” & 48” 48” & 48”
AC 6"
15º
DEVIATION
---
4 13/16"
(122mm)
6 1/8"
(156mm)
11"
(280mm)
14 1/8"
(359mm)
16 7/8"
(429mm)
18 7/16"
(468mm)
23"
(584mm)
26 3/16"
(665mm)
HEIGHT
---
27 11/16"
(703mm)
33 ½"
(851mm)
50 7/8"
(1292mm)
65 ½"
(1588mm)
72 5/8"
(1845mm)
78 7/16"
(1992mm)
95 ¾"
(2432mm)
107 3/8"
(2727mm)
30º
DEVIATION
---
9 3/8"
(238mm)
12 3/8"
(314mm)
21 3/8"
(543mm)
27 3/8"
(695mm)
32 5/8"
(829mm)
35 5/8"
(905mm)
44 5/8"
(1134mm)
50 5/8"
(1286mm)
HEIGHT
---
25 ¾"
(654mm)
31"
(878mm)
46 ½"
(1181mm)
57"
(1448mm)
66"
(1676mm)
71 ¼"
(1810mm)
86 7/8"
(2207mm)
97 ¼"
(2470mm)
*** NOTE : With the ACBI chimney, a starting length of 6” high must be used on top of the fireplace before installing an elbow ***
Table 4
TOTAL HEIGHT
DEVIATION
Figure 31
Figure 32
28
4.4 ANGLED WALL RADIATION SHIELD
(RSM+, RSMI30, RSMI45)
When traversing a combustible wall with the chimney at a 30º or 45º angle, an angled
firestop or wall radiation shield must be installed. Only one is required.
Note: 45º angle for Canada only
In cold climate locations, we recommend that you use the insulated wall radiation shield
since it will maintain the home’s thermal barrier.
RSM+ and RSMI30, RSMI45
CHIMNEY MODEL ANGLE HOLE SIZE
ASHT+ / HT6103+ (6" dia.) 30º 283 mm x 781 mm (11 1/8" x 30 ¾")
Canada only 45º 283 mm x 518 mm (11 1/8" x 20 3/8")
S-2100+ / HT6000+ (6" dia.) 30º 327 mm x 881 mm (12 7/8" x 34 11/16")
AC (6" dia.) 30º 380 mm x 972 mm (15" x 38 ¼")
Table 5
Figure 33
29
4.5 CHIMNEY SUPPORT INSTALLATION
Universal Roof Support
This support has three possible uses:
1. For ASHT+ / HT6103+ and S-2100+ / HT6000+, it must be used on a roof to support
the chimney.
2. It may be used on a floor, ceiling or roof above an offset to support the chimney
above the offset.
3. It may be used on a floor, ceiling or roof as a supplementary support
Table 6 gives maximum height of supported chimney.
NOTE: For the AC chimney, a support section must be used every 40 ft. (12 m) instead
of the universal roof support (ST).
For roof support installation, refer to the instructions provided with the support.
Universal Offset Support
This support is used to support the chimney above an offset. When the chimney offset is
used to traverse a wall this support may be used on the wall to support the chimney. The
maximum heights are given in Table 6. For offset support installation, refer to the
instructions provided with the support.
CHIMNEY MODEL MAXIMUM HEIGHT OF SUPPORTED CHIMNEY
ASHT+ / HT6103+ (6" dia.) 28 ft. (8.54m) 29 ft. (8.84 m)
S-2100+ / HT6000+ (6" dia.) 18 ft. (5.49 m) 20 ft. (6.1 m)
AC (6" dia.) 40 ft. (12.19 m) 50 ft. (15.20 m)
OFFSET SUPPORT
ROOF SUPPORT
Table 6
4.6 CHIMNEY CHASE AND MULTIPLE TERMINATIONS
For the purpose of this manual, a chimney chase is considered a part of the chimney
system rather than part of a building. The termination must be placed a minimum of 18"
(460 mm) above the chase.
For installations where more than one chimney is located in the same chase or within the
same area, we suggest that their terminations be separated by at least 16" (410 mm)
horizontally, and 18" (460 mm) vertically. This separation is to prevent smoke migrating
from one chimney to another (see figure 34).
30
Figure 34
4.7 CHIMNEY ADAPTOR (S-2100+ / HT6000+)
The fireplace is normally supplied with a chimney adaptor suitable for the ASHT+ /
HT6103+ chimney. If you want to install a S-2100+ / HT6000+ chimney, an adaptor is
available (6UCA) (figure 35). A separate starter section will also be required if AC
chimney is installed.
Figure 35
31
4.8 INSTALLATION INSTRUCTIONS FOR MASONRY APPLICATION
Position the fireplace in its location.
WARNING: Before starting the installation, the masonry chimney must be
inspected by a qualified sweep.
The following requirements must be respected:
1. The chimney must be absolutely clear of any soot residue or creosote. Check for cracks, loose or missing
bricks that could inhibit correct installation of the liner.
2. The clearance to combustible must be a minimum of 1" between the outside of the masonry and any wood
framing or loose insulation.
3. The chimney must be built in accordance with the current building code.
4. No other appliance can be connected to the same chimney.
5. The clearances to combustible for the BISUMA or BISPMA and BISUMA30 or BISPMA30 connectors are
2" on the side and bottom and 16" at the top.
6. The connector parts are not necessary if the connection between the insulated length and the stainless
steel liner is done within the masonry chimney.
Installation
The chimney must be relined with a stainless steel liner model Tubinox or Projet SS of the same diameter
as the outlet of the fireplace.
For connection at 45º angle, a special connector (BISUMA for the BIS Ultra™ and BIS Ultima™
fireplaces or BISPMA for the BIS Panorama fireplace) must be used to connect the liner to the insulated
chimney. For connection at 30º, use the BISUMA30 or BISPMA30 connectors.
Follow these steps:
1-
Temporarily install the ASHT+ elbow on
the top of the fireplace and, using a level,
mark with an oval the location where the
flue liner will enter the masonry chimney.
2- In the middle of the oval, drill a hole in the
masonry chimney at 45º or 30º.
3- Increase the size of the hole until a 45º or
30º Tubinox liner elbow can be easily
slipped through.
4- Slide the liner down from the top of the
masonry chimney until you reach the hole
level.
Slip through the hole a 45º or 30º liner
5-
elbow and connect it to the liner.
6- Add a small liner section to the liner elbow
which will allow the liner to extend at least
12” (measured at the top of the liner) from
the masonry chimney.
7- Seal the opening around the liner with high
temperature refractory cement.
8- The next steps must be done in the
following order :
A. Select the ASHT + length that will fit between the elbow and the liner so that it will slide at least 2" over the
B. Take that section and the BISUMA or BISPMA (BISUMA30 or BISPMA30) cover and slide it over the liner.
C. Install the 45º or 30º elbow on the fireplace.
D. Slide the length section back down on the elbow and twist lock the two together.
E. Pull the cover down over the length and install the insulation pad over the liner; be careful to cover the liner
F.
:
See typical installation illustrated below.
liner section. (You may need to cut the liner for a better fit).
Make sure you have enough opening to be able to install the ASHT+ elbow without difficulty.
completely.
Slide back the cover over the insulation and fix it in place using the 3 metal screws supplied.
32
5. PARTS AND COMPONENTS LIST (AC Chimney)
Description
Lengths 6" dia.
12" length AC 6L12
18" length AC 6L18
36" length AC 6L36
48" length AC 6L48
15º elbow AC 6E15
30º elbow AC 6E30
Rain cap AC 6CPR
Spark arrester screen PE+
Supports
Offset support XSO+
Support section AC 6SL
Roof support XST+
Starter section AC 6SB
Roof brace XBS2+
Wall band XBM+
Firestop
Firestop AC BF
Radiation shield AC RS
Attic radiation shield AC RSA
Wall radiation shield 30º AC RSM30
Insulated wall radiation shield 30º AC RSMI30
Wall radiation shield 45º AC RSM45
Insulated wall radiation shield 45º AC RSMI45
Part No.
Outside air kit (chimney) AC ZI
(flex, insulation, outside register and coupling)
Flat roof flashing ACF
Adjustable roof flashings
1/12 - 7/12 (5º - 30º) AC FA
8/12 - 12/12 (30º - 45º) AC FB
12/12 - 21/12 (45º - 60º) AC FBB
Peak roof flashings
1/12 - 7/12 (5º - 30º) AC FP
8/12 - 12/12 (30º - 45º) AC FPB
Storm collar AC FC
33
6. OPTIONS
Gravity kit:
Complete double ducting system including: 2 elbows 90º, 2
telescopic lengths, 2 grill supports and 2 black grills
Black grill with support 7B30ZO
Brass grill for 7B30ZK 7B30ZGB
Elbow 90º, 8" dia. 7B26ZE90
Elbow 45º, 8" dia. 7B26ZE45
Telescopic length, 8" dia. 7B26ZLA
Adjustable length 8" dia. (2" - 5") 7B26ZL2A
Radiation shield 7B26ZR
Central forced air kit:
Central forced air kit including: blower (BisZY), flex adaptor
(BISAF), 2 clamps, variable speed control (VRUW), thermo-disk
(VTU), fan to flexible pipe adapter(BISAVF), backdraft damper
(BISBD), aluminium tape
Fireplace to Flex adaptor and 2 clamps BISAF
Flexible pipe 5" I.D. x 15 ft. Long 5FLEX15
Flexible pipe 5" I.D. x 30 ft. Long 5FLEX25
Blower 250 CFM for central forced air kit BISZY
Blower variable speed control with decorative wall plate for (BISZY) VRUW
Thermo-disk, on/off blower control for (BISZY) VTU
Fan to Flexible pipe adaptor BISAVF
Heating and cooling thermostat HCTW
Backdraft damper BISBD
Fireplace:
Panel for clean face option BUCF
Rigid firescreen BUCEBWZN
Heat activated on/off pre-wired fan kit UZY3
Masonry chimney adaptor BISUMA
Outside air kit UZI
Part No.:
7B30ZK-1
BISFWK-1
7. APPENDIX
SPECIFICATIONS
Weight 385 lbs
Height 36"
Width 36"
Depth 24 1/2"
Chimney weight ASHT+ (6" dia.) : 6.25 lb/ft.
Chimney weight S-2100+ (6" dia.) : 10.8 lb/ft.
CLEARANCE TO COMBUSTIBLES
The following clearances meet the minimum requirements for a safe installation
Side wall: 17" (324 mm) measured from the fireplace side
Ceiling: 6’ 8" (2032 mm) measured from the base of the fireplace
Fireplace enclosure: Bottom: 0” Side: 0” to spacers Back: 0” to spacers
Top: Do not fill the space above the fireplace with any material (Except
Chimney: 2" (50 mm)
Mantel: 45" (1143 mm) measured from the base of the fireplace
the wood framing. See page 13, Figure 8)
34
REPLACEMENT PARTS
Baffle refractory (2 pieces) PR-ISO2205
Back refractory PR-SR2203
Right side refractory PR-SR2204D
Left side refractory PR-SR2204G
Bottom refractory PR-SR2201
Front refractory, right side PR-SR2202D
Front refractory, left side PR-SR2202G
Secondary air tube PR-SR2271
Secondary air tube lock PR-SR2214
Cast-iron log supports (2) PR-SR2245
Louver PR-SR2218
Facing:
Top trim PR-SR2194
Bottom trim PR-SR2263
Top frame PR-SR2190
Left side frame PR-SR2540G
Right side frame PR-SR2540D
Fireplace top PR-SR2500
Fireplace left side PR-SR2502
Fireplace right side PR-SR2503
Fireplace back PR-SR2499
Touch up spray paint black (SBMB6309) 70K99
Door handle PR-SR1787
Door rod and lock PR-SR2118
Ceramic glass panel Contemporary PR-SR2222
Ceramic glass panel Victorian PR-SR2230
Door gasket PR-SR1823G
Glass gasket PR-SR1685D
Hinges (door & fireplace) PR-SR2395UL
35
Loading...
