Biro EMG-32 Installation Manual

Model EMG-32

ERGONOMIC

MIXER-GRINDER/CHOPPER

OPERATING MANUAL AND PARTS LIST

Item No. EMG92099 Manual

Form No. EMG32MAN-11-03-6 COMM

�

IMPORTANT NOTICE

�

This Manual contains important

safety instructions which must

be strictly followed when using

this equipment.

Item No. EMG92099 Manual

Form No. EMG32MAN-8-07-7 ACME

TABLE OF CONTENTS

Page

NOTICE TO OWNER AND OPERATORS ..................................................................................1

SAFETY TIPS ....................................................................................................................................2

INSTALLATION ...............................................................................................................................3

OPERATION .................................................................................................................................... 5

GRINDER KNIFE & PLATE DO’S & DON’TS ...............................................................6

FOOD HANDLING TO PREVENT CONTAMINATION ............................................ 6

TO PROCESS PRODUCT ...................................................................................................6

MAINTENANCE ................................................................................................................ 7

GRINDER BOWL INSTALLATION ................................................................................ 7

LUBRICATION .....................................................................................................................7

CHAIN TENSION ............................................................................................................... 8

GROVE GEAR REDUCER REPLACEMENT & LUBRICATION ............................................9

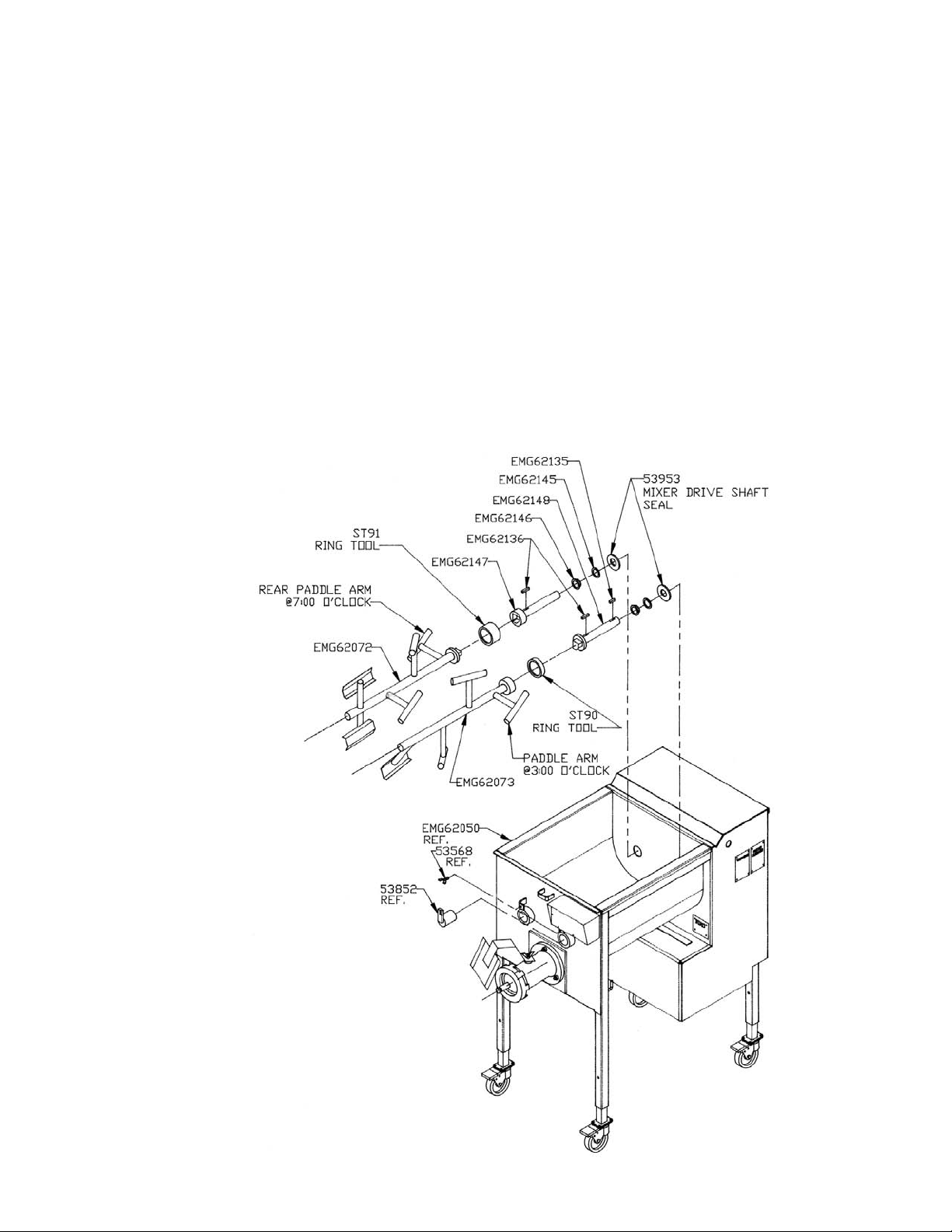

MIXER DRIVE SHAFT SEAL REPLACEMENT ......................................................................12

CLEANING .....................................................................................................................................13

MIXING PADDLE: INSTALLATION; S/N’s 6001 to 6057 .........................................................14

MIXING PADDLE HISTORY BY SERIAL NUMBER ..............................................................15

ELECTRIC FOOTSWITCH PARTS LIST & DIAGRAM .........................................................16

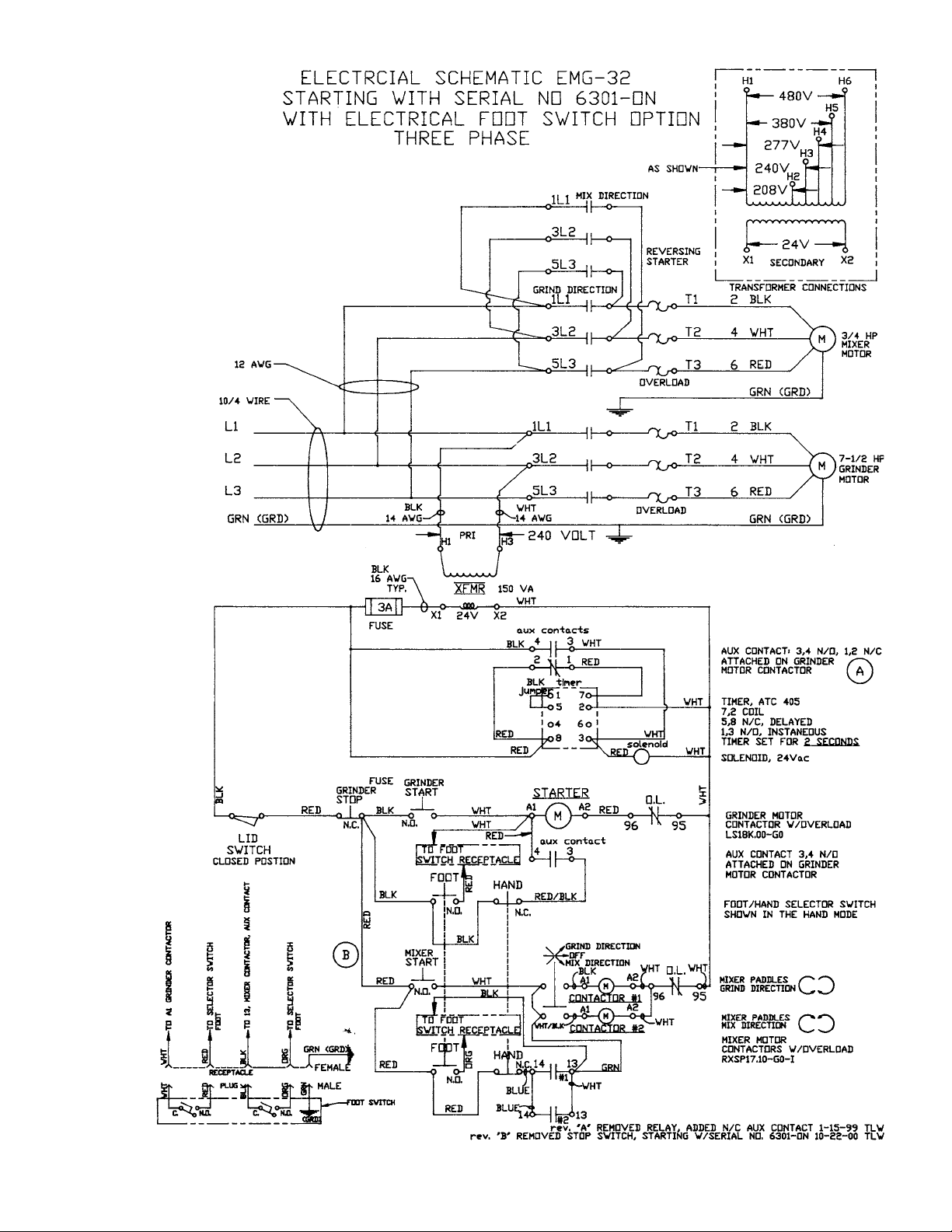

ELECTRICAL SCHEMATIC WITH ELECTRIC FOOTSWITCH .................................. 17-18

PNEUMATIC FOOTSWITCH PARTS LIST & DIAGRAM ....................................................19

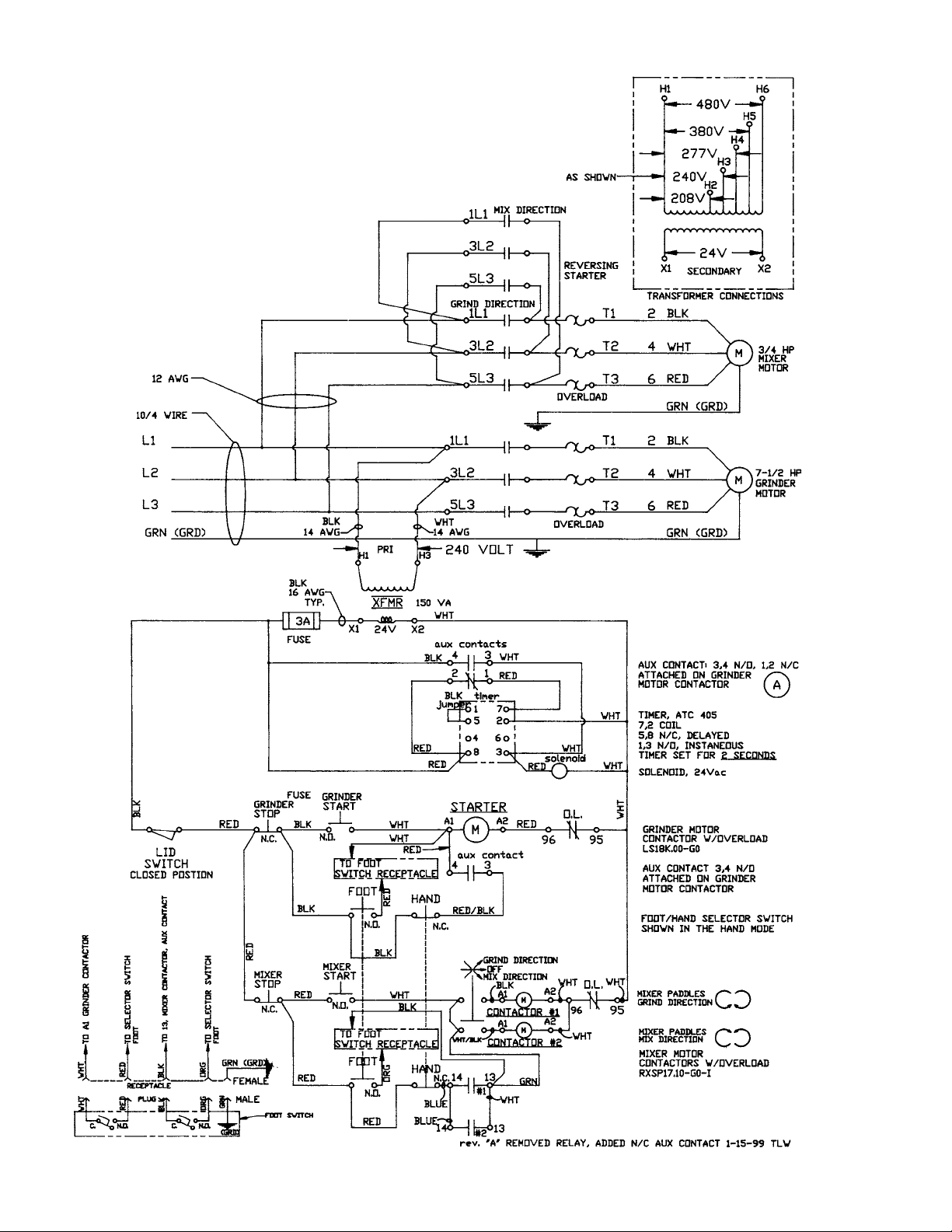

ELECTRICAL SCHEMATIC WITH PNEUMATIC FOOTSWITCH. ............................ 20-21

ELECTRICAL SUBPLATE COMPONENTS ............................................................................ 22

PARTS LIST, NOT SHOWN PARTS ............................................................................................23

FASTENERS ....................................................................................................................................23

PARTS LIST .............................................................................................................................. 24-26

JOURNAL BOX ASSEMBLY PARTS DIAGRAM – RIGHT HAND HINGE ASSEMBLY ..27

OPTIONAL EQUIPMENT ...........................................................................................................28

SAFETY LABEL LOCATIONS ....................................................................................................29

TANDEM OPERATION ILLUSTRATION .................................................................................30

OPERATOR SIGNATURE PAGE .................................................................................................31

LIMITED WARRANTY .................................................................................................................32

BIRO’s products are designed to process food products safely and efficiently. Unless the oper­ator is properly trained and supervised, however, there is the possibility of a serious injury. It is the
responsibility of the owner to assure that this machine is used properly and safely, strictly following
the instructions contained in this Manual and any requirements of local law.

No one should use or service this machine without proper training and supervision. All opera­tors should be thoroughly familiar with the procedures contained in this Manual. Even so, BIRO
cannot anticipate every circumstance or environment in which its products will be used. You, the
owner and operator, must remain alert to the hazards posed by the function of this equipment —
particularly the ROTATING GRINDING AUGER and the ROTATING MIXING PADDLE, which can
severely injure an inattentive operator amputating fingers and limbs. No one under eighteen (18)
years of age should operate this equipment. If you are uncertain about a particular task, ask your
supervisor.

This Manual contains a number of safe practices in the SAFETY TIPS section. Additional warn­ings are placed throughout the Manual. Warnings related to your personal safety are indicated by:

Warnings related to possible damage are indicated by:

BIRO also has provided warning labels on the equipment. If any warning label, instruction lable
or Manual becomes misplaced, damaged, or illegible, please contact your nearest Distributor or
BIRO directly for a replacement.

Remember, however, this Manual or the warning labels do not replace the need to be alert and
to use your common sense when using this equipment.

This Manual applies to all BIRO Ergonomic Mixer Grinder/Choppers.

1

NOTICE TO OWNERS AND OPERATORS

THE BIRO MANUFACTURING COMPANY

1114 West Main Street

MARBLEHEAD, OHIO 43440

Phone [phone]

FAX [phone]

http: //www.birosaw.com

E-Mail: service-department @birosaw.com

[e-mail]

– NOTE –

“A copy of this manual is included with each MODEL EMG-32 MIXER-GRINDER.”

“e descriptions and illustrations contained in this manual are not binding.
e manufacturer reserves the right to introduce any modification without updating
the manual.”

SAFETY TIPS

ROTATING GRINDING AUGER &

ROTATING MIXING PADDLES

TO AVOID SERIOUS PERSONAL INJURY

� NEVER Touch This Machine without Training and Authorization by Your Supervisor.

� NEVER Place Hands into Machine Input or Output Openings.

� NEVER Open Machine During Operation.

� ONLY Use a Qualified Electrician to Install According to Local Building Codes: Machine MUST

Be Properly Grounded.

� ALWAYS Connect to Proper Voltage & Phase.

� ONLY Install on Level, Non-Skid Surface in a Clean, Well-Lighted Work Area Away from

Children and Visitors.

� ALWAYS Lock Machine Castors After Moving This Machine.

� NEVER Use This Machine For Non-Food Products.

� NEVER Operate Machine With Product Mixer Safety Cover Open or Removed or Magnetic

Interlock Switch By-Passed.

� ALWAYS Turn Off, Unplug Machine From Power Source and Perform Lockout/Tagout

Procedure to this Machine BEFORE Attempting to Unjam or Unclog, Cleaning or Servicing.

� NEVER Leave Machine Unattended While Operating.

� NEVER Alter This Machine From its Original Form as Shipped From Factory. DO NOT

Operate Machine With Missing Parts.

� PROMPTLY REPLACE Any Worn or Illegible Warning Labels.

� ALWAYS Read Operation and Service Manual BEFORE Operating, Cleaning, or Servicing.

� USE ONLY BIRO Parts and Accessories Properly Installed.

2

INSTALLATION

TO AVOID SERIOUS PERSONAL INJURY, PROPERLY INSTALL

EQUIPMENT IN ADEQUATE WORK AREA

� ALWAYS Use Qualified Technician and Electrician for Installation.

� ALWAYS Connect to Proper Voltage & Phase.

� ALWAYS Install Equipment in Work Area with Adequate Light and Space Away From Children

and Visitors.

� ONLY Operate on a Solid, Level, Non-Skid Surface.

� ALWAYS Lock Machine Castors After Moving Machine to Operating Location.

� NEVER Bypass, Alter, or Modify This Equipment in Any Way From Its Original Condition.

� NEVER Operate Machine With Product Mixer Safety Cover Opened or Removed or Magnetic

Interlock Switch By-Passed.

� NEVER Operate Without all Warning Labels Attached and Owner/Operator Manual Available to

the Operator.

� USE ONLY BIRO parts and accessories properly installed

UNCRATING AND SET UP

1. Read this Manual thoroughly before installation and operation. Do not proceed with installation and operation if

you have any questions or do not understand anything in this Manual. Contact your local Distributor, or BIRO

first.

2. Remove all banding, shipping carton, and all equipment from inside the tub. Then take machine off shipping
pallet.

3. This machine is shipped with the adjustable legs fully retracted. The legs allow for a height adjustment from the
floor to centerline of bowl 32" minimum to 38" maximum.

4. This machine weighs approximately 700 pounds. To avoid accidents block up machine after raising to desired
operating height.

5. Fasten the casters to the legs.

6. The adjustable legs can now be unbolted and lowered to the floor. Replace bolts and nuts and tighten securely.

7. Install machine on a level, non-skid surface in a well-lighted work area away from children and visitors.

8. This machine is complete except for knife and plate. There is a bowl shipping plug (stamped steel) placed in the
output end of the grinding bowl to retain the grinding auger during shipment. REMOVE THE BOWL SHIPPING

PLUG AND THE GRINDING AUGER.

9. After checking and making sure the power supply is correct, plug in your machine. NEVER OPERATE
MACHINE WITH PRODUCT MIXER SAFETY COVER OPEN. (Machine will not run with cover open.)

10. Machine must be properly grounded. Use qualified electrician to install according to local building codes.

3

MOTOR WIRING AND ELECTRICAL REQUIREMENTS

1. Interchange of current is made in motor outlet box. Leads are properly marked. Changing instructions are on
the motor plate or motor outlet box.

2. All mixer-grinder/choppers are wired 208 volts unless otherwise specified. Be sure motor specifications (voltage,
cycle, phase) match power supply line. Be sure line voltage is up to specification.

3. Electrical connections to be in accordance with safety codes and National Electrical Code.

4. Rated voltage of the unit shall be identical with full supply voltage.

5. Voltage drop on the supply line shall not exceed 10% of full supply voltage.

6. The feederline conductor size in the raceway from the branch circuit to the unit must be correct to assure
adequate voltage under heavy starting and short overload conditions.

7. The feederline conductor shall only be used for the supply of one unit of the relevant horsepower. For
connections of more than one unit on the same feeder line, a local electrician will have to be consulted to
determine the proper conductor size.

8. The size of the electrical wiring required from the power source to the mixer-grinder/chopper is a MINIMUM OF
No. 10 WIRE.

9. The BIRO Manufacturing Company is not responsible for permanent wiring, connection or installation

4

NOTE TO OWNER AND ELECTRICIAN: IF THIS MACHINE IS NOT CORD
AND PLUG CONNECTED TO THE ELECTRICAL SUPPLY SOURCE, THEN IT
SHOULD BE EQUIPPED WITH, OR CONNECTED TO, A LOCKABLE,
MANUALLY-OPERATED DISCONNECT SWITCH (OSHA 1010.147).

MOTOR SPECIFICATIONS

GRINDER MOTOR

HP KW VOLTS HZ PH AMPS

7.5 5.6 208/230 60 3 24/22

7.5 5.6 220 50 3 28

7.5 5.6 380/415 50 3 12.7/12.4

7.5 5.6 460 60 3 11

7.5 5.6 550 60 3 9.2

MIXER MOTOR

.75 .56 208/230 60 3 3.0/2.8
.75 .56 220 50 3 3.6
.75 .56 380/415 50 3 1.8/1.9
.75 .56 460 60 3 1.5
.75 .56 550 60 3 1.2

10. Two sets of green and red pushbuttons are located at the front of the machine that activate the magnetic
contactors that control the mix and grind motors. The time delay product mixer safety cover interlock switch is
mounted in the motor compartment. The product mixer safety cover cannot be opened until the time delay

interlock switch times out (which will be after the grinding augur comes to a complete stop.

11. With the grinding auger removed from the machine, push the green start button for grind CHECK THE
ROTATION of THE AUGER DRIVE SHAFT; ROTATION MUST BE COUNTER-CLOCKWISE as indicated by
the rotation decal affixed to the grinding bowl. ROTATION MUST ONLY BE CHECKED WITH THE
GRINDING AUGER REMOVED, otherwise serious irreparable damage may occur to the grinding components.

12. If machine runs clockwise (backwards), it must be rewired to correct rotation, otherwise serious irreparable
damage may occur to the grinding components. The grinding auger must operate in the proper direction.

13. Check operation of optional footswitch is equipped. Plug footswitch cord into fitting at bottom of contactor box.
Turn toggle selector to foot. The machine will operate with pressure on the footswitch treadle. Releasing the
treadle stops the machine. The footswitch operates both mix and grind together.

14. Insert grinding auger assembly into the bowl and fully engage the auger into the drive shaft. Place knife first
(sharp edges out) then grinding plate into end of grinding bowl. The grinding plate slides over the knife drive pin,
and is held from rotating during operation by three pins in the grinding bowl. Install the end retaining ring.

ONLY HAND TIGHTEN END RETAINING RING

For best results, use knife and plate as a set. Do not operate machine for any period of time without product in
the grinding bowl. This will cause heating and dulling of the knife and plate.

15. Check placement of all warning labels and Manual. Machine is now ready for trained operators to process
product.

16. Use meat deflector attached to grinding bowl to eliminate meat splatter.

17. Contact your local Distributor of BIRO directly if you have any questions or problems with the installation or
operation of this machine.

OPERATION

TO AVOID SERIOUS PERSONAL INJURY

� ONLY Properly Trained Personnel Should Use This Equipment.

�

NEVER Place Hands Into Machine Input or Output Openings.

5

OPERATION (Cont.)

� NEVER Open Machine During Operation.
� DO NOT Wear Gloves While Operating.
� DO NOT Tamper With, Bypass, Alter, or Modify This Equipment in Any Way From Its Original

Condition.

� NEVER Operate Machine With Product Mixer Safety Cover Opened or Removed or Magnetic

Interlock Switch By-Passed.

� ALWAYS Turn Off and Unplug Machine from Power Source and Perform Lockout/Tagout

Procedure to This Machine Before Unjamming, Unclogging, Cleaning or Servicing.

� NEVER Leave Unattended While Operating.
� NEVER Operate Without All Warning Labels Attached and Operating Manual Available to the

Operator.

FOOD HANDLING TO PREVENT CONTAMINATION

1. ALWAYS wash hands thoroughly with warm soap and water before and after handling raw fish, poultry or

meats.

2. ALWAYS clean and sanitize all utensils and surfaces that have been in contact with raw products.

3. ALWAYS store cold foods at or below 45 deg. F (7.2 deg. C).

TO PROCESS PRODUCT

1. Before starting the mixer-grinder, have a container for receiving ground product at the output end of the
grinding bowl.

2. FIRST GRIND

a. Fill product hopper (maximum 160 pounds), close the product mixer safety cover.

b. Push both grind and mix green start buttons to feed first grind. It is recommended to use a breaker plate

with

3

8

" diameter or larger holes.

c. Push both grind and mix red stop buttons when product has been ground out.

3. SECOND GRIND

a. Fill Product Hopper (maximum 160 pounds). Before this mix operation seasonings may be added if

desired. Close Product Mixer Safety Cover.

b. Push the mix green start button only.

c. After the desired mix, push the grind green start button to operate the grinding auger and grind out

product.

d. Push both grind and mix red stop buttons when product has been ground out.

4. Unplug machine from power source and perform lockout/tagout procedures when finished.

6

DO’s

•

Always keep knife & plate as matched set.

•

Always keep the knife & plate sharp.

•

Always check for straightness by laying the knife
on the plate before inserting in machine.

•

Always install the knife & plate in correct se­quence, knife 1st, then plate.

•

Always keep knives & plates lubricated in storage
and when starting machine.

•

Always use coolant when sharpening plates.

•

Always inspect the plates making sure all holes
are clear – that there are no cracks.

DON’Ts

•

Never, never mix different knives to different
plates.

•

Never, never over tighten the bowl retaining ring
on the machine.

•

Never, never run the grinder without product.
Product is a natural lubricant. Heat can build up
so fast that cold product could crack the plate.

•

Never, never hit the plate against anything to
clean the holes.

•

Never, never throw the knives & plates.

MAINTENANCE

ROTATING GRINDING AUGER

TO AVOID SERIOUS PERSONAL INJURY

� ALWAYS Turn Off, Unplug From Power Source and Perform Lockout/Tagout Procedure to

This Machine BEFORE Servicing.

� NEVER Touch This Machine Without Training and Authorization By Your Supervisor.

� NEVER Place Hands Into Machine Input or Output Openings.

� NEVER Bypass, Alter, or Modify This Equipment in Any Way From Its Original Condition.

� PROMPTLY REPLACE Any Worn or Illegible Warning Labels.

� USE ONLY GENUINE BIRO Parts and accessories Properly Installed.

A. GRINDING BOWL INSTALLATION

1. Mount the grinding bowl on the two threaded studs on the front of the machine. Tighten in position with
provided nuts.

2. Place the grinding auger in the grinding bowl and fully seat rear drive tang into auger drive shaft.

3. Install knife, breaker plate and end retaining ring.

ONLY HAND TIGHTEN RETAINING RING

4. When the bowl assembly is mounted and tight, there should be approximately

1

8

" gap between the back

inside wall of the grinding trough and the back of the auger. The bowl ring wrench which is provided with
each grinder is used only for REMOVAL of the end retaining ring for cleaning purposes or for changing knife
and breaker plate.

B. LUBRICATION

1. MOTOR: The grinder motor has pre-lubricated motor bearings. These bearings should be re-lubricated
annually with a good grade of bearing grease. Do not over-grease.

2. ROLLER CHAIN AND DRIVE SPROCKETS: The main drive chain has been pre-lubricated at the factory to
protect it against dirt and moisture. Chain life will vary appreciably depending upon its lubrication. The
better the lubrication, the longer the chain life.

Lubrication effectiveness will vary with the amount of lubricant and frequency of application. Ideally, a
lubricant film should always be present between the working parts. Manually lubricate the chain as often as
is needed (possibly once a week). NEVER exceed three months without lubricating.

Lubricating just the outside of the chain does little good. Apply lubrication on the inside of the chain span so
that it will work through the moving parts and joints by centrifugal force as the chain rotates and reaches the
area where one surface “scrubs” another.

7

B. LUBRICATION (cont.)

Recommended types of chain lubricant are those with Molybdenum Disulphide or Graphite added. Also
bonded lubricants such as Dow Corning Molykote 321R or equivalent are excellent for open chains. e
lubricant should be of a viscosity whereby it will “flow” somewhat and penetrate the internal working surfaces.
ick stiff greases are of little value because they cannot work into moving parts of the chain.
a. Unplug mixer/grinder from power source and perform lockout/tagout procedures.
b. Remove rear drive or access cover.
c. Spray or brush lubricant on inside of chain, slowly and carefully turning the large sprocket by hand.
d. Reinstall rear drive cover.

3. BEARING HOUSING: e main bearings are housed in an enclosed and sealed journal box. Re-lubricate
semi-annually with a good grade of bearing grease. Do not over-grease.

4. MIXER TRANSMISSION: Oil in the mixer transmission should be changed after the first four (4) weeks of
operation. is is to remove the “run-in” oil and also any small metal shavings that may have been generated
during the mating of the gears. After the initial oil change, subsequent changes should be performed every
six (6) months. After draining the oil, refill the unit to the “level” plug on the back side of the transmission
with pertoleum-based #8 gear oil.

5. PROCEDURE FOR REPLACING OIL IN WINSMITH MIXER TRANSMISSION:
a. Unplug mixer grinder from power source and perform lockout/tagout procedures.
b. Remove rear drive or access cover.
c. Remove breather plug from top of transmission and oil level plug from back side of transmission.
d. With a container in place to catch old oil, remove the drain plug from the bottom of the transmission.
e. When all oil has drained, clean the drain plug and replace in the transmission.
f. Refill transmission with pertoleum-based #8 gear oil or equivalent until oil appears at bottom of oil level
hole. For applications that involve severe ambient temperature extremes, Winsmith recommends the use of
Synthetic Lubricant such as: Texaco Vanguard 460, Mobile SHC 630, and Mobile SHC 634. ese gear
reducers contain 0.9 QT. of lubricant
g. Replace breather and oil level plugs.
h. Reinstall rear drive or access cover.

C. MIXER DRIVE CHAIN TENSION

1. Unplug mixer/grinder from power source and perform lockout/tagout procedures.

2. Remove rear drive cover or access cover.

3. Loosen the four bolts holding the ¾HP motor and transmission to its mounting plate.

4. Slide transmission to the right.

5. When approximately 1/8” total chain flex has been attained, retighten transmission bolts.

6. Reinstall rear drive cover or access cover.

D. MAIN DRIVE CHAIN TENSION

1. Unplug mixer/grinder from power source and perform lockout/tagout procedure.

2. Remove rear drive cover or access cover.

3. Loosen the four bolts that hold the motor to the frame of the machine.

4. Loosen the lock nuts on the motor adjusting stud.
5 . To Loosen Chain Tension. turn motor adjusting studs counterclockwise. Grasp motor and pull toward
adjusting stud. Be sure to turn both adjusting studs the same amount and evenly. Total chain flex should be
1/8“ to 3/8“. Be sure to keep motor shaft parallel with auger drive shaft.
To Tighten Chain Tension. Turn motor adjusting studs clockwise. Be sure to turn both adjusting studs the
same amount and evenly. Total chain flex should be 1/8“ to 3/8“. Do not overtighten chain as this will put
excessive and damaging pressure on the motor bearings. Be sure to keep motor shaft parallel with auger
drive shaft.

6. Retighten motor mounting bolts.

7. Retighten motor adjusting stud lock nuts.

8. Reinstall the rear drive cover or access cover.

8

9

LUBRICATION FOR GROVE GEAR REDUCER

1. Factory Filling

The speed reducers are oil filled at the factory to the proper level for the standard mounting position. The oil
level should be checked and adjusted (if necessary) prior to operation, using the oil level plug provided and
while the unit is oriented in its operating position.

2. Oil Changing

WHEN CHANGING OIL FOR ANY REASON,

DO NOT MIX DIFFERENT OILS IN THE REDUCER.

OILS SHOULD BE COMPATIBLE WITH

VITON

®

SEAL MATERIAL.

Therefore, when changing to a different oil, it is recommended that the housing be completely drained and
thoroughly flushed with a light flushing oil prior to refilling with the appropriate lubricant. The oil level should
be rechecked after a short period of operation and adjusted, if necessary.

OIL SHOULD BE CHANGED MORE OFTEN IF THE

REDUCER IS USED IN A SEVERE ENVIRONMENT

(i.e., DUSTY, HUMID)

A. Initial Oil Change

The oil in a new speed reducer should be changed at the end of 250 hours of operation. (30 days for 8
hour per day service, 15 days for 16 hour service, 10 days for 24 hour service.)

All standard reducers ordered from the factory are filled with lubricant to operate within a 30° to 100°F
ambient temperature range.

B. Subsequent Oil Changes

Under normal conditions, after the initial oil change, the oil should be changed after every 2500 hours of
operation, or every six months, whichever occurs first. Under severe conditions (rapid temperature
changes, moist, dirty or corrosive environment) it may be necessary to change oil at intervals of one to
three months. Periodic examination of oil samples taken from the unit will help establish the appropriate
interval.

C. Synthetic Oils

Synthetic lubricants can be advantageous over mineral oils in that they generally are more stable, have a
longer life, and operate over a wider temperature range. These oils are appropriate for any application but
are especially useful when units are subjected to low start-up temperatures or high operating
temperatures. Use of synthetics can cause problems if they are not compatible with the seals or the
conventional lubricants they replace. For continuous duty at normal ambient temperatures (-10°F to
105°F) we recommend the use of Mobile SHC 634

which is compatible with the standard compounded oil

shipped in our product and the Viton® seal material used through size 252.

3. Overfilling or Underfilling

If a speed reducer is overfilled with oil, the energy used in churning the excessive oil can result in overheating.
If this occurs, shut down the drive, remove the oil level plug and allow oil to drain until oil ceases to drain
from the level hole, reinstall the oil level plug and restart the drive. if the speed reducer is underfilled, the
resultant friction can cause overheating and possible damage. If this occurs, fill the speed reducer to the oil
level plug hole and check the gearing for excessive wear. NOTE: Oil capacity is 1¾ pints

.

4. Oil Seals

Although the speed reducer uses high quality oil seals and precision ground shafts to provide a superior seal
contact surface, it is possible that circumstances beyond the speed reducer's control can cause oil seal
leakage (damage during shipment or installation, etc.). When replacing a shaft oil seal, using the following
suggestions will help to insure leak-free operation and long seal life.

A. When installing a new seal, cover the keyway and any other surface discontinuity with smooth tape to

protect the seal lip from being damaged.

B. A sealant should be used between the O.D. of the seal and the I.D. of the bore into which the seal is

installed. The seal bore should also be free of any burrs, nicks, or scratches.

C. Be sure that the seal is not cocked in the seal bore. The outer face of the seal should be flush with the

surface into which it is mounted.

10

EMG20301G-R GROVE GEAR REDUCER

LUBRICATION AND MAINTENANCE

AFTER SERIAL No. 6987

VIEW IS FROM OPPOSITE END OF DRUM

LUBRICANTS FOR EMG20301G-R GROVE GEAR WORM REDUCER

e precision-made gears and bearings in Grove Gear Speed Reducers require high-grade lubricants
of the proper viscosity to maintain trouble-free performance. For best results, use lubricants
on the following chart for worm gear reducers.

#53953, MIXER DRIVE SHAFT SEAL REPLACEMENT

1. Clean the inside of the groove of the mixer drive shaft seal and mating contact surface of the tub wall
throughly with scotch-bright or a roughing pad.

2. Dispense a small amount of #454 Loctite adhesive to both these areas - assure even coverage.

3. Wipe away excess adhesive.

4. Slide the “Pressing Rings” #ST90 and #ST91 over the ends of the mixer drive shaft.

5. Apply “even” pressure to the Rings by installing the paddles and Bearing End Assemblies.

6. Wait 20 minutes Cure-Time.

7. Remove the “Pressing Rings.” e seals will be firmly attached to the tub wall.

NOTE: Part Number for 454 Loctite is #53953A-1

12

CLEANING

CLEANING

TO AVOID SERIOUS PERSONAL INJURY

� ALWAYS Turn Off, Unplug Machine From Power Source and Perform Lockout/Tagout

Procedure to This Machine Before Cleaning or Servicing.

� ONLY Use Recommended Cleaning Equipment, Materials, and Procedures.
� NEVER Spray Water or Other Liquid Substances Directly at Motor, Power Switch or any Other

Electrical Components.

� ALWAYS Thoroughly Clean Equipment at Least Daily.

CLEANING THE EMG-32 MIXER-GRINDER

1. Disconnect mixer grinder from power source and perform lockout/tagout procedures.

2. Remove grinding bowl end ring, breaker plate, knife and grinding auger.

3. Remove mixing paddles by first loosening the wing nuts locking the mixing paddle front hubs. Turn the front
hubs clockwise and remove from front of machine. Slide mixing paddles forward off the drive shafts and remove
the mixing paddles from the machine.

DO NOT POWER SPRAY DIRECTLY AT ELECTRICAL COMPONENTS

4. Machine is now ready to be cleaned using warm soapy water and rinsed with clean water. Machine may be
cleaned by power spray washing, taking care to not spray directly at any electrical controls.

5. The grinding bowl can be removed for cleaning if desired. This is accomplished by removing the three nuts on
the flange of the grinding bowl.

6. After machine has been cleaned and allowed to air dry, all exposed metal surfaces should be coated with a good
food grade light oil or grease.

7. Never wash the clear product mixer safety cover with any type of abrasive cleaners. Use a soft cloth and warm
soapy water only, rinse with clear water, let air dry.

8. CLEANING PROCEDURES FOR THE POLYCARBONATE SAFETY COVER:

By using compatible cleaners, coupled with proper maintenance techniques will significantly improve the
material’s service life

A. Rinse with water to remove excess dust and dirt.

B. Wash with soap or mild detergent using a sponge or soft cloth.

C. Rinse thoroughly with clean water.

D. Dry with a soft cloth or chamois to prevent water spots.

CLEANING

COMPATIBLE CLEANERS:

Formula 409, Palmolive liquid - 3, Tob Job, Joy - 2, Windex with Ammonia D-4.

CLEANING THE BOWL - RING AND WORM CARE OF TIN COATED PRODUCTS (DO’S AND DON’TS)

1. Do not use abrasive cleaning materials, such as brillo pads or metal scrapers. Tin is a soft metal and
should be cleaned with a soft cloth and dried.

2. Do not use a cleaning agent containing a high percentage of free alkali or acid.

3. Do not use a detergent containing a high percentage of tri-sodium phosphate or meta-silicate.
Tin is reactive to both.

4. Rinse well and dry throughly after washing to remove agents that may be reactive to tin.

5. If sterilizing agent containing chlorine is used, the tinned surface must be throughly rinsed.
Chlorine is corrosive to tin.

6. Dry throughly after rinsing and store in a dry environment.

7. If water is exceptionally hard, drying will be necessary to prevent spotting.

13

MIXING PADDLE INSTALLATION

S/N’s 6001 to 6057

The Mixing Paddles ARE NOT INTER­CHANGEABLE, however they are timed to

allow for proper mix action.

PADDLE INSTALLATION:

Install the corresponding mixer paddles
by matching the male and female hub
drives with the respective female and
male paddle hubs.

Reinstall the paddle lock arms and
tighten the locking wing bolts

PADDLE REMOVAL:

Removing mixing paddles by first
loosening the paddle lock knobs (wing
bolts located on front of the machine)
Then turn the lock arms clockwise
approx. ¼ turn to unlock the paddle
shafts and remove them from the hop­per.

14

MIXING PADDLE HISTORY

BY SERIAL NUMBER

15

ELECTRIC FOOT SWITCH

FOOTSWITCH PARTS LIST

224-2 Cord connector, wt, straight,

3

4

"

52654 Male plug w/6’ cord, 5 wire
56292 Female receptacle 90°
52661 Male plug w/12’ cord, 5 wire
52668 Footswitch w/12’ cord and plug
53693 Footswitch
53693-A Cover guard
53693-C Cover gasket
53693-D Cover screw – short
53693-E Cover screw – long
53693-F Ground screw
53693-G Treadle spring
53693-H Internal assembly complete
53693-I Actuator
53693-M Micro switch BA-2R62-A4
53693-O Washer
53693-T Treadle w/actuator & return spring
53693-U Auxiliary treadle return spring
53693-W Treadle
53693-X One actuator & actuator spring assembly
54213 Foot switch w/6’ cord & plug

16

ELECTRICAL SCHEMATIC

17

ELECTRICAL SCHEMATIC EMG-32

WITH SERIAL NO. 6075-6300

WITH ELECTRICAL FOOT SWITCH OPTION

THREE PHASE

18

19

ELECTRICAL SCHEMATIC

STARTING WITH SERIAL NO. 6301 – ON

WITH PNEUMATIC FOOT SWITCH OPTION

THREE PHASE

20

ELECTRICAL SCHEMATIC EMG-32

WITH SERIAL NO. 6075-6300

WITH PNEUMATIC FOOT SWITCH OPTION

THREE PHASE

21

Part No. Description
226EE-0L01.9G

440-460 Volt
226EE-0L4I Overload, B18K-I, 2.5-4 AMP,
208-240 Volt

56300R Air switch – DPDT Momentary
56301E Air switch mounting bracket
BLK323 End barrier
EMG90177A Contactor 24V coil

w/aux.contacts

EMG90180 Aux. contact block – N.C.
EMG90194 Aux. contact block – N.O.
EMG90249 Buss, connecting link – LSK

series

EMG90552 Fuse 3 AMP – time delay
EMG90584 Timer – on delay

Overload, B18K-G, 1.3-1.9 AMP,

Part No. Description
EMG90675 Reversing contactor – 24 volt
EMG92003 Subplate electrical
EMG92014 Fuse block
EMG92015 Jumper – internal 3 pole
EMG92016 Din rail – 11’‘ long
EMG92017 Timer socket
H281EE-31 Overload, B18K-N,10-16 Amp,

440-460 Volt
H281EE-321 Overload, B18K-ON, 21-26 AMP,
208-240 Volt

HHS040S Hex screw ¼-20 ¾ SS
HN15S Hex nut ¼-20 SS
PC141-1 Transformer

208/240-277/380/480 V-2

PC152 Terminal
PC257 Jumper – internal 6mm

22

ITEMS NOT SHOWN

14672 Multi hole strain relief
1773-1 Lock ring, ½”
241-B Boot, Hubbell
2567 Ring terminal, red
418 Wire nut, orange
419 Wire nut, yellow
420 Wire nut, red
53511 Cord connector, 14/4 AL
53687 Decal “Caution Do Not Fill Above

Line”

53689 Cord connector, 10/4 AL
53891 Auger drive shaft key
53894 Auger drive shaft lock washer
53895 Auger drive shaft lock nut
54268 Power cord, 10/4, 13 feet
54268-2 Extension cord, 10/4, 2½ feet
56311 Plug, Hubbell
57103-1 Lock ring, 1”
BCC51-1 Terminal, ring ground,

non-insulated

BES16980 Terminal, #6 spade, insulated

nylon

BLK323 End barrier
EMG90249 O/L buss bar
EMG92001 Control cord, 8 conductor
EMG92002 Terminal, push on 16-14 AWG

insulated

EMG92015 Jumper, internal 3-pole
EMG92016 Din rail, 11

53

64

inches long

EMG92022 Strain relief connector .375-.500 R
EMG92099 EMG-32 Operating Manual
H653-E Warning label, English
H653-F Warning label, French
H653-SP Warning label, Spanish
H486 Decal, “Rotation”
H340 Ring wrench
PC152 Terminal din rail mount
PC257 Internal jumper
T3289 Terminal, ¼” female spade, blue
T3289-8 Terminal, #8 ring, blue

FASTENERS

AN15S Acorn nut, ¼-20, SS
FW04S Flat washer, #10
FW05S Flat washer, ¼, SS
FW07S Flat washer,

3

8

�

7

8

OD, SS

FW11S Flat washer, ½, SS
H374-1 Pop rivet,

1

8

�

1

4

, ali.

HHS012S Hex head screw, 10-32�½
HHS025S Hex head screw, ¼-20�½, SS
HHS040S Hex head screw, ¼-20�¾, SS
HHS060S Hex head screw,

5

16

-18�1, SS

HHS067S Hex head screw,

3

8

-16�¾, SS

HHS075S Hex head screw,

3

8

-16�1¼, SS

HHS083S Hex head screw,

3

8

-16�1¾, SS

HHS126S Hex head screw, ½-13�1¼, SS
HHS129S Hex head screw, ½-13�2, SS
HHS147S Hex head screw,

5

8

-11�2, SS

HHS152S Hex head screw,

5

8

-18�1¼, SS

HN07S Hex nut, 10-24, SS
HN10S Hex nut, 10-32, SS
HN15S Hex nut, ¼-20, SS

HN19S Hex nut,

5

16

-18, SS

HN43S Hex nut, ½-13, SS
HN49S Hex nut,

5

8

-11, SS

HNNL15S Hex nylok nut, ¼-20. SS
HNNL25S Hex nylok nut,

3

8

-16, SS

LW05S Lock washer, #10, SS
LWE10P Lock washer, #10 external tooth
LW10S Lock washer, ¼, SS
LW15S Lock washer,

5

16

, SS

LW20S Lock washer,

3

8

, SS

LW35S Lock washer,

5

8

, SS

PHS033S Pan head screw 10-32

�

3

8

RHS020S Round head screw,6-32

�

3

8

, SS

RHS069S Round head screw, 10-32,

�

3

8

,

SS

RHS072S Round head screw, 8-32

�

3

8

, SS

RHS090S Round head screw, 10-32�¼
RHS10S Round head screw, 10-32�¾
RHS31S Round head screw, ¼-20�1, SS
WN20S Wing nut,

3

8

-16, SS

23

24

25

26

JOURNAL BOX ASSEMBLY P/N – 53886

Item No. Description
53609 Journal box, #62001 on

53724 Auger drive shaft, #62001

on

53785 Journal box seal (2 ea.)
53886 Journal box assembly

complete

53888, 53940 Front bearing cup/cone

assembly, order H310A

Item No. Description
53889, 53939 Rear bearing cup/cone

assembly, order H311A

53891 Auger drive shaft key
53894 Auger drive shaft lock washer
53895 Auger drive shaft lock nut
53993 Vented grease fitting

RIGHT HAND HINGE ASSEMBLY SHOWN IN CLOSED POSITION

27

OPTIONAL EQUIPMENT

28

SAFETY LABEL LOCATIONS

CAUTION

KEEP HANDS OUT OF HOPPER

29

ILLUSTRATION

TANDEM OPERATION

30

OPERATOR’S SIGNATURE PAGE

WARNING

READ AND UNDERSTAND THIS ENTIRE

MANUAL BEFORE SIGNING BELOW

MY SIGNATURE ATTESTS THAT I HAVE COMPLETELY READ AND UNDERSTAND THIS MANUAL.
I REALIZE THAT THIS MACHINE, IF OPERATED CARELESSLY, CAN CAUSE SERIOUS INJURY TO
MYSELF AND OTHERS.

NAME (PRINT) SIGNATURE DATE

SUPERVISOR’S

INITIALS

31

LIMITED WARRANTY:

WARRANTY: The Biro Manufacturing Company warrants that the BIRO EMG-32 Mixer

Grinder/Chopper will be free from defects in material and workmanship under normal use and with
recommended service. BIRO will replace defective parts, which are covered by this limited war­ranty, provided that the defective parts are authorized for return, shipping charges prepaid, to a
designated factory for inspection and/or testing.

DURATION OF WARRANTY: The warranty period for all parts covered by this limited warranty is
one (1) year from date of inspection/demonstration as advised on the returned Warranty registra­tion card, or eighteen (18) months from original factory shipping date, whichever date occurs first,
except as noted below.

PARTS NOT COVERED BY WARRANTY: The following are not covered by this limited warranty:
wearable parts in the grinding system such as bowl, ring, worm, drive shaft, and knife drive pin.
This limited warranty does not apply to machines sold as used, rebuilt, modified, or altered from
the original construction in which the machine was shipped from the factory. Water contaminated
electrical systems are not covered under this limited warranty. BIRO is not responsible for electri­cal connection of equipment, adjustments to the switch controls or any other electrical require­ments, which must be performed only by a certified electrician. BIRO is not responsible for service
charges or labor required to replace any part covered by this limited warranty or for any damages
resulting from misuse, abuse, lack of proper or recommended service.

EXCLUSION OF WARRANTIES AND LIMITATION OF REMEDIES: BIRO gives no warranties
other than those expressly stated in this limited warranty. THE IMPLIED WARRANTY OF MER­CHANTABILITY, THE IMPLIED WARRANTY OF FITNESS FOR PROCESSING OF FOOD PROD­UCTS, AND ALL OTHER IMPLIED WARRANTIES ARE SPECIFICALLY EXCLUDED. BIRO IS NOT
LIABLE FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES, EXPENSES, OR LOSSES. THE
REMEDIES PROVIDED IN THIS BIRO LIMITED WARRANTY ARE PURCHASER’S SOLE AND EX­CLUSIVE REMEDIES AGAINST BIRO.

REGISTRATION CARDS: You must sign, date and complete warranty registration card supplied
with each machine. The warranty card must be returned to The Biro Manufacturing Company for
proper registration. If no warranty card is returned to BIRO, the warranty period will begin from
the date the machine was originally shipped from the factory.

HOW TO GET SERVICE:

1. Contact the entity from whom you purchased the machine; or

2. Consult the yellow pages of the phone directory for the nearest authorized dealer; or

3. Contact BIRO Mfg. Company for the authorized service entity (250 plus worldwide) in your area.

THE BIRO MANUFACTURING COMPANY

1114 Main Street

Marblehead, Ohio 43440-2099

Ph. 419-798-4451
Fax [phone]

E-mail: [e-mail]

Web: http://www.birosaw.com

ITEM No. EMG92099 MANUAL
PTCT: EMG32MAN 8-07-7 ACME

32
