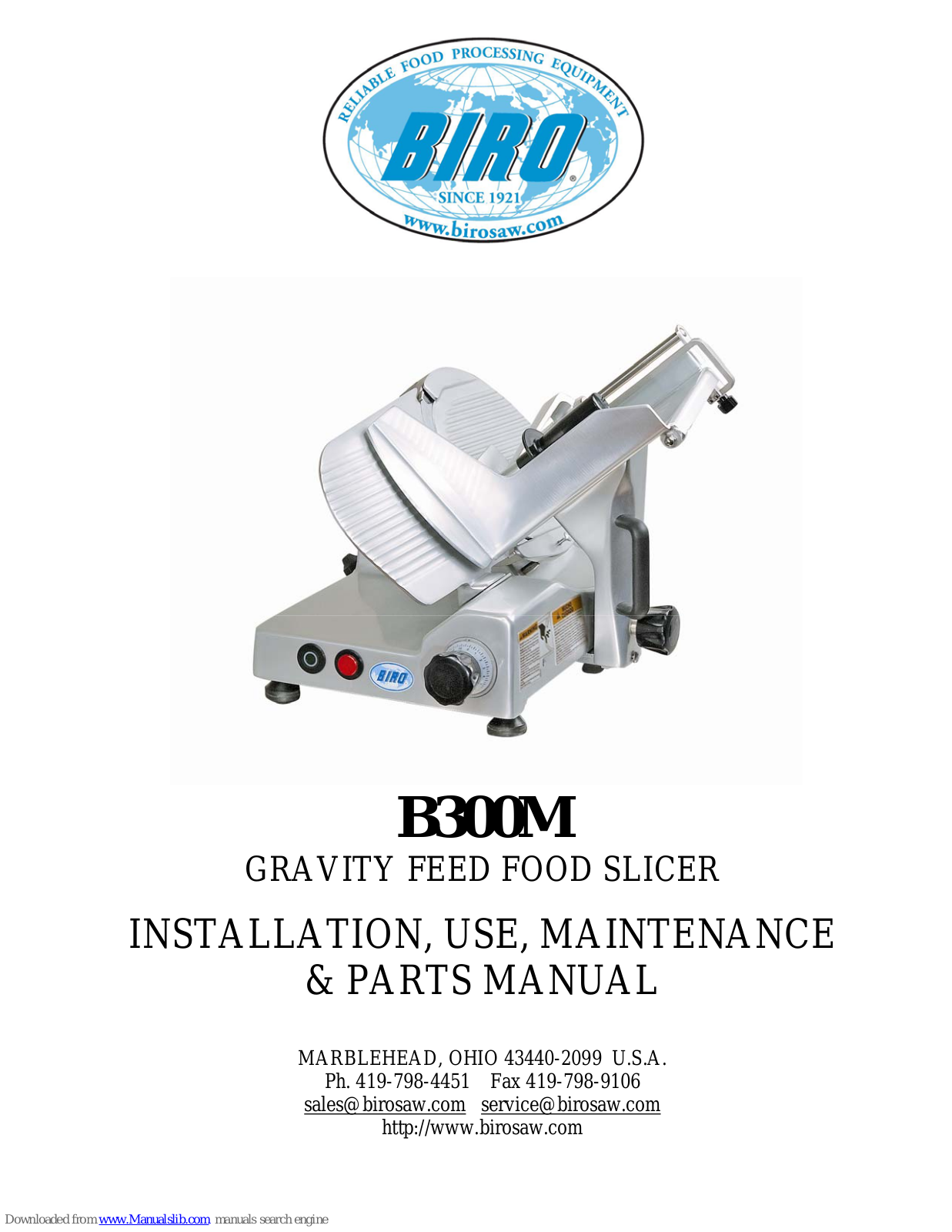

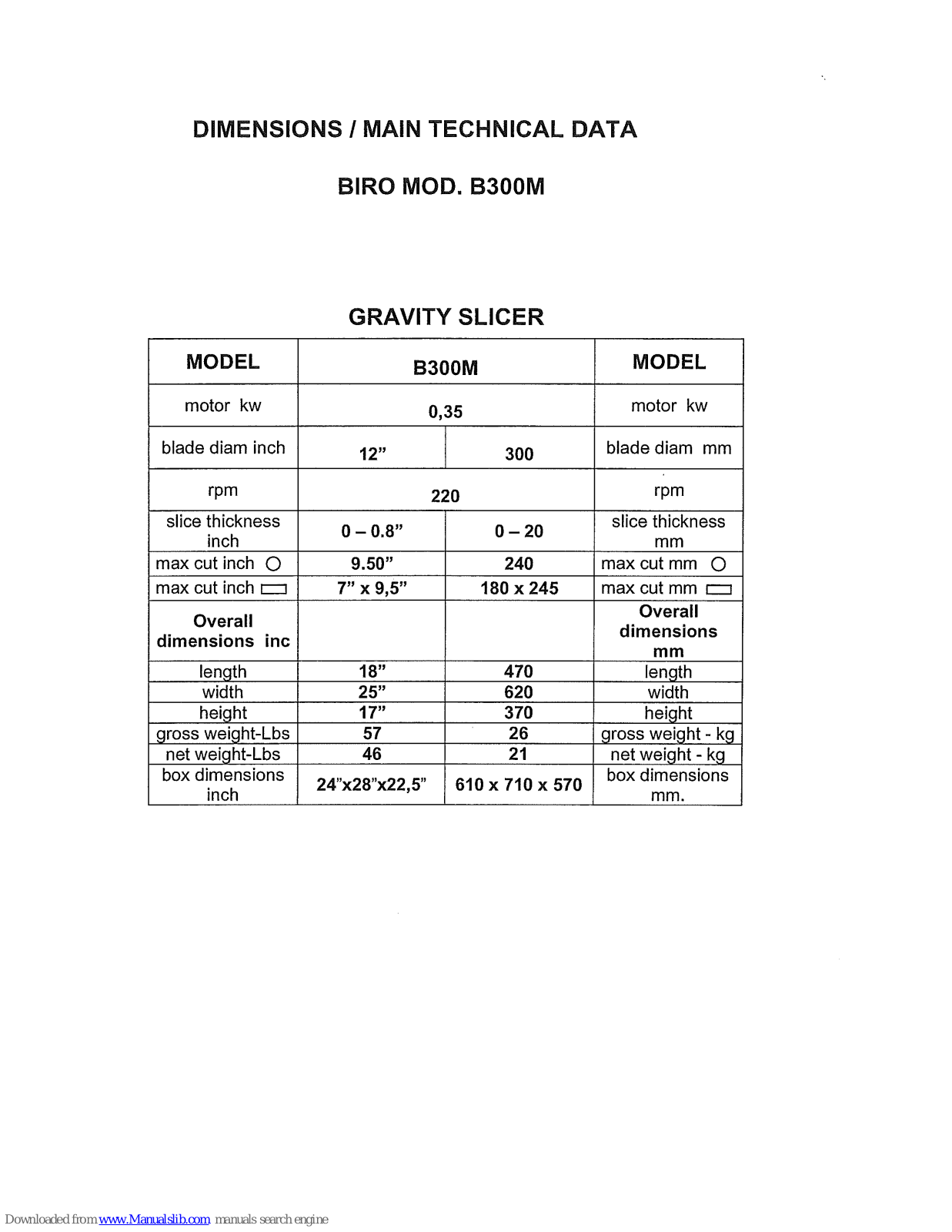

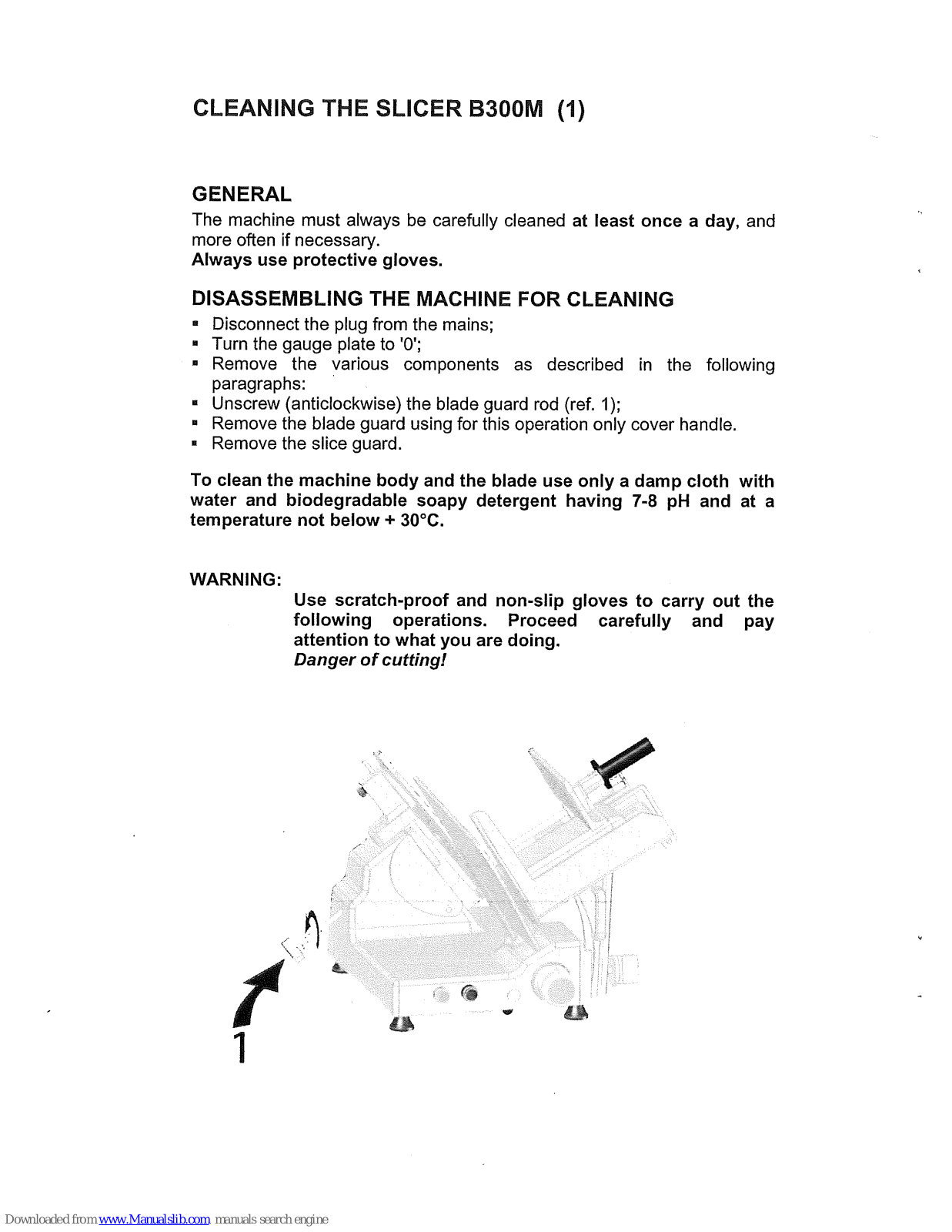

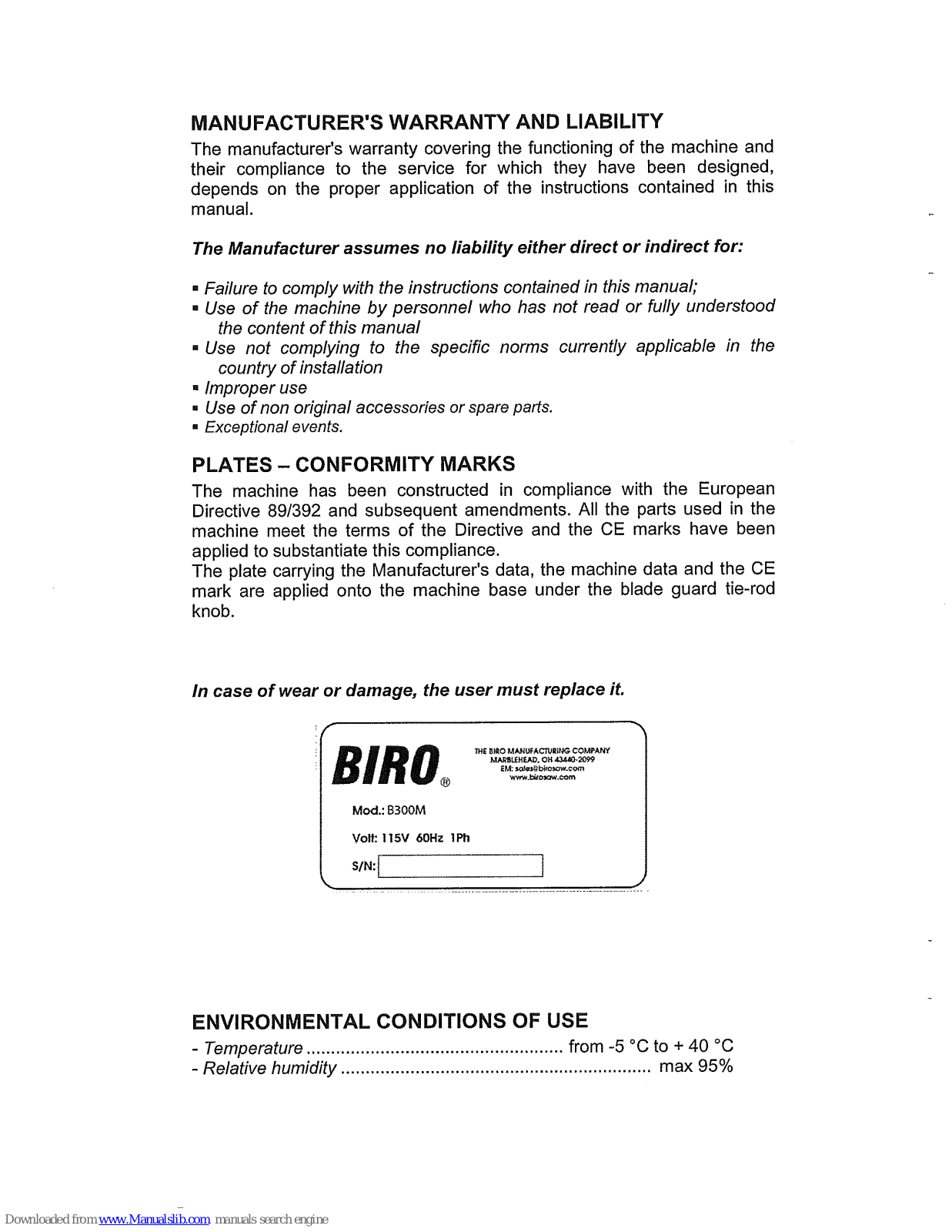

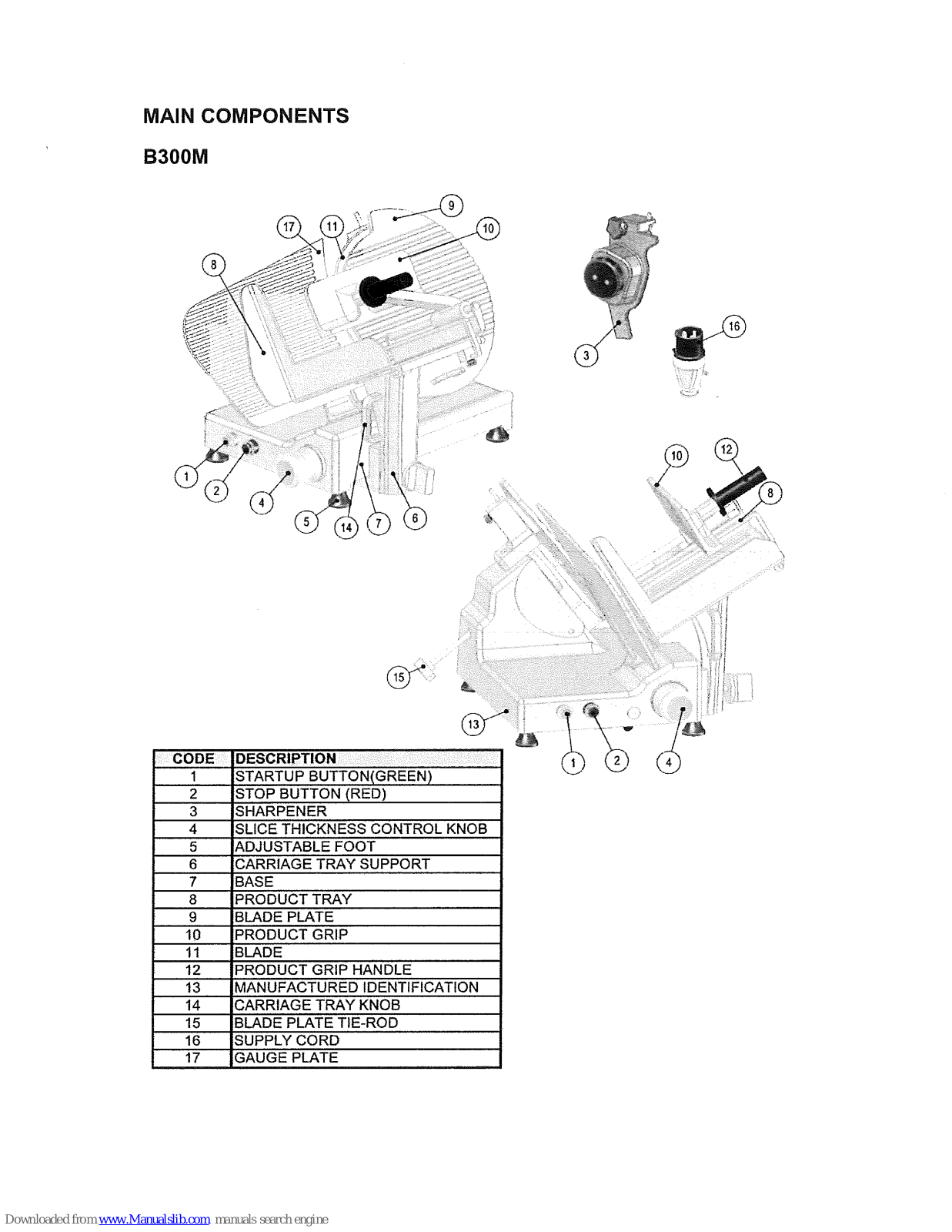

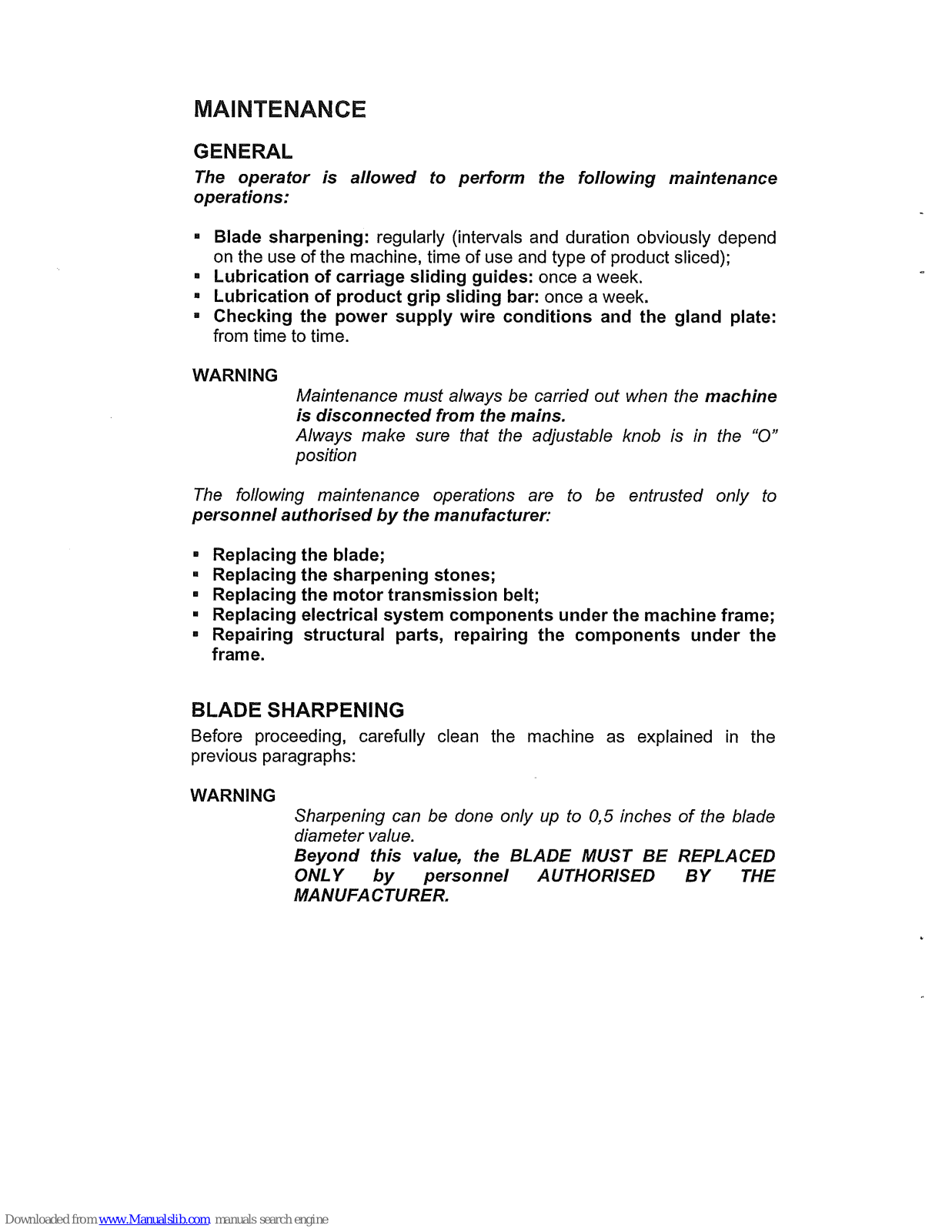

BIRO B300M Installation - Use - Maintenance

GRAVITY FEED FOOD SLICER

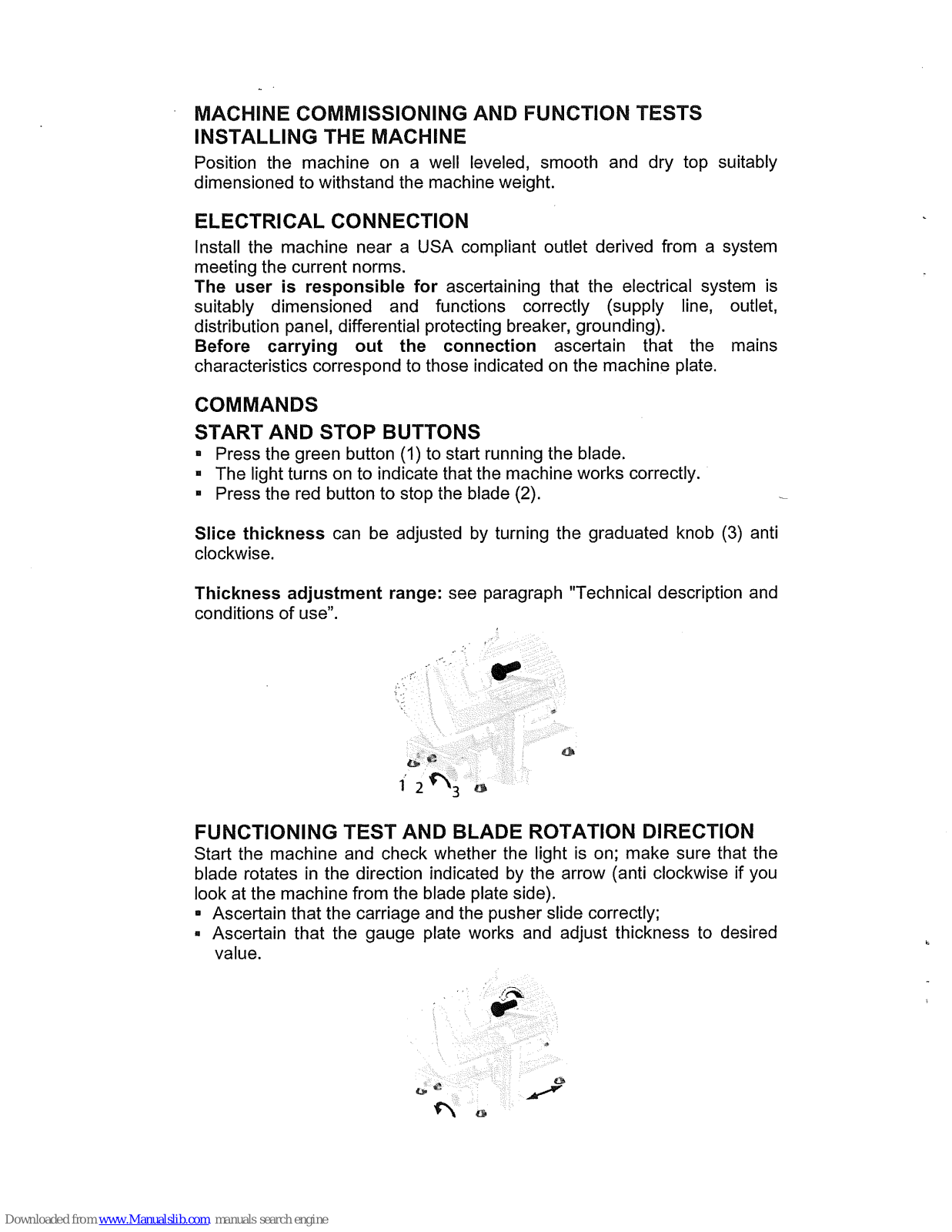

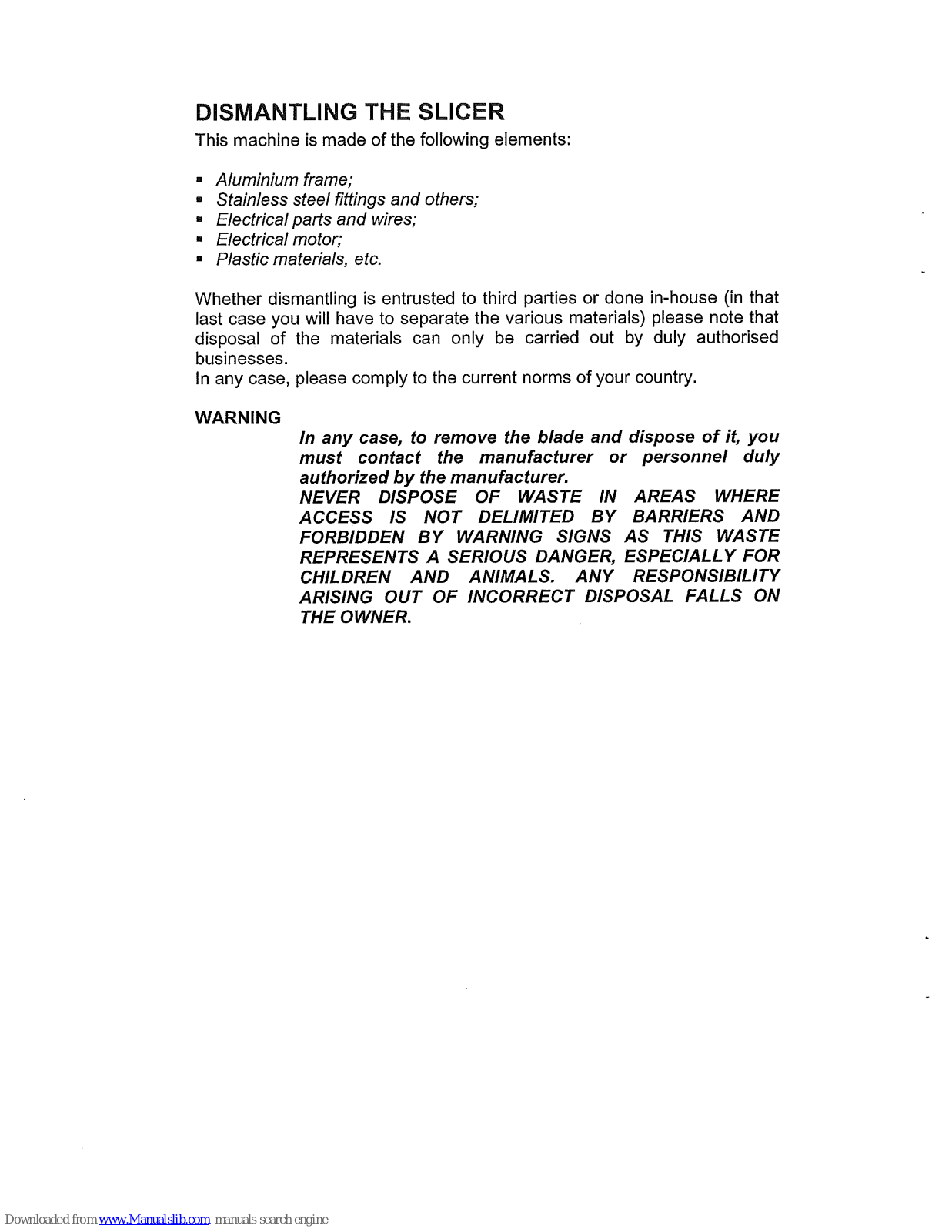

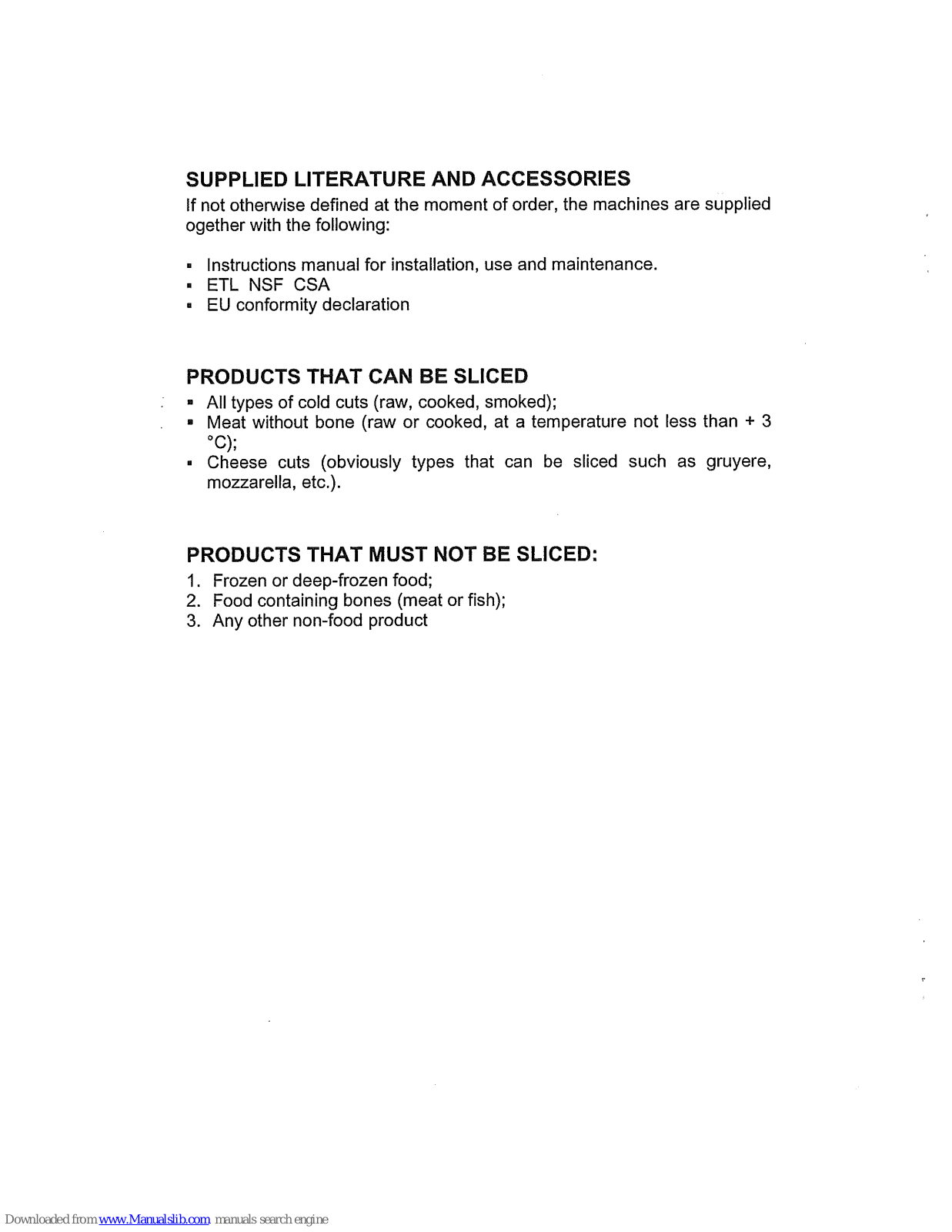

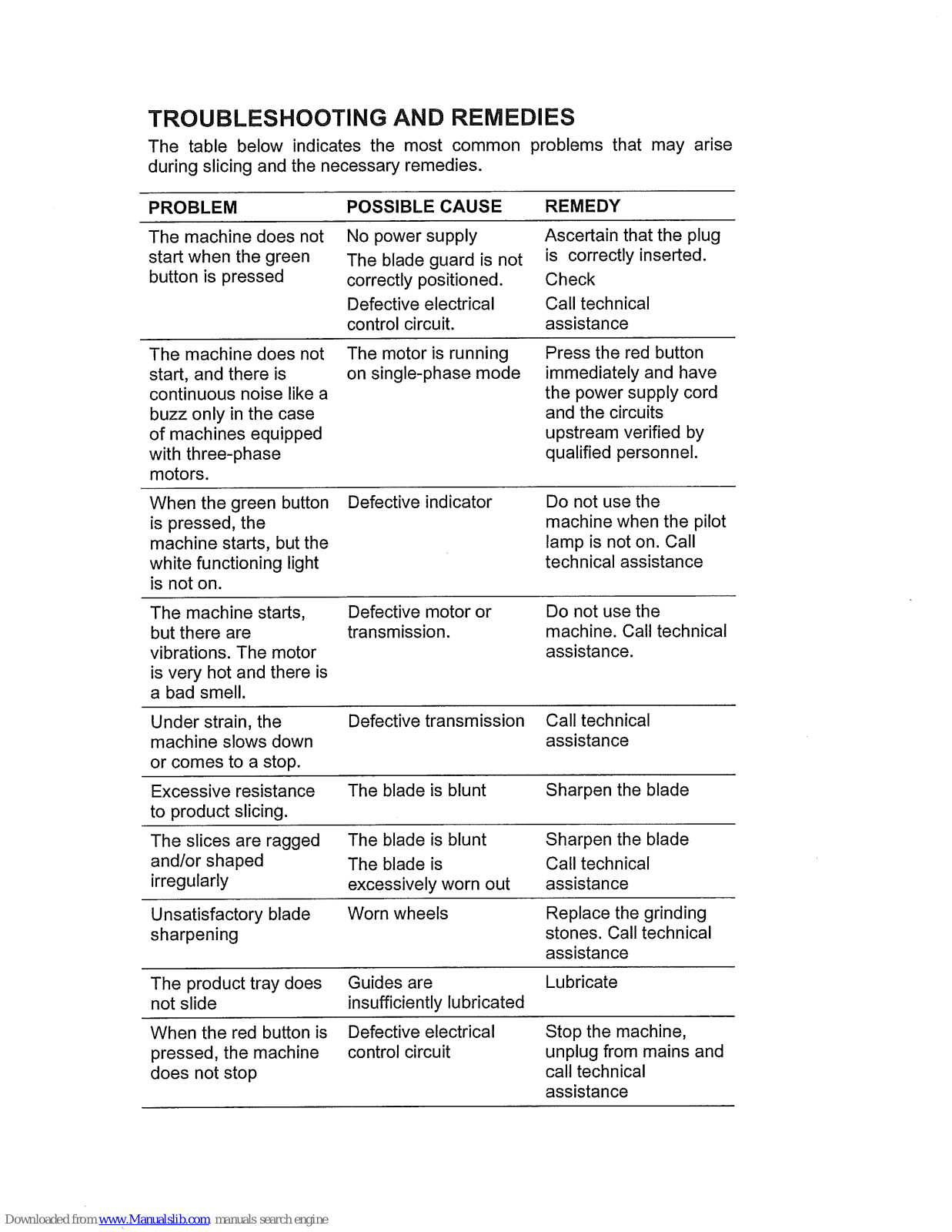

INSTALLATION, USE, MAINTENANCE

& PARTS MANUAL

MARBLEHEAD, OHIO 43440-2099 U.S.A.

[e-mail]

B300M

Ph. 419-798-4451 Fax [phone]

[e-mail]

http://www.birosaw.com

Z9PIE
Foot

Z9SCH
Single phase card 220V-50Hz

Z9TCA
Mono phase card 115V-60Hz

Z9MSB
Cleaning stone

Electrical Box Assembly Mono-Phase 220V-50Hz

GRSTS

MODEL 300 :
G9320

MODEL 350 STND :
Z5L4G

MODEL 350 3rd GEN. :
Z5L3G

Blade

X0090
Water-ring protection

B300 M :
AF02US

B350 M - B350 A :
AF01US

B350 MV :
AF03US

Sharpener

Z9MAF
Sharpening stone

May 2011

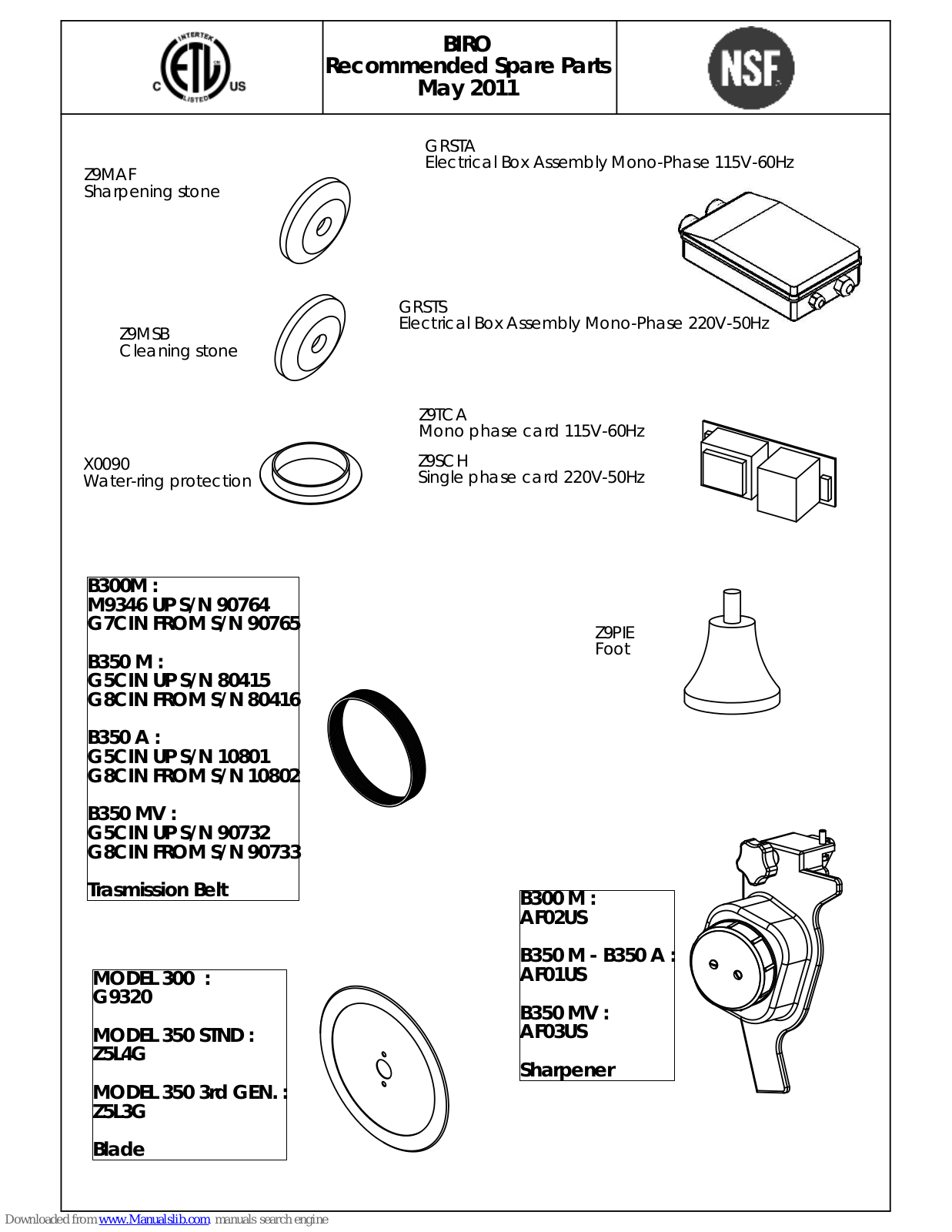

Recommended Spare Parts

BIRO

GRSTA
Electrical Box Assembly Mono-Phase 115V-60Hz

B300M :
M9346 UP S/N 90764
G7CIN FROM S/N 90765

B350 M :
G5CIN UP S/N 80415
G8CIN FROM S/N 80416

B350 A :
G5CIN UP S/N 10801
G8CIN FROM S/N 10802

B350 MV :
G5CIN UP S/N 90 732
G8CIN FROM S/N 90733

Trasmission Belt

2

BIRO

Model B300 M

Manual Slicer

May 2011

G9349

G9308

Z9PIE

Z9GHI

Z3MGR

G9327

G9329

G9307

G9336

C9STA

C9LPT

F9321500G9306

G8AST

F9332200

G127

Z8MBP

B944

B947

Z9BMV

G9302

G9309

ZZCUS

G3PSP

GZIMP

G9362

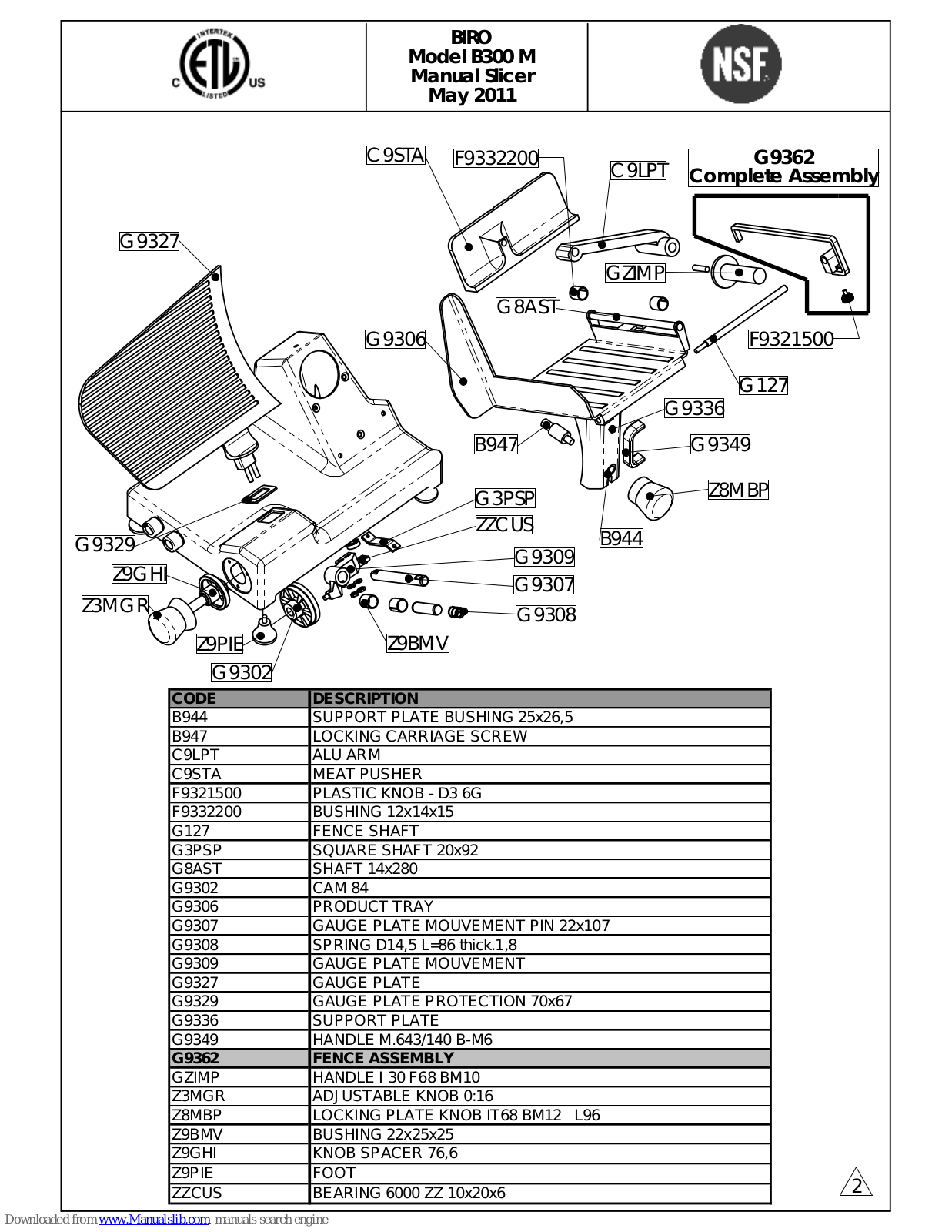

Complete Assembly

CODE DESCRIPTION

B944 SUPPORT PLATE BUSHING 25x26,5
B947 LOCKING CARRIAGE SCREW
C9LPT ALU ARM
C9STA MEAT PUSHER
F9321500 PLASTIC KNOB - D3 6G
F9332200 BUSHING 12x14x15
G127 FENCE SHAFT
G3PSP SQUARE SHAFT 20x92
G8AST SHAFT 14x280
G9302 CAM 84
G9306 PRODUCT TRAY
G9307 GAUGE PLATE MOUVEMENT PIN 22x107
G9308 SPRING D14,5 L=86 thick.1,8
G9309 GAUGE PLATE MOUVEMENT
G9327 GAUGE PLATE
G9329 GAUGE PLATE PROTECTION 70x67
G9336 SUPPORT PLATE
G9349 HANDLE M.643/140 B-M6

G9362 FENCE ASSEMBLY

GZIMP HANDLE I 30 F68 BM10
Z3MGR ADJUSTABLE KNOB 0:16
Z8MBP LOCKING PLATE KNOB IT68 BM12 L96
Z9BMV BUSHING 22x25x25
Z9GHI KNOB SPACER 76,6
Z9PIE FOOT
ZZCUS BEARING 6000 ZZ 10x20x6

3

B942

B941

Z3CUS

B943

Z3BCR

Z9FUN G9315

X0260

BIRO

Model B300 M

Manual Slicer

May 2011

ZZVOL

G9320

X0090

V9328B

G9325

G9301

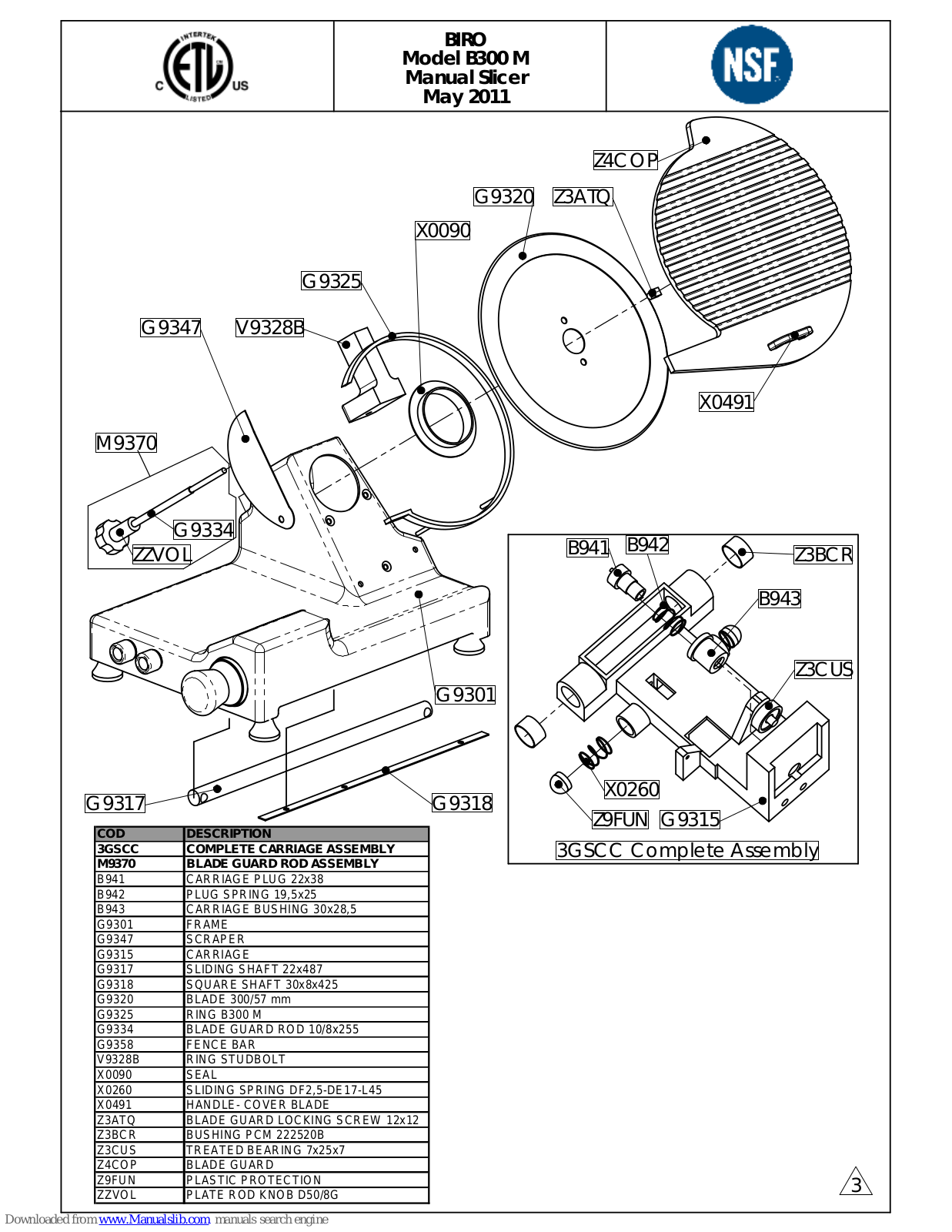

3GSCC Complete Assembly

G9318

Z4COP

G9317

X0491

Z3ATQ

G9334

G9347

M9370

COD DESCRIPTION
3GSCC COMPLETE CARRIAGE ASSEMBLY
M9370 BLADE GUARD ROD ASSEMBLY

B941 CARRIAGE PLUG 22x38
B942 PLUG SPRING 19,5x25
B943 CARRIAGE BUSHING 30x28,5
G9301 FRAME
G9347 SCRAPER
G9315 CARRIAGE
G9317 SLIDING SHAFT 22x487
G9318 SQUARE SHAFT 30x8x425
G9320 BLADE 300/57 mm
G9325 RING B300 M
G9334 BLADE GUARD ROD 10/8x255
G9358 FENCE BAR
V9328B RING STUDBOLT
X0090 SEAL
X0260 SLIDING SPRING DF2,5-DE17-L45
X0491 HANDLE- COVER BLADE
Z3ATQ BLADE GUARD LOCKING SCREW 12x12
Z3BCR BUSHING PCM 222520B
Z3CUS TREATED BEARING 7x25x7
Z4COP BLADE GUARD
Z9FUN PLASTIC PROTECTION
ZZVOL PLATE ROD KNOB D50/8G

BIRO

B 300 M

Manual Slicer

May 2011

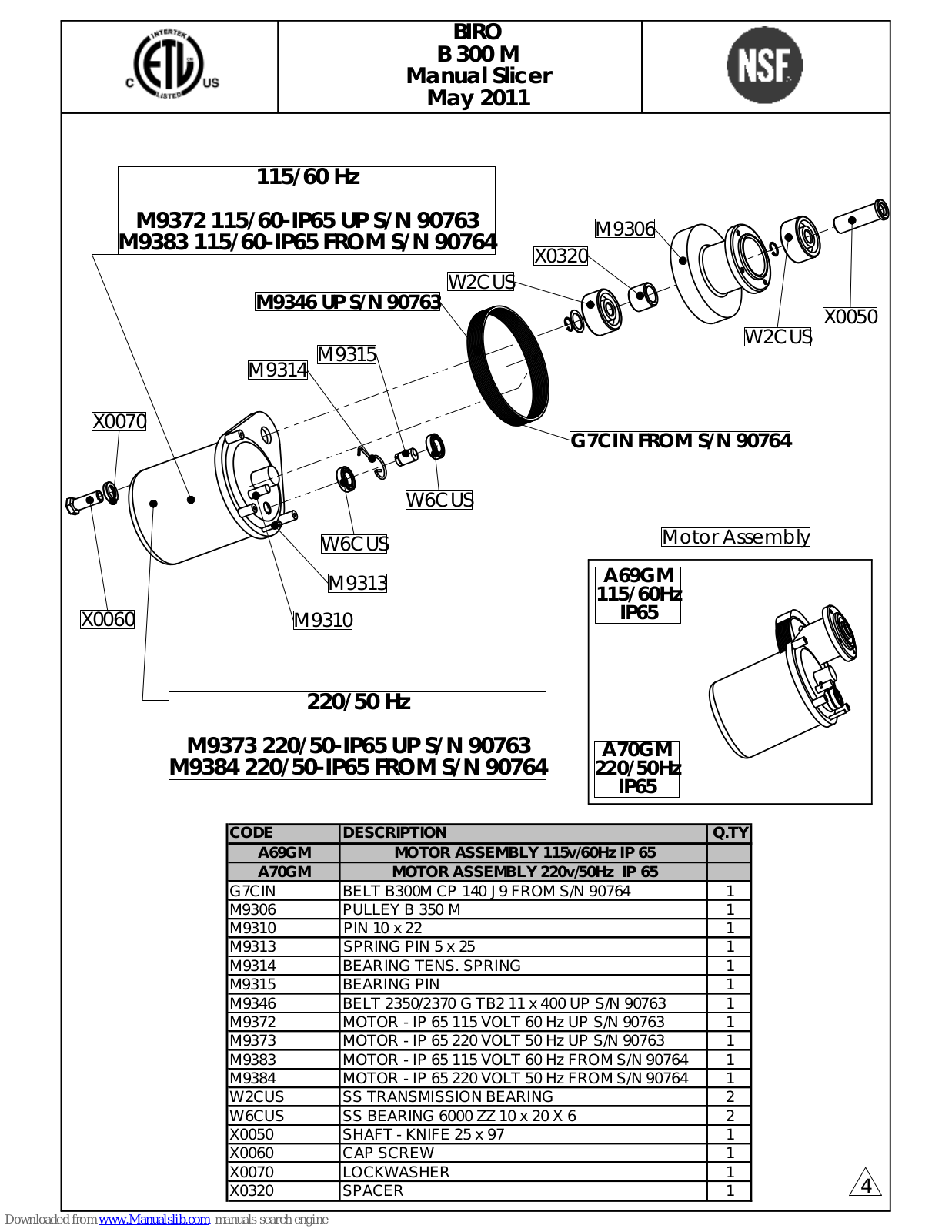

A69GM

115/60Hz

IP65

4

X0320

M9384 220/50-IP65 FROM S/N 90764

Motor Assembly

IP65

220/50Hz

A70GM

115/60 Hz

M9383 115/60-IP65 FROM S/N 90764

M9372 115/60-IP65 UP S/N 90763

M9315

X0060

X0070

M9314

W2CUS

W2CUS

W6CUS

W6CUS

M9346 UP S/N 90763

M9310

M9306

M9313

X0050

220/50 Hz

M9373 220/50-IP65 UP S/N 90763

G7CIN FROM S/N 90764

CODE DESCRIPTION Q.TY

A69GM MOTOR ASSEMBLY 115v/ 60Hz IP 65
A70GM MOTOR ASSEMBLY 220v/50Hz IP 65

G7CIN BELT B300M CP 140 J9 FROM S/N 90764 1
M9306 PULLEY B 350 M 1
M9310 PIN 10 x 22 1
M9313 SPRING PIN 5 x 25 1
M9314 BEARING TENS. SPRING 1
M9315 BEARING PIN 1
M9346 BELT 2350/2370 G TB2 11 x 400 UP S/N 90763 1
M9372 MOTOR - IP 65 115 VOLT 60 Hz UP S/N 90763 1
M9373 MOTOR - IP 65 220 VOLT 50 Hz UP S/N 90763 1
M9383 MOTOR - IP 65 115 VOLT 60 Hz FROM S/N 90764 1
M9384 MOTOR - IP 65 220 VOLT 50 Hz FROM S/N 90764 1
W2CUS SS TRANSMISSION BEARING 2
W6CUS SS BEARING 6000 ZZ 10 x 20 X 6 2
X0050 SHAFT - KNIFE 25 x 97 1
X0060 CAP SCREW 1
X0070 LOCKWASHER 1
X0320 SPACER 1

BIRO

B 300 M

Manual Slicer

May 2011

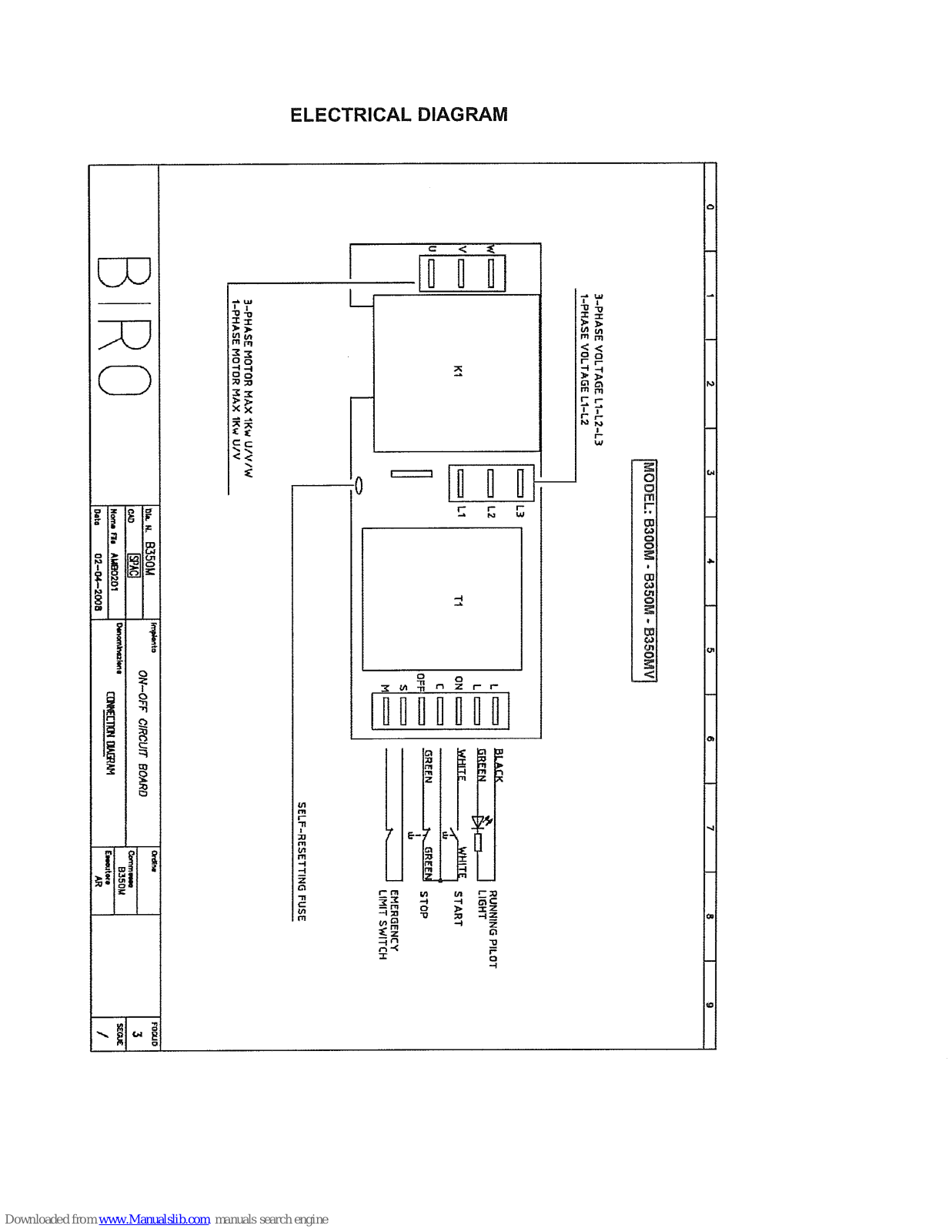

Complete Assembly

GRSTA
MONO-PHASE
115V-60Hz

GRSTS
MONO-PHASE
220V-50Hz

5

W3CON 115V/60hz

Z9TCA

Z9PLA Start Switch Illuminated

X0720

X0710

Z3CON 220V/50hz

115V-60Hz

Z9PLH Stop Switch

Z9SCH

220V-50hz

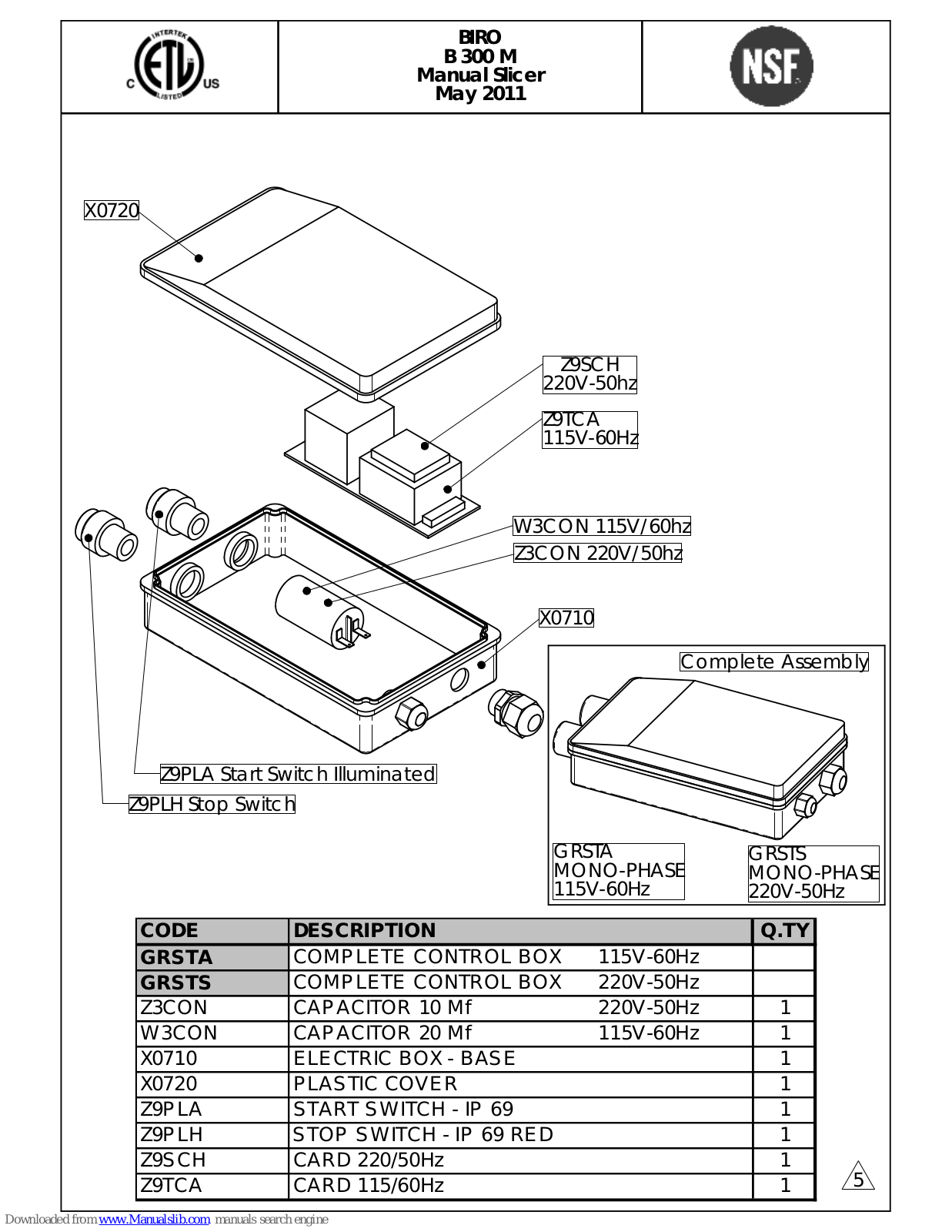

CODE DESCRIPTION Q.TY
GRSTA

COM P LE TE CO NTROL B O X 115V-60Hz

GRSTS

COM P LE TE CO NTROL B O X 220V-50Hz
Z3CON CAPACITOR 10 Mf 220V-50Hz 1
W 3CON CAPACITOR 20 Mf 115V-60Hz 1
X0710 ELECTRIC BOX - BASE 1
X0720 PLASTIC COVER 1
Z9PLA START SW ITCH - IP 69 1
Z9PLH STOP SW ITCH - IP 69 RED 1
Z9SCH CARD 220/50Hz 1
Z9TCA CARD 115/60Hz 1

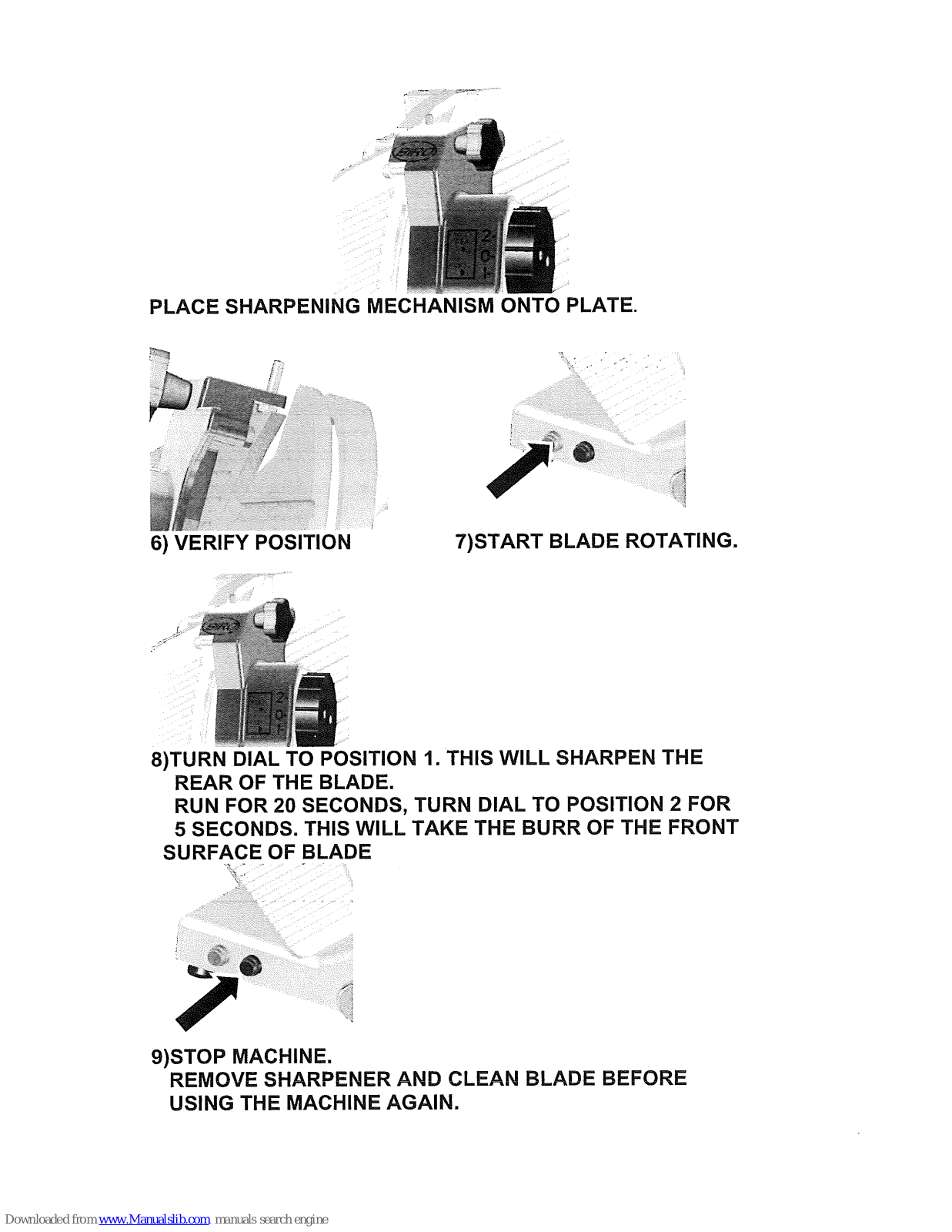

BIRO

B 300 M

Manual Slicer

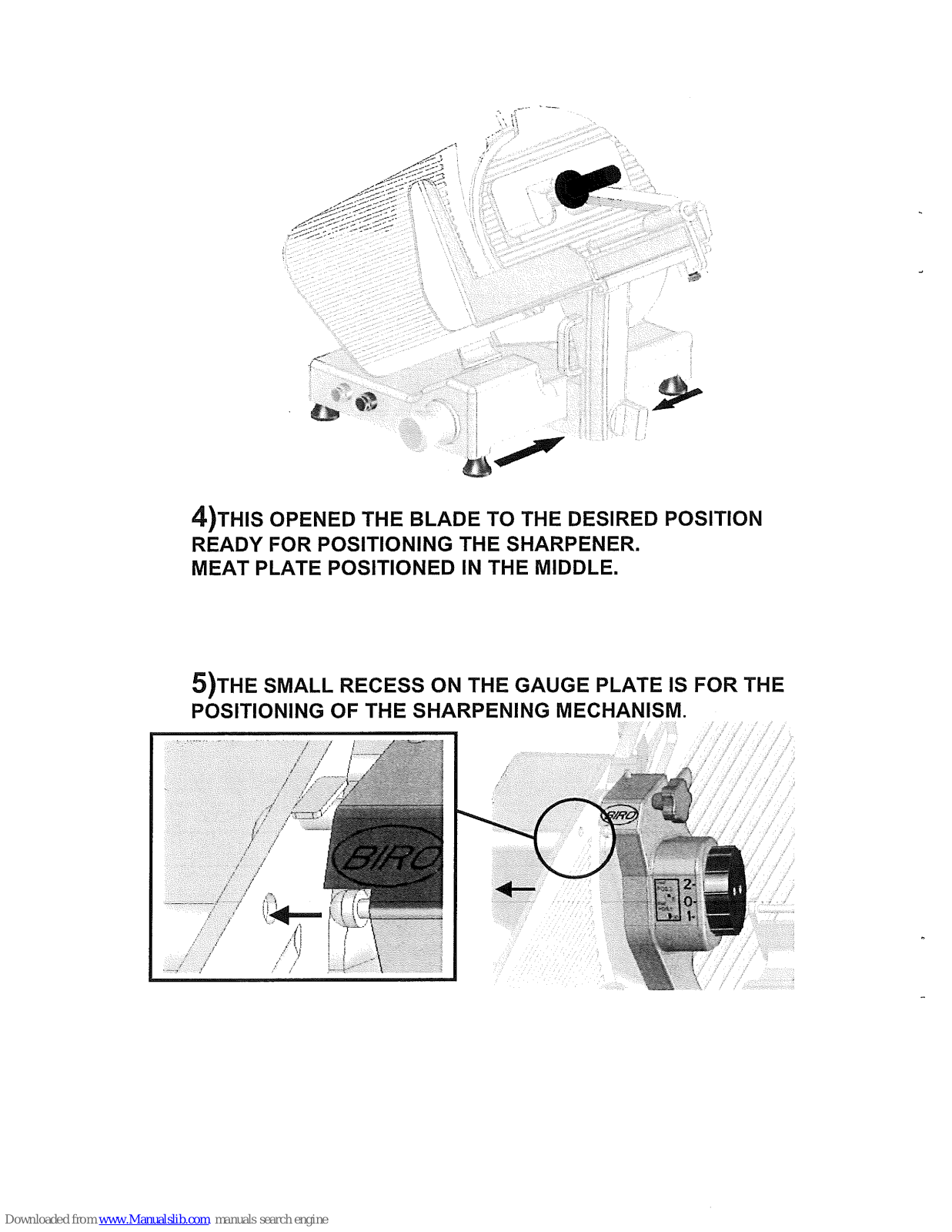

UP S/N 90764

Complete Assembly

6

AF040

AF039

AF038

AF039

AF038

AF006

AF035

AF036

AF008

Z9MSB

AF006

AF033

Z9MAF

AF008

AF011

AF023

AF022

AF0020

AF02US

AF022

ZZVOL

AF037

AF022

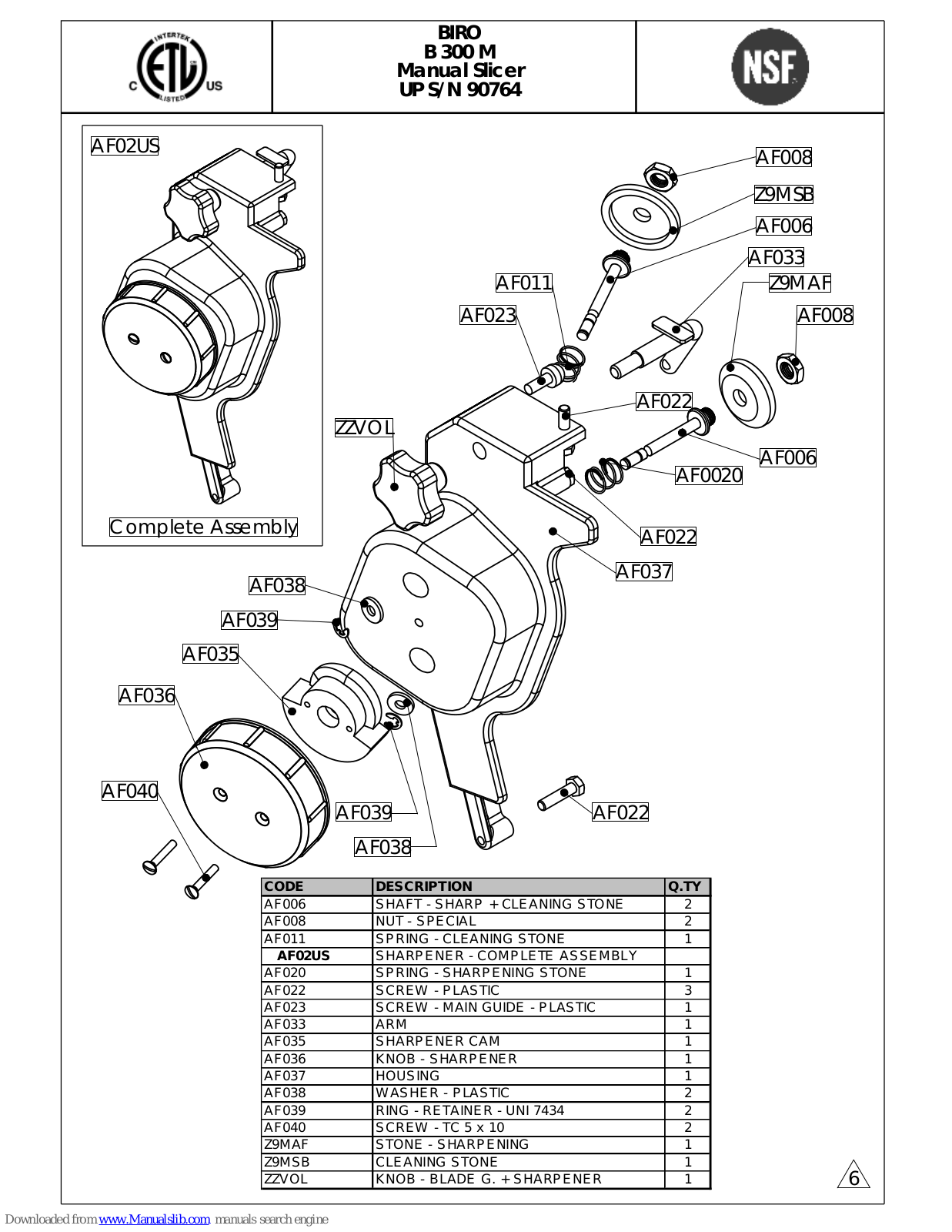

CODE DESCRIPTION Q.TY

AF006 SHAFT - SHARP + CLEANING STONE 2
AF008 NUT - SPE CIAL 2
AF011 SPRING - CLEANING STONE 1

AF02US

SHARPENER - COMPLETE ASSEMBLY
AF020 SPRING - SHARPENING STONE 1
AF022 SCREW - PLASTIC 3
AF023 SCREW - MAIN GUIDE - PLASTIC 1
AF033 ARM 1
AF035 SHARPENER CAM 1
AF036 KNOB - SHARPENER 1
AF037 HOUSING 1
AF038 W AS HER - PLASTIC 2
AF039 RING - RETAINER - UNI 7434 2
AF040 SCREW - TC 5 x 10 2
Z9MAF STONE - SHARPENING 1
Z9MSB CLEANING STONE 1
ZZVOL K NOB - BLADE G. + SHARPENER 1

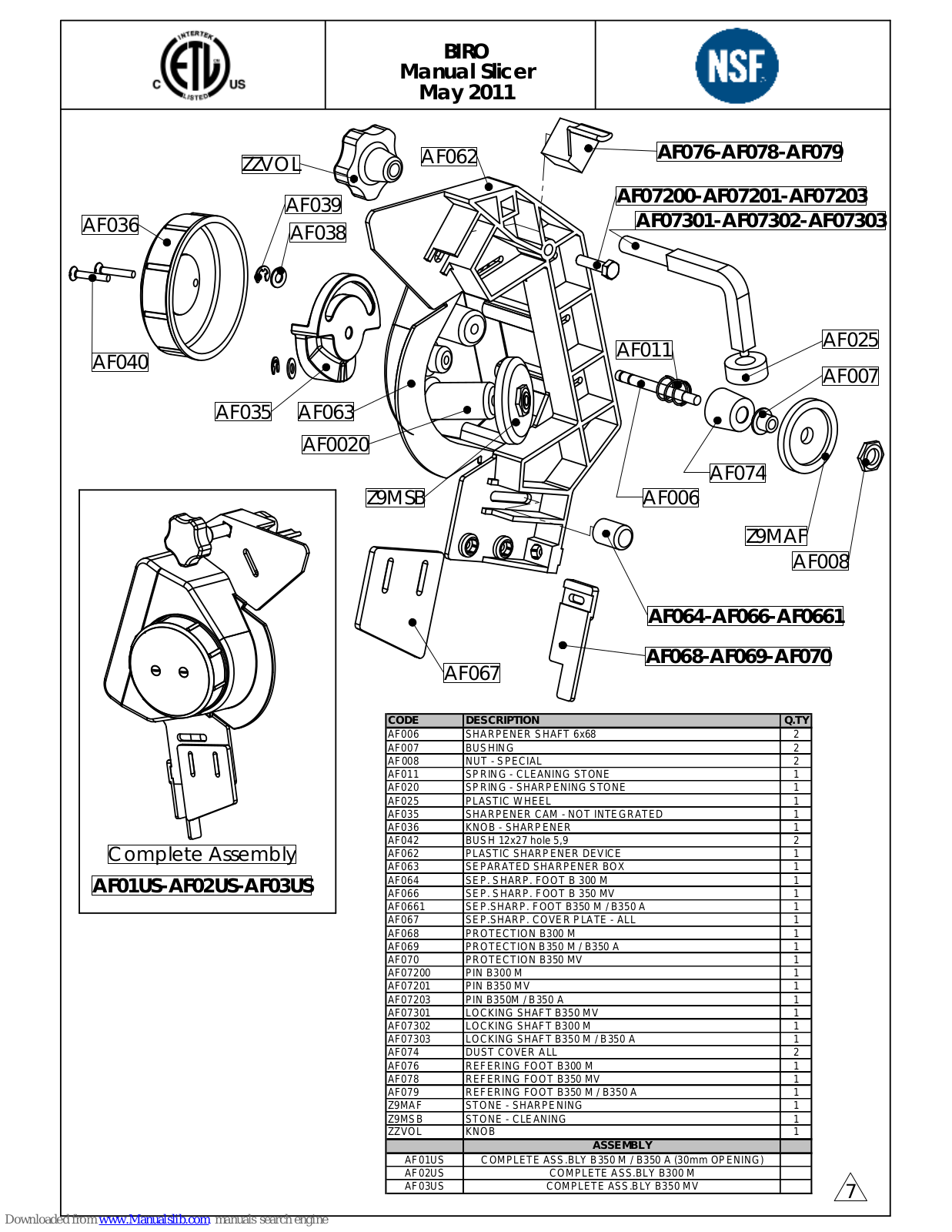

AF063

AF064-AF066-AF0661

AF025

AF036

AF040

AF035

AF038

AF039

AF011

AF0020

AF008

Z9MAF

AF074

AF006Z9MSB

AF07301-AF07302-AF07303

AF07200-AF07201-AF07203

ZZVOL

AF062

AF067

AF068-AF069-AF070

AF007

AF076-AF078-AF079

AF01US-AF02US-AF03US

7

Complete Assembly

BIRO

Manual Slicer

May 2011

CODE DESCRIPTION Q.TY

AF006 SHARPENER SHAFT 6x68 2
AF007 BUSHING 2
AF008 NUT - SPECIAL 2
AF011 SPRING - CLEANING STONE 1
AF020 SPRING - SHARPENING STONE 1
AF025 PLASTIC WHEEL 1
AF035 SHARPENER CAM - NOT INTEGRATED 1
AF036 KNOB - SHARPENER 1
AF042 BUSH 12x27 hole 5,9 2
AF062 PLASTIC SHARPENER DEVICE 1
AF063 SEPARATED SHARPENER BOX 1
AF064 SEP. SHARP. FOOT B 300 M 1
AF066 SEP. SHARP. FOOT B 350 MV 1
AF0661 SEP.SHARP. FOOT B350 M / B350 A 1
AF067 SEP.SHARP. COVER PLATE - ALL 1
AF068 PROTECTION B300 M 1
AF069 PROTECTION B350 M / B350 A 1
AF070 PROTECTION B350 MV 1
AF07200 PIN B300 M 1
AF07201 PIN B350 MV 1
AF07203 PIN B350M / B350 A 1
AF07301 LOCKING SHAFT B350 MV 1
AF07302 LOCKING SHAFT B300 M 1
AF07303 LOCKING SHAFT B350 M / B350 A 1
AF074 DUST COVER ALL 2
AF076 REFERING FOOT B300 M 1
AF078 REFERING FOOT B350 MV 1
AF079 REFERING FOOT B350 M / B350 A 1
Z9MAF STONE - SHARPENING 1
Z9MSB STONE - CLEANING 1
ZZVOL KNOB 1

A

SSEMBLY

AF01US COMPLETE ASS.BLY B350 M / B350 A (30mm OPENING)
AF02US COMPLETE ASS.BLY B300 M
AF03US COMPLETE ASS.BLY B350 MV
