Biro AFMG-52 Specifications

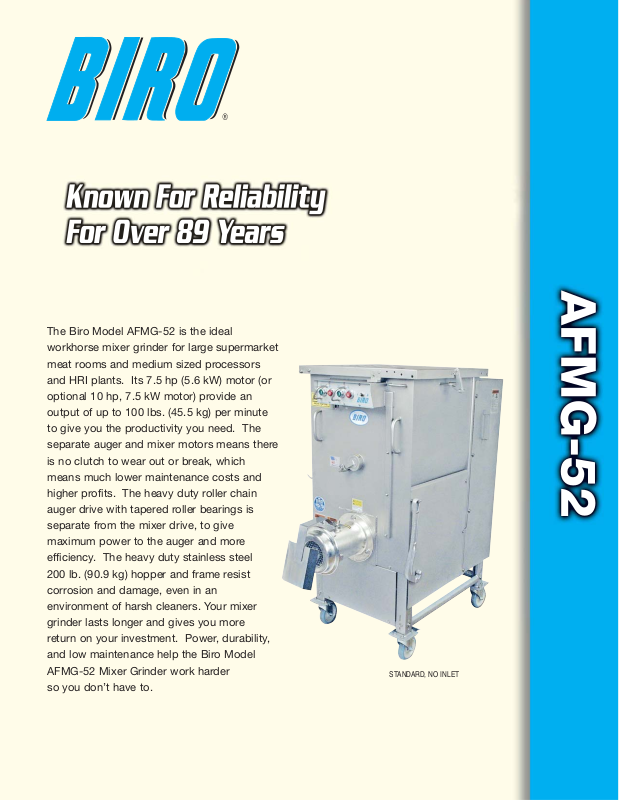

The Biro Model AFMG-52 is the ideal
workhorse mixer grinder for large supermarket
meat rooms and medium sized processors
and HRI plants. Its 7.5 hp (5.6 kW) motor (or
optional 10 hp, 7.5 kW motor) provide an
output of up to 100 lbs. (45.5 kg) per minute
to give you the productivity you need. The
separate auger and mixer motors means there
is no clutch to wear out or break, which
means much lower maintenance costs and
higher profits. The heavy duty roller chain
auger drive with tapered roller bearings is
separate from the mixer drive, to give
maximum power to the auger and more
efficiency. The heavy duty stainless steel
200 lb. (90.9 kg) hopper and frame resist
corrosion and damage, even in an
environment of harsh cleaners. Your mixer
grinder lasts longer and gives you more
return on your investment. Power, durability,
and low maintenance help the Biro Model
AFMG-52 Mixer Grinder work harder
so you don’t have to.

STANDARD, NO INLET

Service is available from over 245 locations worldwide

THE BIRO MANUFACTURING COMPANY

1114 WEST MAIN STREET

MARBLEHEAD, OH 43440-2099 U.S.A.

Phone: [phone]

Fax: [phone]

http://www.birosaw.com

[e-mail]

ITEM NO.: LIT AFMG-52-231

FORM NO.: Md AFMG-52-231-3-10-10-ENG-MARK

All specifications contained herein are subject to change without notification.

Stands alone for quality

and value since 1921

SPECIFICATIONS

MODEL

AFMG-52 MIXER GRINDER.

CONSTRUCTION

HEAVY DUTY STAINLESS STEEL HOPPER, LID, PADDLE, FRAME AND LEGS. CAST IRON HOT TIN DIPPED BOWL, RING AND
AUGER, SIZE 52.

MOTORS

SWITCH

WATERTIGHT MAGNETIC WITH THERMAL OVERLOAD AND
UNDER VOLTAGE PROTECTION.

POWER CORD

12’ 10-4 CORD WITH PLUG 7-1/2 HP, U.S., 12’ 10-4 CORD NO
PLUG 7-1/2 HP INTERNATIONAL, 12’ 8-4 CORD WITH PLUG
10 HP U.S., 12’ 8-4 CORD NO PLUG 10 HP INTERNATIONAL.

HOPPER CAPACITY

HOPPER: 200 LBS (91 KG). A 400 LB. (182 KG) IS ALSO
AVAILABLE.

GRINDING CAPACITY

OUTPUT - UP TO 100 LBS (45.5 KG) PER MINUTE.

DRIVE SYSTEM

AUGER: SINGLE REDUCTION (35 PITCH - 4 ROW) ROLLER
CHAIN DRIVE WITH TAPERED ROLLER BEARINGS.
MIXER: HEAVY DUTY COMBINATION GEAR MOTOR.

SAFETY

MAGNETIC SAFETY INTERLOCK ON HOPPER LID.

STANDARD FEATURES

TUB WITH NO SIDE INLET, STAINLESS STEEL 2ND GRIND
PADDLE WITH CENTER ARMS, CASTERS, SPURT GUARD,
EXTRA ROD FOR FRONT, LEFT OR RIGHT SIDE OPENING
LID, POWER CORD (SEE ABOVE), RING WRENCH, BOWL
NUT WRENCH, TWO SHEAR PINS WITH SCREWS,
RECEPTACLE FOR ELECTRIC FOOTSWITCH, OPERATING
AND SAFETY MANUAL.

OPTIONS (EC)

ELECTRICAL OR PNEUMATIC FOOTSWITCH, SIZE 52 PLATE
AND KNIFE, ACCESSORY CLEANING AND STORAGE RACK,
EXTRA LONG STAINLESS STEEL LEGS (33”/838 MM TO
42”/1069 MM) FROM FLOOR TO BOWL CENTER, LEFT HAND
35 DEGREE SIDE INLET, LEFT OR RIGHT 90 DEGREE STRAIGHT
SIDE INLET, CONNECTIONS FOR TANDEM OPERATIONS,
10 HP (7.5 KW) AUGER MOTOR, STAINLESS STEEL BOWL,
RING AND AUGER (ENTERPRISE OR UNGER).

OPTIONS (NC)

35 DEGREE RIGHT HAND INLET (CALL FACTORY).

CERTIFICATION

U.S.D.A., U.L., N.S.F., C.S.A., C.F.I.A.

WEIGHT

UNCRATED: 745 LBS. (338 KG) APPROXIMATE.
CRATED: 855 LBS. (387 KG) APPROXIMATE.

DIMENSIONS
CRATED

L=53” (134.6 CM), W=38” (96.5 CM), H=66” (167.6 CM).

MOTOR HP KW TYPE VOLTS AMPS CYCLE PH STATUS

AUGER 7.5 5.5 TEFC 208-230/460 24-22/11 60 3 STD

MIXER 1.75 1.3 TEFC 208-230/460 5.7-5.2/2.6 60 3 STD
AUGER 10 7.5 TEFC 208-230/460 31-28/14 60 3 EC
AUGER 7.5 5.5 TEFC 575 8.8 60 3 EC

MIXER 1.75 1.3 TEFC 575 2.4 60 3 EC
AUGER 10 7.5 TEFC 575 11 60 3 EC
AUGER 7.5 5.5 TEFC 220/380-415 22/12.7-12.4 50 3 STD

MIXER 1.75 1.3 TEFC 220/380-415 5.9/3.4-3.1 50 3 STD
AUGER 10 7.5 TEFC 220/380-415 28/16.2-14 50 3 EC

STD=Standard EC=Extra Cost TEFC=Totally Enclosed Fan Cooled

SHOWN WITH 35° ANGLED INLET.
