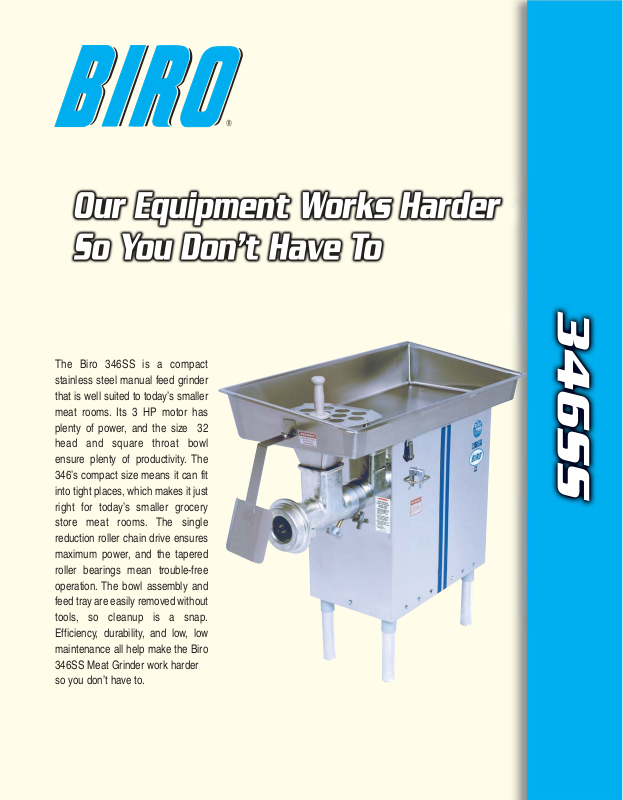

Biro 346SS Specifications

The Biro 346SS is a compact
stainless steel manual feed grinder
that is well suited to today’s smaller
meat rooms. Its 3 HP motor has
plenty of power, and the size 32
head and square throat bowl
ensure plenty of productivity. The
346’s compact size means it can fit
into tight places, which makes it just
right for today’s smaller grocery
store meat rooms. The single
reduction roller chain drive ensures
maximum power, and the tapered
roller bearings mean trouble-free
operation. The bowl assembly and
feed tray are easily removed without
tools, so cleanup is a snap.
Efficiency, durability, and low, low
maintenance all help make the Biro
346SS Meat Grinder work harder
so you don’t have to.

Stands alone for quality

and value since 1921

Service is available from over 245 locations worldwide

THE BIRO MANUFACTURING COMPANY

1114 WEST MAIN STREET

MARBLEHEAD, OH 43440-2099 U.S.A.

Phone: [phone]

Fax: [phone]

http://www.birosaw.com

[e-mail]

ITEM NO.: LIT 346-204

FORM NO.: Md 346-9-08-13-MARK

SPECIFICATIONS

MODEL

346 GRINDER (CHOPPER, MINCER).

CONSTRUCTION

STAINLESS STEEL FEED PAN AND POLISHED STAINLESS STEEL CASE,
CAST IRON HOT TIN-DIPPED BOWL ASSEMBLY, SIZE 32.

MOTORS

SWITCH

WATERTIGHT ENCLOSURE, MAGNETIC, THERMAL
OVERLOAD TYPE, AUTOMATIC RESETTING, SWITCH
CONTROLLED BY A ROCKER ROD ARRANGEMENT
PROJECTING OUTSIDE BOTH SIDES OF MACHINE
ACTIVATED BY SWITCH ROD HANDLE.

POWER CORD

AVAILABLE OPTION AT EXTRA COST.

CAPACITY FEED PAN

APPROXIMATELY 85 LBS. (38 KG).

GRIDING CAPACITY

UP TO 45 LBS. (20 KG) PER MINUTE,
1/8” PLATE FIRST GRIND.

DRIVE SYSTEM

PRE-LUBRICATED CHAIN DRIVE.

SAFETY

MAGNETIC SAFETY INTERLOCK SO MACHINE WILL
NOT OPERATE WHEN FEED PAN WITH WELDED BOWL
GUARD IS REMOVED.

STANDARD FEATURES

11” (280 MM) ALUMINUM LEGS, SPURT GUARD, STOMPER,
RING WRENCH, BOWL GUARD ON FEED PAN,
OPERATING AND SAFETY MANUAL.

OPTIONS (EC)

SIZE 32 KNIFE AND PLATE, LONGER LEGS, POWER CORD,
220/380-50-3, 220-50-1, STAINLESS STEEL BOWL
ASSEMBLY (ENTERPRISE OR UNGER),
SOLID STOMPER, RIGHT HAND FEED PAN.

OPTIONS (NC)

NA

CERTIFICATION

U.S.D.A., N.S.F., U.L. – 3 PHASE.

WEIGHT

1 PHASE UNCRATED: 344 LBS. (156 KG) APPROXIMATE.
1 PHASE CRATED: 420 LBS. (191 KG) APPROXIMATE.
3 PHASE UNCRATED: 345 LBS. (157 KG) APPROXIMATE.
3 PHASE CRATED: 435 LBS (198 KG) APPROXIMATE.

DIMENSIONS CRATED

L = 30” (762 CM), W = 59” (1499 CM), H = 40” (1016 CM).

BIRO EXCLUSIVE NON-SLIP CHAIN

DRIVE TRANSMISSION.

Standard

Left-Hand

Machine

Standard

Right-Hand

Machine

ALL SPECIFICATIONS CONTAINED HEREIN ARE SUBJECT TO CHANGE WITHOUT NOTIFICATION.

ODP=OPEN DRIP PROOF STD=STANDARD NC=NO CHARGE
EC=EXTRA CHARGE NA=NOT AVAILABLE

HP TYPE KW VOLTS AMPS HERTZ PHASE CODE
3 ODP 2.25 208-230/460 15-14/7 60 3 STD
3 ODP 2.25 208-220 18-17 60 1 STD
3 ODP 2.25 200 10 60 3 EC
3 ODP 2.25 220/380 12/7 50 3 EC
3 ODP 2.25 220-230 19-18 50 1 EC
