Biro 22SS Specifications

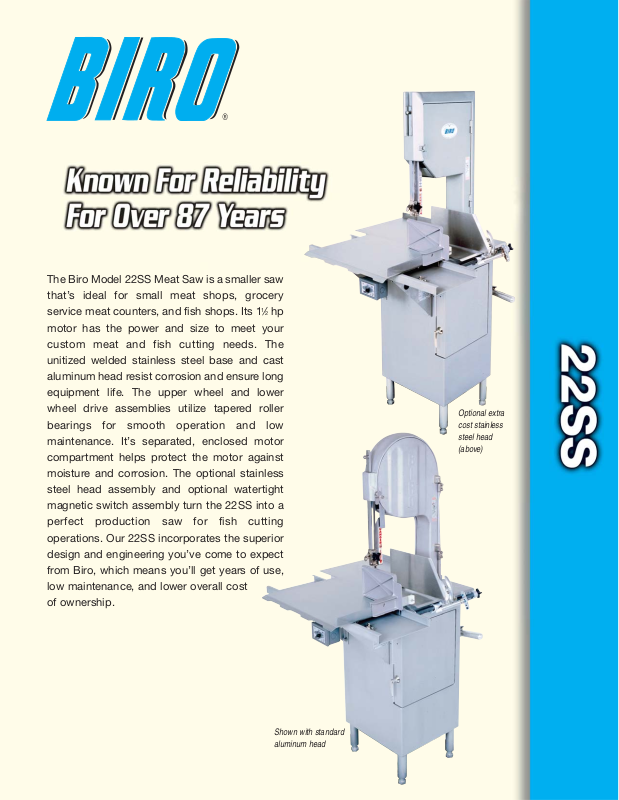

The Biro Model 22SS Meat Saw is a smaller saw
that’s ideal for small meat shops, grocery
service meat counters, and fish shops. Its 1
1
⁄2 hp
motor has the power and size to meet your
custom meat and fish cutting needs. The
unitized welded stainless steel base and cast
aluminum head resist corrosion and ensure long
equipment life. The upper wheel and lower
wheel drive assemblies utilize tapered roller
bearings for smooth operation and low
maintenance. It’s separated, enclosed motor
compartment helps protect the motor against
moisture and corrosion. The optional stainless
steel head assembly and optional watertight
magnetic switch assembly turn the 22SS into a
perfect production saw for fish cutting
operations. Our 22SS incorporates the superior
design and engineering you’ve come to expect
from Biro, which means you’ll get years of use,
low maintenance, and lower overall cost
of ownership.
Optional extra
cost stainless
steel head
(above)
Shown with standard
aluminum head
All specifications contained herein are subject to change without notification.
Service is available from over 245 locations worldwide
HP KW TYPE VOLTS AMPS CYCLE PH STATUS
11⁄2 1.1 HH 115/208-230 21/11/10.5 60 1 STD
11⁄2 1.1 HH 208-220/440 6-5.6/2.8 60 3 STD
11⁄2 1.1 HH 115/208-230 20/10-11 50 1 EC
1
1
⁄2 1.1 TE 115/208-230 20/10-11 60 1 EC
11⁄2 1.1 TE 208-220/440 6-5.6/2.8 60 3 EC
11⁄2 1.1 HH 220/380-415 6/3.6-3.2 50 3 STD
11⁄2 1.1 TE 220/380-415 6/3.6-3.2 50 3 EC
2 1.5 OP 220/440 5.6/2.8 60 3 EC
2 1.5 OP 220/380-415 6/3.6-3.2 50 3 EC
Stands alone for quality
and value since 1921
THE BIRO MANUFACTURING COMPANY
1114 WEST MAIN STREET
MARBLEHEAD, OH 43440-2099 U.S.A.
Phone: (419) 798-4451
Fax: (419) 798-9106
http://www.birosaw.com
sales@birosaw.com
ITEM NO.: LIT 22-008
FORM NO.: Md 22-008-01-09-54-ENG-MARK
SPECIFICATIONS
MODEL 22SS
MODEL 22SS POWER CUTTER (12”).
CONSTRUCTION STAINLESS STEEL BASE, ALUMINUM HEAD STANDARD,
STAINLESS STEEL HEAD STRUCTURE EC.
MOTORS
TE= TOTALLY ENCLOSED STD=STANDARD
HH= HIGH HUMIDITY EC=EXTRA COST
STANDARD FEATURES TWO SAW BLADES, OPERATION AND SAFETY MANUAL, SAFETY WALL
POSTER, END CUT SAFETY PUSHER PLATE.
SWITCH TOGGLE, STANDARD, 2 HP RATED, PLACED CONVENIENTLY IN FRONT.
HEAD AND DOOR ALUMINUM, ENTIRE ASSEMBLY REMOVABLE.
BASE STRUCTURE STAINLESS STEEL.
BLADE STANDARD HARD TOOTH, FOUR TEETH PER INCH, 5/8” (16 MM) WIDE, .020 (.051 MM)
THICK, 91” (2311 MM) LONG (TWO SUPPLIED WITH EACH SAW).
BLADE SPEED 3000 FEET (914 M) PER MINUTE APPROX. 50/60 CYCLE OPERATION.
BLADE GUIDE UPPER AND LOWER BLADE BACKUP GUIDE ASSEMBLIES,
REMOVABLE WITH LONG LIFE CARBIDE BACKUP INSERTS.
BLADE TENSION RATCHET ARM AND CAM AGAINST TENSION SPRING GAUGE.
BLADE WHEELS 12” (30.4 CM) CAST IRON, CHROME NICKEL PLATING, UPPER WHEEL
ASSEMBLY LIFTS OUT.
BEARINGS HEAVY DUTY TAPERED ROLLER BEARINGS USED IN UPPER WHEEL AND LOWER BEARING HOUSINGS.
CATCH PAN POLY, EXTRA DEEP, ROUNDED CORNERS, PAN SEALED OFF FROM OTHER PARTS OF BASE, ACCESSIBLE THROUGH BASE HINGED DOOR.
CLEANING UNIT STAINLESS STEEL BODY, LONG-LIFE CARBIDE GUIDES, STEEL SAW CLEANERS, REMOVABLE AS A UNIT FOR EASY CLEANING.
DRIVE SYSTEM NON SLIP SILENT V-BELT, TENSION ADJUSTABLE.
LEGS STAINLESS STEEL LEG BOLT LEVELERS.
MEAT CARRIAGE STAINLESS STEEL WITH NYLON GUIDES AND STEEL BEARINGS, REMOVABLE THUMB GUARD.
MEAT GAUGE PLATE STAINLESS STEEL FACED, ADJUSTABLE FROM 1/16” (1.59 MM) TO 6-1/2” (165 MM) LOCKS IN POSITION, CAN BE THROWN OUT OF GEAR, ENTIRE
ASSEMBLY REMOVABLE FOR CLEANING.
MOTOR COMPARTMENT SEALED OFF FROM MEAT CONTACT AREAS, EASILY ACCESSIBLE THROUGH REMOVABLE PANEL DOOR.
PLATTER ALL STAINLESS STEEL, HELD IN PLACE WITH TWO PUSH PULL HOLD DOWN STAINLESS STEEL RODS.
SAFETY END CUT
PUSHER PLATE STANDARD, REMOVABLE.
OPTIONS (EC) POWER CORD AND PLUG, TOTALLY ENCLOSED MOTOR,
WATERTIGHT MAGNETIC SWITCH WITH THERMAL OVERLOAD AND
UNDER VOLTAGE PROTECTION, STAINLESS STEEL HEAD, GENERAL
PURPOSE MANUAL PUSH BUTTON SWITCH, 2HP MOTOR.
OPTIONS (NC) NONE AT NO CHARGE.
CERTIFICATION U.L., N.S.F., U.S.D.A., C.S.A., C.F.I.A., EC (WITH MODIFICATIONS).
WEIGHT UNCRATED: 308 LBS. (140 KG) APPROXIMATE.
CRATED: 336 LBS. (152 KG) APPROXIMATE.
STAINLESS STEEL HEAD, ADD 20 LBS. (9 KG).
DIMENSIONS
CRATED L=32” (81.3 CM), W=40” (101.6 CM), H=38-1/2” (97.8 CM).
