Biro 1056SS Specifications

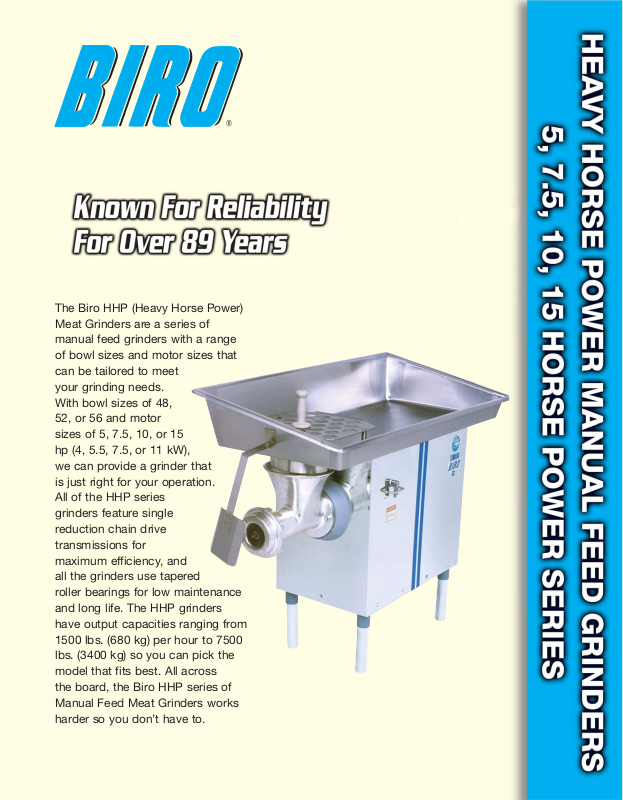

The Biro HHP (Heavy Horse Power)
Meat Grinders are a series of
manual feed grinders with a range
of bowl sizes and motor sizes that
can be tailored to meet
your grinding needs.
With bowl sizes of 48,
52, or 56 and motor
sizes of 5, 7.5, 10, or 15
hp (4, 5.5, 7.5, or 11 kW),
we can provide a grinder that
is just right for your operation.
All of the HHP series
grinders feature single
reduction chain drive
transmissions for
maximum efficiency, and
all the grinders use tapered
roller bearings for low maintenance
and long life. The HHP grinders
have output capacities ranging from
1500 lbs. (680 kg) per hour to 7500
lbs. (3400 kg) so you can pick the
model that fits best. All across
the board, the Biro HHP series of
Manual Feed Meat Grinders works
harder so you don’t have to.
Stands alone for quality
and value since 1921
MODEL
CONSTRUCTION
FEED PANS
ALL MODELS:
CAPACITY FEED PAN
GRINDING CAPACITY
(APPROXIMATE)
SWITCH
POWER CORD
DRIVE SYSTEM
BEARINGS
SAFETY
STANDARD FEATURES
OPTIONS (EC)
CERTIFICATION
SPECIFICATIONS
548SS, 552SS, 7548SS, 7552SS, 1056SS,
1556SS GRINDERS (CHOPPER/MINCER).
STAINLESS STEEL FEED PAN AND POLISHED STAINLESS STEEL
CASE, CAST IRON HOT TIN DIPPED BOWL, RING AND AUGER.
FOR 5, 7.5, 10, AND 15 HP UNITS – LEFT-HAND STAINLESS
STEEL, HIGH BACK FEED TRAY IS STANDARD.
RIGHT-HAND STAINLESS STEEL HIGH BACK FEED TRAYS
AVAILABLE ON REQUEST.
5 & 7.5 HP APPROXIMATELY 100 LBS. (45 KGS.)
10 & 15 HP APPROXIMATELY 115 LBS. (52 KGS.)
548 & 7548 - 55 LBS. (25 KG) PER MINUTE (1STGRIND)
& 33 LBS. (15 KG) PER MINUTE (2NDGRIND).
552 & 7552 - 70 LBS. (32 KG) PER MINUTE (1STGRIND)
& 40 LBS. (18 KG) PER MINUTE (2NDGRIND).
BOWL HP KW VOLTS AMPS CYCLE PH STATUS
48/52 5 3.7 208-220/440 17-16/8 60 3 STD
48/52 5 3.7 208-230 29-27 60 1 EC
48/52 5 3.7 550-575 6.4-6 60 3 EC
48/52 5 3.7 220/380-415 19.2/11-10 50 3 NC
48/52 7.5 5.6 208-220/440 23-22/11 60 3 STD
48/52 7.5 5.6 550-575 8.8-8.4 60 3 EC
48/52 7.5 5.6 220 26.4 50 3 EC
48/52 7.5 5.6 380-415 15.3-14 50 3 NC
56 10 7.5 208-220/440 27-25.6/12.8 60 3 STD
56 10 7.5 550-575 10-9.6 60 3 EC
56 10 7.5 220/380-415 30.7/17.8-16.3 50 3 NC
56 15 11.2 208-220/440 41-39/19.5 60 3 STD
56 15 11.2 550-575 15.6-14.9 60 3 EC
56 15 11.2 220/380-415 46.8/27-24.8 50 3 NC
ABOVE 3 PHASE MOTORS ALSO AVAILABLE IN 220/380-415-50-3 (NC)
STD=STANDARD 42 BOWL ACCEPTS SIZE 32 PLATES AND KNIVES - EC
EC=EXTRA COST 48 BOWL ACCEPTS SIZE 32 PLATES AND KNIVES - EC
NC=NO CHARGE 52 BOWL ACCEPTS SIZE 52 PLATES AND KNIVES - EC
56 BOWL ACCEPTS SIZE 56 PLATES AND KNIVES - EC
MOTORS
1056 & 1556 - 125 LBS. (57 KG) PER MINUTE (1STGRIND)
& 80 LBS. (36 KG) PER MINUTE (2NDGRIND).
WATERTIGHT MAGNETIC TYPE WITH THERMAL
OVERLOAD AND UNDER VOLTAGE PROTECTION.
AVAILABLE OPTION AT EXTRA COST.
SILENT (10-15 HP) OR ROLLER LINK (5, 7.5 HP)
CHAIN DRIVE OVER WIDE FACE SPROCKETS
INSURING MAXIMUM POWER TRANSFER FROM
MOTOR TO AUGER.
DEEP TAPERED ROLLER THRUST BEARINGS
CARRY ALL RADIAL AND THRUST LOADS FROM
AUGER ELIMINATING FRICTION.
MAGNETIC SAFETY INTERLOCK SO MACHINE WILL
NOT OPERATE WHEN FEED PAN WITH
WELDED BOWL GUARD IS REMOVED.
ALUMINUM LEGS (SEE SCHEMATIC), SPURT
GUARD, STOMPER, RING WRENCH, BOWL GUARD
ON FEED PAN, OPERATING AND SAFETY MANUAL.
SIZE 32 KNIFE AND PLATE, LONGER LEGS
ALUMINUM OR STEEL WITH CROSS BRACING,
INCH DIMENSION (MM) 7548 7552 1556
A 29 (737) 29 (737) 29 (737)
B 52 (1321) 52 (1321) 52 (1321)
C8
1
C
D27
E2
F30
G18
H 11 (279) 11 (279) 121/8 (308)
I4
J 12 3/8 (314) 113/4 (298) 161/4 (413)
K14
L8
M 5 (127) 5 (127) 21/2 (63)
N17
O42
P2
OA 55 (1397) 55 (1397) 583/4 (1492)
APPROX. WT. # PACKED (KG) 510 (232) 520 (236) 705 (320)
APPROX. WT # UNPACKED (KG) 430 (195) 440 (200) 621 (282)
548 552 1056
5
/8 (219) 85/8 (219) 85/8 (219)
41/4 (108) 41/4 (108) 41/4 (108)
1
/4 (692) 271/4 (692) 321/4 (832)
3
/4 (70) 23/4 (70) 23/4 (70)
1
/4 (768) 301/4 (768) 331/4 (845)
15
/16 (481) 1815/16 (481) 221/2 (571)
1
/4 (108) 41/4 (108) 41/2 (114)
1
/2 (368) 141/2 (368) 173/4 (451)
1
/4 (210) 81/4 (210) 31/4 (83)
1
/2 (444) 171/4 (438) 21 (533)
3
/4 (1086) 423/4 (1086) 423/4 (1086)
1
/2 (63) 21/2 (63) 31/2 (89)
VARIOUS MOTORS (SEE CHART), SOLID STOMPER, CONNECTIONS FOR MIXER-GRINDER SYSTEMS, RIGHT HAND.
U.L., N.S.F., U.S.D.A., C.S.A.
THE BIRO MANUFACTURING COMPANY
1114 WEST MAIN STREET
MARBLEHEAD, OH 43440-2099 U.S.A.
Phone: (419) 798-4451
Fax: (419) 798-9106
http://www.birosaw.com
sales@birosaw.com
Biro exclusive non-slip
chain drive transmission.
All specifications contained herein are subject to change without notification.
FORM NO.: Md HHP-065-10-09-37 ENG MARK
ITEM NO.: LIT-HHP-065
Service is available from over 245 locations worldwide
