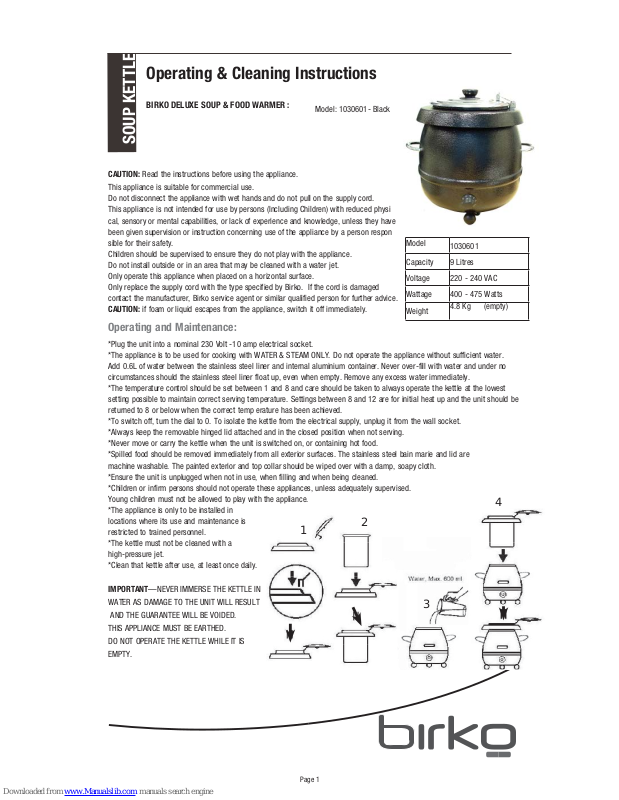

Operating & Cleaning Instructions
BIRKO DELUXE SOUP & FOOD WARMER :
SOUP KETTLE
CAUTION: Read the instructions before using the appliance.
This appliance is suitable for commercial use.
Do not disconnect the appliance with wet hands and do not pull on the supply cord.
This appliance is not intended for use by persons (Including Children) with reduced physi
cal, sensory or mental capabilities, or lack of experience and knowledge, unless they have
been given supervision or instruction concerning use of the appliance by a person respon
sible for their safety.
Children should be supervised to ensure they do not play with the appliance.
Do not install outside or in an area that may be cleaned with a water jet.
Only operate this appliance when placed on a horizontal surface.
Only replace the supply cord with the type specified by Birko. If the cord is damaged
contact the manufacturer, Birko service agent or similar qualified person for further advice.
CAUTION: if foam or liquid escapes from the appliance, switch it off immediately.
Operating and Maintenance:
*Plug the unit into a nominal 230 Volt -10 amp electrical socket.
*The appliance is to be used for cooking with WATER & STEAM ONLY. Do not operate the appliance without sufficient water.
Add 0.6L of water between the stainless steel liner and internal aluminium container. Never over-fill with water and under no
circumstances should the stainless steel liner float up, even when empty. Remove any excess water immediately.
*The temperature control should be set between 1 and 8 and care should be taken to always operate the kettle at the lowest
setting possible to maintain correct serving temperature. Settings between 8 and 12 are for initial heat up and the unit should be
returned to 8 or below when the correct temp erature has been achieved.
*To switch off, turn the dial to 0. To isolate the kettle from the electrical supply, unplug it from the wall socket.
*Always keep the removable hinged lid attached and in the closed position when not serving.
*Never move or carry the kettle when the unit is switched on, or containing hot food.
*Spilled food should be removed immediately from all exterior surfaces. The stainless steel bain marie and lid are
machine washable. The painted exterior and top collar should be wiped over with a damp, soapy cloth.
*Ensure the unit is unplugged when not in use, when filling and when being cleaned.
*Children or infirm persons should not operate these appliances, unless adequately supervised.
Young children must not be allowed to play with the appliance.
*The appliance is only to be installed in
locations where its use and maintenance is
restricted to trained personnel.
*The kettle must not be cleaned with a
high-pressure jet.
*Clean that kettle after use, at least once daily.
IMPORTANT—NEVER IMMERSE THE KETTLE IN
WATER AS DAMAGE TO THE UNIT WILL RESULT
AND THE GUARANTEE WILL BE VOIDED.
THIS APPLIANCE MUST BE EARTHED.
DO NOT OPERATE THE KETTLE WHILE IT IS
EMPTY.
Model
1030601
Capacity 9 Litres
Voltage 220 - 240 VAC
Wattage 400 - 475 Watts
Weight
4.8 Kg (empty)
Model: 1030601- Black
1
2
3
4
Page 2
Page 2
Operating & Cleaning Instructions
BIRKO DELUXE SOUP & FOOD WARMER. Model No: 1030601- Black.
SOUP KETTLE
End of life disposal:
The use of this crossed out wheeled bin logo indicates that this product needs to be disposed of separately
to any other household waste.
Within each of the European Union member countries, provisions have been made for the collection and
recycling of unwanted electrical and electronic equipment. Outside of the EU it will be necessary to dispose
of this product at your local community waste collection or recycling centre.
In order to help preserve our environment we ask that you dispose of this product correctly. Please contact
your local city council for collection centre details.
Birko Heaters Australia Pty Ltd., ABN 39 103 881 625
67 Allingham St, Condell Park, N.S.W. 2200, AUSTRALIA.
International Ph: +61 2 9796 3100
International Fax: +61 2 9796 3858
Local Ph: 1300 724 955, Local Fax: 1300 735 259
[email protected],
www.birkoheaters.com
The term ‘Birko’ is a registered trade mark of Birko Heaters Australia Pty. Ltd.
800514 - April 2012 v1.02
Warning:
The kettle must must not be cleaned by a water jet.
Caution:
Hot Surface.
Zenith Heaters Limited,
IRD No. 95 640 729
Unit 2/15 Moselle Avenue,
Henderson.
Auckland. 0610
NEW ZEALAND.
Telephone: 0800 558055
Facsimile: 0800 559055
www.zenithheaters.co.nz
