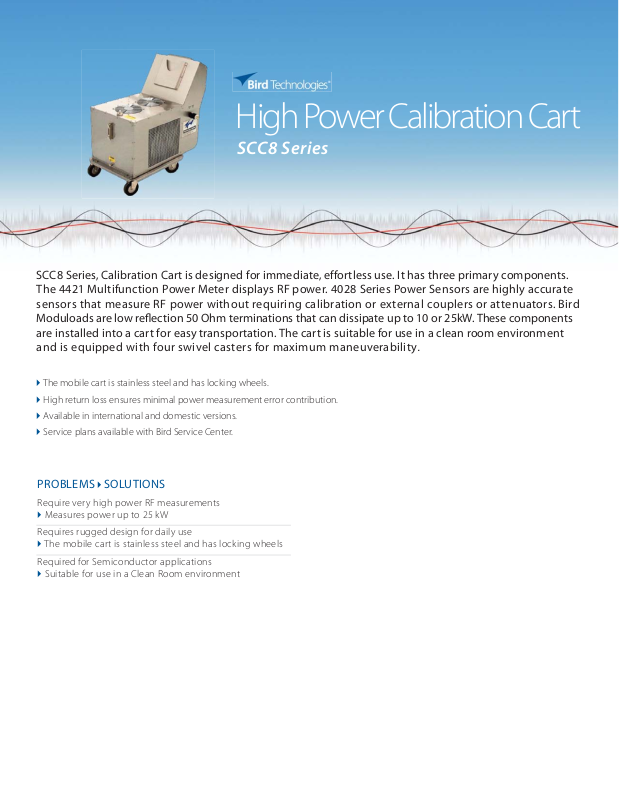

Bird Technologies SCC8 Datasheet

High Power Calibration Cart

SCC8 Series

} The mobile cart is stainless steel and has locking wheels.

} High return loss ensures minimal power measurement error contribution.

} Available in international and domestic versions.

} Service plans available with Bird Service Center.

PROBLEMS } SOLUTIONS

Require very high power RF measurements

} Measures power up to 25 kW

Requires rugged design for daily use

} The mobile cart is stainless steel and has locking wheels

Required for Semiconductor applications

}

Suitable for use in a Clean Room environment

SCC8 Series, Calibration Cart is designed for immediate, effortless use. It has three primary components.
The 4421 Multifunction Power Meter displays RF power. 4028 Series Power Sensors are highly accurate
sensors that measure RF power without requiring calibration or external couplers or attenuators. Bird
Moduloads are low reection 50 Ohm terminations that can dissipate up to 10 or 25kW. These components
are installed into a cart for easy transportation. The cart is suitable for use in a clean room environment
and is equipped with four swivel casters for maximum maneuverability.

CHARACTERISTICS

Frequency Range 250 kHz - 30 MHz, depending on sensor

(see below)

Power Levels 10 kW or 25 kW

Accuracy ±2% (2s) of reading at calibration fre-

quency and power levels
±4% (2s) of reading at other power levels
and frequencies within sensor range (add
2% to uncertainty outside 25 ± 10 °C)

Connector* Customer specied, appropriate for

power level

Impedance 50 Ohm nominal

Sensor VSWR 1.05 max (32.2 dB return loss)

Load VSWR 1.1 max (26.4 dB return loss)

Coolant 100% water or 35% industrial ethylene

glycol / 65% water, 9 quarts (8.5 liters),
forced air cooling

Particle Generation 156 per cfm (0.5 μm), 29 per cfm (1 μm),

0 per cfm (3 μM)

Material Stainless steel cart

Casters 4 locking swivel

AC Power 115 VAC ± 10%, 60 Hz, 11 A nominal

230 VAC ± 10%, 50 Hz, 5.5 A nominal

Humidity 5% maximum, non-condensing

Altitude Load derated above 5,000 feet (1,524 m)

Operating Temperature +5 °C to + 30 °C, £ 25 kW, 100% water,

derate sensor accuracy outside 25 ± 10 °C
+5 °C to + 45 °C, < 20 kW, 100% water,
derate sensor accuracy outside 25 ± 10 °C
0 °C to + 25 °C, £ 25 kW, 35% ethylene
glycol / 65% water
0 °C to + 25 °C, < 20 kW, 35% ethylene
glycol / 65% water

Storage Temperature +5 °C to + 50 °C, 100% water

-20 °C to + 50 °C, 35% ethylene glycol /
65% water

Size 39.5” L x 21.5” W x 39.5” H

(100.3 cm x 54.6 cm x 100.3 cm)

Weight 240 lbs (109 kg)

CalibrationCart_SCC8-09052012

30303 Aurora Rd. Solon, OH 44139 866.695.4569 www.bird-technologies.com

High Power Calibration Carts

SCC8 Series

4028 Series Power Sensor

Model Frequency Range Power Input

4028A10M 10-15 MHz 1 kW to 25 kW
4028A250K 250-400 kHz 1 kW to 20 kW

4028A25M 25-30 MHz 1 kW to 25 kW

4028A2M 1.5-2.5 MHz 1 kW to 25 kW

4028A3M 2.5-3.5 MHz 1 kW to 25 kW

4028A400K 400-550 kHz 1 kW to 20 kW

4028A4M 3.5-4.5 MHz 1 kW to 25 kW

4028B10M 10-15 MHz 1 kW to 25 kW

4028B3M 3-4 MHz 1 kW to 25 kW

* For connector options, please refer to our catalog or contact sales at 866.695.4569
or [e-mail]
