Bird Technologies SA-6000XT Datasheet

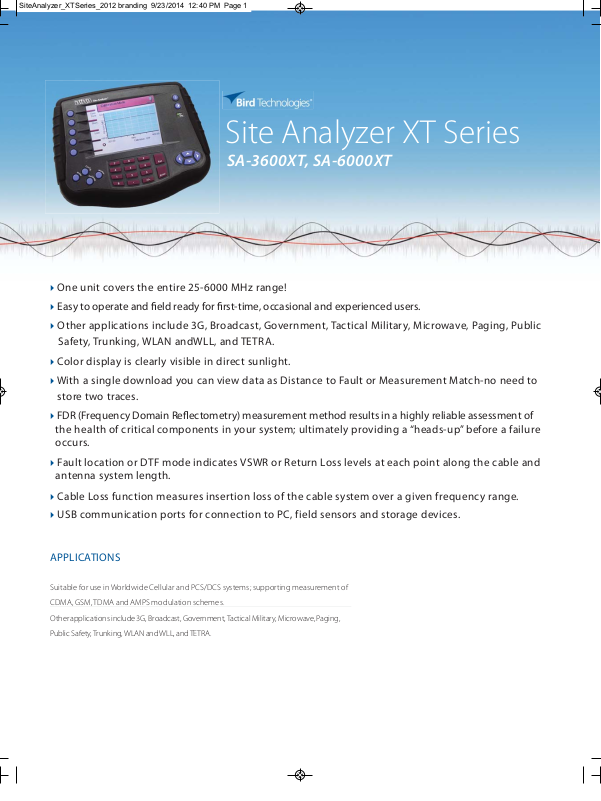

Site Analyzer XT Series
SA-3600XT, SA-6000XT
}
One unit covers the entire 25-6000 MHz range!
}
Easy to operate and eld ready for rst-time, occasional and experienced users.
}
Other applications include 3G, Broadcast, Government, Tactical Military, Microwave, Paging, Public
Safety, Trunking, WLAN andWLL, and TETRA.
}
Color display is clearly visible in direct sunlight.
}
With a single download you can view data as Distance to Fault or Measurement Match-no need to
store two traces.
}
FDR (Frequency Domain Reectometry) measurement method results in a highly reliable assessment of
the health of critical components in your system; ultimately providing a “heads-up” before a failure
occurs.
}
Fault location or DTF mode indicates VSWR or Return Loss levels at each point along the cable and
antenna system length.
}
Cable Loss function measures insertion loss of the cable system over a given frequency range.
}
USB communication ports for connection to PC, field sensors and storage devices.
APPLICATIONS
Suitable for use in Worldwide Cellular and PCS/DCS systems; supporting measurement of
CDMA, GSM, TDMA and AMPS modulation schemes.
Other applications include 3G, Broadcast, Government, Tactical Military, Microwave, Paging,
Public Safety, Trunking, WLAN and WLL, and TETRA.
Site Analyzer XT Series
SA-3600XT, SA-6000XT
SPECIFICATIONS
Frequency Range SA-3600XT
SA-6000XT
Frequency Resolution SA-3600XT
SA-6000XT
Power Measurement SA-3600XT
SA-6000XT
Return Loss 0 to -60 dB
Test Port N-type female connector
Impedance 50 ohms
Speed 1 multi-frequency scan
Trace Resolution 238 (default), 475, or 949 per trace
Storage Capacity Thousands of setups and traces
Immunity to Interfering
Signals
Maximum Input Signal +22 dBm
Data Transfer Sensor: USB 2.0 Type A
Internal Time Rechargeable lithium-Ion
External DC 9-15 VDC fused, <3 A
External AC 100 to 240 VAC @ 50-60 Hz;
Operating Temperature
Storage Temperature -40° to +80° C (-40° to +176° F)
Battery Charging
Temperature
Humidity 95% ± 5% max., (non-condensing)
Altitude Up to 15,000 feet (4572 m)
Dimensions 10.5” x 8.4” x 3.3” (265 x 212 x 83 mm)
Weight 5.5 lbs. (2,5 kg)
Upgradeable Yes, SA-3600XT maybe upgrade to
25-3600 MHz
25-6000 MHz
25 kHz; 25-800 MHz,
50 kHz; 800-2500 MHz,
150 kHz; 2500-3600 MHz
25 kHz; 25-800 MHz,
50 kHz; 800-2500 MHz,
150 kHz; 2500-6000 MHz
Yes
Yes
(238 points)/2 seconds
1 multi-frequency scan
(475 points)/3.5 seconds
1 multi-frequency scan
(949 points)/6 seconds
Rejects on-frequency signals up
to +13 dBm
PC: USB 2.0 Type B
batteries. 5-hour minimum
operating time. Auto shut-o
conserves battery life
AC/DC adapter required
-10° to +50° C (+14° to +122° F)
0° to + 35° C (32° to 95° F)
SA-6000XT
STANDARD ACCESSORIES
AC Adapter (15 Vdc Output) 5B2229-1224G-1
Automobile Cigarette Lighter Adapter 5A2238-2
Soft Carrying Case 7002A850
USB Interface Cable 5A2653-10
PC Interface Software Kit 7002A840
Instruction Manual 920-SA-XT
Internal Battery Pack, with 4-pin Connector 5C2431-2
OPTIONAL ACCESSORIES
CAL-MN-C Calibration Combo, (M) N
CAL-FN-C Calibration Combo, (F) N
CAL-ME-C Calibration Combo, (M) 7/16 DIN
CAL-FE-C Calibration Combo, (F) 7/16 DIN
5012D Wideband Power Sensor 350 MHz -4000 MHz
5014 Directional Power Sensor 2 - 2700 MHz
5015 Terminating Power Sensor 40 MHz - 4000 MHz
5015EF Terminating Power Sensor 40 MHz - 12 GHz
5016D Wideband Power Sensor 350 MHz - 4000 MHz
5017D Wideband Power Sensor 25 MHz - 1000 MHz
5018D Wideband Power Sensor 150 MHz - 4000 MHz
5019D Wideband Power Sensor 25 MHz - 1000 MHz
7020-1-0101 Power Sensor 350 MHz - 4000 MHz
TC-MNMN-1.5 Test Cable, 1.5 m., N (M) conn.
TC-MNMN-3.0 Test Cable, 3 m., N (M) conn.
TC-MNFN-1.5 Test Cable, 1.5 m., N (M)/N (F) conn.
TC-MNFN-3.0 Test Cable, 3 m., N (M)/N (F) conn.
TC-MNME-1.5 Test Cable, 1.5 m., N (M) - 7/16 DIN (M)
TC-MNME-3.0 Test Cable, 3 m., N (M) - 7/16 DIN (M)
TC-MNFE-1.5 Test Cable, 1.5 m., N (M) - 7/16 DIN (F) conn.
TC-MNFE-3.0 Test Cable, 3 m., N (M) - 7/16 DIN (F) conn.
PA-MNME Adapter, N (M) to 7/16 DIN (M)
PA-FNME Adapter, N (F) to 7/16 DIN (M)
PA-MNFE Adapter, N (M) to 7/16 DIN (F)
PA-FNFE Adapter, N (F) to 7/16 DIN (F)
4240-550 Precision Connector Adapter Kit, 7/16 DIN, SA -Series
7002C870 Hard Shell Transit Case
SA-BATPAK-1 External Battery Pack
RPK5C2431-2 Battery, Spare
30303 Aurora Rd. Solon, OH 44139 866.695.4569 www.bird-technologies.com
SiteAnalyzer_XTSeries-09232014
