BirdDog P4K User Guide

USER GUIDE

December 2022

Table of Contents

Welcome to BirdDog! .................................................................................................3

Using This Manual ........................................................................................................ 3

First Step ......................................................................................................................... 3

BirdDog P4K Overview .............................................................................................4

Camera Features.........................................................................................................................4

Specications ................................................................................................................4

Welcome to the Future .............................................................................................5

What’s in the Box? .......................................................................................................6

Optional Accessories ................................................................................................................ 6

Quick Start Guide ........................................................................................................ 7

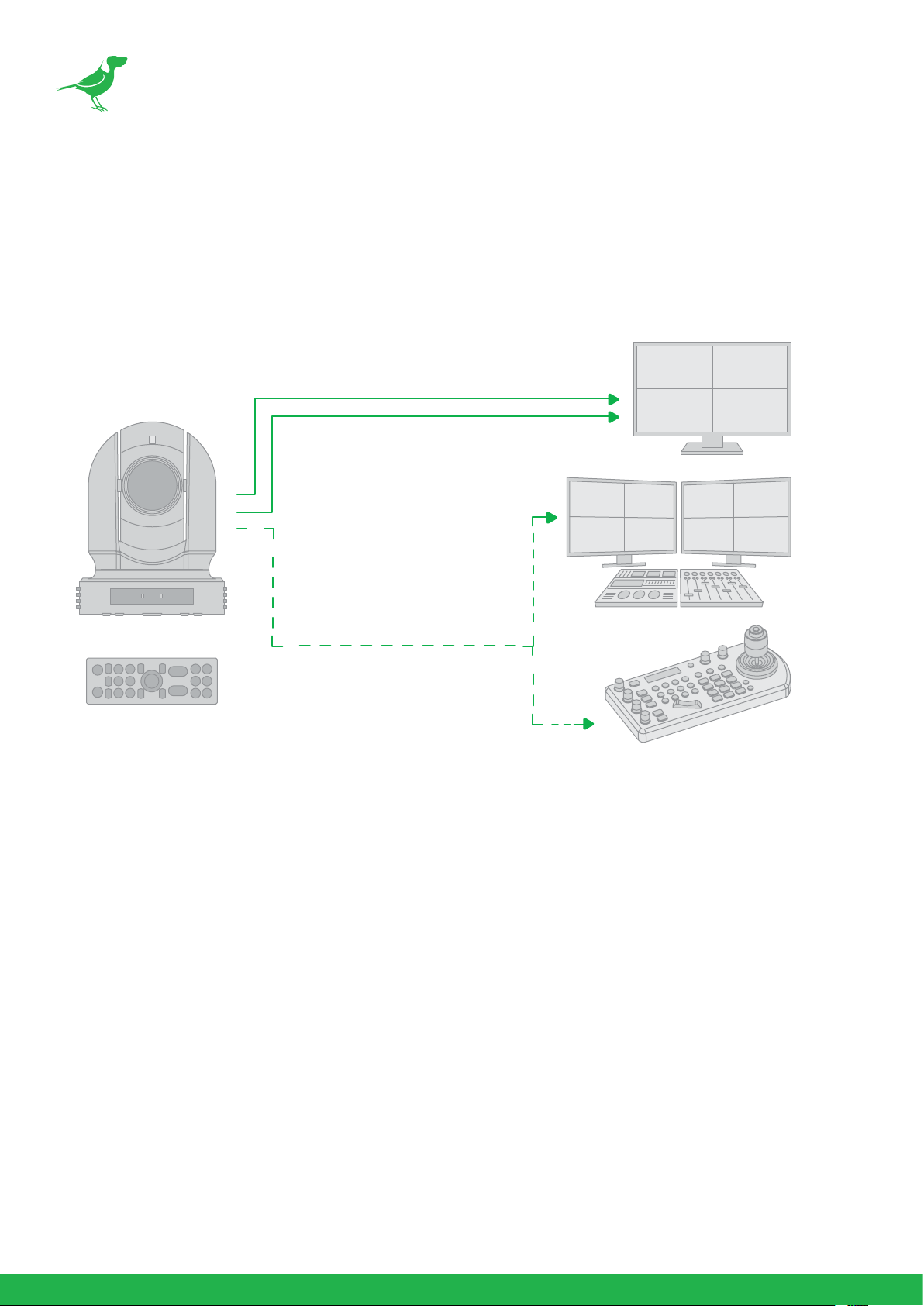

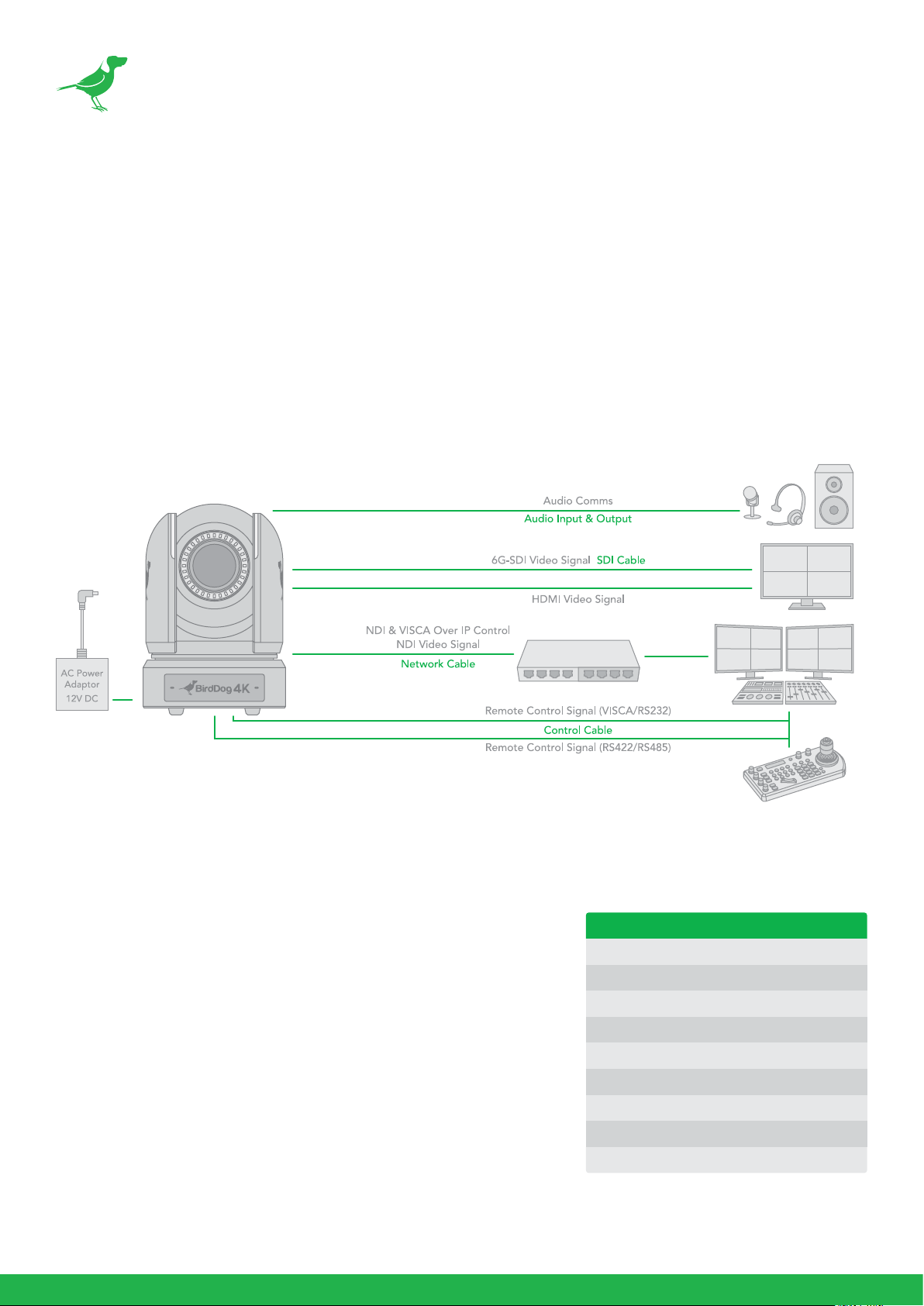

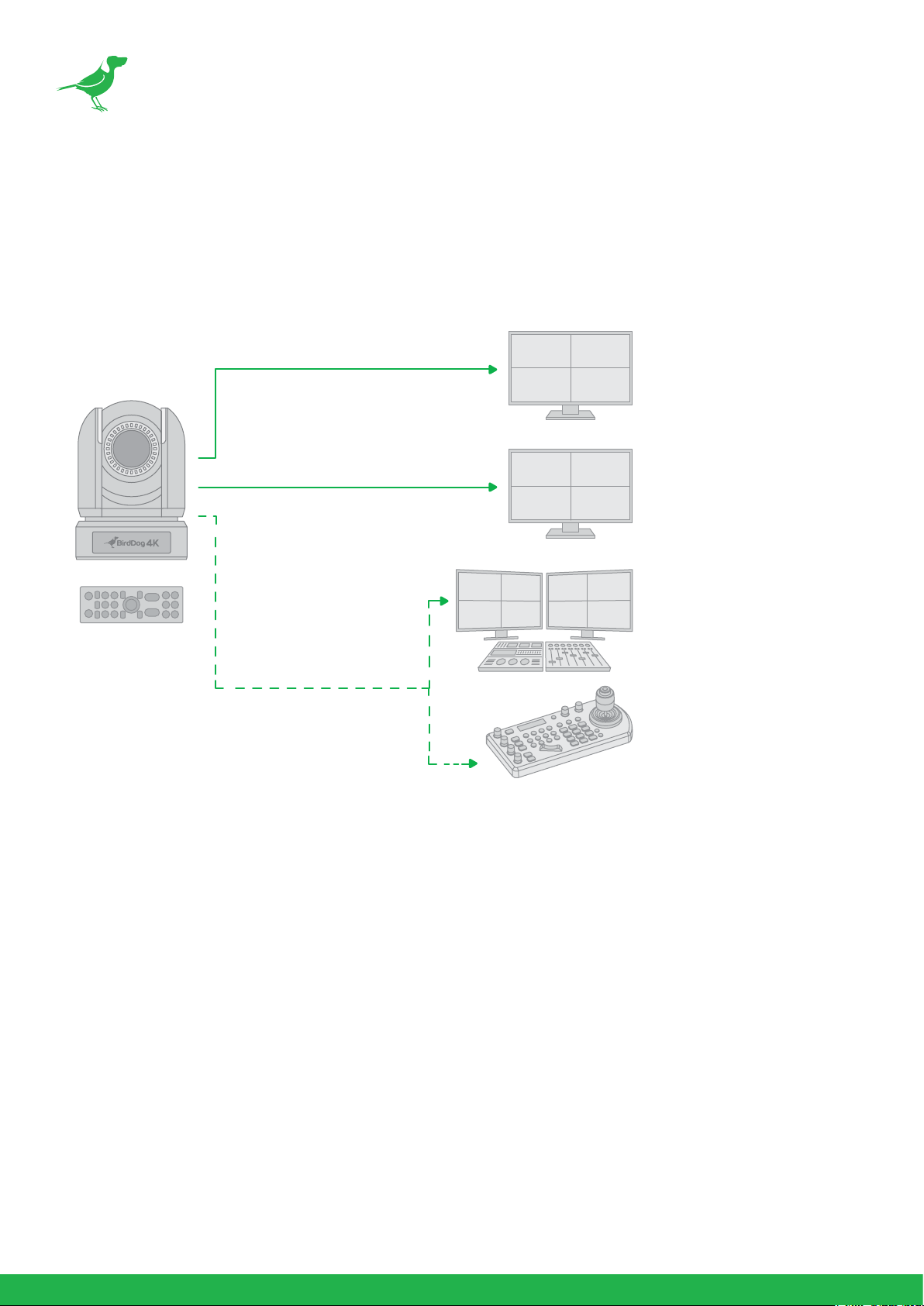

Basic Connections.......................................................................................................................7

Power Up........................................................................................................................................ 7

Computer, say hello to P4K ................................................................................................... 7

Basic Conguration ....................................................................................................................8

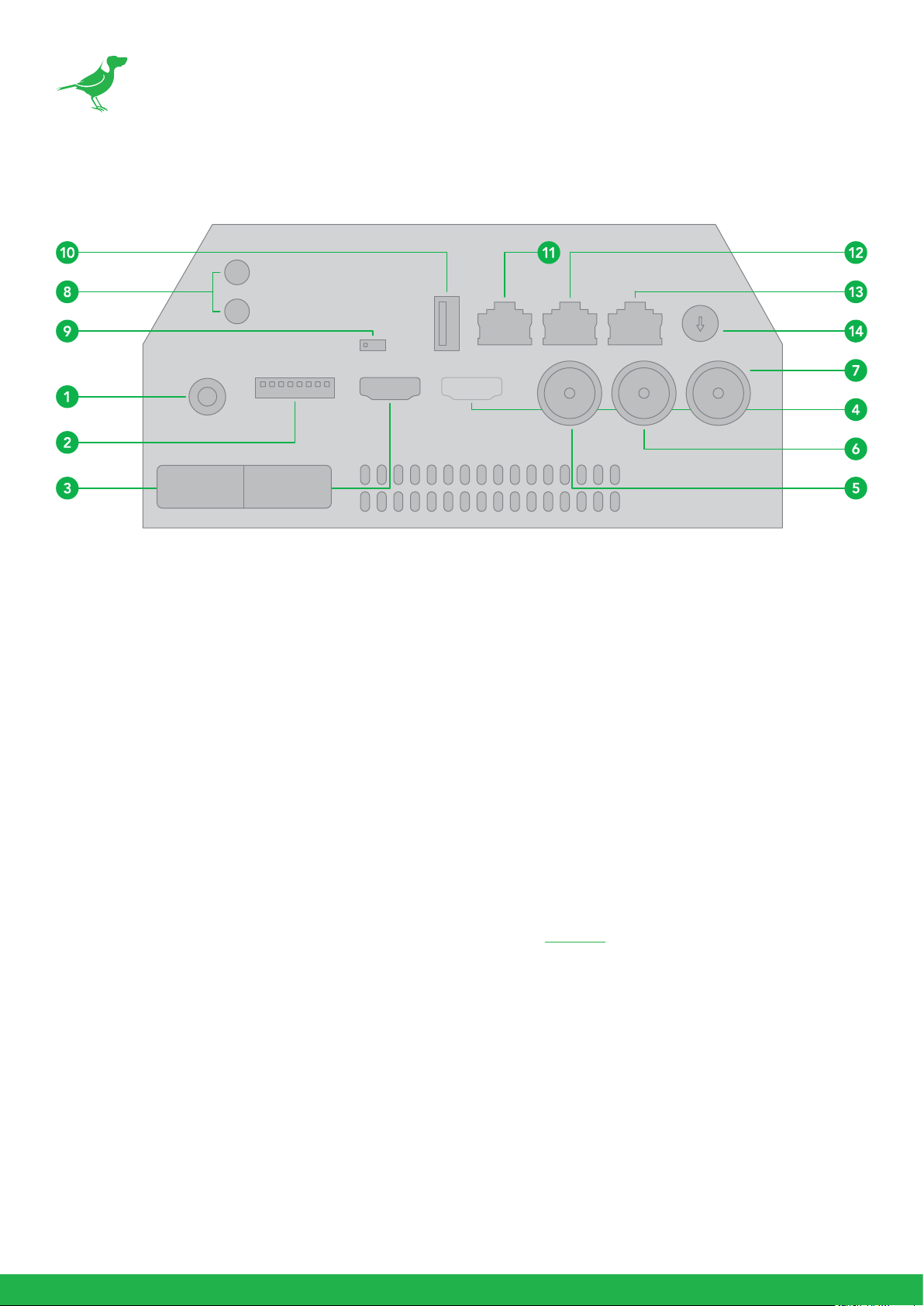

Camera Connections ................................................................................................. 11

Powering P4K ............................................................................................................... 13

Thermal Management ............................................................................................... 13

Video Output ...............................................................................................................14

Audio In/Output .......................................................................................................... 14

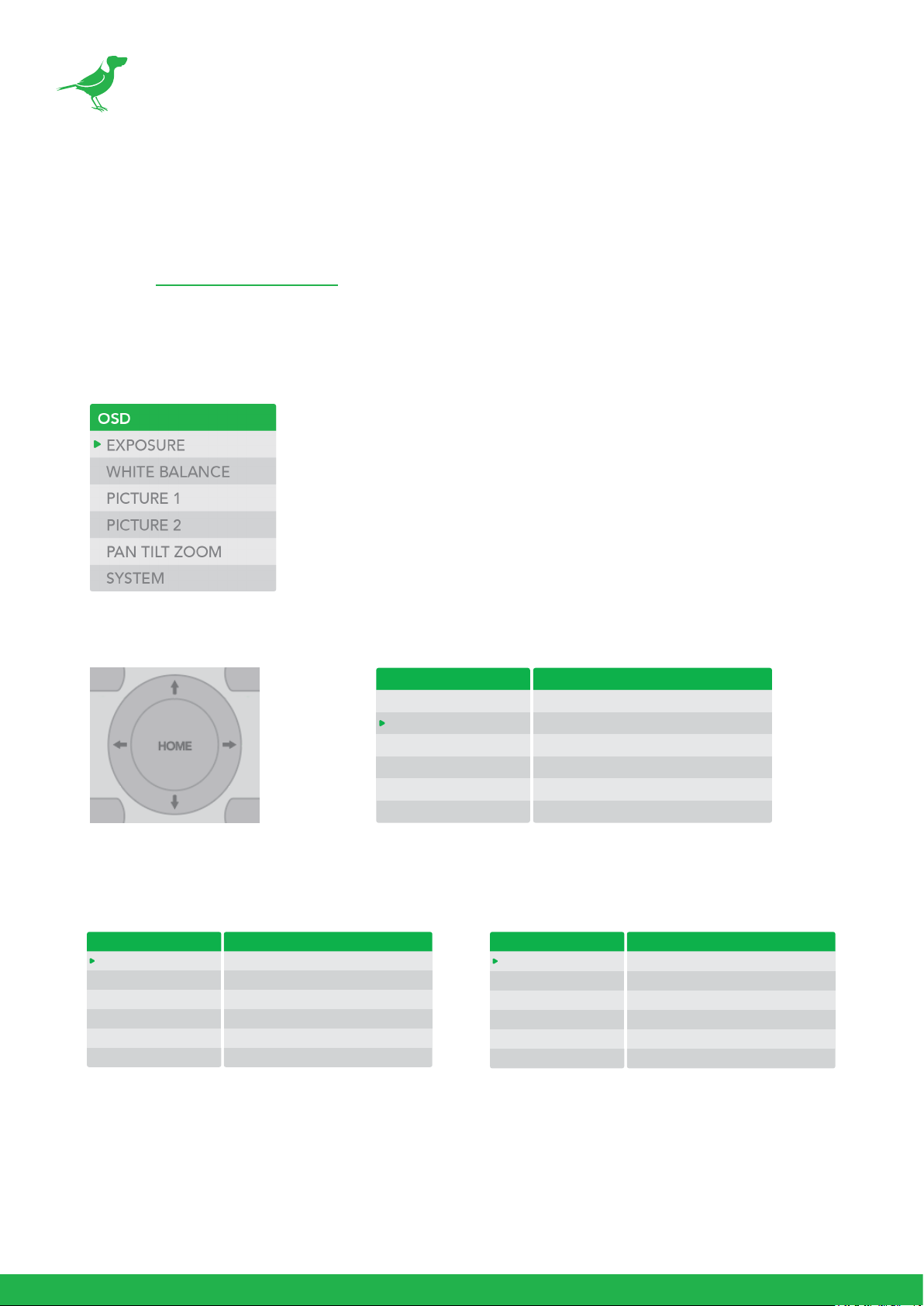

Using the Camera Menus .........................................................................................15

Camera Menus ............................................................................................................. 16

White Balance Menu ................................................................................................................ 17

Detail Menu .................................................................................................................................. 18

Picture Menu ............................................................................................................................... 19

Gamma Menu ............................................................................................................................. 20

Pan Tilt Zoom Menu ..................................................................................................................21

System Menu ............................................................................................................................... 21

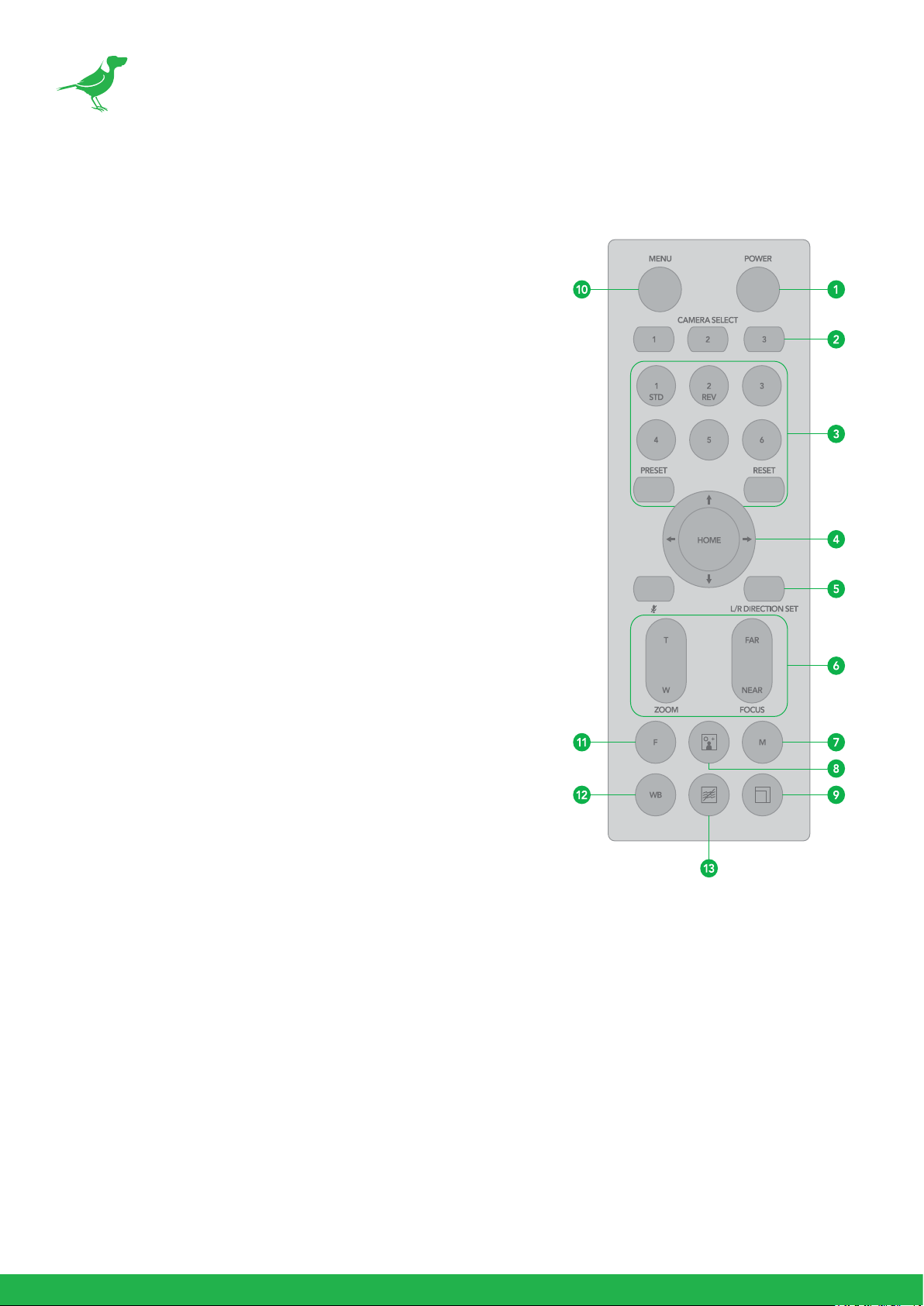

Remote Controller ......................................................................................................23

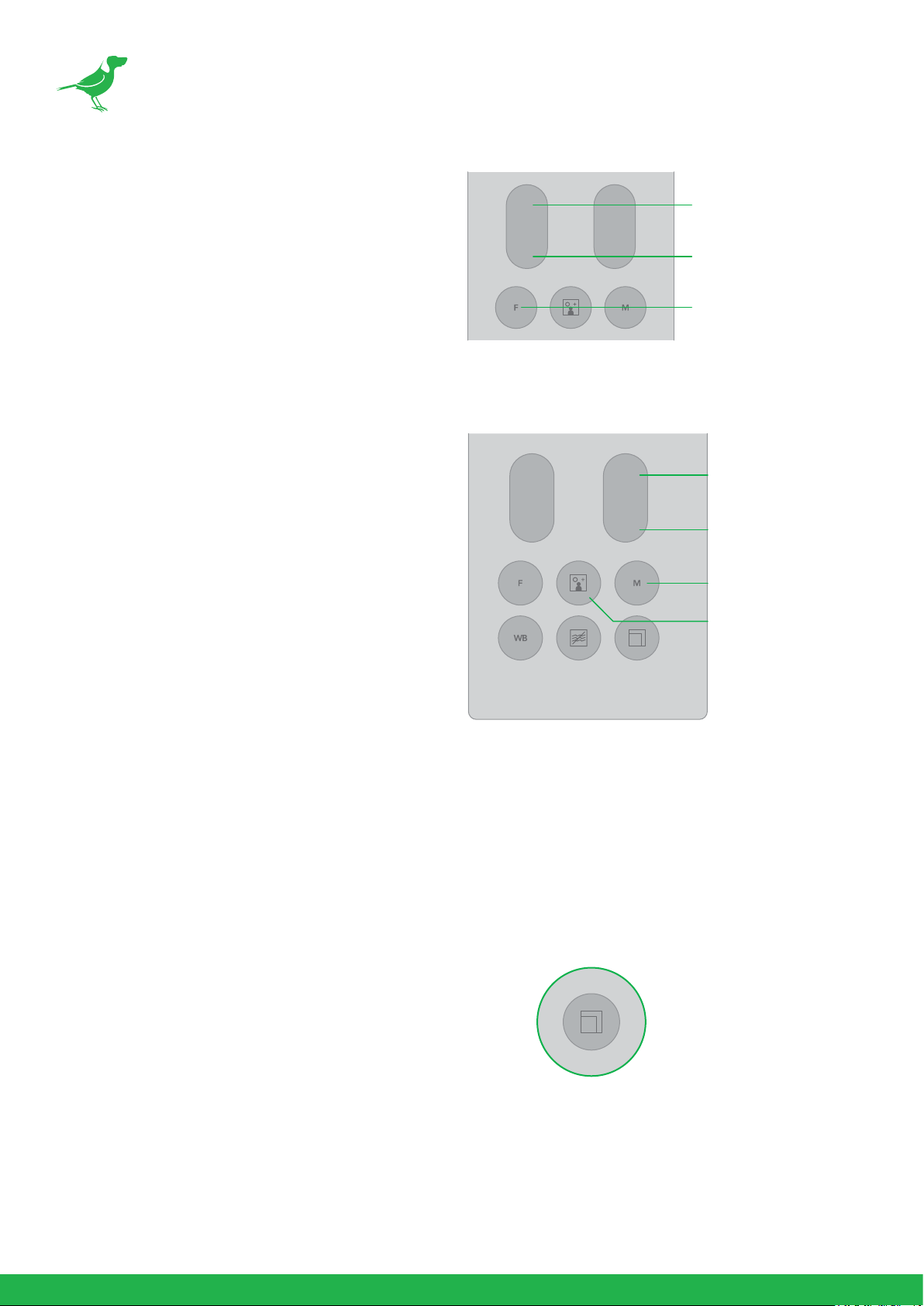

Controlling the Camera Using the Remote Controller ................................ 24

Panning and Tilting .................................................................................................................. 24

Zooming ....................................................................................................................................... 25

Focusing ....................................................................................................................................... 25

Shooting with Back Lighting ................................................................................................ 25

Changing Resolution ............................................................................................................... 25

Storing the Camera Settings in Memory Using Presets ............................................ 26

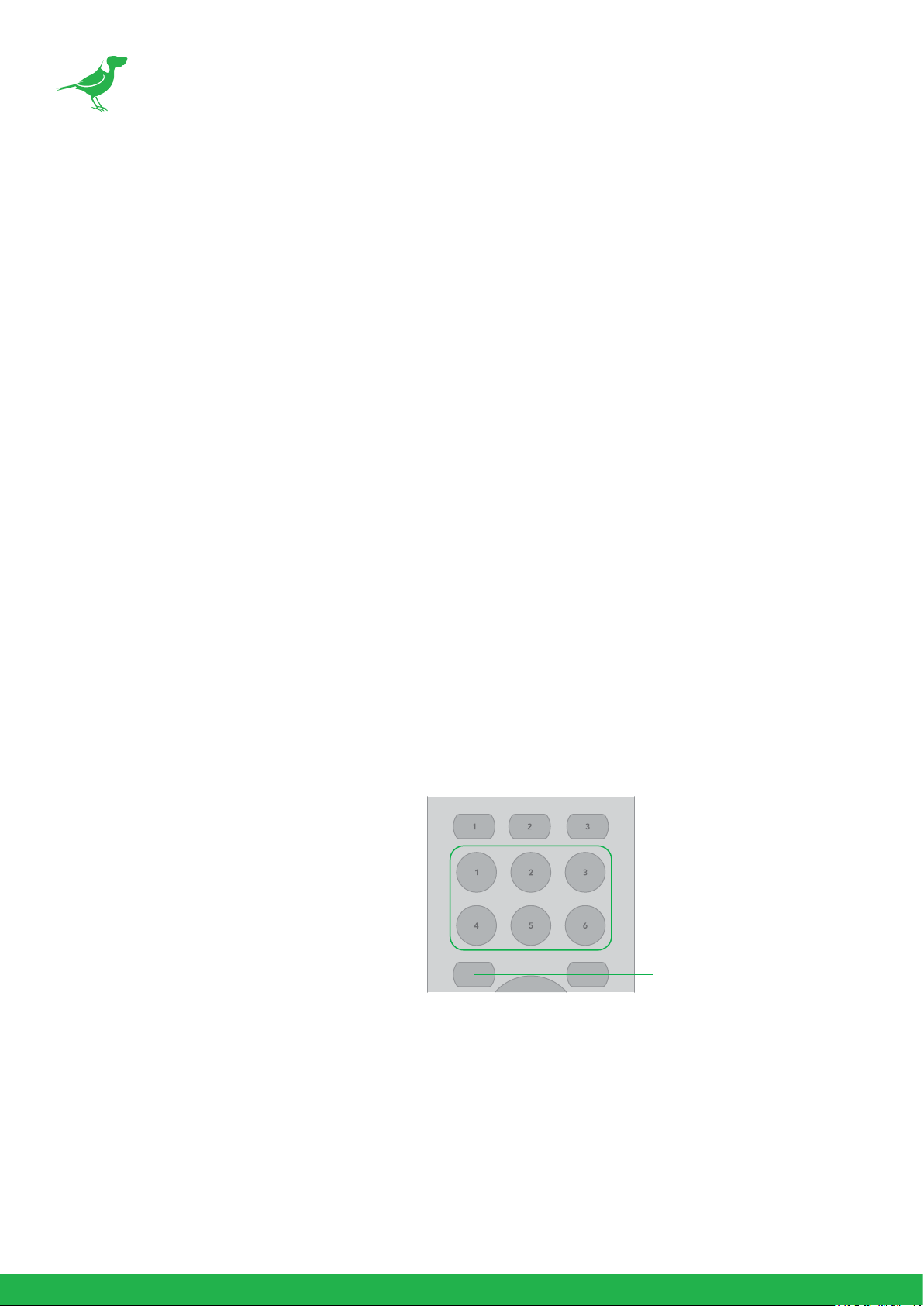

Operating Multiple Cameras with the Infrared Remote Controller ....................... 27

Web Conguration Panel ....................................................................................... 28

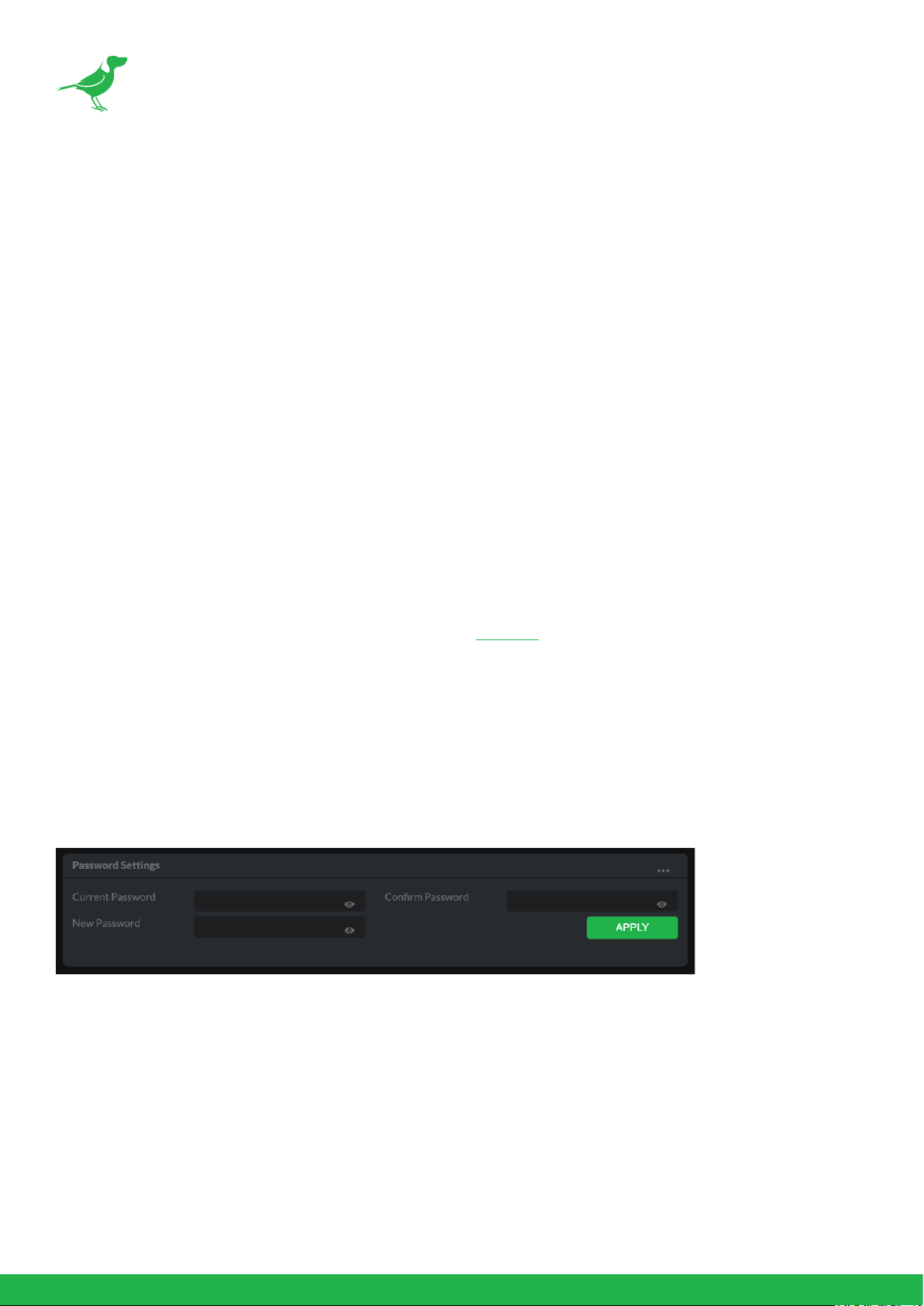

Password Management .......................................................................................................... 28

BirdUI Layout ................................................................................................................29

Dashboard .....................................................................................................................30

Network ..........................................................................................................................30

NDI Network Settings .............................................................................................................. 31

System .............................................................................................................................32

System Update ........................................................................................................................... 33

Access Manager Conguration ............................................................................................33

Unit Reboot .................................................................................................................................. 33

AV Setup ....................................................................................................................... 34

NDI Encode Settings ................................................................................................................ 34

Cam Control ..................................................................................................................36

FreeD Tab .....................................................................................................................................36

Preset Tab ..................................................................................................................................... 36

Exposure Tab ...............................................................................................................................37

White Balance Tab ....................................................................................................................38

Detail Tab ...................................................................................................................................... 39

Picture Tab .................................................................................................................................. 40

Gamma Tab ..................................................................................................................................41

Colour Matrix Tab ..................................................................................................................... 42

Scopes ............................................................................................................................ 43

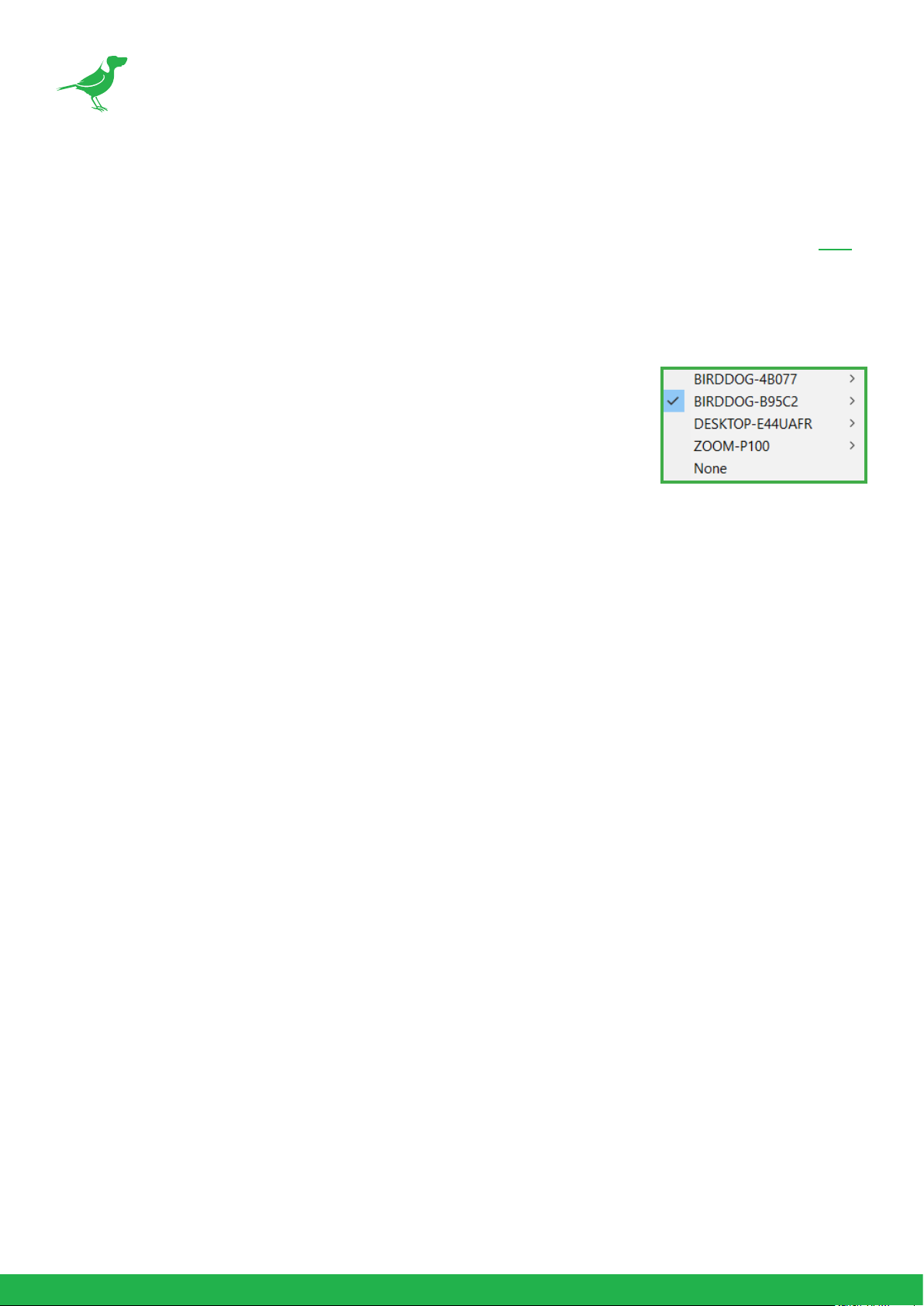

Receiving NDI® Video .............................................................................................. 44

NDI® Camera Control .............................................................................................. 45

IP Connection ............................................................................................................................. 45

Remote Controller ..................................................................................................... 45

Controlling Your Camera Via Other Protocols ............................................... 46

Camera Initial setting status Information ........................................................................ 46

VISCA over IP Control............................................................................................................. 47

Setting the Switches ................................................................................................................ 48

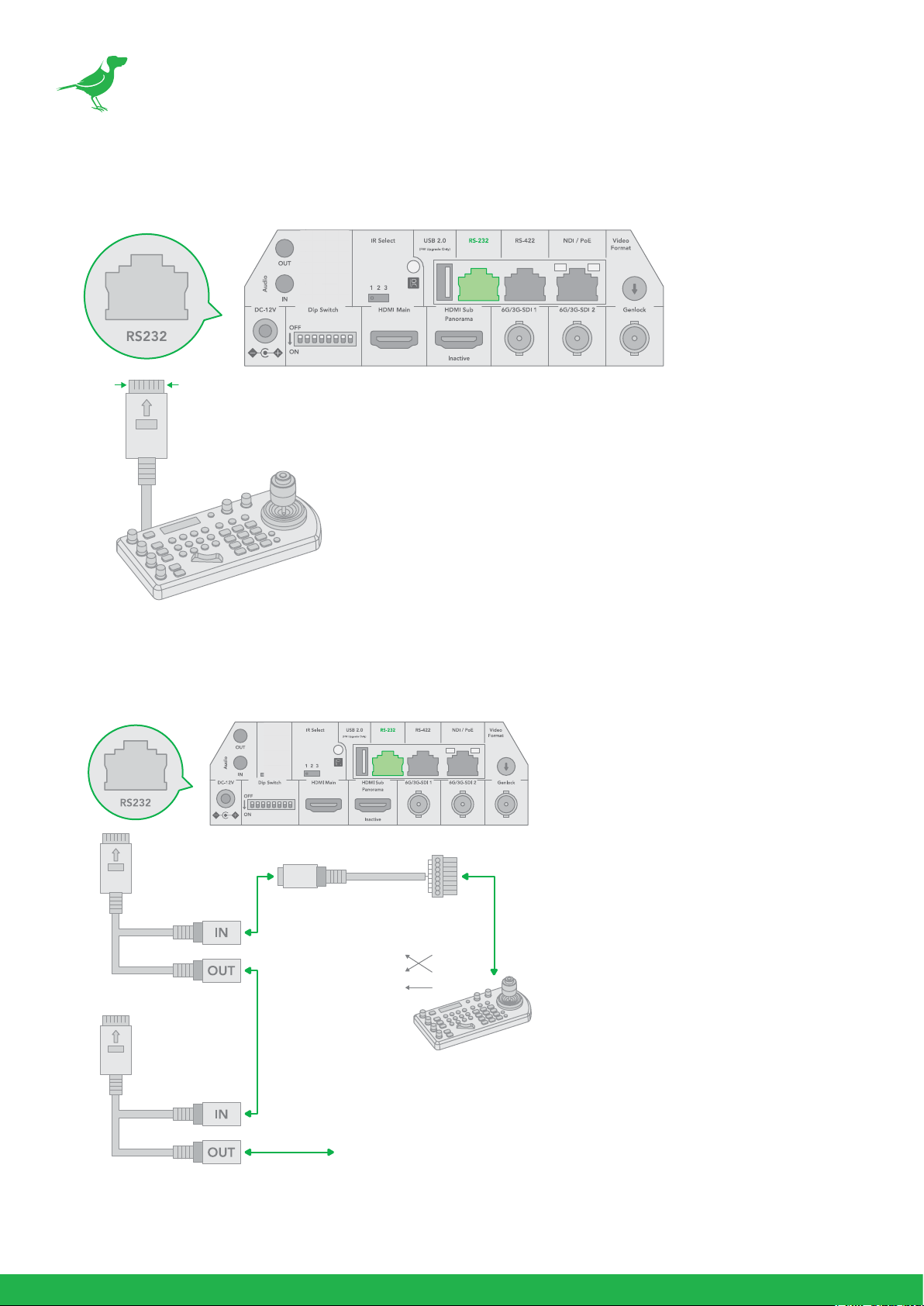

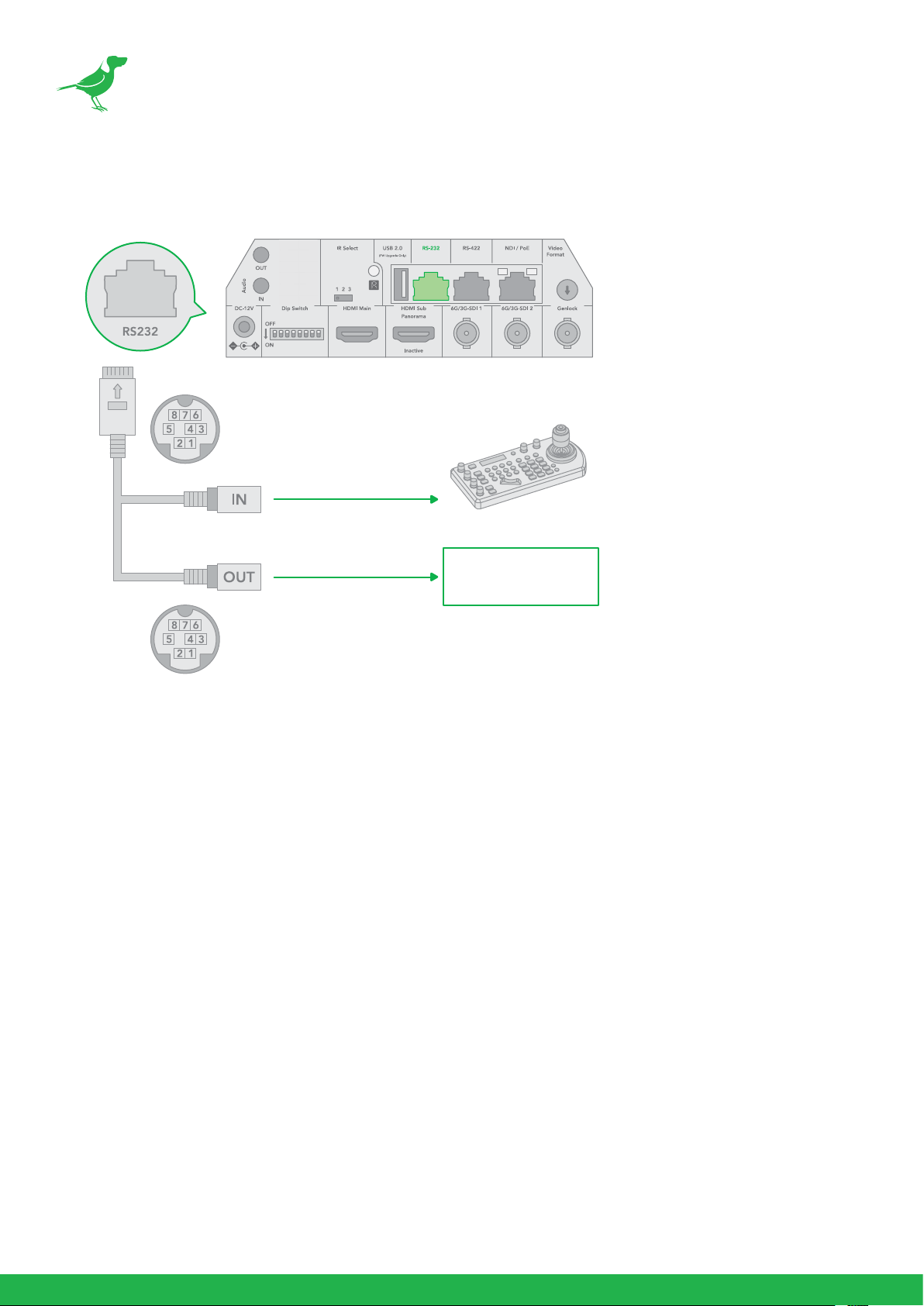

Using RS-232 (VISCA) ............................................................................................................. 50

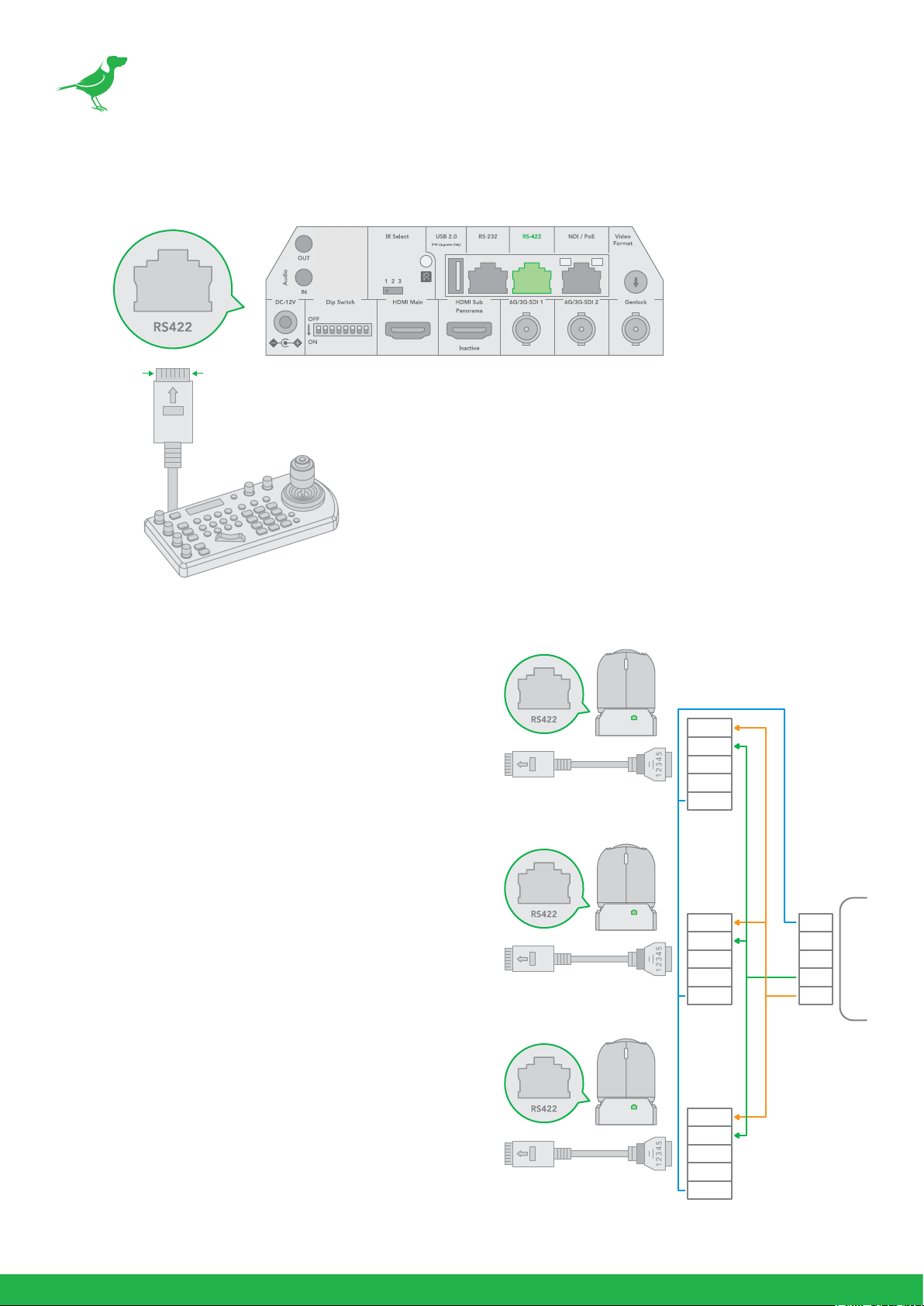

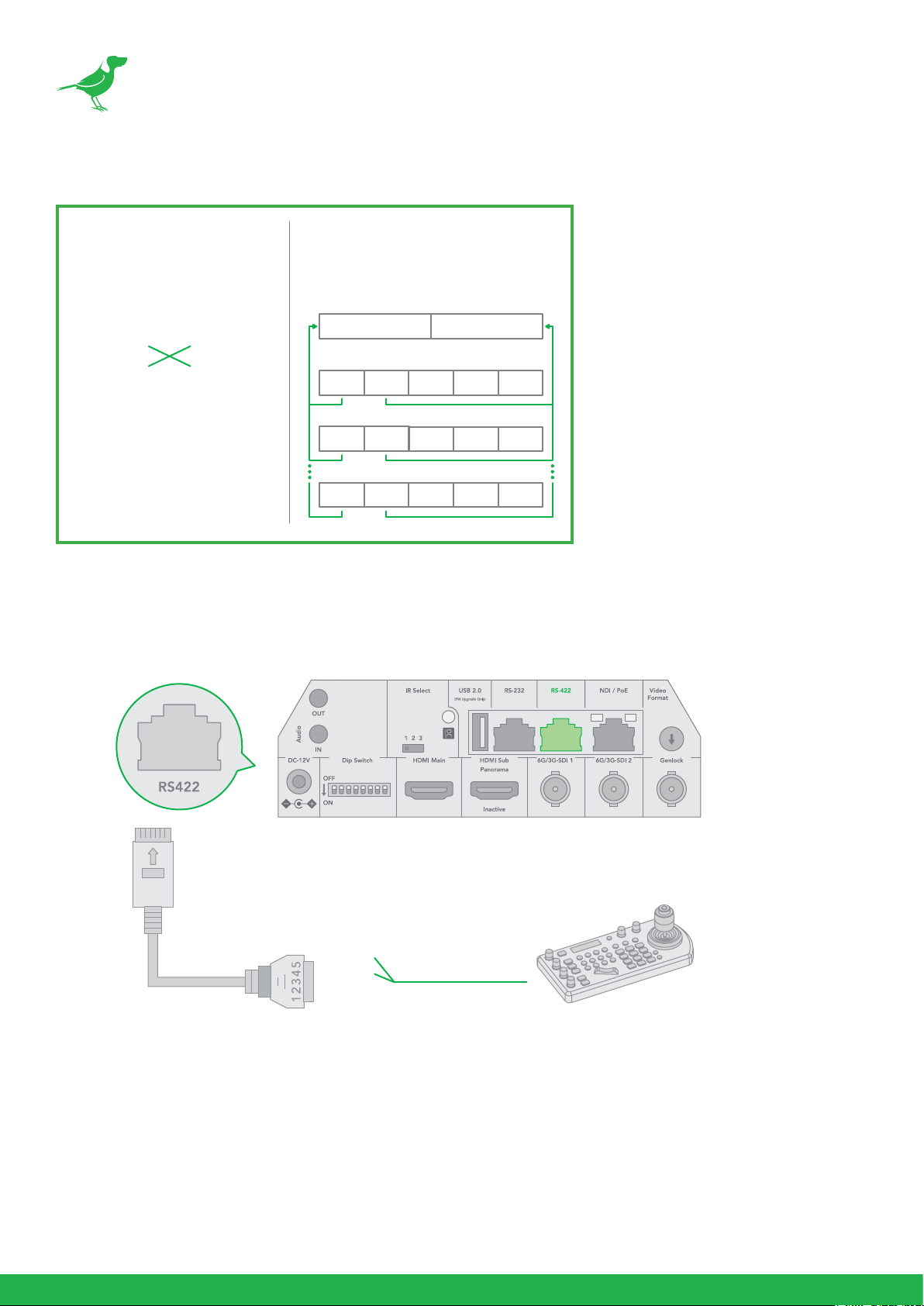

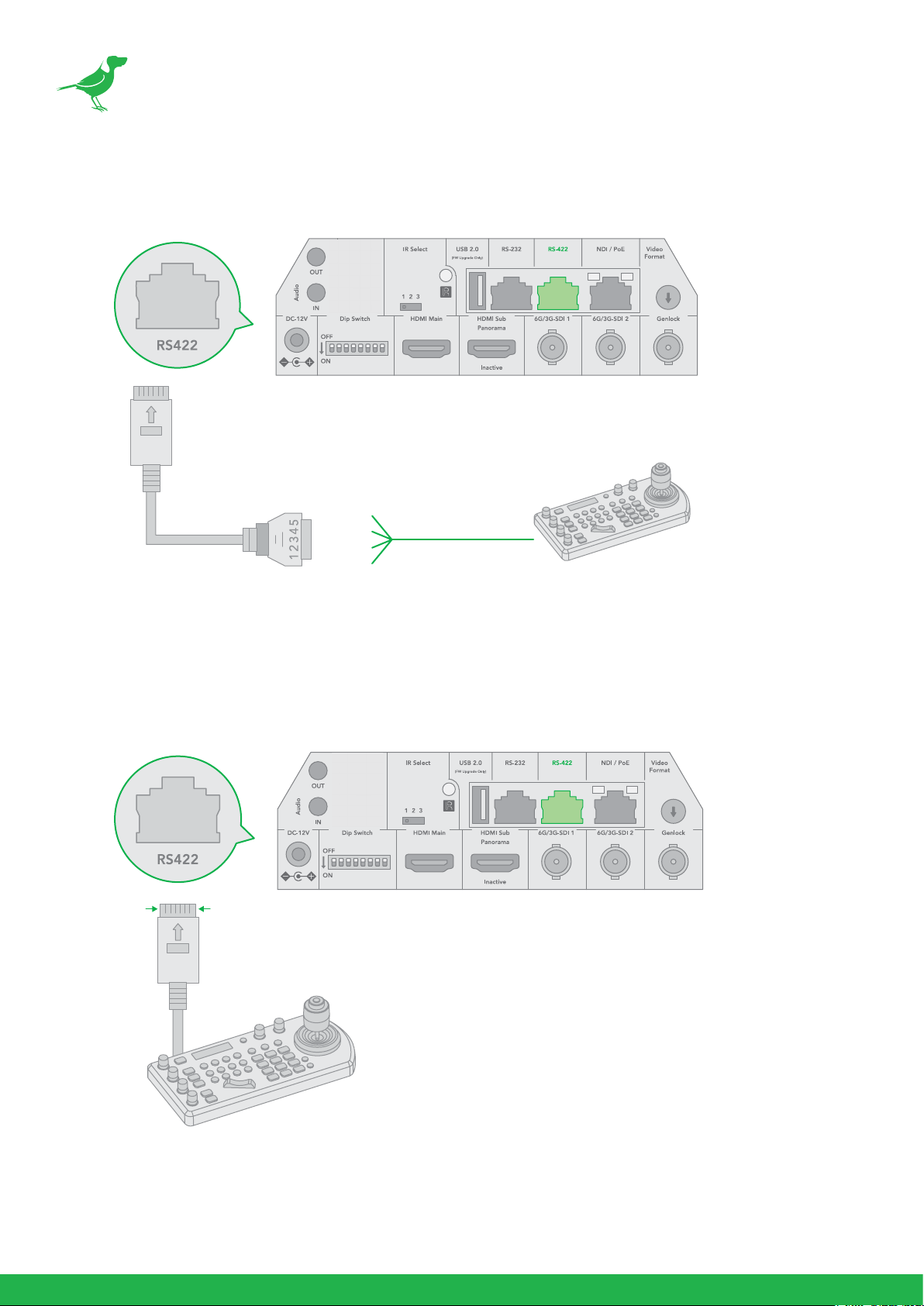

Using RS422 (VISCA) ..............................................................................................................53

PELCO P/D Keyboard RS485 Connection .......................................................................56

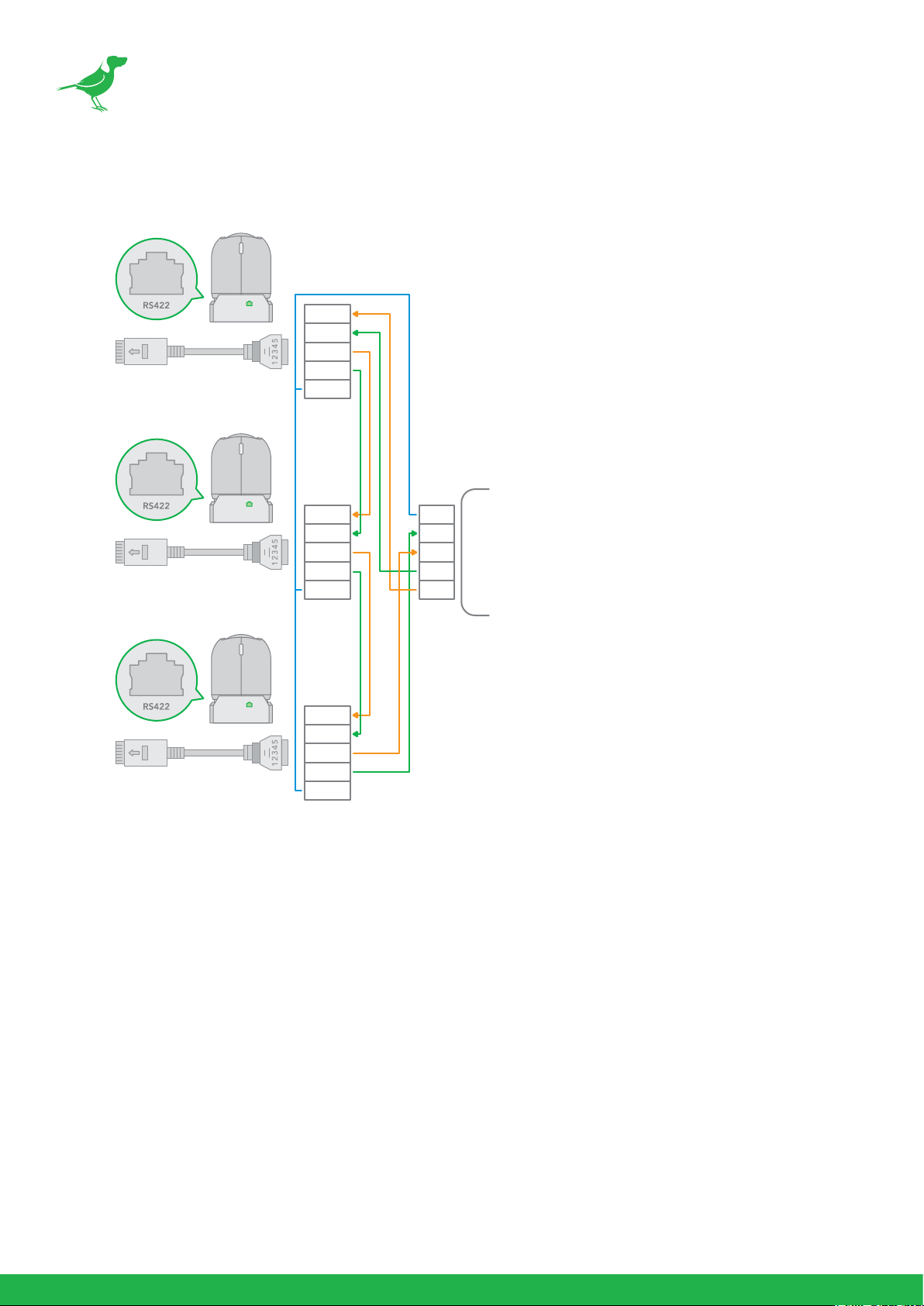

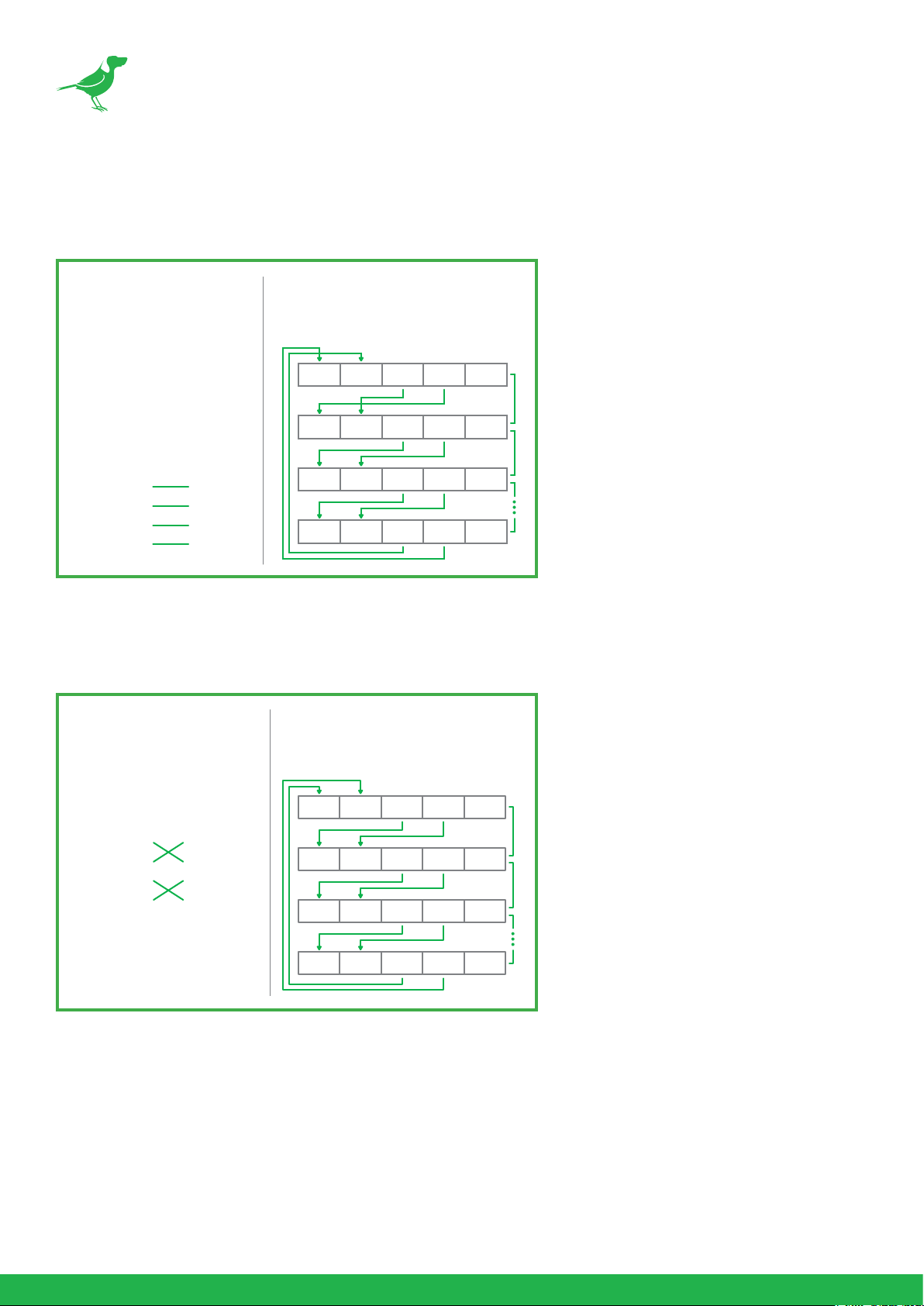

Operating Multiple Cameras using RS-232 and 422/485 ..........................................59

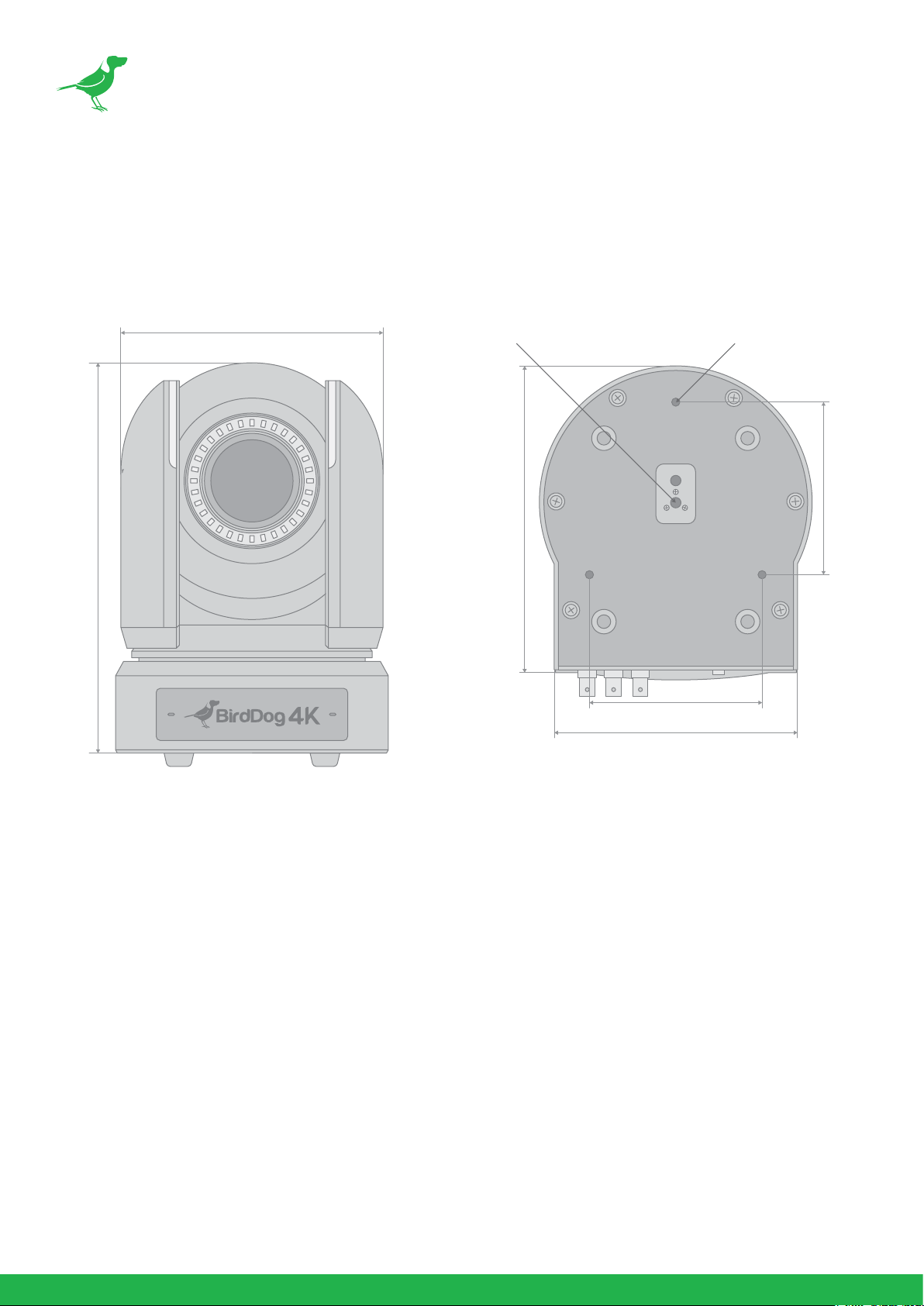

Camera Dimensions ...................................................................................................60

Glossary .......................................................................................................................... 61

Copyright

Copyright 2022 BirdDog Australia all rights reserved. No part of this manual may be copied, reproduced, translated,
or distributed in any form or by any means without prior consent in writing from our company.

Trademark Acknowledgement

and other BirdDog trademarks and logos are the property of BirdDog Australia. Other trademarks,

company names and product names contained in this manual are the property of their respective owners.

• Microsoft, Windows, ActiveX, and Internet Explorer are registered trademarks of Microsoft Corporation
in the U.S. and/or other countries.

• HDMI, the HDMI logo and High-Denition Multimedia Interface are the trademarks or registered
trademarks of HDMI Licensing, LLC in the United States and other countries.

• Other trademarks, company names and product names contained in this manual are the property of
their respective owners.

• NDI® is a registered trademark of NewTek, Inc.

Important Information

Legal Notice

To ensure account security, please change the password after your rst login. You are recommended to set a

strong password (no less than eight characters).

The contents of this document are subject to change without prior notice. Updates will be added to the new
version of this manual. We will readily improve or update the products or procedures described in the manual.

Best eort has been made to verify the integrity and correctness of the contents in this document, but no statement,

information, or recommendation in this manual shall constitute formal guarantee of any kind, expressed or implied.
We shall not be held responsible for any technical or typographical errors in this manual.

The product appearance shown in this manual is for reference only and may be dierent from the actual appearance

of your device.

Due to uncertainties such as physical environment, discrepancy may exist between the actual values and reference
values provided in this manual.

Use of this document and the subsequent results shall be entirely on the user’s own responsibility.

Warnings

• If the product does not work properly, please contact your dealer. Never attempt to disassemble the
camera yourself. (We will not assume any responsibility for problems caused by unauthorized repair
or maintenance.)

• This installation should be made by a qualied service person and should conform to all the local codes.

• When shipping, the camera should be packed in its original packaging.

• Ensure the power supply voltage is correct before using the camera.

• Do not drop the camera or subject it to physical shock.

• If the camera will not be used for an extended period of time, attach the lens cap to protect the lens.

• Do not aim the camera lens directly at the sun. This may cause irreversible damage to the camera.

1

Maintenance Precautions

• If there is dust on the front glass surface, remove the dust gently using an oil-free brush or a rubber
dust blowing ball.

• If there is grease or a dust stain on the front glass surface, clean the glass surface gently from the
center outward using anti-static gloves or an oil-free cloth. If the grease or the stain still cannot be
removed, use anti-static gloves or an oil-free cloth dipped with detergent and clean the glass surface
gently until it is removed.

• Do not use organic solvents, such as benzene or ethanol when cleaning the front glass surface.

Regulatory Compliance

FCC Part 15

This equipment has been tested and found to comply with the limits for digital device, pursuant to part 15 of the
FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the
equipment is operated in a commercial environment.

This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance
with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment
in a residential area is likely to cause harmful interference in which case the user will be required to correct the
interference at his own expense.

This product complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

• This device may not cause harmful interference.

• This device must accept any interference received, including interference that may cause undesired
operation.

LVD/EMC Directive

This product complies with the European Low Voltage Directive 2006/95/EC and EMC Directive 2004/108/EC.

2

Welcome to BirdDog!

Thank you for purchasing your P4K camera. If you have any questions regarding the camera, please contact your
authorized dealer or view our P4K Knowledge Base.

Our website also has a User Stories page to help inspire you to get the most out of your camera.

Using This Manual

Your P4K is a powerful and sophisticated device, so please read this manual before use and retain for future

reference.

If you are new to the world of NDI® or BirdDog cameras, begin with the Quick Start Guide. This will give you a good
introduction to the setup of your new camera.

Tip

You can use the controls in your browser or PDF reader to increase the page size when viewing the diagrams to

reveal much more detail.

First Step

Firmware Upgrade

Before you use your new P4K, it’s a good idea to upgrade to the lastest rmware. We are always adding new
features and improving the performance of our products, so installing the latest rmware will provide you with the

best user experience.

To upgrade the rmware, please follow the Firmware Upgrade Instructions located in your rmware download

folder and perform upgrade process.

The latest rmware les are available for download here.

We’re Invested In Your Success

We pride ourselves on being approachable and easily contactable. We’d love to hear from you.

Dan Miall

Co-Founder and CEO

[e-mail]

Eamon Drew

Co-Founder and CMO

[e-mail]

3

BirdDog P4K Overview

Camera Features

• 1 inch “Exmor R” CMOS sensor, Eective pixel number: 14.2 Megapixels.

• 4K Video Formats: 4Kp 29.97, 25, 24, 23.98, 23.97

• HD Video Formats: 1080p 60, 59.94, 50, 29.97, 25, 24, 23.97 • 1080i 60, 59.94, 50 • 720p 60, 59.94, 50

• Zoom: Optical 12X, Digital Zoom 12X, with SRZ feature, 18X zoom at 4K, or 24X zoom at FHD.

• Color Matrix, Image stabilizer and true WDR 130dB.

• Video Output: NDI®/HDMI/6G-SDI

• Supports Black Level, NDI® Genlock, Tally Light.

• ±350-degree continuous pan, ±120-degree continuous tilt.

• 128 presets, Speed up to 150 degrees/sec.

• Wall and ceiling mounting with E-Flip function.

• Control Control: RS232/RS-422/RS485(RJ45 x2), NDI®/IP Control (RJ45), IR Remote Control

• Control Protocol: NDI®, VISCA, VISCA IP

• Image parameter setting restore with presets and quick access operation.

• Audio Output: Embedded with main HDMI, 24bit, Embedded with SDI, 24bit, Embedded with NDI®

• Power: DC 12V, PoE+ (IEEE 802.3at).

Specications

Please refer to the product webpage for complete specications.

4

Welcome to the Future

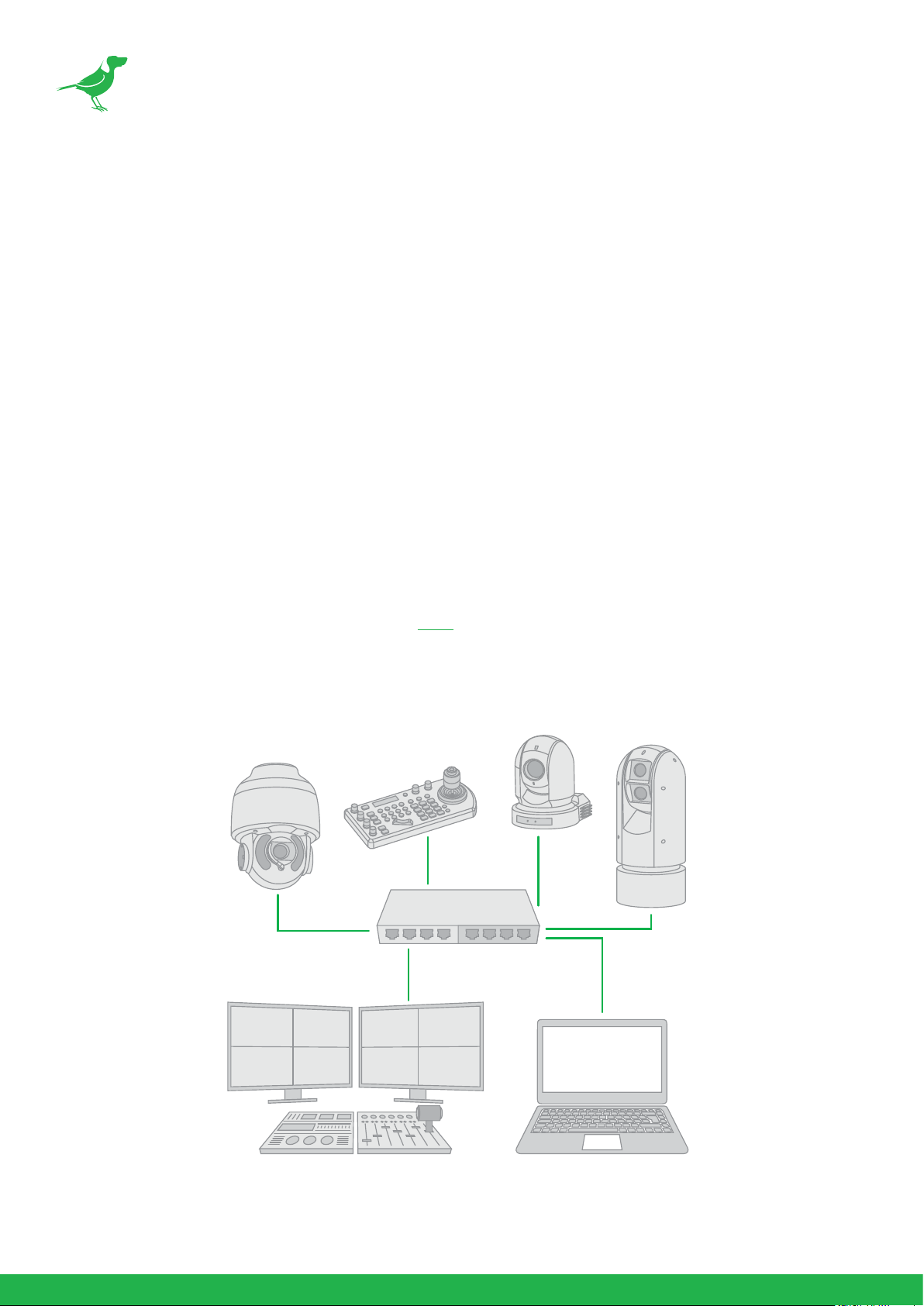

What is NDI®?

Your new P4K camera has been designed from the ground up to support the cutting edge NDI® video transmission

standard.

NDI® (Network Device Interface) is a high-quality, low-latency, frame-accurate standard that enables compatible

devices to communicate, deliver, and receive high denition video over your existing Gigabit Ethernet network.

Operating bi-directionally, NDI® devices can be auto-detected, powered and controlled over the same Ethernet
cable used to send the video and audio. If you have a Gigabit network, you have the potential for a streamlined,
interconnected, video production environment.

With the introduction of NDI® 5, you can now securely share network sources between remote sites anywhere in
the world - on a single network port. Even a smartphone can be a NDI® source.

Transitioning to NDI® can also occur gradually. Existing SDI or HDMI signals can easily be converted to an NDI®
stream and piped where required on your network and converted back only at the neccessary endpoints.

BirdDog has been on the NDI® journey since the very beginning and your P4K is just one of our products designed
to take advantage of the features and potential of NDI®.

For more information on NDI®, please refer to this page on our website.

5

What’s in the Box?

NOTE: The camera color may be white or black in colour depending on the item purchased. Optional

1 x BirdDog P4K

1 x IR Remote Controller

(3V CR2032 Coin Lithium Battery Required)

1 x Camera Power Adaptor

1 x Bag of Camera Mounting Screws

1 x RJ45 to RS232 Adaptor Cable

1 x RJ45 to RS422 Adaptor Cable

Optional Accessories

Depending on your requirements, you may need to purchase these optional accessories. Please browse to this

page on our website for all your accessory needs.

Wall Mount

Ceiling Mount

6

Quick Start Guide

If you are new to the world of NDI® or BirdDog cameras, please follow this quick start guide to become familar with

the basic setup of your new camera. You can also view a similar online video.

Be sure to check the many helpful product videos on our YouTube page.

Basic Connections

Power

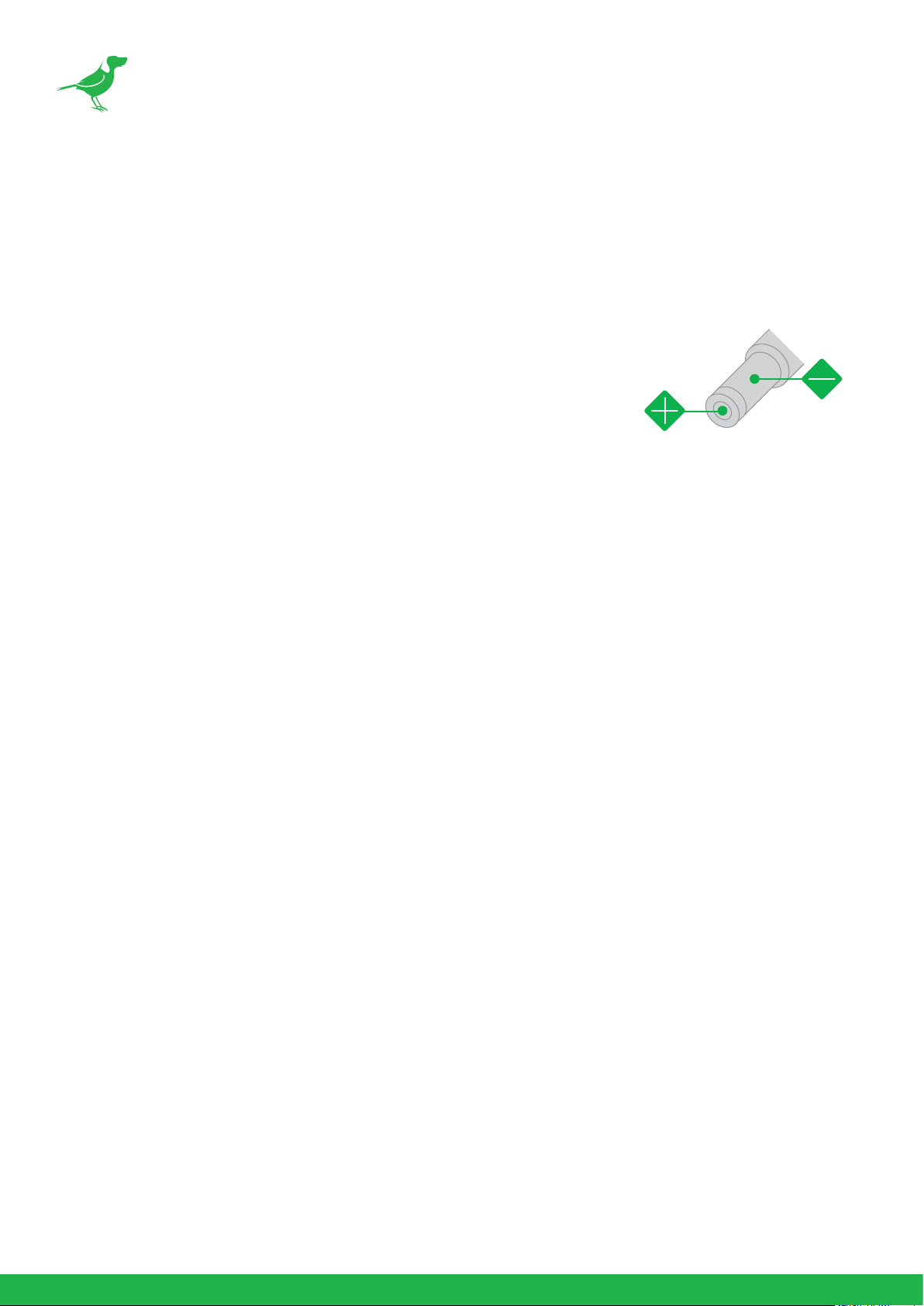

To start using your new camera, you’ll have to decide how you are going to power the device. You have two choices.
You can use PoE+ (Power over Ethernet) or, if your network doesn’t support PoE+, you can use the included 12VDC

power adaptor. If available, PoE is the easier choice, since you can use the same Ethernet cable to power and control
the camera, as well as send the video. For the purposes of this quick start guide, we’ll use the power adaptor, so
plug the jack into the 12VDC power port on the back of the camera.

Network

Since we’re supplying power via the adaptor, the NDI®/PoE Ethernet connection will be used purely for NDI®
video. Let's keep things simple and plug an Ethernet cable directly from your computer into the camera NDI®/PoE
Ethernet port.

Power Up

Once you’ve made the power and Ethernet connections, turn on the adapter power. When rst powered up, the
camera will perform it’s initialization routine by rotating to the left and then centering again. When this is nished,

the indicator light on the front of the camera will display green (and occassionally amber) and the camera is ready
to be accessed.

Computer, say hello to P4K

Since we're connecting your camera directly to your computer, we need to congure the network settings of your

computer to allow communication with the camera.

Navigate to the Network Properties in your computer preferences and make the following settings.

Select Use the following IP address: and enter an IP address. The default IP address of the camera is 192.168.100.100,

so we need to enter an address where the rst three numbers are the same as the camera IP address, i.e., 192.168.100
but the last number is a dierent number, in the range of 0 - 255, that is not currently assigned. Usually numbers

less than 200 are more likely to be available. The subnet mask can be set as shown.

P4K and the computer are now congured on the same subnet and should be able to communicate with each

other.

7

Basic Conguration

NDI® Tools

NDI® Tools is a free suite of applications designed to introduce you to the world of IP video and is available here.

Once installed, launch the Studio Monitor (Video Monitor, if using a Mac) application. This simple application allows
you to view all NDI® sources on your network. Right click on the Studio Monitor window to view your camera as
an NDI® source. In the example to the right, three cameras and a desktop computer are shown as NDI® sources.

Tip

By default, the displayed sources have names that include the last ve digits of

your camera MAC address which is displayed on the bottom of the camera.

Clicking on your camera in the source list will display the image from your camera
with the default automatic settings.

The BirdUI

BirdDog cameras have a web interface (BirdUI) that is displayed by your computer brower and can be used to

congure your camera remotely.

1. Click on the gear icon on the bottom right of the Studio Monitor window.

2. In the displayed window, type the default password ‘birddog’ (all lower case) and click the OK button. The

Dashboard window is displayed.

The Dashboard shows important basic camera settings. For now, check that the displayed Status is Active and
take note of the frame rate that is currently output from the camera (displayed under NDI® connection info).
In the example above, it is 29.97 fps. This frame rate should be set identically for all cameras according to the
requirements of your production. Let’s see how to change this and other important camera settings.

8

NDI Encode Settings

Bitrate Management

Because you’re sending NDI® video over your computer network, you may need to be mindful of the amount of
bandwith your video will consume. By setting Bitrate Management to NDI MANAGED, the target bitrate will be set
in accordance with the NDI® standard. This will achieve an optimum balance between bandwith consumption and
video quality. In this mode, the video bitrate will be around 120- 140 Mbps.

If you do opt for Manual management, you may select a bitrate within a range of 60-360 Mbps. Do this with care,
as the actual bitrate may be greater, straining the capacity of the network and the receiving device, and lower
settings may result in reduced image quality.

Video Format

Here you can set the frame
rate of the camera to match
that of your production. All
cameras should be set to the

same frame rate. You can

also set the desired level of
chroma subsampling.

NDI Group

NDI® supports Grouping
which allows you to hide the
visibility of video sources to
viewers that are not part of
the group. If disabled, the
video source is public and
viewable by any receiver on
your network.

Stream Name

Give the output video stream of the camera a memorable name to make identication easier on other devices.

NDI Failover Source

If the selected HDMI source is interrupted for any reason, P4K can automatically switch to a pre-determined
alternative NDI® source. Select an available NDI® source for the failover function from the
dropdown list. Pressing the Refresh button will add new sources to the list, whereas pressing Reset will populate the
list with only active NDI® sources. Click the Apply button to apply your failover source change.

Available NDI® sources

Network Conguration

For the nal part of this quick start guide, let’s set up the network conguration of your camera so it can work with
your wider network. Most computer networks provide for both automatic and manual conguration of network

devices and the P4K can accomodate both.

9

Static or DHCP

Here you can set the network conguration to either DHCP (default) or Static. DHCP simplies the management of

IP addresses on networks. No two hosts can have the same IP address, so assigning them manually can potentially
lead to errors.

If your network is set up for DHCP, this is generally the best conguration to choose. If you do choose to go with a

Static IP address, you’ll need to add the IP Address, Subnet Mask and Gateway Address information according to
the requirements of your network.

DHCP Timeout, Fallback IP address, Fallback Subnet Mask

You can set the timeout period during which P4K will look for a DHCP IP address. After this period, the camera will

default to the designated fallback IP address.

This can be useful if you use your camera in other network environments. For example, if a DHCP server is available

in your normal oce or studio application, the camera will use the DHCP supplied IP address. If you then use the

camera in another application without a DHCP server, your camera will always default to the known fallover IP
address.

BirdDog Name

You can give your camera a meaningful name to make identication easier when viewing NDI® sources on a

receiver such as a TriCaster, vMix or Studio Monitor. Be sure to make the name unique, as no two devices on the
network should have the same name. The name can be any combination of a-z, 0-9, and '–‘.

After renaming your camera, navigate back to the Dashboard and click REBOOT DEVICE. The camera will re­initialize and you’ll be good to go.

NOTE: Your computer will need to have ‘Bonjour’ services loaded in order to access the unit via it’s user dened

name. Apple devices come pre-installed with Bonjour, while Windows devices need a plugin available here.

You’re Done!

That concludes our quick start guide for P4K. Your camera has many other features, so to get the most out of your

camera, please review the rest of this manual.

To learn about more advanced camera options, such as exposure, white balance and colour management, please
refer to here in this manual.

10

Camera Connections

1. 12V DC Power Port

2. DIP Switch

For video format selection. It is recommended to set this to the most frequently used resolution and thereafter
use the BirdUI to make changes.

3. Main HDMI 1.4 (4K) Video Output

4. Sub HD HDMI Video Output

5. 6G-SDI Video Output, Dual Link 3G-SDI Video

Output combines with #6.

6. 6G-SDI Video Output, Dual Link 3G-SDI Video

Output combines with #5.

7. BNC Connector

Used for genlock which is not currently enabled. However, NDI® genlock is supported.

8. Audio Line-in / Line-out

Analog 3.5mm Audio Input/Output. Audio format is stereo, unbalanced line level.

9. IR Remote ID Selector

10. USB2.0

For Firmware upgrade

11. RJ45 port

For RS232 Control

11

12. RJ45 port

For RS-422/485 Control

13. Ethernet Port

For VISCA over IP control and NDI® output. Supports
PoE+ (IEEE802.3at).

14. Video Format Selector

For video format selection. It is recommended to set this
to the most frequently used resolution and thereafter use
the BirdUI to make changes.

15. Tally Lamps (front)

16. Tally Lamp (rear)

17. Audio Mics

18. LED Operation Indicators

19. Lens

12X optical zoom

20. IR sensors

21. Fixed Mounting Holes

22. Tripod Mounting Holes

12

Powering P4K

P4K can be powered in two ways.

• PoE+ (Power over Ethernet)

PoE+ is a convenient way to power P4K as it allows both data and power to be sent through the same
standard Ethernet cable. The network switch must support PoE+ (802.3at).

• DC Connection

Located at the rear of the P4K is a 12VDC connection port. Use only
the DC power adaptor (JEITA type4) supplied with the unit.

WARNING

Do not attempt to manually move the camera head when the device is powered up. Doing so may damage the
camera.

Thermal Management

Although the camera is equipped with a fan, the entire enclosure is designed to dissipate heat. The main processor

is capable of operating up to 100º C / 212º F. Various factors can aect how much heat the camera will produce,

and it is normal for it to feel warm to the touch. In extreme circumstances (a hot day/direct hot sun) it is advised to
power P4K via DC as this produces less heat than PoE.

13

Video Output

The camera can simultaneously produce SDI, HDMI and NDI® video output.

NDI Signal

1. Connect the camera to the network using Cat5e/Cat6 network cable.

2. You'll need to use web browser on a connected computer for camera conguration.

®

3. To obtain NDI

HDMI Signal

1. Connect the camera to a HD monitor/TV using HDMI cable.

2. Turn on the camera. After initialization, video will display on the monitor.

3. Information of the camera initial setting status will display on the monitor for 5 seconds.

4. You can set the displayed video format in the camera System menu.

SDI Signal

1. Connect an SDI cable in between the camera your SDI Device/display.

video and congure NDI® video, please refer to NDI Encode Settings.

Audio In/Output

Analog 3.5mm audio In\Out ports. The Audio Out will output any audio that is captured on the Audio In port. Audio
format is stereo, unbalanced line level.

14

Using the Camera Menus

You can use the infrared remote controller to change camera settings while viewing the On Screen Display (OSD)

menus on a connected monitor. The OSD is viewable over NDI®, SDI or HDMI.

However, the Web Conguration Panel (BirdUI) aords greater control of your camera with more parameters as
well as allowing remote adjusting of camera settings over NDI®, and is the recommended method of adjusting your
camera.

1. To display the main menu, press the MENU button on the supplied infrared remote controller.

The main menu is displayed.

2. Use the “↑, ↓” buttons to navigate between main menu items. For example, clicking the "↓” button once will

move the cursor to the item below.

OSD

EXPOSURE

WHITE BALANCE

PICTURE 1

PICTURE 2

PAN TILT ZOOM

SYSTEM

WHITE BALANCE MENU

WB MODE

AUTO

3. To enter the sub menu of a selected item, click either the “→" button or the HOME button. In the example

below, we are navigating between two sub menus of the Exposure main menu. Sub menus can also be navigated
vertically to select sub menu items.

OSD

EXPOSURE

WHITE BALANCE

PICTURE 1

PICTURE 2

PAN TILT ZOOM

SYSTEM

EXPOSURE MENU: FULL AUTO

MODE

SLOW SHUTTER

S. SHUTTER LIMIT

AE RESPONSE

GAIN LIMIT

EX COMP

FULL AUTO

OFF

1/4

01

21.4dB

OFF

OSD

EXPOSURE

WHITE BALANCE

PICTURE 1

PICTURE 2

PAN TILT ZOOM

SYSTEM

EXPOSURE MENU: MANUAL

MODE

GAIN

GAIN LIMIT

SPEED

IRIS

HIGH SENSITIVITY

MANUAL

12dB

21.4dB

1/60

F1.6

OFF

4. Once you've navigated to a setting value, use the “←, →”buttons to increment or decrement the value.

5. Press the MENU button to exit the menus.

NOTE: When you are operating the menu using the infrared remote controller, you cannot set IR- RECEIVE in the

SYSTEM menu to OFF. To set IR- RECEIVE to OFF, use the appropriate VISCA command.

15

Camera Menus

Exposure Menu

The Exposure menu sets items related to exposure.

Mode

Full Auto: IRIS, GAIN and SPEED (shutter speed) are set automatically using the values set for SLOW SHUTTER, S.

SHUTTER LIMIT, AE SPEED, GAIN LIMIT, GAIN POINT, POINT, HIGH SENSITIVITY, MAX SPEED, MIN SPEED, BACK

LIGHT, SPOT LIGHT and EX-COMP.

Manual: Allows manual adjustment of the GAIN, GAIN LIMIT, SPEED, IRIS, and HIGH SENSITIVITY.

Iris Pri: Iris Priority mode. This mode allows you to set a xed IRIS. The gain and shutter speed are set automatically

according to the brightness of the subject. The exposure is adjusted automatically using the values manually set
for IRIS, GAIN LIMIT, GAIN POINT, AE SPEED, MAX SPEED, MIN SPEED, BACK LIGHT, SPOT LIGHT and EX-COMP.

Shutter Pri: Shutter Priority mode. This mode allows you to set a xed shutter SPEED with exposure achieved

by automatic setting of IRIS and GAIN, according to the brightness of the subject. The exposure is adjusted
automatically using the values manually set for SPEED, GAIN LIMIT, AE SPEED, BACK LIGHT, SPOT LIGHT and
EX-COMP.

Bright: The bright control function adjusts both gain and iris using an internal algorithm, according to a brightness
level freely set by the user. Exposure is controlled by gain when dark, and by iris when bright. As both gain and

iris are xed, this mode is used when exposing at a xed camera sensitivity. When switching from Full Auto or

Shutter Priority Mode to Bright Mode, the current status will be retained for a short period of time. The exposure

is adjusted automatically using the values manually set for the bright level (LEVEL) and HIGH SENSITIVITY.

Gain Pri: Gain Priority mode. This mode allows you to set a xed GAIN. The IRIS and SPEED are set automatically

according to the brightness of the subject. The exposure is adjusted automatically using the values manually set

for GAIN, GAIN POINT, AE SPEED, HIGH SENSITIVITY, MAX SPEED, MIN SPEED, BACK LIGHT, SPOT LIGHT and

EX-COMP.

Below are the various settings for these exposure modes.

Gain

Select the gain from the following: 0dB, 3dB, 6dB, 9dB, 12dB, 15dB, 18dB, 21dB, 24dB, 27dB, 30dB, 33dB, 36dB.

Gain Limit

The gain limit can be set at Full Auto, Shutter Priority, Iris Priority, Bright, Spot Exposure and Manual in AE mode.
This is useful to limit the automatic setting of gain which can lead to excessive image noise at extreme settings.
Choose from: 9dB, 12dB, 15dB, 18dB, 21dB, 24dB, 27dB, 30dB, 33dB, 36dB.

Gain Point

Set the Gain Point between 0dB and the gain limit. The shutter speed can be changed from the point when the set
gain value is reached. When you want to obtain a motion-priority image, use this setting.

High Sensitivity

This function increases the max. gain to allow bright output in darker environments. However, with a strong gain
(up to 10×), the image may exhibit higher levels of noise.

Iris

Select the iris the following: F11, F10, F9.6, F8.7, F8.0, F7.3, F6.8, F6.2, F5.6, F5.2, F4.8, F4.4, F4.0, F3.7, F3.4, F3.1, F2.8

16

Slow Shutter

When set to “On,” the slow shutter functions automatically in low light conditions. This setting is available only

when the AE mode is set to “Full Auto.” The default setting is O.

S. Shutter Limit

With certain settings, in low light conditions, the shutter speed slows and the gain is increased. This function allows
you to limit the shutter speed reduction. This helps prevent image shake when shooting a moving subject in low
light conditions.

AE Speed

This setting allows you to reduce the exposure response speed. By default, optimum exposure can be obtained
automatically within approx. 1 second. The slow AE response function allows you to lengthen this response time.

Maximum Speed (Maximum Shutter Limit)

In auto modes, the brighter the object is, the shutter speed will increase. You can set the upper limit on the shutter

speed increase, helping to make images with motion more smooth.

Minimum Speed (Minimum Shutter Limit)

In low light conditions, the shutter speed may becomes slow and the gain is increased. Here you can put a limit on
the shutter speed reduction, helping to prevent camera shake when you shootingb moving subjects.

Back Light

When the background of the subject is too bright, or when the subject is too dark due to shooting in the AE mode,
back light compensation can help make the subject better exposed.

Spot Light

Spotlight compensation will attempt to compensate exposure in conditions where strong light falls on the subject,

such as a person’s face in a spotlight. You can choose either ON or OFF. This setting is enabled when MODE is FULL

AUTO, SHUTTER PRI, IRIS PRI, or GAIN PRI. SPOT LIGHT becomes disabled when BACK LIGHT is ON.

Ex-Comp (Exposure Compensation)

When MODE is set to FULL AUTO, SHUTTER PRI or IRIS PRI, setting EX-COMP to ON allows exposure compensation
levels to be set from the following values: –10.5, –9, –7.5, –6, –4.5, –3, –1.5, 0, +1.5, +3, +4.5, +6, +7.5, +9, +10.5.

Setting the level to 0 disables exposure compensation. Level +10.5 is the brightest and –10.5 is the darkest
compensation value. When EX-COMP is set to OFF, exposure compensation is disabled.

White Balance Menu

WB Mode (White balance mode)

Select the white balance mode from the following:

Auto: This mode computes the white balance value within a range of values from 2500K to 7500K. This mode uses
color information from the entire frame and calculates according to manually set values for SPEED (white balance
speed), OFFSET and the MATRIX. This mode is the default setting.

Indoor: Sets the color temperature to 3200K. You can ne tune this setting using the MATRIX.

Outdoor: Sets the color temperature to 5800K. You can ne tune this setting using the MATRIX.

OPW (One Push White Balance): The One Push White Balance mode is a xed white balance mode that may be

automatically readjusted only at the request of the user (One Push Trigger), assuming that a white subject, in
correct lighting conditions can occupying more than 1/2 of the image. One Push White Balance data is lost when

the power is turned o. If the power is turned o, you'll need to reset One Push White Balance.

To select OPW:

1. Place a white subject (i.e., sheet of white paper) in the center of the frame.

2. Press the remote controller HOME button to activate the one-push white balance adjustment. You can ne

tune this setting using the MATRIX and OFFSET.

17

ATW (Auto Tracking White Balance): Auto Tracking White balance (2000K to 10000K), allows the camera to adjust

the white balance according to the temperature of the light source illuminating the subject. You can ne tune this

setting using the MATRIX, SPEED (white balance speed) and OFFSET.

User: This is a mode that enables you to manually set the control of Red and Blue gain up to 256 steps. You can ne

tune this setting using the MATRIX.

Outdoor Auto: This is an auto white balance mode specically for outdoors. It allows you to capture images with
natural white balance in morning and evening light. You can ne tune this setting using the MATRIX.

SVL Auto (Sodium Vapor Lamp Auto): This is an auto white balance mode that compensates for the orange light

from sodium vapor lamps. You can ne tune this setting using the MATRIX.

SVL (Sodium Vapor Lamp): This is a xed white balance mode specically for sodium vapor lamps. You can ne

tune this setting using the MATRIX.

SVL Outdoor A. (Sodium Vapor Lamp Outdoor Auto): This is an auto white balance mode specically for outdoors,
which is compatible with sodium vapor lamps. You can ne tune this setting using the MATRIX.

The following parameters are available depending on the chosen white balance mode:

Speed (white balance speed)

You can adjust the speed at which the camera reaches the white convergence point when AUTO1 or AUTO2 is

chosen. Choose a value from 1, 2, 3, 4, and 5. 5 is the fastest and 1 is the slowest.

Oset

The white convergence point can be shifted when WHITE BALANCE mode is AUTO1, AUTO2, or ONE PUSH. The
range is from –7 to 0 to +7. White balance is shifted toward blue when a negative value is chosen, and it is shifted
toward red when a positive value is chosen.

Matrix (Color Matrix)

You can emphasize or weaken a specic color region while keeping the white convergence point unchanged.

When you turn this ON, the following items are displayed for adjustment.

Select

You can choose an internal preset matrix for matrix calculation. You can choose from STD, HIGH SAT, FL LIGHT,

MOVIE, STILL, CINEMA, PRO, ITU709, and B/W. This becomes disabled when MATRIX is turned OFF.

Level (color level)

You can adjust the color density of the picture. Choose a value in the range from 0 to 14. The greater the number,

the denser the colors, and vice versa. This becomes disabled when MATRIX is turned OFF.

Phase

You can adjust the color tone of the entire picture. Choose a value from –7 to 0 to +7. This becomes disabled when

MATRIX is turned OFF.

R-G, R-B, G-R, G-B, B-R, B-G

You can set a coecient for each combination of RGB individually, to adjust the hue of the entire picture. Choose

a value from –99 to 0 to +99. This becomes disabled when MATRIX is turned OFF.

Detail Menu

When you choose AUTO as the mode, contour correction signal is automatically added. When you want to make
adjustment by yourself, choose MANUAL. Only LEVEL will be displayed when you choose AUTO.

Mode

Auto: Contour correction signal is automatically added. You can set the amount of the contour correction signal.
Choose a LEVEL value from 0 to 15. The greater the value, the stronger the contour correction signal.

18

Manual: You can set the bandwidth for signals undergoing contour emphasis. You can choose from DEFAULT, LOW,

MIDDLE, HIGH, and WIDE. For example, when you choose MIDDLE, the middle range of the signals is elevated, and
contours in that middle range are emphasized.

Crispening

You can choose the neness of the objects subject to contour correction with contour correction signals. Choose

a value from 0 to 7. When you choose a higher value, minute contour correction signal elements are removed, and
only the high level contour correction signals are left,which reduces noise. When you choose a lower value, minute
contour correction signal elements are added to the picture, increasing noise.

H/V Balance

You can choose the ratio for horizontal and vertical contour correction signal elements. Choose a value from –2 to

0 to +2. When you choose a higher value, the horizontal contour correction elements become greater compared
to the vertical elements.

B/W Balance

You can adjust the balance between contours in black on the low brightness side of the spectrum and contours in
white on the high brightness side. Choose from TYPE 1 to TYPE 5. The ratio of contours in black is higher for TYPE1
while the ratio of contours in white is higher for TYPE 5.

Limit

You can set the maximum value for the amount of contour emphasis in black on the low brightness side of the

spectrum and in white on the high brightness side. Choose a value from 0 to 7.

Highlight Detail

You can adjust the level of contour added to brightly lit objects. Choose a value from 0 to 4. Adjust this when you

want to emphasize the contour of a brightly lit object in a bright background.

Super Low

Emphasizes contours in the super low range. Choose a value from 0 to 7. The greater the value, the greater the
contour emphasis. Contrast and resolution increase.

Picture Menu

2D /3D NR

2D Noise Reduction is a method of reducing noise within an image by comparing the image from frame to frame,
removing variations that do not appear in each frame. 3D Noise Reduction is a method of reducing noise by
comparing variances within the same frame, as well as comparing frame to frame. This will often reduce noise
without leaving trails behind a moving object.

Flip

Flips the image upside down for ceiling mounted cameras. Select from upright mode (OFF) or ceiling mount (ON).

Mirror

Displays a mirror image of the video image.

Color

Adjusts the intensity of colours in the image from a range of 1-15.

Hue

Adjusts the color phase from 1-15.

ND lter

The ND Filter installed in front of the image sensor can be mechanically engaged or disengaged. The adjustable
range of iris and shutter speed are increased by using the ND Filter. There are 2 types of ND Filters, and by

combining them, the light quantity can be reduced. Values are 1× (Filter O), 1/4×, 1/16×, or 1/64×.

19

IR Cut Filter

An IR (infrared) cut lter can be disengaged for increased image sensitivity in low light conditions. The lter
will automatically engage depending on the ambient light, allowing the camera to be eective in day/night

environments. When the mode is set to NIGHT, a monochrome (black and white) image will be displayed.

Chroma Suppress

The chroma suppress mode can be engaged for low light conditions when color noise may be particularly noticeable.

You can set the brightness from OFF, LOW, MID, HIGH in each mode of the variable gamma modes.

HLC Mode (Highlight Light Compensation)

HLC attempts to adjust AE and AF to compensate for high intensity spot lights aimed toward the camera lens.

Stabliser

This function can reduce image blur caused by camera movement. The correction eect works best at vibration
frequencies of around 10 Hz and may not be as eective in conditions of high frequency vibration. In such high
frequency vibration conditions, turn the image stabiliser function o. The image stabilizer function uses digital

zoom methodology that may result in reduced angle of view and resolution.

Gamma Menu

Mode

Standard: Standard setting (same as the MOVIE setting on the camera).

Straight: This selects a straight GAMMA curve.

Pattern: You can choose a gamma curve from 512 patterns stored in the camera. You can specify the a pattern

from 512 patterns using PATTERN and PATTERN FINE. PATTERN denes the upper two digits of the pattern, and
PATTERN FINE denes the last digit.

Pattern

Choose a value from 0 to 51. This can be chosen when Mode is PATTERN.

Pattern Fine

Choose a value from 0 to 9. When PATTERN is 0 (zero), zero cannot be chosen for PATTERN FINE. When PATTERN
is 51, a value larger than 2 cannot be chosen for PATTERN FINE. This can be chosen when Mode is PATTERN.

Oset

You can choose the oset of the output level of gamma curves. Choose a value from –64 to +64.

Level

Gamma level, you can choose a level value from -7 to +7.

Black Gamma

You can adjust the black gamma level to recreate gradation in the dark areas of the picture or to sup- press noise

with blackout. Choose a value from –7 to +7.

Black Gamma Range

You can adjust the brightness range for which BLACK GAMMA becomes eective. Choose from LOW, MIDDLE,

and HIGH. The range becomes small when LOW is chosen, and it becomes large when HIGH is chosen.

Black Level

You can adjust the master BLACK LEVEL. Choose a value from –48 to +48.

Visibility Enhancer

Depending on the imaging scene, the Visibility Enhancer function makes the darker part of a camera image
brighter, and automatically correct brightness and contrast to show bright parts clearly.

20

Pan Tilt Zoom Menu

The Pan Tilt Zoom menu is used to select the pan/tilt/zoom mode.

Digital Zoom

On: 12X digital zoom is activated. Digital zoom activates after the optical zoom reaches its maximum of 12X.

O: Only optical zoom is available.

SRZ (Super Resolution Zoom): expands zoom range to 18X zoom at 4K, or 24X zoom at FHD without sacricing

detail.

Zoom Ration OSD

Determines whether the zoom ratio displays on screen.

AF Sen

When set to NORMAL, autofocus response will be fast and suited for frequently moving subjects. When set to
LOW, the autofocus response is slowed which can improve the stability of the focus in low light conditions.

MF Speed

Choose between eight manual focus speeds.

Near Limit

You can set the camera to ignore focusing on subjects that are closer than a designated distance. Can be set in a

range from OVER, 1cm, 11cm, 30cm, 80cm, 1.2m, 1.4m, 1.6m, 2.0m, 2.5m, 3.1m, 4.2m, 6m, 10m, 20m.

Adaptive P/T

When set to ON, P/T speed are adaptive to the zoom range. For example, the higher zoom ratio you use, the slower
the speed of P/T.

P/T Speed

The P/T Speed can be set from 0 to 5 (from low to high), when controlling using the remote controller.

Preset Speed

Set the preset recall movement speed from 0 to 5.

Pan Dir

Camera horizontal Left and right orientation setting with the option to Invert.

Tilt Dir

Camera tilt up and down orientation setting with the option to Invert.

System Menu

Pelco ID

When using RS485 (PELCO P/D) control, set Camera ID to the controlled address. This value is from 001-255.

IR-Receive (Infrared Signal Reception)

When this is set to OFF, the camera does not receive the signal from the infrared remote controller. Be sure to keep
it set to ON when you use the infrared remote controller. Note that you cannot set IR-RECEIVE to OFF when you
operate the menu using the infrared remote controller. To set it to OFF, use the appropriate VISCA controller.

Display Info

When this item is set to ON, the camera conguration is displayed for approx. 3 seconds on the screen when the

camera is powered on or rebooted.

21

Preset Memory

This feature allows you to save the image parameters to PRESET memory. Parameters such as picture, white
balance, exposure, focus mode, zoom positions can be saved with the preset.

Factory Reset

Select this item to set camera back to the factory default setting. Press the HOME button to conrm the action. All

user settings for the camera will be deleted.

Reload Preset 1

When set to ON, preset 1 is set to the Home position. The camera moves to the Home position when it is powered
on or reset.

Auto Focus

Set the speed of auto-focusing from Low to Normal.

Video Format

Select VIDEO FORMAT, press the “←” button to choose the video format, then press “→” (Pressing “→” button

changes the value on some product models) or HOME button to conrm. After conrmation, press the HOME

button again to restore it. The camera will reboot by itself and the new video format is activated.

• You can cancel it by pressing the MENU button.

• Depending on the video client software you are using, some video software may need to be restarted
to obtain the new video format.

The camera video format can also be changed by setting the rotary DIP switch at the back of the unit.

SV (Software Version)

Software Version Number that is currently running on the camera, you may need this information for technical
support.

22

Remote Controller

1. Power

• Power ON the camera to set the camera to operational
status.

• Power OFF the camera to set the camera to standby
status.

• When the camera is powered OFF, the camera turns to
the rear.

• When the camera is powered ON, the camera turns to
the front.

• Powering the camera ON/OFF would not restart the
camera.

2. Camera ID (Total 3) Selector

3. Preset Position (Total 6) Calling and Setting

4. PAN-TILT

• Pan and Tilt direction control.

• HOME: Home position, Resolution reset.

5. L/R Direction Set

• Left and right orientation setting.

6. ZOOM/FOCUS

• Far - for objects further from the camera.

• Near - for objects closer to the camera.

7. Auto/Manual Focus

8. Back Light

9. Video Format Switching

• You can change the video format by keep pressing the button. (When video format is changed, the
camera would restart and the screen turns black for few seconds.)

10. MENU

• On screen menu display ON/OFF.

11. Fast/Slow Zooming Speed Switching

12. White Balance

• Change the White Balance setting by pressing the button.

13. De-Flicker

• When you nd the video icking, press the button once to eliminate ickering.

23

Controlling the Camera Using the Remote Controller

CAMERA SELECT

L/R DIRECTION SET

REV

RESET

REV

CAMERA SELECT

MENU POWER

STD

PRESET

HOME

FAR

L/R DIRECTION SET

T

NEAR

W

ZOOM FOCUS

STD HOMEMENU

Panning and Tilting

1. Press the POWER switch. The camera will turn on and perform the pan/tilt reset operation automatically.

2. Press the arrow button to pan or tilt the camera. While checking the picture on the screen, press the desired

arrow button.

3. To move the camera in short increments, press the button.

4. o move the camera in long increments, press and hold the button.

5. To move the camera diagonally, press the “← or →” button while holding down the “↑ or ↓” button.

6. Press the HOME button to return to the starting position

7. If the camera moves in a dierent direction from the one that you intended, be aware that the camera is set so

that the image output from the camera is rotated toward the right whenever you press the " →” button.

To set the remote to move the camera toward the opposite direction from that of the button you pressed,
press the 2 (REV) button while holding down the L/R DIRECTION SET button.

Arrow Button Movement of the Camera Setting

L/R DIRECTION SET

While holding down

REV

Press

NOTE: The above setting only changes the signal emitted from the infrared remote controller, and does not

change the setting of the camera itself. Therefore, repeat the setting for each infrared remote controller if you
are using more than one infrared remote controller.

A blinking STANDBY lamp may indicate physical interference with the camera movement, and the camera

may fail to memorize the pan/tilt position. In this case, press the PAN-TILT RESET button to reset the pan/tilt
position.

24

Zooming

Button [T]: Zoom In.

Button [W]: Zoom Out.

T

W

ZOOM FOCUS

FAR

NEAR

Subject appears closer
(Telephoto)

Subject appears farther away
(Wide Angle)

Button [F]: Fast / Slow toggle.

Focusing

Focusing the camera on a subject automatically

Press the AUTO button. The camera focuses on the
subject at the center of the screen automatically.

Focusing the camera on a subject manually

After pressing the MANUAL button, press either the
FAR or the NEAR button to have the camera focus on
the subject.

T

W

ZOOM FOCUS

FAR

NEAR

Zoom In/Out Speed button

Focus on a far subject

Focus on a near subject

AUTO/MANUAL

Subject appears brighter

Shooting with Back Lighting

When you shoot a subject with a light source behind it, the subject becomes dark. In such a case, press the BACK
LIGHT button. To cancel the function, press the BACK LIGHT button again.

NOTE: The BACK LIGHT function is eective if MODE is set to FULL AUTO in the EXPOSURE menu of the camera.

Changing Resolution

1. Press the RESOLUTION button.

2. Use the arrow keys to navigate the displayed menu.

3. Press Home to select.

4. Screen will display ‘CHANGING…”

5. Press Menu to exit.

25

Storing the Camera Settings in Memory Using Presets

Using the preset function, six sets of camera shooting conditions can be stored and recalled. The six sets of
camera shooting conditions can be stored and recalled by using remote controller. Up to 128 presets via protocol
programming.

This function allows you to achieve the desired status instantly, even without adjusting the following items each
time.

• Pan/Tilt Position

• Zoom Position

• Focus Auto/Manual

• Focus Position

• AE Mode

• Shutter control parameters

• Bright Control

• Exposure Compensation On/O

• Exposure Level

• Backlight Compensation On/O

• White Balance Mode

• R/B Gain

• Aperture Control

• WD Parameter

• Iris control parameters

• Gain control parameters

The settings stored using this function are recalled when the power is turned on.

1. Press the RESET button to reset the pan/tilt position.

2. Adjust the position, zooming, focusing and backlighting of the camera.

3. While holding down the PRESET button, press any of the POSITION buttons, 1 to 6, in which you want to store

the settings.

Recalling the stored settings

Press any of the POSITION buttons, 1 to 6, in
which you have stored the settings.

Cancelling the preset memory

While holding down the RESET button, press the
POSITION button from which you want to cancel
the settings.

NOTE:

• When the power is turned on, the camera starts with the settings stored in POSITION 1, so if you want
to retain the previous pan and tilt positions, store those positions in POSITION 1.

• When you are storing or cancelling the settings in one POSITION, you cannot call up, store or cancel
the settings in another POSITION.

• When the menu is displayed on the screen, you cannot perform the operation for storing, recalling, or
cancelling the setting. Be sure to return to the normal display before starting these operations.

CAMERA SELECT

STD

PRESET RESET

REV

26

Press a POSITION button

While holding down PRESET Button

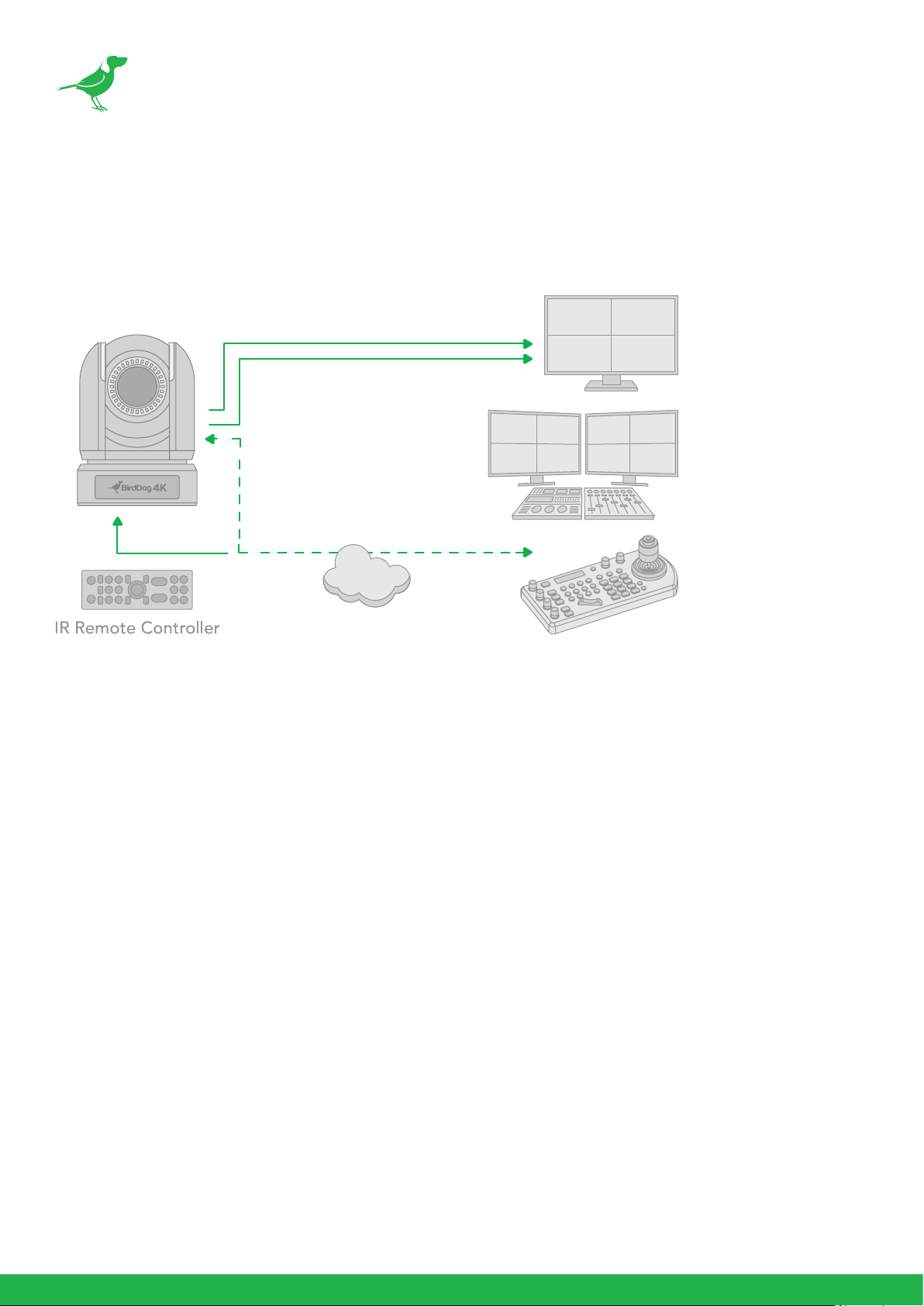

Operating Multiple Cameras with the Infrared Remote Controller

1. Using the switch on the rear of the camera, assign a number to the camera (1, 2 or 3).

2. Press the CAMERA SELECT button on the infrared remote controller that corresponds to the number set in

step 1.

3. You can now operate the camera(s) specied by number. Every time you operate the camera(s) using the

infrared remote controller, the CAMERA SELECT button pressed in step 2 illuminates.

27

Web Conguration Panel

The web conguration panel (BirdUI) allows you to alter key settings of P4K, such as A/V settings, video frame

rates, restarting the video processing engine, changing networking parameters, recalling PTZ presets and applying

rmware updates.

Access via web browser (URL)

P4K is congured to automatically receive a network IP address from the computer network via DHCP (Dynamic
Host Conguration Protocol). Most corporate, education and home networks have a DHCP server present on the

network to allow this to occur. Usually your Internet Router provides this.

If P4K receives an IP address automatically from this server (DHCP), the IP address can be discovered in several
ways, including BirdDog Central Lite available from here.

NOTE: Your computer will need to have ‘Bonjour’ services loaded in order to access the unit via it’s user dened

name. Apple devices come pre-installed with Bonjour, while Windows devices need a plugin available here.

Accessing P4K on a network without a DHCP server

Some standalone or private networks may not have a DHCP server. After 30 seconds of waiting for an automatically
assigned IP address, the camera will reassign to the designated fallback address (the default is 192.168.100.100).

In order to access the BirdUI on a network which is congured to a dierent subnet, change your computers IP

address to match the BirdDog unit. Once you gain access to the BirdUI, choose your IP address to match the rest
of the devices on your network.

For instructions on setting your computer's IP address, please consult your computer operating system manual or
IT support resources.

Password Management

Once you direct your web browser to the BirdUI you will need
to log in to change any settings.

Default Password

The BirdUI is secured by a user-selectable password. The
default password is: birddog (one word, lower case).

Password Reset

To change the password simply login using the default
password, navigate to the Network tab in the BirdUI, and
select Change Password.

It is recommended to change this password in a network environment where P4K is shared with other users (e.g.

not private). By entering this password, the user is granted full access to the conguration settings and could

interrupt a live program.

28

BirdUI Layout

The BirdUI is organized into the following panels:

1. Dashboard

Overall view of important information such as the network connection type
and video stream format and resolution.

2. Network

General network settings such as DHCP IP Address details, timeout fallback
address and camera network name, as well as NDI® specic network set­tings

3. System

System admin functions such as updates, password change, designation of
group access and camera reboot.

4. AV Setup

Full NDI® encode management and audio settings.

5. CamControl

Exposure, white balance, picture and color settings.

6. Scopes

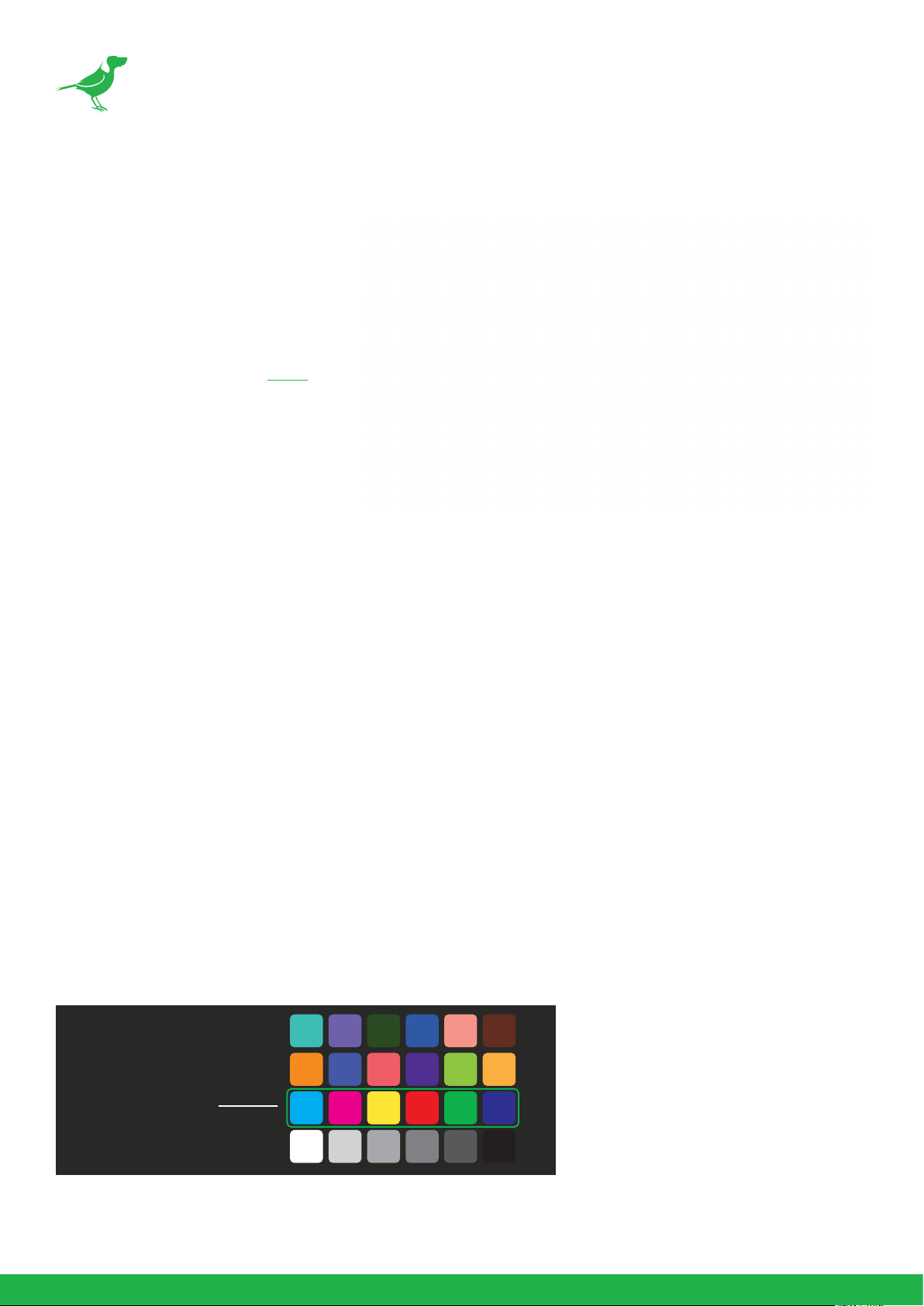

Settings for the Histogram, Waveform, RGB Parade and Vectorscope.

7. Logout

Click to logout from the BirdUI.

29

Dashboard

The Dashboard displays an overall view of
important information.

1. System Info

Current computer system CPU utiliza­tion.

2. Device mode

Encode or Decode. For a camera this is

xed at Decode.

3. Network Bandwidth

Network bandwidth consumption of the
current NDI® output stream(s).

4. Status

a. NDI video stream name

b. Selected video format.

c. NDI audio status.

5. Stream Info

a. Video resolution. Number of audio channels of the camera.

b. Video frame rate. The audio output sample rate of the camera.

c. Video chroma subsample rate and average NDI® bitrate of the camera.

6. System Details.

a. Camera name.

b. Network details.

c. Online status of the camera.

d. MAC address and current rmware version of the camera.

Network

Network Details

Most computer networks provide for both automatic and manual conguration of network devices and the P4K

can accomodate both.

Conguration Method

Here you can set the network conguration to either DHCP (default) or Static. DHCP simplies the management of

IP addresses on networks. No two hosts can have the same IP address, so assigning them manually can potentially

lead to errors. If your network is set up for DHCP, this is generally the best conguration to choose. If you do choose

to go with a Static IP address, you’ll need to add the IP Address, Subnet Mask and Gateway Address information
according to the requirements of your network.

30

DHCP Timeout, Fallback IP address, Fallback Subnet Mask

You can set the timeout period during which P4K will look for a DHCP IP address. After this period, the camera will

default to the designated fallback IP address.

This can be useful if you use your camera in other network environments. For example, if a DHCP server is available

in your normal oce or studio application, the camera will use the DHCP supplied IP address. If you then use the

camera in another application without a DHCP server, your camera will always default to the known fallover IP
address. NOTE: Do not set the fallback IP address the same as the camera IP address. It is recommended to keep
the fallback IP address.

BirdDog Name

You can give your camera a meaningful name to make identication easier when viewing NDI® sources on a

receiver such as a TriCaster, vMix or Studio Monitor. Be sure to make the name unique, as no two devices on the
network should have the same name. The name can be any combination of a-z, 0-9, and '–‘.

After renaming your camera, navigate back to the Dashboard and click REBOOT DEVICE. The camera will re­initialize and you’ll be good to go.

NDI Network Settings

P4K operates with the latest
NDI® Libraries. There are

several options to congure

camera behaviour in
an NDI® network. Each

conguration has its
benets, however it is

recommended to utilise
the default TCP transmit
method unless you have
reason to change.

Preferred Transmit Method

TCP

TCP is the default method of transmission for NDI®. It operates well within local networks with predictable latency
and limited jitter. BirdDog recommends that TCP be used for typical applications, and only using alternative

transports for specic reasons.

31

UDP

UDP is recommended for networks where there is extended latency from one end to the other. The nature of

UDP means that it does not receive a conrmation of each packet being received successfully – vastly improving

performance on busy networks. UDP can have some consequences f there are other issues on the network such as
jitter or lost packets as it will not inherently re-sent a lost packet.

R-UDP (Reliable UDP)

This protocol bridges the performance of TCP and UDP. Compared to TCP, it reduces overall network load (allowing
more NDI® streams) by not requiring every packet to be ‘acknowledged’ by every receiver – has error correction
built in for smoothness and reliability.

Multicast

Multicast is especially useful for use-cases that require a single source to be received on multiple receivers

simultaneously. Utilizing Multicast ooads the distribution of the NDI® A/V packets from the camera to the
network infrastructure. You should take care to ensure your network is specically congured to support Multicast

as using it on an ill-prepared network can create unintended network problems.

NDI Discovery

If you choose to use a NDI® Discovery Server, you can congure it in this tab. By default, NDI® utilizes mDNS
(multicast Domain Name System) to create the zero conguration environment for discovery. Unless the network
is specically congured to not allow mDNS, NDI® sources will be discovered.

The NDI® discovery service is designed to replace the automatic discovery NDI® uses with a server that operates

as an ecient centralized registry of NDI® sources that requires much less bandwidth. Multiple servers can be
specied for failover reduntancy. NDI® discovery server also helps with location of devices that reside on dierent

subnets. The NDI® Discovery Server is available in the free NDI SDK.

1. If you are using one or more NDI® Discovery Servers, click the ON button.

2. Enter a comma delimited list of the IP address(es) of your NDI® Discovery Server(s).

3. Click the APPLY button to save your changes.

System

Password Settings

The BirdUI is secured by a user-selectable password. The default password is birddog (one word, lower case). It is

recommended that the default password be changed, since the BirdUI grants full access to the camera conguration

settings.

You can change the password in the

Password Settings

tab.

1. Enter the current password.

2. Enter the new password. It is recommended to change this password to retain administration rights to prevent

unauthorized changes in a network environment where PTZ Keyboard is shared with other users (e.g. not

private). Conrm the new password and click the

Apply

button.

32

System Update

We are always adding new features and improving the performance

of our products, so installing the latest rmware will provide you

with the best user experience.

To upgrade the rmware, please download the rmware and follow
the Firmware Upgrade Instructions located in your rmware folder.

Access Manager Conguration

Remote IP List

By default, NDI® devices are visible to each other only when they’re
on the same VLAN. If you want visibility or control of a device on a

dierent VLAN, you need to add it’s address manually as a Remote

IP. You can upload and download Remote IP Lists for sharing with
other cameras. To upload a list:

1. Click the CHOOSE FILE button to load your Remote IP List in

UTF-8 encoded string format.

2. Click the UPDATE button. Do not upload a blank list.

NDI Group List

Set the NDI® group list. NDI® groups allow you to restrict
communication to only devices that belong to the same NDI® group.
NDI® Groups can be very useful in larger environments to control

visibility and access amongst various groups. You can upload and

download group lists for sharing with other cameras. Groups also
need setting up in NDI Access Manager, available in NDI Tools.

To upload a list:

1. Click the CHOOSE FILE button to load your NDI® Group List in

UTF-8 encoded string format.

2. Click the UPDATE button. Do not upload a blank list.

Unit Reboot

Click the Reboot button to perform a camera reboot.

33

AV Setup

Device Settings

Video Processing Mode

You can choose Low Latency mode to improve performance in applications where latency may be an issue. In this

mode, SDI and HDMI outputs, as well as the OSD (On Screen Display) are disabled. Click the Device Restart button
when changing this setting. Video formats available in this mode are 2160p30, 29.97, 25, 24, 23.97 and 1080p60,

59.94, 50.

Audio Output Select

Loop: Audio from the Audio In port, for example, from a connected microphone, is directed to the Audio Out port
for monitoring.

Comms: Audio from NDI® stream is directed to the audio out for camera operator comms. You'll need software
such as BirdDog Comms Lite/Pro to use this function.

Audio In / Out Gain

Controls for adjusting the audio in/out gain.

Device Restart

Restarts the NDI® stream. This may be necessary after changing key image settings e.g., resolution and Low latency
mode.

NDI Encode Settings

Bitrate Management

Birddog Devices allow you to set your target NDI® output bitrate. This allows you to select a compression ratio that

is more ecient for your networking infrastructure (lower bandwidth) or higher image quality for critical footage.

The scale allows you to select the range of 60 Mbps - 360 Mbps.

34

By setting Bitrate Management to NDI MANAGED, the target bitrate will be set in accordance with the NDI®
standard. By selecting MANUAL you are able to manually select a target bitrate. Select MANUAL with care, as you
will need to account for the capacity of the network and the receiving device.

Chroma Subsampling

Set the desired level of chroma subsampling.

NDI Groups

NDI® supports Grouping which allows you to hide the visibility of video sources to viewers that are not part of the
group. If disabled (default), the video source is public and viewable by any receiver on your network. Click on the

eld and type a group name. Receivers can then scan for, and select your group.

Stream Name

You can give the camera NDI® output stream a meaningful name to make identication easier on on any NDI®-

capable receiver, particularly on networks where there are a large amount of NDI® streams.

NDI Video Format

P4K is capable of outputting independent video formats for both NDI® and SDI/HDMI. This setting aects only the

NDI® video output. Please note that the video rate you select here must be of the same family as the SDI/HDMI
video output, for example 720p50 aligns with 1080i50/1080p50 but will not co-exist with any 29.97/30fps based
camera setting.

NDI Audio

Select MUTE to disable the NDI® audio. Select ANALOG to receive audio from the audio inputs.

Stream to Network

You can choose to disable the NDI output stream.

Encoder Screensaver

Assign a captured frame, black frame, or BirdDog logo as a screensaver.

Capture Screensaver Frame

Click the Capture button to capture the current frame for use as a screensaver.

Onboard Tally

Enable the camera Tally lights.

Genlock Source

Select the NDI® genlock source from the dropdown list.

NDI Failover Source

NDI® has a failover function whewre you can designate an alternate camera or NDI® source for the receiver, should
this camera become disconnected or otherwise unavailable on the network. Click on the

eld to select your alternate source.

Available NDI Sources

Update Source List

Pressing the Refresh button will add new sources to the list, whereas pressing the RESET button will populate the
list with only active NDI® sources. Click the APPLY button to apply your failover source change.

35

Cam Control

Camera Control Tab

Menu On / O

To adjust cameras settings via the OSD (On Screen Display), click the Menu ON/OFF button.

The OSD is visible on both the NDI® output and SDI/HDMI, and can also be accessed via the included remote
control. Since it uses the same controls for menu navigation, PTZ control of the camera movement will not be
possible until the OSD menu is closed again.

Zoom

Click the TELE button to zoom in and the WIDE button to zoom out.

Focus Mode

Select between Auto and Manual focus modes.

Focus

Click the IN button to focus on nearer subjects and the OUT button to focus on subjects further from the camera.

Pan / Tilt / Zoom Speed

When controlling P120 over NDI® you can individually set the maximum speed of PTZ movements. Higher numbers
produce faster and more sensitive movements of the camera.

Image Settings Reset

Click this button to reset all image settings to their factory default.

FreeD Tab

Enable or disable FreeD. FreeD is a protocol for real time
camera PTZ position query. Any application that uses FreeD
can use this data, usually in a virtual environment, where a
physical camera move (i.e. pan, tilt, zoom or iris change) can
trigger the virtual environment to follow that move in real
time.

IP Address / Port

Enter the IP address of the host and the port that the data
package will be sent to.

Apply FreeD Settings

Click the APPLY button to save your changes.

Preset Tab

To save a Preset select a number, make your desired changes, click the Save button and then click a Preset number.

To recall a Preset, click the Preset number. You can save two separate and dierent types of Presets:

BirdDog

Saves only PTZ information with the Preset.

Camera

If System/Preset Memory is enabled in the camera Menu via the OSD, image parameters such as picture, white
balance, exposure, focus mode, zoom positions will also be saved with the Preset.

36

Exposure Tab

Mode

Full Auto: IRIS, GAIN and SPEED (shutter
speed) are set automatically using the values
set for SLOW SHUTTER, S. SHUTTER LIMIT, AE
SPEED, GAIN LIMIT, GAIN POINT, POINT, HIGH

SENSITIVITY, MAX SPEED, MIN SPEED, BACK

LIGHT, SPOT LIGHT and EXPOSURE COM­PENSATION.

Manual: Allows manual adjustment of the GAIN,
GAIN LIMIT, SPEED, IRIS, and HIGH SENSITIV-

ITY.

Iris Pri: Iris Priority mode. This mode allows you

to set a xed IRIS. The gain and shutter speed

are set automatically according to the bright­ness of the subject. The exposure is adjusted
automatically using the values manually set for
IRIS, GAIN LIMIT, GAIN POINT, AE SPEED, MAX
SPEED, MIN SPEED, BACK LIGHT, SPOT LIGHT
and EXPOSURE COMPENSATION.

Shutter Pri: Shutter Priority mode. This mode allows you to set a xed shutter SPEED with exposure achieved by

automatic setting of IRIS and GAIN, according to the brightness of the subject. The exposure is adjusted auto­matically using the values manually set for SPEED, GAIN LIMIT, AE SPEED, BACK LIGHT, SPOT LIGHT and EXPO­SURE COMPENSATION.

Bright: The bright control function adjusts both gain and iris using an internal algorithm, according to a brightness
level freely set by the user. Exposure is controlled by gain when dark, and by iris when bright. As both gain and iris

are xed, this mode is used when exposing at a xed camera sensitivity. When switching from Full Auto or Shutter

Priority Mode to Bright Mode, the current status will be retained for a short period of time. The exposure is adjust-

ed automatically using the values manually set for the bright level (LEVEL) and HIGH SENSITIVITY.

Gain Pri: Gain Priority mode. This mode allows you to set a xed GAIN. The IRIS and SPEED are set automatically

according to the brightness of the subject. The exposure is adjusted automatically using the values manually set

for GAIN, GAIN POINT, AE SPEED, HIGH SENSITIVITY, MAX SPEED, MIN SPEED, BACKLIGHT, SPOTLIGHT and

EXPOSURE COMPENSATION.

Below are the various parameters for these exposure modes.

Gain

Select the gain from the following: 0dB, 3dB, 6dB, 9dB, 12dB, 15dB, 18dB, 21dB, 24dB, 27dB, 30dB, 33dB, 36dB.

Gain Limit

The gain limit can be set at Full Auto, Shutter Priority, Iris Priority, Bright, Spot Exposure and Manual in AE mode.
This is useful to limit the automatic setting of gain which can lead to excessive image noise at extreme settings.
Choose from: 9dB, 12dB, 15dB, 18dB, 21dB, 24dB, 27dB, 30dB, 33dB, 36dB.

Gain Point/Position

Set the Gain Point between 0dB and the gain limit. The shutter speed can be changed from the point when the set
gain value is reached. When you want to obtain a motion-priority image, use this setting.

High Sensitivity

This function increases the max. gain to allow bright output in darker environments. However, with a strong gain
(up to 10×), the image may exhibit higher levels of noise.

Iris

Select the iris the following: F11, F10, F9.6, F8.7, F8.0, F7.3, F6.8, F6.2, F5.6, F5.2, F4.8, F4.4, F4.0, F3.7, F3.4, F3.1, F2.8

37

Slow Shutter

When set to “On,” the slow shutter functions automatically in low light conditions. This setting is available only

when the AE mode is set to “Full Auto.” The default setting is O.

Shutter Limit

With certain settings, in low light conditions, the shutter speed slows and the gain is increased. This function allows
you to limit the shutter speed reduction. This helps prevent image shake when shooting a moving subject in low
light conditions.

AE Response

This setting allows you to reduce the exposure response speed. By default, optimum exposure can be obtained
automatically within approx. 1 second. The slow AE response function allows you to lengthen this response time.

Maximum SPEED (Maximum Shutter Limit)

In auto modes, the brighter the object is, the shutter speed will increase. You can set the upper limit on the shutter

speed increase, helping to make images with motion more smooth.

Minimum SPEED (Minimum Shutter Limit)

In low light conditions, the shutter speed may becomes slow and the gain is increased. Here you can put a limit on
the shutter speed reduction, helping to prevent camera shake when you shootingb moving subjects.

Backlight

When the background of the subject is too bright, or when the subject is too dark due to shooting in the AE mode,
back light compensation can help make the subject better exposed.

Spotlight

Spotlight compensation will attempt to compensate exposure in conditions where strong light falls on the subject,

such as a person’s face in a spotlight. You can choose either ON or OFF. This setting is enabled when MODE is FULL

AUTO, SHUTTER PRI, IRIS PRI, or GAIN PRI. SPOT LIGHT becomes disabled when BACK LIGHT is ON.

Exposure Compensation

When MODE is set to FULL AUTO, SHUTTER PRI or IRIS PRI, setting EXPOSURE COMPENSATION to ON allows
exposure compensation levels to be set from the following values: –10.5, –9, –7.5, –6, –4.5, –3, –1.5, 0, +1.5, +3, +4.5,
+6, +7.5, +9, +10.5. Setting the level to 0 disables exposure compensation. Level +10.5 is the brightest and –10.5 is
the darkest compensation value. EXPOSURE COMPENSATION is set to OFF, exposure compensation is disabled.

White Balance Tab

Cam White Balance

Auto: This mode computes the white
balance value output using color
information from the entire frame
with a range of values from 2500K to
7500K. This mode is the default set­ting.

Indoor: Sets the color temperature
to 3200K.

Outdoor: Sets the color temperature to 5800K.

OPW (One Push White Balance): The One Push White Balance mode is a xed white balance mode that may be

automatically readjusted only at the request of the user (One Push Trigger), assuming that a white subject, in
correct lighting conditions can occupying more than 1/2 of the image. One Push White Balance data is lost when

the power is turned o. If the power is turned o, you'll need to reset One Push White Balance.

To select OPW:

1. Place a white subject (i.e., sheet of white paper) in the center of the frame.

2. Press the remote controller HOME button to activate the one-push white balance adjustment.

38

ATW (Auto Tracking White Balance): Auto Tracking White balance (2000K to 10000K), allows the camera to ad­just the white balance according to the temperature of the light source illuminating the subject.

Manual 1 :This user mode allow you to manually set the color balance parameters.

Below are the various parameters for these white balance modes.

Cam Red/Blue Gain

Sets the intensity of red and blue colors of the image.

Cam Color Temp

Sets the color temperature of the image in degrees Kelvin.

Speed (white balance speed)

You can adjust the speed at which the camera reaches the white convergence point when AUTO is chosen. Choose

a value from 1 - 5, from slow to fast.

Oset

The white convergence point can be shifted when WHITE BALANCE mode is AUTO or ONE PUSH. The range is
from –7 to 0 to +7. White balance is shifted toward blue when a negative value is chosen, and it is shifted toward
red when a positive value is chosen.

Matrix (Color Matrix)

You can emphasize or weaken a specic color region while keeping the white convergence point unchanged.

When you turn this ON, the following items are displayed for adjustment.

Detail Tab

Mode

Auto: Contour correction signal is automatically added.You can set the volume of the contour correction signal.

Choose a LEVEL value from 0 to 15. The greater the value, the stronger the contour correction signal.

Manual: Congure the following settings manually.

Bandwidth

Set the bandwidth for signals undergoing contour emphasis. You can choose from DEFAULT,

LOW, MIDDLE, HIGH, and WIDE. For example, when you choose MIDDLE, the middle range of the signals is elevated,
and contours in that middle range are emphasized.

Crispening

Choose the neness of the objects subject to contour correction with contour correction signals. Choose a value

from 0 to 7. When you choose a higher value, minute contour correction signal elements are removed, and only the
high level contour correction signals are left,which reduces noise. When you choose a lower value, minute contour
correction signal elements are added to the picture, increasing noise.

H/V Balance

Choose the ratio for horizontal and vertical contour correction signal elements. Choose a value from –2 to 0 to +2.
When you choose a higher value, the horizontal contour correction elements become greater compared to the
vertical elements.

39

B/W Balance

Adjust the balance between contours in black on the low brightness side of the spectrum and contours in white on

the high brightness side. Choose from TYPE 1 to TYPE 5. The ratio of contours in black is higher for TYPE1 while the
ratio of contours in white is higher for TYPE 5.

Limit

Choose the maximum value for the amount of contour emphasis in black on the low brightness side of the spectrum
and in white on the high brightness side. Choose a value from 0 to 7.

Highlight Detail

Adjust the level of contour added to brightly lit objects. Choose a value from 0 to 4. Adjust this when you want to
emphasize the contour of a brightly lit object in a bright background.

Super Low

Emphasizes contours in the super low range. Choose a value from 0 to 7. The greater the value, the greater the
contour emphasis. Contrast and resolution increase.

Picture Tab

2D/3D NR

2D Noise Reduction is a method of
reducing noise within an image by
comparing the image from frame to frame,
removing variations that do not appear
in each frame. 3D Noise Reduction is a
method of reducing noise by comparing
variances within the same frame, as well
as comparing frame to frame. This will
often reduce noise without leaving trails
behind a moving object.

Flip

Flips the image upside down for ceiling mounted cameras. Select from upright mode (OFF) or ceiling mount (ON).

Mirror

Displays a mirror image of the video image.

IR Cut Filter

An IR (infrared) cut lter can be disengaged for increased image sensitivity in low light conditions. The lter
will automatically engage depending on the ambient light, allowing the camera to be eective in day/night

environments. When the mode is set to NIGHT, a monochrome (black and white) image will be displayed.

Chroma Suppress

The chroma suppress mode can be engaged for low light conditions when color noise may be particularly noticeable.

You can set the brightness from OFF, LOW, MID, HIGH in each mode of the variable gamma modes.

Highlight Compensation

Highlight Light Compensation attempts to adjust AE and AF to compensate for when high intensity spot lights are
detected.

Stabilizer (available on 30X zoom)

This function can reduce image blur caused by camera movement. The correction eect works best at vibration
frequencies of around 10 Hz and may not be as eective in conditions of high frequency vibration. In such high
frequency vibration conditions, turn the image stabilizer function o.

The image stabilizer function uses the digital zoom methodology and may result reduced angle of view and
resolution.

40

Gamma Tab

Gamma Mode

Standard: Standard setting (same as the
MOVIE setting on the camera).

Straight: This selects a straight GAMMA
curve.

Pattern: You can choose a gamma curve from
512 patterns stored in the camera. You can

specify the a pattern from 512 patterns using
PATTERN and PATTERN FINE. PATTERN de-

nes the upper two digits of the pattern, and
PATTERN FINE denes the last digit.

Pattern

Choose a value from 0 to 51. This can be chosen when SELECT is PATTERN.

Pattern Fine

Choose a value from 0 to 9. When PATTERN is 0 (zero), zero cannot be chosen for PATTERN FINE. When PATTERN
is 51, a value larger than 2 cannot be chosen for PATTERN FINE. This can be chosen when SELECT is PATTERN.

Oset

You can choose the oset of the output level of gamma curves. Choose a value from –64 to +64.

Level

Gamma level, you can choose a level value from -7 to +7.

Black Gamma

You can adjust the black gamma level to recreate gradation in the dark areas of the picture or to sup- press noise

with blackout. Choose a value from –7 to +7.

Black Gamma Range

You can adjust the brightness range for which BLACK GAMMA becomes eective. Choose from LOW, MIDDLE,

and HIGH. The range becomes small when LOW is chosen, and it becomes large when HIGH is chosen.

Black Level

You can adjust the master BLACK LEVEL. Choose a value from –48 to +48.

Visibility Enhancer

Depending on the imaging scene, the Visibility Enhancer function makes the darker part of a camera image
brighter, and automatically correct brightness and contrast to show bright parts clearly.

Eect

The Eect setting sets the intensity of the Visibility Enhancer function. Values range from -3 to +3.

41

Colour Matrix Tab

The Color Matrix features 64 levels of
adjustment of Gain (Intensity) and Hue

(oset) across six color sections, Red,
Green, Blue, Cyan, Magenta and Yellow,
and allows individual ne-tuning of each
of these without aecting the response

of other color components.

You can also view an online video that

covers this section.

Colour Gain

The Gain control of each colour

component denes how intense that

colour is represented in the image. The
default level (32) is a moderate gain
which shows an even bias between all pixels that contain the colour. I.e. a dark red with have the red component
shown as vividly as a bright red, this generally gives a balanced look to your colour representation.

Increasing the gain valueb will add additional intensity to all parts of the image pertaining to this colour. For example,
if you increase the Red gain value to 64 all pixels that are red in the image will have a boost of colour compared to
other colours in the image resulting in a more vivid representation of this colour. Conversely reducing the colour
gain will take some intensity out of the target colour. This can be useful in some lighting conditions where certain
colours appear over saturated to the camera.

Colour Hue

The Colour Hue option adjusts the temperature or phase in which any colour is represented. When looking at the
colour spectrum, beyond the true colour points for each of the main colour adjustments in the camera (Red, Green,

Blue, Cyan, Magenta and Yellow there are areas where the colours transition to their neighbouring colour point. The
Colour Matrix controls allow you to adjust the colour oset in a negative (counter clockwise) or positive (clockwise)
direction, eectively moving the cameras response to any colour towards its neighbouring colour transition point.

Adjusting individual colour Hue can assist dramatically in matching colour representation from the camera to true­to like colours or matching the camera to other cameras in your production.

Using a Colour Chart

It is recommended to utilise a colour chart or colour chip chart when adjusting the Colour Matrix controls. These
charts are available readily and have colour chips for each of the colours that the camera can adjust. By utilising a
colour chip chart you are more easily able to see the impact of any adjustment you are making.

Using a colour chip chart such as the Datacolor SpyderCheckr can be benecial to ne-tuning adjustments in the

Colour Matrix.

Colours adjustable

by Colour Matrix Control

42

Scopes

Since there is variation in both the eyesight
of individuals and video monitors, Cam

Control oers NDI® video scopes to assist

in evaluating the color and tonal qualities of
your image.

Program / Preview Enable: Choose to

overlay the scopes on either the program
output, the preview output or both.

Transparency Enable: Click the ON button to enable scope transparency, allowing the video image to be visi-

ble behind the scopes.

Double Size Enable: Click the ON button to select the large scope size.

Position: Selects the position of the overlayed scope on the video image. Select from Top Left, Top Right, Bottom

Left and Bottom Right.

Gamma Gain: Adjusts the brightness of the displayed scopes.

Mode

Histogram: The Histogram shows the distribution of luminance (brightness)
in the image, from darker pixels on the left of the scope, to brighter pixels
on the right. The height of the curve is a measure of the number of pixels
in the image with a particular luminance value. Unlike the Waveform
or RGB Parade scope, the Histogram does not indicate the left to right

physical position of the luminance values in the image.

Waveform: The Waveform scope shows the distribution of luminance in
the image as a waveform that ranges from zero at the lower horizontal
line, to 100 % intensity at the upper horizontal line. The left to right position
of the values match their position in the image.

RGB Parade: The RGB Parade shows the intensity of Red, Green and Blue
in the image as separate waveforms that ranges from zero at the lower
horizontal line, to 100 % intensity at the upper horizontal line. For each
waveform, the left to right position of the values match their position in
the image.

Vector: The Vectorscope is a circular graph that displays the chrominance
(hue and saturation) of the image colors. The distance from the center
indicates the degree of color saturation, from zero intensity at the center
of the circle, to 100% intensity at the edge of the circle.

The graph is divided into color segments, each indicated by the colored
perimeter of the circle, showing the dispersion of color in the image. A
Waveform scope is also displayed on the left side of the Vectorscope.

43

Receiving NDI® Video

There are many applications that support receiving the NDI® signal that P4K produces. Each application will vary
slightly on how you choose your source.

NewTek Studio Monitor

NDI® Tools is a free suite of applications designed to introduce you to the world of IP video and is available here.

The included Studio Monitor application allows you to monitor many NDI® sources on a standard Windows
computer. Once Studio Monitor is launched on your computer, simply right click anywhere in the interface and
select your camera from the dropdown list.

Once connected to P4K, a conguration gear icon is displayed on the bottom right-hand side of the video display

that provides shortcut access the P4K BirdUI.

NewTek TriCaster Series

NewTek TriCaster series devices allow several NDI® sources to be received simultaneously, the amount of
simultaneous connections varies by what model TriCaster you have. Consult your TriCaster user manual to
determine how many connections are available on your device.

To select P4K as a source on your TriCaster, click on the conguration gear icon below your desired source location.

This will display the Input Setting dialog, from which you can select your P4K source from the dropdown list.

Once connected to P4K, a conguration gear icon displays next to the source drop down window that provides

shortcut access the P4K BirdUI.

44

NDI® Camera Control

The easiest way to control your camera is via the BirdDog PTZ Keyboard!

BirdDog PTZ Keyboard supports NDI®, NDI®|HX, Visca over IP, RS422, and RS232. By harnessing BirdDog’s next
generation NDI® and IP technology, it’s never been easier to discover, connect, and control your PTZ cameras.

IP Connection

IP Port to Network Switch

1. Connect the camera NDI Ethernet port to a port in a Ethernet switch on your network. The switch must provide

PoE+ if you are not using the power adaptor.

2. Connect the PTZ Keyboard’s IP port to a port on the Ethernet switch (or other connected switch on the same

network subnet).

3. Login to the web interface (BirdUI) of the camera and PTZ Keyboard to congure the appropriate settings.

Remote Controller

You can use the supplied remote controller to control your camera. For instructions on use, please refer here.

45

Controlling Your Camera Via Other Protocols

P4K also supports control via VISCA-over-IP, RS-232 and RS-422/485. This section details how to congure control

under these protocols.

When the camera is connected to a computer and joystick keyboard with a VISCA cable (cross type, RS-232), you
can operate the camera with the computer and the joystick keyboard.

When the camera is connected to a joystick keyboard a control cable (cross type, RS-422/485), you can operate
the camera’s pan, tilt, zoom with the joystick keyboard.

In this connection conguration, a HDMI cable, SDI video cable, data cable and network cable is required. To obtain

these third-party components or accessories, consult the dealer where you bought your camera.

Camera Initial setting status Information

The following information of the camera initial setting status will display on the monitor for 5 seconds.

4. Camera PELCO ID for RS-485 control.

5. Camera ID for IR Remote Controller.

6. IR remote control signal receive current setting.

7. Baud Rate current setting.

8. Control COMM Port current setting.

9. Video format current setting.

10. HDMI current setting.

11. Model number.

12. Firmware version.

46

CAMERA STATUS INFO DISPLAY

PELCO ID

IR ID

IR-RECEIVE

BAUD RATE

COMM TYPE

FORMAT

HDMI OUT

MODEL TYPE

SV

001

01

ON

9600

422

1080p29.97

YUV

EYES P200

V0B1100S36[...]

VISCA over IP Control

With VISCA over IP, you can control the camera using the VISCA protocol on a controller equipped with IP
communication capabilities via LAN.

HDMI Video Signal

3G-SDI Video Signal

VISCA Over IP ControlPoE Power

VISCA over IP communication specications:

• Interface: RJ-45 10 / 100 / 1000 Mbps

• Interface protocol: IPv4

• Transport protocol: UDP

• IP address: 192.168.100.100 By default

• Port: 52381

Controlling via VISCA over IP

1. Connect the network port on the camera to the network switch.

2. Set the IP address and other network information appropriately to communicate on your network.

3. Connect the VISCA over IP compatible controller to the network.

4. Congure the controller to access the camera’s IP address and VISCA over the IP port.

5. The IP port within on your control MUST be set to 52381 to communicate with the camera.

6. Select VISCA protocol on your IP control device.

47

Setting the Switches

The camera switches are located on the camera rear. Turn o power to the camera before changing the DIP switch

settings. Power on the camera to have the new DIP switch setting activated.

DIP Switch (left side switch in the orientation below)

1. Bit 1~3: Camera Address setting for VISCA protocol

1

ON

OFF

ON

OFF

ON

OFF

ON

2

OFF

ON

ON

OFF

OFF

ON

ON

3

OFF

OFF

OFF

ON

ON

ON

ON

VISCA Address

1

2

3

4

5

6

7

2. Bit 4: Video Output/Video Color Space

When using HDMI output to display on HDMI device, set the DIP switch B4 to OFF. When using HDMI to DVI
convertor to have DVI video output, set the DIP switch B4 to ON.

4

OFF

ON

Colour Space Setting

YUV Output

RGB Output

3. Bit 5: Reserved

4. Bit 6: RS-232/RS-422 Selection

6

Control Mode

OFF

ON

RS-232

RS-422

48

5. Bit 7~8: RS-232/RS-422 Baud Rate

DC-12V Dip Switch

OFF

ON

HDMI MainHDMI Sub

Panorama

Inactive

6G/3G-SDI 16G/3G-SDI 2 Genlock

RS-422 NDI / PoEVideo

Format

RS-232USB 2.0IR Select

1 2 3

MicroSD

OUT

IN

Audio

(FW Upgrade Only)

1-3:

4:

5:
6:

VISCA Address
YUV Output
RGB Output
Reserved
RS-232
RS-422

7-8:
2400 bps
4800 bps
9600 bps
38400 bps

OFF
ON

OFF
ON

OFF
ON
OFF
ON

OFF
OFF
ON
ON

0

1

2

3

4

5

6

7

8

9

A

B

C

D

E

F

7

OFF

ON

OFF

ON

8

OFF

OFF

ON

ON

Baud Rate Setting

2400 bps

4800 bps

9600 bps (Default)

38400 bps

Rotary Switch (right side switch in the orientation below)

The rotary switch is used for setting the video format. The switch can select the video formats shown below. It
is recommended to leave the rotary switch in default position (4) and thereafter use the BirdUI to make format
changes.

Numbers & Letters

0

1

2

3

4

Video Resolution

1080i 59.94

1080p 29.97

720p 59.94

1080p 59.94

2160p 29.97

5

6

7

8

9

A

B

C

D

E

F

1080i 60

1080p 23.98

1080p 30

1080p 60

1080i 50

1080p 25

720p 50

1080p 50

2160p 25

720p 60

2160p 23.98

49

Using RS-232 (VISCA)

You can use the RS-232 port to connect to optional controllers, such as joystick control keyboard, control PC

station, to operate the camera, perform pan, tilt and zoom operations using the joystick of the control keyboard,
and to use the Preset function using the control buttons.

An application software that supports this unit is needed if you use a PC station.

HDMI Video Signal

SDI Video Signal

Remote Control Signal

(VISCA / RS232)

IR Remote Controller

RS232 Connection

1. For the DIP switch:

• Set the RS432 control method.

• Set the Baud Rate to match the Baud Rate setting on the controller keyboard.

• Set the specic address for the controlled camera.

• If you want to have the camera address to be automatically assigned by VISCA controller, set the DIP
switch 1 address to 0.

2. Reboot the camera by turning it O/On after the DIP switch has been set.

3. The camera supports Daisy Chain connection up to 7 cameras.

4. Use the included RJ45 to RS232 (VISCA) control cable. The controller must be VISCA compatible.

50

5. Use the included RJ45 to RS232 adaptor cable and 8 pin Mini Din adaptor to make RS232 connection for your

control device.

1. DTR

3. TX

4. GND

5. RX

7. IR_OUT

RS232 Serial Port
connection on
controller side

8 pin Mini DIN

Extension cable
RS232 adaptor
included

cable connector

PTZ Keyboard

RS232

Daisy Chain Control

2. DSR

3. TX

4. GND

5. RX

6. Use the included adaptor cable and RJ45 to RS422/232 Phoenix terminal contact adaptor to make RS232

connection for your control device.

51

7. Or you can use CAT5/6 network cable (T-568B standard pinout) to make RS232 connection by following the

pin denition below:

1

8

CAT5/6
Network Cable

1. IR_OUT (Orange/White)

2. DTR (Orange)

3. GND (Green/White)

4. DSR (Blue)

5. TX_OUT (Blue/White)

6. RX_OUT (Green)

7. TX_IN

8. RX_IN

(Brown/White)

(Brown)

8. You can make a RS232 Daisy Chain multiple camera connection with standard RS232 serial port controller as

below:

VCC - CC45232

RJ45 TO RS232
CONTROL CABLE
ADAPTER

(Orange/White)

(Orange)

(Green/White)

(Blue)

(Blue/White)

(Green)

(Brown/White)

(Brown)

with standard RS232 Serial Port

Daisy Chain up to 7 cameras

1
2
3
4
5
6
7
8

1. DSR

2. DTR

3. RXD

4. GND

5. TXD

6. NC

7. NC

8. NC

GND
TXD
RXD

RS232 Connection

PTZ Keyboard Controller

52

Using RS422 (VISCA)

You can use the RS422/485 port to connect to optional controllers, such as a joystick control keyboard, or control

PC station, to operate the camera, perform pan, tilt and zoom operations and to use the Preset function using the
control buttons.

An application software that supports this unit is needed if you use a PC station.

HDMI Video Signal

SDI Video Signal

IR Remote Controller

Remote Control Signal

(RS422 (VISCA)

or RS485 (Pelco P/D))

RS422 (VISCA) connection

1. For the DIP switch:

• Set the RS422 control method.

• Set the Baud Rate to match the Baud Rate setting on the controller keyboard.

• Set the specic address for the controlled camera.

• If you want to have the camera address to be automatically assigned by VISCA controller, set the DIP
switch 1 address to 0.

2. Reboot the camera by turning it O and On after the DIP switch has been set up correctly.

3. Use the included RJ45 to RS422 cable. The controller must be VISCA compatible.

4. The camera supports Daisy Chain connection of up to 7 cameras.

53

Sony Keyboard RS422 Connection

The connection of a SONY keyboard is dierent than other VISCA (non-Sony) keyboards. If using a SONY controller

and Daisy Chaining multiple cameras via RS422 connection:

SONY Keyboard

Connection

Keyboard

1. ---

2. ---

3. ---

4. ---

5. GND

6. RXD IN –

7. RXD IN +

8. TXD IN –

9. TXD IN +

Camera

5. GND

4. T +

3. T –

2. R +

1. R –

RS422 (VISCA) Daisy Chain

Multiple Cameras Connection

(SONY Keyboard)

KEYBOARD

RX +RX –T X +TX – GND

CAM 1

RX +RX – TX +TX – GND

CAM 2

RX +RX –T X +TX – GND

CAM 7

RX +RX –T X +TX – GND

Non-Sony Keyboard RS422 Connection

Make an RS422 connection and RS422 Daisy Chain multiple cameras connection with non-Sony controller as below.

VISCA Keyboard

Connection

RS422 (VISCA) Daisy Chain

Multiple Cameras Connection

(VISCA Keyboard)

Keyboard

1. GND

2. RXD IN –

3. RXD IN +

4. TXD IN –

5. TXD IN +

Camera

5. GND

4. TXD IN +

3. TXD IN –

2. RXD IN +

1. RXD IN –

KEYBOARD

RX +RX –T X +TX – GND

CAM 1

RX +RX –T X +TX – GND

CAM 2

RX +RX –T X +TX – GND

CAM 7

RX +RX –T X +TX – GND

54

a. Use the included RJ45 to RS422 adaptor cable with a Phoenix connecter adaptor to make an RS422

connection for your control device.

RS422 Serial Port
connection on
controller side

VCC-CC45RS
Extension cable RS422
adaptor included

5. R –

4. R +

3. T –

2. T +

1. GND

Multicore

Control

Cable

PTZ Keyboard

b. You can use a CAT5/6 T-568B cable direct connection between the camera and the controller by following

the pin denition below.

1

8

CAT5/6
Network Cable

1. RX – (Orange/White)

2. RX + (Orange)

3. GND

4. --- (Blue)

5. --- (Blue/White)

6. --- (Green)

7. TX – (Brown/White)

8. TX + (Brown)

(Green/White)

55

c. You can make an RS422 Daisy Chain multiple camera connection with an RS422 standard serial port

controller.

5. R –

4. R +

VCC-CC45RS

RJ45 TO RS422/485

CONTROL CABLE ADAPTOR

VCC-CC45RS

RJ45 TO RS422/485

CONTROL CABLE ADAPTOR

3. T –

2. T +

1. GND

5. R –

4. R +

3. T –

2. T +

1. GND

RS422

GND

RX +

RX –

TX +

TX –

RS422 SERIAL PORT

ON CONTROLLER SIDE

5. R –

4. R +

VCC-CC45RS

RJ45 TO RS422/485

CONTROL CABLE ADAPTOR

3. T –

2. T +

1. GND

PELCO P/D Keyboard RS485 Connection

NOTE: Use the RS422 port for RS485 connection. Only use TX+ and TX- for RS485 connection.

1. For the DIP switch:

• Set the RS422 control method.

• Set the Baud Rate to match the Baud Rate setting on the controller keyboard.

2. Set the camera ID on OSD menu by remote controller

3. Reboot the camera by turning it O/On after the DIP switch has been set.

4. Use a PELCO P/D compatible keyboard.

5. Use preset #95 on the keyboard to display/exit camera OSD menu.

6. Use joystick and button “OPEN” or “CLOSE” to navigate OSD menu.

7. To operate the keyboard, please refer to the keyboard user manual.

56

PELCO RS485 Connection

RS485

PELCO P/D Keyboard

Connection

Keyboard

6. RS485 +

7. RS485 –

Camera

1. TXD IN –

2. TXD IN +

RS422 (VISCA) Daisy Chain

Multiple Cameras Connection

(VISCA Keyboard)

KEYBOARD

1. TDX IN –2 . TDX IN +

CAM 1

RX +RX – TX +TX – GND

CAM 2

RX +RX – TX +TX – GND

CAM 255

RX +RX – TX +TX – GND

a. Use the included RJ45 to RS422 cable with a Phoenix connecter adaptor to make an RS485 connection for

your control device.

VCC-CC45RS
Extension cable RS422
adaptor included

5. R –

4. R +

3. T –

2. T +

1. GND

Multicore

Control

Cable

57

RS485 Serial Port
connection on
controller side

PTZ Keyboard

b. Use a CAT5/6 T-568B cable between the camera and the controller to make RS485 connection by following

the pin denition below.

1 8

CAT5/6
Network Cable

RS422
Port

1. RX – (Orange/White)

2. RX + (Orange)

3. GND (Green/White)

4. --- (Blue)

5. --- (Blue/White)

6. --- (Green)

7. TX – (Brown/White)

8. TX + (Brown)

c. Making connections for multiple cameras using

RS485 standard serial port controller.

NOTE: For RS-232 VISCA control, P4K supports
daisy chain connection of multiple cameras.
For control details, refer to the operating instruc­tions of your control keyboard/station software.

• You need to match the communication speed
(Baud Rate) between the camera and the
joystick controller.

VCC-CC45RS

RJ45 TO RS422/485

CONTROL CABLE ADAPTOR

5. R –

4. R +

3. T –

2. T +

1. GND

• You cannot use the RS-232 connections while
you are using the RS422/485 connection.

VCC-CC45RS

RJ45 TO RS422/485

CONTROL CABLE ADAPTOR

VCC-CC45RS

RJ45 TO RS422/485

CONTROL CABLE ADAPTOR

5. R –

4. R +

3. T –

2. T +

1. GND

5. R –

4. R +

3. T –

2. T +

1. GND

RS422

GND

RX +

RX –

TX +

TX –

RS422 SERIAL PORT

ON CONTROLLER SIDE

58

Operating Multiple Cameras using RS-232 and 422/485

• Using RS-232 (VISCA), you can connect to 7 cameras

• Using RS-422 (VISCA), you can connect to 7 cameras.

• Using RS-485 (PELCO), you can connect to 255 cameras.

• Using RS-485 (PELCO), all camera addresses must be set up before the connection. You can set the
camera address by operating OSD menu, or by setting the DIP switch on the bottom of the camera. In
this case, you can use multiple control keyboards.

59

Camera Dimensions

Unit: mm

165.0

246.5

1/4 20UNC 3-M4

110.0

195.8

110.0

154.9

60

Glossary

Domain

A domain contains a group of computers that can be accessed and administered with a common set of rules.
Domain can also refer to the IP address of a website on the Internet.

DNS

DNS (Domain Name System) is a system used by the Internet and private networks to translate domain names into
IP addresses.

mDNS

mDNS (Multicast DNS) refers to the use of IP multicast with DNS to translate domain names into IP addresses and
provide service discovery in a network that does not have access to a DNS server.

Ethernet

Ethernet, standardized as IEEE 802.3, refers to a series of technologies used to connect computers and other
devices to a LAN (Local Area Network) or wide area network (WAN).

Firmware

Firmware is a class of software held in non-volatile memory that provides the low-level control for a device’s
hardware.

Gigabit Ethernet (GigE)

An Ethernet capable of transmitting frames at a rate of a gigabit per second. A Gigabit capable Ethernet network

is recommended for NDI® production workows.

IP

IP (Internet Protocol) is the communications protocol for the Internet, many wide area networks (WANs), and

most local area networks (LANs) that denes the rules, formats, and address scheme for exchanging datagrams or

packets between a source computer or device and a destination computer or device.

LAN

LAN (Local Area Network) is a network that connects computers and devices in a room, building, or group of
buildings. A system of LANs can also be connected to form a WAN (Wide Area Network).

Mbps

Mbps (Megabits per second) is a unit of measurement for data transfer speed, with one megabit equal to one
million bits. Network transmissions are commonly measured in Mbps.

NDI®

NDI® (Network Device Interface) is a standard allowing for transmission of video using standard LAN networking.

NDI® comes in two avours, NDI® and NDI®|HX. NDI® is a variable bit rate, I-Frame codec that reaches rates

of around 140Mbps at 1080p60 and is visually lossless. NDI®|HX is a compressed, long-GOP, H.264 variant that
achieves rates around 12Mbps at 1080p60.

PELCO

PELCO is a camera control protocol used with PTZ cameras. See also VISCA.

PoE

Power over Ethernet

Port

A port is a communications channel for data transmission to and from a computer on a network. Each port is

identied by a 16-bit number between 0 and 65535, with each process, application, or service using a specic port

(or multiple ports) for data transmission. Port can also refer to a hardware socket used to physically connect a
device or device cable to your computer or network.

61

PTZ

Pan, Tilt and Zoom.

RJ45

A form of standard interface commonly used to connect computers onto Ethernet-based local area networks
(LAN).

RS422, RS485, RS232

Physical layer, serial communication protocols.

Subnet

Subnet or subnetwork is a segmented piece of a larger network.

Tally

A system that indicates the on-air status of video signals usually by the use of a red illuminated lamp.

TCP

TCP (Transmission Control Protocol) is a network communications protocol.

UDP

UDP (User Datagram Protocol) is an alternative protocol to TCP that is used when reliable delivery of data packets
in not required.

VISCA

VISCA is a camera control protocol used with PTZ cameras. See also PELCO.

WAN

WAN (Wide Area Network) is a network that spans a relatively broad geographical area, such as a state, region, or
nation.

White Balance

White balance (WB) is the process of ensuring that white objects and by extension, all colour, in your video are
rendered accurately. Without correct white balance, objects in your video display unrealistic color casts.

62

221222

WELCOME TO THE FUTURE.

birddog.tv

[e-mail]
