BirdDog OG4 User Guide

Page 1
OG4
WORLD'S FIRST NDI® OPENGEAR CARD.
USER GUIDE
Page 2
Table of Contents
Welcome to BirdDog ..................................................................................................2
Key Features .................................................................................................................. 4
Getting To Know Your BirdDog OG4 Converter Card ..................................5
Card Installation ............................................................................................................6
Web Conguration Panel ........................................................................................................7
Dashboard ..................................................................................................................................... 8
Network ..........................................................................................................................................8
System ............................................................................................................................................9
AV .................................................................................................................................................... 11
Ross DashBoard ........................................................................................................... 14
Receiving NDI® Streams .........................................................................................16
Glossary .......................................................................................................................... 17
Page 3
Copyright
Copyright 2023 BirdDog Australia all rights reserved. No part of this manual may be copied, reproduced, translated, or distributed in any form or by any means without prior consent in writing from our company.
Trademark Acknowledgement
and other BirdDog trademarks and logos are the property of BirdDog Australia. Other trademarks,
company names and product names contained in this manual are the property of their respective owners.
Microsoft, Windows, ActiveX, and Internet Explorer are registered trademarks of Microsoft Corporation in the U.S. and/or other countries.
HDMI, the HDMI logo and High-Denition Multimedia Interface are the trademarks or registered trademarks of HDMI Licensing, LLC in the United States and other countries.
Other trademarks, company names and product names contained in this manual are the property of their respective owners.
NDI® is a registered trademark of NewTek, Inc.
Important Information
Legal Notice
To ensure account security, please change the password after your rst login. You are recommended to set a
strong password (no less than eight characters). The contents of this document are subject to change without prior notice. Updates will be added to the new version of this manual. We will readily improve or update the products
or procedures described in the manual. Best eort has been made to verify the integrity and correctness of the
contents in this document, but no statement, information, or recommendation in this manual shall constitute formal guarantee of any kind, expressed or implied. We shall not be held responsible for any technical or typographical
errors in this manual. The product appearance shown in this manual is for reference only and may be dierent from
the actual appearance of your device. Due to uncertainties such as physical environment, discrepancy may exist between the actual values and reference values provided in this manual. Use of this document and the subsequent results shall be entirely on the user’s own responsibility.
Regulatory Compliance
FCC Part 15
This equipment has been tested and found to comply with the limits for digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. This product complies with Part 15 of the FCC Rules. Operation is subject to the following two coNDI® tions:
This device may not cause harmful interference.
This device must accept any interference received, including interference that may cause undesired operation.
LVD/EMC Directive
This product complies with the European Low Voltage Directive 2006/95/EC and EMC Directive 2004/108/EC.
1
Page 4
Welcome to BirdDog
Thank you for purchasing your OG4 converter card. If you have any questions regarding the card, please contact your authorized dealer.
Using This Manual
Your new OG4 converter card is a sophisticated and powerful device, therefore before operating the unit, please
read this manual thoroughly and retain for future reference.
Tip
When viewing the diagrams in this manual, use the zoom controls in your browser or PDF reader to reveal more detail.
We’re Invested In Your Success
We pride ourselves on being approachable and easily contactable. We’d love to hear from you.
Dan Miall
Co-Founder and CEO
dan@bird-dog.tv
Eamon Drew
Co-Founder and CMO
eamon@bird-dog.tv
2
Page 5
Welcome to the Future

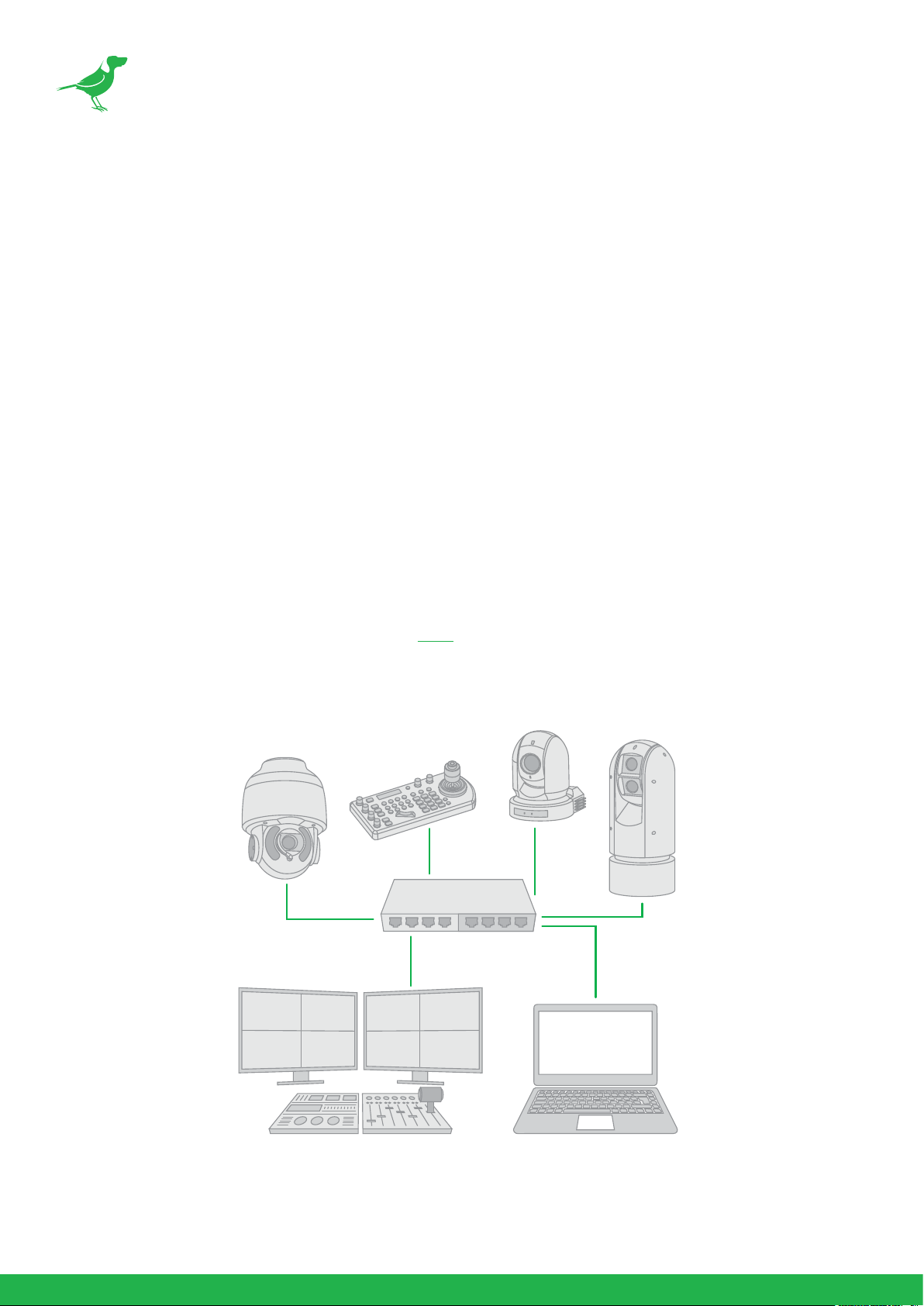

What is NDI®?
Your new OG4 converter card has been designed from the ground up to support the cutting edge NDI® video
transmission standard.
NDI® (Network Device Interface) is a free, high-quality, low-latency, frame-accurate standard that enables
compatible devices to communicate, deliver, and receive high denition video over your existing Gigabit Ethernet
network.
Operating bi-directionally, NDI® devices can be auto-detected, powered and controlled over the same Ethernet cable used to send the video and audio. If you have a Gigabit network, you have a now have the potential for a streamlined, interconnected, video production environment.
With the introduction of NDI® 5, you can now securely share network sources between remote sites anywhere in the world - on a single network port. Even a smartphone can be a NDI® source.
Transitioning to NDI® can also occur gradually. Existing SDI signals can easily be converted to an NDI® stream and piped where required on your network and converted back only at the neccessary SDI endpoints.
BirdDog has been on the NDI® journey since the very beginning and your OG4 converter card is just one of our products designed to take advantage of the features and potential of NDI®.
For more information on NDI®, please refer to this page on our website.
3
Page 6

Key Features

BirdDog OG4 openGear card, is the World’s First NDI® card and features four independently congurable 12G SDI
inputs and outputs.
Supports up to four channels of UHD 4Kp60/1080p60 encode. Two channels of UHD 4Kp60 decode, four channels of 1080p60 decode.
Network streaming transport support:
Full NDI® I-frame compression
Full bandwidth I-frame compression.
4 x 12G-SDI selectable inputs/outputs.
Next Level NDI® Tools.
System management and control: On-device WebUI, Published RESTful API, Q-Sys plugin, Crestron, Zoom and openGear Dashboard control system.
Encode and Decode up to 4Kp60
Encode or Decode Full NDI® for all resolutions up to 4Kp60, including all HD resolutions and embedded 2 channel 48kHz audio.
4x 12G SDI bi-directional ports
Each port supports independent resolutions/frame rates.
Selectable Network Connectivity
Easily toggle between SFP+ or the openGear 1GbE Network connection. The Industry standard SFP+ connection
allows for short, medium, and long range connections over ber and supports 10GbE Ethernet protocols.
Professional Cooling and Power.
openGear frames include integrated cooling fans to provide maximum cooling for all cards and can be congured
with dual, redundant power supplies for maximum reliability and uptime.
4
Page 7

Getting To Know Your BirdDog OG4 Converter Card

Thanks for purchasing the BirdDog OG4 converter card. This card is designed for the openGear oGx modular frame. This AV industry rack standard makes it easy to securely install and integrate many types of processing cards from a large variety of openGear partners.
Please take some time to read this guide and familiarize yourself with the features of your new converter.
The OG4 converter card consists of the main processing card, which is mounted inside the openGear frame, and the rear module plate which houses the connectors for the converter.
The card is automatically powered by the frame and you can easily access the settings of the converter using either the BirdDog WebUI, or the Ross Video Dashboard, via the frame Ethernet port. The front end of the card also
features a Reset button which clears all user conguration.
Video I/O Connectivity
The rear module plate features: Four 12G SDI connectors.
Network Connectivity
Press the Reset button at the front of the card for 30 seconds to toggle between:
The openGear 1GbE Network Port (integrated into chassis backplane).
or
The 10Gbps SFP+ Network Port (Optical or Copper 10GbE). (The Option SFP+ Network Port is set aside for future use).
System Requirements
openGear oGx or BBG-1300-FR 1RU modular frame.
For 1Gb Ethernet operation, the frame requires either a OG3-N or OG3-NS controller card installed. The 8322-S controller card does not provide external 1 Gb Ethernet connectivity.
Both the Ross Dashboard and BirdDog WebUI interfaces must run on a computer that has a physical wired Ethernet connection. Wireless connections do not allow device discovery.
5
Page 8

Card Installation

ESD (Electrostatic Discharge) Precautions
Always wear a grounded anti-static wrist strap when handling cards.
Always hold card by the corners and avoid direct contact with any of the
Never let the card come in contact with clothing. Clothing can generate high
The warranty may be void if equipment is damaged by ESD.
components.
levels of electrostatic energy.
NOTE openGear cards are
down the frame.
hot swappable,
which means that cards can be installed or removed without powering
Installation of the module connector plate
1. From the rear of the openGear frame, locate the card slot into which you wish to install your OG4 converter
card.
2. Using a No. 1 Phillips screwdriver, unscrew the top screw from the desired blank module plate and remove the
plate. Retain the plate for possible future use.
3. Locate the bottom of the module into the seating slot at the base of the frame backplane.
4. Using the Phillips screwdriver, secure the module in position with the screw. Do not tighten fully at this point.
Installation of the main card
1. From the front of the frame, slide the side door catches towards the center of the door, releasing the door from
the frame.
2. Using both hands, pull the door towards you. The door extender arms will prevent the door from falling.
3. Locate the card slot in which you installed the module connector plate.
4. Insert the card into the guides and push the card into the frame until the card is seated into the module
connector plate at the rear of the frame. The white plastic card ejection tab at the front of the card will stand fully vertical when the card is fully seated.
5. Close the frame door, ensuring that the door catches engage into the frame.
6. Use the Phillips screwdriver to fully secure the rear module plate in position but do not overtighten.
NOTE The SFP+ module is part of the card and NOT attached to the module connector plate. Therefore, when
plugging into the module, ensure that the card is not pushed out of it's slot.
6
Page 9

Operating your OG4 Converter Card

Operation of the OG4 Converter Card is simple and very similar to the BirdDog QUAD Converter.
Setup of your card is accomplished via the BirdDog WebUI. Once set up, you can choose to adjust the settings of your card via the BirdDog WebUI or the Ross Dashboard.
However, rmware updates, as well as conguration of network settings such as DHCP can only be done via the
BirdDog WebUI.
Your card is supplied with a sample Ross Dashboard interface. You can custom design your own Ross Dashboard
to display whatever features you wish. Both interfaces must run on a computer that has a physical wired Ethernet connection. Wireless connections do not allow device discovery.
Web Conguration Panel
The BirdDog web conguration panel (WebUI) allows you to interact with your converter and ofers complete
control of A/V settings and video frame rates, including restarting the video processing engine, changing
networking parameters and applying rmware updates.
Access via web browser (URL)
Your converter is congured to automatically receive a network IP address from the computer network via DHCP (Dynamic Host Conguration Protocol). Most corporate, education and home networks have a DHCP server on the
network to allow this to occur. Usually your Internet Router provides this.
If your device receives an IP address automatically from this server (DHCP) the IP address can be discovered in several ways, including the free BirdDog Central Lite software.
Your computer will need to have ‘Bonjour’ services loaded in order to access the unit via it’s user dened name.
Apple devices come pre-installed with Bonjour, while Windows devices need a plugin available from here.
Access without a network DHCP server
Some standalone or private networks may not have a DHCP server. After 30 seconds of waiting for an automatically assigned IP address the device will fall back to a default address which is: 192.168.100.100.
In order to access the web conguration panel on a network which is congured to a dierent subnet, change your
computers IP address to match the BirdDog unit’s IP address range. Once you gain access to the BirdDog web
conguration panel (WebUI), choose your IP address to match the rest of the devices on your network.
For instructions on setting your computers IP address please consult your computer operating system manual or IT support resources.
Password Management
Once you direct your web browser to the BirdUI you will need to log in to change any settings.
Default password
The web conguration panel is secured by a user-selectable
password.
The default password is: birddog (one word, lower case).
7
Page 10

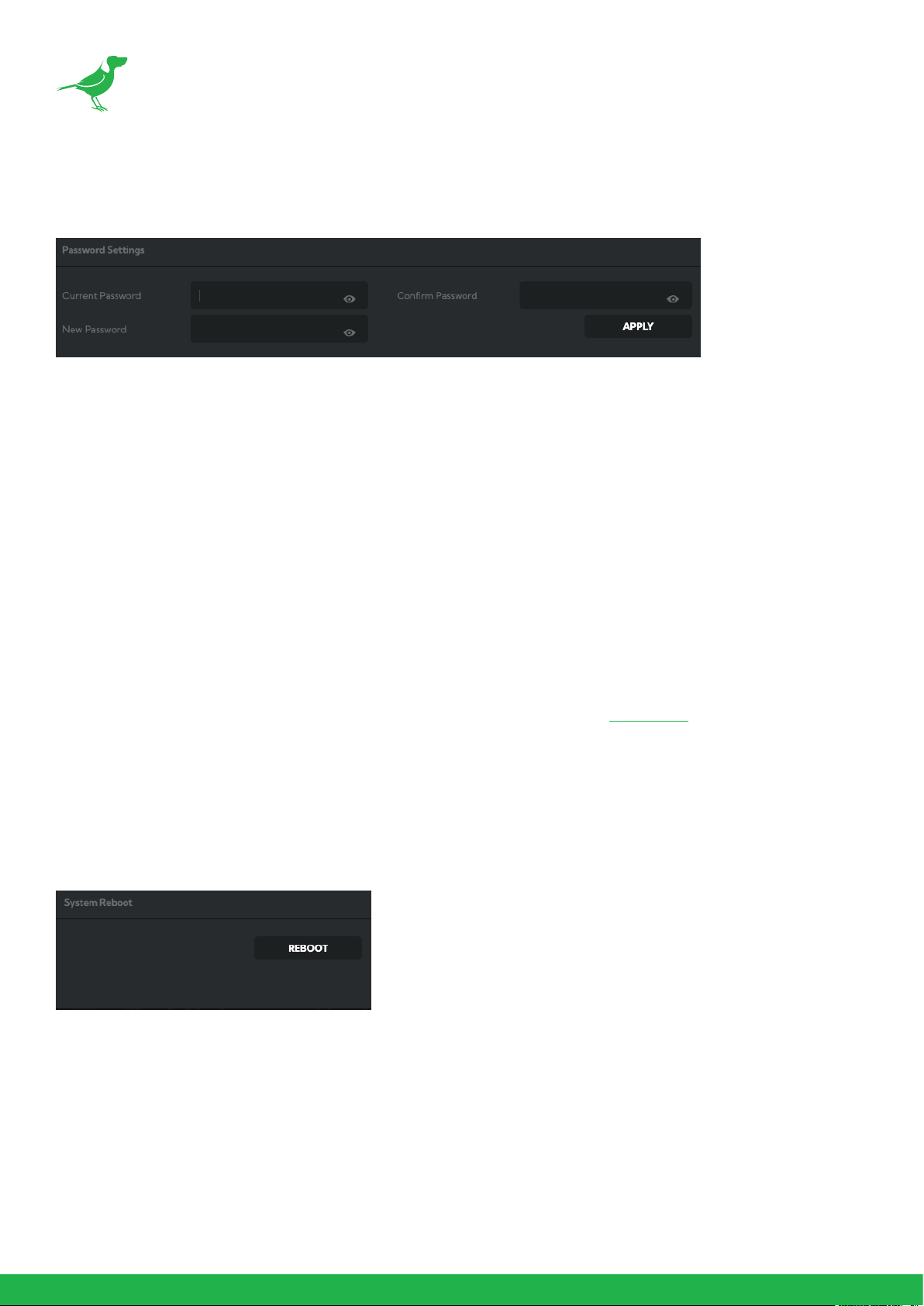

To change the password simply login using the default password, navigate to the network tab in the web interface, and select change password.
It is recommended to change this password in a network environment where your device is shared with other users
(e.g., not private). By entering this password, the user is granted full access to the conguration settings and could
interrupt a live program.
BirdUI Layout
The BirdUI is organized into the following panels:
1. Dashboard
Overall view of important information such as the network connection type and video stream format and resolution.
2. Network
General network settings such as DHCP IP Address details, DHCP timeout, DHCP Fall­back IP Address, Network Name, designation of group access and NDI® specic net­work settings
3. System
System Admin functions such as updates and password change.
4. AV Setup
Operational mode (Encode or Decode) and associated settings.
5. Login/Logout
BirdUI login/logout.
8
Page 11
Dashboard
The Dashboard summarizes the important settings for the OG4 converter card in one convenient location. You can
also reboot the device or restart the video processing engine. The card also has a Reset button located at the front
end of the card which can be used to clear all user conguration. Open the frame front door, press and hold the
Reset button for approximately 5 sec.
1. CPU Usage
Current computer system CPU utilization.
2. Device mode and Source Status
Indicates whether the device is operating in Encode or Decode mode and shows the status of the connected sources.
3. Network Bandwidth
Network bandwidth consumption of the current NDI® stream(s).
4. Status (per channel)
a. NDI® video stream name
b. Selected video format.
c. NDI® audio status.
5. Stream Info
a. Video resolution, frame rate and sample rate.
b. Number of audio channels of the stream. The audio output sample rate and average NDI® bitrate of the
stream.
c. Network transmit method.
6. System Details
a. System Name, Status, IP Address, MAC Address, Network Conguration Method, Firmware Version and
Network Speed.
9
Page 12

Network

Network Details
NIC Medium Select
Select the desired network connection. Note that SFP+ is the default selection.
Conguration Method
You can congure the device to operate on the network with a dynamic (DHCP) IP Address or a xed Address. For
smaller networks DHCP networking is generally suitable, however larger networks with managed operations will often determine each device needs to have a dedicated and static IP Address.
DHCP IP address
DHCP is set as the network conguration by default.
Static IP address
To enable a static IP address, change conguration method to static and ll in the details required in Address, Mask
and Gateway. Particular attention should be paid to the Address and Mask elds as incorrect information entered will result in the device not being visible on the network.
DHCP Timeout, Fallback IP Address, Fallback Subnet Mask
You can set the timeout period during which the converter will look for a DHCP IP Address. After this period, the
camera will default to the designated fallback IP Address.
This can be useful if you use your camera in other network environments. For example, if a DHCP server is available
in your normal oce or studio application, the converter will use the DHCP supplied IP Address. If you then use
the camera in another application without a DHCP server, your device will always default to the known fallback IP Address. Note: Do not set the fallback IP Address the same as the device IP Address. It is recommended that you keep the default.
IP Address Recovery
In the event that the device is not visible on the network, the network has changed, or the static IP Address details have been lost, reset the BirdDog back to its default settings by following the factory reset procedure.
BirdDog Name
You can name each converter with a memorable name that makes sense for each production. This name will
appear on any NDI® receiver when it looks for video over the network. The name must not include any special or
uppercase characters but can be any combination of ‘a-z, 0-9, and –‘.
10
Page 13
NDI Network Settings
The OG4 operates with the latest NDI® Libraries. There are several options to congure its behaviour in an NDI® network. Each conguration has its benets, however it is recommended to utilise the default TCP transmit method
unless you have reason to change.
Transmit / Receive Preferred Method
TCP
TCP is the default transmission method for NDI®. It operates well in local networks with predictable latency and limited jitter. BirdDog recommends that TCP be used for typical applications, and using alternative transports only
for specic reasons.
UDP
UDP is recommended for networks where there is extended latency. The nature of UDP allows dropped packets
and doesn't establish handshaking dialogues to conrm each received packet – which can improve performance.
UDP can have some consequences if there are other issues on the network, such as jitter or packet loss, as lost packets will not be resent.
R-UDP (Reliable UDP)
This protocol bridges the performance of TCP and UDP. Compared to TCP, R-UDP reduces overall network load
(allowing more NDI® streams) by not requiring every packet to be ‘acknowledged’ by every receiver. Built-in error
correction adds smoothness and reliability.
NDI Discovery
By default, NDI® utilizes mDNS (multicast Domain Name System) to create a zero conguration environment for network discovery. The primary benets of using mDNS is that it requires little or no administration to set up. Unless the network is specically congured to not allow mDNS, NDI® sources will be discovered.
The NDI® Discovery Service is designed to allow you to replace the automatic discovery with a server that operates
as an ecient centralized registry of NDI® sources resulting in much less bandwidth use. NDI® discovery server also helps with location of devices that reside on dierent subnets. The NDI® Discovery Server is available as part
of the free NDI Tools in NDI version 5.5 (C:\Program Files\NDI\NDI 5 Tools\Discovery\NDI Discovery Service.exe).
1. If you are using a NDI® Discovery Server, click the ON button.
2. Enter the IP Address of your NDI® Discovery Server.
3. Click the APPLY button to save your changes.
11
Page 14
Access Manager Conguration
Remote IP Address List
By default, NDI® devices are visible to each other only when they’re on the same VLAN. If you want visibility or control of a device on a
dierent VLAN, you need to add it’s address manually as a Remote IP.
1. Click the CHOOSE FILE button to load your Remote IP Address
List in UTF-8 encoded string format.
2. Click the UPDATE button. Do not upload a blank list.
NDI Receive Groups
Set the NDI Receive Group. NDI® Groups allow you to restrict communication to only devices that belong to the same NDI® Group. NDI® Groups can be very useful in larger environments to control visibility and access amongst various groups.
1. Click the CHOOSE FILE button to load your NDI Receive Group
List in UTF-8 encoded string format.
2. Click the UPDATE button. Do not upload a blank list.
Encode Groups
Enable and set the Encode NDI Group for each channel. NDI® groups allow you to restrict communication to only devices that belong to the same NDI® group. NDI® Groups can be very useful in larger environments to control visibility and access amongst various groups.
12
Page 15
System
Password Settings
The WebUI is secured by a user password. The default password is birddog (one word, lower case). It is recommended to change this password to retain administration rights to prevent unauthorized changes since the WebUI grants
full access to the conguration settings.
1. Enter the current password.
2. Enter the new password. Conrm the new password and click the Apply button.
System Update
The converter is able to be updated via the BirdDog WebUI. Please check our Downloads page regularly to ensure
you have the latest rmware available for your device. Having the latest rmware ensures you have all the latest
features and performance updates to get the most out of your OG4 converter card.
After downloading the latest rmware release, navigate to the System Update tab on the BirdUI and click the CHOOSE FILE… button, select the rmware update le and click the UPDATE button.
System Reboot
Click this button to reboot the unit after changing key network settings or the BirdDog name.
13
Page 16
A/V
Device Settings
Operation Mode
Choose whether the converter is operating in Encode or Decode mode. You may need to click on the Operation
Mode label to display this option.
Device Restart
Click the RESTART button to ensure the video engine initialises with any new settings.
Encode Settings
Four tabs display the settings for each channel.
Bitrate Management
BirdDog devices allow you to set your target NDI®output bitrate. This allows you to select a compression ratio
that is more ecient (uses lower bandwidth) on your networking infrastructure or higher image quality for critical
footage. By setting Bitrate Management to NDI MANAGED, the BirdDog device will manage the target bitrate in accordance with the NDI® standard. By selecting MANUAL you are able to manually select a target bitrate.
NDI Video Bandwidth
If you have selected a manual bitrate management, you may set your target NDI® output bitrate here. This allows you to select a higher bitrate stream for a higher quality video if your network capacity allows. Select from 60 - 360 Mbps. Use the manual setting with caution, as higher bitrates may cause issues such as frame tearing with video
sources of high temporal complexity.
Chroma Subsampling
Set the desired level of chroma subsampling. To maintain performance when encoding 4K resolutions on multiple channels, it is recommended to use the Chroma Subsampling option of 4:2:0.
14
Page 17
NDI Stream Name
When your BirdDog converter generates an NDI® stream, it can be identied via it’s name on any NDI®-capable receiver. You are able to nominate the NDI® stream name here to give you a more descriptive name of the source
you are connecting to. This can be particularly useful in multi-channel devices or on networks where there are a large amount of NDI® streams.
Video Format
This converter is capable of accepting many dierent video formats to encode to NDI®. For the most part it is
recommended to leave Video Format set to AUTO, you can manually override this setting and choose whatever resolution your source device is set to. This can be useful if there is an issue in synchronising video input resolutions.
NDI Group Enable
This allows you to limit the visibility of the device to other devices that belong to the same NDI® Group. By default this setting is DISABLED. When enabled the receiver device needs to also be set to the same identical group name. Commonly this is done using the NDI Access Manager application provided by NewTek free of charge. NDI® Groups can be very useful in larger environments to control visibility and access amongst various groups.
Encoder Screensaver
Assign a captured frame, black frame, or the BirdDog logo as a screensaver.
Capture Screensaver Frame
Click the CAPTURE button to capture the current frame for use as a screensaver.
Failover Source
If the generated NDI® stream is interrupted for any reason the receiver can automatically switch to a nominated
alternative NDI® stream. This is particularly useful for live ‘on air’ productions where there can be no risk of still
frames or black being broadcast should any source no longer be available. Pressing the REFRESH button will add new sources to the list, whereas pressing the RESET button will populate the list with only active NDI® sources.
Apply Source
Click the APPLY button to apply changes of source.
Restart button
Click the Restart button to ensure the stream starts with the new settings.
v
15
Page 18
Decode Settings
Four tabs display the settings for each channel.
NDI Audio
Choose to enable or mute the NDI® audio.
Decode Screensaver
Assign a captured frame, black frame, or the BirdDog logo as a screensaver.
Capture Screen Frame
Click the CAPTURE button to capture the current frame for use as a screensaver. The video frame must be progressive. Interlaced frames cannot be captured.
Interlaced Field Order
Select the desired eld order to match your playback hardware.
NDI Decode Source
To select an NDI® decode source, click the dropdown and select a source. The source will be displayed in the NDI Decode Source eld. Click the link icon to navigate to a webpage if applicable.
The RESET button will delete the currrent list and display only current NDI® sources. The REFRESH button will add newly discovered sources to the list but not remove older, currently non-active sources.
Failover Source
If the generated NDI® stream is interrupted for any reason the receiver can automatically switch to a nominated
alternative NDI® stream. This is particularly useful for live ‘on air’ productions where there can be no risk of still
frames or black being broadcast should any source no longer be available. Pressing the REFRESH button will add new sources to the list, whereas pressing the RESET button will populate the list with only active NDI® sources.
Apply Source Change
Click the APPLY button to apply changes of source.
Restart button
Click the Restart button to ensure the stream starts with the new settings.
16
Page 19
Ross DashBoard
Displayed below are images of the supplied Ross DashBoard for the OG4 Converter Card. Note that network set
up and rmware updates need to be done via the BirdDog WebUI. The available settings in the Ross DashBoard are
similar to those available in the BirdDog WebUI.
To open the Ross DashBoard.
1. Download the BirdDogPanel.grid le from here.
2. Double click on the downloaded le.
Conguration
1. Select the Cong tab.
2. Add the IP Address of the installed BirdDog OG4 card.
Device Settings
1. Click the RELOAD button to view the current settings on the card.
2. Click the APPLY to action any changes you have made.
17
Page 20
Encode
1. Click the RELOAD button to view the current settings on the card.
2. Click the APPLY to action any changes you have made.
Decode
1. Click the RELOAD button to view the current settings on the card.
2. Click the APPLY to action any changes you have made.
18
Page 21

Receiving NDI® Streams

There are many applications that support receiving the NDI® signal that the unit produces. Each application will vary slightly on how you choose your source.
NewTek Studio Monitor
NDI® Tools is a free suite of applications designed to introduce you to the world of IP video and is available here.
The included Studio Monitor application allows you to monitor many NDI® sources on a standard Windows computer. Once Studio Monitor is launched on your computer, simply right click anywhere in the interface and select OG4 from the dropdown list.
Once connected to your converter, a Conguration gear icon is displayed on the bottom right-hand side of the
video display that provides shortcut access to the OG4 WebUI.
NewTek TriCaster Series
NewTek TriCaster series devices allow several NDI® sources to be received simultaneously - the amount of simultaneous connections varies by what model TriCaster you have. Consult your TriCaster user manual to determine how many connections are available on your device.
To select OG4 as a source on your TriCaster, click on the Conguration gear icon below your desired source location.
This will display the Input Setting dialog, from which you can select your converter source from the dropdown list.
Once connected to your converter, a Conguration gear icon displays next to the Source dropdown window that
provides shortcut access the OG4 converter card WebUI.
19
Page 22

Glossary

Domain
A domain contains a group of computers that can be accessed and administered with a common set of rules. Domain can also refer to the IP address of a website on the Internet.
DNS
DNS (Domain Name System) is a system used by the Internet and private networks to translate domain names into IP addresses.
mDNS
mDNS (Multicast DNS) refers to the use of IP multicast with DNS to translate domain names into IP addresses and provide service discovery in a network that does not have access to a DNS server.
Ethernet
Ethernet, standardized as IEEE 802.3, refers to a series of technologies used to connect computers and other devices to a LAN (Local Area Network) or wide area network (WAN).
Firmware
Firmware is a class of software held in non-volatile memory that provides the low-level control for a device’s hardware.
Gigabit Ethernet (GigE)
An Ethernet capable of transmitting frames at a rate of a gigabit per second. A Gigabit capable Ethernet network
is recommended for NDI® production workows.
IP
IP (Internet Protocol) is the communications protocol for the Internet, many wide area networks (WANs), and
most local area networks (LANs) that denes the rules, formats, and address scheme for exchanging datagrams or
packets between a source computer or device and a destination computer or device.
LAN
LAN (Local Area Network) is a network that connects computers and devices in a room, building, or group of buildings. A system of LANs can also be connected to form a WAN (Wide Area Network).
Mbps
Mbps (Megabits per second) is a unit of measurement for data transfer speed, with one megabit equal to one million bits. Network transmissions are commonly measured in Mbps.
NDI®
NDI® (Network Device Interface) is a standard allowing for transmission of video using standard LAN networking.
NDI® comes in two avours, NDI® and NDI® |HX. NDI® is a variable bit rate, I-Frame codec that reaches rates of around 140Mbps at 1080p60 and is visually lossless. NDI®|HX is a compressed, long-GOP, H.264 variant that
achieves rates around 12Mbps at 1080p60.
Packet (Frame)
A packet s a unit of data transmitted over a packet-switched network, such as a LAN, WAN, or the Internet.
PoE
Power over Ethernet
Port
A port is a communications channel for data transmission to and from a computer on a network. Each port is
identied by a 16-bit number between 0 and 65535, with each process, application, or service using a specic port
(or multiple ports) for data transmission. Port can also refer to a hardware socket used to physically connect a device or device cable to your computer or network.
20
Page 23
PTZ
Pan, tilt and zoom.
RJ45
A form of standard interface commonly used to connect computers onto Ethernet-based local area networks (LAN).
RS422, RS485, RS232
Physical layer, serial communication protocols.
Subnet
Subnet or subnetwork is a segmented piece of a larger network.
Tally
A system that indicates the on-air status of video signals usually by the use of a red illuminated lamp.
TCP
TCP (Transmission Control Protocol) is a network communications protocol.
UDP
UDP (User Datagram Protocol) is an alternative protocol to TCP that is used when reliable delivery of data packets in not required.
WAN
WAN (Wide Area Network) is a network that spans a relatively broad geographical area, such as a state, region, or nation.
21
231102
Page 24
WELCOME TO THE FUTURE.
Page 25
birddog.tv
hello@birddog.tv
Loading...
