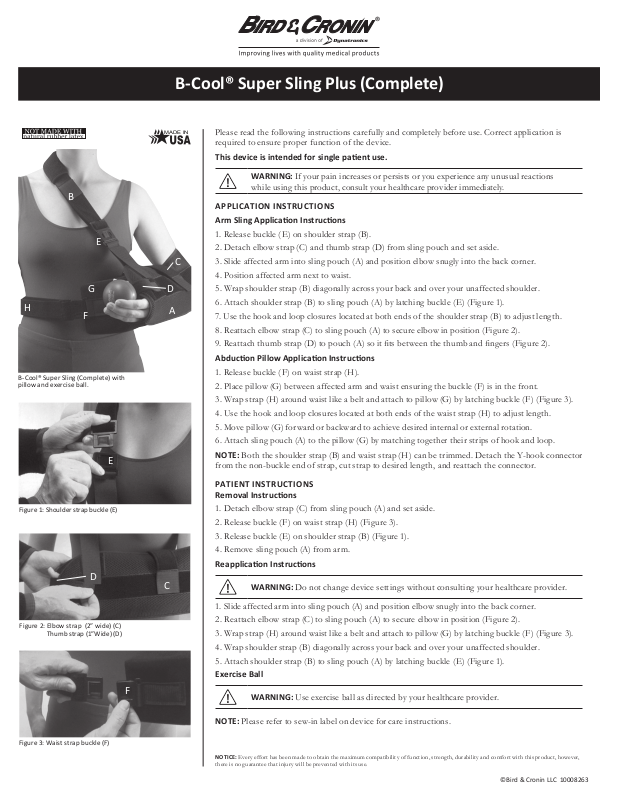

B-Cool® Super Sling Plus (Complete)
B
E
G
H
B-Cool® Super Sling (Co mplete) with
pillow and exercise ball.
F
E
MADE IN
C
D
A
Please read the following instructions carefully and completely before use. Correct application is
required to ensure proper function of the device.
This device is intended for single paent use.
WARNING: If your pain increases or persists or you experience any unusual reactions
while using this product, consult your healthcare provider immediately.
APPLICATION INSTRUCTIONS
Arm Sling Applicaon Instrucons
1. Release buck le (E) on shoulder strap ( B).
2. Detach elbow strap (C) and thumb strap (D) from sling pouch and set aside.
3. Slide affected arm into sling pouch (A) and position elbow snugly into the back corner.
4. Position affected arm next to waist.
5. Wrap shoulder strap (B) diagonally across your back and over your unaffected shoulder.
6. Attach shoulder strap (B) to sling pouch (A) by latching buckle (E) (Figure 1).
7. Use the hook and loop closures located at both ends of the shoulder strap (B) to adjust length.
8. Reattach elbow strap (C) to sling pouch (A) to secure elbow in position (Figure 2).
9. Reattach thumb strap (D) to pouch (A) so it ts between the thumb and ngers (Figure 2).
Abducon Pillow Applicaon Instrucons
1. Release buckle (F ) on waist strap (H).
2. Place pillow (G) between affected arm and waist ensuring the buckle (F) is in the front.
3. Wrap strap (H) around waist like a belt and attach to pillow (G) by latching buckle (F ) (Figure 3).
4. Use the hook and loop closures located at both ends of the waist strap (H) to adjust length.
5. Move pillow (G) forward or backward to achieve desired internal or external rotation.
6. Attach sling pouch (A) to the pillow (G) by matching together their strips of hook and loop.
NOTE: Both the shoulder strap (B) and waist strap (H) can be trimmed. Detach the Y-hook connector
from the non-buckle end of strap, cut strap to desired length, and reattach the connector.
Figure 1: S houlder strap bu ckle (E)
D
Figure 2: Elbow strap (2” wide) (C)
Thumb strap (1”Wide) (D)
Figure 3: Waist strap buckle (F)
ird & Cronin LLC
B
1200 Trapp Road · Eagan, MN USA 55121
800-328-1095 · www.birdcronin.com
PATIENT INSTRUCTIONS
Removal Instrucons
1. Detach elbow strap (C) from sling pouch (A) and set aside.
2. Release buckle (F) on waist strap (H) (Figure 3).
3. Release buckle (E) on shoulder strap (B) (Figure 1).
4. Remove sling pouch (A) from arm.
Reapplicaon Instrucons
C
WARNING: Do not change device sett ings without consulting your healthcare provider.
1. Slide affected arm into sling pouch (A) and position elbow snugly into the back corner.
2. Reattach elbow strap (C) to sling pouch (A) to secure elbow in position (Figure 2).
3. Wrap strap (H) around waist like a belt and attach to pillow (G) by latching buckle (F ) (Figure 3).
4. Wrap shoulder strap (B) diagonally across your back and over your unaffected shoulder.
5. Attach shoulder strap (B) to sling pouch (A) by latching buckle (E) (Figure 1).
Exercise Ball
F
WARNING: Use exercise ball as directed by your healthcare provider.
NOTE: Please refer to sew-in label on device for care instructions.
Please visit our website at w ww.birdcronin.com for additional product information or contact a
customer care representative at 800-328-1095.
NOTICE: Eve ry effort has b een made to obta in th e max imum co mpati bil ity of fu nction, st reng th, du rabilit y and com fort wi th th is product, however,
there i s no gua rantee that i njury will be pre vented w ith its use.
©Bird & Cronin LLC 10008263
