Page 1
TM
stainless steel
B I R D SP I K E
spike system
Features

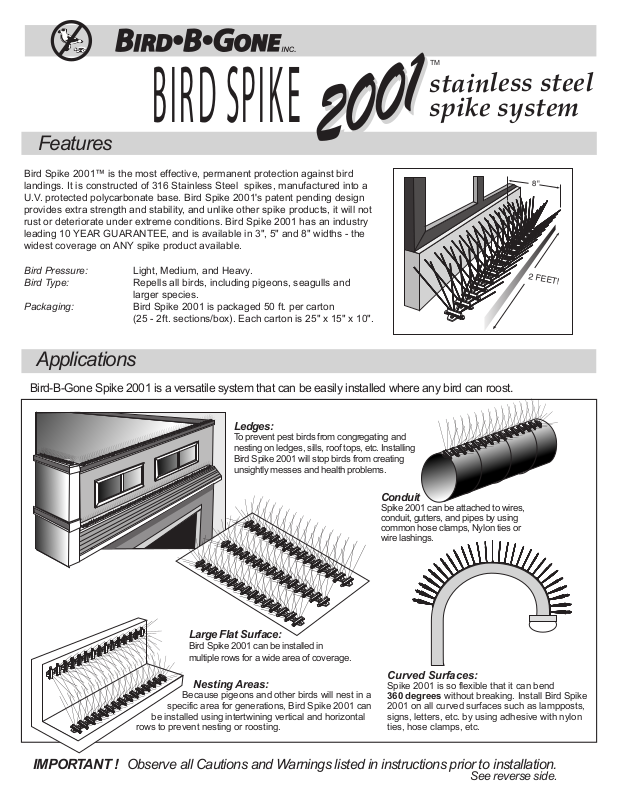

Bird Spike 2001™ is the most effective, permanent protection against bird
landings. It is constructed of 316 Stainless Steel spikes, manufactured into a
U.V. protected polycarbonate base. Bird Spike 2001's patent pending design
provides extra strength and stability, and unlike other spike products, it will not
rust or deteriorate under extreme conditions. Bird Spike 2001 has an industry
leading 10 YEAR GUARANTEE, and is available in 3", 5" and 8" widths - the
widest coverage on ANY spike product available.
Bird Pressure: Light, Medium, and Heavy.
Bird Type: Repells all birds, including pigeons, seagulls and
larger species.
Packaging: Bird Spike 2001 is packaged 50 ft. per carton
(25 - 2ft. sections/box). Each carton is 25" x 15" x 10".
Applications
Bird-B-Gone Spike 2001 is a versatile system that can be easily installed where any bird can roost.
8"
2 FEET!
Ledges:
To prevent pest birds from congregating and
nesting on ledges, sills, roof tops, etc. Installing
Bird Spike 2001 will stop birds from creating
unsightly messes and health problems.
Large Flat Surface:
Bird Spike 2001 can be installed in
multiple rows for a wide area of coverage.
Nesting Areas:
Because pigeons and other birds will nest in a
specific area for generations, Bird Spike 2001 can
be installed using intertwining vertical and horizontal
rows to prevent nesting or roosting.
Conduit
Spike 2001 can be attached to wires,
conduit, gutters, and pipes by using
common hose clamps, Nylon ties or
wire lashings.
Curved Surfaces:
Spike 2001 is so flexible that it can bend
360 degrees without breaking. Install Bird Spike
2001 on all curved surfaces such as lampposts,
signs, letters, etc. by using adhesive with nylon
ties, hose clamps, etc.
IMPORTANT ! Observe all Cautions and Warnings listed in instructions prior to installation.
See reverse side.
Page 2
INSTALLATION INSTRUCTIONS FOR
BIRD•B•GONE “SPIKE 2001” SYSTEM
CAUTION!
READ AND FOLLOW ALL INSTRUCTIONS PRIOR TO ATTEMPTING TO
INSTALL BIRD-B-GONE SPIKE 2001. SPIKES ARE SHARP...
BE SURE TO WEAR GLOVES AND SAFETY EYE WEAR.
KEEP OUT OF REACH OF CHILDREN AND PETS.
DO NOT INSTALL WHERE HUMAN PHYSICAL CONTACT IS POSSIBLE.
1. Thoroughly clean all surfaces where the product is to
be installed. Suggestion: Use a 10% bleach or ammonia
solution to disinfect that area. It is important that all debris is
removed including overhanging branches, leaves, nests, etc.
before disinfecting.
DUE TO THE INFECTIOUS DISEASES ASSOCIATED
WITH BIRD FECES, BE SURE TO USE EXTREME CARE
WHEN REMOVING NESTS AND BIRD DROPPINGS.
2. Determine method of attaching Spike 2001 to
the surface.
• For Wood: There are two sets of holes between each
fan of spikes. Use wood screws to attach to the
surface. Make sure ends are screwed down tightly
and at least one screw is placed every six inches
in between.
• For Concrete, Brick, Steel: Use outdoor construction
adhesive, preferably one that is not silicon based.
Adhesive can be purchased from Bird-B-Gone, or
call the office for a recommendation. One caulking
tube of adhesive should cover approx. 30 ft. of Bird
Spike 2001. Whenever possible, screw or bolt down
the spikes in conjunction with using an outdoor
construction adhesive.
3. When using adhesives:
a. Run a bead line of adhesive down the under side of
the spike strip. (Illus # 1) Also put a dollop of
adhesive on each of the screw holes. This will allow
the glue to mushroom up through holes and adhere
more effectively. (Illus # 1)
b. Carefully place strip on to surface. Remember to
over hang strip 1/2” from edge of surface. Also,
ensure that no more than1/2” is left to back of
wall. (Illus. # 2)
5. For heavy infestation/nesting areas: Spike 2001 should
be installed horizontally on the surface and vertically across
the back wall. Intertwine spikes as shown in illustration #3.
2"
1.
1/2
4
Over hang spikes 1/2" from
2.
edge and no more than 1/2"
to back wall.
1/4"
Glue Trough/Holes
For Easy Adhesive Attachment.
1/4" Screw Holes For
Screw/Bolt Attachment.
1/2
"
5 "
"
5"
LEDGE
1" 1"
5" 5"
5"
8"
1/2
"
8"
1/2
4
"
8"
LEDGE
Note: Whenever possible - Screw or bolt down the spikes
in conjunction with using an Outdoor Construction Adhesive.
4. Adapting to size:
Spike 2001 can be easily cut to desired size using tin
snips, hacksaw, etc.
3. For Wide areas and Heavy infestations - intertwine spikes with
1" overlap on both vertical and horizontal surfaces.
Any Questions Regarding SPIKE 2001 Installation
call 1-800-392-6915
13" Ledge/Area
INC.
23918 Skyline • Mission Viejo, CA 92692
