(A)
* These instructions are provided for your safety. It is very
important that they are read completely before beginning the
0
(B)
(C)
(D)
(E)
(F)
(G)
(H)
(I)
(J)
(K)
S-hook
Nut
Lock Washer

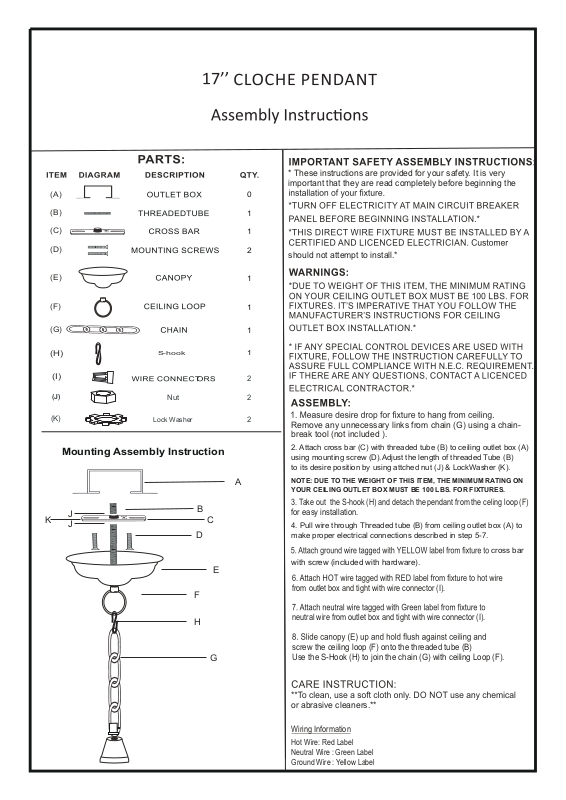

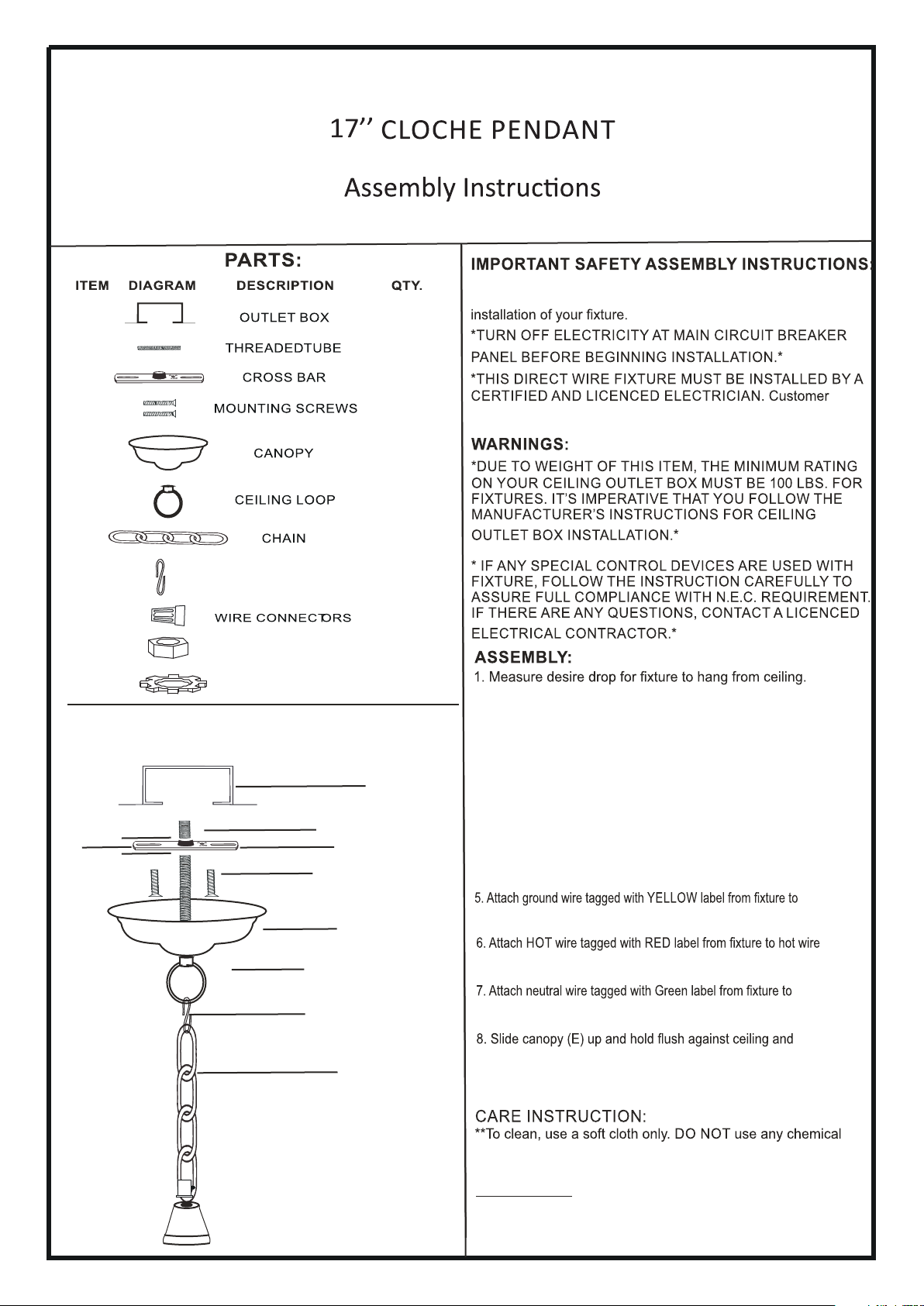

Mounting Assembly Instruction
J
K
J
1
1
2
1
1
1
1
2
2
should not attempt to install.*
2
A
B
C
D
Remove any unnecessary links from chain (G) using a chainbreak tool (not included ).
2. Attach cross bar (C) with threaded tube (B) to ceiling outlet box (A)
using mounting screw (D).Adjust the length of threaded Tube (B)
to its desire position by using attched nut (J) & LockWasher (K).
NOTE: DUE TO THE WEIGHT OF THIS ITEM, THE MINIMUM RATING ON
YOUR CEILING OUTLET BOX MUST BE 100 LBS. FOR FIXTURES.
3. Take out the S-hook (H) and detach the pendant from the celing loop (F)
for easy installation.
4. Pull wire through Threaded tube (B) from ceiling outlet box (A) to
make proper electrical connections described in step 5-7.
cross bar
with screw (included with hardware).
E
F
H
from outlet box and tight with wire connector (I).
neutral wire from outlet box and tight with wire connector (I).
screw the ceiling loop (F) onto the threaded tube (B)
G
Use the S-Hook (H) to join the chain (G) with ceiling Loop (F).
or abrasive cleaners.**
Wiring Information
Hot Wire: Red Label
Neutral Wire : Green Label
Ground Wire : Yellow Label
