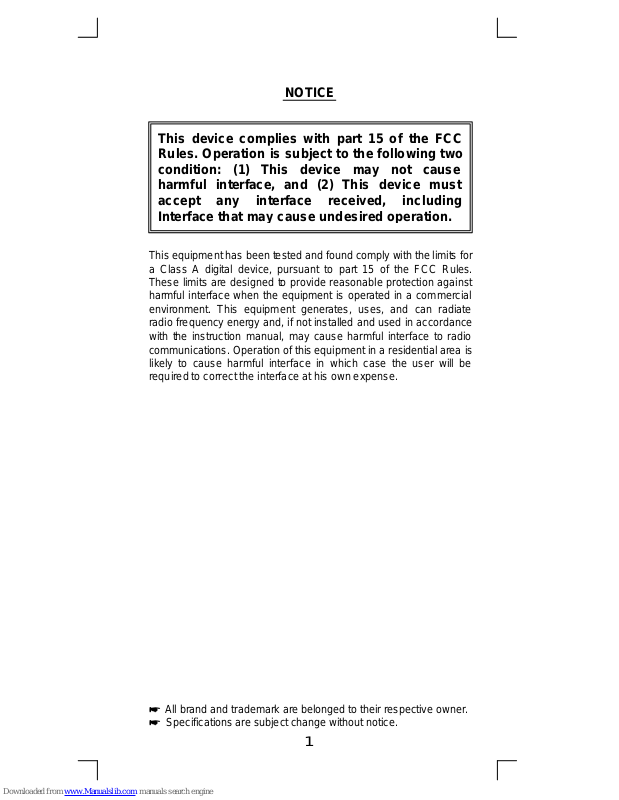

NOTICE

This equipment has been tested and found comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against harmful interface when the equipment is operated in a commercial

environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interface to radio

communications. Operation of this equipment in a residential area is likely to cause harmful interface in which case the user will be required to correct the interface at his own expense.

All brand and trademark are belonged to their respective owner.

Specifications are subject change without notice.

This device complies with part 15 of the FCC

Rules. Operation is subject to the following two condition: (1) This device may not cause

harmful interface, and (2) This device must accept any interface received, including

Interface that may cause undesired operation.

Page 2

Operation Manual

Page 3

Index

1 Instroduction«««««««««««««««««««««««««««««««««««««««««««««««« 4

Installation«««««««««««««««««««««««««««««««««««4 Recommended Steps«««««««««««««««««««« 4

Configuration Flowchart««««««««««««««««« 5 String Output Flowchart««««««««««««««««««5 Default Setting««««««««««««««««««««««««««««« 6

Manual Label Layout ««««««««««««««««««««« 7 Frequent Question«««««««««««««««««««««««« 8

2 Interface««««««««««««««««««««««««««««««««««««««««««««««««««««««« 10

Host Interface«««««««««««««««««««««««««««««« 10 Keyboard Wedge«««««««««««««««««««««««««« 11

RS-232C«««««««««««««««««««««««««««««««««««««15 Wand Emulation (Linker or Pen)«««««««18

OCIA««««««««««««««««««««««««««««««««««««««««« 20

3 System Control««««««««««««««««««««««««««««««««««««««««««««« 21 4 Code Option««««««««««««««««««««««««««««««««««««««««««««««««« 26

UPC-A««««««««««««««««««««««««««««««««««««««««26 UPC-E««««««««««««««««««««««««««««««««««««««««28

EAN-13 (ISBN/ISSN) «««««««««««««««««««« 30 EAN-8«««««««««««««««««««««««««««««««««««««««« 32 CODE-39 (CODE-32) ««««««««««««««««««« 34

Interleaved 2 of 5 (Odd S-code) «««««« 36 Industrial 2 of 5«««««««««««««««««««««««««««««38 Matrix 2 of 5«««««««««««««««««««««««««««««««« 40

China Post 2 of 5«««««««««««««««««««««««««« 42 Codabar/NW7«««««««««««««««««««««««««««««« 44 Code-128««««««««««««««««««««««««««««««««««« 46

Code-93««««««««««««««««««««««««««««««««««««« 48 Code-11««««««««««««««««««««««««««««««««««««« 50 MSI/Plessey«««««««««««««««««««««««««««««««« 52

UK/Plessey««««««««««««««««««««««««««««««««« 54 Telepen«««««««««««««««««««««««««««««««««««««« 56 IATA«««««««««««««««««««««««««««««««««««««««««« 58

5 String Format««««««««««««««««««««««««««««««««««««««««««««««««60

Preamble/Postamble««««««««««««««««««««« 60 Prefix/Suffix««««««««««««««««««««««««««««««««« 61 Character Insertion««««««««««««««««««««««««62

Other Control««««««««««««««««««««««««««««««« 64

6 Cable Type «««««««««««««««««««««««««««««««««««««««««««««««««««« 66 7 Test Chart««««««««««««««««««««««««««««««««««««««««««««««««««««« 68 8 ASCII Code/Hexdecimal Table ««««««««««««««««««««««« 71

Page 4

Installation

1) First of all, you must make sure that the power is disconnected form your equipment before connecting the scanner. Beside, you

also have to check the cable connector of the scanner match your equipment interface correctly.

2) Boot up your computer after connecting the scanner with your equipment, the scanner will make a long music and light the LED, above scanner to indicate a successful power on. Trigger the

button, the scan line in front of scanner will active. Now you can start to set programming optimal usage.

If any of the above operation is not right, turn off the power immediately and check any improper connections. Go through all above steps again.

Recommened Steps

When the required settings have been configured, all settings

are stored in non volatile memory of scanner after reading EXIT label. There are recommended steps as follows.

1) Set right host interface for your scanner at /10.

(The scanner is in factory default as bold label)

2) Set interface to optimize protocol of scanner with your host in

Charter 2.

3) Set system control of scanner, such as specific adjustments

double confirm, power saving, indicator and scanning mode which you prefer usage in Chapter 3.

4) Set code option of scanner for your usage in Chapter 4. You must

make sure to enable the symbology first, then Min./Max. code length, code ID checksum and truncate digits are also convered.

5) Set string format of the scanner, such as preamble, postamble,

prefix, suffix, code ID and code name transmission for your application in Chapter 5.

If any of the error step is processing, scanner will generate a 5 wanrrying beeps to indicate an invaild setting. You have to take care

this matter and set correctly again.

If still not work properly. Please contact with dealer.

Operation Manual

Page 5

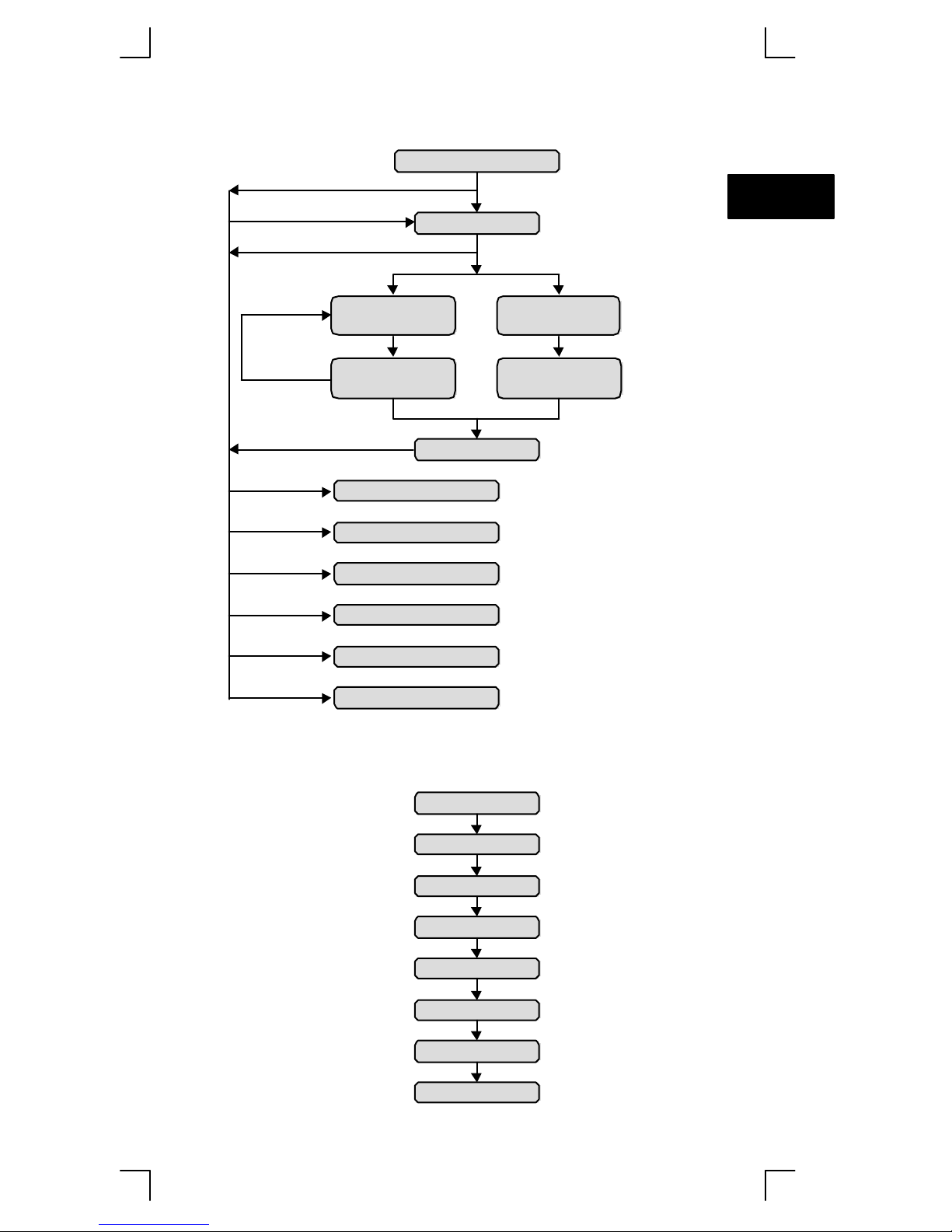

Configuration Flowchart

String Output Flowchart

Preamble

Prefix

Code Name

Code ID

Code Data

Code Length

Suffix

Postamble

Enter

Programming

Mode

Finish ASCII

Code or Decimal Value Setting

Select Function Label

Interface Default

Exit & Interface Default

Function

PROGRAM

Decimal

(10's Value)

Hexdecimal

(High Byte)

Decimal

(1's Value)

Hexdecimal

(Low Byte)

SET

EXIT

ABORT

VERSION DATE

SETTING LIST

DEFAULT

Prefix or

Suffix

Set ASCII Code

Set Decimal Value

Exit With Save

Exit Without Save

Exit & Default

Exit & Version List

Exit & Setting List

Introduction

Page 6

Default Setting

Length TruncateCode

Type

Read

Enable

Min.

Max.

Leading

Ending

Code

UPC-A

- - 0 0 A

UPC-E

- - 0 0 E

EAN-13

- - 0 0 F

EAN-8

- - 0 0 FF

Code-39

0 0 0 0 M Interleaved 2 of 5 6 0 0 0 I Industrial 2 of 5 4 0 0 0 H Matrix 2 of 5 4 0 0 0 G China Post 2 of 5 11 11 0 0 J Codabar/NW7

4 0 0 0 N Code-128

0 0 0 0 K Code-93 4 0 0 0 L Code-11 4 0 0 0 O MSI/Plessey 4 0 0 0 P UK/Plessey 4 0 0 0 R Telepen 4 0 0 0 S IATA 4 0 0 0 Q

Adjustment Value Result Beep Loudness 05 Level 5 Beep Tone 24 2.4 KHz Beep Duration 06 60 mSec Beep Tone1 12 1.2 KHz Beep Duration1 06 60 mSec Stand-by Time 15 15 Sec Active Time 20 200 mSec Sleep Time 20 200 mSec Good-read Delay 50 500 mSec Double Confirm Times 01 Once Inter-char. Delay 01 1 mSec Transmit Delay 00 0 mSec Response Delay 30 3 Sec Add-on Wait Time 50 500 mSec Margin Delay 10 100 mSec Preamble Data1 00

<NULL>

Preamble Data2 00

<NULL>

Postamble Data1 0D

<CR>

Postamble Data2 0A

<LF>

Prefix Data (All Datas) 00

<NULL>

Suffix Data (All Datas) 00

<NULL>

Add-on Insertion (All Datas) 00

<NULL>

Insertion1-4 (Position & All Datas) 00

<NULL>

Concatenation Data 29

<GS>

Operation Manual

Page 7

Manual Label Layout

The scanner must be set by reading the barcode labels in

manual. The discription of label is as follows.

The factory default settings are indicated by bold symbols.

Disable DZA

*DZA*

Enable DZB

*DZB*

Spare Function

Disable DYA

*DYA*

Enable DYB

*DYB*

Truncate Leading BAO

*BAO*

(Range:0010-1510)

Truncate Ending BAP

*BAP*

(Range:0010-1510)

Code ID AAA

*AAA*

(Range:0016-FF16 ASCII Code)

Specific Adjustments

Truncate Leading Zero

EXIT

UPC-A

*/$%END*

Code Option

Truncate Leading / Ending: The

leading or ending digits of barcode data characters can be truncated when these values are set to non zero. It will be read nothing else only beeps when the truncate value is more than barcode data digits or the value of Truncate Leading is overlap with the Ending. The maximum value of Truncate digits is 15.

Code ID: A Code ID is a character

Section

Title

Exit

Program

Command

For RS-232C

Selection

Label

Default

Setting

Selection

Description

Chapter

Number

Chapter

Title

Page

Number

Function

Title

Adjustment

(ASCII Code or

Decimal Value)

Group

Line

Selection

Label

Range

Description

Function

Description

Introduction

Page 8

Frequent Question

Q: Why scanner block the keyboard operation?

A: Check the cable connection with your equipment, then turn power

on again.

Q: If scanner has a good read beep but nothing transferring

after read a label.

A: Using the SETTING LIST at /10 to show what current setting of

scanner is, or reset to Default, (or select right Interface default if scanner to be change another interface used), then re-program scanner again.

Q: If scanner dosen't need an Enter character addition after

each barcode label transmission.

A: Refer to postamble transmission at /60, then set D isable.

Q: If scanner needs to read single digit code.

A: Refer to Min. code length of code option use "01" in Chapter 4 for

single code readable.

Q: If scanner isn't able to discriminate an unknown label, but

read manual very well.

A: Refer to code name at /64 to set Enable, read a barcode label,

then you will know what symbology is read. Beside, it maybe need to verify checksum. Refer to verify checksum of code option in Chapter 4, and set Enable.

Q: If scanner transfers character very slow or loses some

characters on screen in keyboard interface after reading a label.

A: You may set caps lock to be Alt+Keypad at /11. Otherwise, it

maybe mis-match of transmission rate, therefore, you can adjust an appropriate I nter-char. Delay to match your equipment. See

11.

Q: If scanner want to read a label as function key for your

apprication.

A: Refer to function key simulation at /11 and set Enable, then

scanner can transmit a code as function key. It is used for keyboard interface only. Beside, you must make sure that a label is encoded as function key, and its ASCII code is from 0016 to

1F16 You can refer to ASCII code table at /71.

Operation Manual

Page 9

Q:Could I change scanner into different type interface directly?

A: You can change factory interface default for other type interface.

By plug different cable, program scanner and set right interface to exit, then the scanner will be change to another interface.

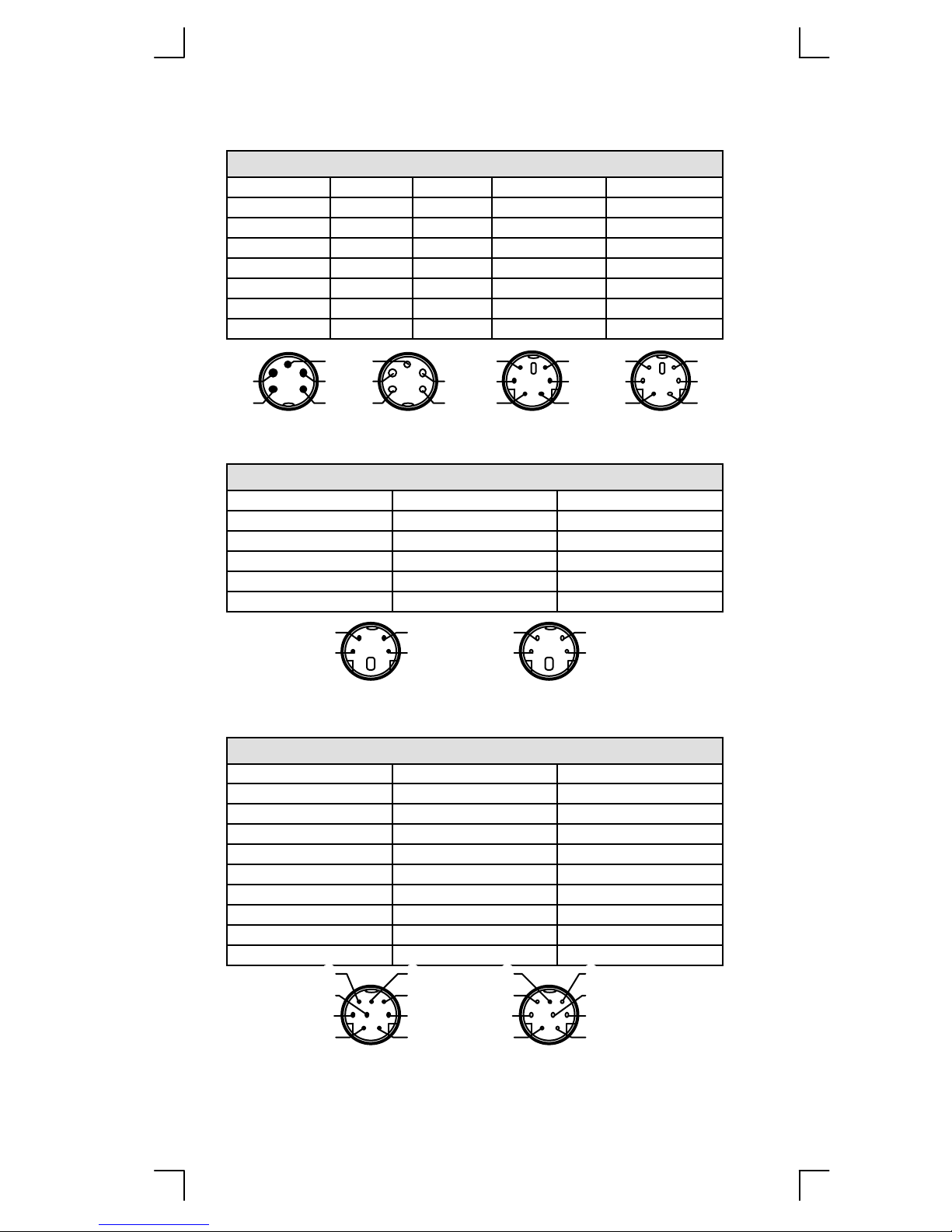

However, you must make sure what cable you need. Refer Cable Type to /66, 67.

Q: How to configure scanner via RS-232C?

A: Next to the selection description, you will find a frame command,

such as A AB. These commands can be sent to scanner with RS-232C interface. You must make sure that scanner is the same protocal as your equipment of RS-232C, and light source of

scanner has been actived by pressing button.

Example Beep Loudness Level "10", Good-read Beep "Enable"

To configure the reguired commands proceed as follows:

Send as: <ESC>(1B16) ï Command(s) ï <CR>(0D16)

Send <ESC>ï B ACï %01ï %00ï %OKï CEB ï <CR>

︸︸︸︸︸

Beep 1 0 SET Good-read

Londness Level Beep Enable

Call to the dealer if scanner dose not work properly.

Introduction

Page 10

You can change factory

interface default for other type interface. By plug different

cable, program scanner and set right interface to exit, then

the scanner will be change to another interface. However, you must make sure what

cable you need. Refer Cable Type to /66, 67.

DEFAULT: All settings are reset as bold label, but

exclude interface setting. VERSION DATE: You can get

the software date of decoder on screen. It is important for

maintanace. SETTING LIST: First it is

recommended that you need to excute a text editor program (such as PE2 and

Word) for keyboard interface, or excute a terminal program

(such as Hyper Terminal) for RS-232. Then scanner will transmit current settings on screen.

ABORT: If you have a mis-setting or want to skip this current configuration during you are programming, using this function, all

front settings are aborted before you set EXIT to finish programming.

Programming will be finished while each label of miscellany is

read.

Keyboard Wedge

*/$%C00*

RS-232C

*/$%C01*

WAND EMULATION

*/$%C02*

OCIA

*/$%C03*

Spare Interface

*/$%C04*

Interface Default

DEFAULT (without Interface)

*/$%DEF*

VERSION DATE

*/$%VER*

SETTING LIST

*/$%LST*

ABORT

*/$%ESC*

Miscellany

PROGRAM

*/$%STR*

Host Interface

Operation Manual

Page 11

Low

CZA

*CZA*

Medium

CZB

*CZB*

High

CZC

*CZC*

Turbo

CZD

*CZD*

Numeric Key Position

Caps Lock

Keyboard Speed

Function Key Simulation

By selecting, you can change

output speed of scanner to advance or match with host computer. Generally, set H igh or Turbo in working high

performance. If some output characters of barcode have been lost or shown on screen slowly, you may

need to set Medium or Low to match your host keyboard speed.

Set Enable scanner can output

code as pressing function-key in your application program while the barcode

datas contain ASCII value between 0116 to 1F

16.

. See /60 and Refer to

ASCII table /71 at grey area. You'll find function-keys with ASCII codes.

The Keypad have to selecte if your application program is only keypad numeric code acceptable. So, scanner will output code as press numeric keypad when it read numeric digit. (The keypad is in the right side of keyboard, and Num Lock control key is also on.)

By selecting U ppercase or

Lowercase, scanner can get Caps Lock

status. If Alt+Keypad is selected, Caps Lock and output will be independent.

Example Barcode "ABCdef"

Status Selection

Caps Lock

Off

Uppercase ABCdef abcDEF Lowercase abcDEF ABCdef

Alt+Keypad ABCdef ABCdef

Alphabetic-key

DAA

*DAA*

Keypad

DAB

*DAB*

Uppercase

DDA

*DDA*

Lowercase

DDB

*DDB*

Alt+Keypad

DDD

*DDD*

Disable

DBA

*DBA*

Enable

DBB

*DBB*

EXIT

Keyboard Wedge

*/$%END*

Interface

Page 12

Specific Adjustments

BAL

Inter-char. Delay

*BAL*

(Range:0010-9910 Unit:1ms)

BAM

Transmit Delay

*BAM*

(Range:0010-9910 Unit:10ms)

Keyboard Simulation

Spare Function

All of the PCs check the keyboard

status during power-on selftest. It is recommended to Enable the function if you are working without keyboard

installation. It simulates keyboard timing and pass keyboard present status to the PC during power-on.

Inter-char. Delay: This delay is inserted after each data characters transmitted.If the transission speed is

too high, the system may not be able to receive all characters. Adjust it and try out suited delay to makes system

work properly.

Transmit Delay: It is a delay timer between barcode data output. The feature is used to transfer continually with shorter barcode data

or multi-field scanning.

Example Barcode Data: "ABCD" Inter-char. Delay: 2ms

Transmit Delay: 10ms

1) PROGRAMï Entry Programming

2) Inter-char. Delay ï 0 ï 2ï SETï 2ms Inter-char. Delay

︸

02*1ms(Unit)=2ms

3) Transmit Delayï 0 ï 1ï SETï 10ms Transmit Delay

︸

01*10ms(Unit)=10ms

4) EXIT Exit Programming

Output

A 2ms B 2ms C 2ms D 2ms 10ms

DEA

Disable

*DEA*

DEB

Enable

*DEB*

DCA

Disable

*DCA*

DCB

Enable

*DCB*

PROGRAM

*/$%STR*

Keyboard Wedge

Operation Manual

Page 13

Select keyboard type connector of your host computer. Scanner must be

selected to the appropriate host interface cable converter. Refer to

Cable Type at /66.

IBM AT,PS/2

DFA

*DFA*

IBM XT

DFB

*DFB*

Macintosh ADB.

DFC

*DFC*

IBM PS/2 25,30

DFD

*DFD*

NEC 9801

DFE

*DFE*

IBM PS/2 55

DFF

*DFF*

IBM 5550

DFG

*DFG*

KT 106

DFH

*DFH*

IBM 5576

DFI

*DFI*

Spare1

DFJ

*DFJ*

Spare2

DFK

*DFK*

Spare3

DFL

*DFL*

Spare4

DFM

*DFM*

Keyboard Type

EXIT

Keyboard Wedge

*/$%END*

Interface

Page 14

Keyboard Layout

The selecting of keyboard layout

supports many country languages other than USA keyboard layout. First you need to confirm country langage

that you desire. In DOS, using command "Keyb" to selecte the desirable keyboard layout or in

WINDOWS entry "Control' then pop "Keyboard" to selecte country at "language" item. For details, please

refer to your DOS or WINDOWS user's manual.

DGA

USA (US)

*DGA*

DGB

Belgium (BE)

*DGB*

DGC

Danish (DK)

*DGC*

DGD

France(FR)

*DGD*

DGE

Germany (GR)

*DGE*

DGF

Italian (IT)

*DGF*

DGG

Portuguese (PO)

*DGG*

DGH

Spanish (SP)

*DGH*

DGI

Swedish (SV)

*DGI*

DGJ

Switzerland (SF)

*DGJ*

DGK

UK (UK)

*DGK*

DGL

Latin American (LA)

*DGL*

DGM

Japan

*DGM*

DGN

Spare2

*DGN*

PROGRAM

*/$%STR*

Keyboard Wedge

Operation Manual

Page 15

Handshaking Protocol

CTS: Clear To Send (Hardware Signal) RTS: Request To Send (Hardware Signal)

STX: Start Of Text (ASCII Code 0216) ETX: End Of Text (ASCII Code 0316)

Xon: Transmit On (ASCII Code 1316) Xoff: Transmit Off (ASCII Code 1116)

Disable: The communication only

uses TxD and RxD signals without regard for any hardware or software

handshaking protocol. RTS/CTS (CTS/RTS): If the scanner

wants to send the barcode data to host computer, it will issue the RTS (CTS) signal first, wait for the CTS (RTS)

signal from the host computer, and then perform the normal data communication. If there is no replied

CTS (RTS) signal from the host computer after the timeout (Response Delay) duration, the scanner will issue

a 5 warning beeps. Scanner Ready: The scanner will

active the RTS signal after power-on, and will transmit data upon receiving active CTS signals.

Data Ready: The scanner will active the RTS signal to indicate a successful decoding and will transmit data upon receiving CTS

signals. STX/ETX: The STX and ETX are used to pack barcode together in

the normal data transmission. Xon/Xoff: When the host computer is unable to accept data, it

sends an Xoff code to inform the scanner to suspend data transmission,and Xon to continue.

CTS Trigger: This operation enabled an external device to control scanning. The CTS trigger is controlled by applying an external trigger signal to the CTS input. When active, this signal causes

scanning to begin as if the scanner's trigger was depressed. In the event of decoding, the trigger signal must be deactivated for a minimum of 50ms before another scan can be attempted.

Disable

DLA

*DLA*

RTS/CTS

DLB

*DLB*

CTS/RTS

DLC

*DLC*

Scanner Ready

DLD

*DLD*

Data Ready

DLE

*DLE*

Xon/Xoff

DLF

*DLF*

STX/ETX

DLG

*DLG*

CTS Trigger

DLH

*DLH*

Spare

DLI

*DLI*

EXIT

RS-232C

*/$%END*

Interface

Page 16

Data Parity

Baud Rate

DHA

38400 Bps

*DHA*

DHB

19200 Bps

*DHB*

DHC

9600 Bps

*DHC*

DHD

4800 Bps

*DHD*

DHE

2400 Bps

*DHE*

DHF

1200 Bps

*DHF*

DHG

600 Bps

*DHG*

DHH

300 Bps

*DHH*

DKA

None

*DKA*

DKC

Even

*DKC*

DKD

Odd

*DKD*

DKE

Space

*DKE*

DKF

Mark

*DKF*

PROGRAM

*/$%STR*

RS-232C

Operation Manual

Page 17

Inter-char. Delay: It is delay time between data character's output. It is same as I nter-char. Delay of keyboard

wedge, see /12. Transmit Delay: It is a delay time

between barcode data output. It is also same as Transmit Delay of Keyboard wedge, see /12.

Response Delay: This delay is used for serial communication of the

scanner to waiting for handshaking acknowledgment from the host computer. If scanner doesn't get any acknowledgments form host after the timeout occurs, it will issue 5 warning beeps.You may

check handshanking mode or adjust a longer delay timer. The feature is particularly useful for some applications that the host computer takes a longer time to respond.

Specific Adjustments

Inter-char. Delay

BAL

*BAL*

(Range:0010-9910 Unit:1ms)

Transmit Delay

BAM

*BAM*

(Range:0010-9910 Unit:10ms)

Response Delay

BAN

*BAN*

(Range:0110-9910 Unit:100ms)

Stop Bits

One Bit

DIA

*DIA*

Two Bits

DIB

*DIB*

Data Bits

7 Bits

DJA

*DJA*

8 Bits

DJB

*DJB*

EXIT

RS-232C

*/$%END*

Interface

Page 18

Active Level

Normal Level

Narrow/Wide Ratio

Output Speed

DOA

Low

*DOA*

DOB

Medium

*DOB*

DOC

High

*DOC*

DOD

Turbo

*DOD*

Bar Hi/Space Lo: Black will be transmited as a high voltage level

(+5V) and space as low level (0V). Bar Lo/Space Hi: Black will be

transmited as a low voltage level (0V) and space as high level (+5V).

You must make sure what is

Normal Level of your wand decoder device in stand-by (idle). So, initial

signal state as a H igh voltage level (+5V) or Low voltage level (0V).

This setting is same as serial transmission baud rate, and it must be approbated your wand decoder

resolution. The unit of speed is a width of minimum narrow bar.

Output

Speed

Bps

(bits per second)

Low 1200

Medium 2400

High 4800

Turbo 9600

The setting is applied two kinds of ratio barcode symbologies with narrow

and wide only, such as Code-39, Interleaved 2 of 5, Codabar, Plessey

and IATA...etc. So, it will be ignored if some kinds of barcode symbologies, such as EAN, UPC, and Code-128,

are read. This setting is able to adjust appropriate signal width during transmitting the bar image. The ratio

allows to adjust from 1:2 to 1:3.5, but upon your wand decoder device.

DMA

Bar Hi/Space Lo

*DMA*

DMB

Bar Lo/Space Hi

*DMB*

DNA

Low

*DNA*

DNB

High

*DNB*

DQA

1:2

*DQA*

DQB

1:2.5

*DQB*

DQC

1:3

*DQC*

DQD

1:3.5

*DQD*

PROGRAM

*/$%STR*

Wand Emulation

Operation Manual

Page 19

Discrete codes such as Code-39

and Codabar are featured an InterChar. Gap between two characters of barcode. It makes them suitable for

printing in the Narrow or Wide gap by mechanical numbering system. You can choice one suit your decoder.

Generally, wand emulation Output

signals same as symbology when it read a barcode. By setting, the

scanner can read many kinds of barcode symbologies, but transmitted

as code-39 full ASCII format, even your decoder device no support them.

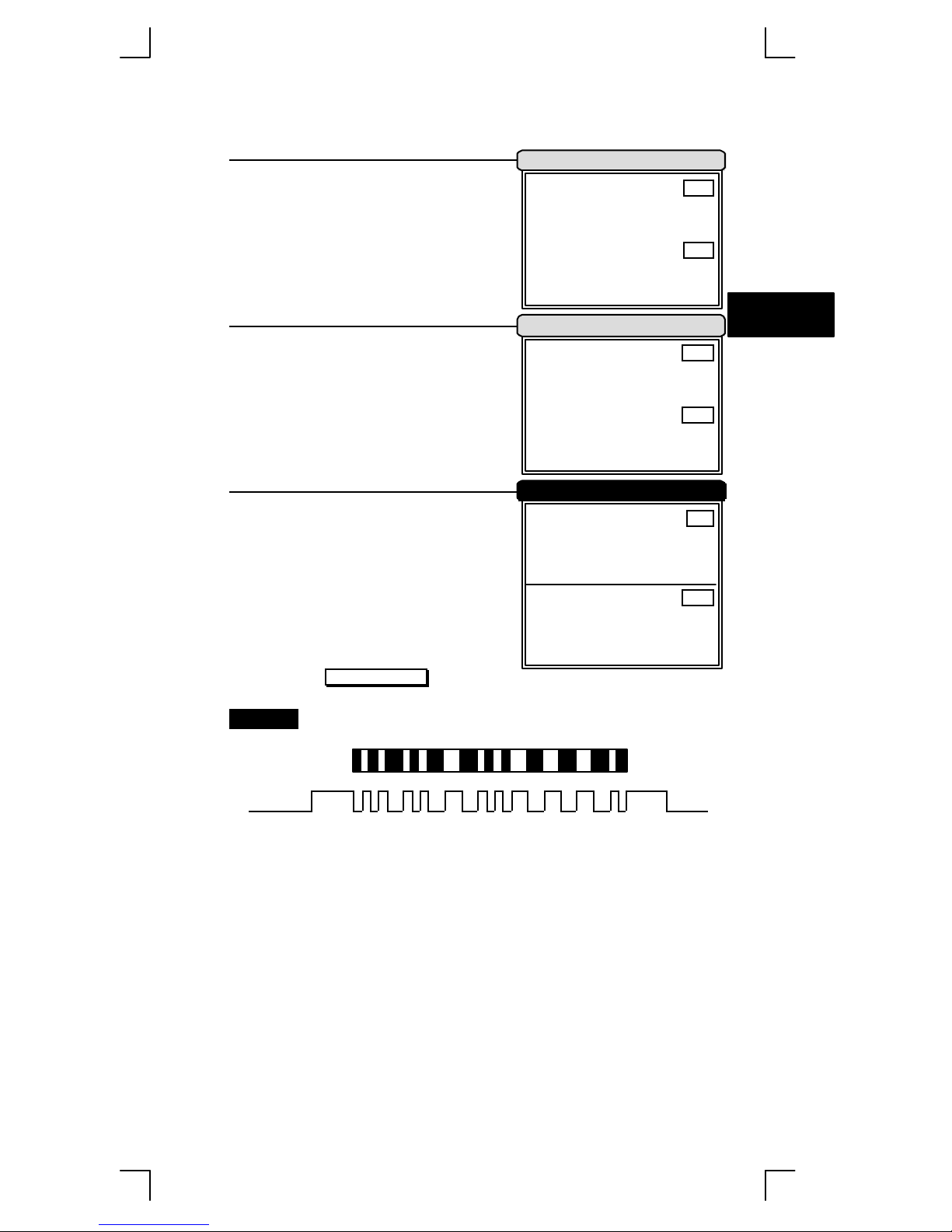

Margin Delay: It is a timer of zone like space zone of barcode label margin. The width of margin time will be added

before and after in each barcode data automatically when it is transmitted.

Transmit Delay: It is a delay time between barcode data output. It is the same as Transmit Delay of keyboard wedge, see /12.

Example Normal Level: Low, Bar Lo/Space Hi

Barcode Pattern

… … 5v

Normal Low 0v

︸︸

Margin Delay Margin Delay

Inter-char. Gap

Narrow

DPA

*DPA*

Wide

DPB

*DPB*

Code-39 Simulation

Disable

DRA

*DRA*

Enable

DRB

*DRB*

Specific Adjustments

Margin Delay

BAL

*BAL*

(Range:0010-9910 Unit:10ms)

Transmit Delay

BAM

*BAM*

(Range:0010-9910 Unit:10ms)

EXIT

Wand Emulation

*/$%END*

Interface

Page 20

Protocol Type

Data Parity

Specific Adjustments

Spare Function

Tansmit Delay: It is a delay time between barcode data output. It is also

the same as Transmit Delay of keyboard wedge, see /12.

DSA

NCR

*DSA*

DSB

DTS

*DSB*

DSC

NCR+ASCII

*DSC*

DSD

DTS+ASCII

*DSD*

DSE

ASCII

*DSE*

DTA

Even

*DTA*

DTB

Odd

*DTB*

DTC

Space

*DTC*

DTD

Mark

*DTD*

DUA

Disable

*DUA*

DUB

Enable

*DUB*

BAM

Transmit Delay

*BAM*

(Range:0010-9910 Unit:10ms)

PROGRAM

*/$%STR*

OCIA

Operation Manual

Page 21

After power-on the scanner will

generate music to indicate the successful selftest. You can inhibit the music by setting D isable.

By setting Enable, the scanner will

activate the light source after the power-on without trigger button.

After each successful reading, the scanner will light Good-read LED above scanner to indicate a good

barcode reading.

After each successful reading, the scanner will beep buzzer to indicate a

good barcode reading, and its

Loudness, Tone and Duration are

adjustable by setting of Specific Adjustment at /24.

The scanner will operate in Power Saving mode as this function is

Enabled. Current will be reduced to

less than 20 mA, but sensibility is also become slowly. You will find the light

source of CCD scanner to be flashed and motor of laser scanner to be stoppped as it read a code or timeout.

Disable

CBA

*CBA*

Enable

CBA

*CBB*

Power-on Music

Power-on Auto Trigger

Disable

CCA

*CCA*

Enable

CCB

*CCB*

Good-read LED

Disable

CDA

*CDA*

Enable

CDB

*CDB*

Good-read Beep

Disable

CEA

*CEA*

Enable

CEB

*CEB*

Power Saving

Disable

CJA

*CJA*

Enable

CJB

*CJB*

Power Saving

EXIT

System Control

*/$%END*

System Control

Page 22

Inter-char. Gap

Double Confirm

Case Conversion

Field Control

Spare Function

The scanner will require many

times of successful decoding to confirm the barcode data, and the more confirm times the more inhibitive

mis-reading code. (Refer to setting of

D oubble Confirm Times at

25)

It converses all output characters

to be same printing-case, even they have two kinds of case within a

barcode data.

Example Barcode "BarCode",

Uppercase BARCODE Lowercase barcode

The scanner can read many sets of barcode data on the same scanning line at the same time, even they are

different kinds of barcode symbology. The direction of read-out is form left to right. Refer to Codabar/NW7 of Test

Chart at /69.

Discrete codes such as Code-39 and Codabar are featured with an

Inter-char. Gap between two characters of barcode.You may set

W ide as the Inter-char. Gap of barcode

lable is wider.

CGA

Narrow

*CGA*

CGB

Wide

*CGB*

CPA

Disable

*CPA*

CPB

Enable

*CPB*

CTA

Disable

*CTA*

CTC

Uppercase

*CTC*

CTD

Lowercase

*CTD*

CRA

One Field

*CRA*

CRB

Multi Field

*CRB*

CSA

Disable

*CSA*

CSB

Enable

*CSB*

PROGRAM

*/$%STR*

System Control

Operation Manual

Page 23

Scanning Mode

Good-read Off: The trigger button

must be pressed to active scanning. The light source of scanner stops scanning when there is a successful

reading or no code is decoded after the Stand-by Timer

24 duration

elapsed. (Laser Model Default) Momentary: The trigger button acts

as a switch. Press button to active scanning and release button stop

scanning. Alternate: The trigger button acts as a

toggle switch. Press button to active or stop scanning.

Timeout Off: The trigger button must be pressed to active scanning, and

scanner stops scanning when no code is decoded after the Stand-by Timer

24 duration elapsed.(CCD Model

Default) Timeout Flash: The trigger button

must be pressed to keep scanning. The scanner flashes the light source when no code is decoded after the

Stand-by Timer

24 duration elapsed. This mode can save the power resource and extend the operation life of the light source. The scanner can be waked up when there is a successful reading or

trigger button to be pressed. Continue: The scanner always keeps reading, and no matter when

trigger button is pressed or duration is elapsed. Test Only: The scanner always keeps reading continuously and

same label reading is allowed without double confirm. The feature can test the performance of scanner for reading speed and sensitive. (Diagnostic mode)

Object Detect: Wake up automaticlly without trigger switch, if an object in the front of scanner is detected.(Some Laser Model Only)

For saving power and longer lift of laser component, all scanning

mode, the laser beam and motor will stop when no code is decoded.

Good-read Off

CAB

*CAB*

Momentry

CAC

*CAC*

Alternate

CAD

*CAD*

Timeout Off

CAE

*CAE*

Timeout Flash

CAF

*CAF*

Continue

CAG

*CAG*

Test Only

CAA

*CAA*

Object Detect

CAI

*CAI*

Spare

CAJ

*CAJ*

EXIT

System Control

*/$%END*

System Control

Page 24

Specific Adjustments

Beep Adjustments: You can adjust

Beep Loudness, Beep Tone and Beep Duration of good reading upon

your pavorite usage. Stand-by Time: A timeout duration of

1 to 99 seconds can be adjusted. The

Stand-by Time that is valid scanning

duration. It is only effective when the scanning mode of CCD is operated in

Good-read Off , Timeout Off or Timeout Flash mode. Beside, if laser

scanner no code to read during

Stand-by Time, the laser beam and

motor will be shutdown to saving life time of laser diode.

Active/Sleep Time: There are two durations that are used when the

scanner operated in Timeout Flash scanning mode. The scanner entries flash operation when no code is read

until Stand-by Time timeout. The

Action Time is lighting duration and the Sleep Time is blanking duration while

light source flashing. The barcode can also be read during flashing of light source and then waked up the

scanner automatically. Good-read Delay: This feature is a

limit duration during the same barcode data to be read continuously, except operated in Good-read Off and Test

mode The timer will be reset when

different barcode data reading.

BAC

Beep Loudness

*BAC*

(Range:0110-1010 Unit:Level)

BAD

Beep Tone

*BAD*

(Range:0510-5010 Unit:100Hz)

BAE

Beep Duration

*BAE*

(Range:0110-9910 Unit:10ms)

BDA

Beep Tone1

*BDA*

(Range:0510-5010 Unit:100Hz)

BDB

Beep Duration1

*BDB*

(Range:0010-9910 Unit:10ms)

BAF

Stand-by Time

*BAF*

(Range:0110-9910 Unit:1s)

BAG

Active Time

*BAG*

(Range:1010-9910 Unit:10ms)

BAH

Sleep Time

*BAH*

(Range:1010-9910 Unit:10ms)

BAI

Good-read Delay

*BAI*

(Range:1010-9910 Unit:10ms)

PROGRAM

*/$%STR*

System Control

Operation Manual

Page 25

Specific Adjustments

Add-on Waiting Time: This setting is

only used for reading WPC symbologies with Add-on, such as EAN and UPC. The WPC must be

decoded first, then Add-on. But Addon may not decode very well during it read. Therefore, scanner offer a

waiting time for reading Add-on confirmation and transmits WPC with Add-on at the same time.

Doubble Confirm Times: If it is enabled, the scanner will require many

times successful decoding to confirm the barcode data. More confirm times more inhibitive miss-reading code.

This feature should be depended on the symbology and quality of barcodes reading. Selecting a higher value will reduce read-out speed.

Public Min. / Max. Length: Public Minimum and Maximum length can be set to qualify data entry. They are effect all symbologies if

their Min./Max. Code Length is zero. The length is defined to the actual barcode data length sent. Label with length exceeds these limits will be rejected. Make sure that the Minimum length setting is

no greater than the Maximum length setting, or all the labels of the symboblogy will not be read. In particular, you can set the same value for both Minimum and Maximum reading length to force the

fixed length barcode decoded. The values of setting are no effect in some fixed length symbobolgies (i.e. UPC and EAN call WPC).

Addon-Waiting Time

BAK

*BAK*

(Range:0110-9910 Unit:10ms)

Double Confirm Times

BAJ

*BAJ*

(Range:0110-9910)

Public Min. Length

BAA

*BAA*

(Range:0110-5610)

Public Max. Length

BAB

*BAB*

(Range:0410-5610)

EXIT

System Control

*/$%END*

System Control

Page 26

Read

Add-on

Waiting Add-on

Check Digit Transmission

Format

Leading

Zero

Data Digts

(11 Digits)

Check

Digit

The Add-on barcode is the

supplemental 2 or 5 characters for WPC code.

Format

Leading

Zero

Data Digits

(11 Digits)

Check

Digit

Add-on

2 or 5

It is recommended to set Enable if the WPC with Add-on code must be read together. You have to enable it

first and refer to Add-on Waiting Time at

24 for good reading of Add-on.

By setting Enable, checks digit will be transmitted.

DVA

Disable

*DVA*

DVB

Enable

*DVB*

DWA

Disable

*DWA*

DWB

Add-on 2 Only

*DWB*

DWC

Add-on 5 Only

*DWC*

DWD

Add-on 2 or 5

*DWD*

DXA

Disable

*DXA*

DXB

Enable

*DXB*

EAA

Disable

*EAA*

EAB

Enable

*EAB*

PROGRAM

*/$%STR*

UPC-A

Operation Manual

Page 27

The leading "0" digits of barcode

data characters can be truncated when the function is enabled.

Example Barcode "00054321" Output "54321"

Truncate Leading / Ending: The

leading or ending digits of barcode data characters can be truncated

when these values are set to non zero. It will be read nothing else only beeps when the truncate value is more than

barcode data digits or the value of Truncate Leading is overlap with the Ending. The maximum value of

Truncate digits is 15. Code ID: A C ode ID is a character

which used to represent the symbobly upon succeeding reading. A C ode ID is prefixed to the data begin or tail

transmitted if the feature is selected. There are some symbobolgies (i.e. UPC-E and EAN-8) include 2 Code IDs. If your application want to transmit Code ID, you must set

Code ID Transmission to Enable first. Refer to Code ID Transmission at /64.

Insertion Group: The scanner offer one or two insertion groups for own symbology. By setting one or two digits to indicate which insertion group you want to insert. You may refer to Character

Insertion at /63.

Truncate Leading Zero

Disable

DZA

*DZA*

Enable

DZB

*DZB*

Disable

DYA

*DYA*

Enable

DYB

*DYB*

Truncate Leading

BAO

*BAO*

(Range:0010-1510)

Truncate Ending

BAP

*BAP*

(Range:0010-1510)

Code ID

AAA

*AAA*

(Range:0016-FF16 ASCII Code)

Insertion Group

BDC

*BDC*

(Range:0010-9910)

Specific Adjustments

Spare Function

Code Option

EXIT

UPC-A

*/$%END*

Page 28

Read

Add-on

Waiting Add-on

Expansion

Format

Leading

Zero

Data Digits

(6 Digits)

Check

Digit

Format

Leading

Zero

Data Digits

(6 Digits)

Check

Digit

Add-on

2 or 5

Refer to /26.

The expansion function is used

only for UPC-E and EAN-8 code reading. It extends to 13-digits with "0" digits when the feature is enabled.

Example Barcode "01236547" Output "0012360000057"

ECA

Disable

*ECA*

ECB

Enable

*ECB*

EDA

Disable

*EDA*

EDB

Add-on 2 Only

*EDB*

EDC

Add-on 5 Only

*EDC*

EDD

Add-on 2 or 5

*EDD*

EEA

Disable

*EEA*

EEB

Enable

*EEB*

EFA

Disable

*EFA*

EFB

Enable

*EFB*

PROGRAM

*/$%STR*

UPC-E

Operation Manual

Page 29

Refer to /26.

Refer to /27.

Disable

EGA

*EGA*

Enable

EGB

*EGB*

Truncate Leading

BAQ

*BAQ*

(Range:0010-1510)

Truncate Ending

BAR

*BAR*

(Range:0010-1510)

Code ID1

AAB

*AAB*

(Range:0016-FF16 ASCII Code)

Code ID2

AAC

*AAC*

(Range:0016-FF16 ASCII Code)

Insertion Group

BDD

*BDD*

(Range:0010-9910)

Specific Adjustments

Disable

EIA

*EIA*

Enable

EIB

*EIB*

Check Digit Transmission

Spare Function

Truncate Leading Zero

Disable

EHA

*EHA*

Enable

EHB

*EHB*

EXIT

UPC-E

*/$%END*

Code Option

Page 30

Read

Waiting Add-on

ISBN/ISSN Conversion

Add-on

Format

Data Digts

(12 Digits)

Check

Digit

Format

Data Digits

(12 Digits)

Check

Digit

Add-on

2 or 5

Refer to /26.

The ISBN (International Standard

Book Number) and ISSN (International Standard Serial Number) are two kinds of barcode for book and

magazine. The ISBN is 10 digits with leading "978" and the ISSN is 8 digits with leading "977" of the "EAN-13"

symbobolgy.

Example Barcode "9879572222720" Output "9572222724" Example Barcode "9771019248004" Output "10192484"

EKA

Disable

*EKA*

EKB

Enable

*EKB*

ELA

Disable

*ELA*

ELB

Add-on 2 Only

*ELB*

ELC

Add-on 5 Only

*ELC*

ELD

Add-on 2 or 5

*ELD*

EMA

Disable

*EMA*

EMB

Enable

*EMB*

ENA

Disable

*ENA*

ENB

Enable

*ENB*

PROGRAM

*/$%STR*

EAN-13

Operation Manual

Page 31

Refer to /26.

Refer to /27.

Disable

EQA

*EQA*

Enable

EQB

*EQB*

Disable

EOA

*EOA*

Enable

EOB

*EOB*

Truncate Leading

BAS

*BAS*

(Range:0010-1510)

Truncate Ending

BAT

*BAT*

(Range:0010-1510)

Code ID

AAD

*AAD*

(Range:0016-FF16 ASCII Code)

Insertion Group

BDE

*BDE*

(Range:0010-9910)

Specific Adjustments

Check Digit Transmission

Spare Function

Truncate Leading Zero

Disable

EPA

*EPA*

Enable

EPB

*EPB*

EXIT

EAN-13

*/$%END*

Code Option

Page 32

Read

Add-on

Waiting Add-on

ExpansionExpansion

Format

Data Digits

(7 Digits)

Check

Digit

Format

Data Digits

(7 Digits)

Check

Digit

Add-on

2 or 5

Refer to /26.

Refer to /28.

ESA

Disable

*ESA*

ESB

Enable

*ESB*

ETA

Disable

*ETA*

ETB

Add-on 2 Only

*ETB*

ETC

Add-on 5 Only

*ETC*

ETD

Add-on 2 or 5

*ETD*

EUA

Disable

*EUA*

EUB

Enable

*EUB*

EVA

Disable

*EVA*

EVB

Enable

*EVB*

PROGRAM

*/$%STR*

EAN-8

Operation Manual

Page 33

Refer to /26.

Refer to /27

Refer to /27.

Disable

EYA

*EYA*

Enable

EYB

*EYB*

Disable

EWA

*EWA*

Enable

EWB

*EWB*

Truncate Leading

BAU

*BAU*

(Range:0010-1510)

Truncate Ending

BAV

*BAV*

(Range:0010-1510)

Code ID1

AAE

*AAE*

(Range:0016-FF16 ASCII Code)

Code ID2

AAF

*AAF*

(Range:0016-FF16 ASCII Code)

Insertion Group

BDF

*BDF*

(Range:0010-9910)

Specific Adjustments

Check Digit Transmission

Spare Function

Truncate Leading Zero

Disable

EXA

*EXA*

Enable

EXB

*EXB*

EXIT

EAN-8

*/$%END*

Code Option

Page 34

Read

Format

Code-32 Translation

Start/End Transmission

Append

Format

Start

"V"

Data Digits

(Variable)

Checksum

(Optional)

End

"V"

The F ull ASCII Code-39 is an enhanced set of Code-39 that is the

data with toatl of 128 characters to represent Full ASCII code. It is combined one of the digits +,%,$ and /

with one of the alpha digits (A to Z).

The Code-32 symbology (Italian Pharmaceutical) is an another version of Code-39 which is a 10 digits of

barcode data from digit 0 to 9. The leading A is an optional character that can be set to transmit or not.

The Start and End characters of Code-39 are "V". You can transmit all

data digits including two "V".

This function which allows several symbols to be concatenates and be

treated as one single data entry. The scanner will not transmit the embedded appending code (space for

Code-39 ), If Enable and other symbols with the appended code were

read again, then codes will be transmitted without Code ID, Preamble and Prefix. When a symbol was decoded without the

appended code, the data will be transmitted without Code ID and Prefix but the Postamble and Suffix codes are appended.

FAA

Disable

*FAA*

FAB

Enable

*FAB*

FBA

Standard

*FBA*

FBB

Full ASCII

*FBB*

FCA

Disable

*FCA*

FCC

Without Leading ‘A ’

*FCC*

FCD

With Leading ‘A’

*FCD*

FFA

Disable

*FFA*

FFB

Enable

*FFB*

FEA

Disable

*FEA*

FEB

Enable

*FEB*

PROGRAM

*/$%STR*

CODE-39

Operation Manual

Page 35

The checksum of Code-39 is

optional and made as the sum module 43 of the numerical value of the data digits.

By setting Enable, checksum and

will be transmitted.

Min. / Max. Code Length: Each symbology has own Min./Max. Code Length. They can be set to qualify data

entry. If their Min./Max. Code Length is zero, the Public Min./Max. Code Length are effect. The length is

defined to the actual barcode data length sent. Label with length exceeds these limits will be rejected. Make sure

that the Minimum length setting is no greater than the Maximum length setting, or all the labels of the

symboblogy will not be read. In particular, you can set the same value for both Minimum and Maximum

reading length to force the fixed length barcode decoded.

Refer to /27.

Disable

FGA

*FGA*

Enable

FGB

*FGB*

Checksum Verification

Disable

FHA

*FHA*

Enable

FHB

*FHB*

Checksum Transmission

Truncate Leading

BAY

*BAY*

(Range:0010-1510)

Truncate Ending

BAZ

*BAZ*

(Range:0010-1510)

Min. Code Length

BAW

*BAW*

(Range:0110-5610)

Max. Code Length

BAX

*BAX*

(Range:0110-5610)

Code ID

AAG

*AAG*

(Range:0016-FF16 ASCII Code)

Code-32 ID

ABH

*ABH*

(Range:0016-FF16 ASCII Code)

Insertion Group

BDG

*BDG*

(Range:0010-9910)

Specific Adjustments

EXIT

CODE-39

*/$%END*

Code Option

Page 36

Read

Format

Checksum Verification

Checksum Transmission

Spare Function

Format

Data Digits

(Variable)

Checksum

(Optional)

Generally, the Interleaved 2 of 5 symbology is a pair of digts in each

barcode. Therefore, it contains an even digits. If the symbol is present an odd number as S-code, then

Odd S-code have to select.

The checksum is made as the sum module 10 of the numberical values of all data digits.

Refer to /35.

FKA

Disable

*FKA*

FKB

Enable

*FKB*

FLA

Standard

*FLA*

FLB

Odd S-code

*FLB*

FNA

Disable

*FNA*

FNB

Enable

*FNB*

FOA

Disable

*FOA*

FOB

Enable

*FOB*

FMA

Disable

*FMA*

FMB

Enable

*FMB*

PROGRAM

*/$%STR*

Interleaved 2 of 5

Operation Manual

Page 37

Because, the start and end of

interleaved 2 of 5 code is not olny one patten in symbol. In order to prevent partial reading, it is recommand to use

the fixed code length for each 2 of 5 code barcode label. Setting the same

Min./Max. Code Length, it is like a length

filter, and only one length is accepted. Refer to /27, /35.

Truncate Leading

BBC

*BBC*

(Range:0010-1510)

Truncate Ending

BBD

*BBD*

(Range:0010-1510)

Min. Code Length

BBA

*BBA*

(Range:0010-5610)

Max. Code Length

BBB

*BBB*

(Range:0010-5610)

Code ID

AAH

*AAH*

(Range:0016-FF16 ASCII Code)

S-Code ID

ABI

*ABI*

(Range:0016-FF16 ASCII Code)

Insertion Group

BDH

*BDH*

(Range:0010-9910)

Specific Adjustments

EXIT

Interleaved 2 of 5

*/$%END*

Code Option

Page 38

Read

Checksum Verification

Checksum Transmission

Spare Function

Format

Data Digits

(Variable)

Checksum

(Optional)

The checksum is made as the sum module 10 of the numberical

values of all data digits.

Refer to /35.

FQA

Disable

*FQA*

FQB

Enable

*FQB*

FSA

Disable

*FSA*

FSB

Enable

*FSB*

FTA

Disable

*FTA*

FTB

Enable

*FTB*

FRA

Disable

*FRA*

FRB

Enable

*FRB*

PROGRAM

*/$%STR*

Industrial 2 of 5

Operation Manual

Page 39

Refer to /27, /35.

Truncate Leading

BBG

*BBG*

(Range:0010-1510)

Truncate Ending

BBH

*BBH*

(Range:0010-1510)

Min. Code Length

BBE

*BBE*

(Range:0010-5610)

Max. Code Length

BBF

*BBF*

(Range:0010-5610)

Code ID

AAI

*AAI*

(Range:0016-FF16 ASCII Code)

Insertion Group

BDI

*BDI*

(Range:0010-9910)

Specific Adjustments

EXIT

Industrial 2 of 5

*/$%END*

Code Option

Page 40

Read

Checksum Verification

Checksum Transmission

Spare Function

Format

Data Digits

(Variable)

Checksum

(Optional)

The checksum is made as the sum module 10 of the numberical

values of all data digits.

Refer to /35.

FVA

Disable

*FVA*

FVB

Enable

*FVB*

FXA

Disable

*FXA*

FXB

Enable

*FXB*

FYA

Disable

*FYA*

FYB

Enable

*FYB*

FWA

Disable

*FWA*

FWB

Enable

*FWB*

PROGRAM

*/$%STR*

Matrix 2 of 5

Operation Manual

Page 41

Refer to /27, /35.

Truncate Leading

BBK

*BBK*

(Range:0010-1510)

Truncate Ending

BBL

*BBL*

(Range:0010-1510)

Min. Code Length

BBI

*BBI*

(Range:0010-5610)

Max. Code Length

BBJ

*BBJ*

(Range:0010-5610)

Code ID

AAJ

*AAJ*

(Range:0016-FF16 ASCII Code)

Insertion Group

BDJ

*BDJ*

(Range:0010-9910)

Specific Adjustments

EXIT

Matrix 2 of 5

*/$%END*

Code Option

Page 42

Read

Checksum Verification

Checksum Transmission

Spare Function

Format

Data Digits

(Variable)

Checksum

(Optional)

The checksum is made as the sum module 10 of the numberical

values of all data digits.

Refer to /35.

GAA

Disable

*GAA*

GAB

Enable

*GAB*

GCA

Disable

*GCA*

GCB

Enable

*GCB*

GDA

Disable

*GDA*

GDB

Enable

*GDB*

GBA

Disable

*GBA*

GBB

Enable

*GBB*

PROGRAM

*/$%STR*

China Post 2 of 5

Operation Manual

Page 43

The code length of Post 2 of 5 is

always fixed at 11. Therefore, code length of Min. and Max. is also factory default is 11.

Refer to /27, /35.

Truncate Leading

BBO

*BBO*

(Range:0010-1510)

Truncate Ending

BBP

*BBP*

(Range:0010-1510)

Min. Code Length

BBM

*BBM*

(Range:0010-5610)

Max. Code Length

BBN

*BBN*

(Range:0010-5610)

Code ID

AAK

*AAK*

(Range:0016-FF16 ASCII Code)

Insertion Group

BDK

*BDK*

(Range:0010-9910)

Specific Adjustments

EXIT

China Post 2 of 5

*/$%END*

Code Option

Page 44

Read

Same Start/End Pair

Start/End Transmission

Checksum Verification

Start/End Symbol Types

Format

Start Data Digits

(Variable)

Cheksum

(Optional)

End

The Codabar has four pairs of

Start/End patten, you may choice one to match your application.

Sometime, the Codabar requires only same Start/End patten of barcode label to be decoded.

Refer to /34.

The checksum is made as the

sum module 16 of the numberical values of all data digits.

GFA

Disable

*GFA*

GFB

Enable

*GFB*

GHA

Disable

*GHA*

GHB

Enable

*GHB*

GIA

Disable

*GIA*

GIB

Enable

*GIB*

GJA

Disable

*GJA*

GJB

Enable

*GJB*

GGA

ABCD/ABCD

*GGA*

GGB

abcd/abcd

*GGB*

GGC

ABCD/TN*E

*GGC*

GGD

abcd/tn*e

*GGD*

PROGRAM

*/$%STR*

Codabar/NW7

Operation Manual

Page 45

Refer to /35.

Refer to /27, /35.

Checksum Transmission

Disable

GKA

*GKA*

Enable

GKB

*GKB*

Truncate Leading

BBS

*BBS*

(Range:0010-1510)

Truncate Ending

BBT

*BBT*

(Range:0010-1510)

Min. Code Length

BBQ

*BBQ*

(Range:0010-5610)

Max. Code Length

BBR

*BBR*

(Range:0010-5610)

Code ID

AAL

*AAL*

(Range:0016-FF16 ASCII Code)

Insertion Group

BDL

*BDL*

(Range:0010-9910)

Specific Adjustments

EXIT

Codabar/NW7

*/$%END*

Code Option

Page 46

Read

Append

Checksum Verification

Checksum Transmission

Format

Data Digits

(Variable)

Checksum

(Optional)

The Code-128 can be translated to U CC/EAN-128 format if it starts with

FNC1 character. The first FNC1 will be translated to "]C1", and next to be a concatenation code as <GS>(7F16).

]C1 Datas <GS> Datas Checksum

This function which allows several symbols to be concatenates and be treated as one single data entry.

The checksum is presented as the sum module 103 of all data digits.

Refer to /35.

GMA

Disable

*GMA*

GMB

Enable

*GMB*

GOA

Disable

*GOA*

GOB

Enable

*GOB*

GQA

Disable

*GQA*

GQB

Enable

*GQB*

GRA

Disable

*GRA*

GRB

Enable

*GRB*

GNA

Standard

*GNA*

GNB

UCC/EAN-128

*GNB*

PROGRAM

*/$%STR*

Code-128

Operation Manual

Page 47

Concatenation Data: This featrure is only used for UCC/EAN-128 format.

This C oncatenation Data means you can re-assign second or after a FNC1 for your usage. The default of ASCII

code is <GS>(1D16). Refer to /27, /35.

Truncate Leading

BBW

*BBW*

(Range:0010-1510)

Truncate Ending

BBX

*BBX*

(Range:0010-1510)

Min. Code Length

BBU

*BBU*

(Range:0010-5610)

Max. Code Length

BBV

*BBV*

(Range:0010-5610)

Code ID

AAM

*AAM*

(Range:0016-FF16 ASCII Code)

UCC/EAN-128 ID

ABJ

*ABJ*

(Range:0016-FF16 ASCII Code)

Concatenation Data

ABK

*ABK*

(Range:0016-FF16 ASCII Code)

Insertion Group

BDM

*BDM*

(Range:0010-9910)

Specific Adjustments

Spare Function

Disable

GPA

*GPA*

Enable

GPB

*GPB*

EXIT

Code-128

*/$%END*

Code Option

Page 48

Read

Append

Checksum Verification

Checksum Transmission

Spare Function

Format

Data Digits

(Variable)

Checksum1

(Optional)

Checksum2

(Optional)

This function which allows several symbols to be concatenates and be

treated as one single data entry.

The checksum is presented as the sum module 47 of all data digits.

Refer to /35.

GTA

Disable

*GTA*

GTB

Enable

*GTB*

GVA

Disable

*GVA*

GVB

Enable

*GVB*

GWA

Disable

*GWA*

GWC

One

*GWC*

GWD

Two

*GWD*

GXA

Disable

*GXA*

GXB

Enable

*GXB*

GUA

Disable

*GUA*

GUB

Enable

*GUB*

PROGRAM

*/$%STR*

Code-93

Operation Manual

Page 49

Refer to /27, /35.

Truncate Leading

BCA

*BCA*

(Range:0010-1510)

Truncate Ending

BCB

*BCB*

(Range:0010-1510)

Min. Code Length

BBY

*BBY*

(Range:0010-5610)

Max. Code Length

BBZ

*BBZ*

(Range:0010-5610)

Code ID

AAN

*AAN*

(Range:0016-FF16 ASCII Code)

Insertion Group

BDN

*BDN*

(Range:0010-9910)

Specific Adjustments

EXIT

Code-93

*/$%END*

Code Option

Page 50

Read

Checksum Verification

Checksum Transmission

Spare Function

Format

Data Digits

(Variable)

Checksum1

(Optional)

Checksum2

(Optional)

The checksum is presented as the sum module 11 of all data digits.

By setting Enable, checksum1 and checksum2 will be transmitted upon your selected checksum verificvation

mothod.

GZA

Disable

*GZA*

GZB

Enable

*GZB*

HBA

Disable

*HBA*

HBC

One

*HBC*

HBD

Two

*HBD*

HCA

Disable

*HCA*

HCB

Enable

*HCB*

HAA

Disable

*HAA*

HAB

Enable

*HAB*

PROGRAM

*/$%STR*

Code-11

Operation Manual

Page 51

Refer to /27, /35.

Truncate Leading

BCE

*BCE*

(Range:0010-1510)

Truncate Ending

BCF

*BCF*

(Range:0010-1510)

Min. Code Length

BCC

*BCC*

(Range:0010-5610)

Max. Code Length

BCD

*BCD*

(Range:0010-5610)

Code ID

AAO

*AAO*

(Range:0016-FF16 AscII Code)

Insertion Group

BDO

*BDO*

(Range:0010-9910)

Specific Adjustments

EXIT

Code-11

*/$%END*

Code Option

Page 52

Read

Checksum Verification

Checksum Transmission

Spare Function

Format

Data Digits

(Variable)

Checksum1

(Optional)

Checksum2

(Optional)

The MSI/Plessey has one or two optional checksum digits. The

checksum is presented 3 kinds of mothod Mod 10 , Mod 10/10 and

Mod 11/10. The checksum1 and

checksum2 will be calculated as the sum module 10 or 11 of the data digits.

Refer to /50.

HEA

Disable

*HEA*

HEB

Enable

*HEB*

HGA

Disable

*HGA*

HGB

Mod 10

*HGB*

HGC

Mod 10/10

*HGC*

HGD

Mod 11/10

*HGD*

HHA

Disable

*HHA*

HHB

E nable

*HHB*

HFA

Disable

*HFA*

HFB

Enable

*HFB*

PROGRAM

*/$%STR*

MSI/Plessey

Operation Manual

Page 53

Refer to /27, /35.

Truncate Leading

BCI

*BCI*

(Range:0010-1510)

Truncate Ending

BCJ

*BCJ*

(Range:0010-1510)

Min. Code Length

BCG

*BCG*

(Range:0010-5610)

Max. Code Length

BCH

*BCH*

(Range:0010-5610)

Code ID

AAP

*AAP*

(Range:0016-FF16 ASCII Code)

Insertion Group

BDP

*BDP*

(Range:0010-9910)

Specific Adjustments

EXIT

MSI/Plessey

*/$%END*

Code Option

Page 54

Read

Checksum Verification

Checksum Transmission

Read

Checksum Verification

Spare Function

Format

Data Digits

(Variable)

Checksum1+2

(Optional)

Refer to /35.

HSA

Disable

*HSA*

HSB

Enable

*HSB*

HTA

Disable

*HTA*

HTB

Enable

*HTB*

HQA

Disable

*HQA*

HQB

Enable

*HQB*

HRA

Disable

*HRA*

HRB

Enable

*HRB*

PROGRAM

*/$%STR*

UK/Plessey

Operation Manual

Page 55

Refer to /27, /35.

Truncate Leading

BCQ

*BCQ*

(Range:0010-1510)

Truncate Ending

BCR

*BCR*

(Range:0010-1510)

Min. Code Length

BCO

*BCO*

(Range:0010-5610)

Max. Code Length

BCP

*BCP*

(Range:0010-5610)

Code ID

AAR

*AAR*

(Range:0016-FF16 ASCII Code)

Insertion Group

BDQ

*BDQ*

(Range:0010-9910)

Specific Adjustments

EXIT

UK/Plessey

*/$%END*

Code Option

Page 56

Read

Checksum Verification

Spare Function2

Spare Function1

Checksum Transmission

IATA (International Air Transport

Association)

The checksum is presented as sum module 7 of all data digits.

Refer to /35.

HJA

Disable

*HJA*

HJB

Enable

*HJB*

HNA

Disable

*HNA*

HNB

Enable

*HNB*

HOA

Disable

*HOA*

HOB

Enable

*HOB*

HKA

Disable

*HKA*

HKB

Enable

*HKB*

HLA

Disable

*HLA*

HLB

Enable

*HLB*

PROGRAM

*/$%STR*

IATA

Operation Manual

Page 57

Refer to /27, /35.

Truncate Leading

BCM

*BCM*

(Range:0010-1510)

Truncate Ending

BCN

*BCN*

(Range:0010-1510)

Min. Code Length

BCK

*BCK*

(Range:0010-5610)

Max. Code Length

BCL

*BCL*

(Range:0010-5610)

Code ID

AAQ

*AAQ*

(Range:0016-FF16 ASCII Code)

Insertion Group

BDR

*BDR*

(Range:0010-9910)

Specific Adjustments

EXIT

IATA

*/$%END*

Code Option

Page 58

Read

Checksum Verification

Checksum Transmission

Spare Function

Format

Data Digits

(Variable)

Checksum

(Optional)

A Telepen can be transimtted with

N umeric and F ull ASCII format.

Characters can be mixed both formats inside barcode label of Telepen. By setting Auto Switching, datas can be

conversed between Numeric and Full ASCII by character <DLE>(7F16) automatically.

Refer to /35.

HVA

Disable

*HVA*

HVB

Enable

*HVB*

HYA

Disable

*HYA*

HYB

Enable

*HYB*

HZA

Disable

*HZA*

HZB

Enable

*HZB*

HXA

Disable

*HXA*

HXB

Enable

*HXB*

HWA

Numeric Only

*HWA*

HWB

Full ASCII Only

*HWB*

HWC

Auto Switching

*HWC*

PROGRAM

*/$%STR*

Telepen

Operation Manual

Page 59

Refer to /27, /35.

Truncate Leading

BCU

*BCU*

(Range:0010-1510)

Truncate Ending

BCV

*BCV*

(Range:0010-1510)

Min. Code Length

BCS

*BCS*

(Range:0010-5610)

Max. Code Length

BCT

*BCT*

(Range:0010-5610)

Code ID

AAS

*AAS*

(Range:0016-FF16 ASCII Code)

Insertion Group

BDS

*BDS*

(Range:0010-9910)

Specific Adjustments

EXIT

Telepen

*/$%END*

Code Option

Page 60

Preamble Data

Preamble Transmission

Postamble Data

Postamble Transmission

By setting Enable, Preamble will

be appended before the data transmitted. Refer to String Output Flowchart at /5.

There are two control characters ( D ata1 and D ata2 ) can be

programmed for both Preamble and Postamble datas. They are appended to the data automatically when each

barcode is decoded.

By setting Enable, Postamble will be appended after the data

transmitted. Refer to String Output Flowchart at /5.

Generally, your application need to append a carrige return character to

finish data transmitted or you may set the Postamble Transmission to be

D isable for your applicationno without

any control characters apppended after data transmitted. The factory default of Postamble D ata1 and D ata2

is <CR>(0D16) and <LF>(0A16).

Example Append the code "@+" after each barcode transimitted.

1) PROGRAMï Entry Programming

2) Enableï Enable Postamble Transmission

3) D ata1ï 4ï 0ï D ata2ï 2ïB ïSETï Postamble Data "@+"

︸︸

"@" "+"

4) END Exit Programming

IEA

Disable

*IEA*

IEB

Enable

*IEB*

AAZ

Data1

*AAZ*

(Range:0016-FF16 ASCII Code)

ABA

Data2

*ABA*

(Range:0016-FF16 ASCII Code)

IFA

Disable

*IFA*

IFB

Enable

*IFB*

ABB

Data1

*ABB*

(Range:0016-FF16 ASCII Code)

ABC

Data2

*ABC*

(Range:0016-FF16 ASCII Code)

PROGRAM

*/$%STR*

Preamble/Postamble

Operation Manual

Page 61

Up to 15 characters can be

programed for Prefix data. The Prefix data of string will be placed after Preamble data and before the barcode

data when it is Enable. Refer to String Output Flowchart at /5.

Up to 15 characters can be programed for Suffix datas. The Suffix data of string will be placed after

Postamble data and after the barcode data when it is Enable. Refer to String Output Flowchart at /5.

Example Append a string "ABCD"

after each barcode transimitted

1) PROGRAMï Entry Programming

2) Enableï Enable Suffix Transmission

3) D ataï 4ï 1ï 4ï 2ï4 ï3 ï 4ï 4ï SETïSuffix Data "ABCD"

︸︸︸︸

"A" "B" "C" "D"

4) EXIT Exit Programming

Prefix Data

Prefix Transmission

Data

ABG

*ABG*

(Range:0016-FF16 ASCII Code)

Suffix Data

Disable

IHA

*IHA*

Enable

IHB

*IHB*

Clear All

INA

*INA*

Suffix Transmission

Data

ABF

*ABF*

(Range:0016-FF16 ASCII Code)

Prefix Data

Disable

IGA

*IGA*

Enable

IGB

*IGB*

Clear All

IMA

*IMA*

EXIT

Prefix/Suffix

*/$%END*

String Format

Page 62

Add-on Insertion Data

Insertion2 Data

Add-on Insertion

Insertion1 Data

The scanner offers 2 characders

of insertion between WPC and add-on code.

Format

WPC Add-on Insertion Add-on

The scanner offer 4 positions and

8 characters to insert among the symbol. The position default value is "00" to indicate no character

insertion.Beside, make sure insertion positions are not greater than the symbols, otherwise the insertion datas

are no effect.

ABD

Data1

*ABD*

(Range:0016-FF16 ASCII Code)

ABE

Data2

*ABE*

(Range:0016-FF16 ASCII Code)

BCX

Position2

*BCX*

(Range:0110-4810)

ABN

Data1

*ABN*

(Range:0016-FF16 ASCII Code)

ABO

Data2

*ABO*

(Range:0016-FF16 ASCII Code)

IIA

Disable

*IIA*

IIB

Enable

*IIB*

BCW

Position1

*BCW*

(Range:0110-4810)

ABL

Data1

*ABL*

(Range:0016-FF16 ASCII Code)

ABM

Data2

*ABM*

(Range:0016-FF16 ASCII Code)

PROGRAM

*/$%STR*

Character Insertion

Operation Manual

Page 63

Example Barcode "1234567"

Postion

Data1

Data2

Insertion1

2 A B

Insertion2

5 C D

1) PROGRAMï Entry programming

2) Position1ï 0ï 2ï SET Position1 "2"

2) D ata1ï 4 ï1 ï SETï Insertion1

D ata2ï 4 ï2 ï SETï Data "AB"

4) Position2ï 0ï 2ï SET Position2 "5"

5) D ata1ï 4ï 3ï SETï Data2ï4ï 4ï SETï Insertion2 Data "CD"

6) I nsert Groupï 1ï2ï SET Insertion1 and Insertion2 or I nsert Groupï 2ï1ï SET

Output

12AB345CD67

6) I nsert Groupï 0ï1ï SET Insertion1 only or I nsert Groupï 1ï0ï SET

Output

12 AB

34567

6) I nsert Groupï 1ï1ï SET Insertion1 outopt twice

Output

12ABAB

34567

6) I nsert Groupï 0ï0ï SET insertion off

Output

1234567

7) EXIT Exit Programming

Position3

BCY

*BCY*

(Range:0010-1510)

Data1

ABP

*ABP*

(Range:0016-FF16 ASCII Code)

Data2

ABQ

*ABQ*

(Range:0016-FF16 ASCII Code)

Insertion3 Data

Position4

BCZ

*BCZ*

(Range:0010-1510)

Data1

ABR

*ABR*

(Range:0016-FF16 ASCII Code)

Data2

ABS

*ABS*

(Range:0016-FF16 ASCII Code)

Insertion4 Data

EXIT

Character Insertion

*/$%END*

String Format

Page 64

Code ID Position

Code Name Transmission

Length Transmission

Spare Function

Code ID Translation

If your application want to

transmite Code ID, you must set this

Enable.

Upon your usage, the transmitting

position of Code ID can be selected to place Before or After Code Data when it

transmitted.

A number of data digits can be

transmitted before the code data when

Enable is selected. The total length is

a number of barcode datas except Truncate Leading/Ending Digits. And the length has two digits.

This function is useful to show

unknown barcode symbologies which include all readable symbologies of the scanner. When Enable is selected,

Code Name will be transmitted before code data, then you will know what kind of barcode symbology is.

IBA

Disable

*IBA*

IBB

Enable

*IBB*

ICA

Before Code Data

*ICA*

ICB

After Code Data

*ICB*

IKA

Disable

*IKA*

IKB

Enable

*IKB*

IJA

Disable

*IJA*

IJB

Enable

*IJB*

IDA

Disable

*IDA*

IDB

Enable

*IDB*

PROGRAM

*/$%STR*

Other Control

Operation Manual

Page 65

PROGRAM

*/$%STR*

If scanner is operated in inverse barcode reading,

use inverse PROGRAM to entry scanner programming.

Generally, the scanner can only read positive barcode signals which

are printed black on white (call normal barcode). By setting Inverse Barcode,

the scanner will read negative barcode which bars are printed with light color and spaces with dark color (call

inverse barcode). This function is optional for some special models.

Last barcode data can re-send with trigger. It’s only for Timeout Off,

Timeout Flash and Continue scanning mode during the light source is on. In other way, if light is off, last barcode

data will be clear and re-send invaild.

Normal Barcode

IPA

*IPA*

Inverse Barcode

IPB

*IPB*

Normal & Inverse

IPC

*IPC*

Normal/Inverse Barcode

Inverse PROGRAM

Re-send with Trigger

Disable

IQA

*IQA*

Enable

IQB

*IQB*

Ratio Adjustment

1:2.5

IOA

*IOA*

1:1.35

IOB

*IOB*

1:1.5

IOC

*IOC*

EXIT

Other Control

*/$%END*

String Format

Page 66

Cable Type

IBM PC, XT, AT & PS/2

Function

5p Din(M)

5p Din(F)

6p Mini Din(M)

6p Mini Din(F)

Clock (Host)

1 --- 5 ---

Data (Host)

3 --- 1 ---

Clock (KBD.)

--- 1 --- 5

Data (KBD.)

--- 3 --- 1

Ground

2 2 3 3

GND Shield

2 2 3 3

VCC (+5V)

4 4 4 4

3 4 5 5

3 2 1

65 3 1

56 4 2

5p Din(M) 5p Din(F) 5p Mini Din(M) 6p Mini Din(F)

Macintosh

Function 4p Mini Din(M) 4p Mini Din(F)

RST (Host)

2 2

Data (Host)

1 1

Ground

4 4

GND Shield

4 4

VCC (+5V)

3 3

4p Mini Din(M) 4p Mini Din(F)

NEC 9801

Function 8p Mini Din(M) 8p Mini Din(F)

Ready (Host)

4 ---

Data (Host)

3 ---

Reset (Host)

1 1

Retry (Host)

5 5

Ready (KBD.)

--- 4

Data (KBD.)

--- 3

Ground

2 2

GND Shield

2 2

VCC (+5V)

8 8

3 1

5 2

8p Mini Din(M) 8p Mini Din(F)

Operation Manual

Page 67

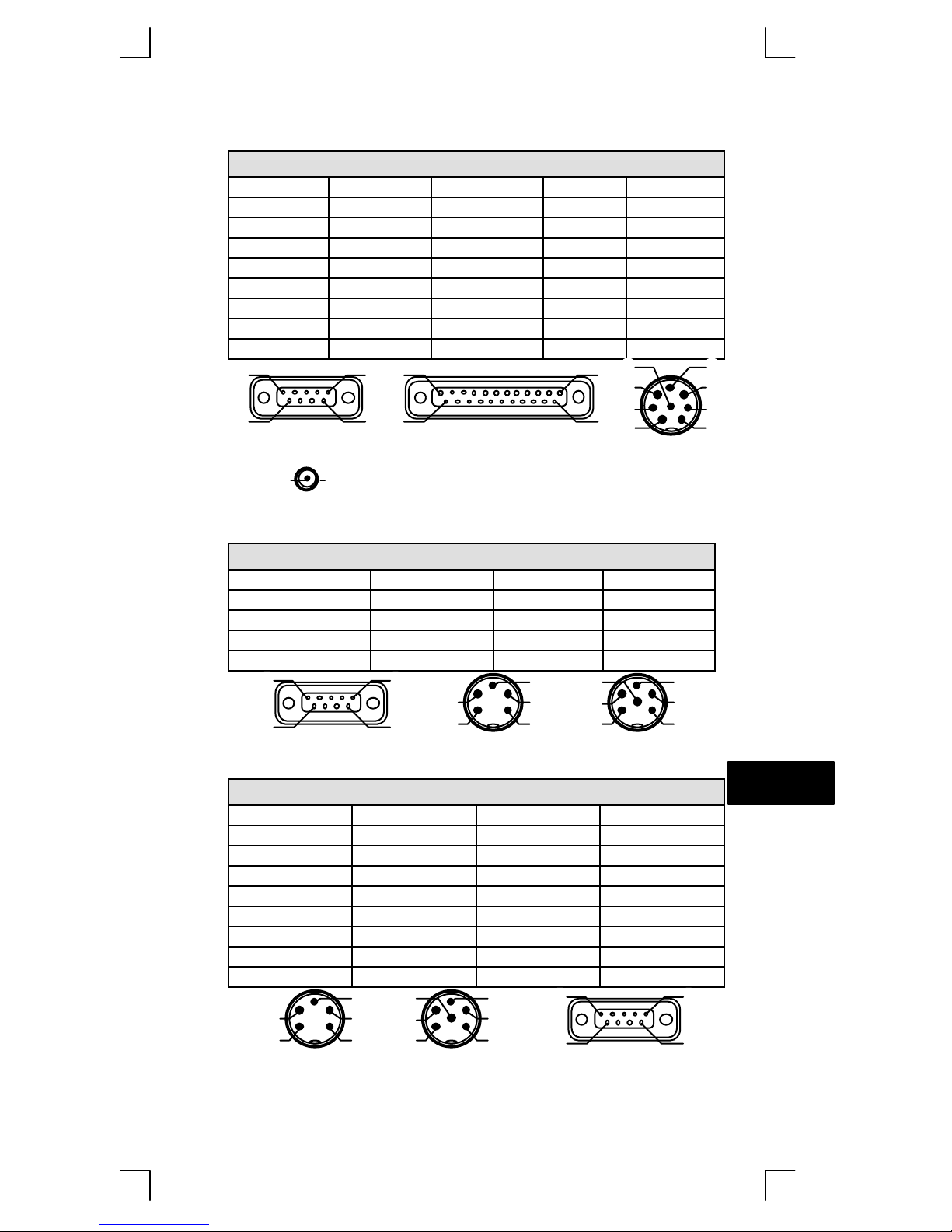

Cable Type

RS-232C

Function

9p D-Sub(F)

25p D-Sub(F)

8p Din(M)

DC Jack(M)

TxD

2 3 1 ---

RxD

3 2 2 ---

RTS

8 5 3 ---

CTS

7 4 4 ---

Shorted

4,6 6,20 --- ---

Ground

5 7 7 2

GND Shield

5 7 7 2

VCC (+5V)

9 16,25 8 1

5 1

6 25

13 1

5 3

9p D-Sub(F) 25p D-Sub(F) 8p Din(M)

DC Jack(M)

Wand Emulation

Function

9p D-Sub(F)

5p Din(M)

6p Din(M)

Data

2 2 2

Ground

7 3 3

GND Shield

8 3 3

VCC (+5V)

9 1 1

5 1

3 4 5

9p D-Sub(F) 5p Din(M) 6p Din(M)

TTL (CMOS)

Function 5p Din(M) 6p Din(M)

9p D-Sub(F)

Start Of Scan

--- 6 1

Data

2 2 2

Indicator

--- --- 3

Trigger

5 5 5

Enable

4 4 6

Ground

3 3 7

GND Shield

3 3 8

VCC (+5V)

1 1 9

3 4 5

5 1

5p Din(M) 6p Din(M) 9p D-Sub(F)

Cable Type

Page 68

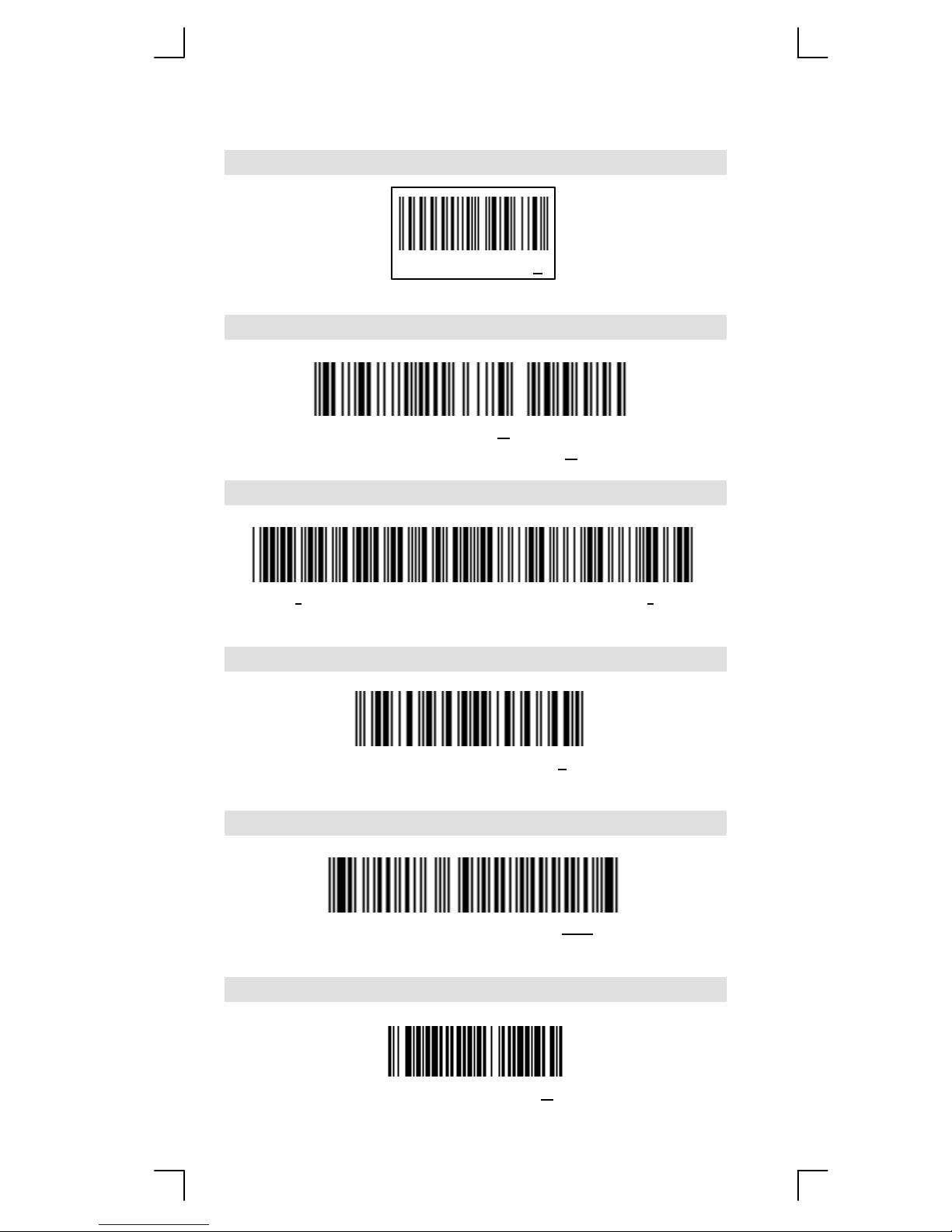

Test Chart

UPC-A

000012345670

EAN-13 (ISBN) with Add-on 5

9789572216675 00420

(ISBN: 9572216678)

Code-39 (Full ASCII Code)

* CODE39 T+E+S+T*

(Full ASCII Code: *CODE39 Test*)

Interleaved 2 of 5

12345678905

Code-93

CODE93 TESTY d

Code-128 (C Type)

0123456789e

(UCC/EAN-128: ]C10123456789e)

Operation Manual

Page 69

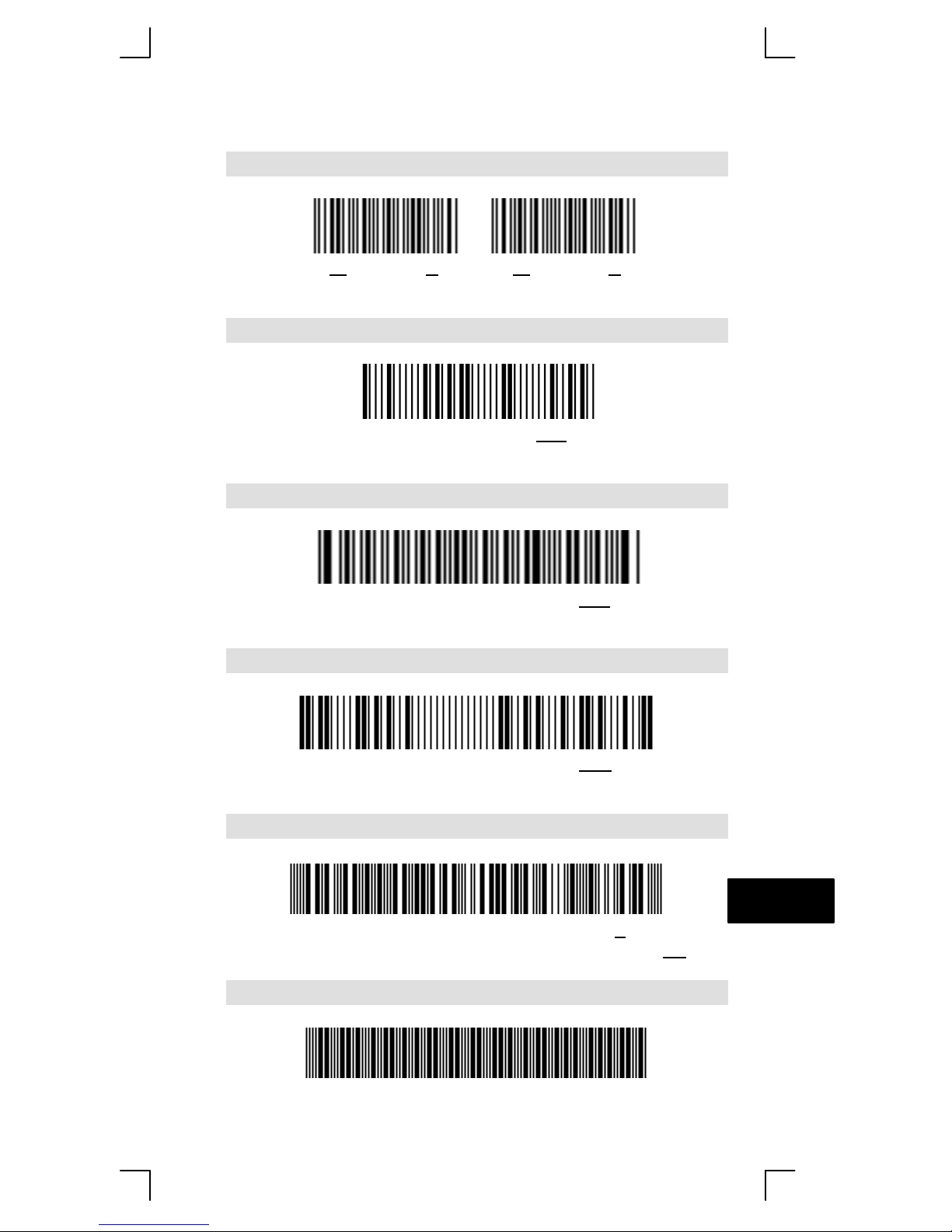

Test Chart

Codabar/NW7

C 98765D D 43210A

MSI/Plessey

10558302 5

CODE-11

886264777973 3

UK/Plessey

16520003546 1

Telepen

TELEPEN Test+

(Numeric: 57424942534251055774888916)

IATA

001020000109196

Test Chart

Page 70

Operation Manual

Page 71

ASCII Code Table

0 1 0 1

0 Null NUL DLE 1 Up F1 SOH DC1 2 Down F2 STX DC2 3 Left F3 ETX DC3 4 Right F4 EOT DC4 5 PgUp F5 ENQ NAK 6 PgDn F6 ACK SYN 7 F7 BEL ETB 8 Bs F8 BS CAN 9 Tab F9 HT EM

A F10 LF SUM

B Home Esc VT ESC

C End F11 FF FS

D Enter F12 CR GS E Insert Ctrl+ SO RS F Delete Alt+ SI US

* n

For keyboard wedge only.

2 3 4 5 6 7 0 SP 0 @ P ` p 1 ! 1 A Q a q 2 “ 2 B R b r 3 # 3 C S c s 4 $ 4 D T d t 5 % 5 E U e u 6 & 6 F V f v 7 ‘ 7 G W g w 8 ( 8 H X h x 9 ) 9 I Y i y

A * : J Z j z

B + ; K [ k {

C , < L \ l |

D - = M ] m } E . > N ^ n ~ F / ? O _ o DEL

%00

*%00*

%01

*%01*

%02

*%02*

%03

*%03*

%04

*%04*

%05

*%05*

%06

*%06*

%07

*%07*

%08

*%08*

%09

*%09*

%0A

*%0A*

%0B

*%0B*

%0C

*%0C*

%0D

*%0D*

%0E

*%0E*

%0F

*%0F*

SET

%OK

*%OK*
