Page 1
Biotage® VacMaster™ Disk
User Manual
Page 2
Contents
Biotage® VacMaster™ Disk
User Manual
CONTENTS
1 Over view
1 Specifications
1 Warranty and Liability
1 Safe Working Practices
2 Biotage
2 Multiple Units
3 Vacuum Pump Exhaust (Backside View)
4 Operation
4 Conditioning and Sample Loading
4 Elution
4 Clean the Biotage
Disk Unit and Accessories
5 Consumables and Accessories
®
VacMaster™ Disk Setup
®
VacMaster™
Biotage® VacMaster™ Disk User Manual | © Biotage 2019
Page 3
Overview
Overview

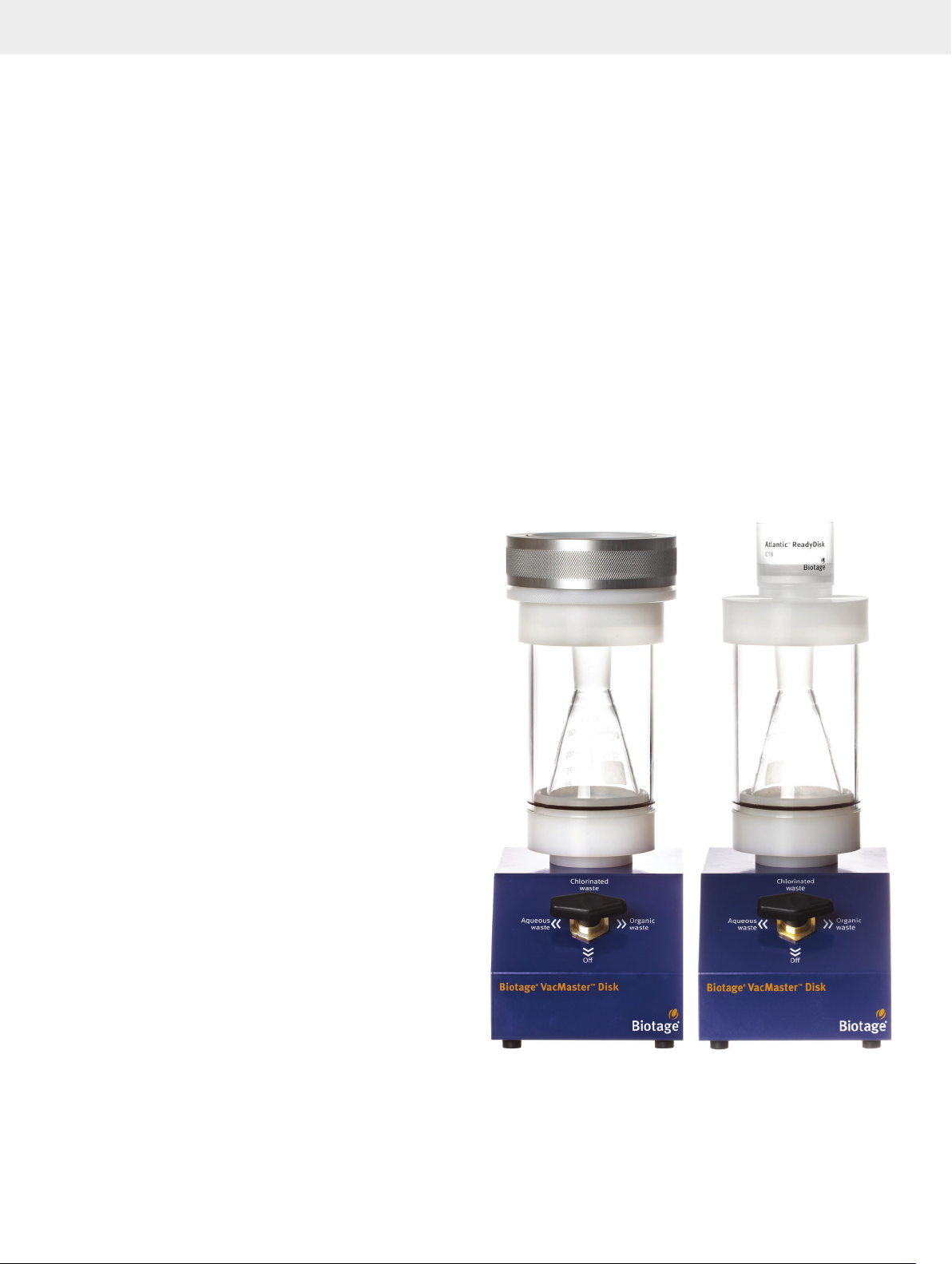

Biotage® VacMaster™ Disk extraction unit is a single port vacuum
manifold that applies vacuum to the outlet of a solid phase
extraction disk to assist in the extraction of aqueous or viscous
samples. Multiple units can be connected to the same vacuum
source to increase sample throughput.
VacMaster Disk is ideal for environmental SPE applications and
allows for the use of both 47 mm and 90 mm disks as well as
the DryDisk
the disposable Atlantic
in conjunction with a vacuum pump and three different waste
containers to allow for segregation of waste.
®
Assembly for 65 mm separation membranes and
®
ReadyDisk. The unit uses a 4-way valve
Specifications
Dimensions (W X D X H) 130 x 170 x 210 mm
Weigh t 1.1 kg (2.4 lbs)
Materials UHMWPE, brass, polypropylene, glass,
Solvent Compatibility
Chemical Resistance Wetted surfaces are all r esist ant to
(5.1 x 6.7 x 8.3 inches)
viton, aluminum, polyethylene
»
Acetone
»
Acetonitrile
»
Chloroform
»
Dichloromethane
(methylene chloride)
»
Diethyl ether
»
Ethanol
»
Ethyl acetate
»
Heptane
»
Hexane
»
Isooctane
»
Isopropanol
»
Methanol
»
Methyl te rt-butyl ether (MTBE)
»
Pentane
»
Water
»
Acidif ied Water (pH 2.0)
acidifed with HCl
typical SPE reagents.
Safe Working Practices
»
Observe appropriate safety precautions when using
Biotage
Disk stations, and related accessories.
»
Avoid eye and skin contact with harmful chemicals.
»
Use only approved glassware under vacuum.
»
Observe fire safety regulations.
»
Keep volatile chemicals in tightly sealed
containers. Avoid breathing vapors.
»
Operate with appropriate ventilation.
»
Use personal protective equipment
for eye and skin protection.
»
For specific guidelines, consult the Safety Data
Sheet (SDS) for each chemical used.
®
Solid Phase Extraction disks, VacMaster
Warranty and Liability
See the “Biotage Terms & Conditions of Sale” document at
www.biotage.com.
Page 4
Biotage® VacMaster™ Disk Setup
Biotage® VacMaster™ Disk Setup
VacMaster Disk can be operated either within a laborator y fume
hood or on a bench top with the vacuum pump’s exhaust por t
connected to a ventilation system.
Multiple Units

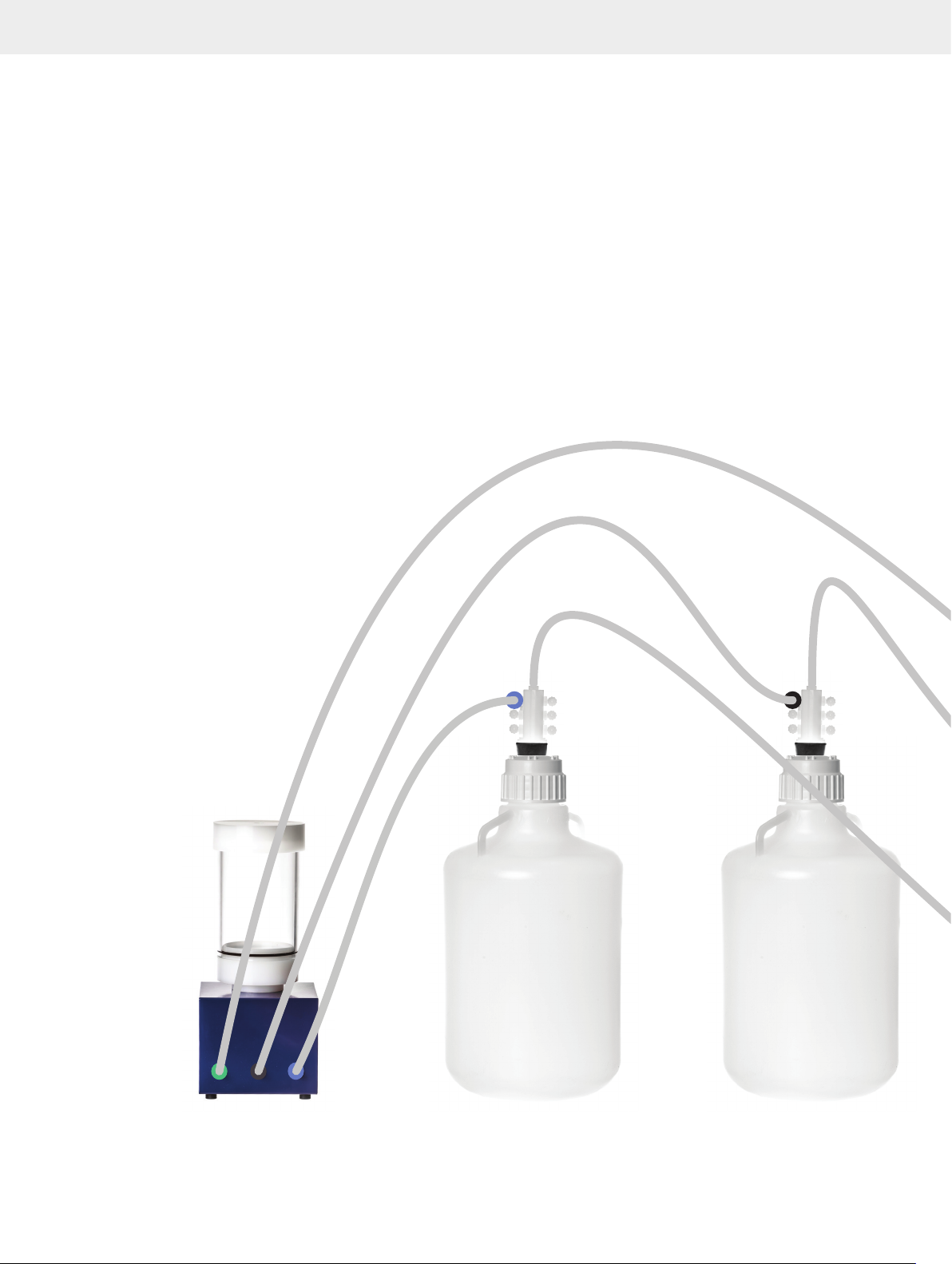

Each waste manifold has eight connections (see the picture
below), which means that a maximum of eight VacMaster Disk
units can be connected to the same waste vacuum source to
increase sample throughput.
Aqueous
waste
Waste
manifold
Chlorinated
waste
Biotage® VacMaster™ Disk User Manual | © Biotage 2019
Page 5

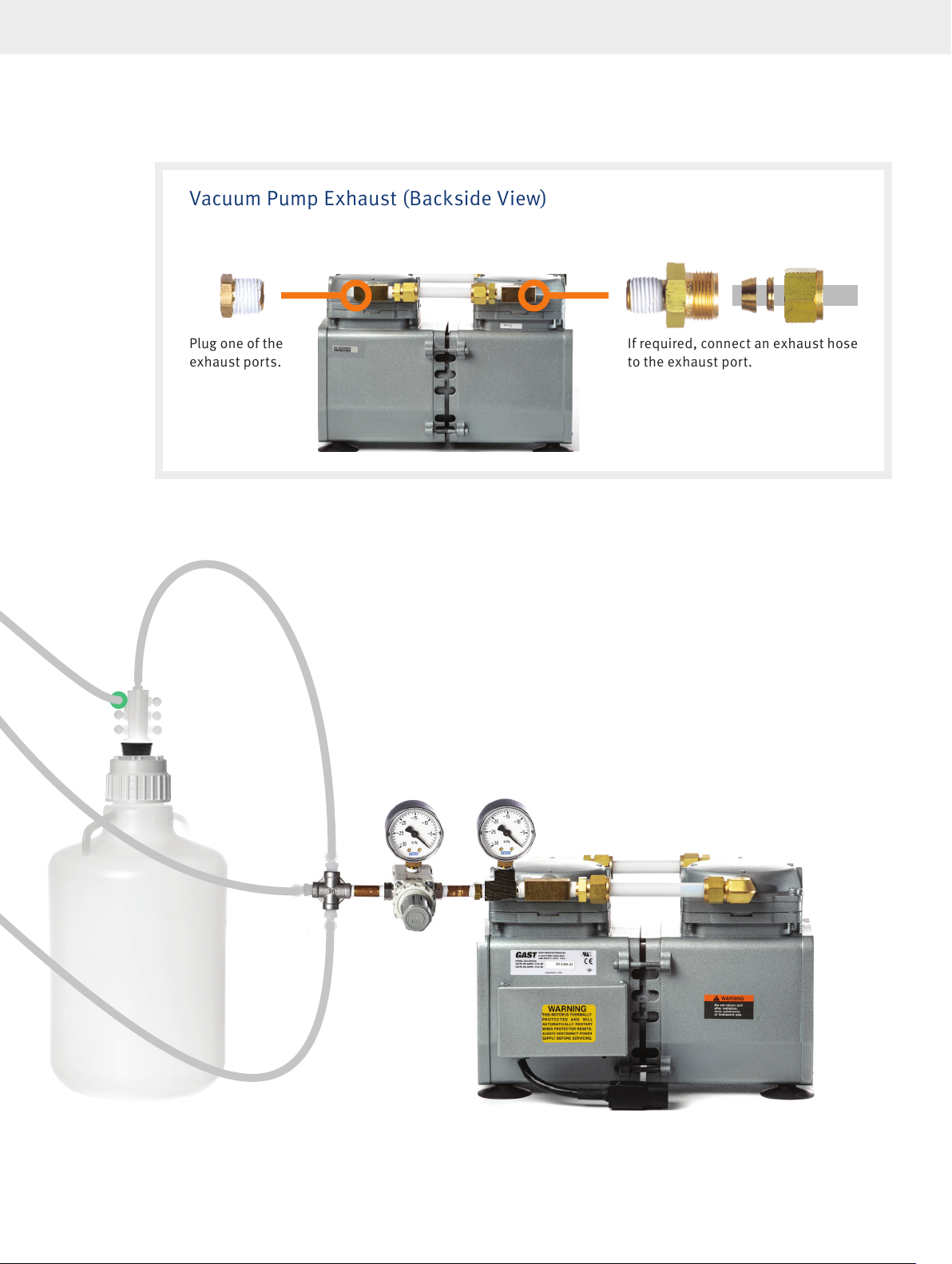

Vacuum Pump Exhaust (Backside View)
Biotage® VacMaster™ Disk Setup
Plug one of the
exhaust ports.
If required, connect an exhaust hose
to the exhaust port.
Organic
waste
Page 6
Operation
Operation
Conditioning and Sample Loading

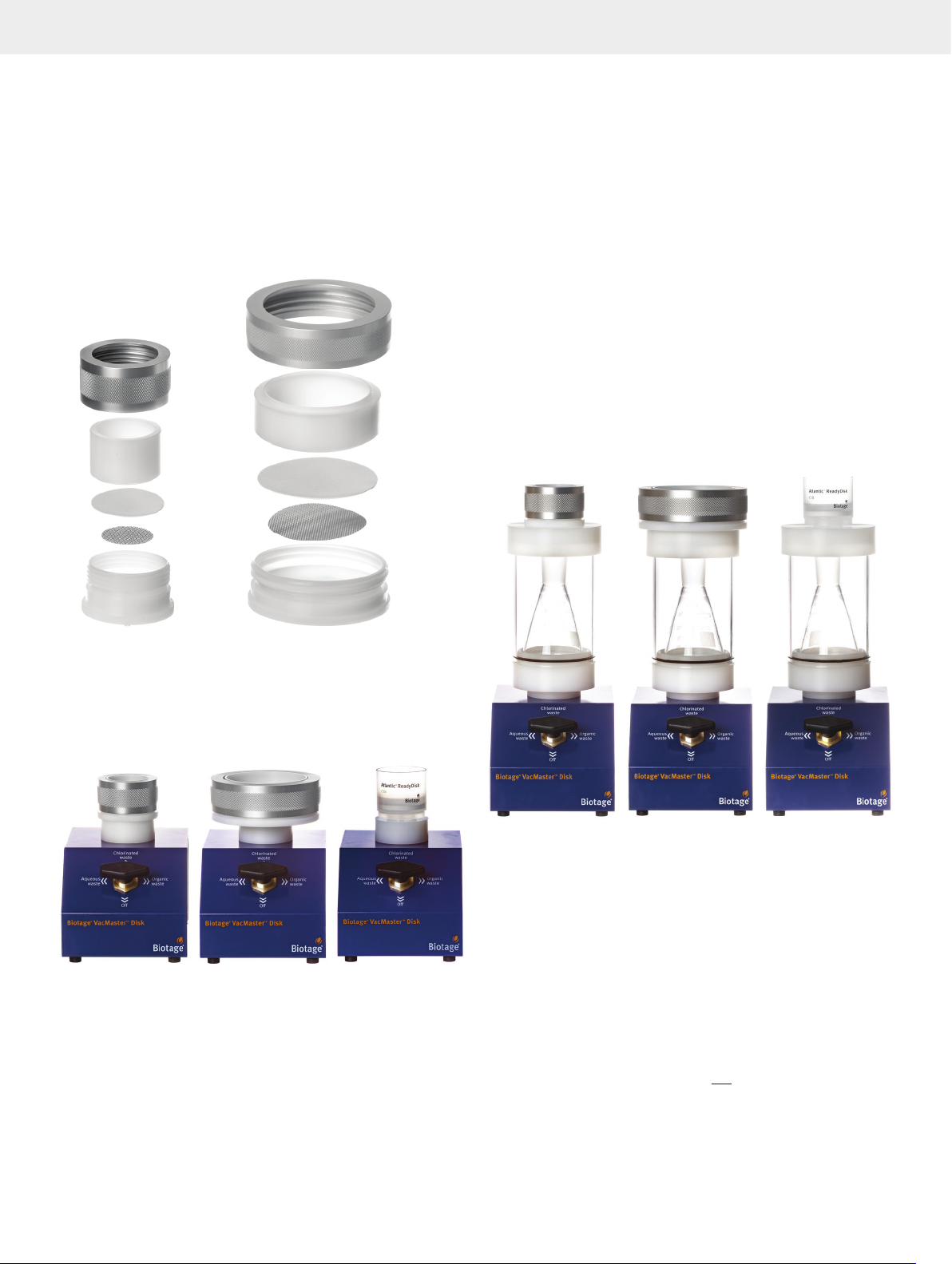

1. Place a disk inside a disk holder; see Figure 1.
The VacMaster Disk unit is compatible with any Luer
connected Solid Phase Extraction disk holders from Biotage.
Figure 1. T he disk holder assembly for 47 mm and 90 mm SPE disks.
5. Add the sample directly to the disk by turning the bottle over
onto the disk using a funnel, or by pouring it onto the disk by
hand. Turn the 4-way valve to the correct waste location for
your sample type.
Elution
6. Remove the disk holder assembly or disposable disk from
the VacMaster Disk unit.
7. Place the glass chamber onto the unit with a suitable
collection vessel inside; see Figure 3. A vial holder for 40 mL
scintillation glass vials can be purchased separately.
8. Place the disk holder assembly or disposable disk on the
top of the collection chamber and begin elution. Any waste
location can be used for this step.
2. Adjust the vacuum to the required vacuum level for the
method being utilized.
3. Remove the collection chamber and place the disk holder
assembly or a disposable Atlantic
®
ReadyDisk directly onto
the VacMaster Disk unit; see Figure 2.
Figure 2. T he disk holder assembly or disposable disk is placed dire ctly
onto the VacMaste r Disk unit during the conditioning and sample loading.
The pic ture shows a 47 mm SPE disk holder ass embly, a 90 mm SPE disk
holder assembly, and a disposable Atlantic
®
ReadyDisk.
4. Condition the disk per method requirements. Turn the 4-way
valve to the correct waste location.
Figure 3. T he disk holder assembly or disposable disk is placed on top of
the collection chamber during the elution.
Clean the Biotage® VacMaster™
Disk Unit and Accessories
If the VacMaster Disk unit has been in contact with any solvents,
allow the solvents to dry before trying to clean it. Attempting
to dry off spilled solvents may damage the surface of the unit.
Clean the surfaces of the VacMaster Disk unit using water and
a non-abrasive liquid detergent; see the solvent compatibility
list on page 1.
Clean the disk holder assemblies per standard lab procedures
using a non-abrasive detergent. Do not use a dishwasher.
Biotage® VacMaster™ Disk User Manual | © Biotage 2019
Page 7
Consumables and Accessories
Consumables and Accessories
To order consumables and accessories, see contact
information on the back of this document or visit our website
www.biotage.com.
System Accessories
Part No Description Qt y.
®
1
50-0300-01 Vacuum Regulator Assembly - Biotage
VacMaster
™
Disk
50-0300-02 Waste Line Kit (for 2 Carboys) 1
50-5023-02 Waste Line Kit (for 3 Carboys) 1
50-2480-01 Vacuum Pump, 110V 1
50-2480-02 Vacuum Pump, 220V 1
50 -213 8 Waste Carboy Assembly 1
50-0051-02 H20 Vac Regulator Kit 1
50- 0251 Collection Chamber 1
Oil & Grease Disks
Part No Description Qt y.
®
1664-100-PHT Pacific
1664-47-PHT Pacific
Premium Disk, O&G, 90 mm 50
®
Premium Disk, O&G, 47 mm 50
SPE Disks
Part No Description Qt y.
®
47-23 46 -02 Atlantic
47-23 46 -06 Atlantic
47-23 46 -08 Atlantic
47-23 46 -09 Atlantic
47-23 4 6-10 Atlantic
47-23 4 6-11 Atlantic
47-23 4 6-13 Atlantic
47-6 001 Atlantic
47-6 00 5 Atlantic
47-6 00 6 Atlantic
C18 Disk, 47 mm 24
®
DVB Disk, 47 mm 24
®
HLB-L Disk, 47 mm 40
®
HLB-M Disk, 47 mm 30
®
HLB-H Disk, 47 mm 24
®
One Pass Disk, 47 mm 24
®
High Capacity C18, 47 mm 24
®
ReadyDisk DVB 24
®
ReadyDisk C18 24
®
ReadyDisk HC-C18 24
Drying and Concentration
Part No Description Qt y.
®
50-0914 DryDisk
40-7 0 5-H T DryDisk
Assembly 65 mm Complete 1
®
65 mm Separation Membrane 50
Prefilters
Part No Description Qt y.
®
FFAP-100-HS1 Atlantic
FFAP-100-HS5 Atlantic
FFA P -77 -HT Atlantic
FFP-47-HT Pacific
FFP-90-HT Pacific
Prefilter 90 mm, 1.0 µm coarse 50
®
Prefilter 90 mm, 5.0 µm coarse 50
®
Prefilter, 47 mm, 5.0 µm coarse 50
®
O&G Prefilter, 47 mm 50
®
O&G Prefilter, 90 mm 50
Disk Holders
Part No Description Qt y.
50-0807-01 47 mm Disk Holder 1
50-0809-01 90 mm Disk Holder 1
50 -276 6 FastFlow Disk Holder 1
Supporting Disk Holder Accessories
Part No Description Qt y.
31-0454 47 mm Fine Mesh Screen Stainless Steel 1
31-0457 90 mm Fine Mesh Screen Stainless Steel 1
31- 06 61 47 mm Support Screen Stainless Steel 1
31- 06 62 90 mm Support Screen Stainless Steel 1
31- 06 63 47 mm Suppor t Screen 1
49-0662 90 mm Support Screen 1
Collection Containers & Supporting Parts
Part No Description Qt y.
03-0250 125 mL Erlenmeyer Flask, 24/40 1
99-0250-01 VOA Insert 1
160-0008 40 mL VOA Vial 72
02-0252-01 Multi Funnel for Disk Holders 1
150-0025 33 x 430 Cap Adapter For 1 L Narrow
Mouth Bottle
150-0009-04 53 x 400 Cap Adapter For 1 L Wide
Mouth Bottle
150-0006-01 89 x 400 Cap Adapter For 1 L Bottle 1
1
