TZ77XE3/TZ75XE3 Setup Manual
FCC Information and Copyright
This equipment has been tested and found to comply with the limits of a Class
B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. There is no guarantee
that interference will not occur in a particular installation.
The vendor makes no representations or warranties with respect to the
contents here and specially disclaims any implied warranties of merchantability
or fitness for any purpose. Further the vendor reserves the right to revise this
publication and to make changes to the contents here without obligation to
notify any party beforehand.
Duplication of this publication, in part or in whole, is not allowed without first
obtaining the vendor’s approval in writing.
The content of this user’s manual is subject to be changed without notice and
we will not be responsible for any mistakes found in this user’s manual. All the
brand and product names are trademarks of their respective companies.
Dichiar azione di co nform ità
sintetica
Ai sensi dell’art. 2 comma 3 del D.M.
275 del 30/10/2002
Si dichiara che questo prodotto è
conforme alle normative vigenti e
soddisfa i requisiti essenziali richiesti
dalle direttive
2004/108/CE, 2006/95/CE e
1999/05/CE
quando ad esso applicabili
Short De clarat ion of conf ormity
We declare this product is complying
with the laws in force and meeting all
the essential requirements as specified
by the directives
2004/108/CE, 2006/95/CE and
1999/05/CE
whenever these laws may be applied
Page 2
Table of Contents
Chapter 1: Introduction ........................................ 1
1.1 Before You Start......................................................................................... 1
1.2 Package Checklist ..................................................................................... 1
1.3 Motherboard Features .............................................................................. 2
1.4 Rear Panel Connectors.............................................................................. 4
1.5 Motherboard Layout ................................................................................. 5
Chapter 2: Hardware Installation .......................... 6
2.1 Installing Central Processing Unit (CPU) ............................................... 6
2.2 FAN Headers .............................................................................................. 8
2.3 Installing System Memory ........................................................................ 9
2.4 Connectors and Slots................................................................................ 11
Chapter 3: Headers & Jumpers Setup .................. 15
3.1 How to Setup Jumpers............................................................................. 15
3.2 Detail Settings .......................................................................................... 15
Chapter 4: RAID / AHCI Functions....................... 20
4.1 Operating System .................................................................................... 20
4.2 Raid Arrays............................................................................................... 21
4.3 How RAID Works ..................................................................................... 22
4.4 Smart Response Technology ................................................................... 26
Chapter 5: T-Series UEFI BIOS & Software........... 27
5.1 T-Series UEFI BIOS ................................................................................... 27
5.2 T-Series Software...................................................................................... 30
Chapter 6: Useful Help ........................................ 42
6.1 Driver Installation Note .......................................................................... 42
6.2 Extra Information .................................................................................... 43
6.3 AMI BIOS Post Code................................................................................. 44
6.4 Troubleshooting ....................................................................................... 46
Appendix: SPEC In Other Languages ................... 47
German .................................................................................................................. 48
French .................................................................................................................... 50
Ita lian ..................................................................................................................... 52
Spanish ................................................................................................................... 54
Portuguese ............................................................................................................ 56
Polish ...................................................................................................................... 58
Russian ................................................................................................................... 60
Arabic..................................................................................................................... 62
Japane se ................................................................................................................ 64
Page 3
TZ77XE3/TZ75XE3
1
CHAPTER 1: INTRODUCTION
1.1 B
EFORE YOU START
Thank you for choosing our product. Before you start installing the
motherboard, please make sure you follow the instructions below:
Prepare a dry and stable working environment with
sufficient lighting.
Always disconnect the computer from power outlet
before operation.
Before you take the motherboard out from anti-static
bag, ground yourself properly by touching any safely
grounded appliance, or use grounded wrist strap to
remove the static charge.
Avoid touching the components on motherboard or the
rear side of the board unless necessary. Hold the board
on the edge, do not try to bend or flex the board.
Do not leave any unfastened small parts inside the
case after installation. Loose parts will cause short
circuits which may damage the equipment.
Keep the computer from dangerous area, such as heat
source, humid air and water.
The operating temperatures of the computer should be
0 to 45 degrees Celsius.
1.2 PACKAGE CHECKLIST
Serial ATA Cable X 4
Rear I/O Panel for ATX Case X 1
User’s Manual X 1
Fully Setup Driver DVD X 1
SLI Bridge X 1
CFX Bridge X 1
Note: The package contents may be different due to area or your motherboard version.
Page 4
Motherboard Manual
2
1.3 MOTHERBOARD FEATURES
SPEC
CPU
Socket 1155
Int e l Co re i7 / i5 / i3 / Pent iu m / C elero n
processor
Supports Execute Disable Bit / Enhanced Inte l
Speed Step® / Intel Ar ch itecture- 64 / Ex tended
Memory 64 Technology / V irtualization Technology
/
Hyper Threading
Chipset
Intel Z77 (TZ77XE3)
Intel Z75 (TZ75XE3)
Super I/O
IT8728
Prov ides t he most com mon ly us ed legac y
Super I/O functionality.
Low Pin Count Interface
En viro nm en t Co nt rol in it iati ves,
Hardware Monitor Controller
Fan Sp eed Contro ller
ITE's "S mart Guard ian " funct ion
Main
Memory
DDR3 DIMM Slots x 4
Max Memory Capacity 32GB
Each DIMM supports 512MB/
1GB/2GB/4GB/8GB DDR3
Dual Cha nnel Mode DDR3 me mory mo du le
Supports DDR3 1066 / 1333 / 1600
Supports DDR3 1866(OC) / 2133(OC) / 2400(OC)
Register ed D IMM and ECC D IMM is not supported
SATA 2 & 3
Integrated Serial ATA Controller
Data transfer rates up to 3.0 Gb/s / 6.0 Gb/s.
SATA Version 2.0 / 3.0 specification compliant
RAID 0,1,5,10, SRT (TZ77XE3) support
LAN
Realtek RTL 8111E
10 / 100 Mb/s / 1Gb/s auto negotiation
Half / Full duplex capability
Sound
Codec
ALC892
7.1 channels audio out
High Definition Audio
USB3.0
Z77 (TZ77XE3) / Z75 (TZ75XE3) Data transfer rates up to 600 MB/s
Slots
PCI slot x2 Supports PCI expansion cards
PCI Express Gen3 x 16 slot
(Dep end ing o n CP U) x2
Supports PCI-E Gen3 x16 expansion card (Supports
SLI / CFX)
PCI Express Gen2 x 16 slot(x4) x1 Supports PCI-E Gen2 x16 expansion card
PCI Express Gen2 x 1 slot x2 Supports PCI-E Gen2 x1 expansion cards
Page 5
TZ77XE3/TZ75XE3
3
On Board
Connectors
SATA3 Connector x2 Each connector s upports 1 SATA3 devices
SATA2 Connector x4 Each connector s upports 1 SATA2 devices
Front Panel Connector x1 Supports front panel facilities
Front Audio Connector x1 Supports front panel audio function
CPU Fan Header x1 CPU Fan power supply (with Smart Fan function)
System Fan Header x2 System Fan Power supply
Clear CMOS Header x1 Restore CMOS dat a to factory def ault
USB2.0 Connector x2 Each connect or s upport s 2 front panel USB 2.0 ports
USB3.0 Connector x1 Each connect or s upport s 2 front panel USB 3.0 ports
Consumer IR Connector x1 Supports infrared function
Serial Port Connector x1 Connects to RS-232 Port
S/PDIF out Connector x1 Supports digital audio out function
Power Connector (24pin) x1 Connects to Power supply
Power Connector (8pin) x1 Connects to Power supply
Back Panel
I/O
PS/2 Keyboard x1
HDMI Port x1
VGA Port x1
DVI Port x1
LAN port x1
USB2.0 Port x4
USB3.0 Port x2
Audio Jack x6
Connects to PS/2 Keyboard
Connects to HDMI cable
Connect to D-SUB monitor
Connect to DVI monitor
Connect to RJ-45 ethernet cable
Connect to USB2.0 devices
Connect to USB3.0 devices
Provide Audio-In/Out and Mic. connection
Board Size
244 (W) x 305 (L) mm ATX
OS Support
Windows XP / V ista / 7
Biostar reserves the right to add or remove support
for any OS with or without notice
Page 6
Motherboard Manual
4
1.4 REAR PANEL CONNECTORS
Line In
Line Out
Mic In
Cen te r
Rear
Side
USB3 .0X2 USB2 .0X2
LAN
HDMI
VGA
DV I-D
PS/2
Keyboar d
US B2 .0X 2
NOTE: USB3.0 ports (only supported by Windows 7) are backward compatible with
USB2.0/USB 1.X devices.
NOTE: Maximum resolution:
HDMI: 1920 x 1200 @60Hz, compliant with HDMI 1.4a
DVI: 1920 x 1200 @60Hz
VGA: 2048 x 1536 @75Hz
NOTE: This motherboard supports dual video output:
Display Devices
VGA
DVI-D HDMI
VGA
X A A
DVI-D A X S1, C, E
HDMI A S1, C, E X
z A = Single Pipe Single Display, Intel® Dual Display Clone (Only
24-bpp), or Extended Desktop Mode
z C = Clone Mode
z E = Extended Desktop Mode
z S
1
= Single Pipe Single Display With One Display Device
Disabled
z X = Unsupported / Note Applicable
Page 7
TZ77XE3/TZ75XE3
5
1.5 MOTHERBOARD LAYOUT
USB_KBMS1
HDMI1
DVI1
VGA1
USB3_0
RJ45USB1
AUDIO1
ATXPWR2
F_AUDIO1
SYS_FAN2
PEX16_1
PEX16_2
PEX16_3
PEX1 _1
PEX1 _2
PCI1
PCI2
JSPDIFOUT1
CIR1
SYS_FAN1
J_COM1
F_USB1
F_USB2
SW_PWR1
SW_RST1
PAN EL 1
SATA6
SATA5
SATA4
SATA3
SATA2
SATA1
BAT1
JFRONT_USB3_1
Super
I/O
BIOS
JCMOS1
Intel
Z77/
Z75
ATXPWR1
DDR3_A1
DDR3_A2
DB2DR3_
DDR3_B1
CPU_FAN1
Socket 1155
CPU 1
LAN
CODEC
Note: represents the 1■
st
pin.
Page 8
Motherboard Manual
6
CHAPTER 2: HARDWARE INSTALLATION
2.1 I
NSTALLING CENTRAL PROCESSING UNIT (CPU)
Notice:
1. Remove Pin Cap before installation, and make good preservation for future use.
When the CPU is removed, cover the Pin Cap on the empty socket to ensure pin
legs won’t be damaged.
2. The motherboard might equip with two different types of pin cap. Please refer
below instruction to remove the pin cap.

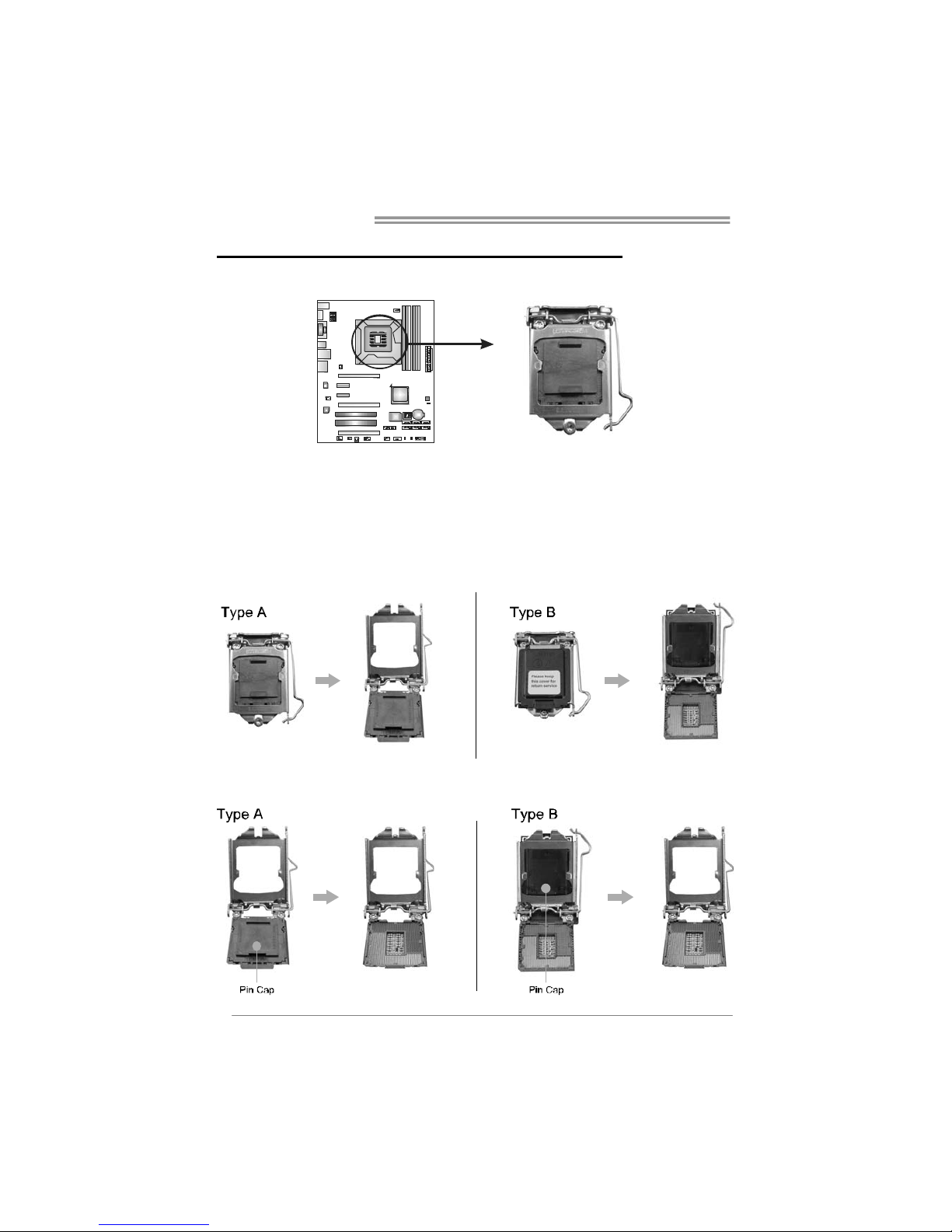

Step 1: Pull the socket locking lever out from the socket and then raise
the lever up.
Step 2: Remove the Pin Cap.
Page 9
TZ77XE3/TZ75XE3
7

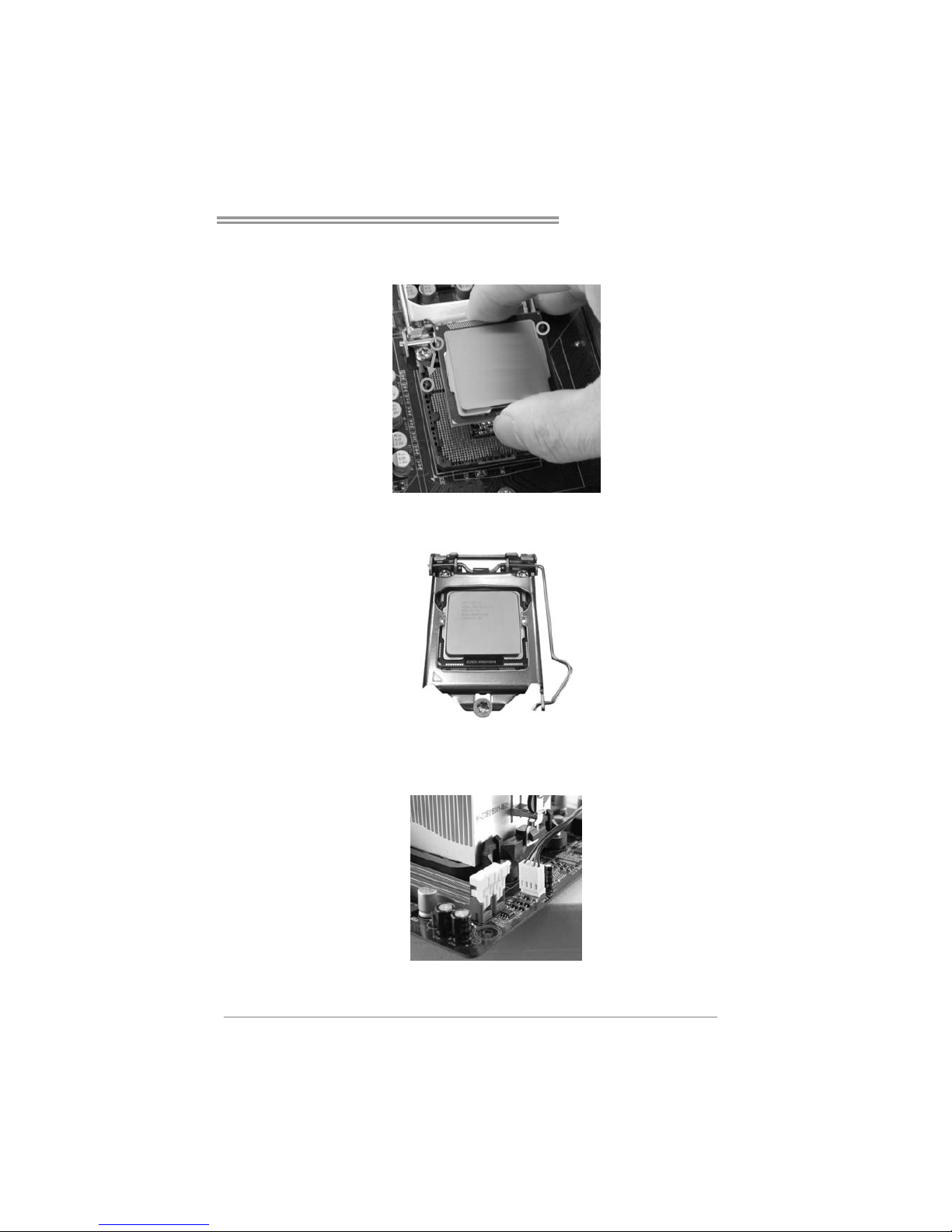

Step 3: Hold processor with your thumb and index fingers, oriented as
shown. Align the notches with the socket. Lower the processor
straight down without tilting or sliding the processor in the socket.
Step 4: Hold the CPU down firmly, and then lower the lever to locked
position to complete the installation.
Step 5: Put the CPU Fan and heatsink assembly on the CPU and buckle it
on the retention frame. Connect the CPU FAN power cable into
the CPU_FAN1 to complete the installation.
Page 10
Motherboard Manual
8
2.2 FAN HEADERS
These fan headers support cooling-fans built in the computer. The fan
cable and connector may be different according to the fan manufacturer.
Connect the fan cable to the connector while matching the black wire to
pin#1.

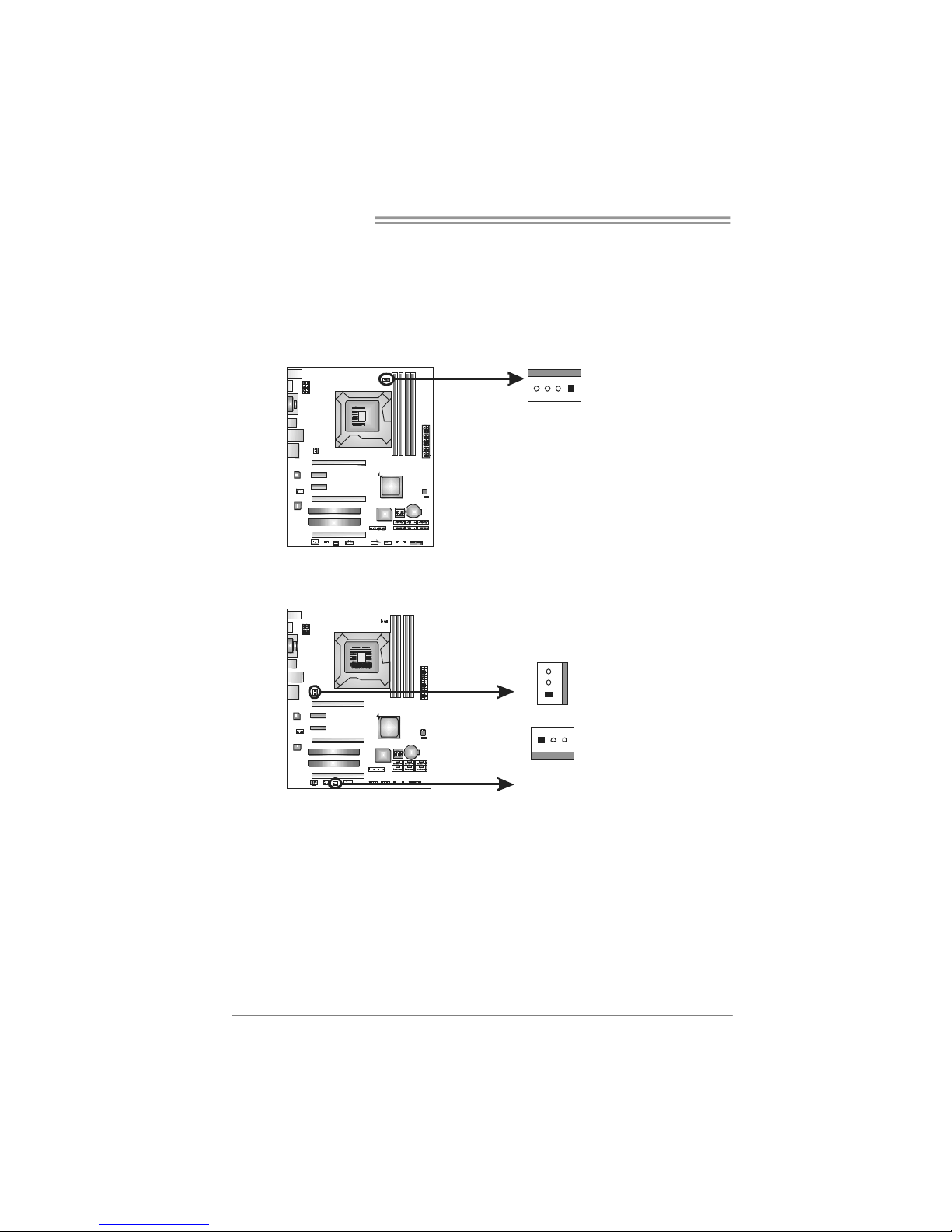

CPU_FAN1: CPU Fan Header
14
Pin
Assignment
1 Ground
2 +12V
3
FAN RPM r at e
sense
4 Smart Fan
Control
SYS_FAN1/SYS_FAN2: System Fan Headers
1
3
SYS_FAN2
SYS_FAN1
3
1
Pin
Assignment
1 Ground
2 +12V
3 FAN RPM rate
sense
Note:
The SYS_FAN1/SYS_FAN2 support 3-pin head connectors; the CPU_FAN1 supports
4-pin head connector. When connecting with wires onto connectors, please note that the
red wire is the positive a nd should be connected to pin#2, and the black wire is Ground
and should be co nnected to GND.
Page 11
TZ77XE3/TZ75XE3
9
2.3 INSTALLING SYSTEM MEMORY
A. Memory Modules
DDR3_A1
DDR3_B1
DDR3_A2
DDR3_B2
1. Unlock a DIMM slot by pressing the retaining clips outward. Align a
DIMM on the slot such that the notch on the DIMM matches the
break on the Slot.
2. Insert the DIMM vertically and firmly into the slot until the retaining
chip snap back in place and the DIMM is properly seated.
Note:
If the DIMM does not go in smoothly, do not force it. Pull it all the way out and try again.
Page 12
Motherboard Manual
10
B. Memory Capacity
DIMM Socket
Location
DDR3 Module
Total M em o ry
Size
DDR3_A1 512MB/1GB/2GB/4GB/8GB
Max is 32GB.
DDR3_A2 512MB/1GB/2GB/4GB/8GB
DDR3_B1 512MB/1GB/2GB/4GB/8GB
DDR3_B2 512MB/1GB/2GB/4GB/8GB
C. Dual Channel Memory Installation
Please refer to the following requirements to activate Dual Channel function:
Install memory module of the same density in pairs, shown in the table.
Dual Channel Status DDR3_A1 DDR3_A2 DDR3_B1 DDR3_B2
Enabled O X O X
Enabled X O X O
Enabled O O O O
Enabled O X X O
Enabled X O O X
(O means memory installed, X means memory not installed.)
The DRAM bus width of the memory module must be the same (x8 or
x16)
Page 13
TZ77XE3/TZ75XE3
11

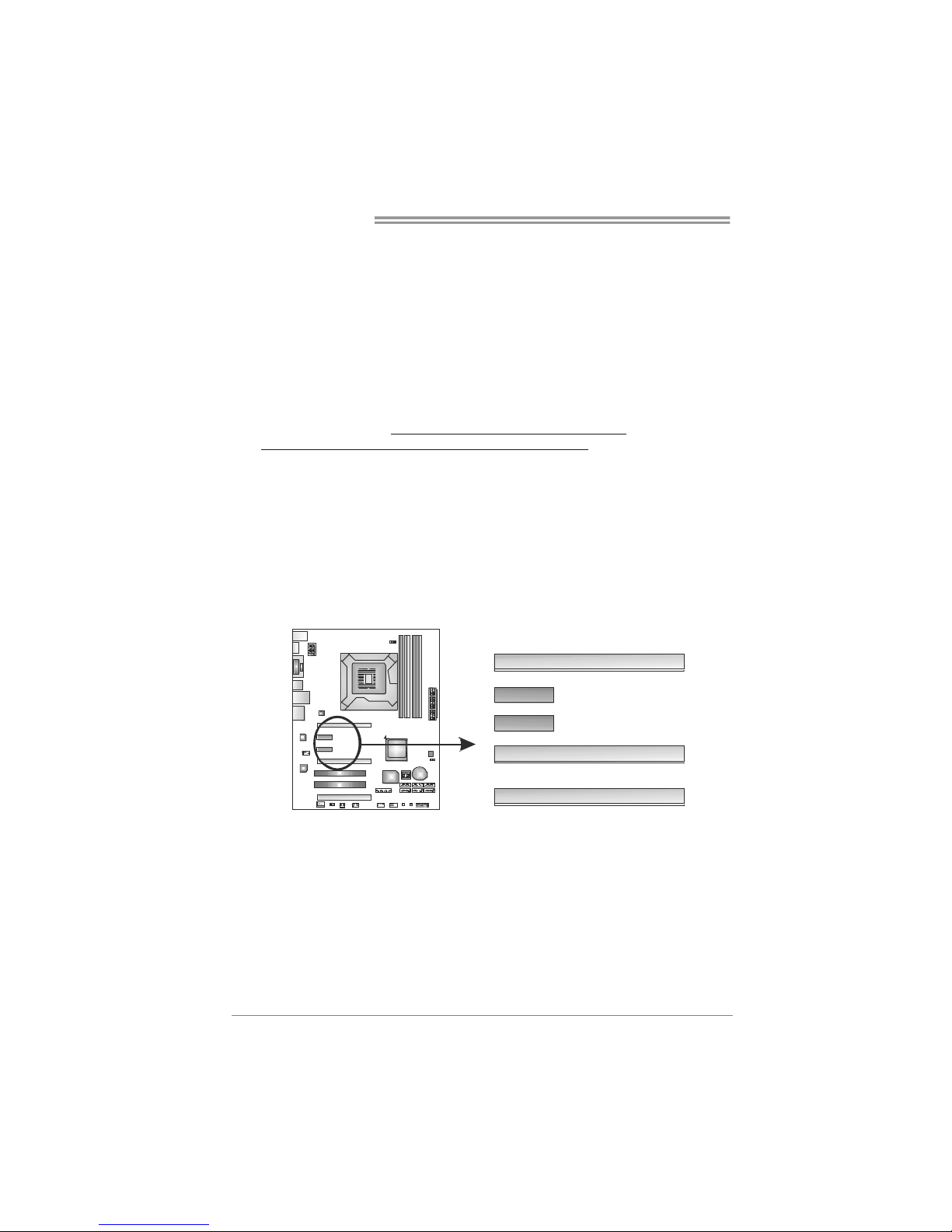

2.4 CONNECTORS AND SLOTS
SATA1/SATA2: Serial ATA3.0 Connectors
The motherboard has a PCI to SATA Controller with 2 channels SATA interface,
it satisfies the SATA 3.0 spec and with transfer rate of 6.0Gb/s.
147
SATA2
SATA1
Pin
Assignment
1 Ground
2 TX+
3 TX4 Ground
5 RX6 RX+
7 Ground
SATA3 ~ 6: Serial ATA2.0 Connectors
The motherboard has a PCI to SATA Controller with 4 channels SATA2 interface,
it satisfies the SATA 2.0 spec and with transfer rate of 3.0Gb/s.
147
SATA 6 S ATA 4
SATA 5 S ATA 3
Pin
Assignment
1 Ground
2 TX+
3 TX4 Ground
5 RX6 RX+
7 Ground
Page 14
Motherboard Manual
12
PEX16_1/ PEX16_2: PCI-Express Gen3 x16 (x16 / x8) (Nvidia SLI
and AMD CrossFireX) Slots
- PCI-Express 3.0 compliant.
- Maximum theoretical realized bandwidth of 16GB/s simultaneously per
direction, for an aggregate of 32GB/s totally.
- The speed of PEX16_1 is x16, or x8 when SLI / CFX is enabled; the speed
of PEX16_2 is x8.
- PCI-E 3.0 is supported by Core i7-3xxx / i5-3xxx CPU.
Note:
For more details about Nvidia SLI and AMD CrossFireX, please access the
website, respectively:
http://www.nvidia.com/page/support.html, and
http://support.amd.com/us/Pages/AMDSupportHub.aspx
.
PEX16_3: PCI-Express Gen2 x4 Slot
- PCI-Express 2.0 compliant.
- Maximum theoretical realized bandwidth of 2GB/s simultaneously per
direction, for an aggregate of 4GB/s totally.
PEX1_1/PEX1_2: PCI-Express Gen2 x1 Slot
- PCI-Express 2.0 compliant.
- Data transfer bandwidth up to 500MB/s per direction; 1GB/s in total.
PEX16_1
PEX1_1
PEX16_2
PEX1_2
PEX16_3
Page 15
TZ77XE3/TZ75XE3
13
PCI1/PCI2: Peripheral Component Interconnect Slots
This motherboard is equipped with 2 standard PCI slots. PCI stands for
Peripheral Component Interconnect, and it is a bus standard for expansion
cards. This PCI slot is designated as 32 bits.
PCI2
PCI1
ATXP W R2: AT X Power Source Connectors
These connectors provide +12V to CPU power circuit. If the CPU power plug is
4-pin, please plug it into Pin 1-2-5-6 of ATXPWR2.
1
48
5
Pin
Assignment
1 +12V
2 +12V
3 +12V
4 +12V
5 Ground
6 Ground
7 Ground
8 Ground
Page 16
Motherboard Manual
14
ATXP W R1: AT X Power Source Connector
This connector allows user to connect 24-pin power connector on the ATX
power supply.
1
12
13
24
Pin Assignment Pin Assignment
13 +3.3V 1 +3.3V
14 -12V 2 +3.3V
15 Ground 3 Ground
16 PS_ON 4 +5V
17 Ground 5 Ground
18 Ground 6 +5V
19 Ground 7 Ground
20 NC 8 PW_OK
21 +5V 9 Standby Voltage+5V
22 +5V 10 +12V
23 +5V 11 +12V
24 Ground 12 +3.3V
Note:
Before you power on the s ystem, please make sure that ATXPWR1 and ATXPWR2
connectors have been well plugged-in.
Page 17
TZ77XE3/TZ75XE3
15
CHAPTER 3: HEADERS & JUMPERS SETUP
3.1 H
OW TO SETUP JUMPERS
The illustration shows how to set up jumpers. When the jumper cap is
placed on pins, the jumper is “close”, if not, that means the jumper is
“open”.
Pin opened Pin closed Pin1-2 closed
3.2 D
ETAIL SETTINGS
PANEL1: Front Panel Header
This 16-pin connector includes Power-on, Reset, HDD LED, Power LED, and
speaker connection. It allows user to connect the PC case’s front panel switch
functions.
1
9
8
16
POW_LED
On/Off
RST
HLED
SPK
++
+
-
-
Pin Assignment Function Pin Assignment Function
1 +5V
Speaker
Connector
9 N/A
N/A
2 N/A 10 N/A
3 N/ A 11 N/A N/A
4 Speaker 12 Power LED (+)
Power LED
5 HDD LED (+)
Hard drive
LED
13 Power LED (+)
6 HDD LED (-) 14 Power LED (-)
7 Ground
Reset button
15 Power button
Power-on button
8 Reset control 16 Ground
Page 18
Motherboard Manual
16
F_USB1/F_USB2: Headers for USB 2.0 Ports at Front Panel
These headers allow user to connect additional USB cable on the PC front panel,
and also can be connected with internal USB devices, like USB card reader.
1
2
9
10
F_ USB2USB1 F_
Pin
Assignment
1 +5V (fused)
2 +5V (fused)
3 USB4 USB5 USB+
6 USB+
7 Ground
8 Ground
9 Key
10 NC
JFRONT_USB3_1: Header for USB 3.0 Ports at Front Panel
This header allows user to connect additional USB cable on the PC front panel,
and also can be connected with internal USB devices, like USB card reader.
1
20 11
10
Pin Assignment Pin Assignment
1 VBUS0 11 D2+
2 SSRX1- 12 D2-
3 SSRX1+ 13 Ground
4 Ground 14 SSTX2+
5 SSTX1- 15 SSTX2-
6 SSTX1+ 16 Ground
7 Ground 17 SSRX2+
8 D1- 18 SSRX29 D1+ 19 VBUS1
10 ID 20 Key
NOTE: USB3.0 is only supported by Windows 7.
Page 19
TZ77XE3/TZ75XE3
17
F_AUDIO1: Front Panel Audio Header
This header allows user to connect the front audio output cable with the PC front
panel. This header supports HD and AC’97 audio front panel connector.
1
2
9
10
Pin Assignment
1 Mic Left in
2 Ground
3 Mic Right in
4 GPIO
5 Right line in
6 Jack Sense
7 Front Sense
8 Key
9 Left line in
10 Jack Sense
JSPDIFOUT1: Digital Audio-out Connector
This connector allows user to connect the PCI bracket SPDIF output header.
31
Pin
Assignment
1 +5V
2 SPDIF_OUT
3 Ground
CIR1: Consumer IR Connector
This header is for infrared remote control and communication.
125
6
Pin Assignment
1 IrDA serial input
2 Ground
3 Ground
4 Key
5 IrDA serial output
6 IR Power
Page 20
Motherboard Manual
18
JCMOS1: Clear CMOS Header
Placing the jumper on pin2-3 allows user to restore the BIOS safe setting and
the CMOS data. Please carefully follow the procedures to avoid damaging the
motherboard.
13
13
Pin 1-2 Close:
Normal Operation (default).
13
Pin 2-3 Close:
Clear CMOS data.
※ Clear CMOS Procedures:
1. Remove AC power line.
2. Set the jumper to “Pin 2-3 close” .
3. Wait for five seconds.
4. Set the jumper to “Pin 1-2 close” .
5. Power on the AC.
6. Reset your desired password or clear the CMOS data.
J_COM1: Serial Port Connector
The motherboard has a Serial Port Connector for connecting RS-232 Port.
19
210
Pin
Assignment
1 Carrier detect
2 Received data
3 Transmitted data
4 Data terminal ready
5 Signal ground
6 Data set ready
7 Request to send
8 Clear to send
9 Ring indicator
10 NC
Page 21
TZ77XE3/TZ75XE3
19

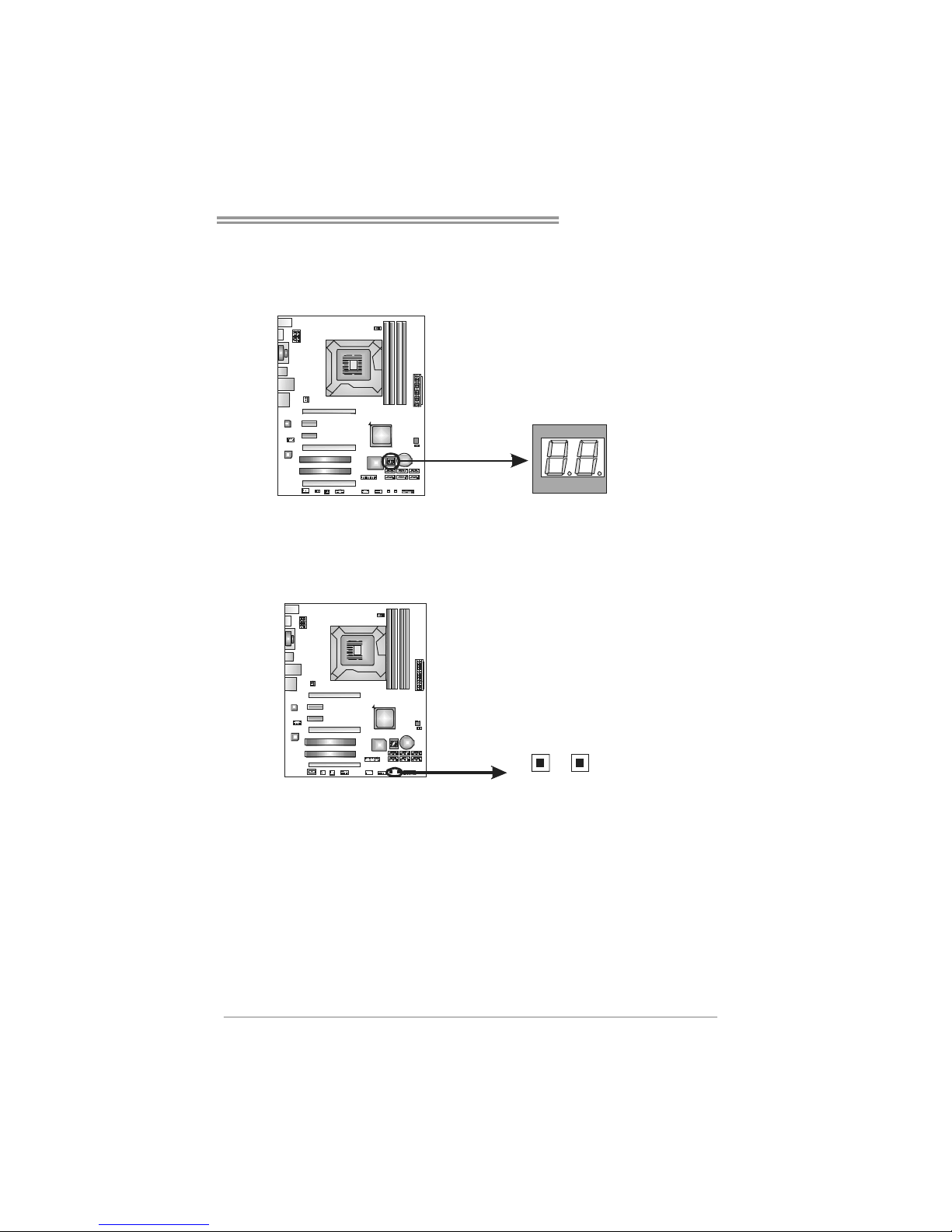

BIOS POST Code/CPU Temperature Indicator
This indicator will show POST code while booting. After the booting sequence,
it will show current CPU temperature through hexadecimal figure. Please
refer to Chapter 6.3 for all the BIOS POST codes.
On-Board Buttons
There are 2 on-board buttons.
SW_R ST1
SW_PWR1
SW_RST1: Reset button.
SW_PWR1: Power Switch button.
Page 22
Motherboard Manual
20
CHAPTER 4: RAID / AHCI FUNCTIONS
4.1 O
PERATING SYSTEM
CHIP
SATA
Controller
Configuration
Supporting OS
Intel Z77 / Z75
SATA1/SATA2/
SATA3/SATA4/
SATA5/SATA6
AHCI Windows XP SP2 (32 and 64 bit)
Windows Vista SP2 (32 and 64 bit)
Windows 7 (32 and 64 bit)
Intel Z77 / Z75
SATA1/SATA2/
SATA3/SATA4/
SATA5/SATA6
RAID Windows XP SP2 (32 and 64 bit)
Windows Vista SP2 (32 and 64 bit)
Windows 7 (32 and 64 bit)
The 'F6 Method'+ to enable RAID / AHCI Driver when installing Windows XP
1. Before you start Windows installation, copy the proper files for the Windows
version on USB floppy.
Windows XP 32 Windows XP 64
SATA1/SATA2/
SATA3/SATA4/
SATA5/SATA6
AHCI/RAID Driver
Path
x:\Driver\Ch ipset\Inte l\SATA\7
\F6flpy32\Driver\
x:\Driver\Ch ipset\Inte l\SATA\7
\F6flpy64\Driver\
2. When the operating system installation starts, follow Windows indication by
pressing F6 to load the driver.
Page 23
TZ77XE3/TZ75XE3
21
Enable RAID / AHCI Driver when installing Windows 7/Vista
1. Before you start Windows installation, copy the proper files for the Windows
version to any USB storage.
Windows 7 32 Windows 7 64
Windows Vista 32 W indows Vista 64
SATA1/SATA2/
SATA3/SATA4/
SATA5/SATA6
AHCI/RAID
Driver Path
x:\Driver\Chipset\
Intel\S ATA\7\F6flpy
32\Driver\
x:\Driver\Chipset\
Intel\S ATA\7\F6flpy
64\Driver\
x:\Driver\Chipset\
Intel\S ATA\7\F6flpy
32\Driver\
x:\Driver\Chipset\
Intel\S ATA\7\F6flpy
64\Driver\
2. Follow Windows 7 / Vista indication to load the driver in the installation process.
4.2 R
AID ARRAYS
CONNECTOR BY CHIP SPEED Support
SATA1/SATA2 Intel Z77 / Z75 6 Gb/s. RAID 0 / 1 / 5 / 10
SATA3/SATA4/SATA5/SATA6 Intel Z77 / Z75 3 Gb/s. RAID 0 / 1 / 5 / 10
RAID supports the following types of RAID arrays:
RAID 0: RAID 0 defines a disk striping scheme that improves disk read and write
times for many applications.
RAID 1: RAID 1 defines techniques for mirroring data.
RAID 10: RAID 10 combines the techniques used in RAID 0 and RAID 1.
RAID 5: RAID 5 provides fault tolerance and better utilization of disk capacity.
Page 24
Motherboard Manual
22

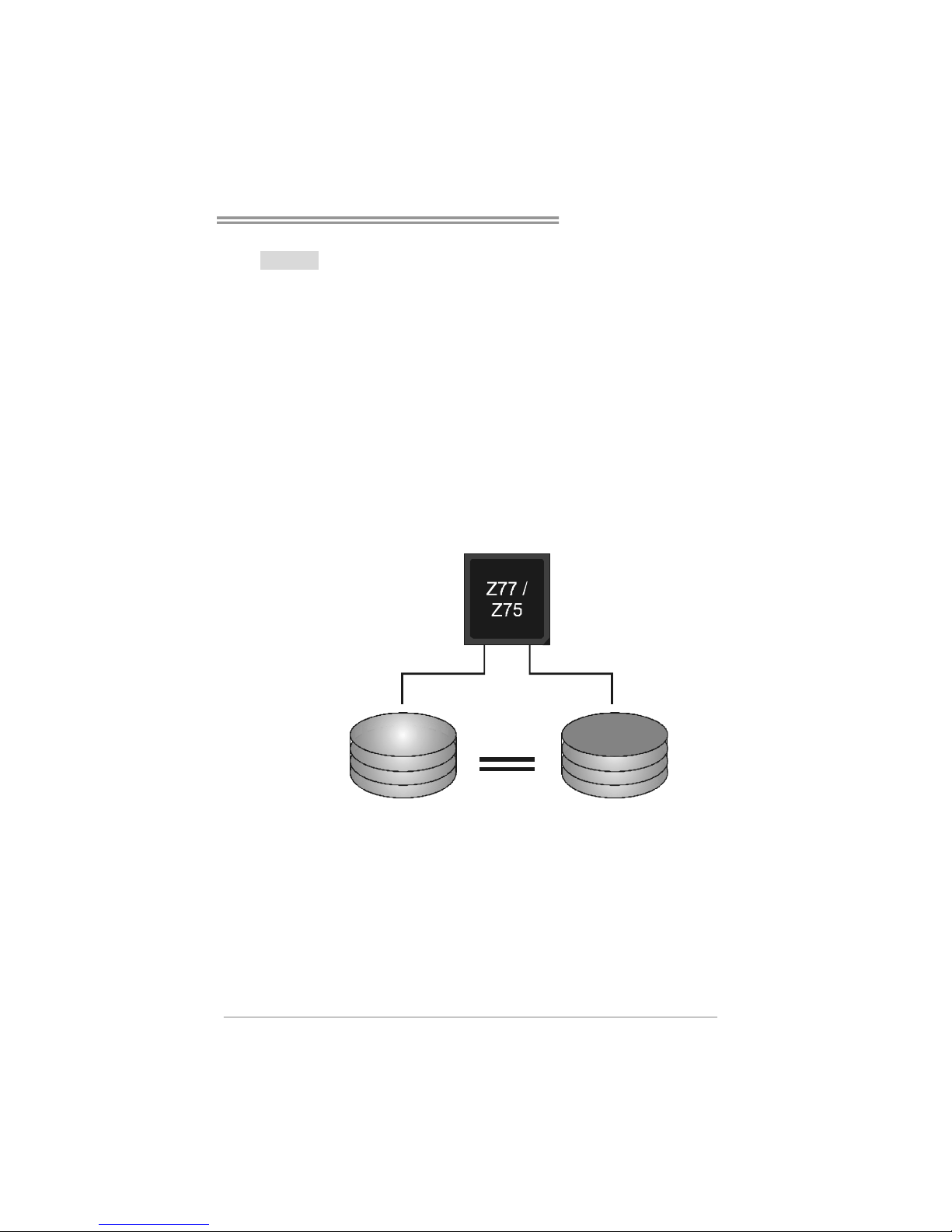

4.3 HOW RAID WORKS
RAID 0:
The controller “stripes” data across multiple drives in a RAID 0 array system. It breaks
up a lar ge f ile into smalle r b locks and pe rf or ms disk read s an d writes acro ss mu ltiple
drives in parallel. The size of each block is determined by the stripe size parameter,
which you set during the creation of the RAID set based on the system environment. This
technique reduces overall disk access time and offers high bandwidth.
Features and Benefits
Drives: Minimum 2, and maximum is up to 6 or 8. Depending on the
platform.
Uses: Intended for non-critical data requiring high data throughput, or any
environment that does not require fault tolerance.
Benefits: provides increased data throughput, especially for large files. No
capacity loss penalty for parity.
Drawbacks: Does not deliver any fault tolerance. If any drive in the array
fails, all data is lost.
Fault Tolerance: No.
Block 1
Blo ck 3
Blo ck 5
Block 2
Blo ck 4
Blo ck 6
Page 25
TZ77XE3/TZ75XE3
23

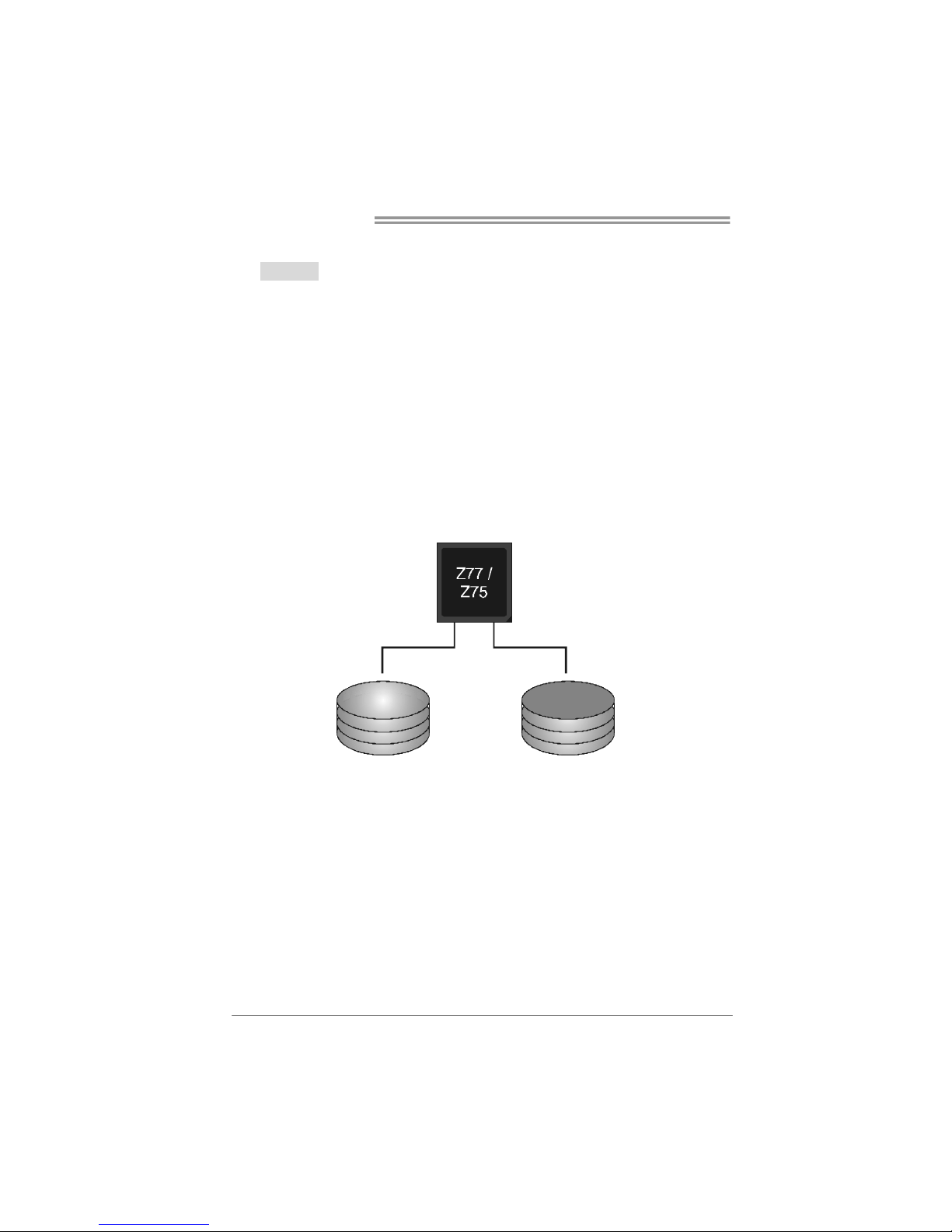

RAID 1:
Every read and write is actually carried out in parallel across 2 disk drives in a RAID 1
array system. The mirrored (backup) copy of the data can reside on the same disk or on a
second redundant drive in the array. RAID 1 provides a hot-standby copy of data if the
active volume or drive is corrupted or becomes unavailable because of a hardware failure.
RAID techniques can be applied for high-availability solutions, or as a form of automatic
backup that eliminates tedious manual backups to more expensive and less reliable
media.
Features and Benefits
Drives: Minimum 2, and maximum is 2.
Uses: RAID 1 is ideal for small databases or any other application that
requires fault tolerance and minimal capacity.
Benefits: Provides 100% data redundancy. Should one drive fail, the
controller switches to the other drive.
Drawbacks: Requires 2 drives for the storage space of one drive.
Performance is impaired during drive rebuilds.
Fault Tolerance: Ye s .
Block 1
Block 2
Block 3
Block 1
Block 2
Block 3
Page 26
Motherboard Manual
24

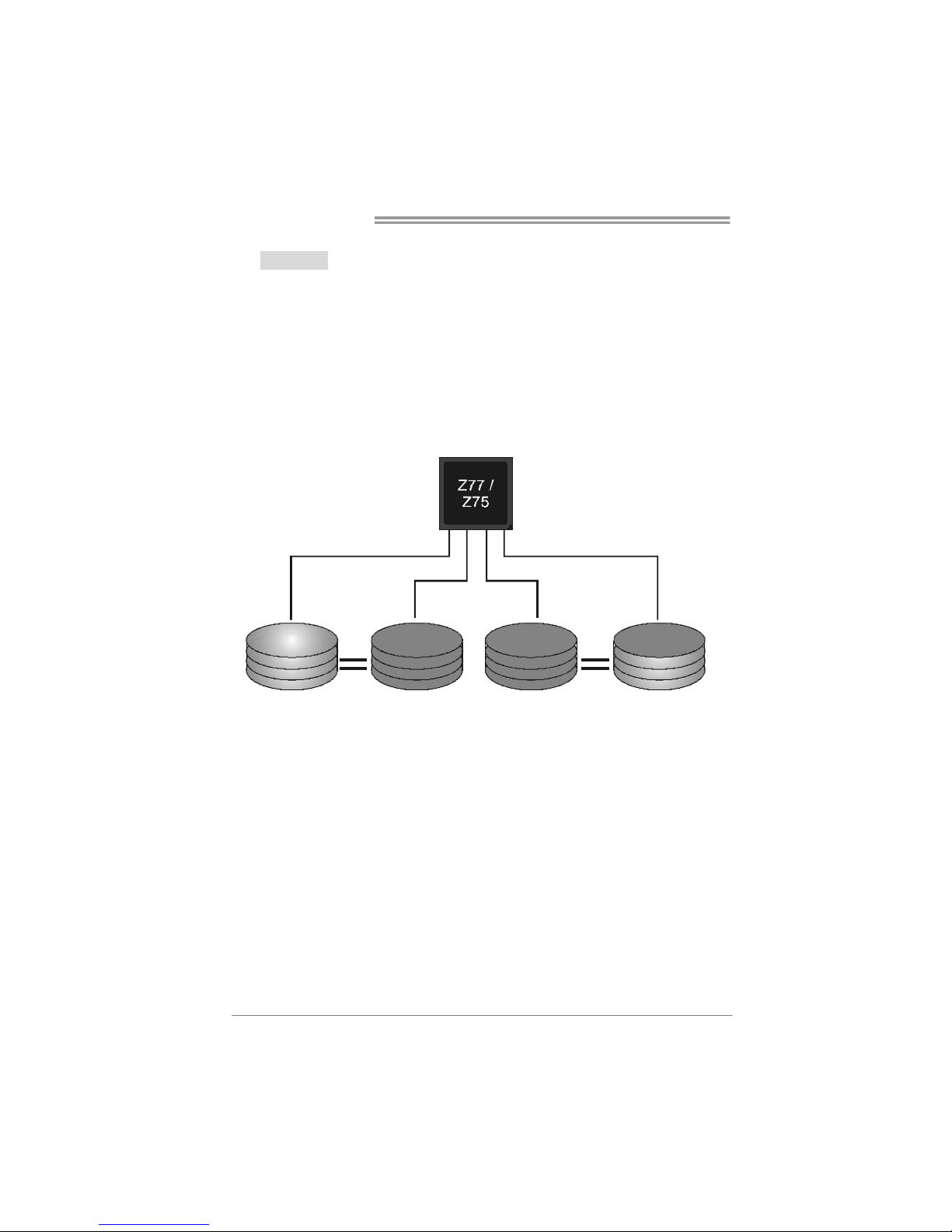

RAID 10:
RAID 1 drives can be stripped using RAID 0 techniques. Resulting in a RAID 10
solution for improved resiliency, performance and rebuild performance.
Features and Benefits
Drives: Minimum 4, and maximum is 6 or 8, depending on the platform.
Benefits: Optimizes for both fault tolerance and performance, allowing for
automatic redundancy. May be simultaneously used with other RAID levels
in an array, and allows for spare disks.
Drawbacks: Requires twice the available disk space for data redundancy,
the same as RAID level 1.
Fault Tolerance: Ye s .
Block 1
Block 3
Block 5
Block 2
Block 4
Block 6
Block 1
Block 3
Block 5
Block 2
Block 4
Block 6
Page 27
TZ77XE3/TZ75XE3
25

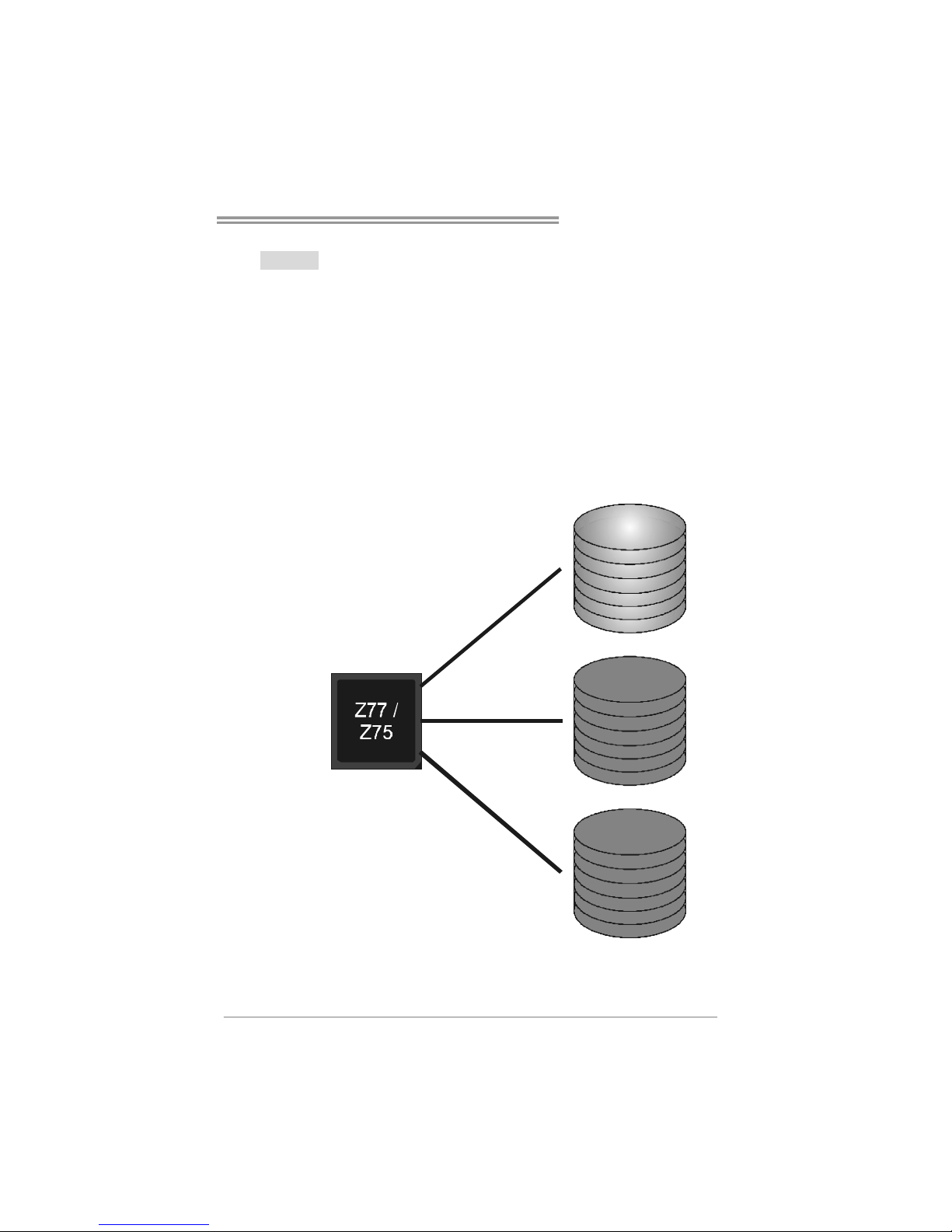

RAID 5:
RAID 5 stripes both data and parity information across three or more drives. It writes
data and parity blocks across all the drives in the array. Fault tolerance is maintained by
ensuring that the parity information for any given block of data is placed on a different
drive from those used to store the data itself.
Features and Benefits
Drives: Mi ni mu m 3.
Uses: RAID 5 is recommended for transaction processing and general
purpose service.
Benefits: An ideal combination of good performance, good fault tolerance,
and high capacity and storage efficiency.
Drawbacks: Individual block data transfer rate same as a single disk. Write
performance can be CPU intensive.
Fault Tolerance: Yes.
Disk 1
DATA 3
PA RI T Y
DATA 7
DATA 1
DATA 9
PA RI T Y
Disk 2
PA RI T Y
DATA 5
DATA 8
DATA 2
PA RI T Y
DATA 11
Disk 3
DATA 4
DATA 6
PA RI T Y
PA RI T Y
DATA 10
DATA 12
Page 28
Motherboard Manual
26
4.4 INTEL SMART RESPONSE TECHNOLOGY
With Intel(R) Smart Response Technology, the performance of RAID with an Intel
SSD drive can be improved better. This function is only for TZ77XE3.
Installing Smart Response Technology
1. Install RAID drives (RAID 0, 1, 5) and an Intel SSD.
2. Activate RAID mode from BIOS, and install operating system.
3. Insert the Setup DVD to the optical drive, and Install all drivers (including
Intel(R) Smart Response Technology Driver). After all processes finish,
reboot the system.
4. Intel(R) SRT service icon will show in notification area. Double click it to
open the main windows.
5. Select “Accelerate” page, and make sure the status of accelerated device
has been enabled accelerated.
Page 29
TZ77XE3/TZ75XE3
27
CHAPTER 5: T-SERIES UEFI BIOS & SOFTWARE
5.1 T-S
ERIES UEFI
BIOS

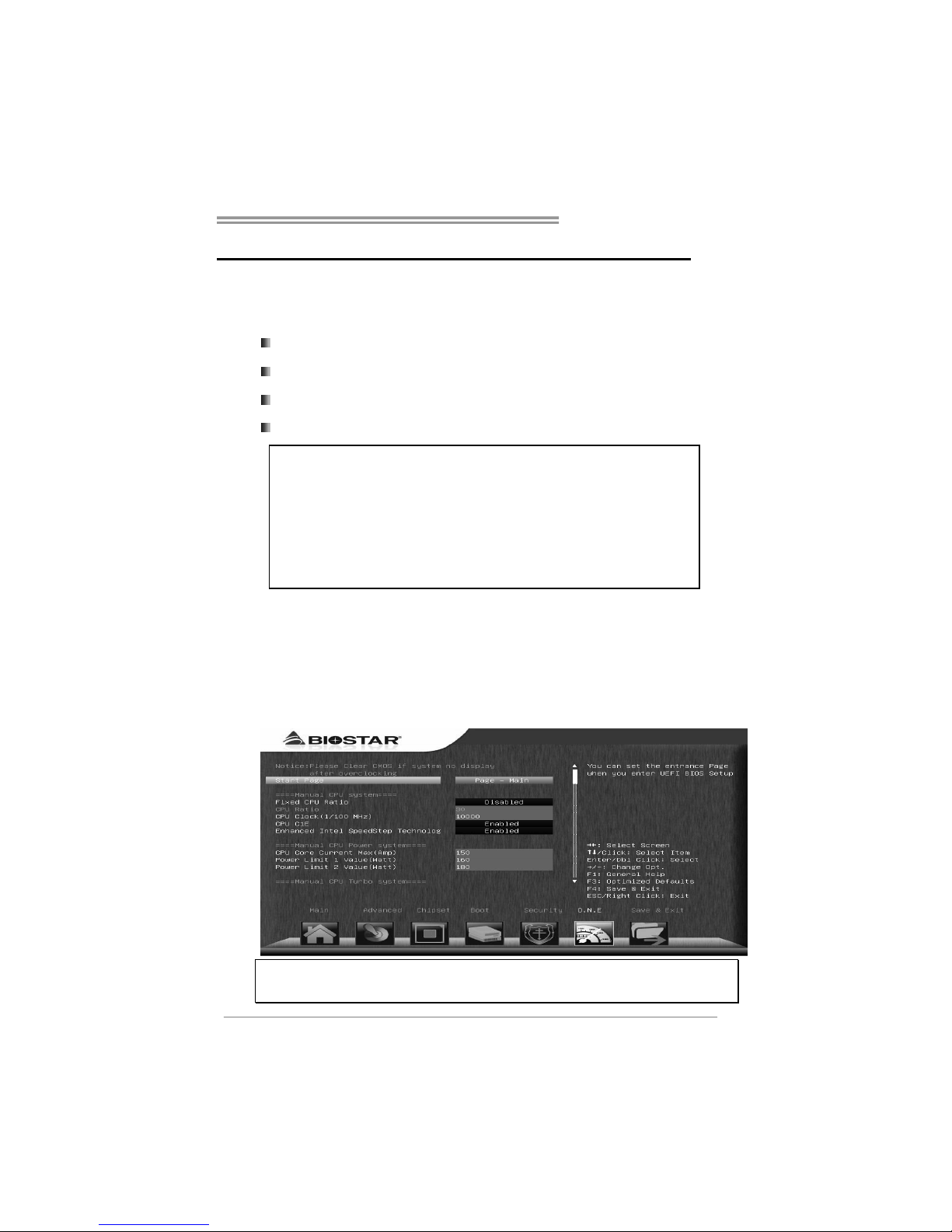

T-Series UEFI BIOS Features
Overclocking Navigator Engine (O.N.E.)
Self Recovery System (S.R.S)
Smart Fan Function
BIO-Flasher: Update UEFI BIOS file from USB Flash Drive
A. Overclocking Navigator Engine (O.N.E.)
O.N.E provides 4 systems allowing users to customize personal overclock
settings: Manual CPU System, Manual Memory System, Manual PWM
System, and Manual Voltage System.
Notice :
Not all types of Intel CPU perform above overclock setting ideally; the difference will be based on the
selected CPU model.
!! WARNING !!
For better system performance, the UEFI BIOS fir mware is being
continuously updated. The UEFI BIOS information described below
in this manual is for your reference only and the actual UEFI BIOS
information and settings on board may be different from this
manual. For further information of setting up the UEFI BIOS,
p
lease refer to the UEFI BIOS Manual in the Setup DVD.

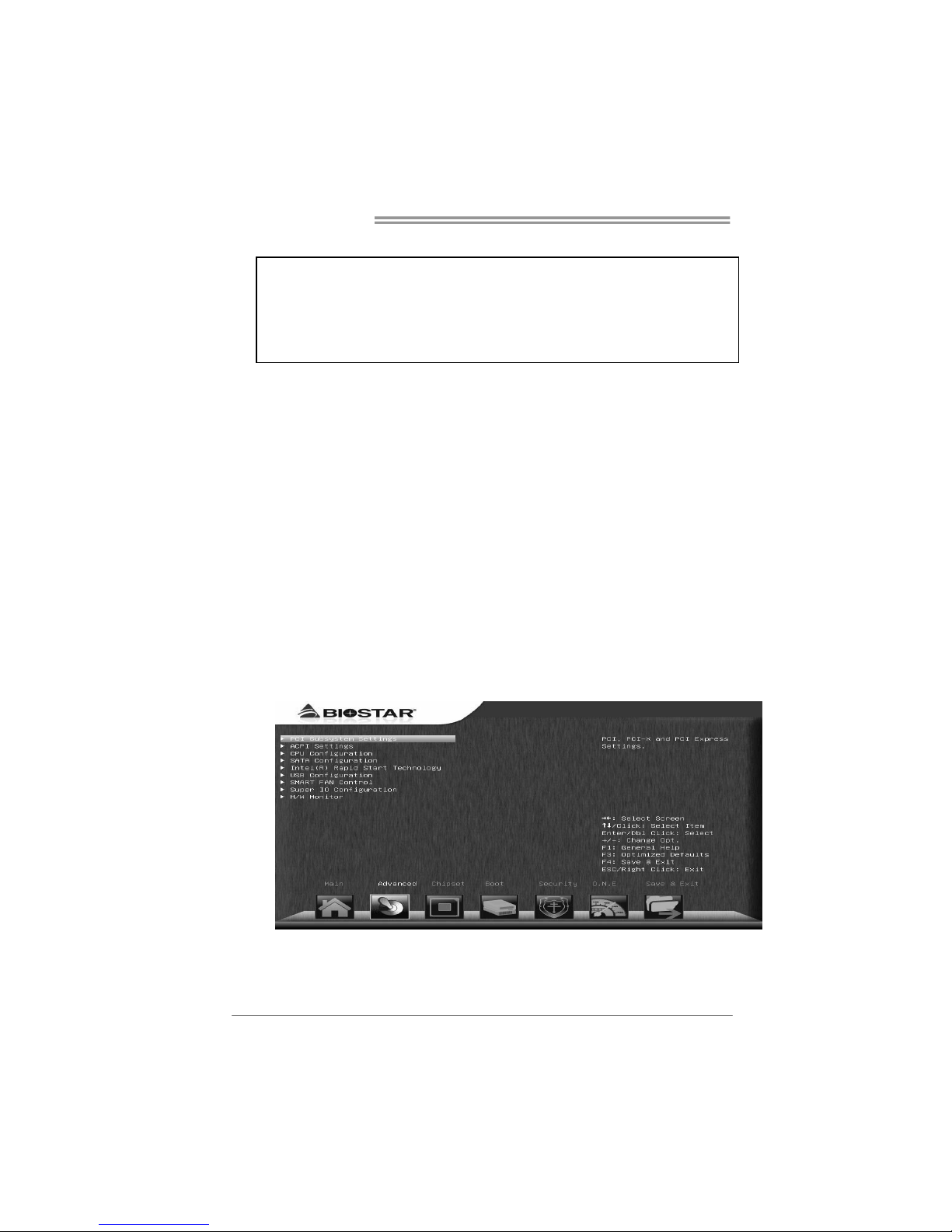

Page 30
Motherboard Manual
28
B. Self Recovery System (S.R.S.)
This function can’t be seen under UEFI BIOS setup, and is always on whenever
the system starts up.
However, it can prevent system hang-up due to inappropriate overclock
actions.
When the system hangs up, S.R.S. will automatically log in the default UEFI
BIOS setting, and all overclock settings will be re-configured.
C. Smart Fan Function
Smart Fan Function is under “Smart Fan Control” in “Advanced Menu”.
This is a brilliant feature to control CPU/System Temperature vs. Fan speed.
When enabling Smart Fan function, Fan speed is controlled automatically by
CPU/System temperature.
This function will protect CPU/System from overheat problem and maintain the
system temperature at a safe level.
↓
NOTE
Overclock is an optional process, but not a “must-do” process; it is not
recommended for inexperienced users. Therefore, we will not be responsible
for any hardware damage which may be caused by overclocking. We also
would no t guarantee any overclocking performance.
Page 31
TZ77XE3/TZ75XE3
29
CPU Smart FAN
This item allows you to control the CPU Smart Fan function.
CPU FAN Calibrate
Press [ENTER] to calibrate CPU FAN.
Control Mode
This item provides several operation modes of the fan.
Fan Ctrl OFF(℃)
When CPU temperature is lower than this value, the CPU fan will keep
lowest RPM. The range is from 0~127, with an interval of 1.
Fan Ctrl On(℃)
When CPU temperature is higher than this value, the CPU fan controller
will turn on. The range is from 0~127, with an interval of 1.
Fan Ctrl Start Value
This item sets CPU FAN Start Speed Value. T he range is from 0~127, with
an interval of 1.
Fan Ctrl Sensitive
The bigger the numeral is, the higher the FAN speed is. The range is from
0~127, with an interval of 1.
Page 32
Motherboard Manual
30
5.2 T-SERIES SOFTWARE
Installing T-Series Software
6. Insert the Setup DVD to the optical drive. The driver installation program
would appear if the Auto-run function has been enabled.
7. Select Software Installation, and then click on the respective software
title.
8. Follow the on-screen instructions to complete the installation.
Launching T-Series Software
After the installation process is comp leted, you will see the software icon
showing on the desktop. Double-click the icon to launch it.

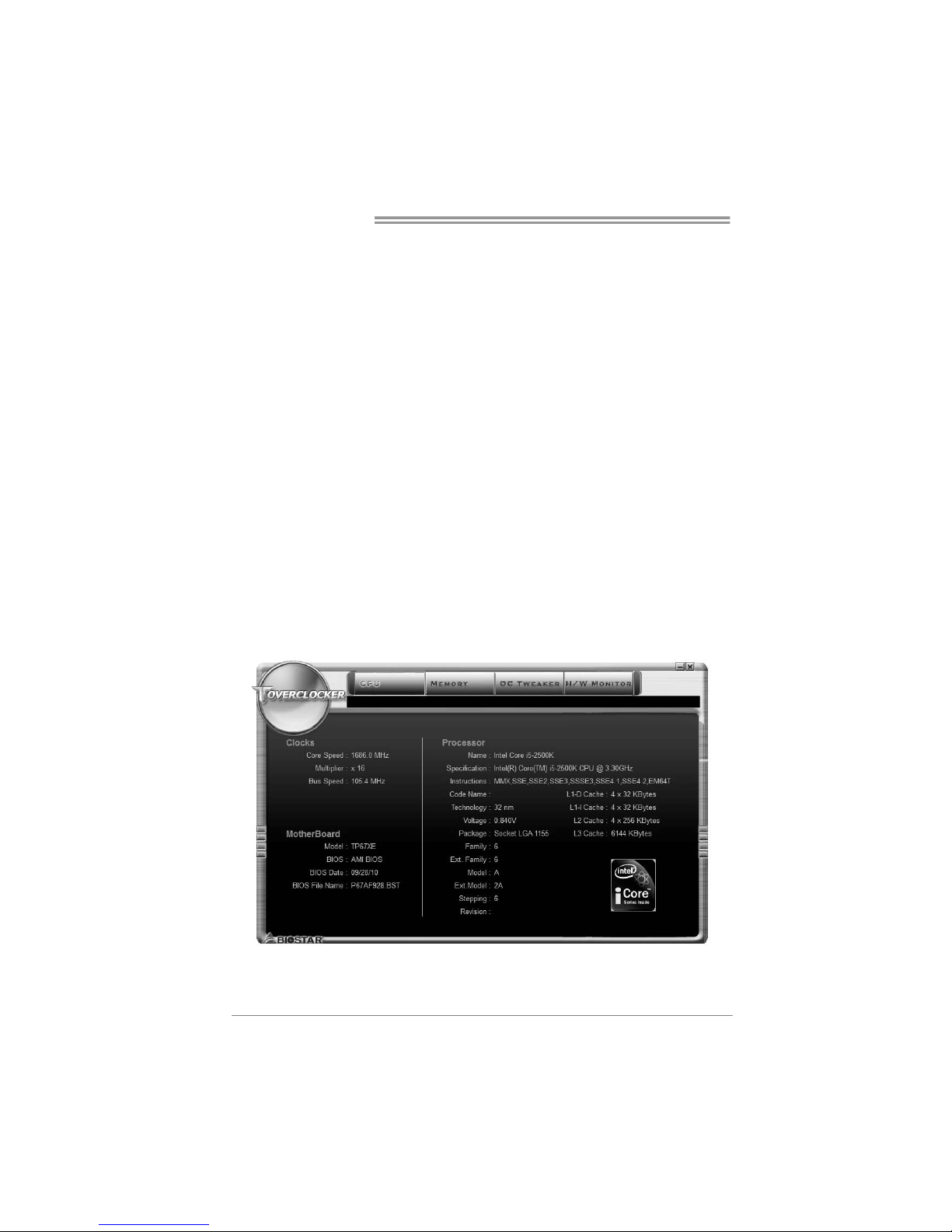

TOverclocker
TOverclocker presents a simple Windows-based system performance
enhancement and manageability utility. It features several powerful and easy
to use tools such as Overclocking for enhancing system performance, also for
special enhancement on CPU and Memory. Smart-Fan management and PC
health are for monitoring system status. This utility also allows you to make
overclocking profiles saving unlimitedly, and pre-set OC modes are for easy
OC. (The illustration below is for reference only)
Page 33
TZ77XE3/TZ75XE3
31
The CPU tab provides information on the CPU and motherboard.
The Memory tab provides information on the memory module(s).
You can select memory mod ule on a specific slot to see its information.

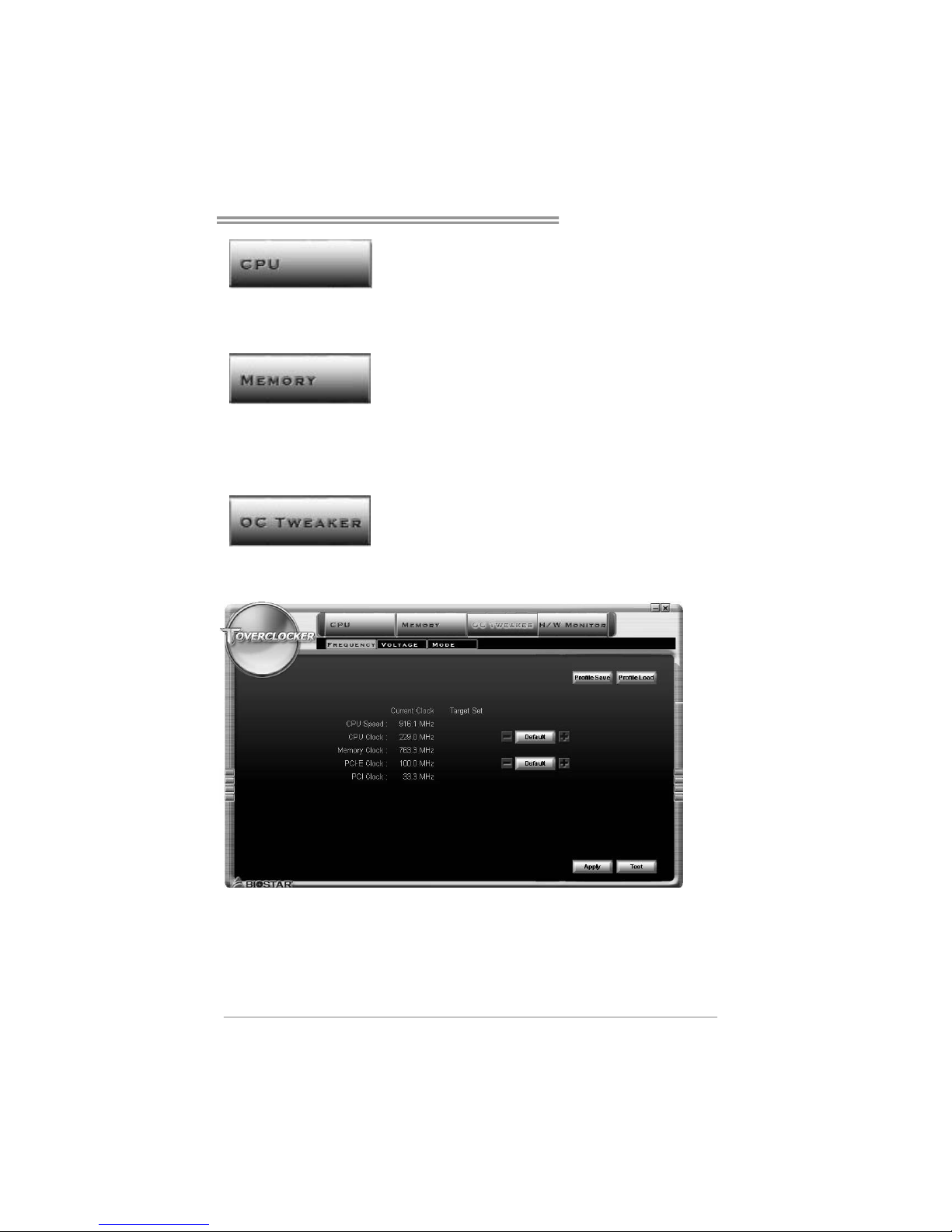

The OC Tweaker tab allows you to change system clock settings and voltages
settings. It also provides six pre-set modes for you:
Page 34
Motherboard Manual
32
3 Pre-set Modes: V6, V12, AUTO for different overclocking experience.

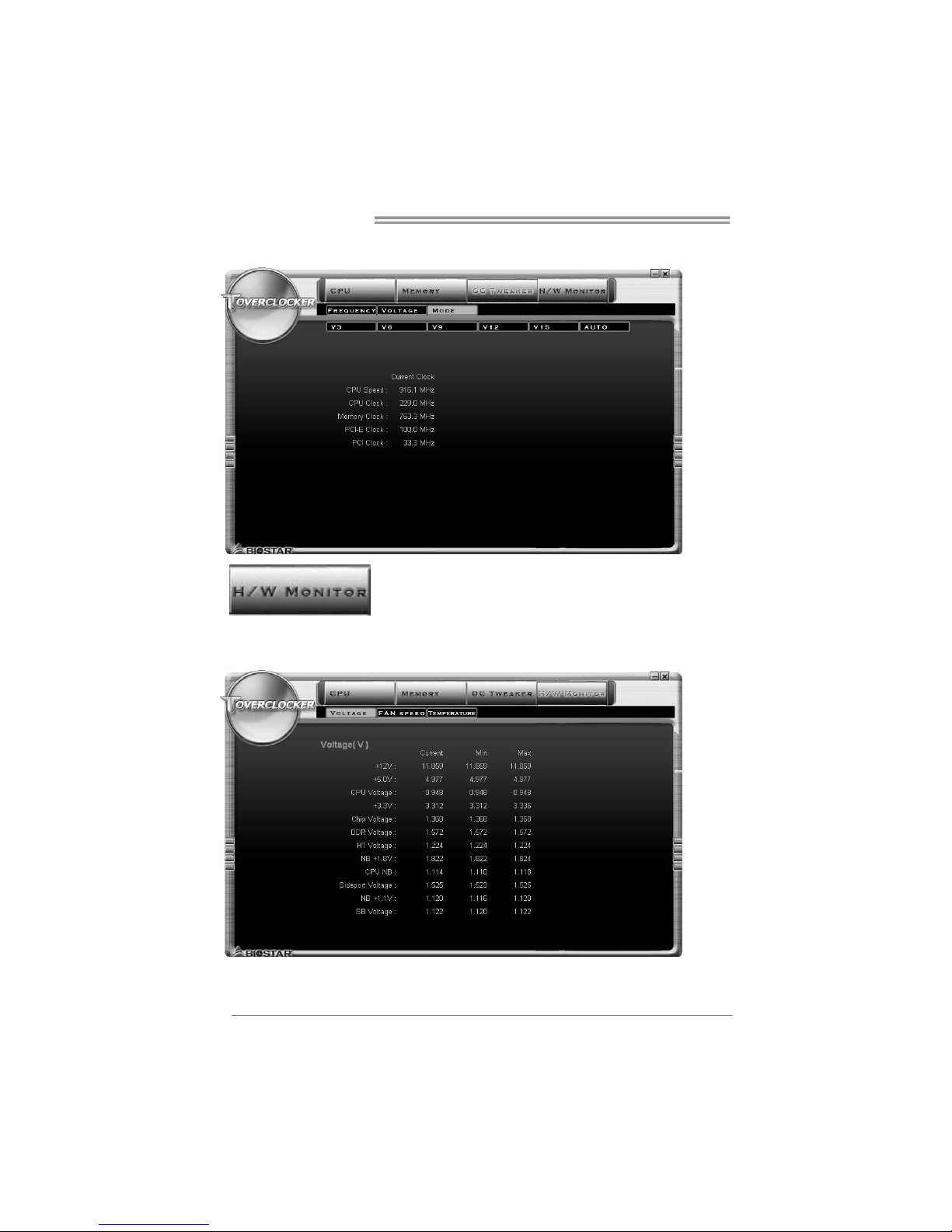

The HW Monitor tab allows you to monitor hardware voltage, fan speed, and
temperature. Besides, you also can set related values for CPU Smart Fan.
Page 35
TZ77XE3/TZ75XE3
33
Pressing TOVERCLOCKER logo
displays information about
manufacturer and software version.
You can upd a te current version by
clicking the button “Live Update.”
Green Power II Utility

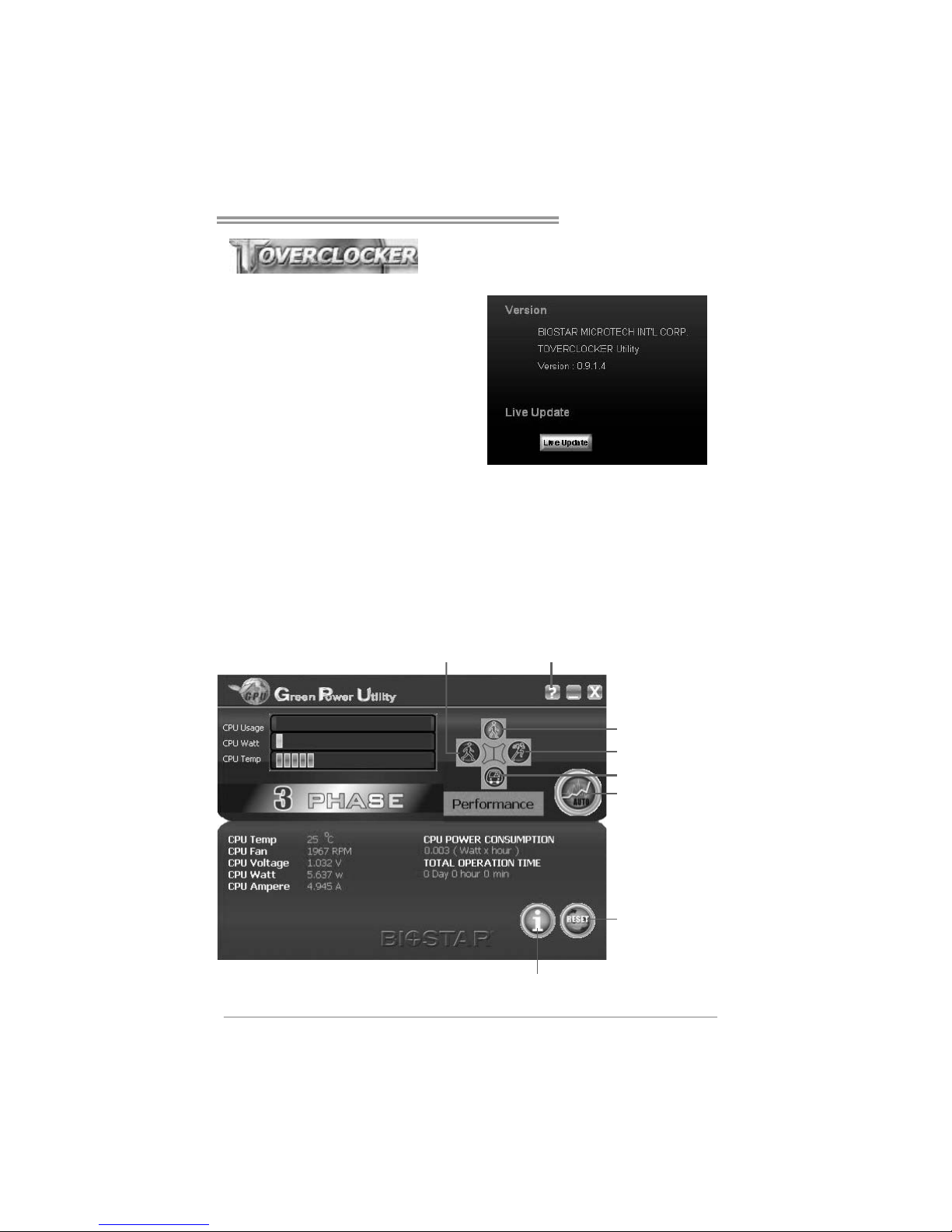

BIOSTAR G.P.U II (Green Power Utility) is a new functio n. The utility enhances
energy efficiency by disabling extra phases while CPU is on light loading; it
features 4+1 power phases, current power saving, and toal power saving. This
tool integrates a friendly GUI to monitor your CPU Usage, CPU Watt, and CPU
Temperature. Moreover, it optimizes power saving and best power efficiency
on your system. (The illustration below is for reference only)
Display manufacturer &
software version information
Display CPU
information
Re set Time &
Consum ptio n
Auto Phase Mode
Maxi-Energy Mode
Typical Mode
Medium Mode
Performance
Mode
Page 36
Motherboard Manual
34
G.P.U Mode Setting
This utility provides five modes, upon your requirements, to improve
system performance or to save power consumption.
Note: Even if the modes saving more power consumption are chosen, the
system still can keep excellent performance.
Auto Phase Mode
System switches the mode automatically according to current system
loading condition.
Performance Mode
This is the mode saving power consumption most. Least energy will
be used in the system.
Typical Mode
Compared with that in Performance Mode, energy consumption in this
mode is a little bit more.
Medium Mode
This is the standard system power saving mode.
Maxi-Energy Mode
This is the best system performance mode.
Page 37
TZ77XE3/TZ75XE3
35

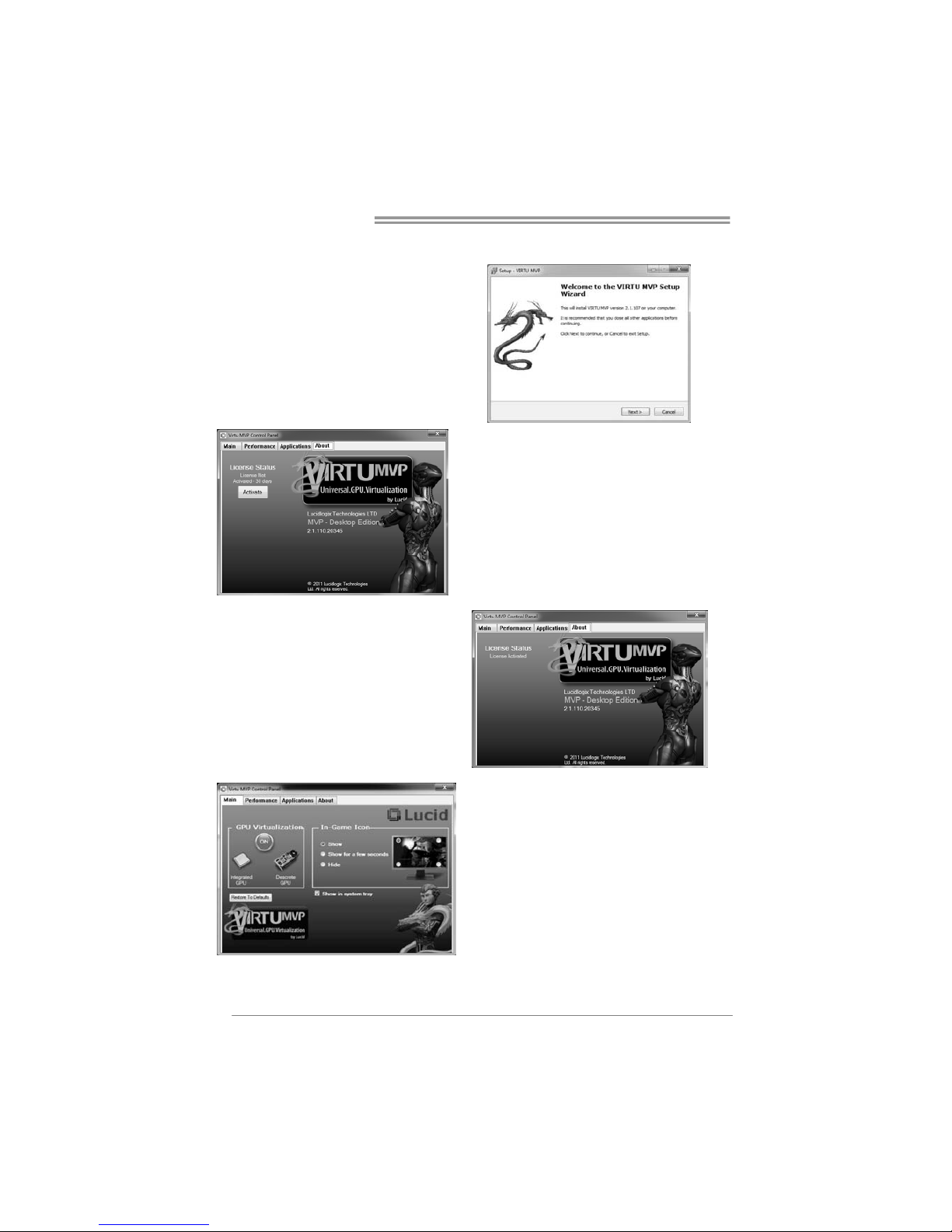

Guide of Lucid VIRTU MVP Installation
With Lucid VIRTU MVP solution, the resource and performance of graphics
can be integrated so that user can choose the suitable mode for the
requirement.
System Requirements
CPU: CPU with integrated graphics support
Chipset: Any chipset with integrated graphics output
Discrete GPU: Any Nvidia/AMD GPU with DX9/DX10/DX11
support
Memory Size: 2GB
Operating System: Windows 7 32-bit and 64-bit
Hard Disk Space: 20MB
BIOS Setting
Please try to set Onboard VGA (IGD) as first display if you want to use the
i-mode.
i-Mode & d-Mode
1. i-Mode: i-Mode provides user with near zero performance overhead on
3D graphics games, Virt ual VSync and Hyperformance feat ures,
integrated GPU special features and power saving options
when no 3D gaming is used. To use Lucid VIRTU Universal
MVP solution in i-Mode, display must be always connected to
motherboard video output.
2. d-Mode: d-Mode is provided for demanding 3D gamers to achieve
uncompromised 3D performance of discrete GPU installed in
the system, along with Virtual VSync and Hyperformance
quality/performance improvement features. In this mode, Virtu
Universal MVP allows user to utilize integrated GPU special
features such as trascoding, while display is connected to
discrete GPU.
Note1: In most cases the differences of 3D performance between i-Mode and d-Mode are
unnoticeable to the user, so it is recommended to use i-mode to save power.
Note2: To use Lucid VIRTU Universal MVP solution in d-Mode, display must be connected to
discrete GPU installed in the system.
Page 38
Motherboard Manual
36
Software Installation
1. Install VGA Driver and VIRTU
MVP Software.
2. If for some reason auto-activation
process fails, or the internet is not
availab le for 30 days, user will
have to manually activate Virtu
Universal MVP by pressing
“Activate” button through the
Internet.
3. When Virtu Universal MVP
successfully activates, the screen
will look like this.
4. After installation, please restart
the computer. The left screenshot
is control panel.
Page 39
TZ77XE3/TZ75XE3
37
eHot-Line (Optional)
eHot-Line is a convenient utility that helps you to contact with our
Tech-Support system. This utility will collect the system information which is
useful for analyzing the problem you may have encountered, and then send
these information to our tech-support department to help you fix the problem.
Before you use this uti lity, please set Outlook E xpress as your default e-mail client application prog ram.

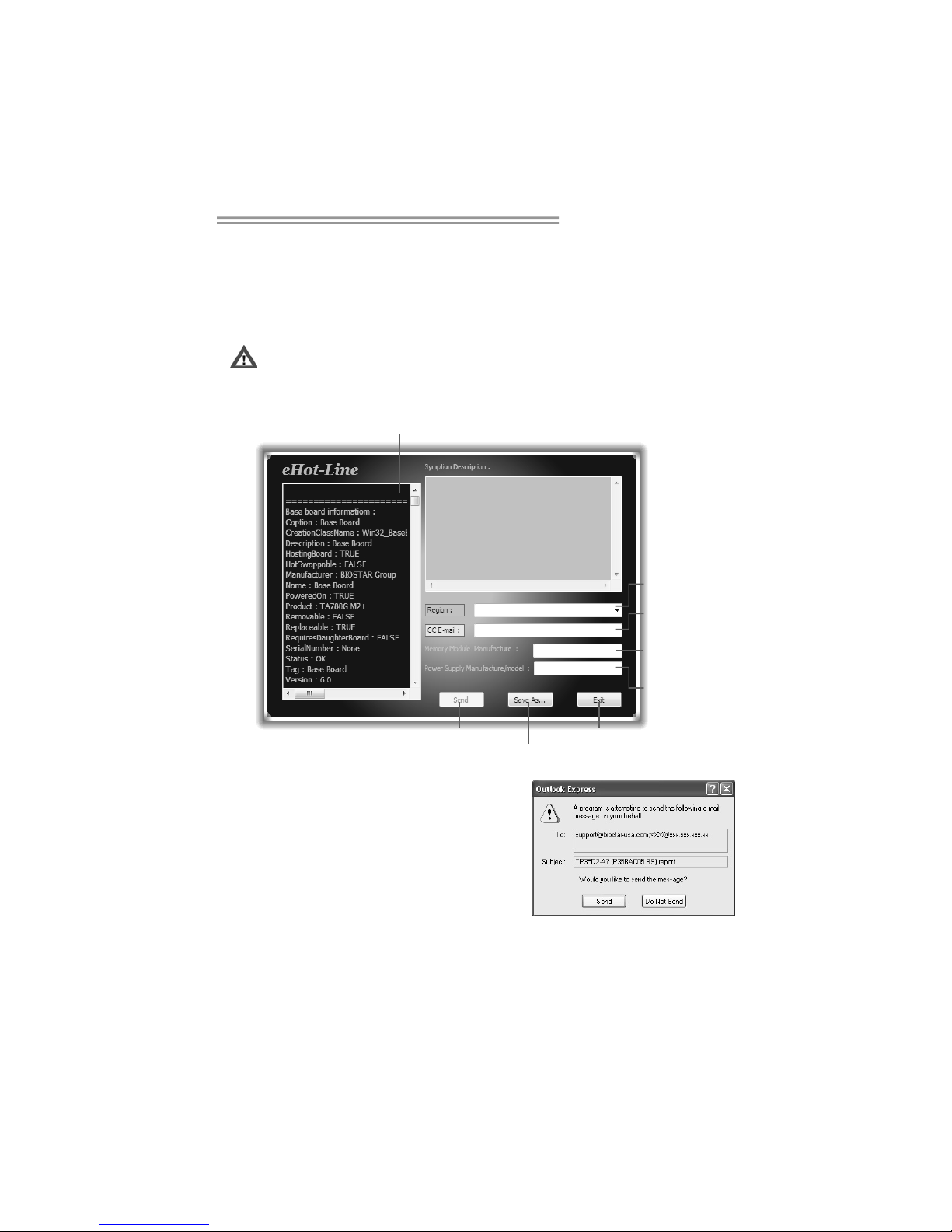

This block will show
the infor mation which
would be collected in
the mail.
Provid e the e-ma il
addres s that you woul d
like t o send the copy to.
Provid e the name of
the power s upply
manufac turer and the
model no .
Send the mail ou t.
Save these information to a .txt fil
e
Exit this dialog.
Select your area or
the area clos e to yo u.
*
Provide t he name of
the memory module
manufa cturer.
*
Describe co ndition
of your syst em.
*
*
rep resents import ant
information that you
must provi de. Withou t
this i nformat ion, you may
not be able to send ou t
the mail.
After filling up this information, click “Send”
to send the mail out. A warning dialog would
appear asking for your confirmation; click
“Send” to confirm or “Do Not Send” to cancel.
If you want to save this information to a .txt file, click “Save As…” and then you
will see a saving dialo g appears asking you to enter file name.
Page 40
Motherboard Manual
38

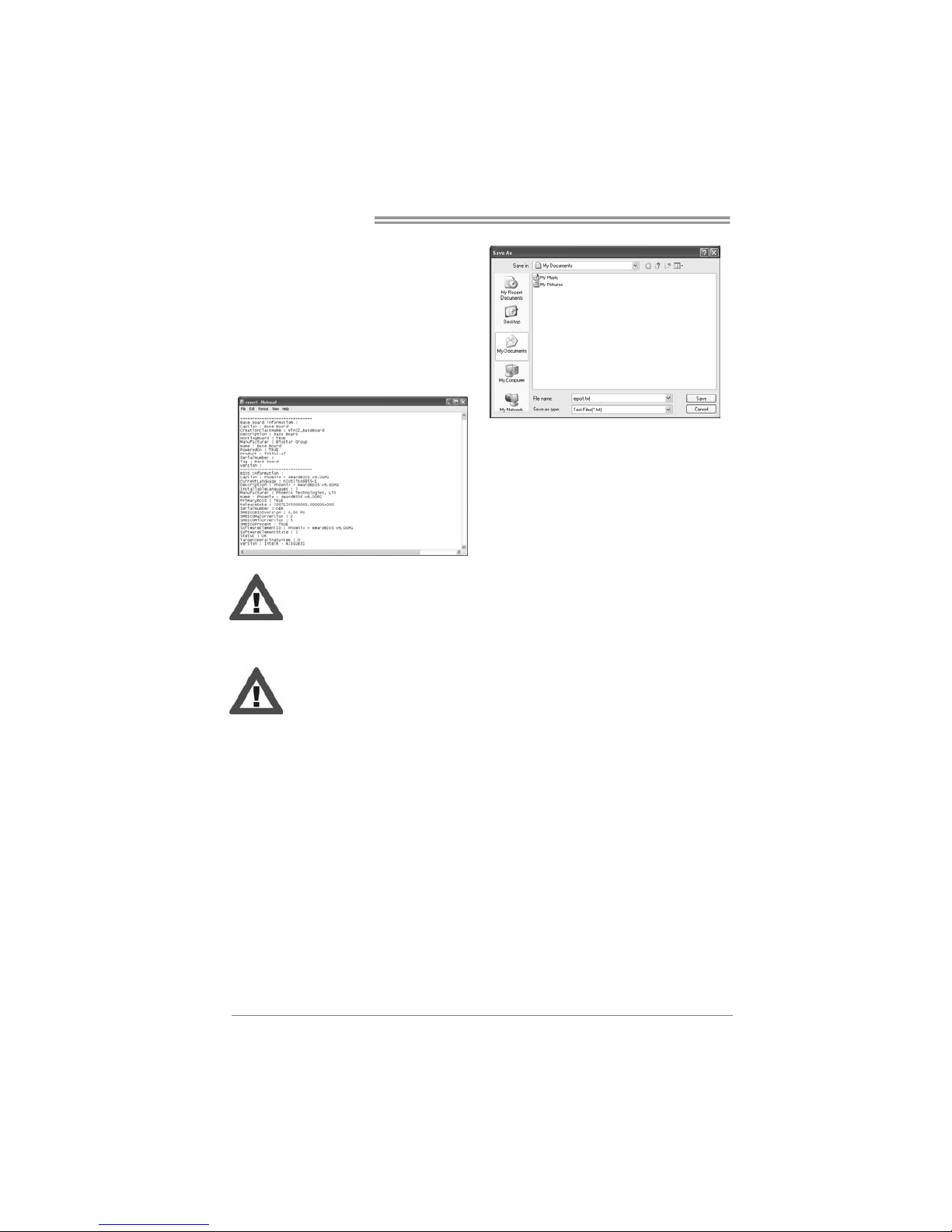

Enter the file name and then click
“Save”. Your system information
will be saved to a .txt file.
Open the saved .txt file, you will see
your system information including
motherboard/BIOS/CPU/video/
device/OS information. This
information is also concluded in the
sent mail.
We will not share customer ’s data with any other third parties,
so please feel free to provide your system information while using
eHot-Line service.
If you are not using Outlook Express as your default e-mail client
application, you may need to save the system information to a .txt file
and send the file to our tech support with other e-mail application.
Page 41
TZ77XE3/TZ75XE3
39
BIOS Update

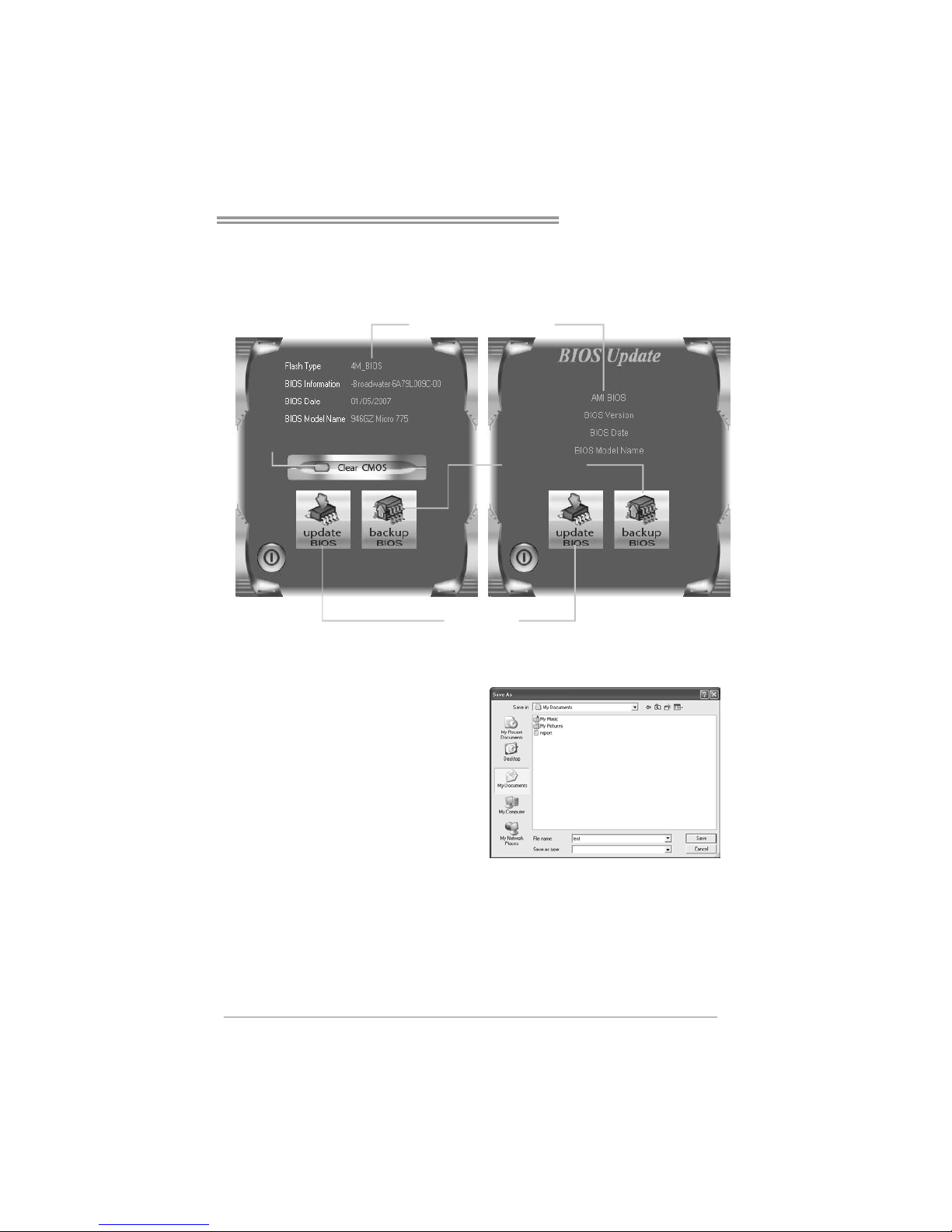

BIOS Update is a convenient utility which allows you to update your
motherboard BIOS under Windows system.
Update BIOS
with a BIOS file
Clear CMOS function
(Only for AWARD BIOS)
Show current BIOS information
Save cur rent BIOS
to a .bin file
AWARD BIOS AMI BIOS
<Backup BIOS>
Once click on this button, the saving
dialog will show. Choose the
position to save file and enter file
name. (We recommend that the file
name should be English/number
and no longer than 7 characters.)
Then click Save.
Page 42
Motherboard Manual
40

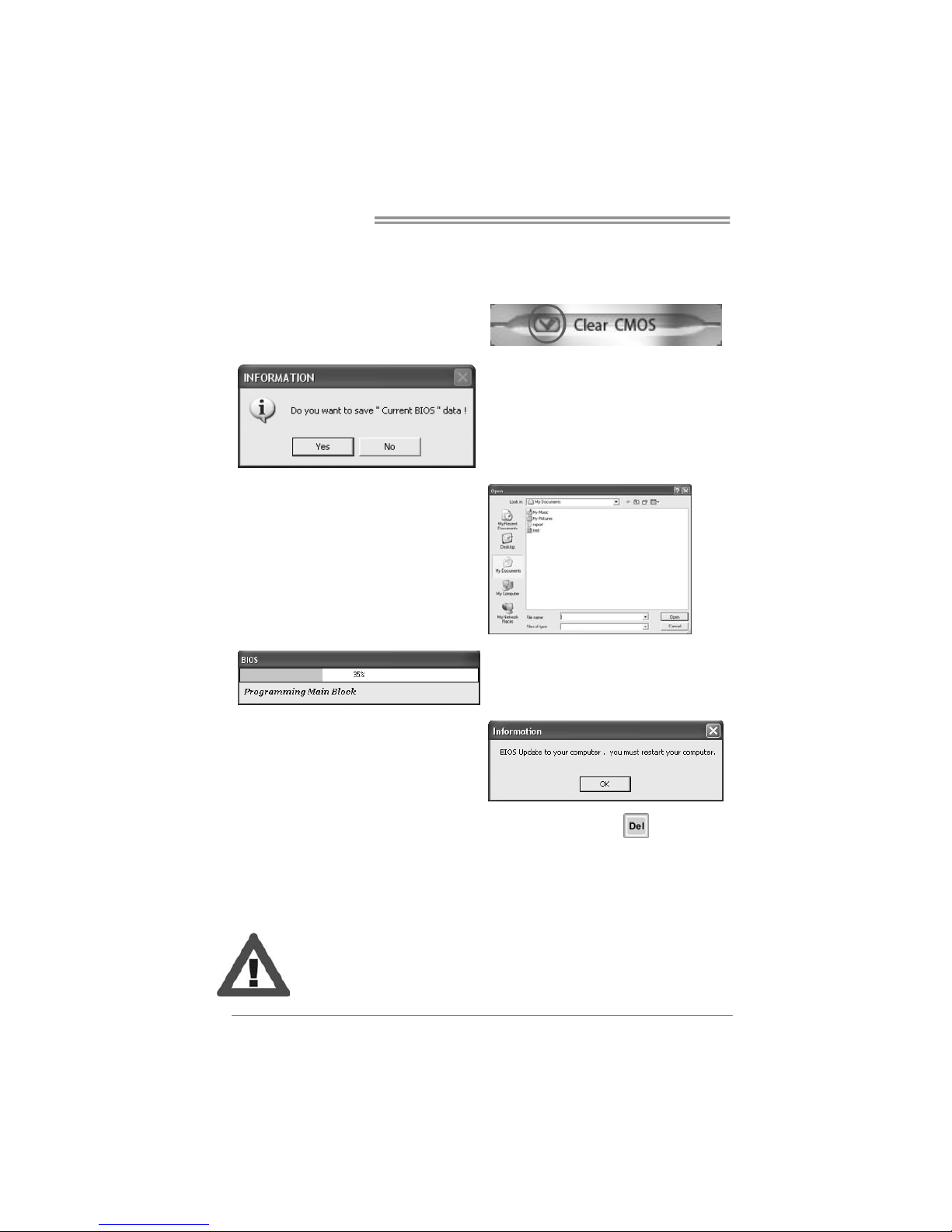

<Update BIOS>
Before doing this, please download the proper BIOS file from the website.
For AWARD BIOS, update BIOS procedure
should be run with Clear CMOS function, so
please check on Clear CMOS first.
Then click Update BIOS button, a
dialog will show for asking you backup
current BIOS. Click Yes for BIOS
backup and refer to the Backup BIOS
procedure; or click No to skip this
procedure.
After the BIOS Backup procedure, the
open dialog will show for requesting the
BIOS file which is going to be updated.
Please choose the proper BIOS file for
updating, then click on Open.
The utility will update BIOS with the
proper BIOS file, and this process may
take minutes. Please do not open any
other applications during this process.
After the BIOS Update process, click on
OK to restart the system.
While the system boots up and the full screen logo shows, press <Delete>
key to enter BIOS setup.
In the BIOS setup, use the Load Optimized Defaults function and then Save and
Exit Setup to exit BIOS setup. BIOS Update is completed.
All the information and content above about the T-Series software are subject to be
changed without notice. For better performance, the software is being continuously
updated. The information and pictures described above are for your reference only.
The actual i nformation and settings on board may be slightly different from this
manual.
Page 43
TZ77XE3/TZ75XE3
41
BIOScreen Utility (Optional)

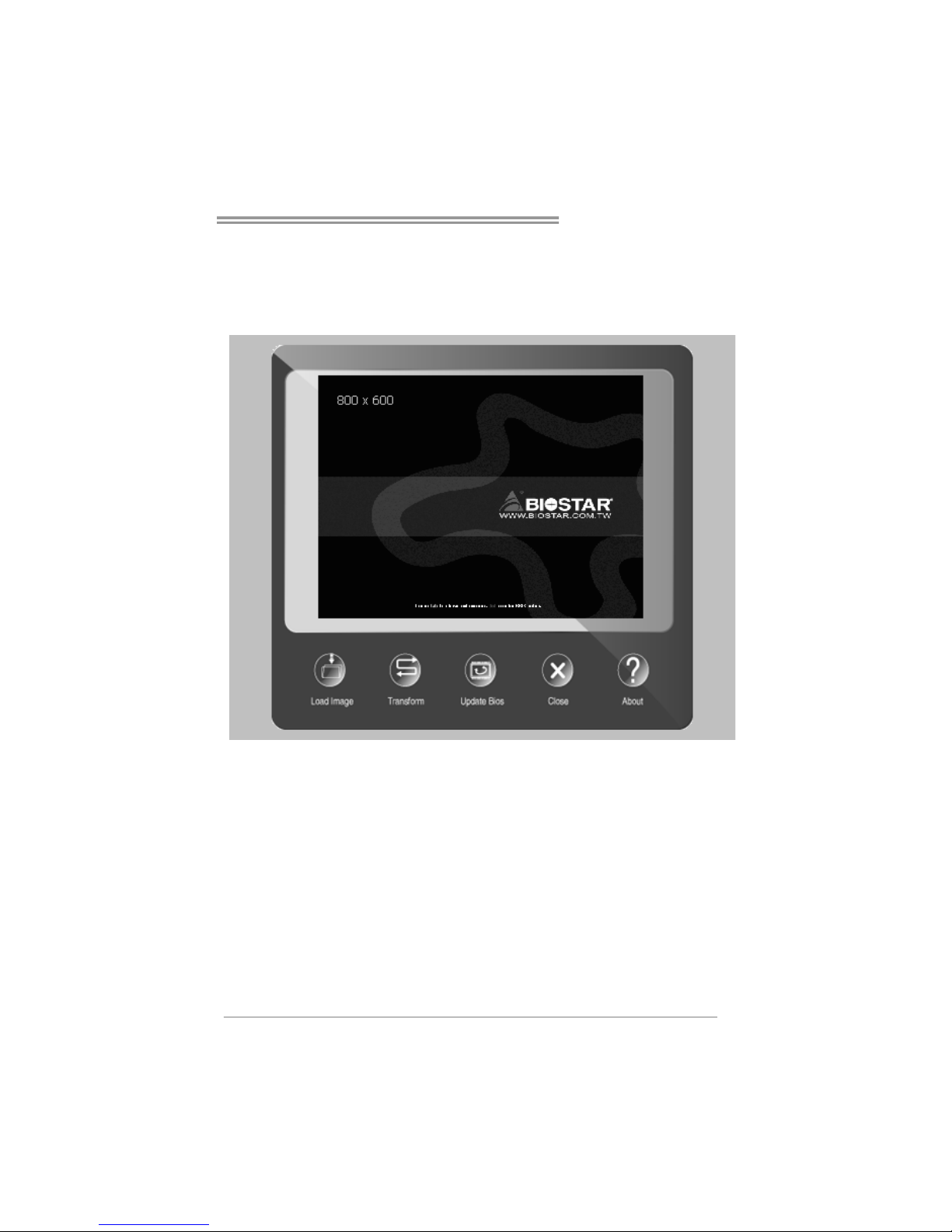

This utility allows you to personalize your boot logo easily. You can choose
JPG or BMP as your boot logo so as to customize your computer.
Please follow the following instructions to update boo logo:
1. Load Image：Choose the picture as the boot logo.
2. Transform：Transform the picture for BIOS and preview the result.
3. Update Bios：Write the picture to BIOS Memory to complete the update.
Page 44
Motherboard Manual
42
CHAPTER 6: USEFUL HELP
6.1 D
RIVER INSTALLATION NOTE
After you installed your operating system, please insert the Fully Setup
Driver DVD into your optical drive and install the driver for better system
performance.

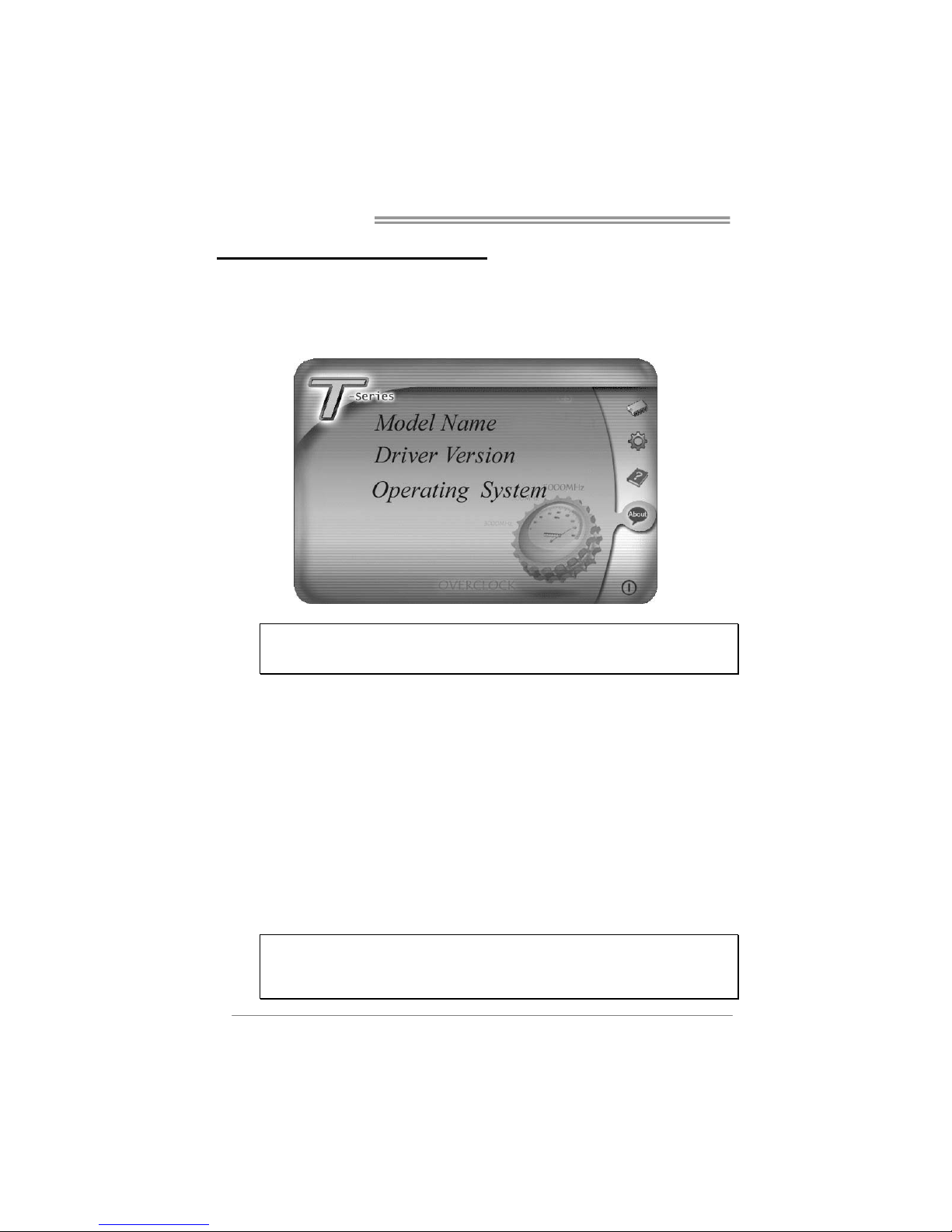

You will see the following window after you insert the DVD
The setup guide will auto detect your motherboard and operating system.
Note:
If this window didn’t show up after you insert the Driver DVD, please use file browser to
locate and execute the file SETUP.EXE under your optical drive.
A. Driver Installation
To install the driver, please click on the Driver icon. The setup guide will
list the compatible driver for your motherboard and operating system.
Click on each device driver to launch the installation program.
B. Software Installation
To install the software, please click on the Software icon. The setup guide
will list the software available for your system, click on each software title
to launch the installation program.
C. Manual
Aside from the paperback manual, we also provide manual in the Driver
DVD. Click on the Manual icon to browse for available manual.
Note:
Yo u will need Acrobat Reader to open the manual file. Please download the latest version
of Acrobat Reader software from
http://www.adobe.com/products/acrobat/readstep2.html
Page 45
TZ77XE3/TZ75XE3
43
6.2 EXTRA INFORMATION
CPU Overheated
If the system shutdown automatically after power on system for
seconds, that means the CPU protection function has been activated.
When the CPU is over heated, the motherboard will shutdown
automatically to avoid a damage of the CPU, and the system may not
power on again.
In this case, please double check:
1. The CPU cooler surface is placed evenly with the CPU surface.
2. CPU fan is rotated normally.
3. CPU fan speed is fulfilling with the CPU speed.
After confirmed, please follow steps below to relief the CPU protection
function.
1. Remove the power cord from power supply for seconds.
2. Wait for seconds.
3. Plug in the power cord and boot up the system.
Or you can:
1. Clear the CMOS data.
(See “Close CMOS Header: JCMOS1” section)
2. Wait for seconds.
3. Power on the system again.
Page 46
Motherboard Manual
44
6.3 AMI BIOS POST CODE
Checkpoint Description
03
Disable NMI, Parity, video for EGA, and DMA controllers. Initialize BIOS,
POST, Runtime data area . Also i nitiali ze B IOS modules on POST entry a nd
GPNV area. Initialized CMOS as mentioned in the Kernel Variable
"wCMOSFlags."
04
Check CMOS diagnostic byte to determine if battery power is OK and
CMOS checksum is OK. Verify CMOS checksum manually by reading
storage area. If the CMOS checksum is bad, update CMOS with power-on
default values and clear passwords. Initialize status register A.
Initializes data variables that are based on CMOS setup questions.
Initializes both the 8259 compatible PICs in the system
05
Initializes the interrupt controlling hardware (generally PIC) and interrupt
vector table.
06
Do R/W test to CH-2 co unt reg. Initi ali ze CH-0 as system timer. Install t he
POSTINT1C h ha ndler. Enable IRQ-0 in P IC for syste m timer interrup t.
Traps INT1Ch vector to "POSTINT1ChHandlerBlock."
07 Fixes CPU POST interface calling pointer.
08
Initializes t he CPU. T he B AT test is bei ng done on KBC. P rogram t he
keyboard controller command byte is being done after Auto detection of
KB/MS using AMI KB-5.
C0 Early CPU Init Start -- Disable Cache – Init Local APIC.
C1 Set up boot strap processor Information.
C2 Set up boot strap processor for POST.
C5 Enumerate a nd set up application processors.
C6 Re-enable cache for boot strap processor.
C7 Early CPU Init Exit.
0A Initializes the 8042 compatible Key Board Controller.
0B Detects the presence of PS/2 mouse.
0C Detects the presence of Ke yboard in KBC port.
0E
Testing and initialization of different Input Devices. Also, update the Kernel
Variables.
Traps the INT09h vecto r, so that the POST INT09 h ha ndler ge ts co ntrol for
IRQ1. Uncompress all available language, BIOS logo, and Silent logo
modules.
13 Early POST initialization of chipset registers.
20 Relocate System Management Interrupt vector for all CPU in the system.
24
Uncompress and initialize any platfo rm speci fic BIOS mod ules . GP NV is
initialized at this checkpoint.
2A
Initializes different devices through DIM.
See DIM Code Checkpoints section of document for more information.
2C
Initializes different devices. Detects and initializes the video adapter
installed in the system that have optional ROMs.
2E Initializes all the output devices.
31
Allocate memory for AD M mod ule and uncompress it. Give contro l to ADM
module for initialization. Initialize language and font modules for ADM.
Activate ADM module.
33
Initializes the silent boot module. Set the window for displaying text
informa tion.
Page 47
TZ77XE3/TZ75XE3
45
Checkpoint Description
37
Displaying sign-on message, CPU information, setup key message, and any
OEM sp eci fic i nformatio n.
38
Initializes different devices through DIM. See DIM Code Checkpoints section
of document for more information. USB controllers are initialized at this
point.
39 Initializes DMAC-1 & DMAC-2.
3A Initialize RTC date/time.
3B
Test for total memory installed in the system. Also, Check for DEL or ESC
keys to limit memory test. Display total memory in the s yste m.
3C Mid POST initialization of chipset registers.
40
Detect different devices (Parallel ports, serial ports, and coprocessor in
CPU, etc.) successfully installed in the system and update the BDA,
EBDA…etc.
52
Updates CMOS memory size from memory found in memory test. Allocates
memory for Extended BIOS Data Area from base memory. Programming the
memory hole or any kind of implementation that needs an adjustment in
system RAM size if needed.
60 Initializes NUM-LOCK status and programs the KBD typematic rate.
75 Initialize Int-13 and prepare for IPL detection.
78 Initializes IPL de vices controlled by B IOS and option ROMs.
7C Genera te a nd write con tents of E SCD in NVRam.
84 Log errors encountered during POST.
85 Display errors to the user and gets the user response for error.
87 Execute BIOS setup if needed / requested. Check boot password if installed.
8C Late POST initialization of chipset registers.
8D Build ACPI tables (if ACPI is supported).
8E Program the peripheral parameters. Enable/Disable NMI as selected.
90
Initialization of system management interrupt by invoking all handlers.
Please note this checkpoint comes right after checkpoint 20h.
A1 Clean-up work needed before booting to OS.
A2
Takes care of runtime image preparation for different BIOS modules. Fill the
free area in F000h segment with 0FFh. Initializes the Microsoft IRQ Routing
Table. Prepares the runtime language module. Disables the system
configuration display if needed.
A4 Initialize runtime language module. Display boot option popup menu.
A7
Displays the system configuration screen if enabled. Initialize the CPU’s
before boot, which includes the programming of the MTRR’s.
A9 Wait for user i nput at config display if needed.
AA Uninstall POST INT1Ch vector and INT09h vector.
AB Prepare BBS for Int 19 boot. Init MP tables.
AC
End of POST initialization of chipset registers. De-initializes the ADM
module.
B1
Save system context for ACP I. Prepare CPU for OS boot including final
MTRR values.
00 Passes control to OS Loader (typically INT19h).
Page 48
Motherboard Manual
46
6.4 TROUBLESHOOTING
Probable Solution
1. There is no power in the system.
Power LED does not shine; the
fan of the power supply does not
work
2. Indicator light on keyboard does
not shine.
1. Make sure power cable is
securely plugged in.
2. Replace cable.
3. Contact technical support.
System is inoperative. Keyboard lights
are on, power indicator lights are lit,
and hard drives are running.
Using even pressure on both ends of
the DIMM, press down firmly until the
module snaps into place.
System does not boot from a hard disk
drive, but can be booted from optical
drive.
1. Check cable running from disk to
disk controller board. Make sure
both ends are securely plugged
in; check the drive type in the
standard CMOS setup.
2. Backing up the hard drive is
extremely important. All hard
disks are capable of breaking
down at any time.
System only boots from an optical
drive. Hard disks can be read,
applications can be used, but system
fails to boot from a hard disk.
1. Back up data and applications
files.
2. Reformat the hard drive.
Re-install applications and data
using backup disks.
Screen message shows “Invalid
Configuration” or “CMOS Failure.”
Review system’s equipment. Make sure
correct information is in setup.
System cannot boot after user installs a
second hard drive.
1. Set master/slave jumpers
correctly.
2. Run SETUP program and select
correct drive types. Call the drive
manufacturers for compatibility
with other drives.
Page 49
TZ77XE3/TZ75XE3
47
This page is intentionally left blank.
Page 50
Motherboard Manual
48
APPENDIX: SPEC IN OTHER LANGUAGES
G
ERMAN
Sp ezif ika tio nen
CPU
Socket 1155
Int e l Co re i7 / i5 / i3 / Pent iu m / C elero n
Prozessoren
Unterstützt Execute Disable Bit / Enhanced Intel
Speed Step® / Intel Ar ch itecture- 64 / Ex tended
Memory 64 Technology / V irtualization Technology /
Hyper Threading
Chipsatz
Intel Z77 (TZ77XE3)
Intel Z75 (TZ75XE3)
Super E/A
IT8728
Biet et die häufig ver wend eten a lten Sup er
E/A-Funktionen.
Low Pin Count-Schnittstelle
Umgebungskontrolle,
Hardware-Überwachung
Lüfterdrehzahl-Controller/-Überwachung
"Smart Guardian"-Funktion von ITE
Arbeitsspeich
er
DDR3 DIMM-Steckplätze x 4
Max. 32GB Arbeitsspeicher
Jeder DIMM unterstützt 512MB/
1GB/2GB/4GB/8GB DDR3.
Dual-Kanal DDR3 Speichermodul
Unterstützt DDR3 1066 / 1333 / 1600
Unterstützt DDR3 1866(OC) / 2133(OC) / 2400(OC)
registrierte DIMMs. ECC DIMMs werden nicht
unterstützt.
SATA 2 & 3 Integrierter Serial ATA-Controller
Datentransferrate bis zu 3.0Gb/s / 6.0Gb/s.
Konform mit der SATA-Spezifikation Version 2.0 / 3.0
Unterstützt RAID 0,1,5,10, SRT (TZ77XE3)
LAN Realtek RTL 8111E
10 / 100 / 1000 Mb/s Auto-Negotiation
Halb-/ Vollduplex-Funktion
HD
Audio-Unters
tützung
ALC892
Unterstützt High-Definition Audio
7.1-Kanal-Audioausgabe
USB3.0
Z77 (TZ77XE3) / Z75 (TZ75XE3) Datenübertragungsraten bis zu 600 MB / s
Steckplätze
PCI-St eckplatz x 2
PCI Express Gen3 x16 Steckplatz x2
PCI Express Gen2 x16 Steckplatz(x4) x1
PCI Express Gen2 x 1-Steckplatz x2
Onboard-Ans
chluss
SATA3-Anschluss x2 Jeder Anschluss unterstützt 1 SATA3-Laufwerk
SATA2-Anschluss x4 Jeder Anschluss unterstützt 1 SATA2-Laufwerk
Fronttafelanschluss x1 Unterstützt die Fronttafelfunktionen
Front-Audioanschluss x1 Unterstützt die Fronttafel-Audioanschlussfunktion
Page 51
TZ77XE3/TZ75XE3
49
Sp ezif ika tio nen
CPU-Lüfter-Sockel x1
CPU-Lüfterstromversorgungsanschluss (mit Smart
Fan -F un kt ion )
System-Lüfter-Sockel x2 System-Lüfter-Stromversorgungsanschluss
"CMOS lös chen "- So ckel x1
USB2.0-Anschluss x2 Jeder Anschluss unterstützt 2
Fron tt afel-U SB2 .0- Ans chlü ss e
USB3.0-Anschluss x1 Jeder Anschluss unterstützt 2
Fron tt afel-U SB3 .0- Ans chlü ss e
Verbraucher-IR Anschluss x1
Serieller Anschluss x1
S/PDIF Ausgangsanschluss x1 Unterstützt die digitale Audioausgabefunktion
Stromanschluss (24-polig) x1
St romans ch luss (8-po lig) x1
Rückseiten-E
/A
PS/2-Tastatur x1
HDMI-Anschluss x1
VGA-Anschluss x1
DVI-Anschluss x1
LAN-Anschluss x1
USB2.0-Anschluss x4
USB3.0-Anschluss x2
Audioanschluss x6
Platinengröße 244 mm (B) X 305 mm (L) ATX
OS-Unterstüt
zung
Windows XP / V ista / 7
Biostar behält sich das Recht vor, ohne Ankündigung
die Unterstützung für ein Betriebssystem
hinzuzufügen oder zu entfernen.
Page 52
Motherboard Manual
50
FRENCH
SPEC
UC
Socket 1155
Pro c es s eurs Int el Co re i7 / i5 / i3 / Pent iu m /
Celeron
Prend en charge les t echno log ies d'exé cution d e b it
de désactivation / Intel SpeedStep® optimisée/
d'archit ectur e Inte l 64 / d e mé mo ire ét endue 6 4 / de
virtualisation / Hyper Threading
Chipset
Intel Z77 (TZ77XE3)
Intel Z75 (TZ75XE3)
Super E/S
IT8728
Fournit la fonctionnalité de Super E/S
patrimoniales la plus utilisée.
Int e rf ace à f aib le co mpte de b ro ches
Initiatives de contrôle environnementales,
Mon iteur d e mat ériel
Contrôleur /moniteur de vitesse de ventilateur
Fonction "Gardien intelligent" de l'ITE
Mémoire
principale
Fentes DDR3 DIMM x 4
Capac ité mémo ire max ima le de 32 Go
Chaque DIMM prend en charge des DDR3 de
512Mo/1Go/2Go/4Go/8Go
Module de mé mo ir e DD R3 à mo d e à double voie
Prend en charge la DDR3 1066 / 1333 / 1600
Prend en charge la DDR3 1866(OC) / 2133(OC) /
2400(OC)
Les DIMM à registres et DIMM avec code correcteurs
d'erreurs ne sont pas prises en charge
SATA 2 & 3
Contrô leur Serial ATA int ég r é :
Taux de transfert jusqu'à 3.0Go/s / 6.0Go/s.
Co nforme à la spéc ificat ion SATA Vers ion 2.0 / 3. 0
Prise en charge RAID 0,1,5,10, SRT (TZ77XE3)
LAN
Realtek RTL 8111E
10 / 100 / 1000 Mb/s négociation automatique
Half / Full duplex capability
Prise en
charg e
aud io HD
ALC892
Prise en charge de l' aud io haute déf init ion
Sortie aud io à 7 .1 voies
USB3.0 Z77 (TZ77XE3) / Z75 (TZ75XE3) Taux de transfert de données jus qu'à 600 Mo / s
Fentes
Fente PCI x2
Fente PCI Express Gen3 x16 x 2
Fente PCI Express Gen2 x16(x4) x1
Fente PCI Express Gen2 x1 x2
Connecteur
embarqué
Connecteur SATA3 x2
Chaque co nne cteur pr end en ch arg e 1 périp hér ique
SATA3
Connecteur SATA2 x4
Chaque co nne cteur pr end en ch arg e 1 périp hér ique
SATA2
Connecteur du panneau avant x1 Prend en charge les équipements du panneau avant
Page 53
TZ77XE3/TZ75XE3
51
SPEC
Connecteur Aud io du panneau avant x 1 Prend en ch arge la fonction aud io du panneau av ant
Embase de ventilateur UC x1
Alimentation électrique du ventilateur UC (avec
fonction de ventilateur intelligent)
Embase de ventilateur système x2 Alimentation électrique du ventilateur système
Embase d'effacement CMOS x1
Connecteur USB2.0 x2
Chaque connecteur prend en charge 2 ports USB2.0
de panneau avant
Connecteur USB3.0 x1
Chaque connecteur prend en charge 2 ports USB3.0
de panneau avant
Connecteur de IR du consommateur x1
Port série x1
Connecteur de sortie S/PDIF x1
Prend en charge la fonction de sortie audio
numérique
Connecteur d' aliment at ion x1
(24 broches)
Connecteur d' aliment at ion x1
(8 broch es)
E/S du
panneau
arrière
Clavier PS/2 x1
Port HD MI x 1
Port VGA x1
Port DV I x 1
Port LA N x1
Port USB2.0 x4
Port USB3.0 x2
Fiche aud io x6
Dimensions
de la carte
244 mm (l) X 305 mm (H) ATX
Support SE Windows XP / Vista / 7
Biostar se réserve le droit d'ajouter ou de supprimer
le support de SE avec ou sans préavis
Page 54
Motherboard Manual
52
ITALIAN
SPECIFICA
CPU
Socket 1155
Pro cesso re Int el C ore i7 / i5 / i3 /
Pentium / Celeron
Supporto di Execute Disable Bit / Enhanced
Intel SpeedStep® / Architettura Intel 64 /
Tecnologia Extended Memory 64 / Tecnologia
Virtualization / Hyper Threading
Chipset
Intel Z77 (TZ77XE3)
Intel Z75 (TZ75XE3)
Super I/O
IT8728
Fo rn isce le funzio nalit à leg acy S up er I/O
usate più comunemente.
Interfaccia LPC (Low Pin Count)
Funzioni di controllo dell’ambiente:
Monitoraggio hardware
Co ntro ller / Mo nito ragg io ve locità ven tolina
Funzione "Smart Guardian" di ITE
Memoria
principale
Allo ggi D IMM DDR 3 x 4
Capacità massima della memoria 32GB
Ciascun DIMM supporta DDR3
512MB/1GB/2GB/4GB/8GB
Modulo di memoria DDR3 a canale doppio
Supporto di DDR3 1066 / 1333 / 1600
Supporto di DDR3 1866(OC) / 2133(OC) /
2400(OC)
DIMM registrati e DIMM ECC non sono
supportati
SATA 2 & 3
Co ntro ller Serial ATA in tegr at o
Velocità di trasferimento dei dati fino a 3.0Gb/s
/ 6.0Gb/s.
Co mpatibi le s pecifi che SATA Versio ne 2. 0/3.0
Supporto RAID 0,1,5,10, SRT (TZ77XE3)
LAN
Realtek RTL 8111E
Negoziazione automatica 10 / 100 / 1000 Mb/s
Capacità Half / Full Duplex
Supporto
audio HD
ALC892
Supporto audio High-Definition (HD)
Uscita audio 7.1 canali
USB3.0
Z77 (TZ77XE3) / Z75 (TZ75XE3) Velocità di trasferimento dati fino a 600 MB / s
Allo ggi
Alloggio PCI x2
Alloggio PCI Express Gen3 x16 x2
Alloggio PCI Express Gen2 x16(x4) x1
Alloggio PCI Express Gen2 x1 x2
Connettori
su scheda
Connettore SATA3 x2 Ciascun connettore supporta 1 unità SATA3
Connettore SATA2 x4 Ciascun connettore supporta 1 unità SATA2
Co nnetto re pannello fron tale x1 S uppo rt a i s erviz i del pan ne llo fro ntale
Connettore audio frontale x1 Supporta la funzione audio pannello frontale
Page 55
TZ77XE3/TZ75XE3
53
SPECIFICA
Co llet tor e vent olina CPU x1
Alimentazione ventolina CPU (con funzione
Smart Fan)
Co llet tor e vent olina sis t em a x2 A liment az io ne ven tol ina di sist ema
Co llet tor e cancel laz io ne CMOS x1
Connettore USB2.0 x2
Ciascun connettore supporta 2 porte USB2.0
pannello frontale
Connettore USB3.0 x1
Ciascun connettore supporta 2 porte USB3.0
pannello frontale
Connettore IR del consumatore x1
Porta seriale x1
Connettore output S/PDIF x1 Supporta la funzione d’output audio digitale
Connetto re alimentazione x1
(24 pin)
Connetto re alimentazione x1
(8 pin)
I/O
pannello
posteriore
Tas tie ra P S / 2 x 1
Port a HDMI x1
Port a VGA x1
Port a DVI x1
Port a LAN x 1
Port a USB2.0 x4
Port a USB3.0 x2
Connettore audio x6
Dimension
i scheda
244 mm (larghezza) x 305 mm
(altez za)
ATX
Sistemi
op er ativi
supportati
Windows XP / Vist a / 7
Biostar si riserva il diritto di aggiungere o
rimuovere il supporto di qualsiasi sistema
operativo senza preavviso.
Page 56
Motherboard Manual
54
SPANISH
Especificación
CPU
Socket 1155
Pro c es ad or Inte l Co r e i7 / i5 / i3 / Pent iu m /
Celeron
Admite Bit de deshabilitación de ejecución / Intel
Speed Step® Mejorado / Int el Architecture-64 /
Tecnolog ía Extended Memory 64 / Tecno log ía de
virtualizac ión / Hyper Threading
Conjunto de
chips
Intel Z77 (TZ77XE3)
Intel Z75 (TZ75XE3)
Súper E/S
IT8728
Le ofrece las funcionalidades heredadas de
us o más co mú n S úp er E /S.
Interfaz de cuenta Low Pin
In ic iativas d e co ntrol d e ento rn o,
Monitor hardware
Controlador/monitor de velocidad de ventilador
Función "Guardia inteligente" de ITE
Memoria
principal
Ranuras DIMM DDR3 x 4
Capacidad máxima de memoria de 32GB
Cada DIMM admite DDR de
512MB/1GB/2GB/4GB/8GB
Módulo de memoria DDR3 de canal Doble
Admite DDR3 de 1066 / 1333 / 1600
Admite DDR3 de 1866(OC) / 2133(OC) / 2400(OC)
No admite DIMM registrados o DIMM compatibles
con ECC
SATA 2 & 3
Controlador ATA Serie Integrado
Tasas de transferencia de hasta 3.0 Gb/s / 6.0 Gb/s.
Co mpat ible co n la ve rs ión S ATA 2.0 / 3.0 .
Admite RAID 0,1,5,10, SRT (TZ77XE3)
Red Local
Realtek RTL 8111E
Negociación de 10 / 100 / 1000 Mb/s
Funciones Half / Full dúplex
Soporte de
sonido HD
ALC892
Soporte de sonido de Alta Definición
Salida de sonido de 7.1 canales
USB3.0 Z77 (TZ77XE3) / Z75 (TZ75XE3) Tasas de transferencia de datos hasta 600 MB / s
Ranuras
Ranura PCI X2
Ranura PCI Express Gen3 x16 X2
Ranura PCI Express Gen2 x16(x4) X1
Ranura PCI Express Gen2 x 1 X2
Conectores
en placa
Conector SATA3 X2 Cada conector soporta 1 dispositivos SATA3
Conector SATA2 X4 Cada conector soporta 1 dispositivos SATA2
Conector de panel frontal X1 Soporta instalaciones en el panel frontal
Conector de sonido frontal X1 Soporta funciones de sonido en el panel frontal
Cabecera de ventilador de CPU X1 Fuente de alimentación de ventilador de CPU (con
función Smart Fan)
Cabecera de ventilador de sistema X2 Fuente de alimentación de ventilador de sistema
Page 57
TZ77XE3/TZ75XE3
55
Especificación
Cabecera de borrado de CMOS X1
Conector USB2.0 X2 Cada conector sop ort a 2 puertos USB 2.0 frontales
Conector USB3.0 X1 Cada conector sop ort a 2 puertos USB 3.0 frontales
Conector de IR del consumidor X1
Puert o s er ie X1
Conector de salida S/PDIF X1 Soporta función de salida de sonido digital
Conector de alimentación X1
(24 patillas)
Conector de alimentación X1
(8 patillas)
Panel
trasero de
E/S
Tec la do PS /2 X 1
Puert o HD MI x1
Puert o V GA X1
Puert o DVI X1
Puerto de red local X1
Puert o US B2.0 X4
Puert o US B3.0 X2
Conector de sonido X6
Ta ma ño d e
la placa
244 mm. (A) X 305 Mm. (H) ATX
Soporte de
sistema
operativo
Windows XP / V ista / 7
Biostar se reserva el derecho de añadir o retirar el
soporte de cualquier SO con o sin aviso previo.
Page 58
Motherboard Manual
56
PORTUGUESE
ESPECIFICAÇÕES
CPU
Socket 1155
Pro c es s ad or Intel Co re i7 / i5 / i3 / Pen t iu m /
Celeron
Suport a as tecno log ias Execute Disable Bit /
Enhanced Inte l Speed Step® / Intel Arqu ite cture -64
/ Extended Memor y 64 / Virtualizat ion / Hyper
Threading
Chipset
Intel Z77 (TZ77XE3)
Intel Z75 (TZ75XE3)
Especificaçã
o Super I/O
IT8728
Proporciona as funcionalidades mais
utilizadas em termos da especificação Super
I/O.
Interface LPC (Low Pin Count).
In ic iativas p ar a con tro lo do a mbient e
Monitorização do hardware
Controlador/Monitor da velocidade da ventoinha
Função "Smart Guardian" d a ITE
Memória
principal
Ranhuras DIMM DDR3 x 4
Capac idad e máx ima de me mória: 32 GB
Cada módulo DIMM suporta uma memória
DDR3 de 512MB/ 1GB/2GB /4GB/8GB
Módulo de memória DDR3 de canal duplo
Suporta módulos DDR3 1066 / 1333 / 1600
Suporta módulos DDR3 1866(OC) / 2133(OC) /
2400(OC)
Os módulos DIMM registados e os DIMM ECC não
são suportados
SATA 2 & 3
Controlador Ser ial ATA integrado
Velocidades de transmissão de dados até 3.0 Gb/s
/
6.0 Gb/s.
Compat ibilidad e co m a es pe cifica ção S ATA versão
2.0 / 3.0.
Suporta as funções RA ID 0,1,5,10, SRT (TZ77XE3)
LAN
Realtek RTL 8111E
Auto negociação de 10 / 100 / 1000 Mb/s
Capacidade semi/full-duplex
Suporte
para áudio
de alta
definição
ALC892
Suporta a especificação High-Definition Audio
Saída de áudio de 7.1 canais
USB3.0 Z77 (TZ77XE3) / Z75 (TZ75XE3) Taxas de transferência de dados até 600 MB / s
Ranhuras
Ranhura PCI x2
Ranhura PCI Express Gen3 x16 x2
Ranhura PCI Express Gen2 x16(x4) x1
Ranhura PCI Express Gen2 x 1 x2
Conectores
na placa
Conector SATA3 x2 Cada conector suporta 1 dispositivo SATA3
Conector SATA2 x4 Cada conector suporta 1 dispositivo SATA2
Conector do painel frontal x1 Para suporte de várias funções no painel frontal
Page 59
TZ77XE3/TZ75XE3
57
ESPECIFICAÇÕES
Conecto r de áud io frontal x1 Suporta a função de áud io no painel f ronta l
Conector da ventoinha da C PU x1
Alimentação da ventoinha da CPU (com a função
Smart Fan)
Conector da ventoinha do s istema x2 Alimentação da ventoinha do s istema
Conector para limpeza do CMOS x1
Conector USB2.0 x2
Cada conector suporta 2 portas USB2.0 no painel
frontal
Conector USB3.0 x1
Cada conector suporta 2 portas USB3.0 no painel
frontal
Conector de IR do consumidor x1
Port a série x 1
Conecto r de saída S /PD IF x1 Supo rta a saída d e áudio d igital
Conector de alimentação x1
(24 pinos)
Conector de alimentação x1
(8 p inos )
Entradas /S
aídas no
painel
traseiro
Tec la do PS /2 x 1
Port a HD MI x1
Porta VGA x1
Port a DVI x 1
Port a LAN x1
Port a USB2.0 x4
Port a USB3.0 x2
Tomada de áudio x6
Tamanho
da placa
244 mm (L) X 305 mm (A) ATX
Sistemas
operativos
suportados
Windows XP / V ista / 7
A Biostar reserva-se o direito de adicionar ou
remover suporte para qualquer sistema operativo
com ou se m avis o p rév io.
Page 60
Motherboard Manual
58
POLISH
SPEC
Procesor
Socket 1155
Pro c es o r Int e l Co re i7 / i5 / i3 / Pent ium /
Celeron
Obsługa Execut e Disable B it / Enhanced Intel
Speed Step® / Intel Ar ch itecture- 64 / Ex tended
Memory 64 Technology / V irtualization Technology
/
Hyper Threading
Chipset
Intel Z77 (TZ77XE3)
Intel Z75 (TZ75XE3)
Pamięć
główna
Gniazda DDR3 DIMM x 4
Maks. wielko ść pamięci 32GB
Każde gniazdo DIMM obsługuje moduły
512MB/1GB/2GB/4GB/8GB DDR3
Mod uł pamięci DDR3 z trybem podwójnego kanału
Obsługa DDR3 1066 / 1333 / 1600
Obsługa DDR3 1866(OC) / 2133(OC) / 2400(OC)
Brak obsługi Registered DIMM oraz ECC DIMM
Super I/O
IT8728
Zapewnia najbardziej powszechne funkcje
Super I/O.
Interfejs Low Pin Count
Funkcje kontroli warunków pracy,
Mon itor H /W
Kontroler/Monitor prędkości wentylatora
Funkcja ITE "Sm art Guard ian"
SATA 2 & 3
Zintegrowany kontroler Serial ATA
Transfer danych do 3.0 Gb/s / 6.0 Gb/s.
Zgodność ze specyfikacją SATA w wersji 2.0 / 3.0.
Obsługa RAID 0,1,5,10, SRT (TZ77XE3)
LAN
Realtek RTL 8111E
10 / 100 / 1000 Mb/s z automatyczną negocjacją
szybkości
Działanie w trybie połowicznego / pełnego dupleksu
Obsługa
aud io HD
ALC892
Obsługa H igh -Defin ition Aud io
7.1 kanałowe wyjście audio
USB3.0 Z77 (TZ77XE3) / Z75 (TZ75XE3) Cena transferu danych do 600 MB / s
Gniazda
Gniazdo PCI x2
Gniazdo PCI Express Gen3 x16 x2
Gniazdo PCI Express Gen2 x16(x4) x1
Gniazdo PCI Express Gen2 x 1 x2
Złącza
wbud owan e
Złącze SATA3 x 2 Każde złącze obs ługuje 1 urządzenie SATA3
Złącze SATA2 x 4 Każde złącze obs ługuje 1 urządzenie SATA2
Złącze panela przedniego x1 Obsługa elementów panela przedniego
Przedn ie z łącze aud io x1 Obsługa funkcji audio na panelu przednim
Złącze główkowe wenty latora
procesora x1
Zasilanie wentylatora procesora (z funkcją Smart
Fan )
Page 61
TZ77XE3/TZ75XE3
59
SPEC
Złącze główkowe wenty latora
systemowego x2
Zasilanie wentylatora systemowego
Złącze główkowe kasowan ia CMOS x 1
Złącze USB2.0 x 2
Każde złącze obs ługuje 2 porty USB2.0 na panelu
przednim
Złącze USB3.0 x 1
Każde złącze obs ługuje 2 porty USB3.0 na panelu
przednim
Złącze Konsument IR x1
Port sz erego wy x 1
Złącze wyjścia S/PDIF x1 Obsługa funkcji cyfrowego wyjścia audio
Złącze zasilania (24 pinowe) x1
Złącze zas ilania (8 p ino we) x1
Back Panel
I/O
Klawiatura PS/2 x1
Port HD MI x 1
Port VGA x1
Port DV I x 1
Port LA N x1
Port USB2.0 x4
Port USB3.0 x2
Gniazdo audio x6
Wymiary
płyty
244 mm (S) X 305 mm (W) ATX
Obsluga
systemu
operacyjne
go
Windows XP / V ista / 7
Biostar zastrzega sobie prawo dodawania lub
odwoływania obsługi do wo lnego s ys temu
operacyj nego b ez p owiado mien ia.
Page 62
Motherboard Manual
60
RUSSIAN
СПЕЦ
CPU
(центральн
ый
процессор)
Socket 1155
Процессор Inte l Co re i7 / i5 / i3 / Pent iu m /
Celeron
Поддержка технологий Execut e Disable B it /
Enhanced Intel Sp eedStep® / Intel Architect ure- 64
/ Extended Memory 64 Technology / технологии
вирту ализация / Hyper Threading
Набо р
микросхем
Intel Z77 (TZ77XE3)
Intel Z75 (TZ75XE3)
Основная
память
Слоты DDR3 DIMM x 4
Максимальная ёмкость памяти 32 ГБ
Каждый модуль DIMM поддерживает
512МБ /1ГБ/2ГБ/4ГБ/8 ГБ DDR3
Мод ул ь памяти с двухкан альн ым режимом DDR3
Поддержка DDR3 1066 / 1333 / 1600
Поддержка DDR3 1866(OC) / 2133(OC) / 2400(OC)
Не поддерживает зарегистрированные модули
DIMM and ECC DIMM
Super I/O
IT8728
Обеспечивает наиболее используемые
действующие фун кц ион альные
возможности Super I/O.
Интерфейс с низким коли чест вом выводов
Инициативы по охране окружающей среды,
Аппаратный монитор
Регул ятор скорости вентилятора/ монитор
Функция ITE "S mart Guardian"
(Интеллектуальная защита)
SATA 2 & 3
Встроенное последоват ельное устройство
управлени я ATA
скорость передачи данных до 3.0 гигабит/с /
6.0 гигабит/с.
Соответствие специ фикации SATA версия 2.0/3.0
Поддержка RAID 0,1,5,10, SRT (TZ77XE3)
Локальная
сеть
Realtek RTL 8111E
Автоматическое согл асо вани е 10 / 100 / 1000
Мб/с
Частичная / полная дуплексная способность
Звуко вая
поддержка
жесткого
диска
ALC892
Звуко вая поддержка High-Def in ition
7.1канальный звуковой выхо д
USB3.0 Z77 (TZ77XE3) / Z75 (TZ75XE3) скорости передачи данных до 600 МБ / с
Слоты
Слот PCI x2
Слот PCI Express Gen3 x16 x2
Слот PCI Express Gen2 x16(x4) x1
Слот PCI Express Gen2 x 1 x2
Встроенны
й разъём
Разъ ём SATA3 x2 Каждый разъём поддерживает 1 устройство SATA3
Разъ ём SATA2 x4 Каждый разъём поддерживает 1 устройство SATA2
Разъ ём на лицевой панели x1 Поддержка устройств на лицевой панели
Входной звуковой разъём x1
Поддержка звуко вых функций на лицевой
панели
Page 63
TZ77XE3/TZ75XE3
61
СПЕЦ
Контактирующее приспособление
вентил ятора центрального процессора x1
Источник питания для вентилятор а центрального
процессора (с функц ией интеллектуального
вентил ятора )
Контактирующее приспособление
вентил ятора системы x2
Источник питания для вентил ятора системы
Открытое контактирующее
приспособление CMOS x1
USB2.0-разъём x2
Каждый разъём поддерживает 2 USB2.0-порта на
лицевой панели
USB3.0-разъём x1
Каждый разъём поддерживает 2 USB3.0-порта на
лицевой панели
Разъ ём едока ИКЫЙ x1
Последовательны й порт x1
Разъ ём вывода для S/PDIF x1 Поддержка вывода цифровой звуковой функции
Разъ ем питания (24 вывод) x1
Разъ ем питания (8 вы вод) x1
Задняя
панель
средств
ввода-выв
ода
Клавиатура PS/2 x1
Порт HD MI x1
Порт VGA x1
Порт DVI x1
Порт LAN x1
USB2.0-порт x4
USB3.0-порт x2
Гнездо для подключения
наушников x6
Размер
панели
244 мм (Ш) X 305 мм (В) ATX
Поддержка
OS
Windows XP / V ista / 7
Biostar сохраняет за собой право добавлять или
удалять средства обеспечения для OS с или без
предварительного уведомления.
Page 64
Motherboard Manual
62
ARABIC
تﺎﻔﺻاﻮﻤﻟا
تﺎﻴﻨﻘﺗ ﻢﻋﺪﺗExecute D isab le Bit / Enhanced Intel
Speed Step® / Intel Ar ch itecture- 64 / Ex tended
Memory 64 Technology / Virtualization Technology
/
Hyp er Thr ead ing
Socket 1155
تﺎﺠﻟﺎﻌﻣInte l Co r e i7 / i5 / i3 / Pentiu m /
Celeron ﺑددﺮﺘ ی ﻰﻟإ ﻞﺼ
ةﺪﺣو ﺔﺠﻟﺎﻌﻤﻟا
ﺔیﺰآﺮﻤﻟا
Intel Z77 (TZ77XE3)
Intel Z75 (TZ75XE3)
ﺔﻋﻮﻤﺠﻣ ﺢﺋاﺮﺸﻟا
ﺔﺤﺘﻓDDR3 DIM M دﺪﻋ4
ىﻮﺼﻗ ةﺮآاذ ﺔﻌﺳ32 ﺖیﺎﺑ ﺎﺠﻴﺝ
ﺔﺤﺘﻓ ﻞآ ﻢﻋﺪﺗDIMM عﻮﻥ ﻦﻣ ةﺮآاذ ﻢﻋﺪﺗ DDR3 ﺔﻌﺳ
/512 و ﺖیﺎﺑ ﺎﺠﻴﻣ1/
و2/ و4/ و8 ﺎﺠﻴﺝﺖیﺎﺑ
آاذ ةﺪﺣو ةﺮ DDR3 ﻘﻟا ﺔﺝودﺰﻣةﺎﻨ
عﻮﻥ ﻦﻣ ةﺮآاﺬﻟا ﻢﻋﺪﺗDDR3 تﺎﻌﺳ1066 /1333 /1600
ﺖیﺎﺑ ﺎﺠﻴﻣ
ﻢﻋﺪﺗ ةﺮآاﺬﻟا ﻦﻣ عﻮﻧ DDR3 تﺎﻌﺳ 1866 (OC) / 2133
(OC) / 160 0 ﺎﺠﻴﻣ ﺖیﺎﺑ
ةﺮآاﺬﻟا ﻖﺋﺎﻗر ﻢﻋﺪﺗ ﻻDIMM ﻊﻣ ﻖﻓاﻮﺘﺗ ﻻ ﻲﺘﻟا ﻚﻠﺗو ECC
ةﺮآاﺬﻟا ﺔﻴﺴﻴﺋﺮﻟا
ﻞﺋﺎﺳو ﻢﻜﺤﺘﻟا ﻲﻓ ﺔﺌﻴﺒﻟا:
ﺐﻗاﺮﻣ ﺔﻓﺮﻌﻤﻟ ﺔﻟﺎﺣ ةﺰﻬﺝﻷا
ﺐﻗاﺮﻣ ﻲﻓ ﺔﻋﺮﺳ ﺔﺣوﺮﻤﻟا
ﺔﻔﻴﻇو"S mart Gu ardian" ﻦﻣ IT E
IT8728
ﺮﻓﻮﺗ ﺔﻔﻴﻇو Super I/O ﺮﺜآﻷا ًﺎﻣ ا ﺪ ﺨ ﺘ ﺳ ا.
ﺗﻢﻋﺪ ﺔﻴ ﻨﻘﺗ Low Pi n Count Interface
Super I/O
ﻞﻘﻧ تﺎﻧﺎﻴﺒﻟا تﺎﻋﺮﺴﺑ ﻞﺼﺗ ﻰﻟإ 3.0 ﺖﺑﺎﺠﻴﺝ/ ﺔﻴﻧﺎﺛ / 6.0
ﺖﺑﺎﺠﻴﺝ/ ﺔﻴﻧﺎﺛ.
ﺔﻘﺑﺎﻄﻣ تﺎﻔﺹاﻮﻤﻟ SATA ﺪﺹﻹارا 2.0 / 3.0.
ﺔﻴﻨﻘ ﺗ ﻢﻋﺪﺗRAID 0,1,5,10, SRT (TZ77XE3)
ﻢﻜﺤﺘﻣ Serial ATA ﻞﻣﺎﻜﺘﻣ
SATA 2 & 3
ضوﺎﻔﺗ ﻲﺋﺎﻘﻠﺗ 10/100 ﺎﺠﻴﻣ ﺖیﺎﺑ /ﺔﻴﻥ ﺎﺙ و1ﺎﺠﻴﺝ ﺖﺑ/ﺔﻴﻥﺎﺙ
ﺔﻴﻥﺎﻜﻣإ ﻞﻘﻨﻟا جودﺰﻤﻟا ﻞﻣﺎﻜﻟا/ﻲﻔﺼﻨﻟا
Realtek RTL 8111E
ﺔﻜﺒﺵ ﺔﻴﻠﺥاد
ﻢﻋﺪﺗ ﺔﻴﻨﻘﺗ تﻮﺼﻟا ﻲﻟﺎﻋ ﻒیﺮﻌﺘﻟا ﻦﻣ
7.1 تاﻮﻨﻗ جﺮﺨﻟ تﻮﺼﻟا
ALC892
ﻢﻋد تﻮﺼﻟا ﻲﻟﺎﻋ
ﻒیﺮﻌﺘﻟا
تﻻﺪﻌﻣ ﻞﻘﻧ تﺎﻧﺎﻴﺑ ﻞﺼﺗ ﻰﻟإ 600 ﺎﻐﻴﻣ ﺖیﺎﺑ / ﺔﻴﻧﺎﺛ
Z77 (TZ77XE3) / Z75 (TZ75XE3) USB3.0
ﺔﺤﺘﻓPCI دﺪﻋ2
تﺎﺤﺘﻔﻟا
ﺔﺤﺘﻓGen2 x16 PCI Express دﺪﻋ2
ﺔﺤﺘﻓGen2 (x4)x16 PCI Express دﺪﻋ1
ﺔﺤﺘﻓPCI Express Gen2 x 1 دﺪﻋ2
ةﺰﻬﺝأ ﻦﻣ ﺪﺣاو ﺬﻔﻨﻣ ﻞآ ﻢﻋﺪیSATA3 ﺬﻔﻨﻣSATA3 دﺪﻋ2
ﺬﻓﺎﻨﻤﻟا ﻰﻠﻋ ﺢﻄ ﺳ
ﺔﺣﻮﻠﻟا
ةﺰﻬﺝأ ﻦﻣ ﺪﺣاو ﺬﻔﻨﻣ ﻞآ ﻢﻋﺪیSATA2 ﺬﻔﻨﻣSATA2 دﺪﻋ4
ﺔﻴﻣﺎﻣﻷا ﺔﺣﻮﻠﻟا تاﺰﻴﻬﺠﺗ ﻢﻋﺪی ﺔﻴﻣﺎﻣﻷا ﺔﺣﻮﻠﻟا ﺬﻔﻨﻣ دﺪﻋ1
Page 65
TZ77XE3/TZ75XE3
63
تﺎﻔﺻاﻮﻤﻟا
ﺔﻴﻣﺎﻣﻷا ﺔﺣﻮﻠﻟﺎﺑ تﻮﺼﻟا ﺔﻔﻴﻇو ﻢﻋﺪی ﻲﻣﺎﻣﻷا تﻮﺼﻟا ﺬﻔﻨﻣ دﺪﻋ1
ﻟا ﻞﻴﺹﻮﺘﻟ ﺔﻔﻴﻇو ﻊﻣ ﺔﺠﻟﺎﻌﻤﻟا ةﺪﺣو ﺔﺣوﺮﻤﻟ ﺔﻗﺎﻄSmart Fan ﺔیﺰآﺮﻤﻟا ﺔﺠﻟﺎﻌﻤﻟا ةﺪﺣو ﺔﺣوﺮﻣ ﺔﻠﺹو دﺪﻋ1
مﺎﻈﻨﻟا ﺔﺣوﺮﻤﻟ ﺔﻗﺎﻄﻟا ﻞﻴﺹﻮﺘﻟ مﺎﻈﻨﻟا ﺔﺣوﺮﻣ ﺔﻠﺹو دﺪﻋ2
ﺢﺴﻣ ﺔﻠﺹوCMOS دﺪﻋ1
ﻲﺘﺤﺘﻓ ﺬﻔﻨﻣ ﻞآ ﻢﻋﺪیUSB2.0 ﺔﻴﻣﺎﻣﻷا ﺔﺣﻮﻠﻟﺎﺑ ﺬﻔﻨﻣUSB2.0 دﺪﻋ2
ﻲﺘﺤﺘﻓ ﺬﻔﻨﻣ ﻞآ ﻢﻋﺪیUSB3.0 ﻟﺎﺑﺔﻴﻣﺎﻣﻷ ا ﺔﺣﻮﻠ ﺬﻔﻨﻣUSB3.0 دﺪﻋ1
ﺬﻔﻨﻣ ﺔﻜﻠﻬﺘﺴﻣ ﺖﺤﺗ ﺮﻤﺣﻷا دﺪﻋ1
ﻲﻠﺴﻠﺴﺗ ﺬﻔﻨﻣ دﺪﻋ1
ﻲﻤﻗﺮﻟا تﻮﺼﻟا جﺮﺥ ﺔﻔﻴﻇو ﻢﻋﺪی جﺮﺥ ﺬﻔﻨﻣS/PDIF دﺪﻋ1
ﺔﻗﺎﻄﻟا ﻞﻴﺹﻮﺗ ﺬﻔﻨﻣ)24سﻮﺑد( دﺪﻋ1
ﺔﻗﺎﻄﻟا ﻞﻴﺹﻮﺗ ﺬﻔﻨﻣ)8ﺲﻴﺑﺎﺑد( دﺪ ﻋ1
ﺢﻴﺗﺎﻔﻣ ﺔﺣﻮﻟPS/2 دﺪﻋ1
ﺬﻓﺎﻨﻣHD MI دﺪﻋ1
ﺬﻓﺎﻨﻣVGA دﺪﻋ1
ﺬﻓﺎﻨﻣDVI دﺪﻋ1
ﺔﻴﻠﺤﻣ لﺎﺼﺗا ﺔﻜﺒﺵ ﺬﻔﻨﻣ دﺪﻋ1
ﺬﻓﺎﻨﻣUSB2.0 دﺪﻋ4
ﺬﻓﺎﻨﻣUSB3.0 دﺪﻋ2
تﻮﺹ ﺲﺒﻘﻣ دﺪﻋ6
ﺬﻓﺎﻨﻣ ﻞﺧد/جﺮﺧ
ﺔﺣﻮﻠﻟا ﺔﻴﻔﻠﺨﻟا
AT X 305 ﻢﻣ)ضﺮﻋ (X 244 ﻢﻣ)عﺎﻔﺗرا(
ﻢﺠﺣ ﺔﺣﻮﻠﻟا
ﻆﻔﺘﺤﺗ Biostar ﺎﻬﻘﺤﺑ ﻲﻓ ﺔﻓ ﺎﺿإ وأ ﺔﻟازإ ﻢﻋﺪﻟا يﻷ مﺎﻈﻧ ﺸﺗﻞﻴﻐ رﺎﻄﺧﺈﺑ وأ نوﺪﺑ
رﺎﻄﺧإ.
Windows XP / V ista / 7 ﻢﻋد ﺔﻤ ﻈﻧأ ﻞﻴﻐﺸﺘﻟا
Page 66
Motherboard Manual
64
JAPANESE
仕様
CPU
Socket 1155
Int e l Co r e i7 / i5 / i3 / Pent ium / C eleron プロ
セッサ
Execute D isab le Bit / Enhanced Int el SpeedStep® /
Intel Architecture-64 / Extended Memory 64
Technology / Virtualization Technology / Hyper
Threadingをサポート します
チップセット
Intel Z77 (TZ77XE3)
Intel Z75 (TZ75XE3)
メインメモリ
DDR3 DIMMスロット x 4
最大メモリ容 量32GB
各DIMMは 512MB/1GB/2GB/4GB/8GB DDR3
をサポート
デュアル チ ャン ネルモードDDR3メモリモジ ュール
DDR3 1066 / 1333 / 1600 をサポート
DDR3 1866(OC) / 2133(OC) / 2400(OC) をサポート
登録済みDIMMとECC DIMMはサポ ート されません
Super I/O
IT8728
もっとも一般 に使用され るレ ガシーSuper I/O機
能を採用して います。
低ピンカウン トインター フェ イス
環境コントロ ールイニシ アチ ブ、
H/Wモニター
ファン速度コ ントローラ / モニター
ITE の「スマート ガー ディアン」 機能
SATA 2 & 3
統合シリアルATA コントロー ラ
最高3.0 Gb/秒 / 6.0 Gb/秒のデー タ転送 速度
SATAバージョン2.0 / 3.0仕様に準拠 。
RAID 0,1,5,10, SRT (TZ77XE3)のサポー ト
LAN
Realtek RTL 8111E
10 / 100 / 1000 Mb/秒のオート ネゴシエー ション
半/全二重機能
HDオ ーディ
オのサポート
ALC892
ハイデフィニ ションオー ディ オのサポー ト
7.1 チ ャンネルオ ーディ オアウト
USB3.0 Z77 (TZ77XE3) / Z75 (TZ75XE3) データ 転送速度最 大600 MB /秒の
スロット
PCIスロット x2
PCI Express Gen3 x16スロット x2
PCI Express Gen2 x16スロット (x4) x 1
PCI Express Gen2 x 1スロット x2
オンボードコ
ネクタ
SATA3コネクタ x2 各コネクタは 1つのSATA3デバイスをサ ポートしま す
SATA2コネクタ x4 各コネクタは 1つのSATA2デバイスをサ ポートしま す
フロントパネ ルコネクタ x1 フロン トパネル機 能をサポー トしま す
フロントオー ディオコネ クタ x1 フロン トパネ ルオーディ オ機 能をサポー トします
CPUファンヘッダ x1 CPUファン電源装置(スマートフ ァン 機能を搭載 )
Page 67
TZ77XE3/TZ75XE3
65
仕様
システムファ ンヘッダ x2 システ ムファン電 源装置
CMOSクリアヘッダ x1
USB2.0コネクタ x2
各コネクタは 2つのフロ ントパネル USB2.0ポー トをサポ
ートします
USB3.0コネクタ x1
各コネクタは 2つのフロ ントパネル USB3.0ポー トをサポ
ートします
消費者IR コネクタ x1
シリアルポー ト x1
S/PDIFアウトコネ クタ x1 デジタルオー ディ オアウト機 能をサポー トしま す
電源コネクタ (24 ピン) x1
電源コネクタ (8ピン) x1
背面パネル
I/O
PS/2キーボード x1
HDMIポート x1
VGAポート x1
DVI-Dポート x1
LANポート x1
USB2.0ポート x4
USB3.0ポート x2
オーディオジ ャック x6
ボードサイズ
244 mm (幅) X 305 mm (高さ) ATX
OSサポー ト Windows XP / Vista / 7
Biostarは事前の サポートな しにOSサ ポートを追 加ま たは
削除する権利 を留保しま す。
2012/05/09
Loading...
