Page 1
1

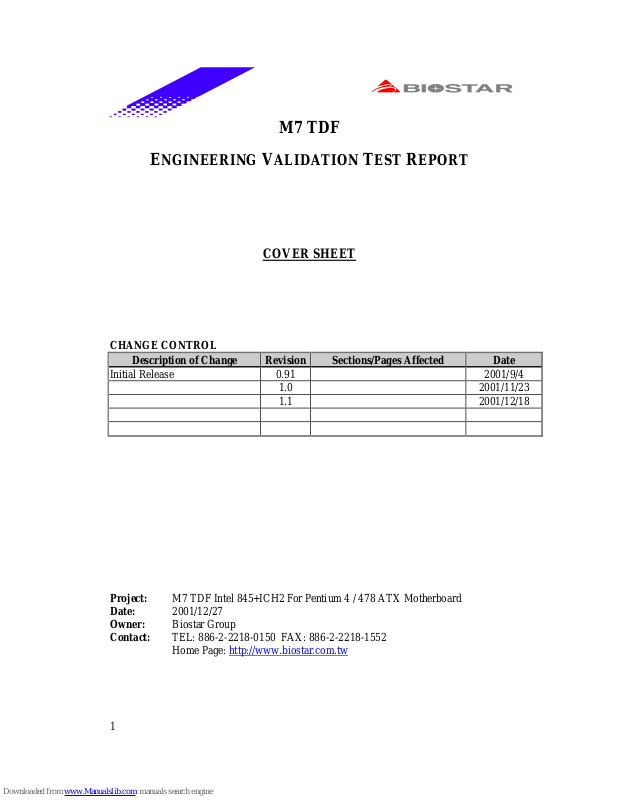

M7 TDF
E
NGINEERING VALIDATION TEST REPORT
COVER SHEET
CHANGE CONTROL
Description of Change Revision Sections/Pages Affected Date
Initial Release 0.91 2001/9/4
1.0 2001/11/23
1.1 2001/12/18
Project:
M7 TDF Intel 845+ICH2 For Pentium 4 / 478 ATX Motherboard
Date:
2001/12/27
Owner:
Biostar Group
Contact:
TEL: 886-2-2218-0150 FAX: 886-2-2218-1552 Home Page: http://www.biostar.com.tw
Page 2
2
CONTENTS
PRODUCT INFORMATION.............. ................................... ................... 4
Motherboard General Information ..............................................................................4
Chipset Details ............................................................................................................4
BIOS Details ...............................................................................................................4
CPU Supports..............................................................................................................4
Memory Supports. ..................... ... ..................... ... ..................... ..................... ... ..........4
On-board Features and Devices ............... ...... ... ...... ...... ... ...... ...... ... ...... ...... ... ...... ...... . 4
Mechanical ..................................................................................................................5
DESIGN REVIEW......................................... ............................................7
Mainboard Voltage Meas urement......... ... ..................... ... ..................... ... ................... 7
Bus Clock....................................................................................................................7
REQUIRED BIOS DEFAULT SETTINGS.............................................. 8
BIOS FEATURES SETUP ................ ... ... ..................... ... ..................... ... ................... 8
CHIPSET FEATURES SETUP ... ... ..................... ... ... ..................... ... ..................... ... . 8
POWER MANAGEMENT SETUP...... ..................... ... ..................... ... ..................... . 8
PnP / PCI CONFIGURATION ...................................................................................9
INTEGRATED PERIPHERALS. ..................... ... ..................... ... ..................... ... .......9
PC Health Statues......................................................................................................10
FUNCTIONALITY................................................................. ................. 11
Setup Installation Test Of Operating System............................................................ 11
Basic On-board Function Test...................................................................................11
MS-DOS Operating...................................................................................................11
Windows ME Operating...... .......................................... ... ..................... ... .................14
Windows2000 Operating.. ...... ...... ... ...... ...... ... ...... ...... ... ...... ...... ... ...... ...... ... ...... ...... .. 22
Windows XP (Home Edition ) Operating .................................................................26
Windows XP (Professional ) Operating....................................................................27
Linux (Red Hat 7.2) Operating .................................................................................30
RELIABILITY TEST.............................................................................. 32
Motherboard General Information ............................................................................32
Burn-in Step ..............................................................................................................32
OVER CLOCK TEST ............... ................................... ........................... 33
Windows Me (FSB:100 MHz).............. ..................... ... ..................... ... .................... 33
PERFORMANCE TEST. ................................... ..................................... 34
Windows ME........... ... ..................... ... ..................... ... ..................... ... ..................... .. 34
Windows2000............................................................................................................35
Windows XP ........... ... ..................... ... ..................... ... ..................... ... ..................... .. 36
DDR vs SDRAM........ ... ..................... ... ... ..................... ... ..................... ... .................37
HARDWA RE COMPATI BI LI T Y LIS T
.......................... ..... ................. 38
CPU........................................................................................................................... 38
CD-ROM...................................................................................................................38
Camera Device..........................................................................................................39
DVD-ROM................................................................................................................39
Display Card..............................................................................................................39
Page 3
3
FDD...........................................................................................................................40
HDD..........................................................................................................................40
Joystick...................................................................................................................... 41
Keyboard................................................................................................................... 42
LAN Card.......... ... ..................... ... ..................... ... ..................... ... ..................... ... .....42
LAN HUB............ ..................... ... ..................... ... ..................... ... ..................... ... .....43
Memory.....................................................................................................................43
Modem Card..............................................................................................................43
Mouse........................................................................................................................ 44
Monitor......................................................................................................................44
Power Supply ............................................................................................................45
Printer........................................................................................................................ 45
Scanner......................................................................................................................46
SCSI Card....... .......................................... ... ..................... ... ..................... ... ..............46
Sound Card................................................................................................................46
USB HUB..................................................................................................................47
ZIP/LS120................................................................................................................. 47
SOFTW ARE CO MP A T IB IL I T Y LI S T ........................... ..... ................. 48
DOS...........................................................................................................................48
Windows....................................................................................................................48
Server ........................................................................................................................48

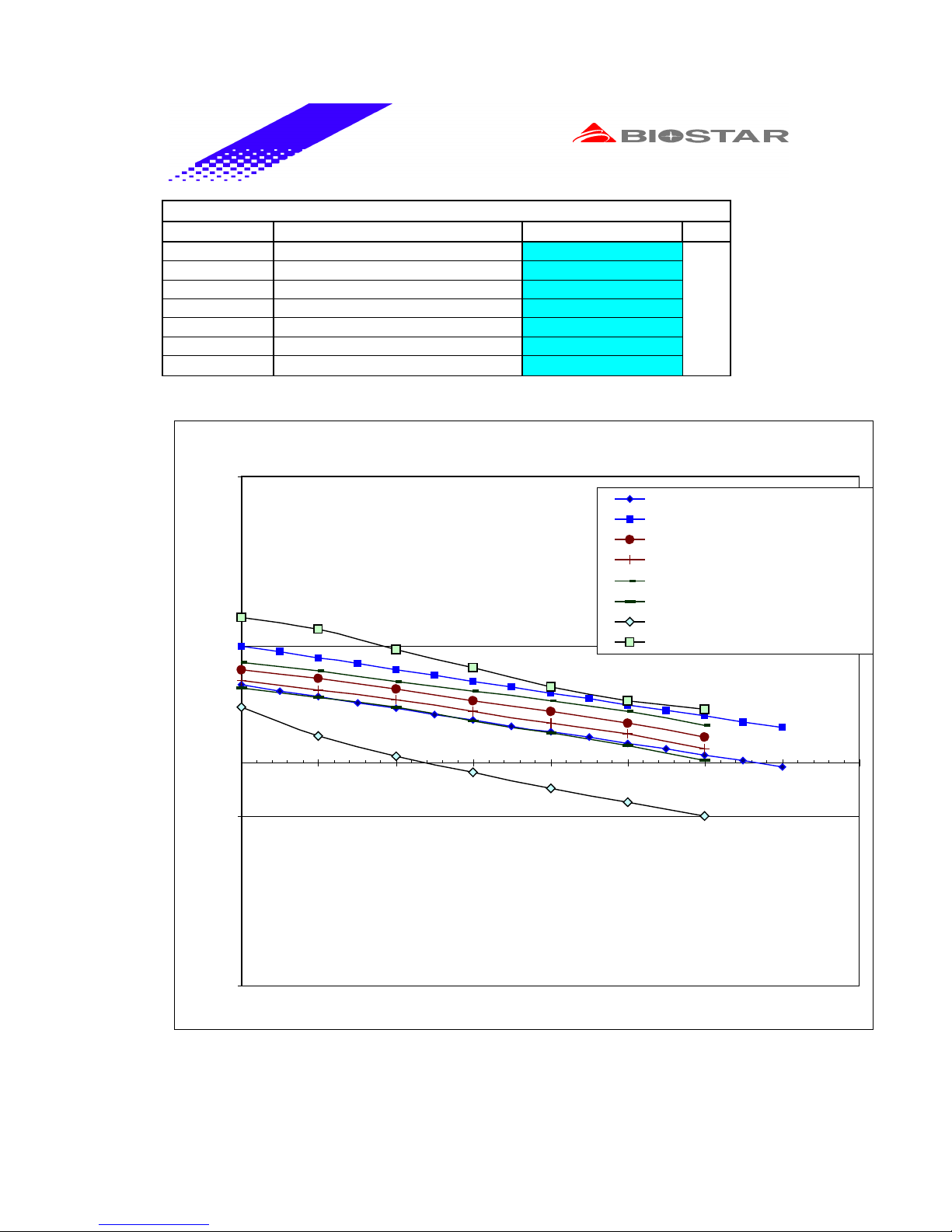

VCORE WAVEFORM MEASUREMENT-Ver1.0............................... 49
VCORE WAVEFORM MEASUREMENT-Ver1.1............................... 53
THERMAL IMAGE TEST – Ver 1.0........... ................................... .......56
Motherboard General Information ............................................................................56
THERMAL IMAGE TEST – Ver 1.1........... ................................... .......57
Motherboard General Information ............................................................................57
FOUR CORNER TEST-Ver1.0.................................... ........................... 58
Test Equipment & Environ ment ................. ..................... ..................... ... .................58
BCM Stress Test (30 min.)........................................................................................58
FOUR CORNER TEST-Ver1.1.................................... ........................... 59
Test Equipment & Environ ment ................. ..................... ..................... ... .................59
BCM Stress Test (30 min.)........................................................................................59
Page 4
4
PRODUCT INFORMATION
Motherboard General Information
Vendor
Biostar
Model Number M7 TDF Version Number V0.91/V1.0/V1.1 Platform  AT  ATX  Micro ATX  Flex ATX FCC Log o
Ok
CE Logo
Ok
Chipset Details
System Chipset Vendor
Intel
North Bridge Revision RG82845 South Bridge Revision FW82801BA Super I/O Chip Vendor Winbond Super I/O Revision Numbe r W83627HF-AW Clock Generator Vendor Cypress Clock Generator Rev ision CY28323PVC Audio Chipset Vendo r Realtek Audio Chipset Revision ALC201A
BIOS Details
BIOS Vendor AMI Award Phoenix Others BIOS Revision Number TDF1225X BIOS Memory Size 1M  2M  4M Flash EPROM BIOS Yes No
CPU Supports
Type CPU CPU Freque ncy Front Side Bus Comments:
Socket 478 Intel Pentium 4 Max =2200 MHz Max =100 MHz
Memory Supports
Maximum Mem ory Support DDR RAM 1024 (MB) Number of Memory Slots DIMM X4 Type of Memory Supported  VCM  SDRAM RDRAM DDR RAM Parity Support Yes No N/A ECC Support Yes No N/A
On-board Features and Devices
No of PCI Full Length Slots 3 4 5 6 No of ISA Full Length Slots 1 2 3 4 None AMR Slot Support Yes No CNR Slot Support Yes No ACR Slot Support Yes No Number of Shared Slots 1 None 100 MHz Fr ont Side Bus Supports Yes No PCI v2.2 Compliance Yes No
Page 5
5
ATAPI Compliance Yes No Ultra DMA 33 Support Yes No Ultra DMA 66 Support Yes No ATA-100 Support Yes No USB 1.1 Connector Support Yes No AGP 4X Slot Support Yes No Support AGP SideBand Addressing Mode Yes No Power on by LAN Support Yes No Infrared Support Yes No Enhanced Parallel Port Yes No DMI Compliance Yes No Hardware Monitor Support Yes No ACPI v1.0/APM v1.2 Compliance Yes No On-board Graphics Controller Yes No On-board Network Adapter 1Mb 10Mb 100Mb No On-board Audio Device Hardware AC97 CODEC No
Mechanical
Board Dimensions Length 30.5 cm Width 24.4 cm Visual Inspection of Soldering Excellent  Fair  Poor Visual Inspection of Layout Placement Connectors Quality Screw Holes Line Up with Case Yes No Excellent Fair Poor Power Connector placement in PCB Yes No Excellent Fair Poor DIMM/RIMM Socket placement in PCB Yes No Excellent Fair Poor CPU Socket placement in PCB Yes No Excellent Fair Poor FAN Connector placement in PCB Yes No Excellent Fair Poor FDD Connector placement in PCB Yes No Excellent Fair Poor IDE Connector placement in PCB Yes No Excellent Fair Poor Front Panel Conne ctors in PCB Yes No None Excellent Fair Poor PS/2 Connectors Line Up in Case Yes No None Excellent Fair Poor USB Port Connectors Li ne Up in Case Yes No None Excellent Fair Poor COM Port Connectors L i ne U p in Ca se Yes No None Excellent Fair Poor Printer Port Connectors L i ne Up in Case Yes No None Excellent Fair Poor VGA Port Connectors Line Up in Case Yes No None Excellent Fair Poor Audio Port Conn e ct ors Line Up in Case Yes No None Excellent Fair Poor Game Port Connectors Line Up in Case Yes No None Excellent Fair Poor AGP Slot(Card) Line Up in Case Yes No None Excellent Fair Poor ISA Slots(Card) Line Up in Case Yes No None Excellent Fair Poor PCI Slots(Card) Line Up in Case Yes No None Excellent Fair Poor AMR Slot(Card) Line Up in Ca se Yes No None Excellent Fair Poor CNR Slot(Card) Line Up in Case Yes No None Excellent Fair Poor ACR Slot(Card) Line Up in Case Yes No None Excellent Fair Poor Daughter Card Slot in PCB Yes No None Excellent Fair Poor Wake-on LAN connector in PCB Yes No None Excellent Fair Poor
Page 6
6
Wake-on Modem connector in PCB Yes No None
Excellent Fair Poor CD Audio-in Connector in PCB Yes No None Excellent Fair Poor AUX Audio-in Connector in PCB Yes No None Excellent Fair Poor Telephony Connector in PCB Yes No None Excellent Fair Poor Digital Video Connector Yes No None Excellent Fair Poor Other Jumper in PCB Yes No None Excellent Fair Poor Comments:
Page 7
7
DESIGN REVIEW
Mainboard Voltage Measurement
Voltage List Voltage SPEC Voltage Measured Result Battery Voltage 3.0V 3.06 Pass Battery Current 7uA 3.4 Pass +5V 5.0V+-5% 5.13 Pass +12V 12.0V+-5% 11.98 Pass
-5V -5.0V+-5% -5.07 Pass
-12V -12.0V+-10% -12.32 Pass +3.3V +3.3V+-5% 3.39 Pass
Bus Clock
Clock Frequency Spec Value
(MHz)
Measured Value
(MHz)
Pass/Fail
CPU and Clock Host 100.00 100.0 Pass DDR_SDAM Clock 100.00 100.0 Pass
133.33 133.33 Pass PCI Clock 33 33.22 Pass AGP Clock 66.67 66.67 Pass USB Clock 48 48.08 Pass Reference Clock 14.31818 14.29 Pass
Clock Voltage Level Spec Value (v) Measured Value Pass/Fail CPU and Host Clock Voltage Level 0.7~1.2v 0.668 Pass DDR_SDAM Clock Voltage Level 2.5v 2.28 Pass PCI Clock Voltage Level 3.3v 3.46 Pass AGP Clock Voltage Level 3.3v 3.38 Pass Reference Clock Voltage Level 3.3v 3.42 Pass
Clock Timing Sp ec Value (v) Measured Value Pass/Fail CPU Clock High Time 100.00 Min 2.5ns 4.52 Pass CPU Clock Low Time 100.00 Min 2.4ns 3.94 Pass CPU Clock Rising Time 100.00 0.4ns~1.6ns 0.64 Pass CPU Clock Falling Time 100.00 0.4ns~1.6ns 0.80 Pass PCI Clock High Time Min.11ns 12.6 Pass PCI Clock Low Time Min.11ns 12.8 Pass PCI Clock Rising Time 1ns~4ns 2.3 Pass PCI Clock Falling Time 1ns~4ns 2.3 Pass Comments:
Page 8
8
REQUIRED BIOS DEFAULT SETTINGS
Lists Specification Result
BIOS FEATURES SETUP
Virus Warning Disabled Pass CPU L1 & L2 Cache Enabled Pass Quick Power On Self Test Enabled Pass HP370/ SCSI Boot Priority HP370,SCSI Pass First Boot Device Floppy Pass Second Boot Device HDD-0 Pass Third Boot Device LS120 Pass Boot Other Device Enabled Pass Swap Floppy Seek Disabled Pass Boot Up Floppy Seek En a ble d Pass Boot Up NumLock Status On Pass Gate A20 Option Fast Pass Typematic Rate Setting Disabled Pass
Typematic Rate(Chars/Sec) 6 Pass Typematic Delay(MSEC) 250 Pass
Security Option Setup Pass APIC Mode Enabled Pass MPS Version Control F or OS 1.4 Pass OS Select For DRAM>64MB Non-OS2 Pass Report No FDD For WIN 95 No Pass
CHIPSET FEATURES SETUP
DRAM Timing Selectable By SPD Pass CAS Latency Time 1.5 Pass Active to Precharge Delay 7 Pass DRAM RAS# to CAS# Delay 3 Pass DRAM RAS# Precharge 3 Pass DRAM Data Integrity Mode Non-ECC Pass Memory Frequency For Auto Pass Dram Read Thermal Mgmt Disabled Pass System BIOS Cacheable Disabled Pass Video BIOS Cacheable Disabled Pass Video RAM Cacheable Disabled Pass Memory Hole At 15M-16M Disabled Pass Delayed Transaction Enabled Pass AGP Aperture Size (MB) 64 Pass
POWER MANAGEMENT SETUP
ACPI Function Enabled Pass ACPI Suspend Type S1(POS) Pass Power Management User Define Pass
Page 9
9
Video Off Method DPMS Pass Video Off In Susp e nd Yes Pass Suspend Ty pe Stop Grent Pass Modem Use IRQ 3 Pass Suspend Mode Disabled Pass HDD Power Down Disabled Pass Soft-off by PWR-BTN Instant-off Pass PWRON After PWRT-Fail Former-Sts Pass CPU THRM-Throttling 50% Pass Wake-U p by PCI Card Disabled Pass Power On by Ring Disabled Pass Wake Up On LAN Disabled Pass Resume by Alarm Disabled Pass
X Date(of M onth) Alarm 0 Pass X Time(hh:mm:ss)Alarm 0 0 0 Pass
Reload Global Timer Events Press Enter Pass Primary IDE 0 Disabled Pass Primary IDE 1 Disabled Pass Secondary IDE 0 Disable d Pa ss Secondary IDE 1 Disable d Pa ss FDD,COM,LPT Port Disabled Pass PCI PIRQ[A-D]# Disabled Pass
PnP / PCI CONFIGURATION
Reset Configuration Data Disabled Pass Resource Controller By Auto(ESCD) Pass
X IRQ Resource Press Enter Pass
PCI/VGA Palette Snoop Disabled Pass
INTEGRATED PERIPHERALS
Onboard RAID PCI IDE Enable Pass On-Chip IDE Control Press Enter Pass OnChip Primary PCI IDE Enabled Pass IDE Primary Master PIO Auto Pass IDE Primary Slave PIO Auto Pass IDE Primary Master UDMA Auto Pass IDE Primary Slave UDMA Auto Pass OnChip Secondary PCI IDE Enabled Pass IDE Secondary Master PIO Auto Pass IDE Secondary Slave PIO Auto Pass Secondary Master UDMA Auto Pass Secondary Slave UDMA Auto Pass IDE HDD Block Mode Enabled Pass USB Controller Enabled Pass USB Keyboard Suppo rt Disabled Pass
Page 10
10
AC97 Audio Auto Pass AC97 Modem Auto Pa ss Init Display First AGP Pass Onboard FDC Controller Enabled Pass Onboard Serial Port 1 3F8/IRQ4 Pass Onboard Serial Port 2 2F8/IRQ3 Pass UART Mode Select Normal Pass
RxD , TxD Active Hi , Lo Pass IR Transmission Delay Enabled Pass UR2 Duplex Mode Half Pass Use IR Pins IR-Rx2Tx2 Pass Onboard Parallel Port 378/IRQ7 Pass Parallel Port Mode SPP Pass EPP Mode Select EPP1.7 Pass ECP Mode Use DMA 3 Pass Game Port Address 201 Pass Midi Poort Address 330 Pass Midi Port IRQ 10 Pass
PC Health St at ues Write Actual Values
CPU Warning Temperature Disable Current CPU1 Temperature
52℃ / 125℉
Current SYSFA N Speed 5192 RPM Current CPUFAN Spe e d 4591 RPM CPU Vcore 1.69 V AGP Voltage 1.45 V +3.3V 3.29 V + 5 V 4.94 V + 12 V 11.49 V
-12 V - 11.86 V
- 5 V -5.35 V VBAT (V) 3.21 V 5VSB (V) 4.87 V Shutdown Temperature Disabled Comments:
Page 11
11
FUNCTIONALITY
Setup Installation Test O f Operating System Pass/Fail
DOS 6.22 Pass Windows 98 S e cond Edition Pass Windows ME Pass Windows NT 4.0 Workstation Pass Windows 2000 Pr ofessional Pass Windows 2000 Server Pass Windows XP Home Edition Pass Windows XP Professional Pass Linux (Red Hat 7.2) Pass
Basic On-board Function Test
Test Platform MS-DOS Operating Comment
CPU Pentium 4-1.8 GHz Memory SAMSUNG 128M *2 HDD QUANTUM 40 G CDROM BTC 52 X Sound Card Onboard Video Card ASUS V3800 LAN Card INTEL 82557,82559
Test Item Pass/Fail
Clear CMOS with Jumper Pass Cold Boot (Power Turn on ) Pass CMOS Load Default Setup Pass Memory Size Counter Check Pass BIOS Lock Function Pass Warm Boot (HW/SW Reset) Pass System Configuration Review (CPU Type/Cache/SDRAM/HDD…) Pass Power Fail Function Test Pass Prompt Into DOS Mode Pass Typing Some DOS Comment Pass Run Scandisk Pass PS/2 Keyboar d Test Pass USB Keyboa rd Legacy Support Test Pass Boot Floppy Driver A Pass FDISK Hard Disk Driver Pass Format Hard Disk Driver Pass Boot Hard Disk Driver C Pass Power LED Check Pass HDD LED Check Pass Systems Speaker Pass
Page 12
12
Buzz None
SMI Function T e st --­SMI Pin Func tion Test Pass Time Out Function Test Pass Power LED Flash Check Pass
Power On Control --­Power On By RTC Test Pass Power On By LAN Test (Intel SPD3) Pass Power On By Modem Test Pass
Boot Management --­Boot Form CD-ROM Pass Boot From SCSI HDD Pass Boot From ATAP I ZIP/L S 120 Drive Pass Boot From LAN None
RTC Test
---
COMS RTC Date Check Pass Windows 98SE RTC Date Check Pass COMS RTC Time Out Test Pass Windows 98S E RTC Time Out Test Pa ss
Memory Comparability Test ---
Bmem Memory Test (15 Times) Pass
Checkit 4.0 --­System Board Test Pass Memory Test Pass Hard Disk Test Pass Floppy Test Pass Serial Port Test Pass Parallel Port Test Pass Modem Test Pass Video Card Test Pass Printer Test Pass Keyboard Test Pass
AMIDiag 6.0 ---
System --­Processor Test Fail (Utility issue) DMA Controller Test Pass Interrupt Controller Test Pass Timer Test Pass Real Time Clock Test Pass CMOS Validity Test Pass Speaker Test Pass PCI System Test Pass Plug-n-Play Te st Pass
Page 13
13
Multimedia CPU Extensions Pass
Memory --­BIOS ROM Test Pass Parity Test Pass Pattern Test Pass Extended Pattern Test Pass Walking 1’s Test Pass Walking 0’s Test Pass Random Memory Test Pass Address Test Pass Refresh Test Pass Data Bus Test Pass Cache Memory Test Pass L2 Cache Test Pass
IDE --­IDE HDD Test Pass IDE CD Test Pass
FDD --­Drive Speed Test Pass Random R/W Test Pass Sequential R/W Test Pass Elevator Seek Test Pass Disk Change Line Test Pass
KBD --­Controller Test Pass Scan/ASCII code test Pass Keyboard LED Test Pass Keyboard Clock Line Test Pass Keyboard Data L ine Test Pass
Video --­Video Memory Test Pass Attribute Test Pass Page Selection Test Pass Color Test Pass Text Mode Test Pass Graphics Mode Test Pass VESA Video Mode Test Pass VESA Video Memory Test Pass VESA Monitor Test Pass
Misc. --­Serial Port Test Pass Parallel Port Test Pass PS/2 Mouse Test Pass
Page 14
14
APM Functionality Test Pass Device APM Test Pass ACPI Test Pass I82557 Ethernet chip Pass Comments:
Test Platform Windows ME Operating Comment
CPU Pentium 4- 2.0 GHz Memory SAMSUNG 128 M X4 HDD IBM DTL A-307030 CDROM PHILIPS 48X Sound Card Onboard Video Card ASUS V7700 LAN Card Intel 82559 CNR Card Lectron PCTel Modem ; Kingston CNR Card
Test Item Pass/Fail
System Comparability Test ---
Windows ME Setup Installation Test Pass Supports Driver Installation Test Pass System Pr operties Information Review ( S ystem Devic e Manager) Pass Standby Mode Test Pass Shut Down Test Pass Restart Test Pass Scandisk Test Pass Enable DMA Mode For IDE Device Test Pass Disk Defragmenter Test Pass Setup installation Microsoft Office 2000 Test Pass Reboot The Windows Test For Over Night Pass
Suspend To RAM (S3) Test
---
Standby Button for S3 (Enter) Pass Power Button for S3 (Enter and Wake up) Pass Windows Set RTC Time out for S3 (Enter and W ake up) Pass Enter S3 mode For 1/5/10/30/60/120/720 Minutes The n To Do Wake Up Te st. Pass Wake Up By LAN Test Pass Wake Up By Ring Test Pass Enable Scheduled Task Runs at Specified time Test (RTC wake up) Pass Power LED Flash check Pass Onboard Audio For S3 Function Supports Test (Play CD/VCD/DVD/AVI) Pass
Hibernate(S4) Test
---
Standby Button for S4 (Enter) Pass
Page 15
15
Power Button for S4 (Enter and Wake up) Pass Windows Set RTC Time out for S4 (Enter and Wake up) Pass Enter S4 mode For 1/5/10/30/60/120 Minutes Then To Do Wake Up Test. Pass Wake Up By LAN Test Pass Wake Up By Ring Test Pass Enable Scheduled Task Runs at Specified time Test (RTC wake up) Pass
Memory Com parability Test ---
Running AVI Files With Multi Stress Pass Winstone 99 Test Pass 3D Mark 2001 Test (Co ntinue loop 10) Pass BCM Memory Test Pass
Device Comparability Test ---
PS/2 Connector Test
---
PS/2 Keyboar d Test Pass PS/2 Mouse Test Pass
COM Port Test
---
Add Serial Mouse PnP Test Pass Add Modem PnP Test Pass
Print Port Test
---
Add Printer PnP Test Pass Add ZIP Device Test Pass LL5 Cable test (Data Transfer test) Pass
IrDA Function Test
---
Add IR Printer Test Pass Peer to Peer Data Transfer Test (Ir-In/Ir-Out) Pass
FDD Connector Test
---
Create Windows ME Startup Disk Pass Format 1.44 Floppy Driver Pass
IDE Connectors Test
---
CD-ROM Data Read Test Pass DVD-ROM Data Read Test Pass Format ZIP Driver With Floppy A Type Pass Format ZIP Driver With Removable Device Type Pass LS120 Device Driver Test Pass PIO Mode 4 Hard Disk Test Pass Ultra DMA 33 Hard Disk Test Pass Ultra DMA 66 Hard Disk Test Pass Ultra DMA 100 Hard Disk Test Pass ZIP Device Driver Test Pass
USB Ports Test --­Add Keyboard PnP Test Pass Add Mouse PnP Test Pass Add Printer PnP Test Pass
Page 16
16
Add Scanner PnP Test Pass Add Camera PnP Test Pass Add Modem PnP Test Pass Add Joystick PnP Test Pass Add ZIP PnP Test Pass Add LAN PnP Test Pass
PCI Slots Test ---
Add LAN Cards Test
---
Boot ROM Function Test Pass Login Serv er Test Pass Peer to Peer 10Mbps or 100Mbps Data Transfer Test Pass Power On By LAN Test Pass Wake O n LAN Test (Standby Mode) Pass Shut Down By The LAN Test Pass Playing AVI Files By The LAN Pass Setup Installation Winstone 2001 By The LAN Pass Setup Installation Winbench 99 By The LAN Pass Setup Installation 3D M ark2001 By Th e LAN Pass Add Token Ring LAN Card Test Pass ADSL Link Test Pass
Add SCSI Cards Test Add SCSI Cards For PnP Function Test Pass Setup installation the Windows from SCSI HDD Pass Scandisk Test Pass Disk Defragmenter Test Pass System Pr operties Information Review ( S ystem Devic e Manager) Pass Setup installation Microsoft Office 2000 Test Pass Reboot The Windows Test For Over Night Pass
Add Sound Card Test Add Sound Cards For PnP Function Test Pass Audio Drivers Setup Installation Test Pass System Pr operties Information Review Pass Audio Control Panel Function Test Pass Game Port Test Pass Sound Recorder Test Pass Run MPG Files Pass Speaker Out Quality Test Pass Playing Audio CD Test Pass Playing Wave Test Pass Playing MIDI Test Pass Playing Video Test Pass Playing MP3 Test Pass
CNR Slots Test
---
Page 17
17
Add LAN Card Test Pass Add Modem Card Test Pass Add Home PNA Card Test Pass Add CNR Software Modem Card Test Pass Connect Performance Check Pass Internet Explorer Test Pass Netscape Browser Test Pass Connect to ISP For 12 hours Pass Download Files using AMR Modem (Over 10MB) Pass Modem Fax Function Test (Transmit a fax to Fax Machine) Pass Modem Fax Function Test (Transmit a fax to Modem) Pass Modem Fax Function Test (Recei ve a fax from Fax Machine) Pass Modem Fax Function Test (Receive a fax from Modem) Pass Send & Receive e-mail Test Pass Recording a MP3 File From Internet ISP Server Pass CNR LAN ADSL Link Test Pass
VGA Function Test ---
VGA Drivers Setup Installation Test Pass Display Properties Information Review Pass Change Resolution / Color Test Pass Speedy 1.0 Pass Run 3D Screen Saver Pass Run 3D Mark2001 Pass Run XL-R8R Pass
VGA Resolution Test ( Monitor : ViewSonic GF775 /AGP: Nvidia MX400 )
---
Resolution Color Depth Optimal 75 Hz 85 Hz 100 Hz
---
640x480 16
√
none none none Pass
640x480 256
√ √ √ √
Pass
640x480 16 bit
√
√
√
√
Pass
640x480 32 bit
√ √ √ √
Pass
800x600 256
√
√
√
√
Pass
800x600 16 bit
√
√
√
√
Pass
800x600 32 bit
√
√
√
√
Pass
1024x768 256
√
√
√
√
Pass
1024x768 16 bit
√ √ √ √
Pass
1024x768 32 bit
√
√
√
√
Pass
1152x864 256
√ √ √
none Pass
1152x864 16 bit
√
√
√
none Pass
1152x864 32 bit
√ √ √
none Pass
1280x1024 256
√
√
√
none Pass
1280x1024 16 bit
√
√
√
none Pass
1280x1024 32 bit
√
√
√
none Pass
Page 18
18
Check Screen Have No Any Shadow Or Garbage Pass Playing MPEG Files Test Pass Playing VCD Test Pass Playing DVD Test Pass
3D Winbench 2000
---
3D Performance Pass 3D Processing Pass 3D Quality Pass 3D WinMark Pass Playing *.AVI f ile s (Stress Test for Over Night) Pass
Audio Function Test ---
Audio Drivers Setup Installation Test Pass System Pr operties Information Review Pass Audio Control Panel Function Test Pass CD-In Function Check Pass Game Port Test Pass Line-In Function Check Pass Mic-In Function Check Pass R/L Channel Check Pass Sound Recorder Test Pass Run MPG Files Pass Speaker Out Quality Test Pass Telephony Function Supports Pass Playing Audio CD Test Pass Playing Wave Test Pass Playing MIDI Test Pass Playing Video Test Pass Playing MP3 Test Pass Onboard Audio For S1 Function Supports Test Pass
Audio Winbench99 (Based onboard Sound controller)
---
Direct Sound CPU Util 44.1 kHz 16bit Static
---
Hardware Voices 0 Voice 8 0 Voice 16 0 Voice 32 1.08
DirectSound CPU Util , 44.1 kHz , 16 bits Streaming
---
Hardware Voice 0 Voice 8 0 Voice 16 0 Voice 32 0.986
DirectSound CPU Util , 22 kHz , 8 bits Static
---
Hardware Voice 0 Voice 8 0
Page 19
19
Voice 16 0 Voice 32 0.141
DirectSound CPU Util , 22 kHz , 8 bits Steaming
---
Hardware Voice 0 Voice 8 0 Voice 16 0 Voice 32 0.103
DirectSound3D CPU Util , 44.1 kHz , 16 bits Static
---
Hardware Voice 0 Voice 8 0 Voice 16 0.395 Voice 32 1.46
DirectSound3D CPU U t il , 44 .1 kHz , 16 bits Streaming
---
Hardware Voice 0 Voice 8 0 Voice 16 0.482 Voice 32 1.22
DirectSound3 D CPU Util , 22 kHz , 8 bits Sta t ic
---
Hardware Voice 0 Voice 8 0 Voice 16 0 Voice 32 0.484
DirectSound3D CPU Util , 22 kHz , 8 bits Streaming
---
Hardware Voice 0 Voice 8 0 Voice 16 0.0681 Voice 32 0.596
Windows Utility Test ---
BCM Diagnostics
---
System Info Pass DMI Info Pass Processor Test Pass Memory Tes t Pass Audio Test Pass Video Test Pass Graphics Test Pass Hard Disk Test Pass Floppy Disk Test (1.44 + IDE ZIP) Pass CD-ROM Test Pass Stress Test –Loop 100 Pass MS Mouse Pass MS Joystick Pass MS ScanDisk Pass
Page 20
20
PC-Doctor For Windows
---
CPU Test Pass Hard Driver Test Pass Floppy Test Pass LS-120 Driver Test Pass CD-ROM/DVD Test Pass ZIP Driver Test Pass Memory Tes t Pass PCI Test Pass Video Test Pass AGP Test Pass SCSI Test Pass COM Loopback Pass PCMCIA Test Pass Serial Port Internal Test Pass Parallel Port Internal Test Pass Parallel Port Loopback Pass SMART Test Pass USB Test Pass CMOS Test Pass Keyboard Test Pass AVI Video Test Pass Microphone Test Pass Audio Test Pass Mouse Test Pass Monitor Test Pass Printer Test Pass Joystick Test Pass
BurnIn Test
---
CPU-Maths Pass CPU-MMX/SSE Pass Memory (RAM) Pass 2D Graphics Pass 3D Graphics Pass Hard Disk Test Pass Floppy Disk Pass Network Test Pass CD-ROM Pass
Winstone 2001
---
Business Winstone 2001 Pass Content Creation Winstone 2001 Pass
Winbenc h 99 V1.2
---
Business Disk WinMark 99 Pass
Page 21
21
Business Graphics WinMark 99 Pass DirectDraw Tests Pass Disk Inspection Tests Pass Disk WinMark Pass GDI/USER Inspection Tests Pass High-End Disk WinMark 99 Pass High-End Graphics WinMark 99 Pass Video Tests Pass
3D Mark 2001
---
3D Marks Pass Demo Mode Pass
SYSMark2001
---
Internet Content Creation Pass Office Productivity Pass
Others
---
CD Winbench 99 Pass Final Reality Pass Intel Media Benchmark Pass 3D Mark 99 Max Pass Power DVD Test Pass USBready Pass WinDVD 2000 Pass Wintune 98 Test Pass CPU Stability Test Pass
Game Test
---
BEYOND THIRD DIMENSION Pass Command & Conquer Red Alert Pass DIABLO Pass DIABLO 2 Pass DID F22 Pass DESCENT3 Pass Doom II Pass Extreme-G2 Pass Flight Simulator98 Pass The Ultimate Formula 1 Pass Forsaken Pass Grand Prix Championship Pass G-Police Pass HEXEN II Pass Incoming Pass Interstate’76 Pass Janes WWII Fighters Pass Janes FLEET Command Pass
Page 22
22
Johnny Herbert’s Grand Prix Pass LION KING Pass MotorHead Pass Moto Racer Pass Myst Pass Microsoft Midtown Pass Microsoft Motocross Pass Microsoft Age Of Empires Pass Microsoft Age Of Empires 2 Pass Microsoft Monster Truck Pass NBA Live99 Pass O.ZONE Pass Quake III Pass Red Alert Pass Rush Hour Pass RedLine Racer Pass SEGA Manx TT Super Bike Pass SEGA Manx TT Pass SEGA Rally 95 Pass SEGA Daytona USA Pass Speed Demons Pass The Magic School Bus Pass Turok Pass Tonic Trouble Pass Tomb Raider II Pass Worms: 2 Pass Comments:
Test Platform Window s2000 Operating Comment
CPU Pentium4 - 2.2 GHz Memory SAMSUNG 256MB X 2 HDD QUANTUM Fireball AS30000AT CDROM PIONEER DVD-116 Sound Card On-Board Codec Video Card GeForce 2 GTS LAN Card 3COM 3C905C-TX
Test Item Pass/Fail
System Comparability Test ---
Windows 2000 Setup Installation Test Pass Supports Driver Installation Test Pass
Page 23
23
System Pr operties Information Review Pass Standby Mode Test Pass Shut Down Test Pass Restart Test Pass Scandisk Test Pass Setup installation Microsoft Office 2000 Test Pass
Hibernate(S4) Test
---
Standby Button for S4 (Enter) Pass Power Button for S4 (Enter and Wake up) Pass Windows Set RTC Time out for S4 (Enter and Wake up) Pass Enter S4 mode For 1/5/10/30/60/120 Minutes Then To Do Wake Up Test. Pass Wake Up By LAN Test Pass Wake Up By Ring Test Pass Enable Scheduled Task Runs at Specified time Test (RTC wake up) Pass
Memory Com parability Test ---
Winstone 99
---
Business Winstone 99 Pass High-End Winstone 99 Pass
Device Comparability Test ---
PS/2 Connector Test
---
PS/2 Keyboar d Test Pass PS/2 Mouse Test Pass
COM Port Test
---
Add Serial Mouse PnP Test Pass Add Modem PnP Test Pass
Print Port Test
---
Add Printer PnP Test Pass
FDD Connector Test
---
Format 1.44 Floppy Driver Pass
IDE Connectors Test
---
PIO Mode 4 Hard Disk Test Pass Ultra DMA 33 Hard Disk Test Pass Ultra DMA 66 Hard Disk Test Pass Ultra DMA 100 Hard Disk Test Pass CD-ROM Test Pass DVD-ROM Data Read Test Pass ZIP Device Driver Test Pass Format ZIP Driver With Floppy A Type Pass Format ZIP Driver With Removable Device Type Pass LS120 Device Driver Test Pass
LAN Cards Test
---
Boot ROM Function Test Pass
Page 24
24
Login Serv er Test Pass Peer to Peer 10Mbps or 100Mbps Data Transfer Test Pass Power On By LAN Test Pass Wake O n LAN Test (Standby Mode) Pass Shut Down By LAN Test Pass
PCI Slots Test
---
Add SCSI Card Test Pass Add LAN Card Test Pass Power On By LAN Test (Intel 82558B) Pass Wake O n LAN Test (Standby Mode) Pass Shut Down By LAN Test Pass Add Token Ring LAN Card Test Pass Add Sound Card Test Pass Add Modem Card Test Pass Wake O n Modem Test (Standby Mode) Pass Add Digital Video Card Test Pass
CNR Slots Test
---
Add LAN Card Test Pass Add Home PNA Card Test Pass Add Modem Card Test Pass
VGA Function Test --­VGA Drivers Setup Installation Test Pass Display Properties Information Review Pass VGA Resolution All Test Pass Screen Saver Test Pass Check Screen Have No Any Shadow Or Garbage Pass Playing MPEG Files Test Pass Playing VCD Test Pass Playing DVD Test(With WinDVD 2000) Pass
Audio Function Test --­Audio Drivers Setup Installation Test Pass System Pr operties Information Review Pass Speaker Out Quality Test Pass R/L Channel Check Pass CD-In Function Check Pass Line-In Function Check Pass Mic-In Function Check Pass Audio Control Panel Function Test Pass Telephony Function Supports Pass Sound Recorder Test Pass Playing Audio CD Test Pass Playing Wave Test Pass Playing MIDI Test Pass
Page 25
25
Playing Video Test Pass Playing MP3 Test Pass Game Port Test Pass
Windows2000 Utility Test Pass/Fail
BCM Diagnostics
---
System Info Pass DMI Info Pass Processor Test Pass Memory Tes t Pass Audio Test Pass Video Test Pass Graphics Test Pass Hard Disk Test Pass Floppy Disk Test Pass CD-ROM Test Pass Stress Test –Loop 100 Pass MS Mouse Pass MS Joystick Pass MS ScanDisk Pass
BurnIn Test
---
CPU-Maths Pass CPU-MMX/SSE Pass Memory (RAM) Pass 2D Graphics Pass 3D Graphics Pass Hard Disk Test Pass Floppy Disk Pass Network Test Pass CD-ROM Pass
Winbench 99 (1.2)
---
Business Disk WinMark 99 Pass Business Graphics WinMark 99 Pass DirectDraw Tests Pass Disk Inspection Tests Pass Disk WinMark Pass GDI/USER Inspection Tests Pass High-End Disk WinMark 99 Pass High-End Graphics WinMark 99 Pass Video Tests Pass
Winstone 2001
---
Business Winstone 2001 Pass Content Creation Winstone 2001 Pass
SYSMark2001
---
Page 26
26
Internet Content Creation Pass Office Productivity Pass
Others
---
SYSmark 98 Pass Wintune 98 Test Pass SYSmark 2000 Pass SYSmark 2001 Pass FogCity 210 (For DirectX/OpenGL) Pass XL-R8R Pass
Game Test
---
3D Pinball Pass Freecell Pass Minesweeper Pass Solitaire Pass Forsaken Pass Quake III Pass Age Of Empire Pass Tomb Raider 2 Pass Project Eden Demo Pass Comments:
Test Platform Windows XP (Home Edition ) Operating Comment
CPU Pentium 4 -2.0 GHz Memory SUMSANG 128* 2 HDD QUANTUM 40G CDROM TEAC 40 X Sound Card Onboard Video Card ASUS V3800 LAN Card Intel 82559
Test Item Pass/Fail
System Comparability Test ---
Windows XP Setup Installation Test Pass Supports Driver Installation Test Pass Standby Mode Test Pass Shut Down Test Pass Restart Test Pass Scandisk Test Pass Setup installation Microsoft Office 2000 Test Pass
System Information Review
Hardware Resources Pass
Page 27
27
Components Pass Software Environment Pass Internet Setting Pass Net Diagnostics Pass System restore Pass File Signature Verification Utility Pass DirectX Diagnostics Tool Pass Hardware Device Manager review Pass System Event Review Pass
Windows XP Utility Test Pass/Fail
BurnIn Test
---
CPU-Maths Pass CPU-MMX/SSE Pass Memory (RAM) Pass 2D Graphics Pass 3D Graphics Pass Hard Disk Test Pass Floppy Disk Pass Network Test Pass CD-ROM Pass
Winstone 2001
---
Business Winstone 2001 Pass Content Creation Winstone 2001 Pass
Winbenc h 99 V1.2
---
Business Disk WinMark 99 Pass Business Graphics WinMark 99 Pass DirectDraw Tests Pass Disk Inspection Tests Pass Disk WinMark Pass GDI/USER Inspection Tests Pass High-End Disk WinMark 99 Pass High-End Graphics WinMark 99 Pass Video Tests Pass
3D Mark 2001
---
3D Marks Pass Demo Mode Pass Comments:
Test Platform Windows XP (Pro fessional ) Operating Comment
CPU Pentium 4 -2.2 GHz
Page 28
28
Memory NANYA 128MB X 3 HDD IBM DTL A-307015 CDROM SONY CDU-5211 Sound Card On-Board Codec Video Card GeForce 2 GTS LAN Card INTEL 82550EY
Test Item Pass/Fail
System Comparability Test ---
Windows XP Setu p I nstallation Test Pass Supports Driver Installation Test Pass Standby Mode Test Pass Shut Down Test Pass Restart Test Pass Scandisk Test Pass Setup installation Microsoft Office 2000 Test Pass
System Information Review ---
Hardware Resources Pass Components Pass Software Environment Pass Internet Setting Pass Net Diagnostics Pass System restore Pass File Signature Verification Utility Pass DirectX Diagnostics Tool Pass Hardware Device Manager review Pass System Event Review Pass
Windows XP Utility Test Pass/Fail
BurnIn Test
---
CPU-Maths Pass CPU-MMX/SSE Pass Memory (RAM) Pass 2D Graphics Pass 3D Graphics Pass Hard Disk Test Pass Floppy Disk Pass Network Test Pass CD-ROM Pass
Winstone 2001
---
Business Winstone 2001 Pass Content Creation Winstone 2001 Pass
Winbenc h 99 V1.2
---
Business Disk WinMark 99 Pass
Page 29
29
Business Graphics WinMark 99 Pass DirectDraw Tests Pass Disk Inspection Tests Pass Disk WinMark Pass GDI/USER Inspection Tests Pass High-End Disk WinMark 99 Pass High-End Graphics WinMark 99 Pass Video Tests Pass
3D Mark 2001
---
3D Marks Pass Demo Mode Pass
WHQL HCT Pre-Test
---
ACPI Sleep Pass ACPI Stress-Device I/O (Extended) Pass ACPI Stress-Device I/O (Varied RTC) Pass ACPI Verify Pass AGP Interface Pass AGP Transfer Pass DirectDraw Accelerated Graphics Port (AGP) Memory Pass DirectMusic Driver Pass DirectSound Driver Pass Driver Scenario Pass Driver Verifier-System Pass Enable/Disable-Device I/O Pass Floppy -File I/O Pass Full Duplex Pass GUIMAN GDI with Poly Clip Pass Int 13H Extensions Pass LAN Device Wake Up Pass Legacy Free Pass Mixer Driver Pass Modem Test Pass Modem Test (Server) Pass NDIS Pass PCI 2.2 Compliance Fail (Errata ID403) PCI 3.3 Volt Auxiliary Powe r Load Pass PCI Configuration Header Dump Pass PCI Latency Pass PCI Test Adapter Diagnostic Pass PCI Voltage Requireme nt Pass PME# Signal R outi ng Pass PME# Signal Routing-Simultaneous Pass PXE Server installation Pass
Page 30
30
Remote Boot Pass RGB Rasterization Pass Serial Port Stress Pass Signal Driver Check Pass Storage Device Stress Pass SysParse Pass System Stress Pass System Wake-up Pass Unreported I/O Pass USB Device Framework Pass USB Device Wake Up Pass USB Manual Interoperability Pass USB Port Reporting Pass USB Salf-powered Hub Pass USB System Port Presence Pass Wake Device Server Pass Wave Driver Fail (Errata ID 227) Comments:
Test Platform Linux (Red Hat 7.2) Operating Comment
CPU Pentium 4 -2.2 GHz Memory Sams ung 128M pc-2 100 x2 HDD IBM Deskstar 40G ultra -100 CDROM Teac cd-540e Sound Card Onboard Video Card Asus 3800 LAN Card 3com 3c905b
Test Item Pass/Fail
System Comparability Test ---
Linux Setup Installation Test Pass Shut Down Test Pass Restart Test Pass
Device Comparability Test ---
PS/2 Connector Test
---
PS/2 Keyboar d Test Pass PS/2 Mouse Test Pass
COM Port Test
---
Add Serial Mouse Test Pass Add Modem Test Pass
FDD Connector Test
---
Page 31
31
Read 1.44 Floppy Disk Pass Format 1.44 Floppy Driver Pass
IDE Connectors Test
---
CD-ROM Data Read Test Pass DVD-ROM Data Read Test Pass
LAN Ports Test
---
Peer to Peer Data Transfer Test Pass
PCI Slots Test
---
Add SCSI Card Test Pass Add LAN Card Test Pass Add Sound Card Test Pass Comments:
Page 32
32
RELIABILITY TEST
Motherboard General Information
Vendor Biostar Model Number M7TDF Temperature rate ( ℃ ) 0 ~ 45 ℃
Humidity rate ( % )
0 ~ 60 %
Time ( hr ) 72 hr OS Windows Me Test Program Continuous Play DVD + Tomb2 DEMO
Burn-in Step
STEP 1
Temperature 0℃ ~ Humidity none ~ 12 hr.
STEP 2
Temperature 45℃ ~ Humidity 60% ~ 12 hr.
STEP 3
Temperature 0℃ ~ Humidity none ~ 24 hr.
STEP 4
Temperature 45℃ ~ Humidity 60% ~ 24 hr.
STEP 5 END.
Item Revision Initiation
Date
Finish Date CPU
( MHz )
DIMM ( MB )
VGA
Card
Pass/Fail PS
1 0.91 2001/9/6 2001/9/9 P4
1.9G
Samsung
256M*2
GF2
GTS Pro
Pass
2 1.0 2001/12/3 2001/12/6 P4
2.2G
Samsung
256M*2
GF2
MX400
Pass
3 1.1 2001/12/21 2001/12/24 P4
2.2G
Samsung
128M*4
V3800M Pass
Comments:
1.
Page 33
33
OVER CLOCK TEST
Test Platform Windows Me (FSB:100 MHz)
CPU Pentium 4-2000 MHz Memory SAMSUNG 128M X4 HDD IBM DTLA- 307030 CD-ROM LITEON LTN-362 Sound Card On board Video Card ASUS V7700 CPU Front Side Bus Clock 100 108
Winstone 2001 Business Winstone 2001 49.7 51.2 Content Creation Winsto ne 2001 59 63.4 Comments:
3D Winbe nc h 2000 3D WinM ark 124 126 Comments:
3D Mark 2001 Overall 3471 3590 Comments: These tests just for reference.
Page 34
34
PERFORMANCE TEST
Test Platform Windows ME
Memory SAMSUNG 128MX4 HDD IBM DTLA-307030 CD-ROM LITEON LTN-362 Sound Card On board Video Card ASUS V770 0 CPU P4-1.7 G P4-1.9 G P4-2.0 G P4-2.0(512K)
Winstone 2001 Business Winstone 2001 44.2 48.2 49.7 50.9 Content Creation Winstone2001 54.2 58.4 59 62.8 Comments:
Winbench 99(1.2) Business Disk WinMark 99 6050 5990 6100 6100 High-End Disk WinMa rk 99 22800 22800 22400 22500 Business Graphics WinMark 99 391 431 451 475 Hi-End Graphics WinMar k 99 1110 1240 1300 1330 Comments:
3D Winbe nc h 2000 3D WinMark 121 122 124 123 Comments:
3D Mark 2001 Overall 3468 3443 3471 3565 Comments:
SYSmark 2001 Internet Content Creation 154 169 171 184 Office Productivity 127 131 139 139 Comments:
Pentium 4 Processor Applic a tion Launcher eJay MP3 Plus 1.3 {C} 131 147 149 184 Incoming Forces {C} 106 117 121 132 Ligos GoMotion Video Decoder {C} 157 172 176 167 Magnitrax v1.02x(TM) {B} 147 153 173 165 Naturally Speaking Pre f 4. 0 {B} 132 139 142 158 Premiere with Ligos{C} 143 161 163 175 Video Studio ™ 4.0 {C} 160 168 150 182 Windows Media Encoder7.0{B} 169 180 155 193 Comments:
Page 35
35
Test Platform Windows2000
Memory SAMSUNG 256MB X 2 HDD IBM DTLA-307015 ATA-100 CD-ROM PIONEER DVD-116 Sound Card On-Board CODEC Video Card GeForce 2 GTS CPU P4 -1.8G P4 -1.9G P4- 2.0G P4- 2.2G
Winstone 2001 Business Winstone 2001 51.3 53.3 61.4 65 Content Creation Winstone2001 73.1 73.3 82.9 89.6 Comments:
SiSoft Sandra 2001
CPU Benchmark Dhrystone ALU (MIP S) 3440 3442 3845 4256 Whetstone FPU (MFLOPS) 940/2218 941/2219 1044/2467 1148/2699
CPU Multi-Media Benchmark Integer SSE 7152 7153 7953 8738 Floating-Point SSE 8795 8795 9810 10795 Comments:
3D Mark 2001 Overall 3429 3439 3618 3643 Comments:
Pentium 4 Processor Appl ication Launcher v2.1
Magnitrax™ V1.02 B
151 158 160 178
Naturally Speaking @ Pref 4.0 B
137 144 164 172
Premiere @ with Ligos C
180 193 205 211
Video Studio ™ 4.0 C
158 165 174 194
EJay MP 3 Plus 1.3 C
143 176 197 215
Ligos G oMotion Video Dec oder C
165 175 184 194
Comments:
Page 36
36
Test Platform Windows XP
Memory SAMSUNG 256MB X 2 HDD MAXTOR 4W100H6 ATA-100 CD-ROM PIONEER DVD-116 Sound Card On-Board CODEC Video Card GeForce 2 GTS CPU P4- 1.8G P4- 1.9G P4- 2.0G P4- 2.2G
Winstone 2001 Business Winstone 2001 41.6 44.9 45.3 54.3 Content Creation Winstone2001 58.7 64.1 64.6 79.2 Comments:
SiSoft Sandra 2001
CPU Benchmark Dhrystone ALU (MIP S) 3435 3473 3882 4267 Whetstone FPU (MFLOPS) 940/2217 941/2227 1044/2454 1149/2703
CPU Multi-Media Benchmark Integer SSE 7161 7165 7940 8726 Floating-Point SSE 8840 8848 9835 10816 Comments:
3D Mark 2001 Overall 3389 3393 3550 3591 Comments:
Pentium 4 Processor Appl ication Launcher v2.1
Magnitrax™ V1.02 B
148 150 164 175
Naturally Speaking @ Pref 4.0 B
135 135 158 161
Windows M e dia Encoder 7.0 B
164 168 196 219
Premiere @ with Ligos C
165 168 192 201
EJay MP 3 Plus 1.3 C
138 156 176 217
Incoming Forces C
94 94 112 115
Ligos G oMotion Video Dec oder C
162 162 172 181
Comments: For P4 Motherboard Only
Page 37
37
Test Platform DDR vs SDRAM
HDD IBM DTLA 307030 ATA-100 30G B CD-ROM SONY CDU711 Sound Card Onboard Video Card ASUS V770 0 Gefor ce 2 (102 4x768x32bit) OS Windows ME Motherboard M7 TDF (DDR) M7 TDB (SDRAM) CPU P4-1.8G
(Northwood)
P4-1.9G
(Willamette)
P4-1.8G
(Northwood)
P4-1.9G
(Willamette)
Memory Samsung 256M DDR-266 NEC 256M SDRAM PC-133
Winstone 2001 Business Winstone 2001 48.7 45.4 46.9 42.9 Content Creation Winsto ne 2001 55.7 52.3 53.1 49 Comments:
3D Mark 2001 Overall 3590 3493 3455 3334 Comments:
Pentium 4 Processor Appl ication Launcher v2.1
Magnitrax™ V1.02 B
156 165 153 160
Naturally Speaking @ Pref 4.0 B
149 136 134 123
Windows M e dia Encoder 7.0 B
171 170 159 162
Premiere @ with Ligos C
144 142 129 128
Video Studio ™ 4.0 C
158 157 140 142
EJay MP 3 Plus 1.3 C
171 142 165 132
Incoming Forces C
122 119 118 113
Ligos G oMotion Video Dec oder C
169 162 146 140
Comments:
Page 38
38
HARDWARE COMPATIB ILITY LIST
CPU
Vendor Model Frequency Type Result
Intel Pentium 4 1.5 GH z Socket 478 Pass Intel Pentium 4 1.6 GH z Socket 478 Pass Intel Pentium 4 1.7 GH z Socket 478 Pass Intel Pentium 4 1.8 GH z Socket 478 Pass Intel Pentium 4 1.9 GH z Socket 478 Pass Intel Pentium 4 2.0 GH z Socket 478 Pass Intel Pentium 4 2.2 GH z Socket 478 Pass Comments:
CD-ROM
Vendor Model Transfer Rate Type Result
ASUS CD-500/A 50X ATAPI Pass ACER 650P-072 50X ATAPI Pass ACER 620A-004 20X ATAPI Pass ACTIMA A-50 50X ATAPI Pass A-OPEN CD-948E 48X ATAPI Pass BTC BCD 40XJ 40X ATA-33 Pass BTC CD5233E 52X ATA-33 Pass CREATIVE CD-2421E 42X ATA-33 Pass DELTA OIP-CD4800A 48X ATA-33 Pass LITE-ON LTN-362 36X ATA-33 Pass LITE-ON 40X MAX 40X ATA-33 Pass LITE-ON LTN-483L 48X ATA-33 Pass NEC CDR-3000 32X ATA-33 Pass PHILIPS PCA328CD 32X ATA-33 Pass PHILIPS PCCD048 48X ATA-33 Pass PLEXTOR PX-32TSI(SCSI) 32X SCSI Pass SONY CDU711 32X ATAPI Pass SONY CDU4811 48X ATA-33 Pass SONY CRX100E 48X ATA-33 Pass SONY CDU-5211 52X ATA-33 Pass TEAC CD-540E 40X ATA-33 Pass TEAC CD-532E 32X ATA-33 Pass TEAC CD-532S 32X SCSI Pass Comments:
Page 39
39
Camera Device
Vendor Model Type Drivers Result
3COM 3718 USB 6.6.0.21 Pass Logitech QUICK CAM USB CD-Ver 4.1 Pass Logitech QUICK CAM HOME USB 1.0.3.1425 Pass Kodak DC240 USB Pass O’RIT M-318 USB CD-Ver 0.91 Pass Comments:
DVD-ROM
Vendor Model Transfer
Rate
Type Result
CREATIVE DVD2240E 2X ATAPI Pass CREATIVE DVD6240E 6X ATAPI Pass CREATIVE DVD-8401E 8X ATA-33 Pass CREATIVE DVD1242E 12X ATA-33 Pass HITACHI GD-2000 2X ATAPI Pass PIONEER DVD-113 10X ATAPI Pass PIONEER DVD-114 12X ATAPI Pass PIONEER DVD-115 16X ATAPI Pass PIONEER DVD-105S 16X ATAPI Pass PIONEER DVD-116 16X ATA-66 Pass TOSHIBA SM-M1102 2X ATAPI Pass TOSHIBA SD-M1302 4X ATAPI Pass TOSHIBA SD-M1402 6X ATAPI Pass ACTIMA AD-10S 10X ATA-33 Pass SAMSUNG SD-12S 12X ATA-33 Pass SONY DDU-1621 16X ATA-33 Pass Panasonic SR-8587B 16X ATA-33 Pass Comments:
Displ ay Ca rd
Vendor Model Chips Drivers Result
ASUS AGP-V 3800M RIVA TNT2 M64 4.12.01.2183 Pass ASUS AGP-V6800 DDR Geforce256 4.12.01.2183 Pass ASUS AGP-V7700 Geforce 2 GTS 4.12.01.2183 Pass ATI Rage FURY PRO 4.13.7192 Pass ATI XPERT 2000 PRO 4.13.7192 Pass ATI RADEON DDR 32M RADEON 4.13.7189 Pass ATI All-in-wonder RADEON RADEON 4.13.7189 Pass
Page 40
40
ATI RADEON 8500 LE RADEON 6.13.3276 Pass CREATIVE GeForce 2 GTS GeForce 2 GTS 4.12.01.2183 Pass DIAMOND Viper V770 Ultra RIVA TNT2 Ultra 4.12.01.2183 Pass ELSA ERAZOR Geforce 2 GTS 4.12.01.2183 Pass ELSA Geforce 2 G TS PRO 4.12.01.2183 Pass ELSA
ERAZOR III LT-A32
RIVA TNT2 M64 4.12.01.2183 Pass
ELSA
GLADIAC ULTRA
Geforce 2 ULTRA 4.12.01.2183 Pass
ELSA
GLADIAC 511
Geforce 2 MX400 4.12.01.2183 Pass
ELSA
SYNERGY III
Quadro 2 MXR 4.12.01.2183 Pass
ELSA
GLADIAC 920
NVIDIA Geforce3 4.12.01.2183 Pass Matrox G400 16MB 4.12.01.1720 Pass Matrox G450 4.12.01.2010 Pass Matrox G550 DDR 32M 4.12.01.1210 Pass PROLINK TNT2 M64 RIVA TNT2 M64 4.12.01.2183 Pass Winfas t Geforce256 Geforce256 4.12.01.2183 Pass Winfast
Geforce 2 GTS PRO 4.12.01.2183 Pass Winfast S325 RIVA TNT2 M64 4.12.01.2183 Pass Comments:
FDD
Vendor Model Size Type Result
MITSUMI D359T5 1.44 Pass MITSUMI D359T6 1.44 Pass MITSUMI D353T6 1.44 Pass MITSUMI D359M3 1.44 Pass MITSUMI D353M3 1.44 Pass NEC FD1231H 1.44 Pass TEAC FD-235HF 1.44 Pass SONY MPF920-E 1.44 Pass Panasonic JU257A606P 1.44 Pass SUMSUNG SFD-321B 1.44 Pass Comments:
HDD
Vendor Model Size Type Result
FUJITSU MPD3108AT 10.8G ATAPI Pass FUJITSU MPG3307AT 30.7G ATA-100 Pass IBM DJNA-370910 9.1G ATA-66 Pass IBM DPTA-372050 20G ATA-100 Pass IBM DNES-309170 9.1G SCSI Pass
Page 41
41
IBM DCAS-34330 4.3G WIDE SCSI Pass IBM DHEA-36481 6.4G ATA-33 Pass IBM DHEA-DPTA-372050 20G ATA-33 Pass IBM DTLA-307030 30G ATA-100 Pass IBM DTLA-307020 20G ATA-100 Pass IBM DTLA-307075 76.8 G ATA-100 Pass IBM DTLA-307015 15G ATA-100 Pass Maxtor 91360D8 Ultra33 13G ATA-33 Pass Maxtor 86480D6 Ultra33 6.4G ATA-33 Pass Maxtor 91190D7 Ultra33 11G ATA-33 Pass Maxtor 91024U3 10G ATA-66 Pass Maxtor 82560A4 2.5G 2.5G ATA-33 Pass Maxtor 54098U8 40G ATA-66 Pass Maxtor 31536H2 15G ATA-100 Pass Maxtor 33073H4 30G ATA-66 Pass MAXTOR 4W100H6 100G ATA-100 Pass QUANTUM AS40A0110-01-A 40 G ATA-100 Pass QUANTUM BIGFOOT 4.0G PIO-4 Pass QUANTUM EX3200AT 3.2G ATA-33 Pass QUANTUM E5100AT 5.1G ATA-33 Pass QUANTUM CR6400AT 6.4G ATA-33 Pass QUANTUM CX6400AT 6.4G ATA-33 Pass QUANTUM 6.4G SCSI 6.4G SCSI Pass QUANTUM KA9100AT 9.1G ATA-66 Pass QUANTUM KA13600AT 13G ATA-66 Pass QUANTUM KX13600AT 13G ATA-66 Pass QUANTUM LM15000AT 15G ATA-66 Pass QUANTUM LM20500AT 20G ATA-66 Pass QUANTUM AS30000AT 30G ATA-100 Pass QUANTUM AS40000AT 40G ATA-100 Pass QUANTUM AS60000AT 60G ATA-100 Pass SEAGATE ST313032A 13G ATA-100 Pass Comments:
Joystick
Vendor Model Type Result
Logitech Wingman USB Pass Logitech Wingman Formula Force USB Pass Logitech Wingman extreme digital 3D Game Port Pass Microsoft Side Winder Feedback Pro Game Port Pass Microsoft Side Winder 3D Pro Game Port Pass
Page 42
42
Microsoft Side Winder Dual Strike USB Pass Microsoft Side Winder Joystick USB Pass RockFire QF-606U USB Pass RockFire QF-8800U USB Pass Comments:
Keyboard
Vendor Model Type Result
Microsoft X03-51764 USB / PS/2 Pass Microsoft RT9401 USB / PS/2 Pass BTC 8110M USB Pass LEMEL KB-5201P USB Pass LEMEL AK-208 USB Pass SAMPO F-21YQ (SPK-2000) USB Pass BTC 5126 PS2 Pass BUS LOGIC BA81C15 PS2 Pass K.A.CHEN KB-7000 PS/2 Pass SAMPO F-21BQ PS/2 Pass Logitech Y-SA2 PS/2 Pass ACER 6511-TA PS/2 Pass Logitech (IR) Y-RA1 IR Pass WIRELESS 5110 IR Pass Comments:
LAN Card
Vendor Model Drivers Type Result
3COM 3C529B PCI Pass 3COM 3C509B-TX PCI Pass 3COM 3C905C-TX-M PCI Pass 3COM 3C359 Token Link XL PCI Pass AMD NE-PCI32 PCI Pass AMD Pcnet-Home am79C978kc PCI Pass Digital 21041pa PCI Pass DLINK 530TX PCI Pass DLINK DU-E10 USB Pass GFC GFC2206 PCI Pass Intel SB82558B PCI Pass Intel GD82559 PCI Pass Intel 82550EY PCI Pass
Page 43
43
Comments:
LAN HUB
Vendor Model Transfer Rate Result
3COM 100/10 Switch office400 100/10 Pass BUFF LO LSW 10/100-8H 100/10 Pass D-Link DE-812TP+ 10-Base Pass D-Link DE-805TP 10-Base Pass D-Link DE-809TC 10-Base Pass Comments:
Memory
Vendor Model Size Type Result
HYNIX HY5DU28822AT-K 256M PC-333 Pass KINGMAX KDL684T4A2A-06 128M PC-300 Pass KINGMAX KDL684T4A2A-07A 256M PC-266 Pass KINGMAX KDL684T4A2A-05 256M PC-333 Pass NANYA NT5 DS16 M8AT -7 K 128M PC-2 66 Pass NANYA NT5 DS16 M8AT -7 K 256M PC-2 66 Pass NANYA NT5 DS16 M8AT -6 256M PC-333 Pass NANYA NT5 DS32 M8AT -7 K 512M PC-2 66 Pass MT 46V16M8-75A 128M PC-266 Pass SAMSUNG K4H280838B-TCB0 128M PC-266 Pass SAMSUNG (ECC) K4H280838B-TCB0 128M PC-266 Pass SAMSUNG K4H280838B-TCB0 256M PC-266 Pass SAMSUNG K4H280838C-TCB0 256M PC-266 Pass Comments:
Modem Card
Vendor Model Drivers Type Result
AZTECH MDP 3858SP-UE vxd 2.1.2135.7.1 PCI Pass AZTECH MDP 7800U 4.90.3000 PCI Pass 3Com U.S Robotics 0637 vxd v1.00.017 PCI Pass Lectron I56PSP-T3 7.66-9K-03 PCI Pass 3Com U.S Robobit 56K FAX V 5.3 NAM COM Pass ADI MDX-56KRE COM Pass Lectron PCT303W 2.40.0004 CNR Pass King stone MTO6269353 vxd 5.00.83.8 CNR Pass WELL FM-56CNR-HPNA-SL-A vxd v2.84 CNR Pass
Page 44
44
D-LINK CNR-LM vxd v2.84 CNR Pass Classic Voice FAX Modem USB Pass JATON CommunicationV90 V1.00 USB Pass Rock MODEM V.90 vxd v2.01 USB Pass Comments:
Mouse
Vendor Model Drivers Type Result
ARTEC UM500P PS/2 Pass Logitech M-BB48 USB Pass Logitech M-BA47 USB Pass Logitech M-S34 PS/2 Pass Logitech M-M30 PS/2 Pass Logitech M-S43 PS/2 Pass Logitech M-CAA43 PS/2 Pass Logitech M-CAB48A PS/2 Pass Logitech M-MM35 Serial Pass Logitech M-MM43 Serial Pass Logitech M-RG45 IR Pass Microsoft IntelliMouse X04-91790 USB/PS2 Pass Microsoft
IntelliMouse B75-00006
USB/PS2 Pass
Seagate IOWCM-B700 PS/2 Pass WINIC FDM-A50 USB Pass Comments:
Monitor
Vendor Model Size Type Result
GENUINE G585
14″
CRT Pass
ViewSonic View Panel VPD150
15″
LCD Pass
ViewSonic E653
15″
CRT Pass
SAMPO AlphaScan 521a 15” CRT Pass ViewSonic View Panel VG175
17″
LCD Pass
ViewSonic 17PS
17″
CRT Pass
ViewSonic 17GA
17″
CRT Pass
ViewSonic GF775
17″
CRT Pass
View Sonic PS775 17” CRT Pass View Sonic E70 17” CRT Pass PHILIPS 107MP 17” CRT Pass SAMPO AlphaScan 761 17” CRT Pass SAMPO AlphaScan 712 a 17” CRT Pass
Page 45
45
SAMPO AlphaScan 950 19” CRT Pass OPTIQUEST Q100 19” CRT Pass View Sonic E790 19” CRT Pass View Sonic E810 19” CRT Pass HITACHI SuperScan 811 19” CRT Pass Comments:
Power Supply
Vendor Model Type Result
Enlight HPC-250-101 ATX-250W Pass Enlight HPS-300 ATX-300W Pass Enlight ATX-725B ATX-250W Pass Seventeam ST-250GL ATX-250W Pass Seventeam ST-275GL ATX-275W Pass Seventeam ST-300BLV ATX-300W Pass Seventeam ST-301HR ATX-300W Pass Seventeam ST-350GL ATX-350W Pass Seventeam ST-400GL ATX-400W Pass DELTA DPS-300KB ATX-300W Pass HIPRO HP-300SN ATX-300W Pass USPOWER RP2-300A ATX-300W Pass FSP FSP400-60GN ATX-400W Pass FSP FSP350-60BN ATX-350W Pass FSP FSP300-60BT ATX-300W Pass BELSON BS-2000 ATX-200W Pass YINHE ATX-300C ATX-300W Pass WINTECH WIN-250PS ATX-250W Pass Comments:
Printer
Vendor Model Drivers Type Result
CANON BJ-80K
Ver 2.0 IR Pass
EPSON STYLUS PHOTO 750 2.00.2452 USB /LPT Pass HP DeskJet 970Cxi 1.16.1.0 USB Pass HP Desk jet 990 cxi V13.0 IrDA/LPT/USB Pass HP DeskJet 695C
LPT Pass
Comments:
Page 46
46
Scanner
Vendor Model Drivers Type Result
HP Scan Jet 4200C CD-Ver 2.01 USB Pass HP Scan Jet 5200C CD-Ver 2.00 USB Pass MUSTEK 1200USB 4.10.1998 USB Pass UMAX Astra 1220U CD-Ver 2.1 Pass UMAX Astra 2000U CD-Ver 3.52 u Pass Comments:
SCSI Card
Vendor Model Drivers Type Result
ADAPTEC 2940U PCI Pass ADAPTEC 2940UW PCI-WIDE Pass ADAPTEC 2940U2W (LVD) PCI-WIDE Pass ADAPTEC 3940AUW PCI-WIDE Pass ADAPTEC 29160 PCI SCSI3LVD Pass AMD AM53C974AKC PCI-SCSI II Pass ASUS PCI-SC875 REV:1.1 PCI Pass Bus Logic PCI BT-930R PCI Pass DOMEX 636UW PCI Pass INITIO INIC-950P PCI Pass I-Will SIDE-2935UW PCI Pass I-Will DU-280 PCI SCSI3LVD Pass SYMBIOS 53C875 PCI Pass SYMBIOS 53C875E PCI Pass Tekram DC-390 5795
PCI Pass
Tekram DC-390U3W
PCI SCSI3LVD Pass
Comments:
Sound Card
Vendor Model Drivers Type Result
AVORTEX AU8820B2 4.05.0110 PCI Pass CREATIVE Sound Blaster CT4670 Ver 2.0 PCI Pass CREATIVE Sound Blaster SB0060 Ver 2.4 PCI Pass CREATIVE ES1371 4.05.1119 PCI Pass Ensoniq ES1370 4.02.1033 PCI Pass Comments:
Page 47
47
USB HUB
Vendor Model Drivers Result
KOUWEL 580H Pass SIIG UH-144 Pass PCI UH-400 Pass D-Link DU-H4 Pass Comments:
ZIP/LS120
Vendor Model Size Type Result
PANASONIC JU-811T012 100M IDE Pass Iomega Z250ATAPI 250M IDE Pass Iomega Z100P 100M LPT Pass Iomega Z250P 250M LPT Pass Iomega ZIP 100 USB 100M USB Pass Iomega ZIP 250 USB 250M USB Pass MATSUSHITA LKM-F734-1 (LS-120) 120M IDE Pass Comments:
Page 48
48
SOFTWARE COMPATIBILITY LIST
DOS Version Result
MS-DOS 6.22 Pass
Windows --- ---
Windows98 Second Edition Pass Windows ME 4.90.3000 Pass Windows NT Workstation 4.0 Pass Windows 2000 Pr ofession Release Pass Windows 2000 Server Release Pass Windows XP H ome Edition 2002 Pass Windows XP Professional 2002 Pass Linux Red hat 7.1 Pass
Server --- ---
NetWare 4.12 Pass NetWare 5.0 Pass SCO Unix 5.0 Pass Windows NT 4.0 Pass Windows 2000 Release Pass
Comments:
Page 49
49
VCORE WAVEFORM MEASUREMENT-Ver1.0
Blue cells need to be filled in with lab
measurement
Yellow cells need to have the overall design
tolerance entered
VID:
1.475
V
Tolerance:
1.00%
Overall
+Tolerance
0.007
V
- Tolerance 0.007 V
Vdmm
1.455
V
Vscope
1.460
V
Vfb_nl
1.460 V
Vfb_nf
1.473
V
Static Voltage Measurements at pins
AC14/AC15
Current Measured Static Voltage Units
0 1.455
V
10 1.442
V
20 1.427
V
30 1.411
V
40 1.397
V
50 1.380
V
60 1.366
V
Ripple Voltage Measurements (mV) at pins
AC14/AC15
Current Measurement Units
0 3.600
mV
10 3.600
mV
20 4.000 mV 30 4.800
mV
40 5.200
mV
50 5.200
mV
60 6.000 mV
Page 50
50
Transient Min (mV) at pins AC14/AC15
Load Step Current Measurement Units
0A to 0A 0 0.00
mV
0A to 10A 10 20.20
mV
0A to 20A 20 38.40
mV
0A to 30A 30 54.40
mV
0A to 40A 40 72.00
mV
0A to 50A 50 91.00
mV
0A to 60A 60 109.00
mV
Transient Max (mV) at pins AC14/AC15
Load Step Current Measurement Units
60A to 0A 0 105.00
mV
60A to 10A 10 87.00
mV
60A to 20A 20 73.60
mV
60A to 30A 30 57.20
mV
60A to 40A 40 40.00
mV
60A to 50A 50 23.00
mV
60A to 60A 60 0.00
mV
Measured Loadline Calculator
Spec'd Socket Loadline
Current Static and Transient
Min Max Nominal
0 -50 0 -25
5 -57 -8 -33 10 -65 -15 -40 15 -72 -23 -47 20 -80 -30 -55 25 -87 -38 -63 30 -95 -45 -70 35 -103 -53 -77 40 -110 -60 -85 45 -118 -67 -92 50 -125 -75 -100 55 -133 -83 -108 60 -140 -90 -115 65 -148 -97 -123 70 -155 -105 -130
Page 51
51

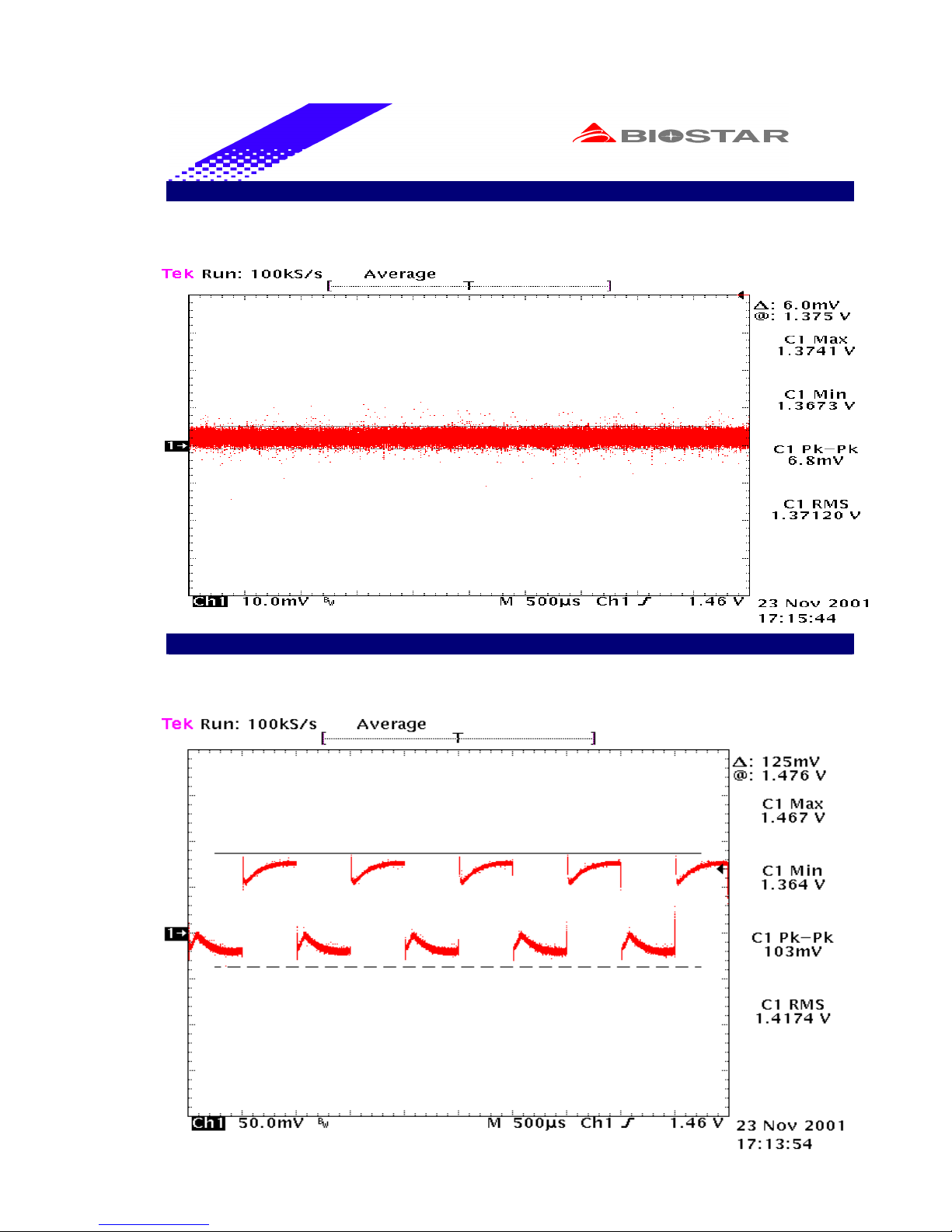

Static Ripple: (3) 3300
µµµµ
F + (9) OSCONs + (38) 10
µµµµ
F
Measured on 100MHz bandwidth, 8x Averaging, Infinite Persistence, 50A Static Chnl 1 = Vccp measured @ socket pin field north side on backside of board
6.6mV Vripple
Transient Vdroop: (3) 3300
µµµµ
F + (9) OSCONs + (38) 10
µµµµ
F
Measured on 100MHz bandwidth, 8x Averaging, Infinite Persistence, 50A Step Chnl 1 = Vccp measured @ socket pin field north side on backside of board Falling Edge @ 20mV/Div & 2.5mS (Chnl 1) w/ 50A Step. Vdroop = 76mV
Page 52
52
Pentium® 4 processor in the 478-pin package and Northwood processor Loadline Va lida to
r
Ac tu a l L oa d lin e Chart
-21 9
0
219
01020304050607080
Curre n
t
D
e
l
ta
mV Fr
o
m VID
Sta tic Min Sta tic Max Normalized + Tolerance
- T o le ran ce + Sta tic & Ripp le
- S ta tic & Rip p le Transient ­Transient +
Page 53
53
VCORE WAVEFORM MEASUREMENT-Ver1.1
Intel® Confidential
Loadline Validation Calculator for the Pentium® 4 processor in
the 478-pin Package and Northwood Processor
Revision 0.3
2001/11/6
Information in this doc ument is provided in connecti on with Intel products. No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted by this document. Except as provided in Intel's Terms and Conditions of Sal e for such products, Intel assumes no liability whatsoever, and Intel disclaims any express or implied warranty, relating to sale and/or use of Intel products including liability or warranties relating to fitness for a particular purpose, merchantability, or infringement of any patent, copyright or other intellectual property right. Intel products are not intended for use in medical, life saving, or life sustaining applications.
Intel may make changes to specifications and product descriptions at any time, without notice.
Designers must not rely on the absence or characteristics of any features or instructions marked "reserved" or "undefined." Intel reserves these for future definition and shall have no responsibility whatsoever for conflicts or incompatibilities arising from future changes to them.
The Intel® processors may contain design defects or errors known as errata which may cause the product to deviate from published specifications. Current characterized errata are available on request.
Contact your local Intel sales office or your distributor to obtain the latest specifications and before placing your product order.
*Other brands and names may be claime d as the property of others
Copyright © 2001, Intel Corporation
Page 54
54
Blue cells need to be filled in with lab measurement Yellow cells need to have the overall design tolerance entered
VID Voltage:
1.475
V
Tolerance:
1.00%
Overall
+Tolerance
0.007
V
- Tolerance
0.007
V
Vdmm
1.452
V
Vscope
1.466
V
Vfb_nl
1.452
V
Static Voltage Measurements at pins AC14/AC15
Current Measured Static Voltage Units
0 1.452
V
10 1.440
V
20 1.427
V
30 1.412
V
40 1.398
V
50 1.383
V
60 1.365
V
Ripple Voltage Measurements (mV) at pins AC14/AC15
Current Measurement Units
0 17.600
mV
10 18.800
mV
20 19.000
mV
30 23.000
mV
40 27.200
mV
50 28.200
mV
60 30.200
mV
Transient Min (mV) at pins AC14/AC15
Load Step Current Measurement Units
0A to 0A 0 25.20
mV
0A to 10A 10 62.80
mV
0A to 20A 20 89.00
mV
0A to 30A 30 109.00
mV
0A to 40A 40 130.00
mV
0A to 50A 50 147.00
mV
0A to 60A 60 166.00
mV
Page 55
55
Transient Max (mV) at pins AC14/AC15
Load Step Current Measurement Units
60A to 0A 0 138.00
mV
60A to 10A 10 123.00
mV
60A to 20A 20 98.00
mV
60A to 30A 30 73.60
mV
60A to 40A 40 48.80
mV
60A to 50A 50 32.00
mV
60A to 60A 60 20.20
mV

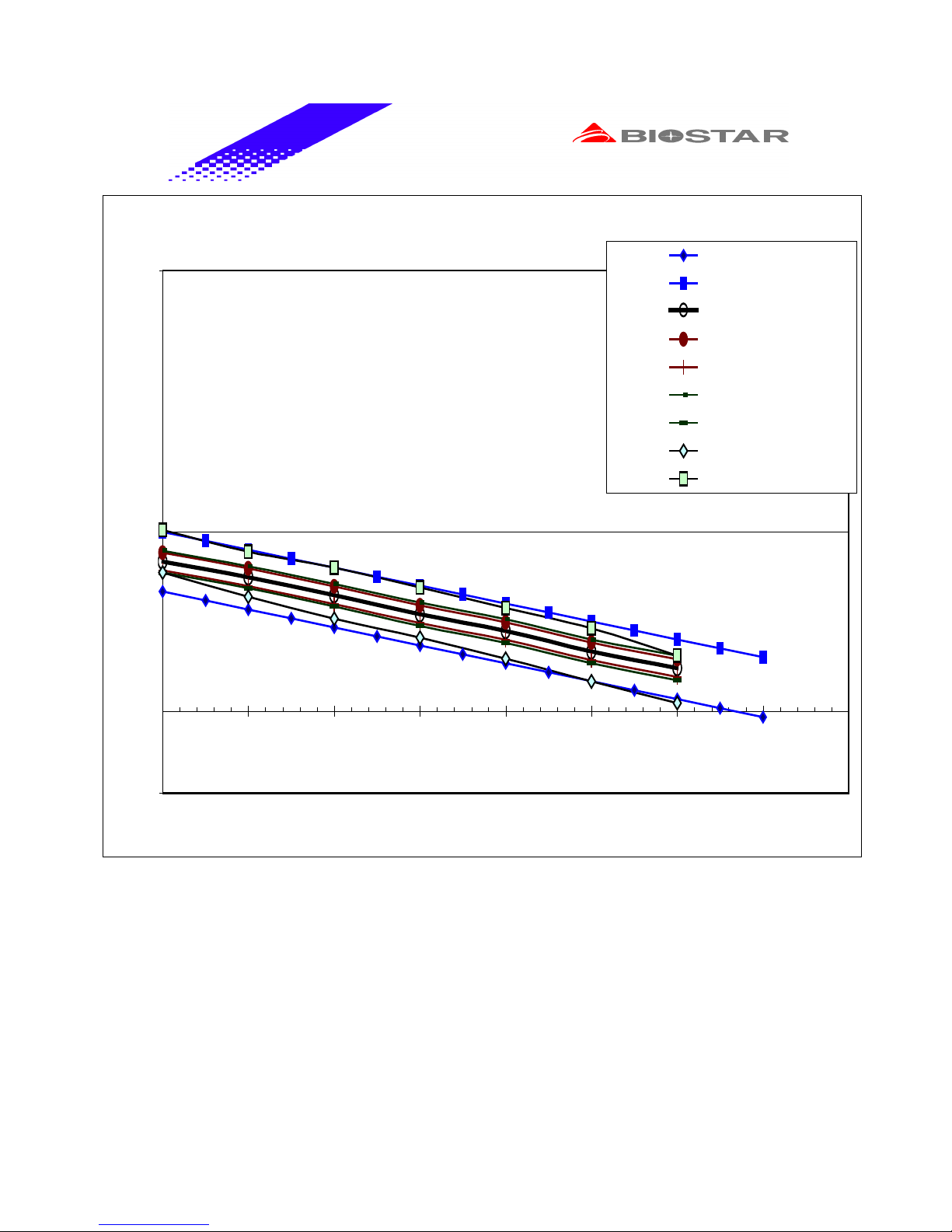

Pentium® 4 processor in the 478-pin package and Northwood processor Loadline Validator
A ctu al Lo ad line C h art
-437
-219
0
219
0 1020304050607080
Current
Delta mV From VID
St at i c Mi n (M in Soc k et Loadline) St at i c Max (Max Sock et Loadl ine) + Tolerance
- Toleranc e + S tatic & Rippl e
- Static & Ripple Transient ­Transient +
Page 56
56
THERMAL IMAGE TEST – Ver 1.0
Motherboard General Information
Vendor Biostar Model Number M7TDF Revision 1.0 Temperature ( ℃ ) 35 ℃
Humidity rate ( % )
0 ~ 60 %
Thermo Tracer NEC TH5104 Test Program 3Dmark2000
Comments:
The component temperature measured value was based on 35℃ check in the chamber
and the system during in the 3Dmark2000 Looping testing.
Page 57
57
THERMAL IMAGE TEST – Ver 1.1
Motherboard General Information
Vendor Biostar Model Number M7TDF Revision 1.1 Temperature ( ℃ ) 35 ℃
Humidity rate ( % )
0 ~ 60 %
Thermo Tracer NEC TH5104 Test Program 3Dmark2000
Comments:
The component temperature measured value was based on 35℃ check in the chamber
and the system during in the 3Dmark2000 Looping testing.
Page 58
58
FOUR CORNER TEST-Ver1.0
Test Equipment & Environment
M/B TYPE TDF/1.0 CPU Level P4(Northwood)-1900
RAM TYPE KINGMAX 256MB*2 VGA TYPE ELSE GLADIAC 64MB AGP Power Supply FSP350-60BN Floppy TEAC FD-235HF IDE1 Primary Seagate Barracuda ATA100 IDE1 Secondary TOMEGA ZIP250MB IDE2 Primary Seagate Medalist IDE2 Secondary Pioneer DVD-116
PCI 1 ADAPTEC 29 1 60-PK PCI 2 ADAPTEC AHA-29 4 0U2/W PCI 3 CREATIVE BLASTER L IVE PCI 4 3COM-3C905C PCI 5 3COM-3C905C PCI 6 3COM-MODEM
BIOS Version TDF1126
Win98 Version WINDOWS ME Driver CD Ver. I118B_1122
BCM Version 2.01 USB Device 3CO M HOME CAMERA
BCM Stress Test (30 min.)
Normal (Standard Power Voltage & Room Temperature)
Audio Processor Video CD-ROM DOS Disk Floppy Graphics Memory WinApp
Pass Pass Pass Pass Pass Pass Pass Pass Pass Pass
Corner 1 : 45℃ & 3.13V
Audio Processor Video CD-ROM DOS Disk Floppy Graphics Memory WinApp
Pass Pass Pass Pass Pass Pass Pass Pass Pass Pass
Corner 2 : 45℃ & 3.46V
Audio Processor Video CD-ROM DOS Disk Floppy Graphics Memory WinApp
Pass Pass Pass Pass Pass Pass Pass Pass Pass Pass
Corner 3 : 10℃ & 3.13V
Audio Processor Video CD-ROM DOS Disk Floppy Graphics Memory WinApp
Pass Pass Pass Pass Pass Pass Pass Pass Pass Pass
Corner 4 : 10℃ & 3.46V
Audio Processor Video CD-ROM DOS Disk Floppy Graphics Memory WinApp
Pass Pass Pass Pass Pass Pass Pass Pass Pass Pass
Comments:
Page 59
59
FOUR CORNER TEST-Ver1.1
Test Equipment & Environment
M/B TYPE TDF/1.1 CPU Level P4(Northwood)-2.2G
RAM TYPE Samsung 128M pc-2100 x 4 VGA TYPE ELSE GLADIAC 64MB AGP Power Supply FSP350-60BN Floppy TEAC FD-235HF IDE1 Primary IBM Deskstar 40G IDE1 Secondary TOMEGA ZIP250MB IDE2 Primary Seagate Medalist IDE2 Secondary Pioneer DVD-116
PCI 1 ADAPTEC 29 1 60-PK PCI 2 ADAPTEC AHA-29 4 0U2/W PCI 3 CREATIVE BLASTER L IVE PCI 4 3COM-3C905C PCI 5 3COM-MODEM PCI 6 3COM-3C905b
BIOS Version TDF1129f
Win98 Version WINDOWS ME Driver CD Ver. I1.19B_1R
BCM Version 2.01 USB Device 3CO M HOME CAMERA
BCM Stress Test (30 min.)
Normal (Standard Power Voltage & Room Temperature)
Audio Processor Video CD-ROM DOS Disk Floppy Graphics Memory WinApp
Pass Pass Pass Pass Pass Pass Pass Pass Pass Pass
Corner 1 : 45℃ & 3.13V
Audio Processor Video CD-ROM DOS Disk Floppy Graphics Memory WinApp
Pass Pass Pass Pass Pass Pass Pass Pass Pass Pass
Corner 2 : 45℃ & 3.46V
Audio Processor Video CD-ROM DOS Disk Floppy Graphics Memory WinApp
Pass Pass Pass Pass Pass Pass Pass Pass Pass Pass
Corner 3 : 10℃ & 3.13V
Audio Processor Video CD-ROM DOS Disk Floppy Graphics Memory WinApp
Pass Pass Pass Pass Pass Pass Pass Pass Pass Pass
Corner 4 : 10℃ & 3.46V
Audio Processor Video CD-ROM DOS Disk Floppy Graphics Memory WinApp
Pass Pass Pass Pass Pass Pass Pass Pass Pass Pass
Comments:
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
