1

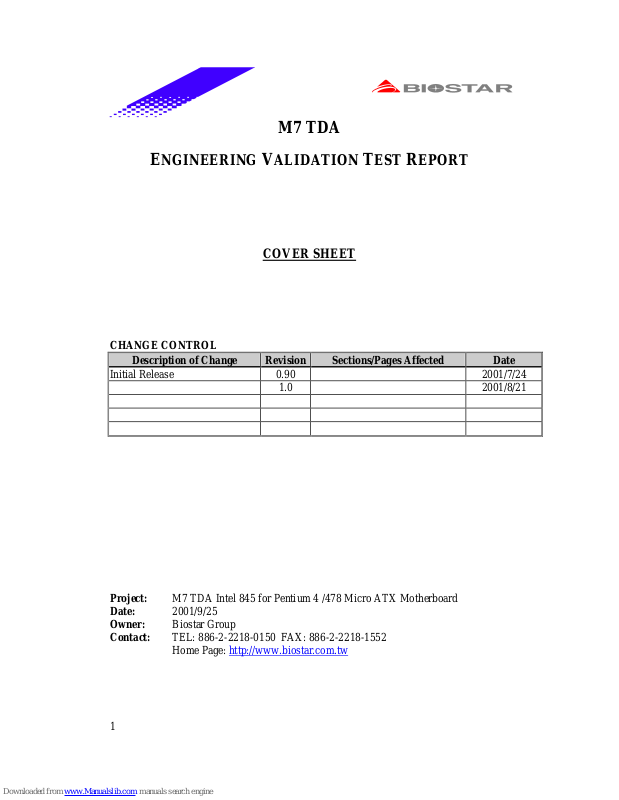

M7 TDA

E

NGINEERING VALIDATION TEST REPORT

COVER SHEET

CHANGE CONTROL

Description of Change Revision Sections/Pages Affected Date

Initial Release 0.90 2001/7/24

1.0 2001/8/21

Project:

M7 TDA Intel 845 for Pentium 4 /478 Micro ATX Motherboard

Date:

2001/9/25

Owner:

Biostar Group

Contact:

TEL: 886-2-2218-0150 FAX: 886-2-2218-1552 Home Page: http://www.biostar.com.tw

2

CONTENTS

PRODUCT INFORMATION.............. ......................................................4

Motherboard General Information..............................................................................4

Chipset Details ............................................................................................................ 4

BIOS Details ...............................................................................................................4

CPU Supports..............................................................................................................4

Memory Supports.... ... ................................................ ... .............................................. 4

On-board Features and Devices ......... ...... ... ...... ...... ... ...... ... ...... ...... ... ...... ...... ... ...... .... 4

Mechanical ..................................................................................................................5

DESIGN REVIEW..................................................................................... 7

Mainboard Voltage Meas urement.................. .............................................................7

Bus Clock....................................................................................................................7

REQUIRED BIOS DEFAULT SETTINGS..............................................8

BIOS FEATURES SETUP .......... ... ................................................... ......................... 8

CHIPSET FEATURES SETUP ............... ... ................................................... .............8

POWER MANAGEMENT SETUP......... ... ................................................ ... .............8

PnP / PCI CONFIGURATION ...................................................................................9

INTEGRATED PERIPHERALS................................................................................ 9

PC Health Statues......................................................................................................10

FUNCTIONALITY................................................................................ .. 11

Setup Installation Test Of Operating System.... ........................... ........................... .. 11

Basic On-board Function Test...................................................................................11

MS-DOS Operating...................................................................................................11

Windows ME Operating...... ........................... ...........................................................1 4

Windows2000 Operating.. ...... ...... ... ...... ...... ... ...... ...... ... ...... ...... ... ...... ...... ... ...... ...... .. 22

Windows 98 SE Operating........................................................................................27

Windows XP (Home Edition ) Operating ................................................................. 29

Windows XP (Professional ) Operating....................................................................30

Linux (Red Hat 7.1) Operating .................................................................................30

RELIABILITY TEST..................... .........................................................32

Motherboard General Information............................................................................32

Burn-in Step ..............................................................................................................32

OVER CLOCK TEST ............................................. ................................ 33

PERFORMANCE TEST..................... ....................................................34

Windows ME........... ... ...............................................................................................34

Windows 2000 (SP2) ................................................................................................35

HARDWA RE COMPATIBI L IT Y LI ST................................................ 36

CPU...........................................................................................................................36

CD-ROM...................................................................................................................36

Camera Device..........................................................................................................36

DVD-ROM................................................................................................................37

Display Card..............................................................................................................37

FDD...........................................................................................................................38

HDD..........................................................................................................................38

3

Joystick...................................................................................................................... 39

Keyboard...................................................................................................................39

LAN Card..................................................................................................................40

LAN HUB........................ .........................................................................................40

Memory.....................................................................................................................41

Modem Card..............................................................................................................41

Mouse........................................................................................................................42

Monitor......................................................................................................................42

Power Supply ............................................................................................................43

Printer........................................................................................................................43

Scanner......................................................................................................................44

SCSI Card....... ........................... ................................................................................44

Sound Card................................................................................................................44

USB HUB..................................................................................................................45

ZIP/LS120.................................................................................................................45

SOFTW ARE CO MP A T IB IL I T Y LI S T ............ ..................................... 46

DOS...........................................................................................................................46

Windows....................................................................................................................46

Server ........................................................................................................................46

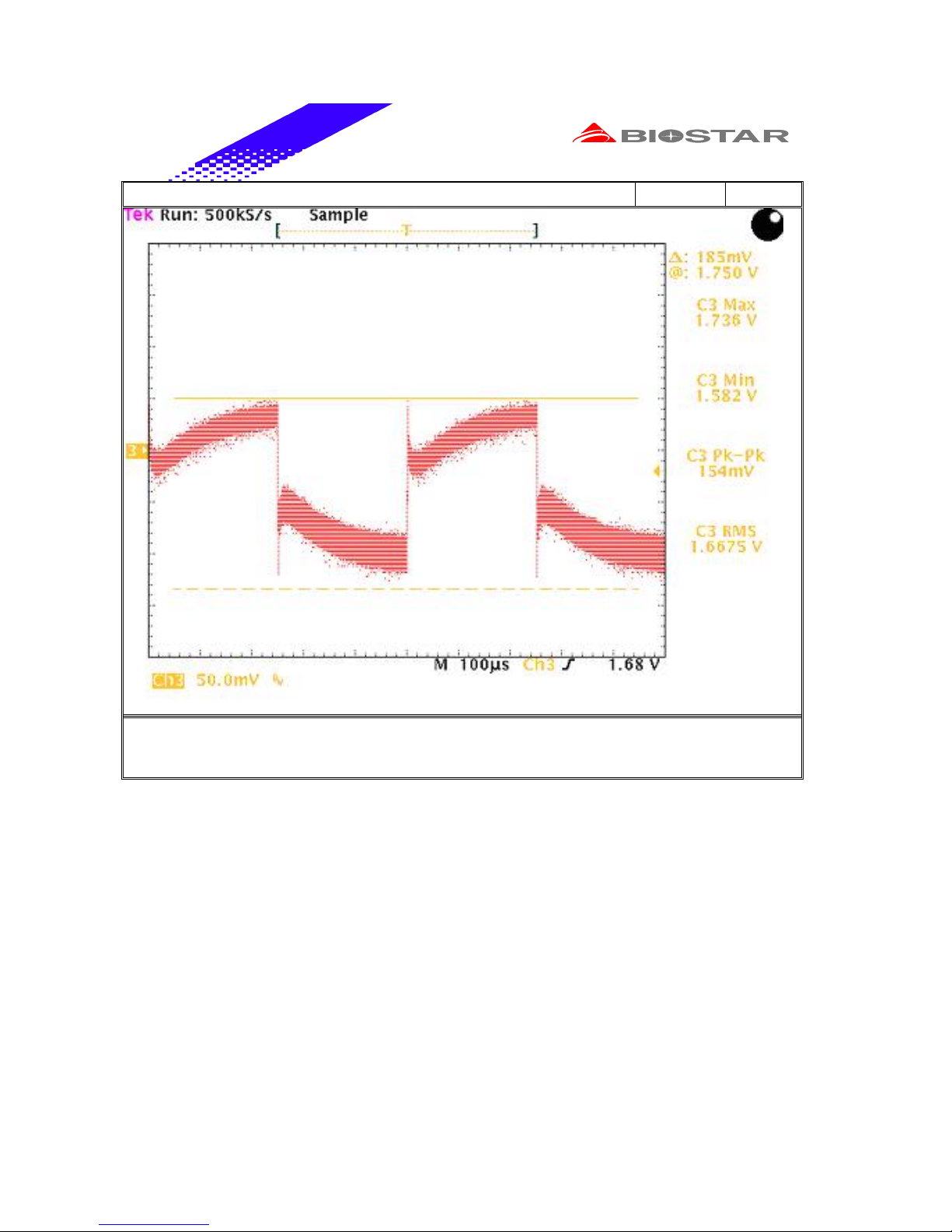

VCORE WAVEFORM MEASUREMENT-Ver1.0...............................47

Vcore Waveform.. ......... ......... ...... ......... ......... ...... ......... ...... ......... ......... ...... ......... ..... 48

Transient Min (mV) at pins AC14/AC15..................................................................49



............................. ..... ...............................................50

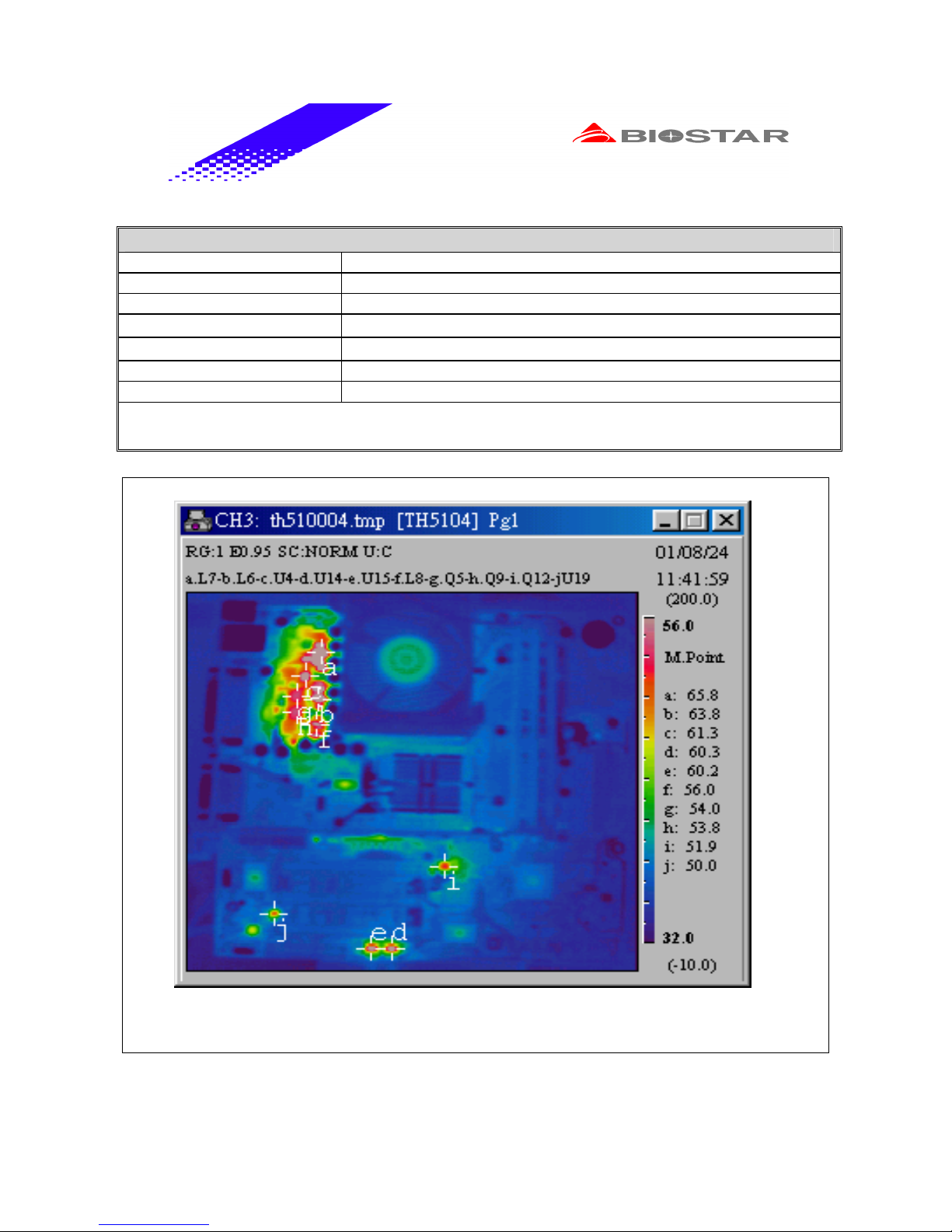

THERMAL IMAGE TEST – Ver 1.0............................... ...................... 53

Motherboard General Information............................................................................53

FOUR CORNER TEST

............................ ..... .......................................... 54

Test Equipment & Environ ment ........ ........................ ... ............................................54

4

PRODUCT INFORMATION

Motherboard General Information

Vendor

Biostar

Model Number M7TDA Version Number V0.90/V1.0 Platform  AT  ATX  Micro ATX  Flex ATX FCC Log o

Ok

CE Logo Ok

Chipset Details

System Chipset Vendor Intel North Bridge Revision RG82845 South Bridge Revision FW82801BA Super I/O Chip Vendor Winbond Super I/O Revision Numbe r W83627HF-AW Clock Generator Vendor Cypress Clock Generator Rev ision CY28323PVC Audio Chipset Vendo r Realtek Audio Chipset Revision ALC201A LAN Chipset Vendor Realtek LAN Chipset Revision RTL8100

BIOS Details

BIOS Vendor  AMI  Award  Phoenix  Others BIOS Revision Number TDA0904X BIOS Memory Size  1M  2M  4M Flash EPROM BIOS  Yes  No

CPU Supports

Type CPU CPU Frequenc y Front Side Bus Comments:

Socket 478 Intel Pentium 4 Max =2000 MHz Max =100 MHz

Memory Supports

Maximum Memory Suppor t SDRAM 1500 (MB) Number of Memory Slots  DIMM 3 . Type of Memory Supported  VCM  SDRAM  RDRAM  DDR RAM Parity Support Yes  No  N/A ECC Support Yes  No  N/A

On-board Features and Devices

No of PCI Full Length Slots  2  3  4  5 No of ISA Full Length Slots  1  2  3  4  None AMR Slot Support  Yes  No CNR Slot Support  Yes  No ACR Slot Support  Yes  No Number of Shared Slots  1  None

5

100 MHz Fr ont Side Bus Supports  Yes  No PCI v2.2 Compliance  Yes  No ATA-3 Compliance  Yes  No ATAPI Compliance  Yes  No Ultra DMA 33 Support  Yes  No Ultra DMA 66 Support  Yes  No ATA-100 Support  Yes  No USB Connector Support  Yes  No AGP 4X Slot Support  Yes  No Support AGP SideBand Addressing Mode  Yes  No Power on by LAN Support  Yes  No Infrared Support  Yes  No Enhanced Parallel Port  Yes  No DMI Compliance  Yes  No Hardware Monitor Support  Yes  No ACPI v1.0/APM v1.2 Compliance  Yes  No On-board Graphics Controller  Yes  No On-board Network Adapter  1Mb  10Mb  100Mb  No On-board Audio Device  Hardware  AC97 CODEC  No

Mechanical

Board Dimensions Length 24.4 cm Width 24.4 cm Visual Inspection of Soldering  Excellent  Fair  Poor Visual Inspection of Layout Placement Connectors Quality Screw Holes Line Up with Case  Yes  No  Excellent  Fair  Poor Power Connector placement in PCB  Yes  No  Excellent  Fair  Poor DIMM Socket placement in PCB  Yes  No  Excellent  Fair  Poor CPU Socket placement in PCB  Yes  No  Excellent  Fair  Poor FAN Connector placement in PCB  Yes  No  Excellent  Fair  Poor FDD Connector placement in PCB  Yes  No  Excellent  Fair  Poor IDE Connector placement in PCB  Yes  No  Excellent  Fair  Poor Front Panel Conne ctors in PCB  Yes  No  None  Excellent  Fair  Poor PS/2 Connectors Line Up in Case  Yes  No  None  Excellent  Fair  Poor USB Port Connectors Li ne Up in Case  Yes  No  None  Excellent  Fair  Poor LAN Port Connectors Line Up in Case  Yes  No  None  Excellent  Fair  Poor COM Port Connectors L i ne U p in Ca se  Yes  No  None  Excellent  Fair  Poor Printer Port Connectors Li ne Up in Case  Yes  No  None  Excellent  Fair  Poor VGA Port Connectors Line Up in Case  Yes  No  None  Excellent  Fair  Poor Audio Port Conn e ct ors Line Up in Case  Yes  No  None  Excellent  Fair  Poor Game Port Connectors Line Up in Case  Yes  No  None  Excellent  Fair  Poor AGP Slot(Card) Line Up in Case  Yes  No  None  Excellent  Fair  Poor ISA Slots(Card) Line Up in Case  Yes  No  None  Excellent  Fair  Poor PCI Slots(Card) Line Up in Case  Yes  No  None  Excellent  Fair  Poor

6

AMR Slot(Card) Line Up in Ca se  Yes  No  None

 Excellent  Fair  Poor CNR Slot(Card) Line Up in Case  Yes  No  None  Excellent  Fair  Poor ACR Slot(Card) Line Up in Case  Yes  No  None  Excellent  Fair  Poor Daughter Card Slot in PCB  Yes  No  None  Excellent  Fair  Poor Wake-on LAN connector in PCB  Yes  No  None  Excellent  Fair  Poor Wake-on Modem connector in PCB  Yes  No  None  Excellent  Fair  Poor CD Audio-in Connector in PCB  Yes  No  None  Excellent  Fair  Poor AUX Audio-in Connector in PCB  Yes  No  None  Excellent  Fair  Poor Telephony Connector in PCB  Yes  No  None  Excellent  Fair  Poor Digital Video Connector  Yes  No  None  Excellent  Fair  Poor Other Jumper in PCB  Yes  No  None  Excellent  Fair  Poor Comments:

7

DESIGN REVIEW

Mainboard Voltage Measurement

Voltage List Voltage SPEC Voltage Measured Result Battery Voltage 3.0V 3.14 Pass Battery Current 7uA 2.8 uA Pass +5V 5.0V+-5% 5.11 Pass +12V 12.0V+-5% 11.56 Pass

-5V -5.0V+-5% -5.09 Pass

-12V -12.0V+-10% -11.93 Pass +3.3V +3.3V+-5% 3.37 Pass

Bus Clock

Clock Frequency Spec Value (MHz) Measured Value Pass/Fail CPU and Clock Host 100.00 100.0 Pass SDRAM Clock 100.00 100.0 Pass

133.33 133.3 Pass PCI Clock 33 33.11 Pass AGP Clock 66.67 66.67 Pass USB Clock 48 48.08 Pass Reference Clock 14.31818 14.33 Pass

Clock Voltage Level Spec Value (v) Measured Value Pass/Fail CPU and Host Clock Voltage Level 1.1v 1.0 Pass SDRAM Clock Voltage Level 3.3v 3.44 Pass PCI Clock Voltage Level 3.3v 3.44 Pass AGP Clock Voltage Level 3.3v 3.43 Pass Reference Clock Voltage Level 3.3v 3.42 Pass

Clock Timing Sp ec Value (v) Measured Value Pass/Fail CPU Clock High Time 4.3~4.8ns 4.46 Pass CPU Clock Low Time 4.3~4.8ns 4.56 Pass CPU Clock Rising Time 175 ~700ps 254 Pass CPU Clock Falling Time 175~700ps 281 Pass PCI Clock High Time Min.11ns 12.9 Pass PCI Clock Low Time Min.11ns 12.7 Pass PCI Clock Rising Time 1ns~4ns 2.2 Pass PCI Clock Falling Time 1ns~4ns 2.1 Pass Comments:

8

REQUIRED BIOS DEFAULT SETTINGS

Lists Specification Result

BIOS FEATURES SETUP

Virus Warning Disabled Pass CPU L1 & L2 Cache Enabled Pass Quick Power On Self Test Enabled Pass First Boot Device Floppy Pass Second Boot Device HDD-0 Pass Third Boot Device LS120 Pass Boot Other Device Enabled Pass Swap Floppy Seek Disabled Pass Boot Up Floppy Seek En a ble d Pass Boot Up NumLock Status On Pass Gate A20 Option Fast Pass Typematic Rate Setting Disabled Pass

Typematic Rate(Chars/Sec) 6 Pass Typematic Delay(MSEC) 250 Pass

Security Option Setup Pass APIC Mode Enabled Pass MPS Version Control F or OS 1.4 Pass OS Select For DRAM>64MB Non-OS2 Pass Report No FDD For WIN 95 No Pass

CHIPSET FEATURES SETUP

DRAM Timing Selectable By SPD Pass CAS Latency Time 1.5 Pass Active to Precharge Delay 7 Pass DRAM RAS# to CAS# Delay 3 Pass DRAM RAS# Precharge 3 Pass DRAM Data Integrity Mode Non-ECC Pass Memory Frequency For Auto Pass Dram Read Thermal Mgmt Disabled Pass System BIOS Cacheable Disabled Pass Video BIOS Cacheable Disabled Pass Video RAM Cacheable Disabled Pass Memory Hole At 15M-16M Disabled Pass Delayed Transaction Enabled Pass AGP Aperture Size (MB) 64 Pass

POWER MANAGEMENT SETUP

ACPI Function Enabled Pass ACPI Suspend Type S1(POS) Pass Power Management User Define Pass Video Off Method DPMS Pass

9

Video Off In Susp e nd Yes Pass Suspend Ty pe Stop Grent Pass Modem Use IRQ 3 Pass Suspend Mode Disabled Pass HDD Power Down Disabled Pass Soft-off by PWR-BTN Instant-off Pass PWRON After PWRT-Fail Former-Sts Pass CPU THRM-Throttling 50% Pass Wake-U p by PCI Card Disabled Pass Power On by Ring Disabled Pass Wake Up On LAN Disabled Pass Resume by Alarm Disabled Pass

X Date(of M onth) Alarm 0 Pass X Time(hh:mm:ss)Alarm 0 0 0 Pass

Reload Global Timer Events Press Enter Pass Primary IDE 0 Disabled Pass Primary IDE 1 Disabled Pass Secondary IDE 0 Disable d Pass Secondary IDE 1 Disable d Pass FDD,COM,LPT Port Disabled Pass PCI PIRQ[A-D]# Disabled Pass

PnP / PCI CONFIGURATION

Reset Configuration Data Disabled Pass Resource Controller By Auto(ESCD) Pass

X IRQ Resource Press Enter Pass

PCI/VGA Palette Snoop Disabled Pass

INTEGRATED PERIPHERALS

Onboard LAN Boot ROM Enable Pass Onboard PCI LAN Enabled Pass On-Chip IDE Control Press Enter Pass OnChip Primary PCI IDE Enabled Pass IDE Primary Master PIO Auto Pass IDE Primary Slave PIO Auto Pass IDE Primary Master UDMA Auto Pass IDE Primary Slave UDMA Auto Pass OnChip Secondary PCI IDE Enabled Pass IDE Secondary Master PIO Auto Pass IDE Secondary Slave PIO Auto Pass Secondary Master UDMA Auto Pass Secondary Slave UDMA Auto Pass IDE HDD Block Mode Enabled Pass USB Controller Enabled Pass USB Keyboard Suppo rt Disabled Pass

10

AC97 Audio Auto Pass AC97 Modem Auto Pass Init Display First AGP Pass Onboard FDC Controller Enabled Pass Onboard Serial Port 1 3F8/IRQ4 Pass Onboard Serial Port 2 2F8/IRQ3 Pass UART Mode Select Normal Pass

RxD , TxD Active Hi , Lo Pass IR Transmission Delay Enabled Pass UR2 Duplex Mode Half Pass Use IR Pins IR-Rx2Tx2 Pass Onboard Parallel Port 378/IRQ7 Pass Parallel Port Mode SPP Pass EPP Mode Select EPP1 . 7 Pass ECP Mode Use DMA 3 Pass Game Port Address 201 Pass Midi Poort Address 330 Pass Midi Port IRQ 10 Pass

PC Health St at ues Write Actual Values

Current CPU1 Temperature 56°C / 131°F Current System Fan Speed 5232 RPM Current CPU Fan S pe e d 4720 RPM CPU Vcore 1.66V AGP Voltage 1.44 V +3.3V 3.29 V +5.0V 5.05 V +12V 11.97 V

-12 V - 11.86 V

- 5 V -5.45 V VBAT(V ) 3.15 V 5VSB (V) 5.01 V Comments:

11

FUNCTIONALITY

Setup Installation Test O f Operating System Pass/Fail

DOS 6.22 Pass Windows 98 S e cond Edition Pass Windows ME Pass Windows NT 4.0 Workstation Pass Windows 2000 Pr ofessional Pass Windows 2000 Server Pass Windows XP Hom e Edition Pass Windows XP Professional Pass Linux (Red Hat 7.1) Pass

Basic On-board Function Test

Test Platform MS-DOS Operating Comment

CPU Pentium 4 1.5 GHz Memory Kingston 256M HDD Quantum 15G CDROM Acer50X Sound Card Onboard Video Card Viper 770 /TNT2 M64 LAN Card Intel 82557 , 82559

Test Item Pass/Fail

Clear CMOS with Jumper Pass Cold Boot (Power Turn on ) Pass CMOS Load Default Setup Pass Memory Size Counter Check Pass BIOS Lock Function Pass Warm Boot (HW/SW Reset) Pass System Configuration Review (CPU Type/Cache/SDRAM/HDD…) Pass Power Fail Function Test Pass Prompt Into DOS Mode Pass Typing Some DOS Comment Pass Run Scandisk Pass PS/2 Keyboar d Test Pass USB Keyboa rd Legacy Support Test Pass Boot Floppy Driver A Pass FDISK Hard Disk Driver Pass Format Hard Disk Driver Pass Boot Hard Disk Driver C Pass Power LED Check Pass HDD LED Check Pass Systems Speaker Pass

12

Buzz Pass

SMI Function T e st --SMI Pin Func tion Test Pass Time Out Function Test Pass Power LED Flash Check Pass CPU FAN Stop Check None

Power On Control --Power On By RTC Test Pass Power On By LAN Test (Intel SPD3) Pass Power On By Modem Test Pass

Boot Management --Boot Form CD-ROM Pass Boot From SCSI HDD Pass Boot From ATAP I ZIP/L S 120 Drive Pass Boot From LAN Pass

RTC Test

---

COMS RTC Date Check Pass Windows 98SE RTC Date Check Pass COMS RTC Time Out Test Pass Windows 98S E RTC Time Out Test Pa ss

Memory Comparability Test ---

Bmem Memory Test (15 Times) Pass

Qaplus 7.0 Test ---

All Test Fail (BIOS For

APIC issue)

Checkit 4.0 --System Board Test Pass Memory Tes t Pass Hard Disk Test Pass Floppy Test Pass Serial Port Test Pass Parallel Port Test Pass Modem Test Pass Video Card Test Pass Printer Test Pass Keyboard Test Pass

AMIDiag 6.0 ---

System --Processor Test Fail (Utility issues) DMA Controller Test Pass Interrupt Controller Test Pass Timer Test Pass Real Time Clock Test Pass

13

CMOS Validity Test Pass Speaker Test Pass PCI System Test Pass Plug-n-Play Te st Pass

Memory --BIOS ROM Test Pass Parity Test Pass Pattern Test Pass Extended Pattern Test Pass Walking 1’s Test Pass Walking 0’s Test Pass Random Memory Test Pass Address Test Pass Refresh Test Pass Data Bus Test Pass

IDE --IDE HDD Test Pass IDE CD Test Pass

FDD --Drive Speed Test Pass Random R/W Test Pass Sequential R/W Test Pass Elevator Seek Test Pass Disk Change Line Test Pass

KBD --Controller Test Pass Scan/ASCII code test Pass Keyboard LED Test Pass Keyboard Clock Line Test Pass Keyboard Data L ine Test Pass

Video --Video Memory Test Pass Attribute Test Pass Page Selection Test Pass Color Test Pass Text Mode Test Pass Graphics Mode Test Pass VESA Video Mode Test Pass VESA Video Memory Test Pass VESA Monitor Test Pass

Misc. --Serial Port Test Pass Parallel Port Test Pass

14

PS/2 Mouse Test Pass APM Functionality Test Pass Device APM Test Pass ACPI Test Pass I82557 Ethernet chip Pass Comments:

Test Platform Windows ME Operating Comment

CPU Pentium 4 2.0 GHz Memory Kingston 256 M HDD Fujitsu 40G CDROM ACER 50X Sound Card Onboard Video Card VIPPER 770 / TNT2 M64 CNR Card Kingston / Modem + LAN LAN Card Intel 82559

Test Item Pass/Fail

System Comparability Test ---

Windows ME Setup Installation Test Pass Supports Driver Installation Test Pass System Pr operties Information Review ( S ystem Devic e Manager) Pass Standby Mode Test Pass Shut Down Test Pass Restart Test Pass Scandisk Test Pass Enable DMA Mode For IDE Device Test Pass Disk Defragmenter Test Pass Setup installation Microsoft Office 2000 Test Pass Reboot The Windows Test For Over Night Pass

Suspend To RAM (S3) Test

---

Standby Button for S3 (Enter) Pass Power Button for S3 (Enter and Wake up) Pass Windows Set RTC Time out for S3 (Enter and Wake up) Pass Enter S3 mode For 1/5/10/30/60/120/720 Minutes Then To Do Wake Up Test. Pass Wake Up By LAN Test Pass Wake Up By Ring Test Pass Enable Scheduled Task Runs at Specified time Test (RTC wake up) Pass Power LED Flash check Pass Onboard Audio For S3 Function Supports Test (Play CD/VCD/DVD/AVI) Pass

Hibernate(S4) Test

---

15

Standby Button for S4 (Enter) Pass Power Button for S4 (Enter and Wake up) Pass Windows Set RTC Time out for S4 (Enter and Wake up) Pass Enter S4 mode For 1/5/10/30/60/120 Minutes Then To Do Wake Up Test. Pass Wake Up By LAN Test Pass Wake Up By Ring Test Pass Enable Scheduled Task Runs at Specified time Test (RTC wake up) Pass

Memory Com parability Test ---

Running AVI Files With Multi Stress Pass Winstone 200 1 Test Pass 3D Mark 2001 Test (Co ntinue loop 10) Pass BCM Memory Test Pass

Device Comparability Test ---

PS/2 Connector Test

---

PS/2 Keyboar d Test Pass PS/2 Mouse Test Pass

COM Port Test

---

Add Serial Mouse PnP Test Pass Add Modem PnP Test Pass

Print Port Test

---

Add Printer PnP Test Pass Add ZIP Device Test Pass LL5 Cable test (Data Transfer test) Pass

IrDA Function Test

---

Add IR Printer Test Pass Peer to Peer Data Transfer Test (Ir-In/Ir-Out) Pass

FDD Connector Test

---

Create Windows ME Startup Disk Pass Format 1.44 Floppy Driver Pass

IDE Connectors Test

---

CD-ROM Data Read Test Pass DVD-ROM Data Read Test Pass Format ZIP Driver With Floppy A Type Pass Format ZIP Driver With Removable Device Type Pass LS120 Device Driver Test Pass PIO Mode 4 Hard Disk Test Pass Ultra DMA 33 Hard Disk Test Pass Ultra DMA 66 Hard Disk Test Pass Ultra DMA 100 Hard Disk Test Pass ZIP Device Driver Test Pass

USB Ports Test --Add Keyboard PnP Test Pass Add Mouse PnP Test Pass

16

Add Printer PnP Test Pass Add Scanner PnP Test Pass Add Camera PnP Test Pass Add Modem PnP Test Pass Add Joystick PnP Test Pass Add ZIP PnP Test Pass Add LAN PnP Test Pass

LAN Port Test Login Serv er Test Pass Peer to Peer 10Mbps or 100Mbps Data Transfer Test Pass Playing AVI Files By The LAN Pass Setup Installation Winstone 2001 By The LAN Pass Setup Installation Winbench 99 By The LAN Pass Setup Installation 3D M ark2001 By Th e LAN Pass ADSL Link Test Pass

PCI Slots Test ---

Add LAN Cards Test Boot ROM Function Test Pass Login Serv er Test Pass Peer to Peer 10Mbps or 100Mbps Data Transfer Test Pass Power On By LAN Test Pass Wake O n LAN Test (Standby Mode) Pass Shut Down By The LAN Test Pass Playing AVI Files By The LAN Pass Setup Installation Winstone 2001 By The LAN Pass Setup Installation Winbench 99 By The LAN Pass Setup Installation 3D M ark2001 By Th e LAN Pass Add Token Ring LAN Card Test Pass ADSL Link Test Pass

Add SCSI Cards Test Add SCSI Cards For PnP Function Test Pass Setup installation the Windows from SCSI HDD Pass Scandisk Test Pass Disk Defragmenter Test Pass System Pr operties Information Review ( S ystem Devic e Manager) Pass Setup installation Microsoft Office 2000 Test Pass Reboot The Windows Test For Over Night Pass

Add Sound Card Test Add Sound Cards For PnP Function Test Pass Audio Drivers Setup Installation Test Pass System Pr operties Information Review Pass Audio Control Panel Function Test Pass Game Port Test Pass

17

Sound Recorder Test Pass Run MPG Files Pass Speaker Out Quality Test Pass Playing Audio CD Test Pass Playing Wave Test Pass Playing MIDI Test Pass Playing Video Test Pass Playing MP3 Test Pass

CNR Slots Test

---

Add LAN Card Test Pass Add Modem Card Test Pass Add Home PNA Card Test Pass Add CNR Software Modem Card Test Pass Connect Performance Check Pass Internet Explorer Test Pass Netscape Browser Test Pass Connect to ISP For 12 hours Pass Download Files using AMR Modem (Over 10MB) Pass Modem Fax Function Test (Transmit a fax to Fax Machine) Pass Modem Fax Function Test (Transmit a fax to Modem) Pass Modem Fax Function Test (Recei ve a fax from Fax Machine) Pass Modem Fax Function Test (Receive a fax from Modem) Pass Send & Receive e-mail Test Pass Recording a MP3 File From Internet ISP Server Pass ADSL Link Test Pass

VGA Function Test ---

VGA Drivers Setup Installation Test Pass Display Properties Information Review Pass Change Resolution / Color Test Pass Speedy 1.0 Pass Run 3D Screen Saver Pass Run 3D Mark2001 Pass Run XL-R8R Pass

VGA Resolution Test ( Monitor : ViewSonic GF775 /AGP: GF2 GTS Pro )

---

Resolution Color Depth Optimal 75 Hz 85 Hz 100 Hz

640x480 256

√

Pass

640x480 16 bit

√

Pass

640x480 32 bit

√ √ √ √

Pass

800x600 256

√

Pass

800x600 16 bit

√ √ √ √

Pass

800x600 32 bit

√

Pass

1024x768 256

√

Pass

18

1024x768 16 bit

√

Pass

1024x768 32 bit

√

Pass

1152x864 256

√ √ √

none Pass

1152x864 16 bit

√

none Pass

1152x864 32 bit

√ √ √

none Pass

1280x1024 256

√

none Pass

1280x1024 16 bit

√

none Pass

1280x1024 32 bit

√

none Pass Check Screen Have No Any Shadow Or Garbage Pass Playing MPEG Files Test Pass Playing VCD Test Pass Playing DVD Test Pass

3D Winbench 2000

---

3D Performance Pass 3D Processing Pass 3D Quality Pass 3D WinMark Pass Playing *.AVI f ile s (Stress Test for Over Night) Pass

Audio Function Test ---

Audio Drivers Setup Installation Test Pass System Pr operties Information Review Pass Audio Control Panel Function Test Pass CD-In Function Check Pass Game Port Test Pass Line-In Function Check Pass Mic-In Function Check Pass R/L Channel Check Pass Sound Recorder Test Pass Run MPG Files Pass Speaker Out Quality Test Pass Telephony Function Supports Pass Playing Audio CD Test Pass Playing Wave Test Pass Playing MIDI Test Pass Playing Video Test Pass Playing MP3 Test Pass Onboard Audio For S1 Function Supports Test Pass

Audio Winbench99 (Based onboard Sound controller)

---

Direct Sound CPU Util 44.1 kHz 16bit Static

---

Hardware Voices 0 Voice 8 0 Voice 16 0.449

19

Voice 32 1.82

DirectSound CPU Util , 44.1 kHz , 16 bits Streaming

---

Hardware Voice 0 Voice 8 0.051 Voice 16 0.659 Voice 32 1.76

DirectSound CPU Util , 22 kHz , 8 bits Static

---

Hardware Voice 0 Voice 8 0 Voice 16 0.0668 Voice 32 0.929

DirectSound CPU Util , 22 kHz , 8 bits Steaming

---

Hardware Voice 0 Voice 8 0 Voice 16 0.101 Voice 32 0.79

DirectSound3D CPU Util , 44.1 kHz , 16 bits Static

---

Hardware Voice 0 Voice 8 0.22 Voice 16 1.01 Voice 32 1.95

DirectSound3D CPU U t il , 44 .1 kHz , 16 bits Streaming

---

Hardware Voice 0. Voice 8 0.246 Voice 16 1.07 Voice 32 2.34

DirectSound3 D CPU Util , 22 kHz , 8 bits Sta t ic

---

Hardware Voice 0 Voice 8 0 Voice 16 0.743 Voice 32 1.3

DirectSound3D CPU Util , 22 kHz , 8 bits Streaming

---

Hardware Voice 0 Voice 8 0.089 Voice 16 0.574 Voice 32 1.5

Windows Utility Test ---

BCM Diagnostics

---

System Info Pass DMI Info Pass Processor Test Pass Memory Tes t Pass Audio Test Pass

20

Video Test Pass Graphics Test Pass Hard Disk Test Pass Floppy Disk Test (1.44 + IDE ZIP) Pass CD-ROM Test Pass Stress Test –Loop 100 Pass MS Mouse Pass MS Joystick Pass MS ScanDisk Pass

PC-Doctor For Windows

---

CPU Test Pass Hard Driver Test Pass Floppy Test Pass LS-120 Driver Test Pass CD-ROM/DVD Test Pass ZIP Driver Test Pass Memory Tes t Pass PCI Test Pass Video Test Pass AGP Test Pass COM Loopback Pass Serial Port Internal Test Pass Parallel Port Internal Test Pass Parallel Port Loopback Pass USB Test Pass CMOS Test Pass Keyboard Test Pass AVI Video Test Pass Microphone Test Pa ss Audio Test Pass Mouse Test Pass Monitor Test Pass Printer Test Pass Joystick Test Pass

BurnIn Test

---

CPU-Maths Pass CPU-MMX/SSE Pass Memory (RAM) Pass 2D Graphics Pass 3D Graphics Pass Hard Disk Test Pass Floppy Disk Pass Network Test Pass

21

CD-ROM Pass

Winstone 2000

---

Winstone 200 0 Pass

Winstone 2001

---

Business Winstone 2001 Pass Content Creation Winstone 2001 Pass

Winbenc h 99 V1.2

---

Business Disk WinMark 99 Pass Business Graphics WinMark 99 Pass DirectDraw Tests Pass Disk Inspection Tests Pass Disk WinMark Pass GDI/USER Inspection Tests Pass High-End Disk WinMark 99 Pass High-End Graphics WinMark 99 Pass Video Tests Pass

3D WinMark 2000

---

3D Marks Pass Demo Mode Pass

3D WinMark 2001

---

3D Marks Pass Demo Mode Pass

SYSMark2001

---

Internet Content Creation Pass Office Productivity Pass

Others

---

CD Winbench 99 Pass Final Reality Pass Intel Media Benchmark Pass 3D Mark 99 Max Pass Power DVD Test Pass USBready Pass WinDVD 2000 Pass Wintune 98 Test Pass CPU Stability Test Pass

Game Test

---

BEYOND THIRD DIMENSION Pass Command & Conquer Red Alert Pass DIABLO Pass DID F22 Pass DESCENT3 Pass Doom II Pass Extreme-G2 Pass

22

Flight Simulator98 Pass Forsaken Pass Grand Prix Championship Pass G-Police Pass HEXEN II Pass Incoming Pass Interstate’76 Pass Janes WWII Fighters Pass Janes FLEET Command Pass Johnny Herbert’s Grand Prix Pass LION KING Pass Moto Racer Pass Myst Pass Microsoft Midtown Pass Microsoft Motocross Pass Microsoft Age Of Empires Pass Microsoft Monster Truck Pass NBA Live99 Pass O.ZONE Pass Quake III Pass Red Alert Pass Rush Hour Pass RedLine Racer Pass SEGA Manx TT Pass SEGA Rally 95 Pass SEGA Daytona USA Pass Speed Demons Pass The Magic School Bus Pass Turok Pass Tonic Trouble Pass Tomb Raider II Pass Worms: 2 Pass Comments:

Test Platform Window s2000 Operating Comment

CPU Pentium 4 1.9 GHz Memory HYUNDAI 256MB HDD IBM IC35L020A ATA-10 0 CDROM PIONEER DVD-116 ATA-66 Sound Card On-Board CODEC Video Card GeForce 2 GTS

23

LAN Card INTEL 82550EY SERVER

Test Item Pass/Fail

System Comparability Test ---

Windows 2000 Setup Installation Test Pass Supports Driver Installation Test Pass System Pr operties Information Review Pass Standby Mode Test Pass Shut Down Test Pass Restart Test Pass Scandisk Test Pass Setup installation Microsoft Office 2000 Test Pass

Hibernate(S4) Test

---

Standby Button for S4 (Enter) Pass Power Button for S4 (Enter and Wake up) Pass Windows Set RTC Time out for S4 (Enter and Wake up) Pass Enter S4 mode For 1/5/10/30/60/120 Minutes Then To Do Wake Up Test. Pass Wake Up By LAN Test Pass Wake Up By Ring Test Pass Enable Scheduled Task Runs at Specified time Test (RTC wake up) Pass

Memory Com parability Test ---

Winstone 99

---

Business Winstone 99 Pass High-End Winstone 99 Pass

Device Comparability Test ---

PS/2 Connector Test

---

PS/2 Keyboar d Test Pass PS/2 Mouse Test Pass

COM Port Test

---

Add Serial Mouse PnP Test Pass Add Modem PnP Test Pass

Print Port Test

---

Add Printer PnP Test Pass

FDD Connector Test

---

Format 1.44 Floppy Driver Pass

IDE Connectors Test

---

PIO Mode 4 Hard Disk Test Pass Ultra DMA 33 Hard Disk Test Pass Ultra DMA 66 Hard Disk Test Pass Ultra DMA 100 Hard Disk Test Pass CD-ROM Test Pass DVD-ROM Data Read Test Pass ZIP Device Driver Test Pass

24

Format ZIP Driver With Floppy A Type Pass Format ZIP Driver With Removable Device Type Pass LS120 Device Driver Test Pass

LAN Port Test

---

Login Serv er Test Pass Peer to Peer 10Mbps or 100Mbps Data Transfer Test Pass Playing AVI Files By The LAN Pass Setup Installation Winstone 2001 By The LAN Pass Setup Installation Winbench 99 By The LAN Pass Setup Installation 3D M ark2001 By Th e LAN Pass ADSL Link Test Pass

PCI Slots Test

---

Add SCSI Card Test Pass Add LAN Card Test Pass Power On By LAN Test (Intel 82558B) Pass Wake O n LAN Test (Standby Mode) Pass Shut Down By LAN Test Pass Add Token Ring LAN Card Test Pass Add Sound Card Test Pass Add Modem Card Test Pass Wake O n Modem Test (Standby Mode) Pass Add Digital Video Card Test Pass

CNR Slots Test

---

Add LAN Card Test Pass Add Home PNA Card Test Pass Add Modem Card Test Pass

VGA Function Test --VGA Drivers Setup Installation Test Pass Display Properties Information Review Pass VGA Resolution All Test Pass Screen Saver Test Pass Check Screen Have No Any Shadow Or Garbage Pass Playing MPEG Files Test Pass Playing VCD Test Pass Playing DVD Test(With WinDVD 2000) Pass

Audio Function Test --Audio Drivers Setup Installation Test Pass System Pr operties Information Review Pass Speaker Out Quality Test Pass R/L Channel Check Pass CD-In Function Check Pass Line-In Function Check Pass Mic-In Function Check Pass

25

Audio Control Panel Function Test Pass Telephony Function Supports Pass Sound Recorder Test Pass Playing Audio CD Test Pass Playing Wave Test Pass Playing MIDI Test Pass Playing Video Test Pass Playing MP3 Test Pass Game Port Test Pass

Windows2000 Utility Test Pass/Fail

BCM Diagnostics

---

System Info Pass DMI Info Pass Processor Test Pass Memory Tes t Pass Audio Test Pass Video Test Pass Graphics Test Pass Hard Disk Test Pass Floppy Disk Test Pass CD-ROM Test Pass Stress Test –Loop 100 Pass MS Mouse Pass MS Joystick Pass MS ScanDisk Pass

BurnIn Test

---

CPU-Maths Pass CPU-MMX/SSE Pass Memory (RAM) Pass 2D Graphics Pass 3D Graphics Pass Hard Disk Test Pass Floppy Disk Pass Network Test Pass CD-ROM Pass

Winbench 99 (1.2)

---

Business Disk WinMark 99 Pass Business Graphics WinMark 99 Pass DirectDraw Tests Pass Disk Inspection Tests Pass Disk WinMark Pass GDI/USER Inspection Tests Pass High-End Disk WinMark 99 Pass

26

High-End Graphics WinMark 99 Pass Video Tests Pass

Winstone 2001

---

Business Winstone 2001 Pass Content Creation Winstone 2001 Pass

SYSMark2001

---

Internet Content Creation Pass Office Productivity Pass

HCT Pretest(HCT9.5)

---

Storage(SdStress) Pass Storage(CD Copy Compare) Pass Storage[FAT(File I/O)] Pass Storage[NTFS(File I/O)] Pass Storage[Mapped(File I/O)] Pass Storage(Floppy I/O) Pass Storage(SysCache) Pass Video(GDI w/poly.Clip_256) Pass Ports Pass Memory(AWE) Pass Stress[Disk_CD(Stress)] Pass Stress[Disk(Stress)] Pass Stress[Disk (Stress)Individual Drive] Pass Stress(Performance Counter Check) Pass Stress(System Stre ss) Pass BIOS[Unrepor ted I/O(NT5.0)] Pass System \ ACPI \ ACPI SystemTest(Win2K) Pass System \ ACPI \ ACPI Stress Pass Multimedia Pass Modem Pass VDM Pass

Others

---

SYSmark 98 Pass Wintune 98 Test Pass SYSmark 2000 Pass SYSmark 2001 Pass

Game Test

---

3D Pinball Pass Freecell Pass Minesweeper Pass Solitaire Pass Forsaken Pass Quake III Pass Age Of Empire Pass

27

Tomb Raider 2 Pass

WHQL HCT Pre-Test ---

Video (GDI w/ poly. Clip 256) Pass Driver Scenario Test Pass DirectDraw Test Pass Driver Scenario Test (PC99) Pass Disk Ioctl Test Pass Soft Enum (Stress) Pass Dozer (Server Side)-WOL Pass Dozer (Server Side)-WOR Pass PnP Disable/Enable-Device I/O Pass Power Management Timer Pass Processor Throttle Pass ACPI Power Button 4 Se c ond Override Pass Legacy to ACPI State Transition Pass ACPI AML Stream and ACPI namespace Pass Interrupt 15h F unction E820H Pass Power Button and Sleep Button Pass ACPI Stress (extended)-Device I/O Pass ACPI System Test (Win2k) Pass ACPI Stress Pass ACPI Stress-Device I/O-Varied RTC Wake Times Pass ACPI Stress-Device I/O Pass PCI Configuration Header Dump Pass PCI Test Adapter Diagnostic Pass PCI Voltage Requireme nt Pass PCI Voltage Requir e ment –3.3 Vaux Pass PME# Signal Routing (Preview) Pass PCI Subsystem ID and Subsyste m Vendor ID (Preview) Pass 3,3Vaux Auxiliary Power Load (Preview) Pass PCI Power Management Register Interface Pass Simultaneous PME# Signal Assertion (Preview) Pass System Wake-Up (Preview) Pass PCI 2.1 (Cards) Fail (Modem issue) AWE Pass Unreported I/O (NT5.0) Pass Comments:

Test Platform Windows 98 SE Operating Comment

CPU Pentium 4-1700 MHz Memory Nanya 128M X2

28

HDD IBM DTL A-307030 CDROM LITEON LTN-362 Sound Card On board Video Card ASUS V6800 LAN Card Intel 82559

Test Item Pass/Fail

System Comparability Test ---

Windows 98 S e tu p Installation Test Pass Supports Driver Installation Test Pass Standby Mode Test Pass Shut Down Test Pass Restart Test Pass Enable DMA Mode For IDE Device Test Pass Scandisk Test Pass Disk Defragmenter Test Pass Disk Converter Test (FAT32 ) Pass System Pr operties Information Review Pass Setup installation Microsoft Office 2000 Test Pass

Suspend To RAM (S3) Test

---

Standby Button for S3 (Enter) Pass Power Button for S3 (Enter and Wake up) Pass Windows Set RTC Time out for S3 (Enter and W ake up) Pass Enter S3 mode For 1/5/10/30/60/120/720 Minutes The n To Do Wake Up Te st. Pass Wake Up By LAN Test Pass Wake Up By Ring Test Pass Enable Scheduled Task Runs at Specified time Test (RTC wake up) Pass

VGA Function Test ---

VGA Drivers Setup Installation Test Pass Display Properties Information Review Pass Change Resolution / Color Test Pass Run 3D Screen Saver Pass Run 3D Games Pass

VGA Resolution Test ( Monitor : ViewSonic GF775 /AGP: V3800M )

---

Resolution Color Depth Optimal 75 Hz 85 Hz 100 Hz

640x480 256

√

Pass

640x480 16 bit

√

Pass

640x480 32 bit

√ √ √ √

Pass

800x600 256

√

Pass

800x600 16 bit

√ √ √ √

Pass

800x600 32 bit

√

Pass

1024x768 256

√

Pass

1024x768 16 bit

√

Pass

29

1024x768 32 bit

√

Pass

1152x864 256

√

none Pass

1152x864 16 bit

√ √ √

none Pass

1152x864 32 bit

√

none Pass

1280x1024 256

√ √ √

none Pass

1280x1024 16 bit

√

none Pass

1280x1024 32 bit

√

none Pass Check Screen Have No Any Shadow Or Garbage Pass Playing MPEG Files Test Pass Playing VCD Test Pass Playing DVD Test Pass Playing *.AVI f ile s (Stress Test for Over Night) Pass

Windows Utility Test ---

Winstone 2001

---

Business Winstone 2001 Pass Content Creation Winstone 2001 Pass

Winbench 99 (1.2)

---

Business Disk WinMark 99 Pass Business Graphics WinMark 99 Pass DirectDraw Tests Pass Disk Inspection Tests Pass Disk WinMark Pass GDI/USER Inspection Tests Pass High-End Disk WinMark 99 Pass High-End Graphics WinMark 99 Pass Video Tests Pass

Others

---

BAPCo SYSmark 2000 Pass 3Dmark 2000 Pass Final Reality Pass WinDVD Pass Comments:

Test Platform Windows XP (Home Edition ) Operating Comment

CPU Pentium 4 1.9 GHz Memory HYUNDAI 256MB HDD IBM DTL A-307020 CDROM CREATIVE 52X Sound Card On-Board CODEC Video Card GeForce 256

30

LAN Card 3COM 3C905B-TX

Test Item Pass/Fail

System Comparability Test ---

Windows 2000 Setup Installation Test Pass Supports Driver Installation Test Pass System Pr operties Information Review Pass Standby Mode Test Pass Shut Down Test Pass Restart Test Pass Scandisk Test Pass Setup installation Microsoft Office 2000 Test Pass Comments:

Test Platform Windows XP (Pro fessional ) Operating Comment

CPU Pentium 4 1.7 GHz Memory SIEMENS 256MB HDD QUANTUM AS30000AT CDROM SAMSUNG DVD-SD612 Sound Card On-Board CODEC Video Card GeForce 2 GTS LAN Card 3COM 3C905C-TX

Test Item Pass/Fail

System Comparability Test ---

Windows 2000 Setup Installation Test Pass Supports Driver Installation Test Pass System Pr operties Information Review Pass Standby Mode Test Pass Shut Down Test Pass Restart Test Pass Scandisk Test Pass Setup installation Microsoft Office 2000 Test Pass Comments:

Test Platform Linux (Red Hat 7.1) Operating Comment

CPU Pentium 4 1.7G/100 Memory Buffalo 128M pc-133 x1 HDD IBM deskstar 30G CDROM Teac cd-540e

31

Sound Card Onboard Video Card ATI RAGE 128-pro LAN Card D-link de-530

Test Item Pass/Fail

System Comparability Test ---

Linux Setup Installation Test Pass Shut Down Test Pass Restart Test Pass

Device Comparability Test ---

PS/2 Connector Test

---

PS/2 Keyboar d Test Pass PS/2 Mouse Test Pass

COM Port Test

---

Add Serial Mouse Test Pass Add Modem Test Pass

FDD Connector Test

---

Read 1.44 Floppy Disk Pass Format 1.44 Floppy Driver Pass

IDE Connectors Test

---

CD-ROM Data Read Test Pass DVD-ROM Data Read Test Pass

LAN Ports Test

---

Peer to Peer Data Transfer Test Pass

PCI Slots Test

---

Add SCSI Card Test Pass Add LAN Card Test Pass Add Sound Card Test Pass Comments:

32

RELIABILITY TEST

Motherboard General Information

Vendor Biostar Model Number M7TDA Temperature rate ( ℃ ) 0 ~ 45 ℃

Humidity rate ( % )

0 ~ 60 %

Time ( hr ) 72 hr OS Windows Me Test Program Continuous Play DVD + Tomb2 DEMO

Burn-in Step

STEP 1

Temperature 0℃ ~ Humidity none ~ 12 hr.

STEP 2

Temperature 45℃ ~ Humidity 60% ~ 12 hr.

STEP 3

Temperature 0℃ ~ Humidity none ~ 24 hr.

STEP 4

Temperature 45℃ ~ Humidity 60% ~ 24 hr.

STEP 5 END.

Item Revision Initiation

Date

Finish

Date

CPU

( MHz )

DIMM ( MB )

VGA

Card

Pass/Fail Solution

1 0.9 2001/8/16 2001/8/20 P4

1.7G

Infineon 128M*3

V3800M Pass

2 1.0 2001/8/24 2001/8/27 P4

1.7G

Infineon 128M*2

GF2

GTS Pro

Pass

Comments:

1.

33

OVER CLOCK TEST

Test Platform Windows Me

(FSB:100 M Hz) CPU Pentium 4-2000 MHz Memory MOSEL 128M X3 HDD IBM DTLA-307030 CD-ROM LITEON LTN-362 Sound Card On board Video Card ASUS V7700 CPU Front Side Bus Clock 100 110

Winstone 2001 Business Winstone 2001 47.2 50.3 Content Creation Winstone2001 51.9 55.7 Comments:

3D Winbench 2000 (1.1) 3D WinM ark 119 120 Comments:

3D Mark 2001 Overall 3298 3404 Comments: These tests only just for reference.

34

PERFORMANCE TEST

Test Platform Windows ME

Memory NEC 256M X3 HDD IBM DTL A-307030 CD-ROM LITEON LTN-362 Sound Card On boar d Video Card ASUS V7700 CPU P4-1500 P4-1700 P4-1800 P4-2000

Winstone 2001 Business Winstone 2001 37.3 39.7 40.7 47.2 Content Creation Winstone2001 41.4 44.1 42.1 51.9 Comments:

Winbench 99(1.2) Business Disk WinMark 99 5640 5850 5860 6310 High-End Disk WinMa rk 99 21000 20600 21100 22100 Business Graphics WinMark 99 338 378 398 437 Hi-End Graphics WinMar k 99 971 1090 1150 1260 Comments:

3D Winbe nc h 2000 3D WinMark 117 118 116 119 Comments:

3D Mark 2001 Overall 3102 3205 3207 3298 Comments:

SYSmark 2001 Internet Content Creation 133 144 152 151 Office Productivity 108 121 118 122 Comments:

Pentium 4 Processor Applic a tion Launcher eJay MP3 Plus 1.3 {C} 108 115 124 123 Incoming Forces {C} 106 105 117 101 Ligos GoMotion Video Decoder {C} 130 135 142 146 Magnitrax v1.02x(TM) {B} 129 144 152 164 Naturally Speaking Pre f 4. 0 {B} 105 98 118 116 Premiere with Ligos{C} 107 57 126 151 Video Studio ™ 4.0 {C} 123 90 137 156 Windows Media Encoder7.0{B} 120 130 156 144 Comments:

35

Test Platform Windows 2000 (SP2)

Memory Nanya 512M X3 HDD IBM DTLA-307020 ATA-100 CD-ROM PIONEER DVD-116 ATA-66 Sound Card On-Board CODEC Video Card Nvidia GeForce 2 PRO CPU P4 -1.7 G P4- 1.8 G

(Northwood)

P4- 1.9 G P4- 2.0 G

Winstone 2001 Business Winstone 2001 44.7 50.3 48.5 48.5 Content Creation Winstone2001 59.8 64.4 63.4 64.6 Comments:

SYSmark 2001 Internet Content Creation 175 194 190 190 Office Productivity 134 149 144 145

Comments:

3D Mark 2001 Overall 3328 3432 3399 3345 Comments:

Pentium 4 Processor Applic a tion Launcher

Magnitrax™ V1.02 B

140 144 155 162

Naturally Speaking @ Pref 4.0 B

125 144 130 131

Windows M e dia Encoder 7.0 B

145 161 160 174

Premiere @ with Ligos C

145 152 160 166

Video Studio ™ 4.0 C

143 150 153 159

EJay MP 3 Plus 1.3 C

168 191 188 189

Incoming Forces C

85 94 89 92

Ligos G oMotion Video Dec oder C

145 149 152 155

Comments:

36

HARDWARE COMPATIB ILITY LIST

CPU

Vendor Model Frequency Type Result

Intel PENTIUM 4 (478 PIN ) 1.5GHz Pass Intel PENTIUM 4 (478 PIN ) 1.7GHz Pass Intel PENTIUM 4 (478 PIN ) 1.8GHz Pass Intel PENTIUM 4 (478 PIN ) 1.9GHz Pass Intel PENTIUM 4 (478 PIN ) 2.0GHz Pass Comments:

CD-ROM

Vendor Model Transfer Rate Type Result

ASUS CD-500/A 50X ATAPI Pass ACER 650P-072 50X ATAPI Pass ACER 620A-004 20X ATAPI Pass ACTIMA A-50 50x ATAPI Pass A-OPEN CD-948E 48X ATAPI Pass BTC BCD 40XJ 40X ATAPI Pass BTC BCD-F562C 52X ATA-33 Pass CREATIVE CD-2421E 42X ATAPI Pass CREATIVE CD-5233E 52X ATA-33 Pass DELTA OIP-CD4800A 48X ATAPI Pass LITE-ON LTN-362 36X ATAPI Pass LITE-ON 40X MAX 40X ATAPI Pass LITE-ON LTN-483L 48X ATAPI Pass NEC CDR-3000 32X ATAPI Pass PHILIPS PCA328CD 32X ATAPI Pass PHILIPS PCCD048 48X ATAPI Pass PLEXTOR PX-32TSI(SCSI) 32X SCSI Pass SONY CDU711 32X ATAPI Pass SONY CDU4811 48X ATA-33 Pass SONY CRX100E Pass SONY CDU-5211 52X ATA-33 Pass TEAC CD-540E 40X ATAPI Pass TEAC CD-532E 32X ATAPI Pass TEAC CD-532S 32X SCSI Pass Comments:

Camera Device

Vendor Model Type Drivers Result

37

3COM 3718 USB 6. 6.0.21 Pass Logitech QUICK CAM USB CD-Ver 4.1 Pass Logitech QUICK CAM HOME US B 1.0.3.1425 Pass Kodak DC240 USB Pass O’RIT M-3 18 USB CD-Ver 0.91 Pass Comments:

DVD-ROM

Vendor Model Transfer Rate Type Result

CREATIVE DVD2240E 2X ATAPI Pass CREATIVE DVD6240E 6X ATAPI Pass CREATIVE DVD8401E 8X ATAPI Pass CREATIVE DVD1242E 12X ATA-33 Pass HITACHI GD-2000 2X ATAPI Pass PIONEER DVD-113 10X ATAPI Pass PIONEER DVD-114 12X ATAPI Pass PIONEER DVD-115 16X ATAPI Pass PIONEER DVD-105S 16X ATAPI Pass PIONEER DVD-116 16X ATA-66 Pass TOSHIBA SM-M1102 2X ATAPI Pass TOSHIBA SD-M1302 4X ATAPI Pass TOSHIBA SD-M1402 6X ATAPI Pass SAMSUNG SD612 12X ATA-33 Pass ACTIMA AD-10S 10X ATA-33 Pass SONY DDU-1621 16X ATA-33 Pass PANASONIC SR-8587-B 16X ATA-33 Pass Comments:

Displ ay Card

Vendor Model Chips Drivers Result

ASUS AGP-V 3800M RIVA TNT2 M64 4.12.01.1241 Pass ASUS AGP-V 3800 RIVA TNT2 4.12.01.1241 Pass ASUS AGP-V6800 DDR Geforce256 4.12.01.1241 Pass ASUS AGP-V6600 PRO/64M Geforce256 4.12.01.1241 Pass ASUS AGP-V7700 Geforce 2 GTS 4.12. 01.1241 Pass ATI XPERT 2000 PRO 4.13.7078 Pass DIAMOND Viper V770 RIVA TNT2 4.12.01.1241 Pass ELSA ERAZOR X Geforce256 4.12.01.1241 Pass ELSA ERAZOR Geforce 2 GTS 4.12.01.1241 Pass ELSA

ERAZOR III LT-A32

RIVA TNT2 M64 4.12.01.1241 Pass

38

ELSA

GLADIAC ULTRA

Geforce 2 ULTRA 4.12.01.1241 Pass

ELSA

GLADIAC 511

Geforce 2 MX400 4.12.01.1241 Pass

ELSA

SYNERGY III

Quadro 2 MXR 4.12.01.1241 Pass

ELSA

GLADIAC 920

NVIDIA Geforce3 4.12.01.1241 Pass

Matrox G400 32MB 4.12.01.1760 Pass Matrox G450 4.12.01.1760 Pass PROLINK TNT2 M64 RIVA TNT2 M64 4.12.01.1241 Pass Winfas t Geforce256 Geforce256 4.12.01.1241 Pass Winfast S325 RIVA TNT2 M64 4.12.01.1241 Pass Comments:

FDD

Vendor Model Size Type Result

MITSUMI D359T5 1.44 Pass MITSUMI D359T6 1.44 Pass MITSUMI D353T6 1.44 Pass MITSUMI D359M3 1.44 Pass MITSUMI D353M3 1.44 Pass NEC FD1231H 1.44 Pass TEAC FD-235HF 1.44 Pass SONY MPF920-E 1.44 Pass Panasonic JU257A606P 1.44 Pass SUMSUNG SFD-321B 1.44 Pass Comments:

HDD

Vendor Model Size Type Result

FUJITSU MPD3108AT 10.8G ATAPI Pass FUJITSU MPG3307AT 30.7G ATA-100 Pass IBM DJNA-370910 9.1G ATA-66 Pass IBM DPTA-372050 20G ATA-100 Pass IBM DNES-309170 9.1G SCSI Pass IBM DCAS-34330 4.3G WIDE SCSI Pass IBM D H EA-36481 6.4G ATA-33 Pass IBM DHEA-DPTA-372050 20G ATA-33 Pass IBM DTLA-307030 30G ATA-100 Pass IBM DTLA-307020 20G ATA-100 Pass IBM DTLA-307075 76.8 G ATA-100 Pass Maxtor 91360D8 Ultra33 13G ATA-33 Pass Maxtor 86480D6 Ultra33 6.4G ATA-33 Pass

39

Maxtor 91190D7 Ultra33 11G ATA-33 Pass Maxtor 91024U3 10G ATA-66 Pass Maxtor 82560A4 2.5G 2.5G ATA-33 Pass Maxtor 54098U8 40G ATA-66 Pass Maxtor 31536H2 15G ATA-100 Pass Maxtor 33073H4 30G ATA-100 Pass QUANTUM AS40A0110-01-A 40 G ATA-100 Pass QUANTUM BIGFOOT 4.0G ATA-33 Pass QUANTUM EX3200AT 3.2G ATA-33 Pass QUANTUM E5100AT 5.1G ATA-33 Pass QUANTUM CR6400AT 6.4G ATA-33 Pass QUANTUM CX6400AT 6.4G ATA-33 Pass QUANTUM 6.4G SCSI 6.4G SCSI Pass QUANTUM KA9100AT 9.1G ATA-66 Pass QUANTUM KA13600AT 13G ATA-66 Pass QUANTUM KX13600AT 13G ATA-66 Pass QUANTUM LM15000AT 15G ATA-66 Pass QUANTUM LM20500AT 20G ATA-66 Pass QUANTUM AS3000AT 30G ATA-100 Pass QUANTUM AS6000AT 60G ATA-100 Pass SEAGATE ST313032A 13G ATA-100 Pass Comments:

Joystick

Vendor Model Type Result

Logitech Wingman ( Formula Force ) USB Pass Logitech Wingman USB Pass Logitech Wingman extreme digital 3D Game Port Pass Microsoft Side Winder Feedback Pro Game Port Pass Microsoft Side Winder 3D Pro Game Port Pass Microsoft Side Winder Dual Strike USB Pass Microsoft Side Winder Joystick USB Pass RockFire QF-606U USB Pass RockFire QF-8800U USB Pass Comments:

Keyboard

Vendor Model Type Result

Microsoft X03-51764 USB / PS/2 Pass Microsoft RT9401 USB / PS/2 Pass

40

BTC 8110M USB Pass LEMEL KB-5201P USB Pass LEMEL AK-208 USB Pass SAMPO F-21YQ (SPK-2000) USB Pass BTC 5126 PS2 Pass BUS LOGIC BA81C15 PS2 Pass K.A.CHEN KB-7000 PS/2 Pass SAMPO F-21BQ PS/2 Pass Logitech Y-SA2 PS/2 Pass ACER 6511-TA PS/2 Pass Logitech (IR) Y-RA1 IR Pass WIRELESS 5110 IR Pass Comments:

LAN Card

Vendor Model Drivers Type Result

3COM 3C529B PCI Pass 3COM 3C509B-TX PCI Pass 3COM 3C905C-TX-M PCI Pass 3COM 3C359 Token Link XL PCI Pass AMD NE-PCI32 PCI Pass AMD Pcnet-Home am79C978kc PCI Pass Digital 21041pa PCI Pass DLINK 530TX PCI Pass DLINK DU-E10 USB Pass GFC GFC2206 PCI Pass Intel SB82558B PCI Pass Intel GD82559 PCI Pass Intel 82550EY SERVER PCI Pass Comments:

LAN HUB

Vendor Model Transfer Rate Result

3COM 100/10 Switch office400 100/10 Pass BUFFLO LSW 10/100-8H 100/10 Pass D-Link DE-812TP+ 10-Base Pass D-Link DE-805TP 10-Base Pass D-Link DE-809TC 10-Base Pass

41

Comments:

Memory

Vendor Model Size Type Result

Buffalo BSV884P4CO-4 128M PC-133 Pass Hitachi (Malaysia) 5264805FTT75 128M PC-133 Pass HYUNDAI GM72V66841ET75 64M PC-133 Pass HYUNDAI GM72V66841ET75 128M PC-133 Pass IBM N364804CT3C-75A 128M PC-133 Pass Infineon HYB39S64800BT-7.5

64M

PC-133 Pass

Infineon HYB39S128800CT-7.5 128M PC-133 Pass KINGMAX KSV884T4A1A-07 128M PC-133 Pass KINGMAX KSV884T4A1A-07 128M PC-133-ECC Pass KINGMAX KSV884T4A1A-07 64M PC-133 Pass LGS GM72V66841CT7J 64M PC-100 Pass MT 48LC8M8A2 64M PC-100 Pass MT 48LC8M8A2 128M PC-100 Pass MOSEL V54C365804VCT7 64M PC-133 Pass MOSEL V54C365804VCT7 128M PC-133 Pass Nanya NT56V6610C0T-75 128M PC-133 Pass Nanya NT5SV32M8AT-7K 512M PC-133 Pass NEC (Singapore) D4564841G5-A10- 9JF 64M PC-100 Pass NEC (Singapore) D4564841G5-A10- 9JF

128M

PC-100 Pass

NEC (Japan) D4564841G5-A75-9JF 128M PC-133 Pass NEC (Singapo re) D45128841G5-A75-9JF 256M PC-133 Pass SEC KM48S8030CT-GL 64M PC-100 Pass SAMSUNG K4S560832A-TC75 512M PC-133 Pass SIMENS (USA) HYB39S64800AT-7.5 64M PC-133 Pass SIMENS (USA) HYB39S64800AT-7.5 128M PC-133 Pass Toshiba TC59S6408BFT-80 64M PC-100 Pass Winbond (Taiwan) W981216AH-75 64M PC-133 Pass Winbond (Taiwan) W981208AH-75 128M PC-133 Pass Winbond W981208AH-75 256M PC-133 Pass Kingston ValueRAM/D168SP-75 256M PC-133 Pass Comments:

Modem Card

Vendor Model Drivers Type Result

AZTECH MDP 3858SP-UE vxd 2.1.2135.7.1 PCI Pass AZTECH MDP 7800U 4.90.3000 PCI Pass

42

3Com U.S Robotics 0637 vxd v1.00.017 PCI Pass Lectron I56PSP-T3 7.66-9K-03 PCI Pass 3Com U.S Robobit 56K FAX V 5.3 NAM COM Pass ADI MDX-56KRE COM Pass WELL FM-56CNR-HPNA-RW-A CNR Pass Lectron PCT303W 2.40.0004 CNR Pass King stone MTO6269353 vxd 5.00.83.8 CNR Pass D-LINK CNR-LM vxd v2.84 CNR Pass Comments:

Mouse

Vendor Model Drivers Type Result

ARTEC UM500P PS/2 Pass Logitech M-BB48 USB Pass Logitech M-BA47 USB Pass Logitech M-S34 PS/2 Pass Logitech M-M30 PS/2 Pass Logitech M-S43 PS/2 Pass Logitech M-CAA43 PS/2 Pass Logitech M-CAB48A PS/2 Pass Logitech M-MM35 Serial Pass Logitech M-MM43 Serial Pass Logitech M-RG45 IR Pass Microsoft IntelliMouse X04-91790 USB/PS2 Pass Microsoft

IntelliMouse B75-00006

USB/PS2 Pass

Seagate IOWCM-B700 PS/2 Pass WINIC FDM-A50 USB Pass Comments:

Monitor

Vendor Model Size Type Result

GENUINE G585

14″

CRT Pass

ViewSonic View Panel VPD150

15″

LCD Pass

ViewSonic E653

15″

CRT Pass SAMPO AlphaScan 521a 15” CRT Pass ViewSonic View Panel VG175

17″

LCD Pass ViewSonic 17PS

17″

CRT Pass ViewSonic 17GA

17″

CRT Pass ViewSonic GF775

17″

CRT Pass View Sonic PS775 17” CRT Pass

43

View Sonic E70 17” CRT Pass PHILIPS 107MP 17” CRT Pass SAMPO AlphaScan 761 17” CRT Pass SAMPO AlphaScan 712 a 17” CRT Pass SAMPO AlphaScan 950 19” CRT Pass OPTIQUEST Q100 19” CRT Pass View Sonic E790 19” CRT Pass View Sonic E810 19” CRT Pass HITACHI SUPERSCAN 811 19” CRT Pass Comments:

Power Supply

Vendor Model Type Result

Enlight HPC-250-101 ATX-250W Pass Enlight HPS-300 ATX-300W Pass Enlight ATX-725B ATX-250W Pass iCute LC-250ATX ATX-250W Pass Seventeam ST-250GL ATX-250W Pass Seventeam ST-275GL ATX-275W Pass Seventeam ST-301HR ATX-300W Pass Seventeam ST-350GL ATX-350W Pass Seventeam ST-400GL ATX-400W Pass DELTA DPS-300KB ATX-300W Pass HIPRO HP-250NLXAK ATX-250W Pass USPOWER RP2-300A ATX-300W Pass FSP FSP400-60GN ATX-400W Pass FSP FSP300-60BT ATX-300W Pass BELSON BS-2000 ATX-200 Pass WIN WIN-250PS ATX-250W Pass Comments:

Printer

Vendor Model Drivers Type Result

CANON BJ-80K Ver 2.0 IR Pass EPSON STYLUS PHOTO 750 2.00.2452 USB /LPT Pass HP DeskJet 970Cxi 1.16.1.0 USB Pass HP Deskjet 990 cxi V13.0 IrDA/LPT/USB Pass HP DeskJet 695C

LPT Pass

44

Comments:

Scanner

Vendor Model Drivers Type Result

HP Scan Jet 4200C CD-Ver 2.01 USB Pass HP Scan Jet 5200C CD-Ver 2.00 USB Pass MUSTEK 1200USB 4.10.1998 USB Pass UMAX Astra 1220U CD-Ver 2.1 Pass UMAX Astra 2000U CD-Ver 3.52u Pass Comments:

SCSI Card

Vendor Model Drivers Type Result

ADAPTEC 2940U PCI Pass ADAPTEC 2940UW PCI-WIDE Pass ADAPTEC 2940U2W (LVD) PCI-WIDE Pass ADAPTEC 3940AUW PCI-WIDE Pass ADAPTEC 29160 PCI SCSI3 LVD Pass AMD AM53C974AKC PCI-SCSI II Pass ASUS PCI-SC875 REV:1.1 PCI Pass Bus Logic PCI BT-930R PCI Pass DOMEX 636UW PCI Pass INITIO INIC-950P PCI Pass IWILL SIDE-2935UW PCI Pass I WILL DU-280 PCI SCSI3 LVD Pass SYMBIOS 53C875 PCI Pass SYMBIOS 53C875E PCI Pass Tekram DC-390 5795

PCI Pass

Tekram DC-390U3W

PCI SCSI3 LVD Pass

Comments:

Sound Card

Vendor Model Drivers Type Result

AVORTEX AU8820B2 4.05.0110 PCI Pass CREATIVE Sound Blaster CT4670 Ver 2.0 PCI Pass CREATIVE Sound Blaster SB0060 Ver 2.4 PCI Pass CREATIVE ES1371 4.05.1119 PCI Pass Ensoniq ES1370 4.02.1033 PCI Pass

45

Comments:

USB HUB

Vendor Model Drivers Result

KOUWEL 580H Pass SIIG UH-144 Pass PCI UH-400 Pass D-Link DU-H4 Pass Comments:

ZIP/LS120

Vendor Model Size Type Result

PANASONIC JU-811T012 100M IDE Pass Iomega Z250ATAPI 250M IDE Pass Iomega Z100P 100M LPT Pass Iomega Z250P 250M LPT Pass Iomega ZIP 100 USB 100M USB Pass Iomega ZIP 250 USB 250M USB Pass MATSUSHITA LKM-F734-1 (LS-120) 120M IDE Pass Comments:

46

SOFTWARE COMPATIBILITY LIST

DOS Version Result

MS-DOS 6.22 Pass IBM PCDOS 7.0 Pass

Windows --- ---

Windows98 Second Edition Pass Windows ME 4.90.3000 Pass Windows NT Workstation 4.0 Pass Windows 2000 Pr ofession Release Pass Windows 2000 Server Release Pass Windows XP H ome Edition 2002 Pass Windows XP Professional 2002 Pass Linux Red hat 7.1 Pass

Server --- ---

NetWare 4.12 Pass NetWare 5.0 Pass SCO Unix 5.0 Pass Windows NT 4.0 Pass Windows 2000 Release Pass

Comments:

47

VCORE WAVEFORM MEASUREMENT-Ver1.0

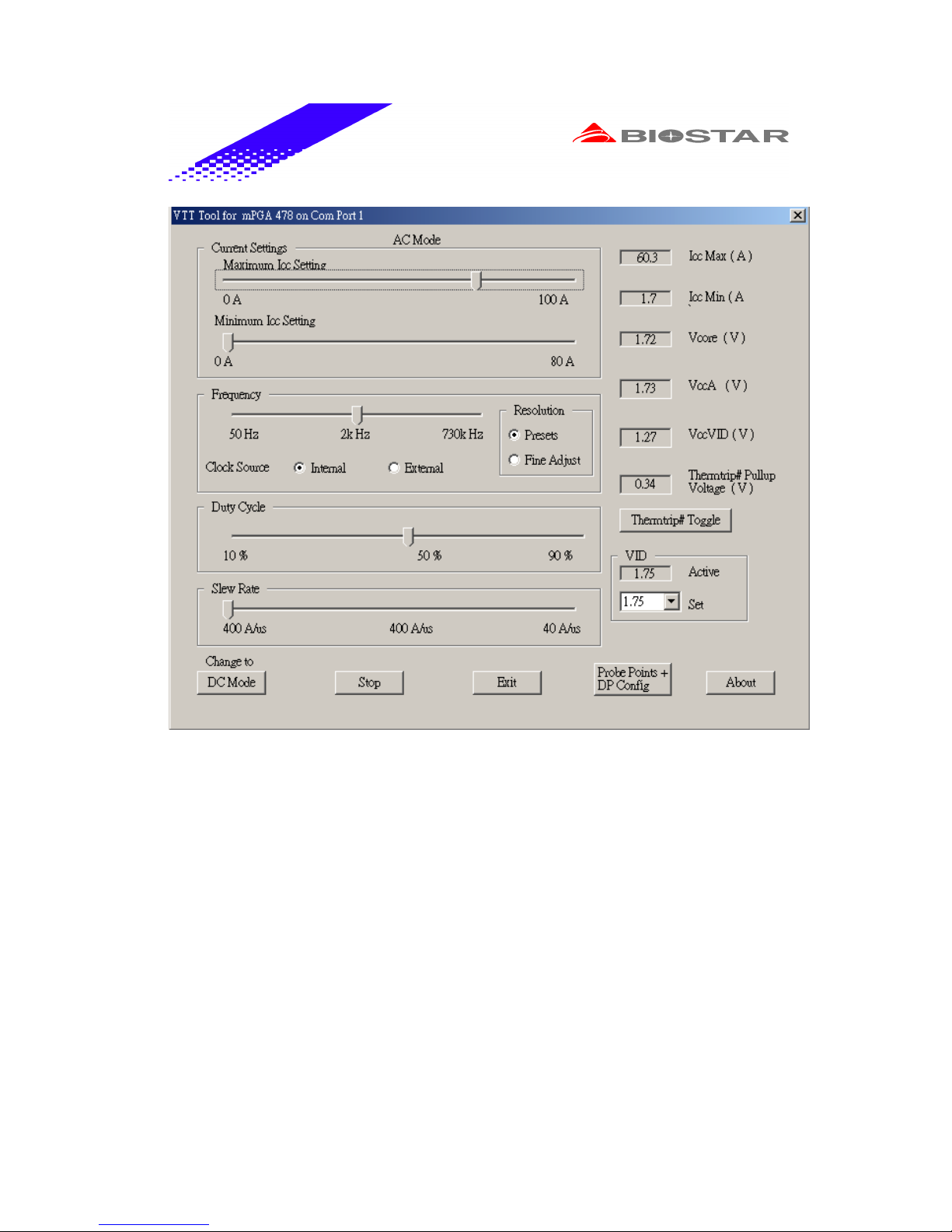

CPU_1.75v setup

1. Select the RUN Button –changes to read “STOP” when operating.

2. Adjust the Togg le Frequency to the desired setting.

3. Adjust the Duty Cycle to the desired setting.

4. Adjust the Slew Rate to the desired setting.

5. Adjust the Icc Maximum Slider Bar while noting the Icc Max (A) Reading to obtain the desired Maximum Icc Load setting.

48

Vcore Waveform

RESULT PASS

PS: 1. Transient and Static Waveform : VID setting : 1.75V , Icc :60A , Frequency : 2KHz

2. Static Test Range : +0mV~ -185mV

3. Transient Test Range : +0mV~ -185mV

49

Blue cells need to be filled in with lab measurement Yellow cells need to have the overall design tolerance entered

VID:

1.7

V

Tolerance:

1.00%

Overall

+Toleranc

e

0.009

V

-

Tolerance

0.009

V

Vdmm

1.666

V

Vscope

1.671

V

Vfb_nl

1.666

V

Vfb_nf

1.570

V

Static Voltage Measurements at pins AC14/AC15

Current Measured Static Voltage Units

0 1.666

V

10 1.652

V

20 1.639

V

30 1.625

V

40 1.608

V

50 1.589

V

60 1.570

V

Ripple Voltage Measurements (mV) at pins AC14/AC15

Current Measurement Units

0 7.200

mV

10 6.400

mV

20 8.400

mV

30 9.200

mV

40 10.000

mV

50 10.400

mV

60 11.000

mV

Transient Min (mV) at pins AC14/AC15

Load Step Current Measurement Units

0A to 0A 0 8.00

mV

0A to 10A 10 20.00

mV

0A to 20A 20 33.60

mV

0A to 30A 30 48.80

mV

0A to 40A 40 66.40

mV

0A to 50A 50 82.00

mV

0A to 60A 60 98.00

mV

50

Transient Max (mV) at pins AC14/AC15

Load Step Current Measurement Units

60A to 0A 0 110.00

mV

60A to 10A 10 95.00

mV

60A to 20A 20 78.00

mV

60A to 30A 30 64.00

mV

60A to 40A 40 49.00

mV

60A to 50A 50 34.00

mV

60A to 60A 60 20.60

mV

Measured Loadline Calculator

Spec'd Socket Loadline

Static and Transient

Current

Min Max Nominal

0 -50 0 -25

5 -57 -8 -33 10 -65 -15 -40 15 -72 -23 -47 20 -80 -30 -55 25 -87 -38 -63 30 -95 -45 -70 35 -103 -53 -77 40 -110 -60 -85 45 -118 -67 -92 50 -125 -75 -100 55 -133 -83 -108 60 -140 -90 -115 65 -148 -97 -123 70 -155 -105 -130

Loadline Slope

Spec

1.500

mOhms

Measured*

-1.600

mOhms

IMPORTANT NOTES



Vdmm

1.666

V

Vscope

1.671

V

Delta V

-0.005

V

Vfb_nl

1.666

V

Vfb_nf

1.570

V

Vnlo

-0.034

V

Vst

-0.130

V

Vso

0.096

V

Delta Vs

0.009

V

Vso is the Static Offset Voltage of the board under test. Optimally for Pentium 4 processor in the 478-pin package and Northwood processor designs this should be -25mV.

Delta Vs is used as a correction factor to position the offset to the optimal offset of -25mV, This Normalizes the loadline. See section 3.1.1.4 of the Volt age Load Line Validation - Desktop Platforms for more information.

To observe the actual loadli ne for the board under test set Delt a Vs = 0 V.

51

*Over entire current range.

Equations:

Vnlo= Vfb_nl - VID Normalized =

Averaged Measured Data -

VID + Delta Vs

Delta V= Vdmm - Vscope

Vst= Vfb_nf - VID Tolerance +/-= Normalized +/- Tolerance Vdmm= DMM reading at 0A

Vso= Vnlo - Vst Static +/-=

Tolerance +/- Averaged Ripple

Voltage Vs cope= Scope reading at 0A

Delta Vs= VID + Vso_ideal - Vfb_nl Transient +/-=

Static +/- Averaged Transient

Voltage

Measured Static Loadline

Measured Voltages at AC14/AC15

Tolerance

Ripple Voltage

Measurements (mV)

Loadline w/

Ripple

Current

Static

Measurement

Meas. +

Delta V

Meas. -

Vid

Normalized

+ Tolerance- Tolerance

Vripple

Measurement

1/2

Vripple

Static

+

Static -

0 1.666 1.661 -0.039 -30.000 -21.500 -38.5 7.200 3.600 -17.900 -42.100 10 1.652 1.647 -0.053 -44.000 -35.500 -52.5 6.400 3.200 -32.300 -55.700 20 1.639 1.634 -0.066 -57.000 -48.500 -65.5 8.400 4.200 -44.300 -69.700 30 1.625 1.620 -0.080 -71.000 -62.500 -79.5 9.200 4.600 -57.900 -84.100 40 1.608 1.603 -0.097 -88.000 -79.500 -96.5 10.000 5.000 -74.500 -101.50 50 1.589 1.584 -0.116 -107.000 -98.500 -115.5 10.400 5.200 -93.300 -120.70 60 1.570 1.565 -0.135 -126.000 -117.500 -134.5 11.000 5.500 -112.00 -140.00

Measured Static Loadline

Measured Voltages at AC14/AC15

Tolerance

Ripple Voltage

Measurements (mV)

Loadline w/

Ripple

Current

Static

Measurement

Meas. +

Delta V

Meas. -

Vid Normalized+ Tolerance- Tolerance

Vripple

Measurement

1/2

Vripple

Static

+ Static -

0 1.666 1.661 -0.039 -30.000 -21.500 -38.5 7.200 3.600 -17.900 -42.100 10 1.652 1.647 -0.053 -44.000 -35.500 -52.5 6.400 3.200 -32.300 -55.700 20 1.639 1.634 -0.066 -57.000 -48.500 -65.5 8.400 4.200 -44.300 -69.700 30 1.625 1.620 -0.080 -71.000 -62.500 -79.5 9.200 4.600 -57.900 -84.100 40 1.608 1.603 -0.097 -88.000 -79.500 -96.5 10.000 5.000 -74.500 -101.50 50 1.589 1.584 -0.116 -107.000 -98.500 -115.5 10.400 5.200 -93.300 -120.70 60 1.570 1.565 -0.135 -126.000 -117.500 -134.5 11.000 5.500 -112.00 -140.00

Transient Min (mV) at AC14/AC15

Transient Max (mV) at

AC14/AC15 Transient Results

Load Step Current Measurement Load Step Current Location 1 Transient - Transient +

0A to 0A 0 8.00 60A to 0A 0 110.00 -50.100 -2.000 0A to 10A 10 20.00 60A to 10A 10 95.00 -62.100 -17.000 0A to 20A 20 33.60 60A to 20A 20 78.00 -75.700 -34.000 0A to 30A 30 48.80 60A to 30A 30 64.00 -90.900 -48.000 0A to 40A 40 66.40 60A to 40A 40 49.00 -108.500 -63.000 0A to 50A 50 82.00 60A to 50A 50 34.00 -124.100 -78.000

52

0A to 60A 60 98.00 60A to 60A 60 20.60 -140.100 -91.400

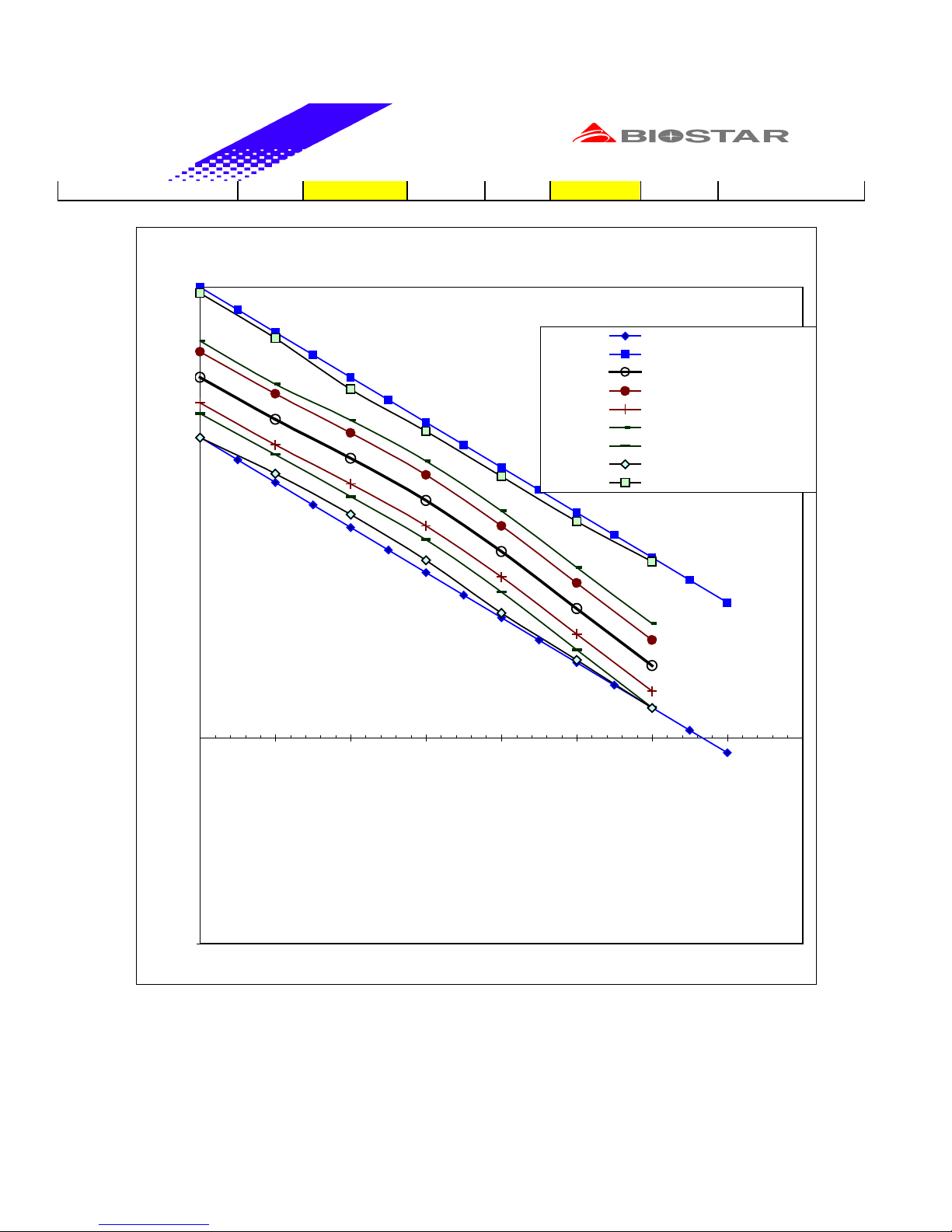

Pentium® 4 processor in the 478-pin package and Northwood processor Loadline Validator

-219

0

0 1020304050607080

Current

Delta mV From VID

Static Min Static Max Normalized + Tolerance

- Tolerance + Static & Ripple

- Static & Ripple Transien t Transien t +

53

THERMAL IMAGE TEST – Ver 1.0

Motherboard General Information

Vendor Biostar Model Number M7TDA Revision 1.0 Temperature ( ℃ ) 35 ℃

Humidity rate ( % )

0 ~ 60 %

Thermo Tracer NEC TH5104 Test Program 3Dmark2000

Comments:

The component temperature measured value was based on 35℃ check in the chamber

and the system during in the 3Dmark2000 Looping testing.

54

FOUR CORNER T EST

Test Equipment & Environment

M/B TYPE M7TDA CPU Level P4 1.7GHz/100

RAM TYPE Winbond 128M pc133 x4 VGA TYPE ELSA GEFORCE2 ULTRA Power Supply F P ISR0007091 Floppy PANASONIC JU- 257 IDE1 Primary QUANTUM CX6400AT IDE1 Secondary SEAGATE ST34321A IDE2 Primary PIONEER DVD ROM IDE2 Secondary IOMEGA ZIP250

PCI 1 AHA 29160 PCI 2 AHA 2940U2W PCI 3 Creative live PCI 4 None PCI 5 None PCI 6 None

Win98 Version WINDOWS ME BIOS Version Tda0813f

BCM Version 2.01 Driver CD Ver. I115_1B

BCM Stress Test (30 min.)

Normal (Standard Power Voltage & Room Temperature)

Audio Processor Video CD-ROM DOS Disk Floppy Graphics Memory WinApp

PASS PASS PASS PASS PASS PASS PASS PASS PASS PASS

Corner 1 : 45℃ & 3.13V

Audio Processor Video CD-ROM DOS Disk Floppy Graphics Memory WinApp

PASS PASS PASS PASS PASS PASS PASS PASS PASS PASS

Corner 2 : 45℃ & 3.46V

Audio Processor Video CD-ROM DOS Disk Floppy Graphics Memory WinApp

PASS PASS PASS PASS PASS PASS PASS PASS PASS PASS

Corner 3 : 10℃ & 3.13V

Audio Processor Video CD-ROM DOS Disk Floppy Graphics Memory WinApp

PASS PASS PASS PASS PASS PASS PASS PASS PASS PASS

Corner 4 : 10℃ & 3.46V

Audio Processor Video CD-ROM DOS Disk Floppy Graphics Memory WinApp

PASS PASS PASS PASS PASS PASS PASS PASS PASS PASS

Comments:
