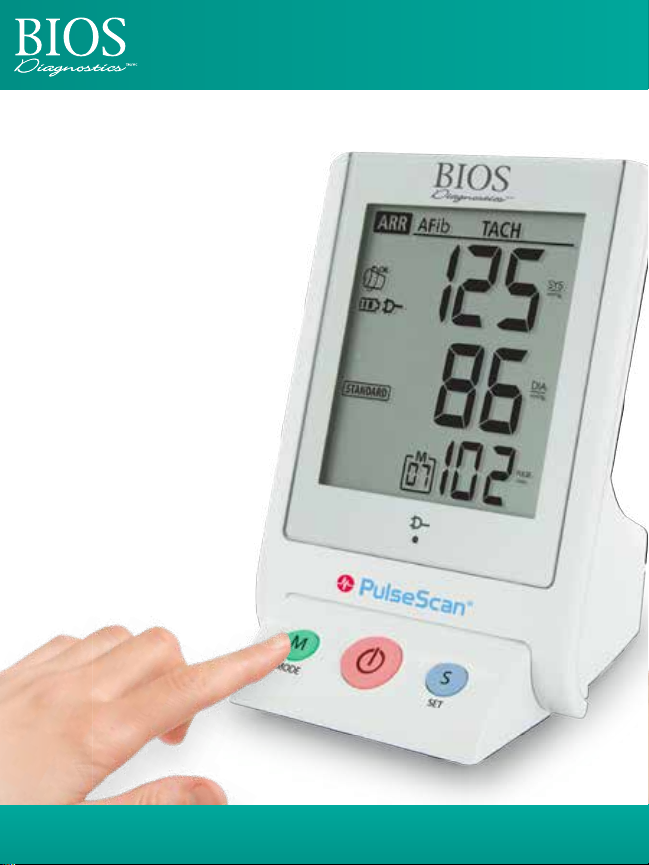

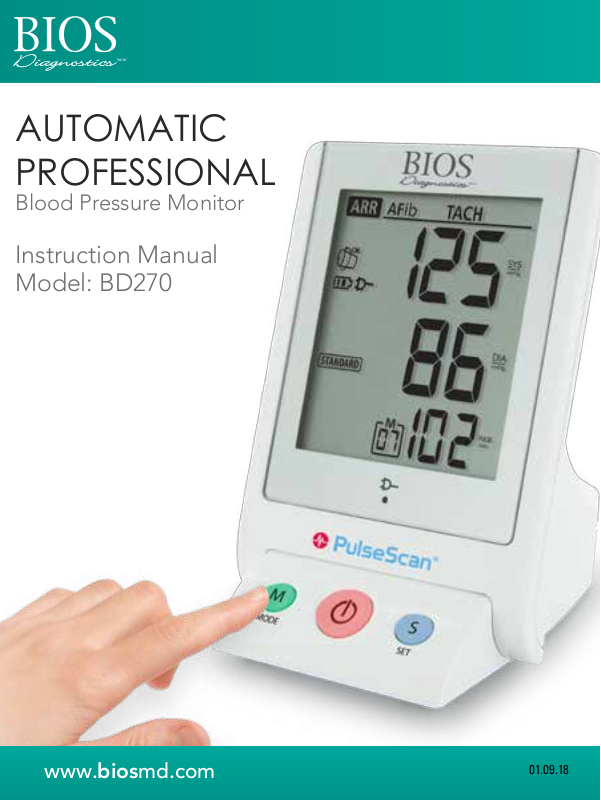

AUTOMATIC
PROFESSIONAL
Blood Pressure Monitor
Instruction Manual
Model: BD270
www.biosmd.com
1
01.09.18
23.11.2017
Mark Beaton accepts the 2017 Hypertension Canada Certificate of Excellence from Angelique
Berg, CEO of Hypertension Canada
Trusted by Canadians for 3 Generations
At BIOS Diagnostics™, we are proud of our legacy in blood pressure monitoring
in Canada. From the early 1930’s to 1987 we manufactured “Tycos” brand
professional blood pressure equipment for doctors and hospitals in Canada.
In the 1970’s we pioneered the first blood pressure devices for monitoring
at home, and in the 1980’s we introduced digital technology in Canada. We
haven’t been counting, but we know that millions of our home-use monitors
have been used by Canadians in the last 30 years.
All BIOS Diagnostics™ devices are developed in collaboration with physicians
and clinically tested to prove their measurement accuracy. For more information
on clinical tests and other BIOS medical products, visit our website at
www.biosmedical.com.
If you have questions about this device or blood pressure monitoring at home,
email us at: support@biosmedical.com
Or: Call the BIOS Medical Hotline 1-866-536-2289
2
Automatic Professional Blood Pressure Monitor
Instruction Manual
Table of Contents
1. Introduction
1.1 Features
1.2 General Warnings and Cautions
2. Getting Started
2.1 About the BD270
2.2 About the LCD Screen
2.3 Monitor Installation - Trolley
2.4 PulseScan (Pulse Arrhythmia Technology)
2.5 Atrial Fibrillation Detection (Afib)
2.6 Premature Contraction Detection (PC)
2.7 Tachycardia Detection (TACH)
2.8 Bradycardia Detection (BRAD)
2.9 Pulse Arrhythmia Detection (ARR)
2.10 Preliminary Remarks
3. Initial Setup

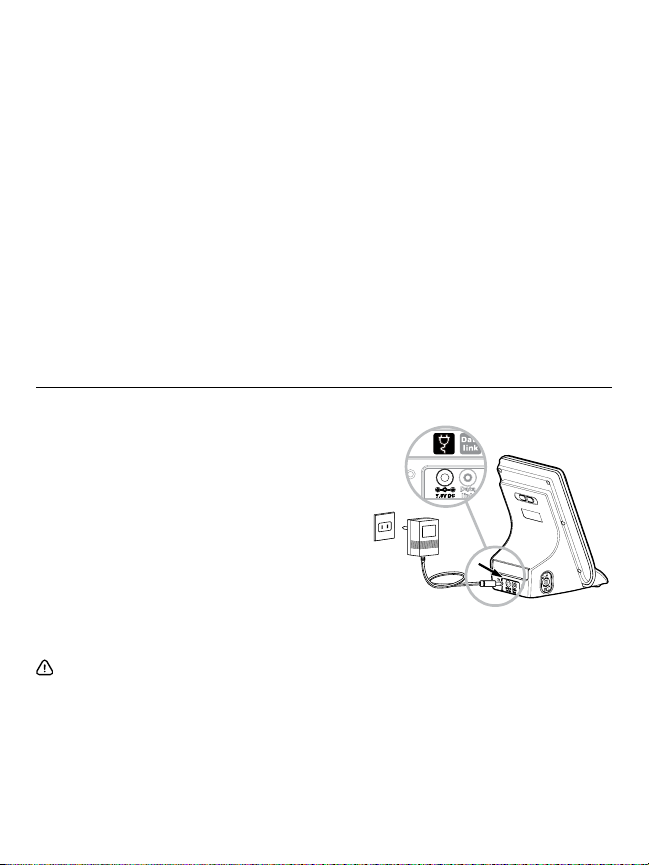

3.1 Using the Adapter

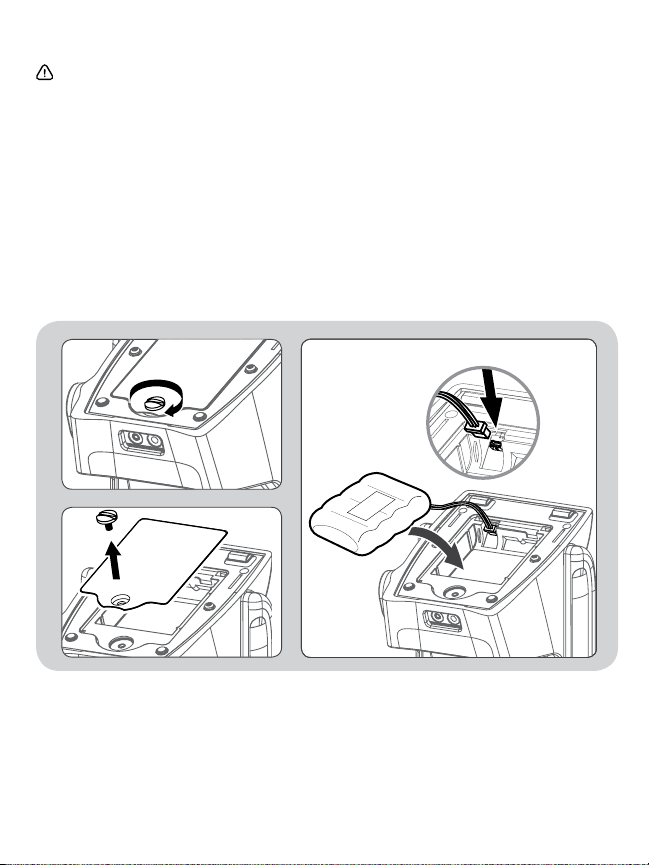

3.2 Installation and Replacement of Battery Pack
3.2A Using the Rechargeable Battery
3.3 Obtaining Accurate Measurements

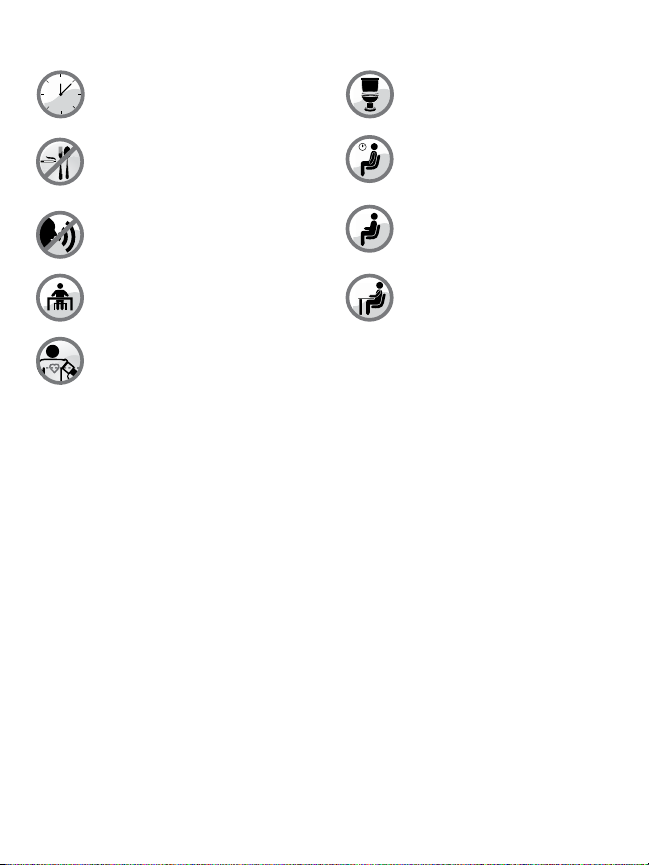

3.3A Tips for Taking Accurate Measurements
3.3B Common Sources of Error

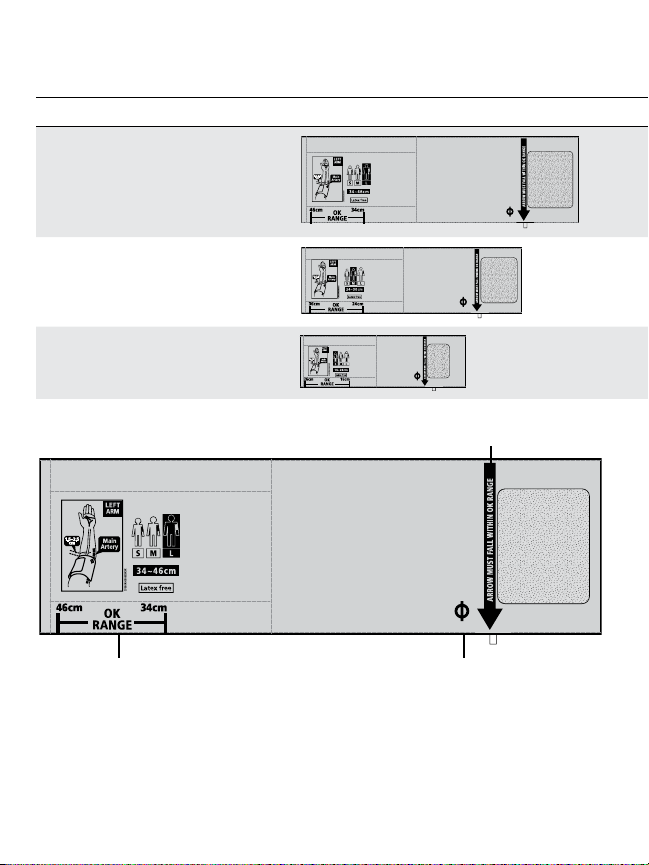

3.3C Fitting the Cuff
4. Using the Device
4.1 Setting the Time and Date
4.2 Measurement Procedures
4.2A Standard Mode

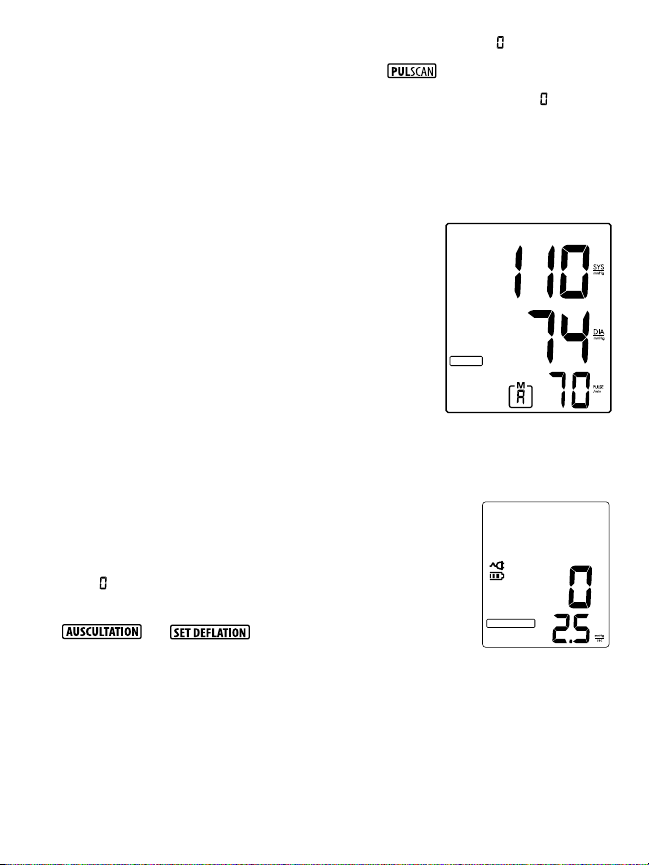

4.2B Professional / PulseScan Mode
4.2C Auscultation / Manual Mode

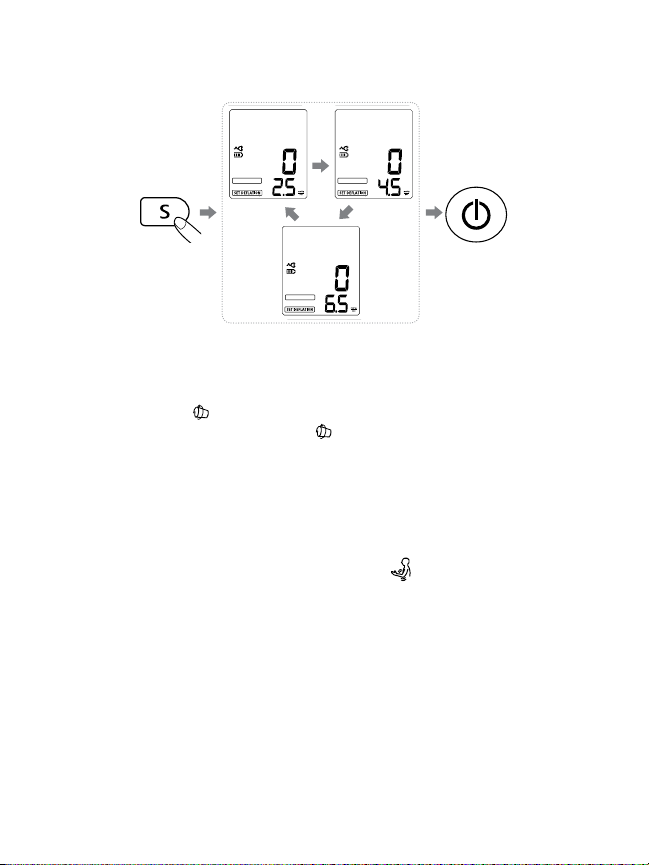

4.3 Setting Deflation Rate
4.4 Loose Cuff Detection
4.5 Movement Detection
4.6 Memory Recall
4.7 Clearing Values from Memory
4.8 How to Clean the Unit After Use
5. Error Messages / Malfunctions
6. Specifications
7. 5 Year Warranty
3
1. Introduction
This manual is a comprehensive guide designed to help you understand the capabilities and
operation of the BD270 Blood Pressure Monitor. Before using this blood pressure monitor, read this
manual carefully to setup, configure, use, troubleshoot, or maintain the device.
1.1 Features
The BD270 BPM is a non-invasive, digital, blood pressure measuring device using oscillometric
technique and an upper-arm cuff to measure systolic and diastolic blood pressure and pulse rate.
The device detects arrythmia during measurement, including Atrial Fibrillation, Tachycardia,
Bradycardia and Premature Contraction, and displays a warning with the reading once the irregular
heartbeat is detected.
1.2 General Warnings and Cautions
1. The information in this manual is a comprehensive guide to the operation of the BD270. For
best results, read this manual thoroughly before using the device.
2. The unit contains high-precision components. Therefore, avoid extreme temperatures,
humidity, and direct sunlight or places with a lot of dust.
3. Do not drop or bang the unit. Prevent sudden jerks, jars, or shocks to the device to prevent
damage. Do not insert any foreign objects in any device opening or vents.
4. The device is designed for medical clinician use. Only a trained clinician should use this device.
5. Fire and explosion hazard. Do not operate the device in the presence of a flammable anesthetic
mixture with air, oxygen, or nitrous oxide; in oxygen enriched environments.
6. Do not use the device on patients who are connected to heart/lung machines. The device may
have difficulty in determining the proper blood pressure for users diagnosed with diabetes, poor
circulation of blood, kidney problems, or for users suffered from stroke, or for unconscious users.
7. Before cleaning the device, disconnect the power cord from the power source and the device.
Clean the device and the cuff carefully with a slightly damp, soft cloth. Do not press. Do not
wash the cuff or use chemical cleaner on it. Never use thinner, alcohol or petrol as cleaner.
8. There are no user-serviceable parts inside the BD270. You should not use any tool to open the
device nor should you attempt to adjust anything inside the device.
9. Defective batteries can damage the device. If the battery shows any signs of damage, leakage, or
cracking, it must be replaced immediately, and only with a battery recommended for or supplied
with the device. Remove the battery when the unit is not used for a long period of time.
4
10. Improper disposal of batteries may create an explosion or contamination hazard. Never dispose
of batteries in refuse containers. Do not dispose of the battery in fire. Always recycle batteries
according to local regulations.
11. Improper handling of the battery can lead to heat generation, smoke, bursting or fire.
12. Do not disassemble, modify or solder the battery.
13. For proper patient electrical isolation and battery charging, use only the provided external
power supply to charge the device.
14. Electromagnetic interference: The device contains sensitive electronic components. Avoid
strong electrical or electromagnetic fields in the direct vicinity of the device. These may lead to
temporary impairment of measurement accuracy.
15. This monitor may not meet its performance specification if stored or used outside temperature
and humidity ranges specified in this manual.
16. Do not use the device if you think it is damaged or if anything appears unusual.
17. Ensure that children do not use this device unsupervised; some parts are small enough to be
swallowed.
18. During blood pressure measurement, blood circulation must not be stopped for an
unnecessarily long time. If the device malfunctions, remove the cuff from the arm.
19. Do not allow sustained pressure in the cuff or frequent measurements. The resulting restriction
of the blood flow may cause injury.
20. Avoid any mechanical restriction, compression or bending of the cuff line.
21. Ensure that the cuff is not placed on an arm in which the arteries or veins are undergoing
medical treatment.
22. Only use the cuffs provided with the monitor or original replacement cuffs, otherwise
erroneous results will be recorded.
23. The position and physiologic condition of the subject can affect a blood pressure reading.
24. The device is not heat-resistant. Do not autoclave.
25. The patient is an intended operator.
26. Do not service or maintain device and cuff while in use.
5
2. Getting Started

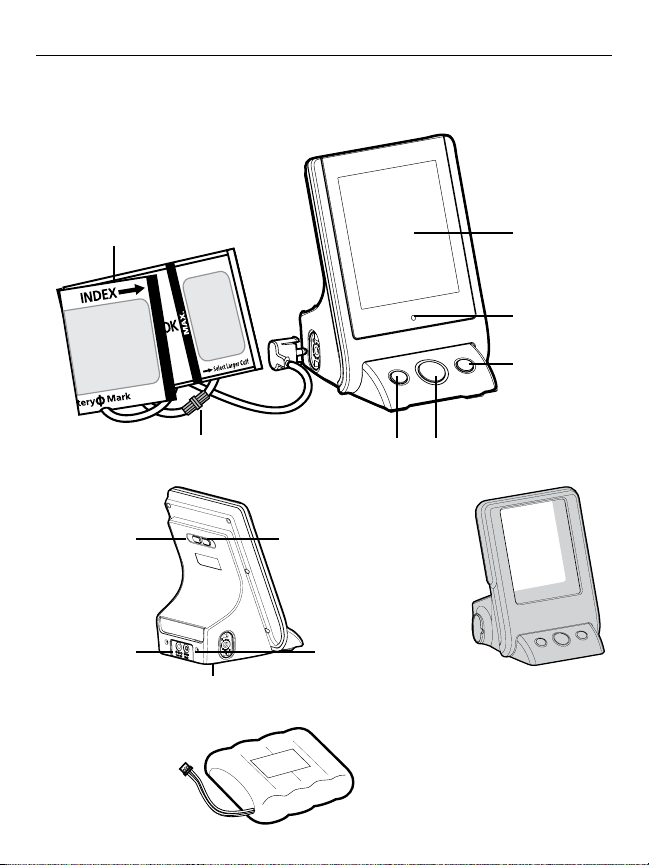

2.1 About the BD270
This section describes the various components of the Automatic Professional Blood Pressure Monitor.
Arm Cuff
Air Tube and
Connector
TIME/DATE
Button
AC/Adapter Jack Data Link Socket
Battery Cover
(Located on bottom of unit)
+ Button
Battery Pack:
4.8V, 1800mAh
NIMH Battery
LCD Display
Charging LED
SET Button
ON/OFF ButtonMODE Button
Protection Cover
6

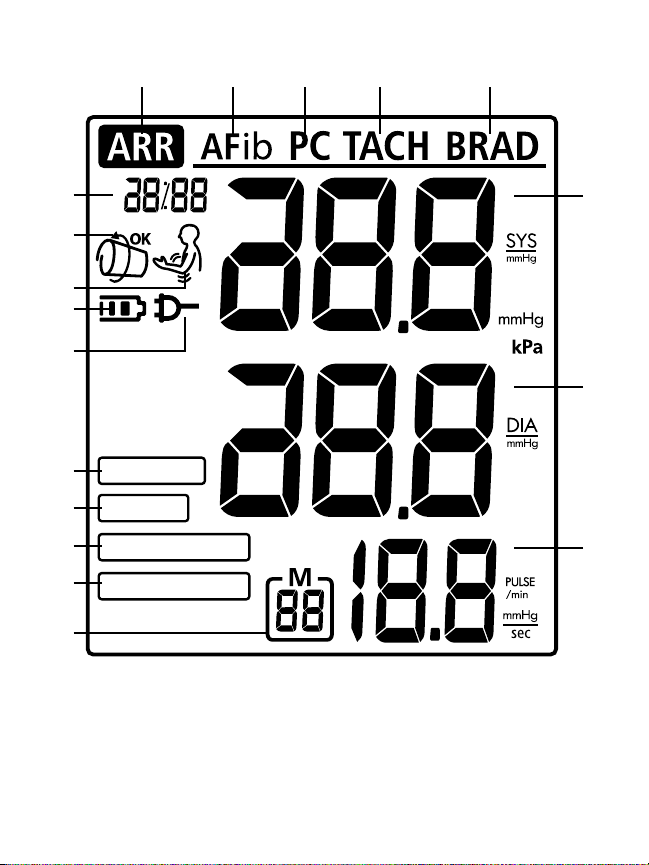

2.2 About the LCD Screen
1
PM
6
AM
7
2 3 4 5
16
8
9
10
11
12
13
14
STANDARD
PULSCAN
AUSCULTATION
SET DEFLATION
15
1. Arrhythmia Detection (ARR)
2. Atrial Fibrillation Detection (AFib)
3. Premature Contraction Detection (PC)
4. Tachycardia Detection (TACH)
5. Bradycardia Detection (BRAD)
6. Time and Date
7. Loose Cuff Detection
8. Movement Detection

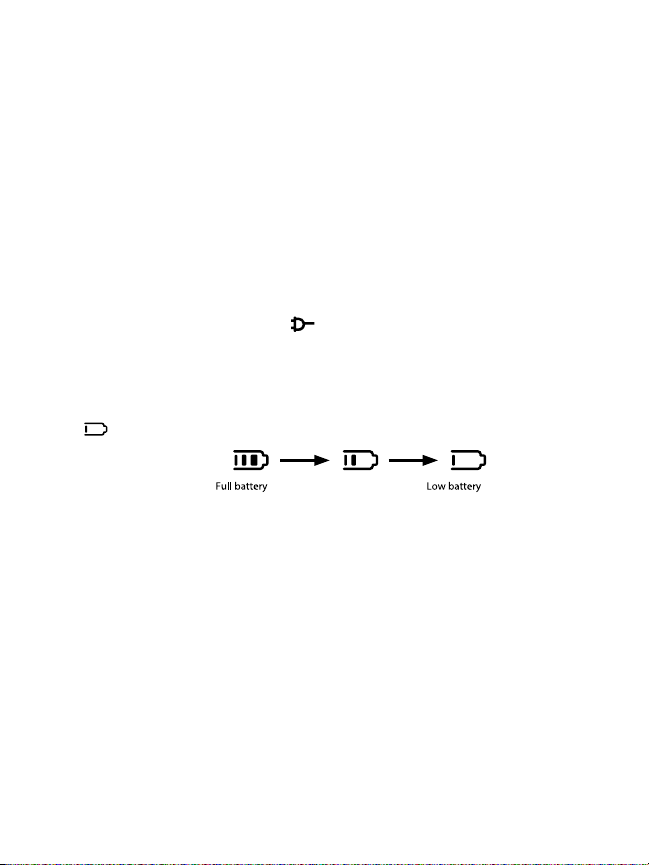

9. Battery Charge Icon
sec.
10. AC Power Icon
11. Standard Mode
12. Pulsescan Mode
13. Ausculatation Mode
14. Set Deflation Rate
15. Memory
16. Systolic Blood Pressure
17. Diastolic Blood Pressure
18. Pulse Rate
17
18
7

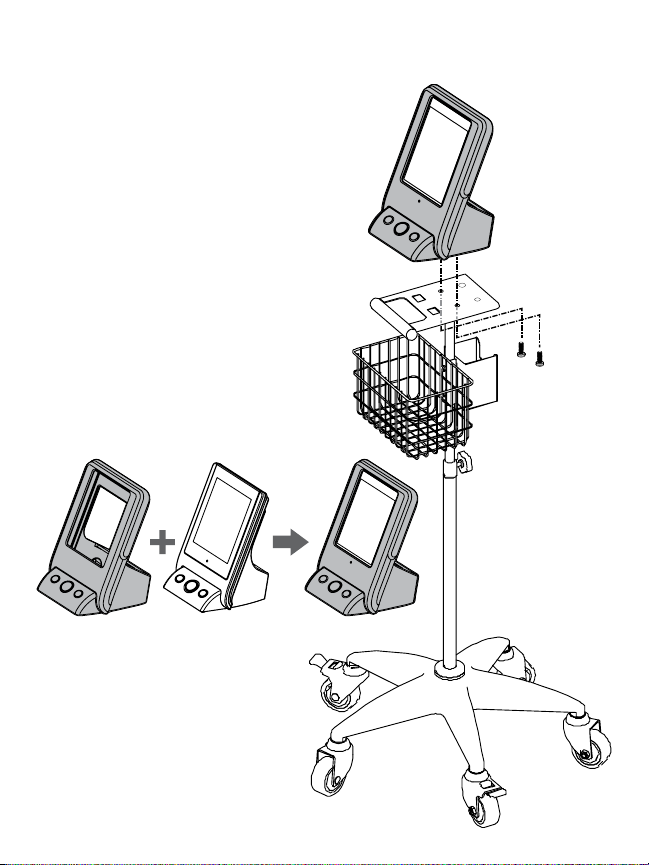

2.3 Monitor Installation - Stand (Optional)
Model number for stand - BD271
Installing Monitor
on the stand
Placing Protection Cover onto the Monitor
8
2.4 PulseScan (Pulse Arrhythmia) Technology
PulseScan (ARR) technology specifically detects the existence of pulse arrhythmia, including Atrial
Fibrillation (AFib), Atrial and / or Ventricular Premature Contractions (PC), Tachycardia (TACH),
and Bradycardia (BRAD). Pulse Arrhythmia may be related to cardiac disorders, needs medical
attention and thus early diagnosis is of paramount importance. The PulseScan technology detects
arrhythmia during regular blood pressure checks without any additional user skills, user interaction
and measurement prolongation. Beside the blood pressure diagnosis a specific pulse arrhythmia
diagnosis is provided with PulseScan.
Note: PulseScan screens for AFib, PC, TACH and BRAD is provided with a clinically proven high
detection probability [1]. However, the sensitivity and specificity is limited, thus most, but
not all pulse arrhythmia will be detected and displayed. In certain patients with uncommon
clinical conditions the PulseScan technology may not be able to detect pulse arrhythmia.
This partly comes from the fact that some arrhythmia can only be found with an ECG
diagnosis, but not with a pulse diagnosis. Thus PulseScan is not meant to replace any
medical ECG diagnosis by your doctor. PulseScan provides an early detection of certain
pulse arrhythmia, which inevitably need to be presented to your doctor in charge. Remark:
[1] Clinical Investigation of PulseScan - A new Oscillometric Pulse Arrhythmia Type
Discriminating Detection Technology
2.5 Atrial Fibrillation Detection (AFib)
The upper chambers of the heart (the atria) do not contract, but quiver and thus blood is driven
irregularly and with lower efficiency into the ventricles. Subsequently irregular heartbeats occur,
which mostly are associated with a fast, yet highly instable heart rate. This condition is associated
with a higher risk for the formation of cardiac blood clots. Amongst others, they may elevate the
risk of brain strokes. Beside this Atrial Fibrillation may contribute to the severity of a chronic or
acute heart failure condition and may be associated with other heart-related complications. Age
dependent, about 10%- 20% of patients who suffer from an ischemic stroke also suffer from Atrial
Fibrillation.
Atrial Fibrillation most often initially occurs with temporary periods of arrhythmia and may progress
to a permanent state of this disorder in the course of time. No matter, whether you intent to
safeguard yourself from an undetected AFib state, or you measure during an ongoing period of
active Atrial Fibrillation, or you measure in between periods of AFib, the PulseScan technology can
be applied at any of these conditions. This unit is able to detect Atrial Fibrillation AFib. The ARR
and AFib icons are displayed right after the measurement if Atrial Fibrillation was detected.
Note: It is strongly recommended, that you consult your physician, if either the AFib icon occurs
several times, or, if your AFib is known to your doctor, but the incidence of AFib readings
changes over time. Your doctor will then be able to provide all required medical test and
possible therapeutic procedures.
Note: The presence of a cardiac pacemaker may impair the AFib detection by PulseScan.
9
2.6 Premature Contraction Detection (PC)
Extra abnormal heartbeats generated in irregular excitation sites of your heart, either in the atria
(PAC), the ventricle (PVC) or the cardiac conduction nodes (PNC). These extra beats may disrupt
the regular rhythm, they may come in early or cause a significant pause regarding your perceivable
pulse. This is called palpitations, which can be felt in your chest. They may occur as isolated, single
events, as a series of irregular pulses or can be distributed all over your pulse beats. If they are not
related to mental stress, or acute demanding physical load, they may be a marker for a multitude
of cardiac disorders. Some of these disorders go along with an elevated risk profile for ischemic
events, either in the heart (e,g, coronary heart disease) or outside the heart, e.g. an elevated risk
for a stroke. Some PCs may indicate on valvular or myocardial disorders and become very important
if a myocarditis (infection of the heart muscle) is suspected. This unit is able to detect premature
contractions (PC). The ARR and PC icons are displayed right after the measurement if premature
contractions have been detected.
NOTE: It is strongly recommended, that you consult your physician, if either the PC icon occurs
several times, or, if your PC is known to your doctor, but the incidence of PC readings changes over
time. Your doctor will then be able to provide all required medical test and possible therapeutic
procedures.
2.7 Tachycardia Detection (TACH)
A fast heart rate of higher than 100 beats per minute (bpm) in adults. Unless being caused by
physical or mental stress, a tachycardia may be an indicator for both cardiac (e.g. Coronary heart
disease, valvular disorder), or extra-cardiac disorders (e.g. hyperthyroidism, fever, hypoxemia),
as well as medication and stimulant substance side effects (e.g. caffeine). The unit is able to
detect Tachycardia (TACH). The ARR and TACH icons are displayed right after the measurement if
tachycardia has been detected.
NOTE: It is strongly recommended, that you consult your physician, if either the TACH icon occurs
several times, or, if your TACH is known to your doctor, but the incidence of TACH readings changes
over time. Your doctor will then be able to provide all required medical test and possible therapeutic
procedures.
2.8 Bradycardia Detection (BRAD)
A slow heart rate of less than 55 beats per minute (bpm) in adults. Unless not genetically
determined or subsequent to a high cardiac endurance training adaptation, bradycardia may be
related to multitude of cardiac disorders (e.g. valvular heart disease, heart failure) or extracardiac
disorders (e.g. hypothyroidism, electrolyte imbalance) or medications (e.g. beta-receptor blocker).
This unit is able to detect Bradycardia (BRAD). The ARR and BRAD icons are displayed right after
the measurement if bradycardia was detected.
10
NOTE: It is strongly recommended, that you consult your physician, if either the BRAD icon occurs
several times, or, if your BRAD is known to your doctor, but the incidence of BRAD readings changes
over time. Your doctor will then be able to provide all required medical test and possible therapeutic
procedures.
2.9 Pulse Arrhythmia Detection (ARR)
Once the occurrence of pulse arrhythmia has been detected in the course of your blood pressure
measurement, the icon ARR is displayed. In the case, that the found pulse arrhythmia can be
specified by the PulseScan technology, the ARR icon is accompanied by the specifically detected
type of arrhythmia, e.g. PC, AFib, TACH or BRAD. If the kind of found pulse arrhythmia cannot be
determined by PulseScan, the device is displaying ARR without any additional pulse arrhythmia
type icon.
The PulseScan technology is able to detect and display combined pulse arrhythmia findings.
NOTE: It is strongly recommended, that you consult your physician, if either the ARR icon occurs
several times, or, if your ARR is known to your doctor, but the incidence of ARR readings changes
over time. Your doctor will then be able to provide all required medical test and possible therapeutic
procedures.
Display Results
-
ARR
ARR PC
ARR AFib
ARR TACH
ARR BRAD
ARR PC BRAD
ARR PC TACH
ARR AFib TACH
ARR AFib PC
ARR AFib PC TACH
Normal finding
Pulse Arrhythmia without type-specific detection
Pulse Arrhythmia-Premature ventricular, atrial or nodal beat detection
Pulse Arrhythmia-Atrial Fibrillation detection
Tachycardia detection
Bradycardia detection
Combined Pulse Arrhythmia: Premature beats & Bradycardia detection
Combined Pulse Arrhythmia: Premature beats & Tachycardia detection
Combined Pulse Arrhythmia: Atrial Fibrillation & Tachycardia detection
Combined Pulse Arrhythmia: Atrial Fibrillation & Premature beats
detection
Combined Pulse Arrhythmia: Detection of Atrial Fibrillation, Premature
Beats and Tachycardia.
11
11
2.10 Preliminary Remarks
This Blood Pressure Monitor complies with the European regulations and bears the CE mark “CE
0120”. The quality of the device has been verified and conforms to the provisions of the EC council
directive 93/42/ EEC (Medical Device Directive), Annex I essential requirements and applied
harmonized standards.
EN 1060-1: 1995/A2: 2009 Non-invasive sphygmomanometers - Part 1 - General requirements
EN 1060-3: 1997/A2: 2009 Non -invasive sphygmomanometers - Part 3 - Supplementary
requirements for electro-mechanical blood pressure measuring systems
EN 1060-4: 2004 Non-invasive sphygmomanometers - Part 4: Test Procedures to determine the
overall system accuracy of automated non-invasive sphygmomanometers. This blood pressure
monitor was designed for long service periods. In order to ensure continued accuracy, it’s
recommended that all digital blood pressure monitors require re-calibration.
3. Initial Setup
3.1 Using the Adapter
You may also operate this monitor using the included
adapter. Use only the included adapter to avoid
damaging the unit.
1. Ensure that the adapter and cable are not damaged.
2. Plug the adapter cable into the adapter port on the
blood pressure monitor.
3. Plug the adapter into an outlet. The battery will be
recharged as long as the device is attached to an AC
power source. After the battery is fully recharged,
the charging will stop. No battery power will be
used as long as the adapter is plugged in.
Warning:
• Do not use this unit in places where inflammable gas, such as highly inflammable anesthetic,
may be generated or in a high pressure oxygen room or an oxygen tent. It may cause ignition
and explosion.
• Do not touch the AC adapter with wet hands. You may suffer electric shock.
• Do not install or store this unit where it may be sprayed with water or medication. You may
suffer electric shock.
12
3.2 Installation and Replacement of Battery Pack
Warning:
• If the fluid in the battery gets into your eye, wash the eye with sufficient water without rubbing the
eye, then immediately consult the doctor for treatment. There is danger in losing your eyesight.
• Do not use the exclusive battery pack other than for this unit.
• Do not throw the battery pack into fire, or heat, or disassemble it. It may cause heat, ignition,
short-circuit, or rupture.
• Do not short-circuit the polarities of the battery pack with a metal object such as a wire.
• If the fluid in the battery is stained on your skin or clothes, immediately wash off the fluid with
water. You may suffer injury, or the battery may leak, heat, ignite fire, or explode.
3.2A Using the Rechargeable Battery
1. Remove the screw on the battery cover (Located on the bottom of the unit).
2. Installation: Connect the battery pack to the connector in the battery cover to install it.
Replacement: Disconnect the battery pack from the connector and replace with a new one.
3. Install the battery cover and fasten it with screws. At this time, be careful not to pinch the lead wire.
13
4. Connect the main unit and the AC adapter, then charge the battery pack. The battery pack is
not charged when you purchase the monitor.
Important: When using the battery pack for the first time, charge for more than twelve hours before
use.
Battery life:
• You can use the unit for approximately 600 measurements with one charge.
• Approximate life of battery pack is two years. However, the battery pack life from each charge
may be shortened depending on the state of use.
• If the unit is not being used for a long period of time, remove the battery
Charging time:
• After connecting the AC adapter, the battery pack will start charging automatically.
• While the battery is being charged, the
light.
• When the charging is completed, LED shows green light.
Battery low:
• If a
Automatic Power Off:
• If you use the unit with the battery pack only, the unit will turn off automatically in
• While the AC adapter is connected, the Auto Power Off function does not work.
mark is displayed, the battery is low (blood pressure cannot be measured). Please
charge the battery.
approximately five minutes even if you forget to turn off the power.
and battery marks turn on and LED shows orange
3.3 Obtaining Accurate Measurements
Blood pressure can vary based on numerous factors, physiological conditions, and surroundings.
Follow these guidelines to obtain accurate and error-free measurements of your blood pressure and
pulse rate.
14
3.3A Tips on Taking Accurate Measurements
In morning before breakfast, 2
hours after dinner, before taking
medication.
Avoid coffee and smoking within the
hour, and no exercise 30 minutes
before measuring.
Empty bladder (if necessary).
Rest quietly for 5 minutes.
Remain calm and quiet while the
measurement is in process.
Do not speak while taking the
measurement.
Sit with legs uncrossed so as not to
restrict blood flow.
Ensure that the BP monitor is level
with the heart while the arm is
supported on the table.
Take measurements on the non
dominant arm.
Sit with back supported and
measurement arm resting on a table.
Sit with feet flat on the floor.
3.3B Common Sources of Error
All efforts by the patient to support the arm can increase the blood pressure. Make sure the patient
is in a comfortable, relaxed position and is not activating any of the muscles in the measurement
arm during the measurement. Use a cushion for support if necessary.
ATTENTION!
Comparable blood pressure measurements always require the same conditions with a peaceful
and calm environment. Ensure that you take measurements under the same conditions to obtain an
accurate estimate of blood pressure variation patterns.
• If the arm artery lies considerably lower or higher than the heart, an erroneous value of blood
pressure is measured. Each 15 cm difference in height results in a measurement error of 10
mmHg.
• A loose cuff causes false measurement values.
• With repeated measurements, blood accumulates in the arm, which can lead to false results.
Consecutive blood pressure measurements should be repeated after at least a 15 second
pause or after the arm has been held up in order to allow the accumulated blood to flow away.
15
3.3C Fitting the Cuff
a) Select cuff according to arm size:
Cuff size Arm circumference Results
L size
M size
S size
Arm Circumference Indicator Artery Mark
The cuff is suitable for you if the arrow falls within the OK range line. If the arrow falls outside the
OK range line, you will need a cuff with another circumference.
34 - 46 cm
(13.4”-18.1”)
24 - 36 cm
(9.4” - 14.2”)
16 - 26 cm
(6.3” - 10.2”)
Index Line

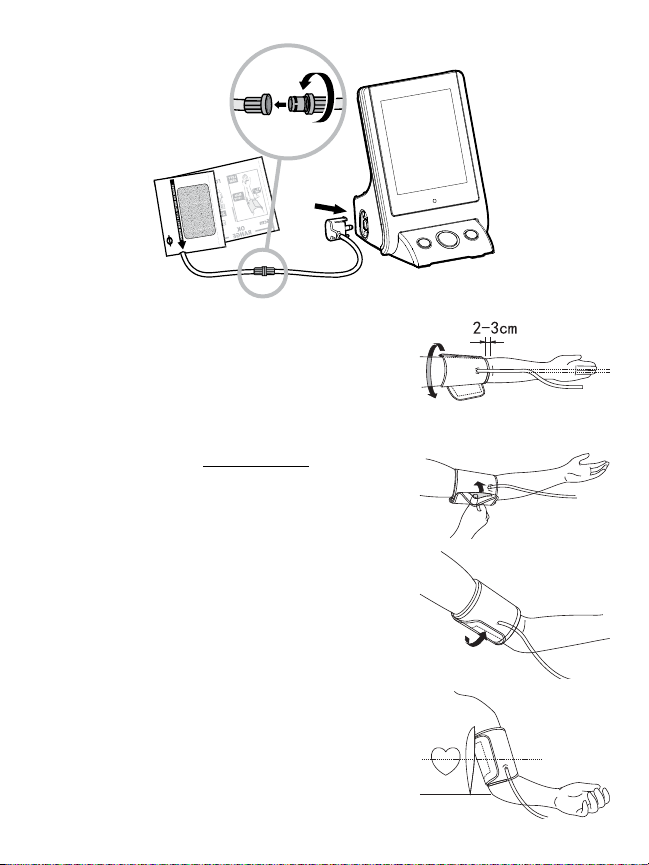

b) Connect the air tube securely.
• Connect the air tube to the main unit by securing the air plug to the base of the air connector.
• Securely connect the air tube and the cuff set by rotating Luer connector.
16
c) Place the cuff around the patients bare arm. Make sure
the bottom edge of the cuff is about 1” (2-3 cm) above
the elbow joint. Adjust the cuff so that the rubber
tubing under the cuff lies over the brachial artery,
which runs on the inside of the arm (see Fig. c).
d) Pull the cuff and tighten it by attaching the Velcro®
fastener. Measure on the non-dominant arm, unless
there is a >10 mmHg difference with the other arm, in
which case use the arm with the higher pressure.
e) The cuff should fit snugly around the arm, but not too
tight. You should be able to fit two fingers under the
cuff. If the cuff is the wrong size, the deivce will not
measure blood pressure accurately.
c)
d)
e)
f) Place the arm on the table (palm facing upwards) so
that the cuff is at the same level as the heart. Make
sure there is no kink in the hose.
f)
17

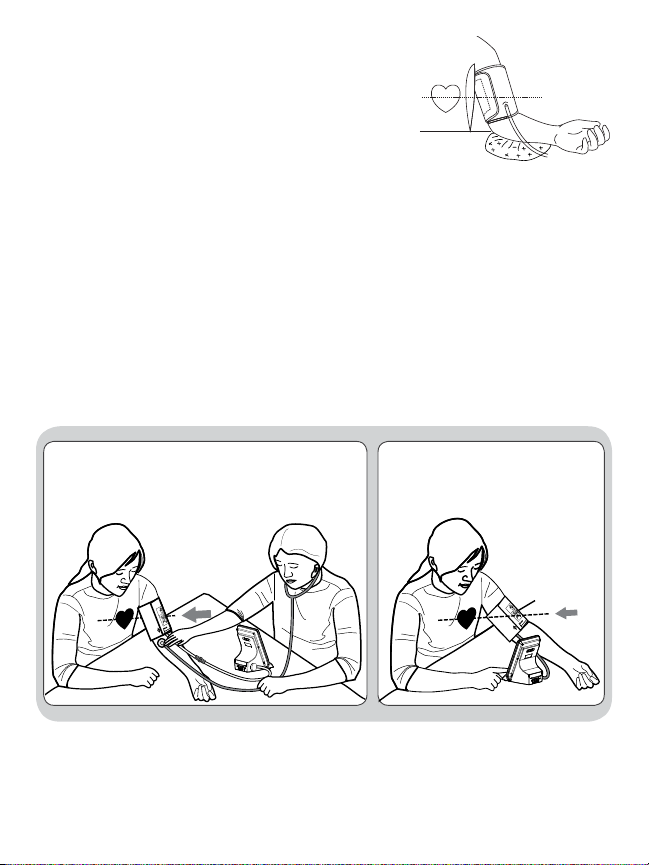

g) You can adjust the level of the arm by putting a
cushion under the arm. Ideally the cuff should be at
heart level.
h) Remain seated in a comfortable room temperature for
at least 5 minutes, then start the measurement.
i) If this device was stored in low temperature, it is necessary to leave it in room temperature for
at least 1 hour, otherwise the measurement can be inaccurate.
Comment:
Continue to use the same arm for comparisons. It is not unusual for there to be a difference in
blood pressure between arms.
Comparable blood pressure measurements always require the same conditions (Relax for several
minutes before taking a measurement).
ATTENTION: Do not use cuffs other than the original cuffs contained in this kit!
g)
MANUAL MODE:
WITH STETHOSCOPE
AUTO MODE:
WITHOUT STETHOSCOPE
18
4. Using the Device
Follow instructions carefully to get an accurate measurement of your blood pressure and pulse rate.
4.1 Setting the Date and Time
NOTE: Setting the Year/Month/Day/Hour/Minute is one sequential process
• Start with the power off, but with batteries or adapter inserted into the machine.
• Press the ON/OFF to turn the monitor on.
• Press and hold the DATE/TIME button on the back of the monitor, until the year starts to flash.
• Use the “+” button to select the correct year.
• Press the DATE/TIME button to confirm and repeat the same process to set the month/day/hour/
minute.
NOTE: In order to change any setting you must repeat the process and confirm each setting by
pushing the DATE/TIME button.
4.2 Measurement Procedures

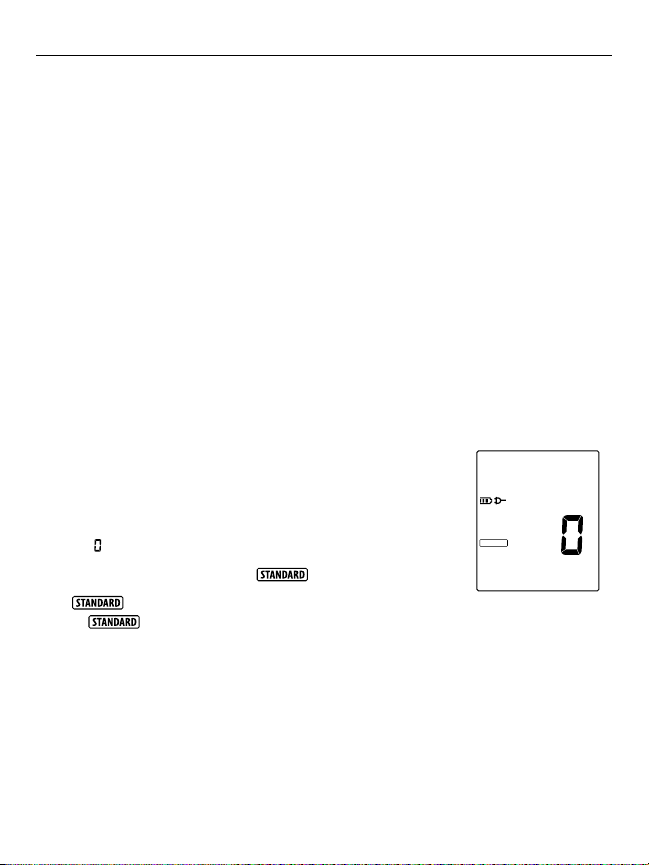

4.2A Standard Mode:
• Start with the power off, but with batteries or adapter inserted into the
machine.
• Power on the machine by pressing the ON/OFF button. The LCD will
show
on the screen.
• The default mode is standard mode,
• If
until is displayed.
• The blood pressure monitor will begin to take your blood pressure measurement
• When the measurement is completed, the cuff will exhaust the rest of the pressure and the
measurement will show on the LCD screen.
4.2B PulseScan Mode (PULSCAN):
Pulsescan mode takes 3 measurements in succession and calculates the results and displays it as a
single average measurement.
• Start with the power off, but with batteries or adapter inserted into the machine.
is not displayed on the screen, press the “M” MODE button
will appear on the screen.
STANDARD
19
• Power on the machine by pressing the ON/OFF button. The LCD will show on the screen.
• Press the “M” MODE button to select the Pulsescan mode.
• Press the “M” MODE button once to initiate the countdown process. You will see
will appear on the LCD screen.
seconds
appear on the LCD screen.
• Press the “S” SET button to choose the countdown time. The countdown time can be set at
300, 180, 60 or 0 seconds.
• Press the ON/OFF button to confirm the countdown procedure. The LCD display will flash the
set countdown time 3 times and then countdown will begin, the
seconds will disappear off the LCD screen and the mode icon
will flash until the countdown is complete.
• Once the countdown is complete the blood pressure machine
will begin to take your blood pressure measurement.
• There will be a 30 second resting time in-between each
measurement. The unit will countdown from 30 seconds on the
LCD screen.
PARRPRO
• When the measurement is completed, the cuff will exhaust the
rest of the pressure and the single average measurement will
show on the LCD screen.
4.2C Auscultation/Manual Mode:
• Start with the power off, but with batteries or adapter inserted into
the machine.
• Power on the machine by pressing the ON/OFF button. The LCD will
show
on the screen.
• Press the “M” MODE button to select the Auscultation mode.
and will appear on the LCD screen.
AUSCULTATION
• The default setting for the deflation rate is 2.5 mmHg/second. To
change the deflation rate see “Setting Deflation Rate”.
• Press the ON/OFF button to begin the measurement.
• While the unit is deflating, press the “S” SET button to record the onset of Korotkoff sound as
the systolic pressure and then press the “S” SET button again to record the disappearance of
the Korotkoff sound as the diastolic pressure.
• When the measurement is completed, the cuff will exhaust the rest of the pressure and the
measurement will show on the LCD screen.
20
4.3 Setting Deflation Rate
In the Auscultation mode, select the deflation rate of 2.5 mmHg/sec, 4.5 mmHg/sec, 6.5 mmHg/sec
by pressing the “S” SET button.
AUSCULTATION AUSCULTATION
AUSCULTATION
4.4 Loose Cuff Detection
If the cuff was applied too loosely, it may cause unreliable measurement results or measurements
can fail to start. The “Loose Cuff Detection” can help to determine if the cuff is wrapped snugly
enough. The specified icon appears once a “loosen cuff” has been detected during the beginning
of a measurement. Otherwise the specified icon appears if the cuff is wrapped correctly during
the rest of the measurement.
4.5 Movement Detection
The “Movement Detection” helps remind the user to remain still and indicates any adverse body
movement during measurement. The specified icon appears once a “body movement” has been
detected during and after such a measurement.
Note: It’s highly recommended that you measure again if the
icon appears.
4.6 Memory Recall
This blood pressure monitor automatically stores 7 measurements in Standard Mode only.
• Start with the power off, but with batteries or adapter inserted into monitor.
• Press the ON/OFF button to turn the monitor ON. Select the mode you would like to review
the memory from by pressing the “M” MODE button.
• Once the mode is selected you will need to turn the monitor off by pressing and holding the
ON/OFF button until the LCD screen goes blank.
NOTE: You can skip this step if you did not need to change the mode when monitor was
originally turned on in step 2.
21
• Press the ON/OFF button again to turn the monitor on.
• Press the “S” SET button to enter into the Memory Recall. You will see M with a number on
the screen.
o In Standard Mode the number underneath the M indicates the stored number of
o In PulseScan Mode the M icon will display “M-A” this indicates you are reviewing
NOTE: Only 1 set of memory (Average plus the 3 consecutive readings) is saved in
o In Auscultation Mode there are no measurements stored in memory.
measurements in the memory. For example: “M-7” is 7 stored measurements. You
would press the “S” SET button to scroll through each reading. The readings are
displayed newest to oldest, 7 being the newest reading.
the average measurement of the 3 consecutive measurements last taken. When you
press the “S” SET button again, it will then display “M-3” the 3rd measurement
taken, press the “S” SET button again and it will display “M-2” displaying the 2nd
measurement taken, finally when you press the “S” SET button again the icon will
change to “M-1” displaying the 1st measurement taken in the 3 consecutive readings.
PulseScan Mode.
4.7 Clearing Values from Memory
When in Memory Recall, press and hold the “S” SET for approximately 5 seconds, the memory will
be erased automatically.
4.8 How To Clean The Unit After Use
Caution:
• When cleaning this unit, please unplug the AC adapter from the electric outlet. You may suffer
electric shock.
• After cleaning this unit, please dry it well and do not plug the AC adapter into the electric
outlet with wet hands. You may suffer electric shock.
General advice:
• Do not clean this unit with gasoline, paint thinner, or high concentration alcohol.
• Do not disinfect this unit by autoclave or gas sterilization (EOG, formaldehyde, or high concentration
ozone.)
1. Wipe the blood pressure monitor with a soft cloth squeezed well after moistened with water,
diluted disinfectant alcohol, or diluted detergent.
2. Then wipe the monitor with a soft dry cloth.
22
5. Error Messages and Malfunctions
If any abnormality should arise during use, please check the following points.
Symptoms Check Points Correction
Have the batteries run down?
No display when the ON/
OFF button is pressed
EE mark shown on
display or the blood
pressure value is
displayed excessively
low (high)
Note: If the unit still does not work, call the BIOS Medical Hotline. Under no circumstance should
you disassemble and repair the unit by yourself.
Error Codes
Symptoms Symptoms
EE / Measurement Error:
E1 / Air Circuit Abnormality:
E2 / Pressure Exceeding 300 mmHg:
E3 / Data Error:
Er / Exceeding Measurement Range:
If the errors continue to occur, call the BIOS Medical Hotline: 1-866-536-2289
Has the connector of the battery
pack been positioned incorrectly?
Is the cuff placed correctly?
Did the patient talk or move during
measurement
Did the patient vigorously shake
the cuff during measurement?
Make sure the L-plug is securely connected to the
air socket and calmly measure again. Wrap the
cuff correctly around your arm and keep arm steady
during measurement.
Make sure the L-Plug is securely connected to the
air socket on the side of the unit and calmly measure
again.
Switch the unit off and measure again quietly.
Remove the batteries, wait for 60 seconds, and
reload.
Measure again quietly.
Charge the battery pack or
replace with a new one
Re-insert the connector of
the batteries in the correct
positions.
Wrap the cuff properly so that
it is positioned correctly.
Measure again. Keep arm
steady during measurement.
23
6. Specifications*
Measurement Method :
Measurement Range :
Pressure Sensor :
Accuracy :
Inflation :
Deflation :
Memory capacity :
Auto-shut-off :
Operation Environment :
Storage and Transportation
Environment :
DC Power Source :
AC Power Source :
Dimensions :
Weight :
Limited users :
Arm circumference :
Oscillometric
Pressure: 30-260mmHg;
Pulse: 40-199 beats/ minute
Semi conductor
Pressure: ±3mmHg;
Pulse : ±5% of reading
Pump Driven
Automatic Pressure Release Valve
7 memories (standard mode)
5 minute after last key operation
10°C-40°C (50°F-104°F); 15%-85%
RH; 700-1060 hPa
-10°C-60°C (14°F-140°F); 10%-90%
RH; 700-1060 hPa
DC 4.8V 1800mAh NIMH Battery
DC 7.5V, ≥ 1.5 A(Plug size: outer(-) is
Ø3.8, inner(+) is Ø1.35)
130(L) x 133(W) x 167.5(H) mm
600 g (G.W.) (w/o Batteries)
Adult users
L: 34-46 cm (13.4”-18.1”);
M: 24-36 cm (9.4”-14.2”);
S: 16-26 cm (6.3”-10.2”)
Type BF: Device and cuff are designed to provide
special protection against electrical shocks.
*Specifications are subject to change without notice.
24
EMC Guidance and Manufacturer’s Declaration
1. This equipment needs to be installed and put into service in accordance with the information
provided in the user manual;
2. WARNING: Protable RF communications equipment (including peripherals such as antenna
cables and external antennas) should be used no closer than 30 cm (12 inches) to any part
of the BD270, including cables specified by the manufacturer. Otherwise, degradation of the
performance of this equipment could result.
If higher IMMUNITY TEST LEVELS than those specified in Table 9 are used, the minimum separation
distance may be lowered. Lower minimum separation distances shall be calculated using the
equation specified in 8.10.
Manufacturer’s declaration-electromagnetic immunity
The BD270 is intended for use in the electromagnetic environment specified below. The customer or the user of the BD270 should
Immunity test IEC 60601 test
Radiated RF
IEC 61000-4-3
IEC 60601-1-2:
2014
Table 9
assure that is used in such and environment.
Compliance
level
Portable and mobile RF communications equipment should be used
no closer to any part of the BD270 including cables, than the recommended separation distance calculated from the equation applicable
to the frequency of the transmitter. Recommended separation distance:
IEC 60601-1-2:
2014
Table 9
d = 1,2 √P, d = 1,2 √P 80MHz to 800 MHz, d = 2,3 √P 800MHz to 2,5
GHz Where P is the maximum output power rating of the transmitter
in watts (W) according to the transmitter manufacturer and d is the
recommended separation distance in metres (m). Field strengths from
fixed RF transmitters, as determined by an electromagnetic site survey,
a should be less than the compliance level in each frequency range. b
Interference may occur in the vicinity of equipment marked with the
following symbol:
Electromagnetic environment-guidance
7. 5 Year Warranty
BIOS Diagnostics™ blood pressure monitor has a 5 year warranty to be free of manufacturing
defects for the life of the original owner. This warranty does not include the inflation system
including the cuff and inflation bladder or the rechargeable battery pack. The cuff and battery is
warranted for one year. The warranty does not cover damage from misuse or tampering.
100% Satisfaction Guarantee
If at any time, you are not completely satisfied with the performance of this device, call our BIOS
Medical Hotline and speak with a customer service representative, who will make arrangements to
have the device repaired or replaced to your full satisfaction.
25
If you have questions regarding the operation of your monitor call the
BIOS Medical Hotline: 1-866-536-2289
Should repair be necessary, return the unit with all component pieces. Enclose proof of purchase
and $5.00 for return shipping and insurance. Ship the unit prepaid and insured (at owners option)
to:
a division of Thermor Ltd.
Repair Department
16975 Leslie Street
Newmarket, ON L3Y 9A1
www.biosmedical.com
Email: support@biosmedical.com
Please include your name, return address, phone number, and email address. BIOS Medical will
repair or replace (at BIOS Medical’s option) free of charge any parts necessary to correct the defect
in material or workmanship.
Please allow 10 days for repair and return shipping.
Read the instruction manual carefully before using this device, especially the safety
instructions, and keep the instruction manual for future use.
Type BF Applied part
Batteries and electronic devices must be disposed of in accordance with the locally
Applicable regulations, not with domestic waste.
IP22: Protected against solid foreign objects of 12.5 mm diameter and greater. Protected
against vertically falling water drops when the device is tilted up to 15°.
26
Loading...
